Copilot Studio Call Agent Connector

A solution that enables synchronous, deterministic orchestration of Microsoft Copilot Studio agents from Power Platform applications.

Overview

This solution addresses a current gap in the native Copilot Studio connector: the inability to wait for agent responses. The built-in connector initiates conversations asynchronously, making it impossible to orchestrate multiple agents in a deterministic workflow where each step depends on the previous agent’s response.

The solution bridges the gap by:

  1. Custom Connector accepts synchronous HTTP requests from Power Automate/Apps
  2. Azure Function acts as a middleware that:
    • Receives the synchronous request
    • Makes an asynchronous call to the Copilot Studio agent using the Agents SDK
    • Waits for the agent’s complete response
    • Returns the response synchronously to the caller
  3. Result: Your Power Automate flow can now wait for and use agent responses in subsequent steps
graph LR
    A[Power Apps/Automate] -->|Sync HTTP Call| B[Custom Connector]
    B --> C[Azure Function]
    C -->|Async Call| D[Copilot Studio Agent]
    D -->|Response| C
    C -->|Sync Response| B
    B --> A

Example Use Case: IT Service Request Workflow

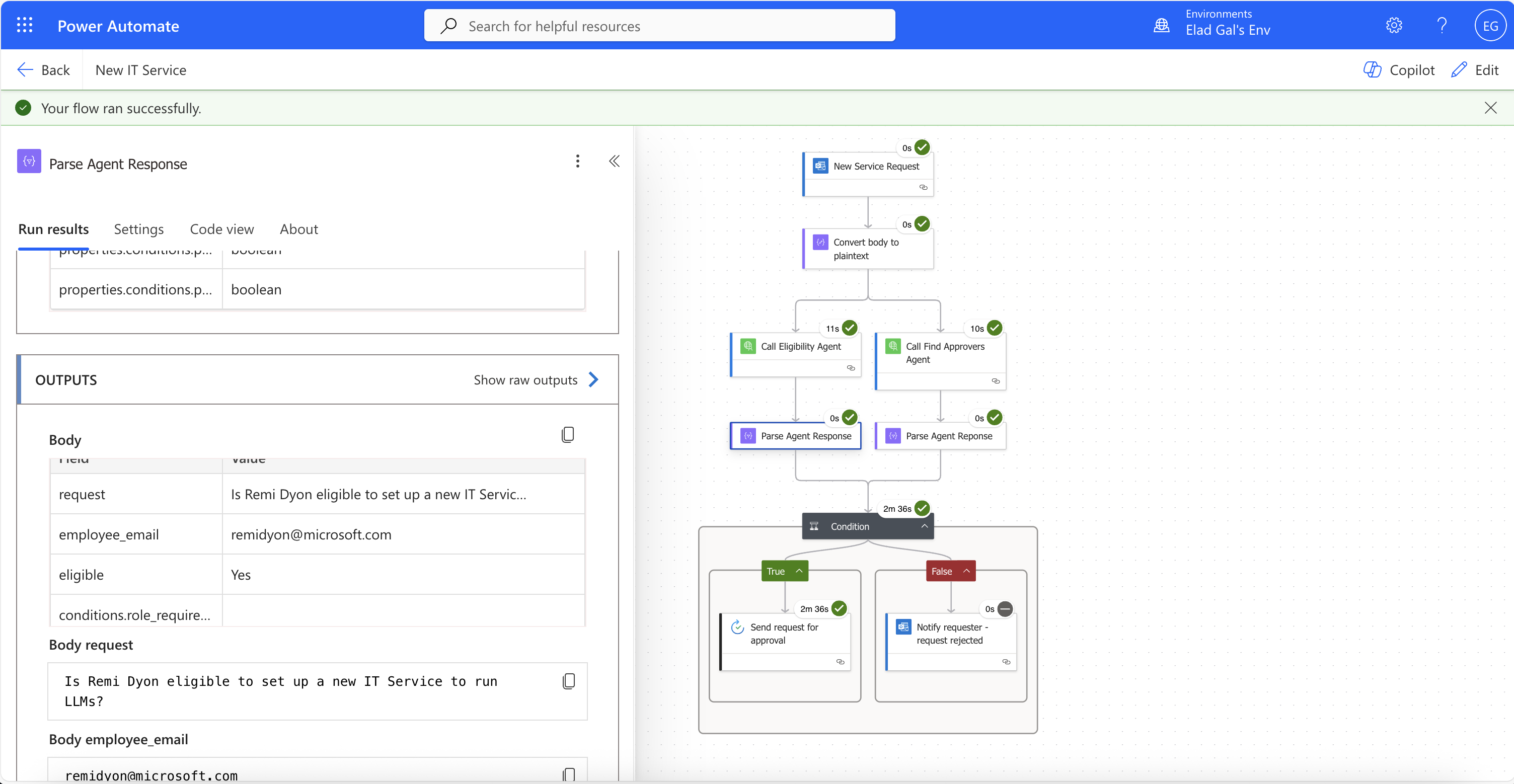

Multi-Agent Orchestration Flow

This workflow shows why synchronous agent responses are important for some automation scenarios:

What Happens:

  1. Employee Request - An employee sends a request to set up a new IT service
  2. Eligibility Agent evaluates the request and returns structured data, including the eligibility status
  3. Find Approvers Agent identifies who needs to approve this request, if eligible
  4. Conditional Logic evaluates BOTH:
    • Is the user eligible?
    • Was an approver found?
  5. If Both True: Send approval request to the identified approvers
  6. If Either False: Notify requester with specific rejection reason (not eligible OR no approver found)

Setup Guide

Follow these steps in order:

Component Description Setup Guide Order
Azure Function SyncToAsyncService that bridges synchronous and asynchronous calls SyncToAsyncService/README.md 1️⃣
Custom Connector Power Platform connector that calls the Azure Function Connector/README.md 2️⃣
