Copilot Studio + Assistant UI Integration Sample

This project demonstrates how to integrate Copilot Studio with Assistant UI to create a modern, responsive chat interface with AI capabilities.

Overview

This sample showcases:

Integration between Copilot Studio and the Assistant UI framework
Single sign-on authentication using Microsoft Authentication Library (MSAL)
Multiple conversation threads

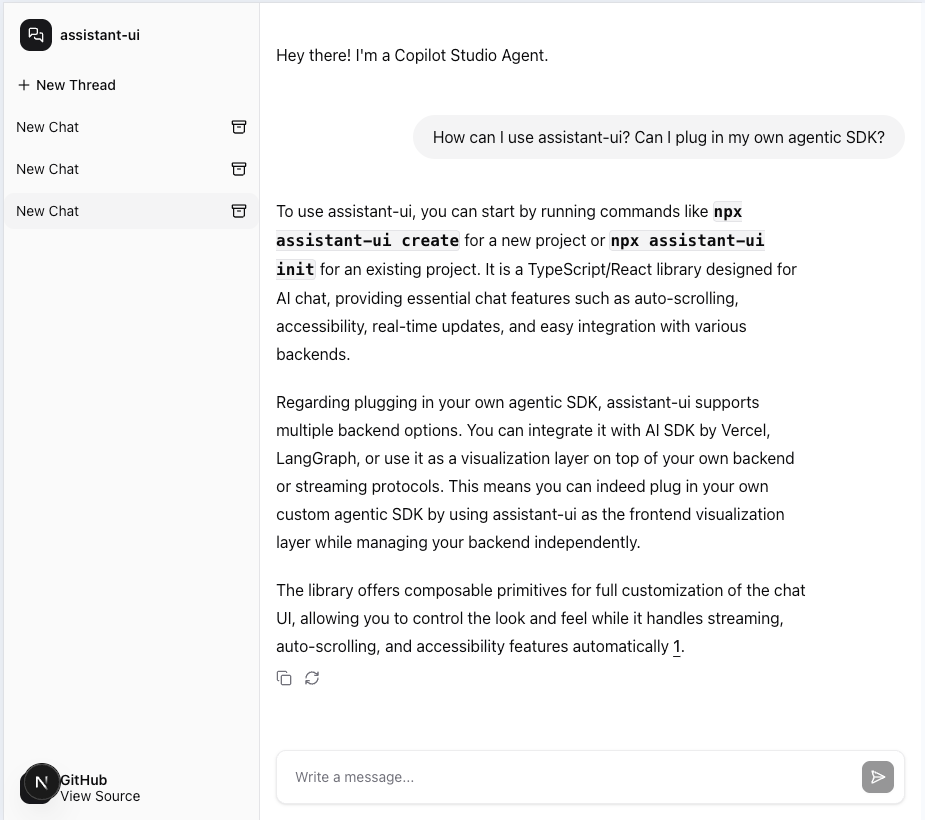

Screenshot of the Assistant UI with Copilot Studio

Prerequisites

A Copilot Studio agent with “Authenticate with Microsoft” enabled
Microsoft Entra ID app registration with appropriate permissions
Node.js (v18 or later)
npm, yarn, pnpm, or bun package manager

Setup Instructions

1. Microsoft Entra ID App Registration

Create an App Registration in the Microsoft Entra admin center
Configure authentication:
- Click on Add a platform
- Select Single-page application (SPA)
- Enter the redirect URI where your application will be hosted (e.g., http://localhost:3000 for local testing)
- Click Configure
Configure API permissions:
- Navigate to API permission > Add permissions
- Select APIs my organization uses, and search for Power Platform API
- Select Delegated permissions > Copilot Studio > Copilot Studio.Copilots.Invoke permission
- Click Add Permissions
- Grant admin consent for your directory
Navigate to Overview and record your app registration’s client ID and tenant ID

2. Get Copilot Studio Agent Metadata

In Copilot Studio, select your agent
Navigate to Settings > Advanced
Under Metadata, locate the Schema name and Environment ID
Record these values for configuration

3. Configure the React Application

Clone this repository and navigate to the project directory:

git clone https://github.com/microsoft/CopilotStudioSamples
cd CopilotStudioSamples/AssistantUICopilotStudioClient/assistant-ui-mcs

Install dependencies:

npm install
# or
yarn install
# or
pnpm install
# or
bun install

Create a .env.local file in the root of the project and add the following environment variables:

NEXT_PUBLIC_CLIENT_ID=<your-client-id-from-app-registration>
NEXT_PUBLIC_TENANT_ID=<your-tenant-id-from-app-registration>
NEXT_PUBLIC_AGENT_SCHEMA=<your-schema-name-from-copilot-studio>
NEXT_PUBLIC_ENVIRONMENT_ID=<your-environment-id-from-copilot-studio>
NEXT_PUBLIC_CLOUD_ENVIRONMENT=<optional-cloud-environment>

Replace the placeholders with the values obtained from the previous steps.

Start the development server:

npm run dev
# or
yarn dev
# or
pnpm dev
# or
bun dev

Open your browser and navigate to http://localhost:3000 to see the application in action.
You will be prompted to sign in with Microsoft credentials
After successful authentication, the chat interface will connect to your Copilot Studio agent
Start chatting with your agent!

Project Structure

/app - Next.js application routes
/components - React components including:
- /components/assistant-ui - Assistant UI integration components
- /components/copilot-studio-runtime-provider.tsx - Core integration logic between Copilot Studio and Assistant UI
- /components/citation-link-handler.tsx - Handler for citation links to open in new tabs
/lib - Utility functions for authentication and settings
/public - Static assets

Troubleshooting

Authentication issues: Ensure your app registration has the correct permissions and admin consent
- Check browser developer tools (F12) for specific error messages - most Azure authentication errors will appear here
- Look for environment variable loading issues in the console logs, which will show the exact values being used
Connection issues: Verify your environment ID and agent schema values are correct in your .env.local file
Silent authentication failures: If you encounter iframe-related errors in the console, check that third-party cookies are not being blocked by your browser

Additional Resources

License

This project is licensed under the MIT License - see the LICENSE file for details.
