Copilot Studio Agent Side Panel for SharePoint

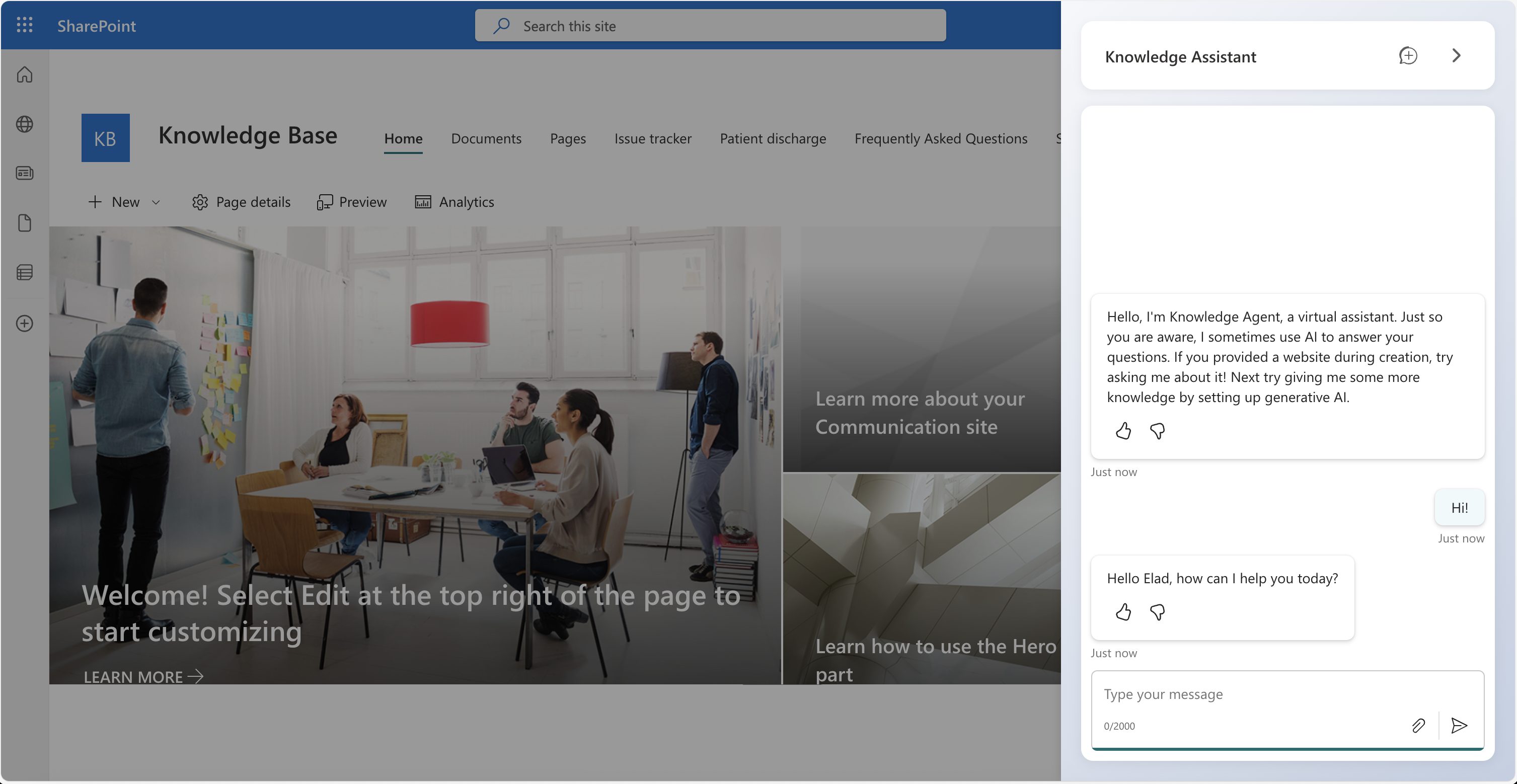

Copilot Studio Agent in SharePoint

Summary

This sample demonstrates how to integrate a Microsoft Copilot Studio agent into SharePoint using a SharePoint Framework (SPFx) Application Customizer. It leverages the ReactWebChat component with the Fluent UI theme pack and the Microsoft 365 Agents SDK for NodeJS/TypeScript to establish a secure connection with a Copilot Studio agent configured with ‘Authenticate with Microsoft’.

The key advantage of using the Microsoft 365 Agents SDK is its ability to connect to agents that support Microsoft authentication, which enables tenant graph grounding capabilities.

⚠️ This is an open-source reference sample only.
For production deployments, we strongly recommend using the built-in SharePoint channel in Copilot Studio.

Features of this sample

  • Single Sign-On (SSO): Leverages the current user’s SharePoint authentication for seamless agent access
  • Sliding Panel UI: Modern, responsive chat interface that slides in from the right side of the page
  • Customizable Appearance: Configure header color and agent title to match your branding
  • New Conversation Support: Users can start fresh conversations without leaving the page
  • Fluent UI Styling: Uses the Fluent UI theme pack for a native Microsoft 365 look and feel
  • Tenant Graph Grounding: Enables the agent to access and search Microsoft 365 content through tenant graph grounding

Prerequisites

Before you begin, ensure you have the following:

  1. Published Copilot Studio Agent
  2. Azure Portal Access
    • Required for creating and configuring app registrations
    • Permissions to create new app registrations in your Azure AD tenant
  3. SharePoint Administrator Access
    • Required to deploy the SPFx extension to the app catalog
  4. Development Environment
    • Node.js v22 (as per SPFx 1.21.1 requirements)
    • npm or yarn package manager
    • Git for cloning the repository

Technical Architecture

This solution uses:

Setup Instructions

Step 1: Configure App Registration

This step requires permissions to create application identities in your Azure tenant. For this sample, create a Native Client Application Identity (no secrets required):

  1. Open Azure Portal
  2. Create a new App Registration
    • Click App registrations → New registration
    • Provide a Name (e.g., “SharePoint Copilot Studio Agent”)
    • Choose “Accounts in this organization directory only”
    • Under Redirect URI:
      • Select “Single-page application” from the platform dropdown
      • Enter your first SharePoint site URL without the trailing slash (e.g., https://contoso.sharepoint.com/sites/mysite)
    • Click Register
  3. Configure Authentication - Add SharePoint URLs
    • Go to Authentication in the Manage section
    • Under Single-page application, add redirect URIs:
      • https://localhost:4321 (only if you plan to test locally - this is the default SPFx port)
      • For each SharePoint site where you’ll deploy the extension, add:
        • The site URL without trailing slash (e.g., https://contoso.sharepoint.com/sites/mysite)
    • Under Implicit grant and hybrid flows, ensure both checkboxes are unchecked (SPAs use PKCE flow)
    • Click Save

    Example for multiple sites:

    https://localhost:4321 (for local testing - default SPFx port)
https://contoso.sharepoint.com/sites/hr
https://contoso.sharepoint.com/sites/finance
https://contoso.sharepoint.com/sites/it
  4. Configure API Permissions
    • In your new application, go to API Permissions in the Manage section
    • Click Add Permission
    • In the side panel, click the APIs my organization uses tab
    • Search for “Power Platform API” or use the GUID 8578e004-a5c6-46e7-913e-12f58912df43
    • Under Delegated permissions, expand CopilotStudio and check:
      • CopilotStudio.Copilots.Invoke
    • Click Add Permissions
    • (Optional) Click Grant admin consent for your organization
  5. Note Required Values
    • On the Overview page, copy and save:
      • Application (client) ID (e.g., 12345678-1234-1234-1234-123456789012)
      • Directory (tenant) ID (e.g., 87654321-4321-4321-4321-210987654321)

If you don’t see “Power Platform API” in the list, you need to add it to your tenant first. See Power Platform API Authentication and follow Step 2 to add the API.

Step 2: Get Copilot Studio Configuration

  1. Open your Copilot Studio environment
  2. Navigate to your published agent
  3. Ensure the agent is configured with ‘Authenticate with Microsoft’
  4. Optionally enable tenant graph grounding for Microsoft 365 content access

  5. Collect the required configuration values using one of these methods:

    Option A: Get Direct Connect URL (Recommended)

    • Go to Channels → Web app
    • Under Microsoft 365 Agents SDK, copy the Connection string
    • This will look like: https://xxxxxxx.07.environment.api.powerplatform.com/...

    Option B: Get Environment ID and Agent Identifier

    • Go to Settings → Advanced → Metadata
    • Copy the following values:
      • Environment ID
      • Schema name (this is your Agent Identifier, e.g., cr770_myAgent)

Step 3: Clone the Repository

git clone https://github.com/microsoft/CopilotStudioSamples.git
cd CopilotStudioSamples/ui/embed/sharepoint-customizer

Step 4: Configure the Extension

  1. Open sharepoint/assets/elements.xml in your editor
  2. Update the ClientSideComponentProperties with your values:
ClientSideComponentProperties="{
    "appClientId": "YOUR_APP_CLIENT_ID",
    "tenantId": "YOUR_TENANT_ID",
    "environmentId": "YOUR_ENVIRONMENT_ID",
    "agentIdentifier": "YOUR_AGENT_IDENTIFIER",
    "directConnectUrl": "YOUR_DIRECT_CONNECT_URL",
    "showTyping": true,
    "headerBackgroundColor": "white",
    "agentTitle": "Copilot Studio Agent"
}"

Configuration Options:

Property Required Description Default
appClientId Yes Your Azure AD app registration client ID -
tenantId Yes Your Azure AD tenant ID -
environmentId Conditional Copilot Studio environment ID (required if not using directConnectUrl) -
agentIdentifier Conditional Your agent’s identifier (required if not using directConnectUrl) -
directConnectUrl Conditional Direct connection URL (use this OR environmentId + agentIdentifier) -
showTyping No Show typing indicators true
headerBackgroundColor No Header bar color (accepts any CSS color value) white
agentTitle No Display title for the agent "Copilot Studio Agent"

You must provide either directConnectUrl OR both environmentId and agentIdentifier.

Step 5: Test Locally (Optional)

Before building and deploying, you can test the extension locally:

# Install dependencies
npm install

# Check if gulp is installed, if not, install it
which gulp || npm install -g gulp-cli
# On Windows, use: where gulp || npm install -g gulp-cli

# Serve the solution locally
gulp serve --nobrowser

After running gulp serve, navigate to the following URL (replace the values with your configuration):

https://YOUR-TENANT.sharepoint.com/sites/YOUR-SITE/SitePages/Home.aspx?debugManifestsFile=https://localhost:4321/temp/build/manifests.js&loadSPFX=true&customActions={%224c6e29f2-7eee-4f9f-bbd2-20c8859d0ba2%22:{%22location%22:%22ClientSideExtension.ApplicationCustomizer%22,%22properties%22:{%22appClientId%22:%22YOUR_APP_CLIENT_ID%22,%22tenantId%22:%22YOUR_TENANT_ID%22,%22directConnectUrl%22:%22YOUR_DIRECT_CONNECT_URL%22,%22showTyping%22:true,%22headerBackgroundColor%22:%22white%22,%22agentTitle%22:%22Your%20Agent%20Title%22}}}
  • Replace YOUR-TENANT, YOUR-SITE, YOUR_APP_CLIENT_ID, YOUR_TENANT_ID, and YOUR_DIRECT_CONNECT_URL with your actual values
  • Ensure you’ve added https://localhost:4321 to your app registration’s redirect URIs if testing locally

Step 6: Build and Package

Once you’ve tested locally (or if you’re ready to deploy directly):

# Build the solution
gulp build

# Bundle the solution
gulp bundle --ship

# Package the solution
gulp package-solution --ship

This will create a .sppkg file in the sharepoint/solution folder.

Step 7: Deploy to SharePoint

Upload the .sppkg file from sharepoint/solution to your SharePoint App Catalog. For detailed instructions on creating an app catalog, deploying apps, and adding them to sites, see Add custom apps to SharePoint.

Troubleshooting

“Unable to acquire token” error

If you encounter this error:

  1. Open your browser’s Developer Tools (F12)
  2. Go to the Network tab
  3. Look for failed authentication requests (usually to login.microsoftonline.com)
  4. Click on the failed requests to see detailed error messages
  5. Follow the authentication URLs that MSAL is attempting - the actual error details are often revealed in the response or redirect parameters

Common causes:

  • Missing or incorrect redirect URIs in your app registration (check for trailing slashes!)
  • Incorrect permissions in the app registration (ensure CopilotStudio.Copilots.Invoke is granted)
  • Incorrect tenant ID or client ID
  • MSAL authentication flow being blocked by browser settings

“The redirect URI specified in the request does not match the redirect URIs configured for the application” error

Check that the current SharePoint URL has been added as an allowed redirect URI for the provided app registration.

Additional Resources

License

This project is licensed under the MIT License - see the LICENSE file for details.
