D3D12: DirectX Dump Files

v0.01 12 Mar 2026

Contents

Terms and Acronyms

| Term | Definition | |——————–|————————————————————————————————————————————————————————————————————————-| | TDR | Timeout Detection and Recovery, a feature in Windows that detects when the GPU is taking longer than expected to complete an operation. It then resets the GPU to prevent the entire system from becoming unresponsive. | | dxgkrnl | GPU scheduler, a component of the DirectX graphics kernel subsystem in Windows, responsible for timeout detection and recovery | | LKD | Live kernel dump, a TDR LKD created by dxgkrnl on a TDR | | DirectX Dump Files | Application specific GPU dumps created by DirectX that this spec describes | | ISV | Xbox and PC game developer, or author of other applications using DirectX, aka “software developer” | | IHV | Independent Hardware Vendor, aka “GPU manufacturer” or “hardware developer” | | D3D12 runtime | D3D12Core.dll in Agility SDK or in Windows OS | | Developer scenario | The one where a D3D12 application is running at a company developing it | | Retail scenario | The one where an end user is running a D3D12 application they did not develop | | Overhead | Reduced frame rate or increased memory consumption due to extra mechanisms enabled for debugging purposes while the application is running |

Overview

TDR live kernel dumps (LKDs) are created currently as part of the timeout detection and recovery (TDR) process. However, these dumps are not accessible for timeout investigations to game developers or authors of other applications (ISVs) utilizing DirectX. Since these dumps are created by dxgkrnl, a component of the DirectX graphics kernel subsystem, they may contain kernel memory and optionally user memory of all the processes, which cannot be shared with ISVs.

Additionally, there can be other graphics issues that may not cause a timeout but may result in a device error either by the graphics kernel or by the D3D12 runtime. These are referred to as software device removals. The ability to investigate using dumps is immensely helpful in these cases as well.

This spec outlines new DirectX functionality to create application specific GPU dumps called DirectX dump files. The dumps are always generated on Windows OS versions that send a notification on device errors and do not need any setting to be turned on. These dumps are available to ISVs in both development and retail scenarios.

This work will be extended to support live debugging of shaders on device errors and other scenarios. It will be available to ISVs exclusively in the development scenario. Spec updates and implementation will be done after implementing support for application specific GPU dumps.

System Workflow

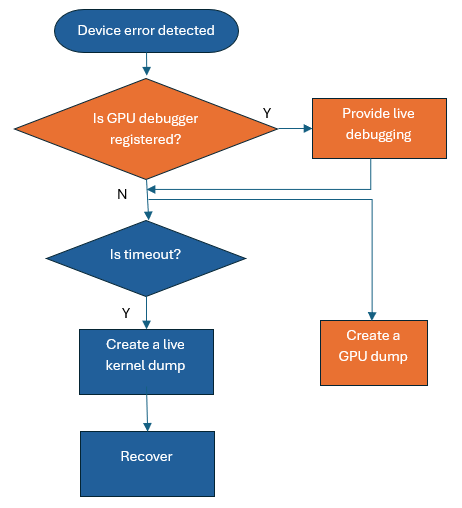

This diagram illustrates the device error workflow at a high level. Blue boxes indicate existing functionality and orange boxes denote new functionality.

High-level workflow

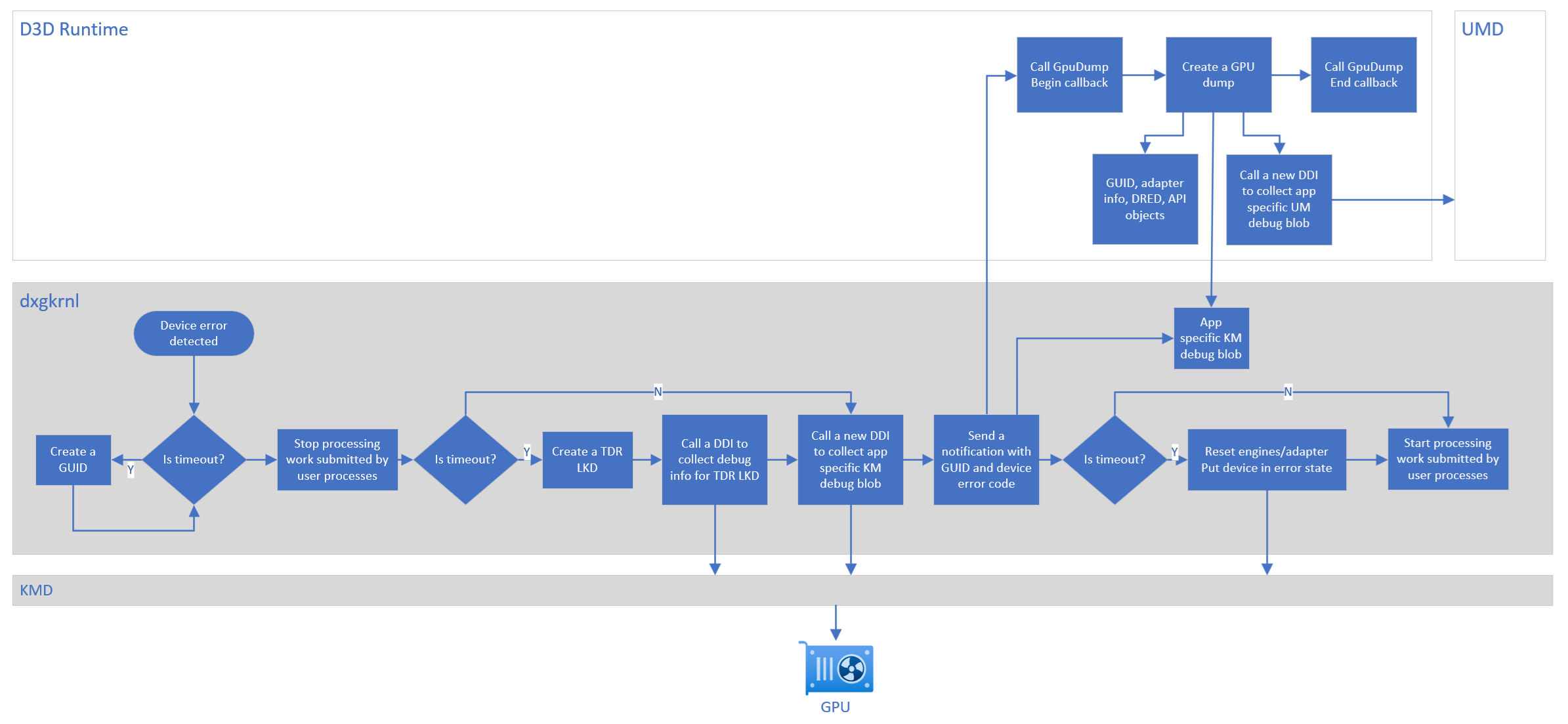

Here is an in-depth view and description of the device error workflow that explain how things flow between Windows OS, D3D Runtime and drivers to create the DirectX dump file. Additional information regarding live debugging will be provided once that feature work commences. Detailed workflow

The GPU dumps are uploaded to Watson and made available to ISVs and IHVs. PIX is updated to open these GPU dumps for postmortem debugging. It uses the PIX plugin model to analyze information in the GPU debug blob.

GPU Debug Manager

This spec focuses on updates to the D3D12 runtime. We are adding a GPU Debug Manager to the Agility SDK that creates application specific GPU dumps which ISVs can use for postmortem debugging.

We are updating D3D12Core.dll to add the GPU Debug Manager and not creating a new DLL. This is to make diagnostic the first-class citizen and avoid having no dump when the application does not load a new DLL. This also avoids the compliance cost associated with adding a new DLL to Windows OS. We are hoping that GPU Debug Manager functionality won’t increase D3D12Core.dll size significantly. If it adds more than a few MBs then we will revisit this and check if it makes sense to put this functionality in a separate DLL.

Device Error

D3D12 runtime receives a notification after

  1. a timeout
  2. dxgkrnl software device error
  3. D3D12 device error.

Spec revisions and implementation for 2 and 3 will be done after implementing 1 above.

The device error notification contains the GUID (if created) and the device error code.

DirectX Dump File Creation

D3D12 runtime generates the GPU dump file on a device error. In other words, the GPU dump is always created in both developer and retail scenarios on Windows OS versions that send a notification on a device error.

Settings

reg add "HKEY_CURRENT_USER\Software\Microsoft\Direct3D\Direct3D12" /v RetainGpuDump /t REG_DWORD /d 1 /f

reg add "HKEY_CURRENT_USER\Software\Microsoft\Direct3D\Direct3D12" /v GpuDumpDriverOptions /t REG_DWORD /d 1 /f

Callbacks

D3D12 runtime supports two callbacks in the application code.

Dump file

D3D12 runtime creates a GPU dump and writes the following information:

  1. GUID created by dxgkrnl in the dump. This helps correlate the live kernel dump (LKD) to the user mode GPU dump, if required internally or by IHVs for deeper investigations.
  2. Application identity
  3. Adapter information
  4. API objects
  5. DRED info
  6. Device error details. These details consist of the new device error code and full call stack.
  7. Application blob added by calling AddBlobToGpuDump
  8. GPU debug blob containing kernel mode diagnostic information specific to the application
  9. GPU debug blob containing user mode diagnostic information
  10. Metadata such as D3D12 runtime version, a bit indicating if the dump should be in the Watson upload cab etc.

Key points about the dump file name, extension, and path:

The dump is available to the ISV locally when the setting to retain it locally is turned on. This can be done in the developer scenario. Otherwise, the dump is uploaded to Watson using a WER event. The dump can be opened in PIX for postmortem debugging in both the scenarios.

Reconcile device error codes

A new enum is added to dxgkrnl for device error codes and a corresponding new D3D12_DEVICE_ERROR_CODE enum is added to the D3D12 runtime. GetDeviceErrorCode API is provided to query the new device error code in the application.

GPU Debug Blobs

Debug blobs are utilized to collect application-specific GPU diagnostic information from both the kernel mode and user mode. The kernel mode debug blob is collected using a new DDI pfncollectprocessdebugblob. The user mode debug blob is collected by a new pfnGetDebugBlob DDI.

It is recommended that the kernel mode blob contains the following information. Some of this information may be included in the user mode blob instead if it is available in user mode. The user mode debug blob may also include other IHV specific data. The IHV has full control over the format of these blobs, as Microsoft enforces no requirements and D3D12 runtime or dxgkrnl do not process their contents. PIX Plugin implemented by the IHV decodes these blobs during postmortem debugging.

  1. Registers (from various categories e.g. debug, status, perf etc.) of various GPU blocks used by the application when a device error occurred. This information helps auto detect the cause of the device error at the GPU level during postmortem debugging in PIX.
  2. Registers that help identify last completed and first incomplete draws and dispatches of the application when a device error occurred. This information helps to know till what point the frame progressed before the device error.
  3. Shader registers of the waves that correspond to the application when a device error occurred. This also includes per wave and per lane registers. This information helps to know the instruction pointer location, execution mask, corrupt descriptors, if the shader was stuck or moving, hit a fatal error, threw an exception, and so on which in turn helps auto detect the cause of the device error.
  4. Shader memory of the waves that correspond to the application when a device error occurred. This information enables showing ISA of the application shaders. More importantly, this along with the information from #3 helps pinpoint the shader location causing the device error.
  5. PSO key/shader identifier that helps map ISA to HLSL files. It also helps map ISA variables, lines and functions to corresponding HLSL information.
  6. Command list buffers containing API calls including call parameters, user markers and optionally driver events. This information allows reconstructing frames and populating the event list during postmortem debugging in PIX. It is also very helpful in detecting errors in command buffers including command list buffer corruption.
  7. Fence writeback values from memory. This information helps detect fence synchronization issues that might cause a device error.

Proposed API/DDI

API

ID3D12DeviceExperimental

typedef UINT (*D3D12_GPUDUMPBEGINCALLBACK)(UINT64 flags);
typedef void (*D3D12_GPUDUMPENDCALLBACK)(const wchar_t* pDumpPath);

typedef enum D3D12_GPU_DUMP_DRIVER_TIER
{
    D3D12_GPU_DUMP_DRIVER_TIER_NOT_SUPPORTED,
    D3D12_GPU_DUMP_DRIVER_TIER_1,               // Supports only the MEDIUM_OVERHEAD and/or HIGH_OVERHEAD options
    D3D12_GPU_DUMP_DRIVER_TIER_2,               // Supports NO_OVERHEAD and one or more additional options like SHADER_REGISTERS or RESOURCES
} D3D12_GPU_DUMP_DRIVER_TIER;

typedef enum D3D12_GPU_DUMP_DRIVER_OPTIONS
{
    D3D12_GPU_DUMP_DRIVER_OPTION_NO_OVERHEAD        = 0x1,   // Track driver data with no overhead. This is the default.
    D3D12_GPU_DUMP_DRIVER_OPTION_MEDIUM_OVERHEAD    = 0x2,   // Track driver data with medium overhead. It is up to the driver exactly what data this includes.
    D3D12_GPU_DUMP_DRIVER_OPTION_HIGH_OVERHEAD      = 0x4,   // Track driver data with high overhead. It is up to the driver exactly what data this includes.
    D3D12_GPU_DUMP_DRIVER_OPTION_NO_DATA            = 0x8,   // Track and collect no data from the driver. All other options are ignored if this is specified.
    D3D12_GPU_DUMP_DRIVER_OPTION_SHADER_REGISTERS   = 0x10,  // Track shader general purpose registers
    D3D12_GPU_DUMP_DRIVER_OPTION_RESOURCES          = 0x20,  // Track resources as the application executes and collect existing and recently deleted resources in the dump
    D3D12_GPU_DUMP_DRIVER_OPTION_EVENT_MARKERS      = 0x40,  // Track application and driver event markers as the application executes
} D3D12_GPU_DUMP_DRIVER_OPTIONS;
DEFINE_ENUM_FLAG_OPERATORS( D3D12_GPU_DUMP_DRIVER_OPTIONS )

typedef enum D3D12_DEVICE_ERROR_CODE
{
    D3D12_DEVICE_ERROR_NONE         = 0,
    D3D12_DEVICE_ERROR_DEVICE_HUNG  = 7,
    D3D12_DEVICE_ERROR_PAGE_FAULT   = 9,
    D3D12_DEVICE_ERROR_UNKNOWN      = 0x88000000,
} D3D12_DEVICE_ERROR_CODE;

interface ID3D12DeviceExperimental : IUnknown
{
    HRESULT ConfigureGpuDump(
      [annotation("_In_")] D3D12_GPU_DUMP_DRIVER_OPTIONS driverOptions);

    void SetGpuDumpCallbacks(
      [annotation("_In_")] D3D12_GPUDUMPBEGINCALLBACK pBeginCallback,
      [annotation("_In_")] D3D12_GPUDUMPENDCALLBACK pEndCallback);

    HRESULT AddBlobToGpuDump(
      [annotation("_In_")] void* pBlob,
      [annotation("_In_")] UINT sizeBytes,
      [annotation("_In_")] UINT64 metadata);

    void RetainGpuDump(
      [annotation("_In_")] BOOL retain);

    D3D12_DEVICE_ERROR_CODE GetDeviceErrorCode();
};

D3D12_GPUDUMPBEGINCALLBACK

D3D12_GPUDUMPBEGINCALLBACK is a pointer to the application side callback function. It is called by D3D12 runtime at the beginning of GPU dump creation. Return value of the callback determines if the dump should be created; 1 indicates that the GPU dump should be created and 0 indicates that the dump shouldn’t be created. Note that this does not alter LKD creation by dxgkrnl. This callback can be used to add application side information to the dump. See AddBlobToGpuDump.

flags is currently unused but reserved for future use.

D3D12_GPUDUMPENDCALLBACK

D3D12_GPUDUMPENDCALLBACK is a pointer to the application side callback function. It is called by D3D12 runtime at the end of GPU dump creation. This callback can be used to copy the dump file to another location and other processing post GPU dump creation.

pDumpPath points to the path of the dump file created by D3D12 runtime.

D3D12_GPU_DUMP_DRIVER_TIER

Different tiers in D3D12_GPU_DUMP_DRIVER_TIER represent different GPU dump options specific to the driver. The IHV has discretion to enable individual options within each tier, provided they remain within the tier’s specified overhead limits. Note that this is different from other feature tiers in D3D12.

D3D12_GPU_DUMP_DRIVER_OPTIONS

D3D12_GPU_DUMP_DRIVER_OPTION_NO_OVERHEAD is an option that informs the driver to track data that has no overhead as the application executes and collect it in the GPU dump. D3D12 runtime sets this by default.

D3D12_GPU_DUMP_DRIVER_OPTION_MEDIUM_OVERHEAD is an option that informs the driver to track data that has medium overhead as the application executes and collect it in the GPU dump. This can be set if D3D12_GPU_DUMP_DRIVER_TIER_1 is supported. The selection of individual options is determined by the IHV. Direct3D does not offer a mechanism to query these specific options, as a direct one-to-one correspondence between driver settings and D3D options may not exist. If multiple overhead options are specified then the higher overhead option takes effect. e.g. if D3D12_GPU_DUMP_DRIVER_OPTION_NO_OVERHEAD and D3D12_GPU_DUMP_DRIVER_OPTION_MEDIUM_OVERHEAD are specified then D3D12_GPU_DUMP_DRIVER_OPTION_MEDIUM_OVERHEAD is used.

D3D12_GPU_DUMP_DRIVER_OPTION_HIGH_OVERHEAD is an option that informs the driver to track data that has high overhead as the application executes and collect it in the GPU dump. This can be set if D3D12_GPU_DUMP_DRIVER_TIER_1 is supported. The selection of individual options is determined by the IHV. Direct3D does not offer a mechanism to query these specific options, as a direct one-to-one correspondence between driver settings and D3D options may not exist. If multiple overhead options are specified then the higher overhead option takes effect. e.g. if D3D12_GPU_DUMP_DRIVER_OPTION_MEDIUM_OVERHEAD and D3D12_GPU_DUMP_DRIVER_OPTION_HIGH_OVERHEAD are specified then D3D12_GPU_DUMP_DRIVER_OPTION_HIGH_OVERHEAD is used.

D3D12_GPU_DUMP_DRIVER_OPTION_NO_DATA is an option that informs the driver to track and collect no data. All other options are ignored in this case. The GPU dump contains data from D3D12 runtime only in this case.

D3D12_GPU_DUMP_DRIVER_OPTION_SHADER_REGISTERS is an option that informs the driver to collect shader general purpose registers in the GPU dump. These registers are used to store variable values while the shaders are executing. This may need significant amount of memory depending on the number of shader waves present at the dump creation time.

D3D12_GPU_DUMP_DRIVER_OPTION_RESOURCES is an option that informs the driver to track resources as the application executes and collect existing and recently deleted resources in the GPU dump. This may have significant performance overhead while the application is executing and may increase the GPU dump size significantly. It is advisable to set this flag only during the development scenario.

D3D12_GPU_DUMP_DRIVER_OPTION_EVENT_MARKERS is an option that informs the driver to track application and driver markers. This may have significant performance overhead while the application is executing.

ConfigureGpuDump

ConfigureGpuDump() is used to configure the amount of data tracked and/or collected in the GPU dump. Some of these options may have performance overhead which means the application may run at a lower frame rate. Some of these options may additionally or alternatively have memory overhead which means the dump file size may increase significantly. Currently, this API has options to control the data in the driver but in the future, it may be extended to control the data in D3D12 runtime.

SetGpuDumpCallbacks

SetGpuDumpCallbacks() is used to set application code callbacks to be invoked at the time of a device error.

AddBlobToGpuDump

AddBlobToGpuDump() is used to add a memory blob and metadata to the GPU dump. This API should be called only from D3D12_GPUDUMPBEGINCALLBACK at the time of a device error. It can be called multiple times to add multiple blobs to the dump. Passing unique metadata for each blob helps identifying them easily during postmortem debugging. Applications can reclaim the blob memory after calling this API. A limit of 2 MB is enforced on the total sizes of blobs plus metadata.

pBlob is the virtual address of the blob.

sizeBytes is the size of the blob in bytes.

metaData is the application defined metadata to associate with the blob.

RetainGpuDump

RetainGpuDump() is used to retain GPU dumps locally instead of uploading them to Watson. Retaining dumps locally is off by default. This setting persists until it is turned off, the device is recreated or the application is closed. It is also exposed through PIX and D3DConfig.

GetDeviceErrorCode

GetDeviceErrorCode() is used to query the code that provides more details about the device error.

D3D12_FEATURE_GPU_DUMP

D3D12_FEATURE_GPU_DUMP is added to define a cap for the feature that creates a GPU dump.

typedef struct D3D12_FEATURE_DATA_GPU_DUMP
{
    [annotation("_Out_")] BOOL Supported;                         // A GPU dump is created if the OS sends a notification on device errors, including timeouts
    [annotation("_Out_")] D3D12_GPU_DUMP_TIER GpuDumpTier;
    [annotation("_Out_")] UINT GpuDumpDeviceSpecificOptionsMask;  // Bits corresponding to the driver supported options in D3D12_GPU_DUMP_DRIVER_OPTIONS are set
    [annotation("_Out_")] BOOL SupportedByKernelDriver;           // If the kernel mode driver supports collecting diagnostic information on a timeout, it is added to the GPU dump
} D3D12_FEATURE_DATA_GPU_DUMP;

typedef enum D3D12_FEATURE
{
    D3D12_FEATURE_D3D12_OPTIONS =  0,
    D3D12_FEATURE_ARCHITECTURE  =  1, // Deprecated by D3D12_FEATURE_ARCHITECTURE1
    ...
    D3D12_FEATURE_GPU_DUMP      = 71,

DDI

D3D12DDI_GPU_DUMP_FUNCS_0121

typedef struct D3D12DDI_GPU_DUMP_FUNCS_0121
{
    PFND3D12DDI_SET_GPU_DUMP_OPTIONS_0121 pfnSetGpuDumpOptions;
    PFND3D12DDI_GET_DEBUG_BLOB_INFO_0121  pfnGetDebugBlobInfo;
    PFND3D12DDI_GET_DEBUG_BLOB_0121       pfnGetDebugBlob;
} D3D12DDI_GPU_DUMP_FUNCS_0121;

DDI rev 121 adds pfnSetGpuDumpOptions, pfnGetDebugBlobInfo and pfnGetDebugBlob that D3D12 runtime can call to configure the driver for GPU dumps, get the GPU debug blob size and get the GPU debug blob, respectively. This blob contains user mode GPU diagnostic information.

pfnSetGpuDumpOptions

typedef enum D3D12DDI_GPU_DUMP_TIER_0121
{
    D3D12DDI_GPU_DUMP_TIER_NOT_SUPPORTED,
    D3D12DDI_GPU_DUMP_TIER_1,               // Supports only the MEDIUM_OVERHEAD and/or HIGH_OVERHEAD options
    D3D12DDI_GPU_DUMP_TIER_2,               // Supports NO_OVERHEAD and one or more additional options like SHADER_REGISTERS or RESOURCES
} D3D12DDI_GPU_DUMP_TIER_0121;

typedef enum D3D12DDI_GPU_DUMP_OPTIONS_0121
{
    D3D12DDI_GPU_DUMP_OPTION_NO_OVERHEAD        = 0x1,   // Collect data with no tracking overhead
    D3D12DDI_GPU_DUMP_OPTION_MEDIUM_OVERHEAD    = 0x2,   // Collect data with medium tracking overhead, it is up to the IHV exactly what data this includes
    D3D12DDI_GPU_DUMP_OPTION_HIGH_OVERHEAD      = 0x4,   // Collect data with high tracking overhead, it is up to the IHV exactly what data this includes
    D3D12DDI_GPU_DUMP_OPTION_NO_DATA            = 0x8,   // Collect nothing in the driver, useful to stop tracking if only TIER_1 is supported
    D3D12DDI_GPU_DUMP_OPTION_SHADER_REGISTERS   = 0x10,  // Collect shader general purpose registers
    D3D12DDI_GPU_DUMP_OPTION_RESOURCES          = 0x20,  // Track resources as the application executes and collect existing and recently deleted resources during blob creation
    D3D12DDI_GPU_DUMP_OPTION_EVENT_MARKERS      = 0x40,  // Track application and driver event markers as the application executes
} D3D12DDI_GPU_DUMP_OPTIONS_0121;
DEFINE_ENUM_FLAG_OPERATORS( D3D12DDI_GPU_DUMP_OPTIONS_0121 )

typedef HRESULT ( APIENTRY* PFND3D12DDI_SET_GPU_DUMP_OPTIONS_0121 )(
    _In_ D3D12DDI_HDEVICE hDrvDevice,
    _In_ D3D12DDI_GPU_DUMP_OPTIONS_0121 options);

Different tiers in D3D12DDI_GPU_DUMP_TIER_0121 represent different GPU dump options specific to the driver. The IHV has discretion to enable individual options within each tier, provided they remain within the tier’s specified overhead limits. Note that this is different from other feature tiers in D3D12.

D3D12DDI_GPU_DUMP_OPTION_NO_OVERHEAD is an option that informs the driver to track data with no overhead as the application executes and collect it in the debug blob. This is typically the data present on the GPU used to execute the current frame and should have negligible performance overhead. This is the default option that is passed to the driver by D3D12 runtime after device creation.

D3D12DDI_GPU_DUMP_OPTION_MEDIUM_OVERHEAD is an option that informs the driver to track data with medium overhead as the application executes and collect it in the debug blob. This can be set if D3D12DDI_GPU_DUMP_TIER_1 is supported. The selection of individual options is determined by the IHV. Direct3D does not offer a mechanism to query these specific options, as a direct one-to-one correspondence between the DDI options and D3D options may not exist. If multiple overhead options are specified then the higher overhead option takes effect. e.g. if D3D12DDI_GPU_DUMP_OPTION_NO_OVERHEAD and D3D12DDI_GPU_DUMP_OPTION_MEDIUM_OVERHEAD are specified then D3D12DDI_GPU_DUMP_OPTION_MEDIUM_OVERHEAD is used.

D3D12DDI_GPU_DUMP_OPTION_HIGH_OVERHEAD is an option that informs the driver to track data with high overhead as the application executes and collect it in the debug blob. This can be set if D3D12DDI_GPU_DUMP_TIER_1 is supported. The selection of individual options is determined by the IHV. Direct3D does not offer a mechanism to query these specific options, as a direct one-to-one correspondence between the DDI options and D3D options may not exist. If multiple overhead options are specified then the higher overhead option takes effect. e.g. if D3D12DDI_GPU_DUMP_OPTION_MEDIUM_OVERHEAD and D3D12DDI_GPU_DUMP_OPTION_HIGH_OVERHEAD are specified then D3D12DDI_GPU_DUMP_OPTION_HIGH_OVERHEAD is used.

D3D12DDI_GPU_DUMP_OPTION_NO_DATA is an option that informs the driver to track and collect no data in the user mode and kernel mode drivers. All other options are ignored in this case. It is useful to stop tracking if only D3D12DDI_GPU_DUMP_TIER_1 is supported.

D3D12DDI_GPU_DUMP_CONFIG_COLLECT_SHADER_REGISTERS is an option that informs the driver to collect shader general purpose registers in the debug blob. These registers are used to store variable values while the shaders are executing.

D3D12DDI_GPU_DUMP_CONFIG_TRACK_AND_COLLECT_RESOURCES is an option that informs the driver to track resources as the application executes and collect existing and recently deleted resources in the debug blob.

D3D12DDI_GPU_DUMP_CONFIG_TRACK_AND_COLLECT_EVENT_MARKERS is an option that informs the driver to track application and driver markers as the application executes and collect them in the debug blob.

pfnSetGpuDumpOptions is used to configure the driver to control the data tracked and/or collected in the debug blobs for GPU dumps. It is called after Direct3D12 device creation. It is also called from ID3D12DeviceExperimental::ConfigureGpuDump API. The driver ignores the options that it does not recognize or support. Some of these options may have performance overhead which means the application may run at a lower frame rate. It is the IHV’s responsibility to not turn them on for the NO_OVERHEAD option. Some of these options may additionally or alternatively have memory overhead which means the debug blob size may increase significantly.

typedef struct D3D12DDI_FEATURE_DATA_GPU_DUMP_0121
{
    _Out_ D3D12DDI_GPU_DUMP_TIER_0121 GpuDumpTier;
    _Out_ UINT GpuDumpOptionsMask; // Set bits corresponding to the supported options in D3D12DDI_GPU_DUMP_OPTIONS_0121
} D3D12DDI_FEATURE_DATA_GPU_DUMP_0121;

D3D12DDI_FEATURE_DATA_GPU_DUMP_0121 is populated by querying driver capabilities with D3D12DDI_CAPS_TYPE_GPU_DUMP to give the GPU dump tier and options supported by the driver. D3D12DDI_FEATURE_0121_GPU_DUMP is added to define a cap for the driver feature that supports GPU dumps.

pfnGetDebugBlobInfo

#define D3D12DDI_MINI_DEBUG_BLOB_MAX_SIZE_0121 (256 * 1024 * 1024)

typedef enum D3D12DDI_DEBUG_BLOB_TYPE_0121
{
    D3D12DDI_DEBUG_BLOB_MINI  = 1,
    D3D12DDI_DEBUG_BLOB_FULL  = 2,
} D3D12DDI_DEBUG_BLOB_TYPE_0121;

typedef struct D3D12DDI_DEBUG_BLOB_DETAILS_0121
{
    D3D12DDI_DEBUG_BLOB_TYPE_0121 DebugBlobType;
    SIZE_T DebugBlobSize;
} D3D12DDI_DEBUG_BLOB_DETAILS_0121;

typedef struct D3D12DDI_DEBUG_BLOB_INFO_0121
{
    ULONG NumDebugBlobDetails;                           // in: Number of entries in ProcessDebugBlobDetails
    D3D12DDI_DEBUG_BLOB_DETAILS_0121* pDebugBlobDetails; // in/out: An array that describe debug blob details for different types of debug blobs
} D3D12DDI_DEBUG_BLOB_INFO_0121;

typedef HRESULT ( APIENTRY* PFND3D12DDI_GET_DEBUG_BLOB_INFO_0121 )(
    _In_ D3D12DDI_HDEVICE hDrvDevice,
    _In_reads_bytes_(KMDebugBlobSize) const void *pKMDebugBlob,
    _In_ SIZE_T KMDebugBlobSize,
    _Inout_ D3D12DDI_DEBUG_BLOB_INFO_0121* pArgs);

This DDI is used to collect estimated blob sizes of different types of debug blobs for the given device. The returned blob size is used by D3D12 runtime in a subsequent DDI call pfnGetDebugBlob to collect blob data. D3D12 runtime calls this DDI with NumDebugBlobDetails equal to the number of D3D12DDI_DEBUG_BLOB_DETAILS entries in DebugBlobDetails. Each D3D12DDI_DEBUG_BLOB_DETAILS entry contains a blob type defined in D3D12DDI_DEBUG_BLOB_TYPE, along with a maximum size for that type. D3D12 runtime fills DebugBlobSize before calling the DDI to indicate the maximum size. 0 indicates there is not maximum blob size.

In response to this DDI call, the driver updates DebugBlobSize to its upper limit size estimate for the associated blob type. If it does not support a blob type, it updates DebugBlobSize to 0 for that blob type. This DDI is designed so new D3D12DDI_DEBUG_BLOB_TYPE values can be added in the future to support different types of blobs. The driver handles these cases carefully, where unrecognized blob types are treated as unsupported and DebugBlobSize is set to 0.

If the driver was initialized with D3D12DDI_GPU_DUMP_OPTION_NO_DATA, D3D12 runtime does not call this DDI and the subsequent pfnGetDebugBlob DDI to get the blob data at the time of the crash.

pfnGetDebugBlob

typedef struct D3D12DDI_DEBUG_BLOB_0121
{
    D3D12DDI_DEBUG_BLOB_TYPE_0121 DebugBlobType; // in: The type of debug blob to collect
    SIZE_T DebugBlobSize;                        // in/out: The size in bytes of pDebugBlob
    PVOID pDebugBlob;                            // out: Pointer to the buffer that contains the debug blob
} D3D12DDI_DEBUG_BLOB_0121;

typedef HRESULT ( APIENTRY* PFND3D12DDI_GET_DEBUG_BLOB_0121 )(
    _In_ D3D12DDI_HDEVICE hDrvDevice,
    _In_reads_bytes_(KMDebugBlobSize) const void *pKMDebugBlob,
    _In_ SIZE_T KMDebugBlobSize,
    _Inout_ D3D12DDI_DEBUG_BLOB_0121* pArgs);

This DDI is used to collect application specific debug blob of the specified type. This DDI may be called multiple times e.g. if collection of full debug blob fails for some reason then D3D12 runtime calls this DDI again to get the mini debug blob. If memory allocation for the full dump fails for some reason then D3D12 runtime calls this DDI to collect only the mini dump without having to query the size.

D3D12 runtime fills DebugBlobSize to the size returned by the prior DDI pfnGetDebugBlobInfo. The driver updates DebugBlobSize with the actual size used by pDebugBlob. This way the driver gives estimated sizes in pfnGetDebugBlobInfo and the actual size in pfnGetDebugBlob. The actual size is always less than or equal to the DebugBlobSize filled by D3D12 runtime.

Kernel mode blob pointer and size are passed to the DDI to extract information required to populate the user mode blob. Both these blobs are opaque to Microsoft components such as dxgkrnl and D3D12 runtime. Their layouts are specific to the IHV driver. The IHV implemented PIX Plugin decodes these blobs and correlates them with other dump information during postmortem debugging.

Test Plan

Test App

A test application causing a device error is authored.

Functional Tests

Functional tests are written using the TAEF framework.

The important behaviors to test are:

Tests that require the dump file parser are added to the PIX repo.

Driver Conformance Tests

Driver conformance tests are written using the TAEF framework, integrate into D3DConf_12_Core.dll, and verify driver behavior.

The important behaviors to test are:

Spec History

Version Date Details Author
v0.01 12 Mar 2026 Initial draft spec Deepali Bhagvat (PIX)
This site is open source. Improve this page.
