1. D3D12 Video Encoding lower resolution two pass

2. General considerations

This spec focuses on the points of extension where the existing D3D12 Video Encode API needs new structures to support lower resolution rate control two pass. The rest of the D3D12 Encode API will remain unmodified for this feature unless explicited in this spec. The next sections detail the API and DDI for video encoding. In many cases, the DDI is extremely similar to the API. The structures and enumerations which are basically the same (differing solely in name convention) are not repeated in the this specification.

In this design, neither the driver not the D3D12 Encode API will perform any implicit downscaling. If using two pass with smaller dimensions than full resolution, the app must perform the downscaling separately (for example using D3D12 Video Processing API), and then passing the downscaled texture to the D3D12 Video Encode API.

3. Video Encoding API

3.1.0 Creation APIs

For using lower resolution two pass feature, the app must create a heap of type ID3D12VideoEncoderHeap1. For the legacy full resolution two pass, using ID3D12VideoEncoderHeap is enough as usual.

ENUM: D3D12_VIDEO_ENCODER_HEAP_FLAGS

typedef enum D3D12_VIDEO_ENCODER_HEAP_FLAGS
{
    ...
    // New flags added in this spec
    D3D12_VIDEO_ENCODER_HEAP_FLAG_ALLOW_RATE_CONTROL_FRAME_ANALYSIS = ...

} D3D12_VIDEO_ENCODER_HEAP_FLAGS;

D3D12_VIDEO_ENCODER_HEAP_FLAG_ALLOW_RATE_CONTROL_FRAME_ANALYSIS

Indicates to the driver that two pass will be used with the associated ID3D12VideoEncoderHeap1.

The driver uses this flag to know that it must allocate and initialize (if any) the internal state required for storing two pass context in this object.

STRUCT: D3D12_VIDEO_ENCODER_HEAP_DESC1

typedef struct D3D12_VIDEO_ENCODER_HEAP_DESC1
{
    ...
    // New members added in this spec
    UINT Pow2DownscaleFactor;
} D3D12_VIDEO_ENCODER_HEAP_DESC1;

Pow2DownscaleFactor

When D3D12_VIDEO_ENCODER_HEAP_FLAG_ALLOW_RATE_CONTROL_FRAME_ANALYSIS set, indicates to the driver the downscaling factor for the 1st pass.

Please note that D3D12_VIDEO_ENCODER_SUPPORT_FLAG_RESOLUTION_RECONFIGURATION_AVAILABLE is supported, Pow2DownscaleFactor applies to all possible resolutions that can be dynamically switched between/used with this ID3D12VideoEncoderHeap1, listed in D3D12_VIDEO_ENCODER_HEAP_DESC1.pResolutionList. When dynamically switching between resolutions in pResolutionList, the 1st pass lower resolution is also adjusted accordingly. The driver can reject supporting D3D12_VIDEO_ENCODER_SUPPORT_FLAG_RESOLUTION_RECONFIGURATION_AVAILABLE specifically when D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2.FrameAnalysis.Enabled = TRUE.

Interface: ID3D12VideoEncoderHeap1

interface ID3D12VideoEncoderHeap1
    : ID3D12VideoEncoderHeap
{
    ...
    // new definitions added in this spec
    UINT GetPow2DownscaleFactor();
}

GetPow2DownscaleFactor

When the ID3D12VideoEncoderHeap1 object was created with D3D12_VIDEO_ENCODER_HEAP_FLAG_ALLOW_RATE_CONTROL_FRAME_ANALYSIS indicates the value of Pow2DownscaleFactor used at creation. Zero otherwise.

Interface: ID3D12VideoDeviceXXX

interface ID3D12VideoDeviceXXX
    : ID3D12VideoDeviceLast
{
    HRESULT CreateVideoEncoderHeap1(
        [annotation("_In_")] const D3D12_VIDEO_ENCODER_HEAP_DESC1* pDesc,
        [annotation("_In_")] REFIID riid, // Expected: IID_ID3D12VideoEncoderHeap1,
        [annotation("_COM_Outptr_")] void** ppVideoEncoderHeap);
}

3.1.1 Feature support APIs

ENUM: D3D12_FEATURE_VIDEO

typedef enum D3D12_FEATURE_VIDEO
{
    ...
    D3D12_FEATURE_VIDEO_ENCODER_HEAP_SIZE1 = ...,
    D3D12_FEATURE_VIDEO_ENCODER_SUPPORT2 = ...,
    D3D12_FEATURE_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS = ...,
} D3D12_FEATURE_VIDEO;

STRUCT: D3D12_FEATURE_DATA_VIDEO_ENCODER_HEAP_SIZE1

// D3D12_FEATURE_VIDEO_ENCODER_HEAP_SIZE1
typedef struct D3D12_FEATURE_DATA_VIDEO_ENCODER_HEAP_SIZE1 {
  D3D12_VIDEO_ENCODER_HEAP_DESC1 HeapDesc; // input
  ... // rest of D3D12_FEATURE_DATA_VIDEO_ENCODER_HEAP_SIZE
} D3D12_FEATURE_DATA_VIDEO_ENCODER_HEAP_SIZE1;

Redefines D3D12_FEATURE_DATA_VIDEO_ENCODER_HEAP_SIZE by passing D3D12_VIDEO_ENCODER_HEAP_DESC1 instead of D3D12_VIDEO_ENCODER_HEAP_DESC.

3.1.27. STRUCT: D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_FRAME_TYPE_FLAGS

typedef enum D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_FRAME_TYPE_FLAGS {
    D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_FRAME_TYPE_FLAG_NONE = 0x0,
    D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_FRAME_TYPE_FLAG_INTRACODED_FRAME = 0x1,
    D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_FRAME_TYPE_FLAG_UNIDIR_INTER_FRAME = 0x2,
    D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_FRAME_TYPE_FLAG_BIDIR_INTER_FRAME = 0x4,
} D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_FRAME_TYPE_FLAGS;

STRUCT: D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_FRAME_ANALYSIS

Defines the reported support for FrameAnalysis as output for D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_LIMITS1.

typedef struct D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_FRAME_ANALYSIS
{
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAGS SupportFlags;    // output
} D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_FRAME_ANALYSIS;

STRUCT: D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_LIMITS1

Adds the new reported support structs defined above to be reportable by the driver per-resolution in D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2.

typedef struct D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_LIMITS1
{
    // D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_LIMITS
    ...
    D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_FRAME_ANALYSIS FrameAnalysis;
} D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_LIMITS1;

New members

FrameAnalysis

Output parameter. Only reported when D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2.FrameAnalysis.Enabled == TRUE and driver supports it. Zeroed memory otherwise.

STRUCT: D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_CONFIGURATION

typedef struct D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_CONFIGURATION
{
    BOOL Enabled;
    UINT Pow2DownscaleFactor;
} D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_CONFIGURATION;

ENUM: D3D12_VIDEO_ENCODER_VALIDATION_FLAGS

typedef enum D3D12_VIDEO_ENCODER_VALIDATION_FLAGS
{
    ...
    D3D12_VIDEO_ENCODER_VALIDATION_FLAG_FRAME_ANALYSIS_NOT_SUPPORTED = 0x8000,
} D3D12_VIDEO_ENCODER_VALIDATION_FLAGS;

STRUCT: D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2

Extends D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2, for the driver to be able to report support details when enabling the FrameAnalysis features of this spec in combination with the rest of the encode features. As usual, if the driver does not support a given combination with the new features, must report D3D12_VIDEO_ENCODER_SUPPORT_FLAG_NONE and specify in D3D12_VIDEO_ENCODER_VALIDATION_FLAGS the conflicting features.

This new query must behave exactly as D3D12_FEATURE_VIDEO_ENCODER_SUPPORT1 semantics when the new input parameters features are not enabled.

// D3D12_FEATURE_VIDEO_ENCODER_SUPPORT2
typedef struct D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2
{
    /*
     * Below params match existing D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2 binary size
     * please note pResolutionDependentSupport type changes from D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_LIMITS to
       D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_LIMITS1
    */

    UINT NodeIndex;
    D3D12_VIDEO_ENCODER_CODEC Codec;
    DXGI_FORMAT InputFormat;
    D3D12_VIDEO_ENCODER_CODEC_CONFIGURATION CodecConfiguration;
    D3D12_VIDEO_ENCODER_SEQUENCE_GOP_STRUCTURE CodecGopSequence;
    D3D12_VIDEO_ENCODER_RATE_CONTROL RateControl;
    D3D12_VIDEO_ENCODER_INTRA_REFRESH_MODE IntraRefresh;
    D3D12_VIDEO_ENCODER_FRAME_SUBREGION_LAYOUT_MODE SubregionFrameEncoding;
    UINT ResolutionsListCount;
    const D3D12_VIDEO_ENCODER_PICTURE_RESOLUTION_DESC* pResolutionList;
    UINT MaxReferenceFramesInDPB;
    D3D12_VIDEO_ENCODER_VALIDATION_FLAGS ValidationFlags;
    D3D12_VIDEO_ENCODER_SUPPORT_FLAGS SupportFlags;
    D3D12_VIDEO_ENCODER_PROFILE_DESC SuggestedProfile;
    D3D12_VIDEO_ENCODER_LEVEL_SETTING SuggestedLevel;
    [annotation("_Field_size_full_(ResolutionsListCount)")] D3D12_FEATURE_DATA_VIDEO_ENCODER_RESOLUTION_SUPPORT_LIMITS1* pResolutionDependentSupport;
    D3D12_VIDEO_ENCODER_PICTURE_CONTROL_SUBREGIONS_LAYOUT_DATA SubregionFrameEncodingData;
    UINT MaxQualityVsSpeed;
    D3D12_VIDEO_ENCODER_QPMAP_CONFIGURATION QPMap;
    D3D12_VIDEO_ENCODER_DIRTY_REGIONS_CONFIGURATION DirtyRegions;
    D3D12_VIDEO_ENCODER_MOTION_SEARCH_CONFIGURATION MotionSearch;

    /* Below are new arguments for D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2 */
    D3D12_VIDEO_ENCODER_FRAME_ANALYSIS_CONFIGURATION FrameAnalysis; // input
} D3D12_FEATURE_DATA_VIDEO_ENCODER_SUPPORT2;

ENUM: D3D12_VIDEO_ENCODER_SUPPORT_FLAGS

typedef enum D3D12_VIDEO_ENCODER_SUPPORT_FLAGS
{
    ...
    D3D12_VIDEO_ENCODER_SUPPORT_FLAG_RATE_CONTROL_FRAME_ANALYSIS_AVAILABLE 	= ...,
} D3D12_VIDEO_ENCODER_SUPPORT_FLAGS;

D3D12_VIDEO_ENCODER_SUPPORT_FLAG_RATE_CONTROL_FRAME_ANALYSIS_AVAILABLE

This flag already exists in the API and indicates support for rate control modes that involve frame analysis to optimize the bitrate usage at the cost of a slower performance. This two pass is currently done at full resolution from the D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS.pInputFrame texture. On legacy encoder support queries without the FrameAnalysis input parameter to them, the reporting of this flag will continue to indicate support for full-resolution two pass.

When this flag is already reported by the driver, further support for performing two pass at lower resolutions can be queried in D3D12_FEATURE_DATA_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS.

STRUCT: D3D12_FEATURE_DATA_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS

// D3D12_FEATURE_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS
typedef struct D3D12_FEATURE_DATA_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS
{
    UINT NodeIndex;                                                                             // input
    D3D12_VIDEO_ENCODER_CODEC Codec;                                                            // input
    D3D12_VIDEO_ENCODER_PROFILE_DESC Profile;                                                   // input
    D3D12_VIDEO_ENCODER_LEVEL_SETTING Level;                                                    // input
    DXGI_FORMAT InputFormat;                                                                    // input
    D3D12_VIDEO_ENCODER_PICTURE_RESOLUTION_DESC InputResolution;                                // input
    D3D12_VIDEO_ENCODER_CODEC_CONFIGURATION CodecConfiguration;                                 // input
    D3D12_VIDEO_ENCODER_FRAME_SUBREGION_LAYOUT_MODE SubregionFrameEncoding;                     // input
    D3D12_VIDEO_ENCODER_PICTURE_CONTROL_SUBREGIONS_LAYOUT_DATA SubregionFrameEncodingData;      // input
    D3D12_VIDEO_ENCODER_QPMAP_CONFIGURATION QPMap;                                              // input
    D3D12_VIDEO_ENCODER_DIRTY_REGIONS_CONFIGURATION DirtyRegions;                               // input
    D3D12_VIDEO_ENCODER_MOTION_SEARCH_CONFIGURATION MotionSearch;                               // input
    UINT Pow2DownscaleFactor;                                                                   // input
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAGS SupportFlags;                 // output
} D3D12_FEATURE_DATA_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS;

NodeIndex

Input parameter, in multi-adapter operation, this indicates which physical adapter of the device this operation applies to.

Codec, Profile, Level, InputFormat, InputResolution, CodecConfiguration, SubregionFrameEncoding, SubregionFrameEncodingData, QPMap, DirtyRegions, MotionSearch

Input parameters to driver indicating context about other features being used in encode session where the frame analysis will be used.

Pow2DownscaleFactor

Input parameter. Indicates the downscaling ratio to be used for the two pass downscaled ID3D12Resource texture passed to the driver to perform two pass frame analysis on.

For simplicity and to keep certain format restrictions on planar formats like DXGI_FORMAT_NV12/DXGI_FORMAT_P010 (e.g dimensions must be 2 aligned), etc we will require that InputWidth/InputHeight to always be exactly divisible by 2^Pow2DownscaleFactor. The drivers must also enforce this by reporting no support in this cap where the division is not exact.

For example let InputWidth/InputHeight be the D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS.pInputFrame dimensions:

Pow2DownscaleFactor	Two pass width	Two pass height
0	InputWidth	InputHeight
1	InputWidth / 2	InputHeight / 2
2	InputWidth / 4	InputHeight / 4
3	InputWidth / 8	InputHeight / 8
...	...	...
Pow2DownscaleFactor	InputWidth / (2^Pow2DownscaleFactor)	InputHeight / (2^Pow2DownscaleFactor)

SupportFlags

Output parameter. Indicates support for the given input parameters.

ENUM: D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAGS

typedef enum D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAGS
{
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_NONE	= 0x0,
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_INTRACODED_FRAME_SUPPORTED	= 0x1,
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_UNIDIR_INTER_FRAME_SUPPORTED	= 0x2,
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_BIDIR_INTER_FRAME_SUPPORTED	= 0x4,
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_EXTERNAL_DPB_DOWNSCALING	= 0x8,
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_DYNAMIC_1ST_PASS_SKIP	= 0x10,
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_DYNAMIC_DOWNSCALE_FACTOR_CHANGE_KEY_FRAME	= 0x20,
} D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAGS;

Note: The 1st pass corresponds to the lower resolution and the 2nd pass corresponds to the full resolution.

As the driver reports support for which individual frame types used in EncodeFrame1 the app can set D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS. When the frame type is not supported by the driver, the app must not enable it. In no-reconfiguration modes, this means the app will enable two-pass only for all supported frame types (and unsupported types will always be disabled) during the encode session with that ID3D12VideoEncoderHeap1. For reconfiguration-allowed modes, this means the app will only be able to dynamically enable/disable the 1st pass on supported frame types (and unsupported types will always be disabled).

D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_NONE

Indicates no support.

D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_INTRACODED_FRAME_SUPPORTED

Indicates support for two pass frame analysis for intra coded frame types.

D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_UNIDIR_INTER_FRAME_SUPPORTED

Indicates support for two pass frame analysis for inter coded unidirectional frame types.

D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_BIDIR_INTER_FRAME_SUPPORTED

Indicates support for two pass frame analysis for inter coded bidirectional frame types.

When D3D12_VIDEO_ENCODER_SUPPORT_FLAG_RATE_CONTROL_FRAME_ANALYSIS_AVAILABLE is supported, this flag must also be supported when querying D3D12_FEATURE_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS for Pow2DownscaleFactor = 0.

D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_EXTERNAL_DPB_DOWNSCALING

Indicates support for the app to optionally skip the reconstructed picture output writing for the 1st pass and externally downscale the D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS.ReconstructedPicture texture to generate the lower resolution corresponding DPB textures. Using external downscaling may provide better quality at a higher performance cost, so apps can choose this as a trade-off.

When skipping the 1st pass, pDownscaledFrame is not necessary and NULL can be passed.

The external downscaling is explicitly kept separate from the EncodeFrame operation to give app more flexibility on how to perform the downscaling and how to synchronize it with the rest of the D3D12 workloads. As at times, video processing and video encoding happen on different HW engines, keeping this separate avoids implicit scheduling delays by having two engines tied into a single D3D12 command.

Please note that to support this flag, at least one of these two must also be supported: D3D12_VIDEO_ENCODER_SUPPORT_FLAG_READABLE_RECONSTRUCTED_PICTURE_LAYOUT_AVAILABLE for readable reconstructed pictures or D3D12_VIDEO_SCALE_SUPPORT_FLAG_DPB_RESOURCES to support VPBlit scaling of resources with D3D12_RESOURCE_FLAG_VIDEO_ENCODE_REFERENCE_ONLY.

Remarks

When this flag IS NOT supported:

• Enabling D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS WITHOUT D3D12_VIDEO_ENCODER_PICTURE_CONTROL_FLAG_USED_AS_REFERENCE_PICTURE
  • Both D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS.ReconstructedPictureand D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.FrameAnalysisReconstructedPicture are set to NULL as there is no reconstructed picture output on neither pass.
• Enabling D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS WITH D3D12_VIDEO_ENCODER_PICTURE_CONTROL_FLAG_USED_AS_REFERENCE_PICTURE
  • Both D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS.ReconstructedPictureand D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.FrameAnalysisReconstructedPicture must contain a valid allocation as there are reconstructed picture outputs on both passes.

When this flag IS supported:

• Enabling D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS WITHOUT D3D12_VIDEO_ENCODER_PICTURE_CONTROL_FLAG_USED_AS_REFERENCE_PICTURE
  • Both D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS.ReconstructedPictureand D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.FrameAnalysisReconstructedPicture are set to NULL as there is no reconstructed picture output on either pass.
• Enabling D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS WITH D3D12_VIDEO_ENCODER_PICTURE_CONTROL_FLAG_USED_AS_REFERENCE_PICTURE
  • D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS.ReconstructedPicture must contain a valid allocation as there is a reconstructed picture outputs on the 2nd pass.
  • The app can decide if D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.FrameAnalysisReconstructedPicture contains an allocation or NULL.

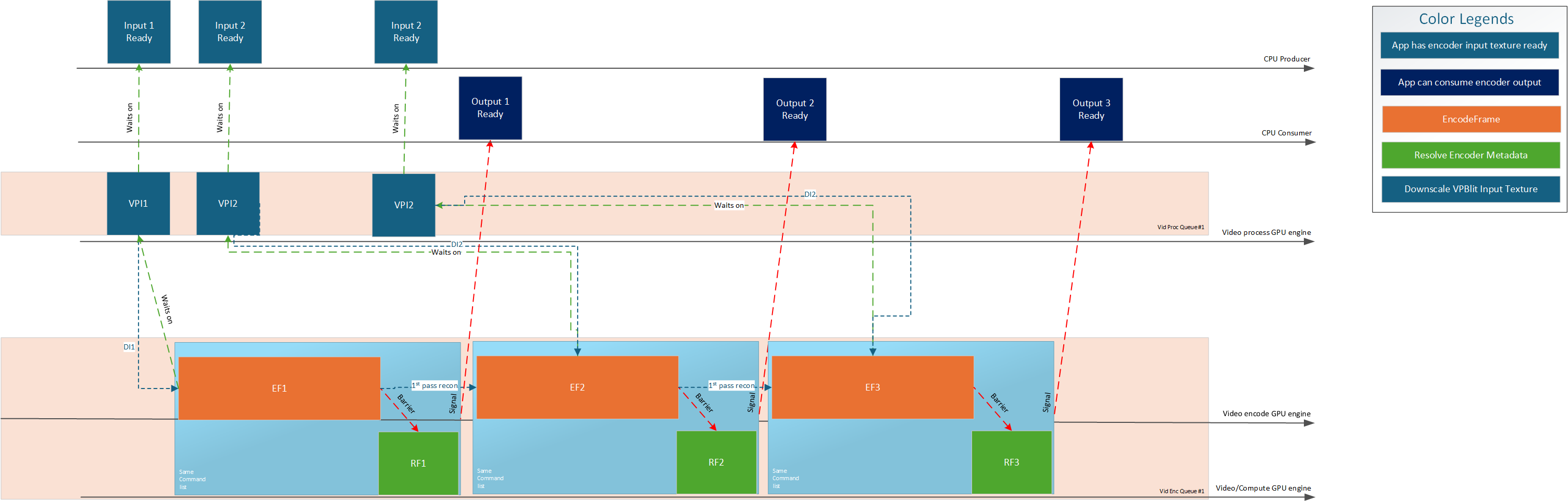

    • In case of this being set to NULL, the driver will perform the two passes but not write (skip the reconstructed picture generation for) the 1st pass reconstructed picture output.

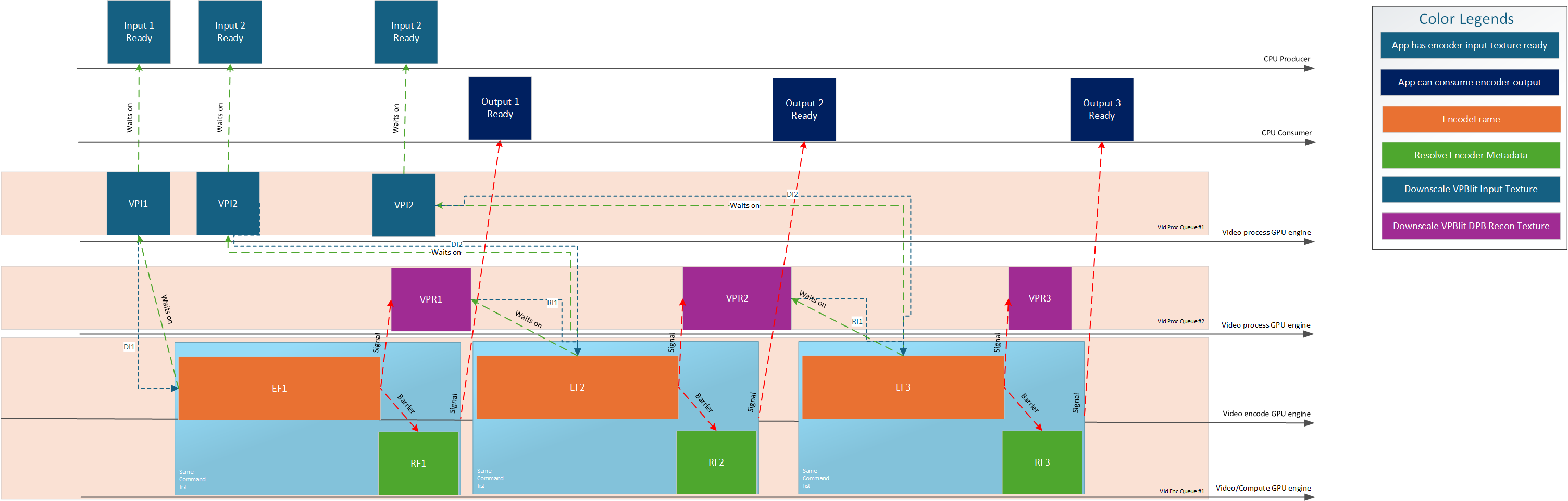

    • This is intended for the cases where the app will externally generate the 1st pass reconstructed picture by externally downscaling the 2nd pass D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS.ReconstructedPicture.

D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_DYNAMIC_1ST_PASS_SKIP

Indicates support for dynamically toggling D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS on an encode session associated with an ID3D12VideoEncoderHeap1 with two pass enabled. Disabling D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS will make the driver skip the 1st (lower resolution) pass for the associated EncodeFrame1 command.

Please note that if D3D12_VIDEO_ENCODER_PICTURE_CONTROL_FLAG_USED_AS_REFERENCE_PICTURE is set for a EncodeFrame1 command that skips 1st pass, supporting D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_DYNAMIC_1ST_PASS_SKIP requires the driver to also support D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_EXTERNAL_DPB_DOWNSCALING (and D3D12_VIDEO_SCALE_SUPPORT_FLAG_DPB_RESOURCES if necessary for opaque reconstructed pictures) as the app must externally downscale the full resolution output reconstructed picture to keep the DPB mirrored between the two resolution streams.

D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_DYNAMIC_DOWNSCALE_FACTOR_CHANGE_KEY_FRAME

Indicates support for changing the Pow2DownscaleFactor of the encode session associated ID3D12VideoEncoderHeap1. Such change requires the app to re-create the ID3D12VideoEncoderHeap1 object using the new Pow2DownscaleFactor parameter and at the moment can only be done at KEY/IDR frames that clear the DPB.

Note: When switching from lower resolution (Pow2DownscaleFactor > 0) to full resolution (Pow2DownscaleFactor == 0), the downscaled parameters that are sent for lower resolution (downscaled input frame, downscaled input reference pictures, downscaled output reconstructed picture) are no longer sent starting the key frame of full resolution, and the driver must use their full resolution associated parameters(since they will be the same objects as they’re the same resolution). Conversely, when switching from full resolution (Pow2DownscaleFactor == 0) to lower resolution (Pow2DownscaleFactor > 0), the downscaled parameters that were not being sent for full resolution, must start being sent down starting from the key frame with the lower resolution two pass enabled.

3.1.2 Feature usage APIs

Enabling two pass for an EncodeFrame command

ENUM: D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAGS

typedef enum D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAGS
{
    ...
    D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS	= 0x2,
    ...
} D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAGS;

D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS

This flag already exists in the API and enables the rate control algorithm to optimize bitrate usage by selecting QP values based on statistics collected by doing frame analysis on a 1st pass (at full resolution).

When additional support reported in D3D12_FEATURE_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS the app can use D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS in combination with D3D12_VIDEO_ENCODER_HEAP_DESC1.Pow2DownscaleFactor to determine the resolution of the 1st pass.

STRUCT: D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1

typedef struct D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1
{
    ...
    D3D12_VIDEO_ENCODER_RECONSTRUCTED_PICTURE FrameAnalysisReconstructedPicture;
} D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1;

FrameAnalysisReconstructedPicture

When non NULL parameter passed (See D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_EXTERNAL_DPB_DOWNSCALING), the driver writes the 1st pass (if enabled for this frame) reconstructed picture output in this passed allocation.

Please note that the hardware must not generate this lower resolution reconstructed picture with implicit additional downscaling HW kick-offs (e.g VPBlit engine) from the full resolution reconstructed picture, but just output the 1st pass output reconstructed picture as-is.

STRUCT: D3D12_VIDEO_ENCODER_FRAME_ANALYSIS

typedef struct D3D12_VIDEO_ENCODER_FRAME_ANALYSIS
{
    ID3D12Resource *pDownscaledFrame;
    UINT64 Subresource;
    D3D12_VIDEO_ENCODE_REFERENCE_FRAMES DownscaledReferences;
} D3D12_VIDEO_ENCODER_FRAME_ANALYSIS;

Parameters

pDownscaledFrame

Downscaled input texture to perform two pass frame analysis. Downscaling factor indicated by D3D12_VIDEO_ENCODER_HEAP_DESC1.Pow2DownscaleFactor.

Subresource

Subresource index for pDownscaledFrame.

DownscaledReferences

Downscaled reference frame textures to perform two pass frame analysis. Downscaling factor indicated by D3D12_VIDEO_ENCODER_HEAP_DESC1.Pow2DownscaleFactor.

Please note the DPB snapshot and reference lists must be always mirrored for the parallel streams (full and downscaled resolution passes). D3D12_VIDEO_ENCODER_FRAME_ANALYSIS.DownscaledReferences and D3D12_VIDEO_ENCODER_PICTURE_CONTROL_DESC1.ReferenceFrames must always have entries mirroring the same frames in the DPB, just in different resolutions.

STRUCT: D3D12_VIDEO_ENCODER_PICTURE_CONTROL_DESC1

typedef struct D3D12_VIDEO_ENCODER_PICTURE_CONTROL_DESC1
{
    UINT IntraRefreshFrameIndex;
    D3D12_VIDEO_ENCODER_PICTURE_CONTROL_FLAGS Flags;
    D3D12_VIDEO_ENCODER_PICTURE_CONTROL_CODEC_DATA1 PictureControlCodecData;
    D3D12_VIDEO_ENCODE_REFERENCE_FRAMES ReferenceFrames;
    D3D12_VIDEO_ENCODER_FRAME_MOTION_VECTORS MotionVectors;
    D3D12_VIDEO_ENCODER_DIRTY_REGIONS DirtyRects;
    D3D12_VIDEO_ENCODER_QUANTIZATION_OPAQUE_MAP QuantizationTextureMap;
    D3D12_VIDEO_ENCODER_FRAME_ANALYSIS FrameAnalysis;
} D3D12_VIDEO_ENCODER_PICTURE_CONTROL_DESC1;

Adds FrameAnalysis at the end respect from D3D12_VIDEO_ENCODER_PICTURE_CONTROL_DESC

STRUCT: D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS1

typedef struct D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS1
{
    D3D12_VIDEO_ENCODER_SEQUENCE_CONTROL_DESC SequenceControlDesc;
    D3D12_VIDEO_ENCODER_PICTURE_CONTROL_DESC1 PictureControlDesc;
    ID3D12Resource *pInputFrame;
    UINT64 InputFrameSubresource;
    UINT64 CurrentFrameBitstreamMetadataSize;
} D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS1;

Changes D3D12_VIDEO_ENCODER_PICTURE_CONTROL_DESC1 to D3D12_VIDEO_ENCODER_PICTURE_CONTROL_DESC1 respect from D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS1.

METHOD: ID3D12VideoEncodeCommandList4::EncodeFrame1

VOID EncodeFrame1(
    [annotation("_In_")] ID3D12VideoEncoder* pEncoder,
    [annotation("_In_")] ID3D12VideoEncoderHeap1 *pHeap;
    [annotation("_In_")] const D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS1 *pInputArguments
    [annotation("_In_")] const D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1 *pOutputArguments)

Changes D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS1 to D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS1 and ID3D12VideoEncoderHeap to ID3D12VideoEncoderHeap1 respect from EncodeFrame1.

Remarks

• As for D3D12 full resolution two pass, the D3D12 caller will execute { EncodeFrame1 + ResolveEncoderOutputMetadata } only once per frame (passing both the full resolution + downscaled textures), then the driver can perform multiple encode HW kick offs per pass if necessary, from a single pfnEncodeFrame DDI call.

• The following textures must have the same dimensions:
  • The lower resolution input frame
  • The optional (See D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_EXTERNAL_DPB_DOWNSCALING) output lower resolution output reconstructed picture
  • The lower resolution reference pictures
• If the full resolution DPB allocations require D3D12_RESOURCE_FLAG_VIDEO_ENCODE_REFERENCE_ONLY, the same applies to any lower resolution DPB allocations.
• D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS.pInputFrame dimensions must be exactly divisible by 2^D3D12_VIDEO_ENCODER_HEAP_DESC1.Pow2DownscaleFactor.
• As D3D12_FEATURE_DATA_VIDEO_ENCODER_OUTPUT_RESOLUTION.ResolutionWidthMultipleRequirement/ResolutionHeightMultipleRequirement defines the allocation alignment requirements for D3D12_VIDEO_ENCODER_ENCODEFRAME_INPUT_ARGUMENTS.pInputFrame, these restrictions also apply to the downscaled stream allocations (e.g input frame, DPB reconstructed pictures, etc).
  • For example: If D3D12_FEATURE_DATA_VIDEO_ENCODER_OUTPUT_RESOLUTION requires 16 alignment for width and height and the original input frame is 1280x720 (already satisfies D3D12_FEATURE_DATA_VIDEO_ENCODER_OUTPUT_RESOLUTION 16 alignment) and trying to do Pow2DownscaleFactor=2, then the dimensions for the downscaled textures must be Width = align(16, 1280/4) = align(16, 320) = 320 (already 16 aligned) and Height = align(16, 720/4) = align(16, 180) = 192 (padding until 16 aligned).
  • The “padding” pixels resulting of the bigger allocation in the edges of the resource are ignored by app and driver, the actual region of interest will be exactly Pow2DownscaleFactor=2 of (1280x720) = (320x180). In other words, the downscaling operation must place the downscaled image in the (0,0) to (320,180) pixels region, ignoring the additional pixels on the right and bottom edges.

Diagram: Feature usage with 1st pass output textures (no external reconstructed picture downscaling)

This diagram explains at a high level a possible way an app could use D3D12 Video Processing API and D3D12 Video Encode API to drive and synchronize the different engines.

In this example there is no external downscaling of reconstructed pictures, the app uses D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.FrameAnalysisReconstructedPicture driver output of the current frame to place in the DPB for future frames.

Please note:

1. [Initialization] Create ID3D12VideoEncoderHeap1 indicating Pow2DownscaleFactor and D3D12_VIDEO_ENCODER_HEAP_FLAG_ALLOW_RATE_CONTROL_FRAME_ANALYSIS.
2. [Frame 1] Once the app has a new ID3D12Resource input frame ready for encoding with two pass, it can signal (using CPU-GPU or GPU-GPU ID3D12Fence) a Video Process Queue #1 to begin the downscaling operation.
3. [Frame 1] Once the downscaling operation from (1) finishes, it can signal (GPU to GPU) for the EFn command to begin.
4. [Frame 1] Once RFn is ready, the app is notified that that frame is completed (including slice/tile data + frame stats).
   • Note that D3D12_Video_Encoding_SubregionNotification can be used to get slices/tiles earlier in the CPU Consumer timeline.
5. [Future frames] Once the next input frame is available, same process as for Frame 1 explained above happens. The app will be able to track a parallel DPB array of textures / texture array of downsampled reconstructed pictured that mirrors the full resolution DPB to pass to the subsequent EFn calls. The downscaled DPB textures are tracked/evicted along their full resolution DPB texture counterpart.
   • Input Ready N is assumed to have no dependencies with previous encode outputs (e.g stats) in this diagram, with the frames flowing in from another pipeline upstream. Any additional delays in Input Ready N would also delay the begining of the VPIn command (and the subsequent delay of the tasks depending on it).

4. Video Processing API

The following APIs are extended to support external downscaling of DPB reconstructed pictures for supporting D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_EXTERNAL_DPB_DOWNSCALING when driver requires D3D12_RESOURCE_FLAG_VIDEO_ENCODE_REFERENCE_ONLY.

4.1.1 Feature support

ENUM: D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAGS

typedef enum D3D12_VIDEO_SCALE_SUPPORT_FLAGS
{
    ...
    D3D12_VIDEO_SCALE_SUPPORT_FLAG_DPB_RESOURCES = ...
} D3D12_VIDEO_SCALE_SUPPORT_FLAGS;

D3D12_VIDEO_SCALE_SUPPORT_FLAG_DPB_RESOURCES

Indicates support for scaling resources with D3D12_RESOURCE_FLAG_VIDEO_ENCODE_REFERENCE_ONLY. If the DPB resources don’t have this restriction, the downscaling can be performed as it was any ID3D12Resource (e.g with shaders, CPU, usual video processing APIs etc).

4.1.2 Feature usage

Remarks

The following rules will be enforced in ID3D12VideoProcessCommandList::ProcessFrames for this feature:

• D3D12_VIDEO_SCALE_SUPPORT_FLAG_DPB_RESOURCES needs to be reported for the command arguments passed to ProcessFrames.
• Only 1 input stream with D3D12_RESOURCE_FLAG_VIDEO_ENCODE_REFERENCE_ONLY passed to ProcessFrames (e.g no blending)
• The ID3D12Resource objects for input/output streams must have the same D3D12_RESOURCE_DESC properties:
  • Dimension
  • MipLevels
  • Format
  • Both must have D3D12_RESOURCE_FLAG_VIDEO_ENCODE_REFERENCE_ONLY in Flags
• D3D12_VIDEO_PROCESS_OUTPUT_STREAM_ARGUMENTS.TargetRectangle must cover the entire D3D12_VIDEO_PROCESS_OUTPUT_STREAM texture dimensions. (e.g no additional transforms)
• Restrictions to other transforms in D3D12_VIDEO_PROCESS_INPUT_STREAM_ARGUMENTS:
  • D3D12_VIDEO_PROCESS_TRANSFORM must contain D3D12_VIDEO_PROCESS_ORIENTATION_DEFAULT
  • SourceRectangle and DestinationRectangle must cover the entire D3D12_VIDEO_PROCESS_INPUT_STREAM texture dimensions.
  • D3D12_VIDEO_PROCESS_INPUT_STREAM_FLAGS, D3D12_VIDEO_PROCESS_INPUT_STREAM_RATE are ignored by the driver.
  • FilterLevels is ignored (since D3D12_VIDEO_PROCESS_FILTER_FLAGS are restricted in ID3D12VideoProcessor objects to use this feature)
  • D3D12_VIDEO_PROCESS_ALPHA_BLENDING.Enabled must be FALSE.
• Restrictions to the ID3D12VideoProcessor used in ID3D12VideoProcessCommandList::ProcessFrames for this feature (viewed from CreateVideoProcessor params):
  • D3D12_VIDEO_PROCESS_OUTPUT_STREAM_DESC.AlphaFillMode must be D3D12_VIDEO_PROCESS_ALPHA_FILL_MODE_OPAQUE
  • D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC.EnableOrientation must be FALSE.
  • D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC.FilterFlags must be D3D12_VIDEO_PROCESS_FILTER_FLAG_NONE.
  • D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC.DeinterlaceMode must be D3D12_VIDEO_PROCESS_DEINTERLACE_FLAG_NONE.
  • D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC.EnableAlphaBlending must be FALSE.
  • D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC.LumaKey.Enabled must be FALSE.
  • D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC.EnableAutoProcessing must be FALSE.
• For drivers requiring texture array DPB allocations, ID3D12VideoProcessCommandList::ProcessFrames will allow the input/output streams to be downscaled from {RegularSizeDPBTexArray + RegularSizeSubres} into {DownscaledDPBTexArray + DownscaledSubres} in D3D12_VIDEO_PROCESS_INPUT_STREAM and D3D12_VIDEO_PROCESS_OUTPUT_STREAM arguments respectively.

Diagram: Feature usage with externally downscaled reconstructed picture textures

This diagram explains at a high level a possible way an app could use D3D12 Video Processing API and D3D12 Video Encode API to drive and synchronize the different engines.

In this example, the app DOES NOT use D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.FrameAnalysisReconstructedPicture, and can always pass NULL on this param. The app instead performs external downscaling of the full resolution driver output D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.ReconstructedPicture and uses the result to track the lower resolution DPB mirrored with the full resolution DPB.

Please note:

1. [CheckFeatureSupport] Make sure the driver supports D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_EXTERNAL_DPB_DOWNSCALING and one of the following:
   • D3D12_VIDEO_ENCODER_SUPPORT_FLAG_READABLE_RECONSTRUCTED_PICTURE_LAYOUT_AVAILABLE for external downscalingn of readable reconstructed pictures
   • D3D12_VIDEO_SCALE_SUPPORT_FLAG_DPB_RESOURCES for external VPBlit scaling for resources with D3D12_RESOURCE_FLAG_VIDEO_ENCODE_REFERENCE_ONLY.
2. [Initialization] Create ID3D12VideoEncoderHeap1 indicating Pow2DownscaleFactor and D3D12_VIDEO_ENCODER_HEAP_FLAG_ALLOW_RATE_CONTROL_FRAME_ANALYSIS.
3. [Frame 1] Once the app has a new ID3D12Resource input frame ready for encoding with two pass, it can signal (using CPU-GPU or GPU-GPU ID3D12Fence) a Video Process Queue #1 to begin the downscaling operation.
4. [Frame 1] Once the downscaling operation from (1) finishes, it can signal (GPU to GPU) for the EFn command to begin.
5. [Frame 1] Once the EFn command is finished, a GPU-GPU signal triggers VPRn to downscale the output reconstructed picture output from EFn.
6. [Frame 1] Once RFn is ready, the app is notified that that frame is completed (including slice/tile data + frame stats).
   • Note that D3D12_Video_Encoding_SubregionNotification can be used to get slices/tiles earlier in the CPU Consumer timeline.
7. [Future frames] Once the next input frame is available, same process as for Frame 1 explained above happens, but there is an additional dependency to EFn, the downscaled reference picture from the previous frame (if used as reference and placed in the full resolution DPB). As a result, there’s an additional waiting dependency on EFn with VPR n-1. The app will be able to track a parallel DPB array of textures / texture array of downsampled reconstructed pictured that mirrors the full resolution DPB to pass to the subsequent EFn calls. The downscaled DPB textures are tracked/evicted along their full resolution DPB texture counterpart.
   • Please note that VPR2 takes longer to execute than VPR1 in the diagram to show how such delays would add latency between EFn executions.
   • Similarly, Input Ready N is assumed to have no dependencies with previous encode outputs (e.g stats) in this diagram, with the frames flowing in from another pipeline upstream. Any additional delays in Input Ready N would also delay the begining of the VPIn command (and the subsequent delay of the tasks depending on it).

Diagram: Feature usage with externally downscaled reconstructed picture textures and dynamic 1st pass skipping

This diagram explains at a high level a possible way an app could use D3D12 Video Processing API and D3D12 Video Encode API to drive and synchronize the different engines.

In this example, the app DOES NOT use D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.FrameAnalysisReconstructedPicture, and can always pass NULL on this param. The app instead performs external downscaling of the full resolution driver output D3D12_VIDEO_ENCODER_ENCODEFRAME_OUTPUT_ARGUMENTS1.ReconstructedPicture and uses the result to track the lower resolution DPB mirrored with the full resolution DPB.

Please note:

1. [CheckFeatureSupport] Make sure the driver supports D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_EXTERNAL_DPB_DOWNSCALING, D3D12_VIDEO_ENCODER_RATE_CONTROL_FRAME_ANALYSIS_SUPPORT_FLAG_DYNAMIC_1ST_PASS_SKIP and one of the following:
   • D3D12_VIDEO_ENCODER_SUPPORT_FLAG_READABLE_RECONSTRUCTED_PICTURE_LAYOUT_AVAILABLE for external downscalingn of readable reconstructed pictures
   • D3D12_VIDEO_SCALE_SUPPORT_FLAG_DPB_RESOURCES for external VPBlit scaling for resources with D3D12_RESOURCE_FLAG_VIDEO_ENCODE_REFERENCE_ONLY.
2. [Initialization] Create ID3D12VideoEncoderHeap1 indicating Pow2DownscaleFactor and D3D12_VIDEO_ENCODER_HEAP_FLAG_ALLOW_RATE_CONTROL_FRAME_ANALYSIS.
3. [Frame 1] Once the app has a new ID3D12Resource input frame ready for encoding with two pass, it can signal (using CPU-GPU or GPU-GPU ID3D12Fence) a Video Process Queue #1 to begin the downscaling operation.
4. [Frame 1] Once the downscaling operation from (1) finishes, it can signal (GPU to GPU) for the EFn command to begin.
5. [Frame 1] Once the EFn command is finished, a GPU-GPU signal triggers VPRn to downscale the output reconstructed picture output from EFn.
6. [Frame 1] Once RFn is ready, the app is notified that that frame is completed (including slice/tile data + frame stats).
   • Note that D3D12_Video_Encoding_SubregionNotification can be used to get slices/tiles earlier in the CPU Consumer timeline.
7. [Frame 2] Once the next input frame is available, the app can disable D3D12_VIDEO_ENCODER_RATE_CONTROL_FLAG_ENABLE_FRAME_ANALYSIS to skip the 1st pass encode on this frame.
   • For this frame, we don’t need the pDownscaledFrame downscaled input as 1st pass is skipped.
   • For future frames, the app must externally downscale the full resolution (2nd pass) output reconstructed picture to provide the lower resolution DPB.
8. [Future frames] Once the next input frame is available, same process as for Frame 1 explained above happens, but there is an additional dependency to EFn, the downscaled reference picture from the previous frame (if used as reference and placed in the full resolution DPB). As a result, there’s an additional waiting dependency on EFn with VPR n-1. The app will be able to track a parallel DPB array of textures / texture array of downsampled reconstructed pictured that mirrors the full resolution DPB to pass to the subsequent EFn calls. The downscaled DPB textures are tracked/evicted along their full resolution DPB texture counterpart.
   • Please note that VPR2 takes longer to execute than VPR1 in the diagram to show how such delays would add latency between EFn executions.
   • Similarly, Input Ready N is assumed to have no dependencies with previous encode outputs (e.g stats) in this diagram, with the frames flowing in from another pipeline upstream. Any additional delays in Input Ready N would also delay the begining of the VPIn command (and the subsequent delay of the tasks depending on it).

This site is open source. Improve this page.
