D3D12 Video Processing 1D/3D LUT

General considerations

This spec extends the D3D12 Video Processing API with LUT processing. In many cases, the DDI is extremely similar to the API. The structures and enumerations which are basically the same (differing solely in name convention) are not repeated in the this specification.

VPBlit Overview

Pipeline Stages

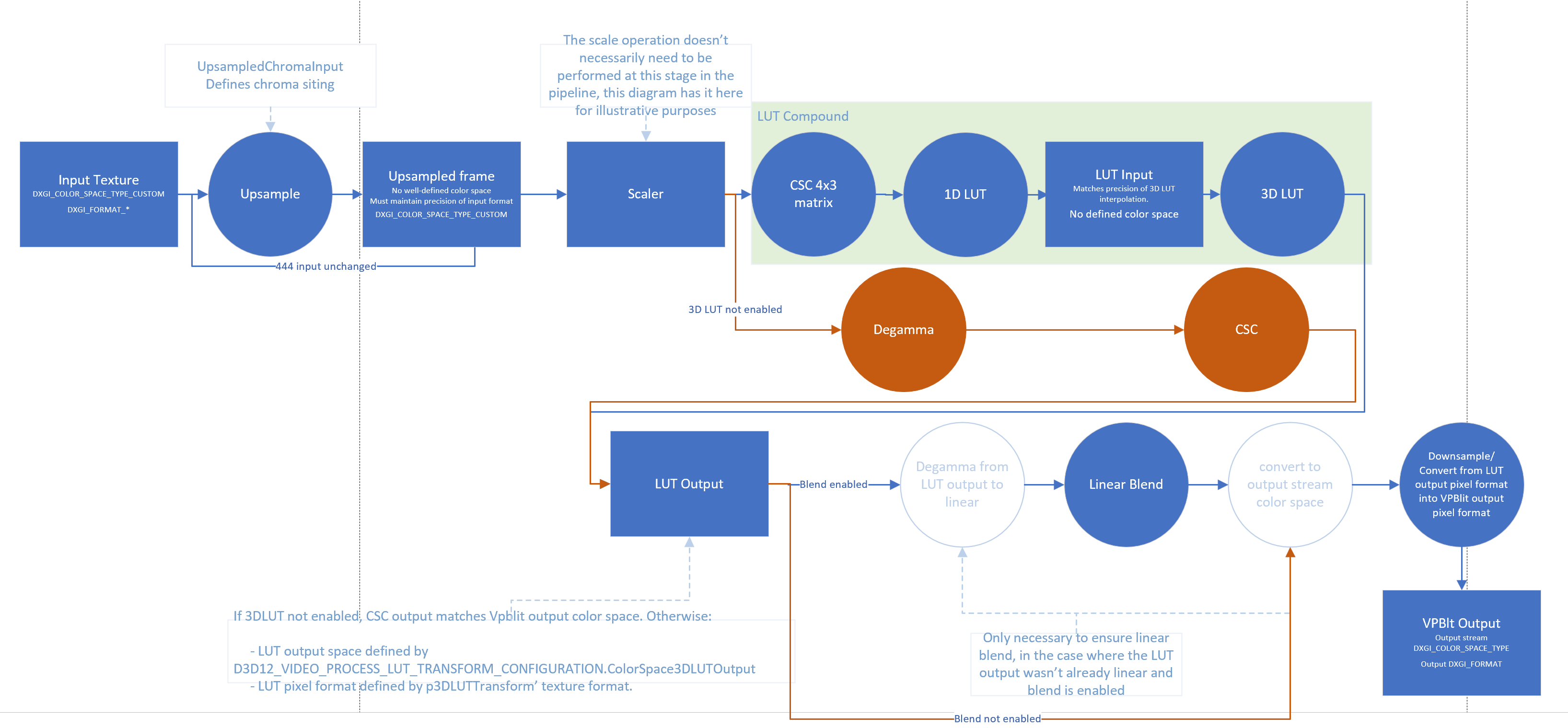

The following diagram indicates where the CSC/1DLUT/3DLUT operations (called the LUT compound as a group) fall within the VPBlit pipeline. CSC/1DLUT/3DLUT operations can be considered as replacing the “Degamma & CSC” stages in the previously defined VPBlit API. When the LUT compound is enabled, any other VPBlit operations (e.g rotation, scaling, blend, etc) must happen in the same order as they do relative to “Degamma & CSC” operations without the LUT compound enabled.

VPBlit Pipeline

The input texture format (DXGI_FORMAT) is given by the VPBlit input stream’s format. Additionally, if the input is not 444 already, VPBlt needs to perform upsampling to 4:4:4 from that input format. UpsampledChromaInput gives the driver info about chroma siting on the configuration parameters of the LUT compound.

Note: The DXGI_FORMAT parameters do not specify the semantics of the actual values stored in textures with such DXGI_FORMAT, even when the DXGI_FORMAT implies RGB or YUV by its name (e.g AYUV/R8G8B8A8, etc) that is only to be considered as the physical format memory layout/packing of several channels in a pixel on that format, disregarding of contents. The semantics of the values is given by DXGI_COLOR_SPACE_TYPE instead.

Note: In the context of this spec, since the color space from the input stream up to the output of the 3DLUT stage are defined as DXGI_COLOR_SPACE_TYPE_CUSTOM, it’s possible for apps to use DXGI_FORMAT such as, for example, DXGI_FORMAT_R8G8B8A8_* but without implying the contents of such ID3D12Resource objects contain RGBA values (e.g it’s just a 4 channel 8 bits packed format containing custom color values on that texture). Another example would be using DXGI_FORMAT_AYUV without implying AYUV color values, just the 4 channel per pixel packing.

The input to the CSC needs only to be defined in terms of the upsampling operation required and its output passed directly into the 1DLUT stage. The 3DLUT input is passed directly from the 1DLUT stage and the output space of the 3DLUT cube is defined in D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION.ColorSpace3DLUTOutput.

However, please note that when LUT compound is enabled, the input color space to the LUT compound (D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC.ColorSpace) is not defined (e.g DXGI_COLOR_SPACE_TYPE_CUSTOM). This allows the LUT to enable support for formats which are not defined in VPBlit/DXGI.

After the LUT compound stages, the blend operation (if any) must always be done in linear gamma, so the driver/harware must apply a conversion to linear (if not already in linear) from the D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION.ColorSpace3DLUTOutput, perform the linear blend and then convert to the D3D12_VIDEO_PROCESS_OUTPUT_STREAM_DESC.ColorSpace. When blending is not present, the driver must perform a conversion between D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION.ColorSpace3DLUTOutput and D3D12_VIDEO_PROCESS_OUTPUT_STREAM_DESC.ColorSpace.

Please note also that if D3D12_VIDEO_PROCESS_OUTPUT_STREAM_DESC.Format is different than p3DLUTTransform’s texture Format, a pixel format conversion must be performed post LUT stage (e.g downsampling between LUT output format and output stream format as indicated in the diagrams).

Multiple input streams

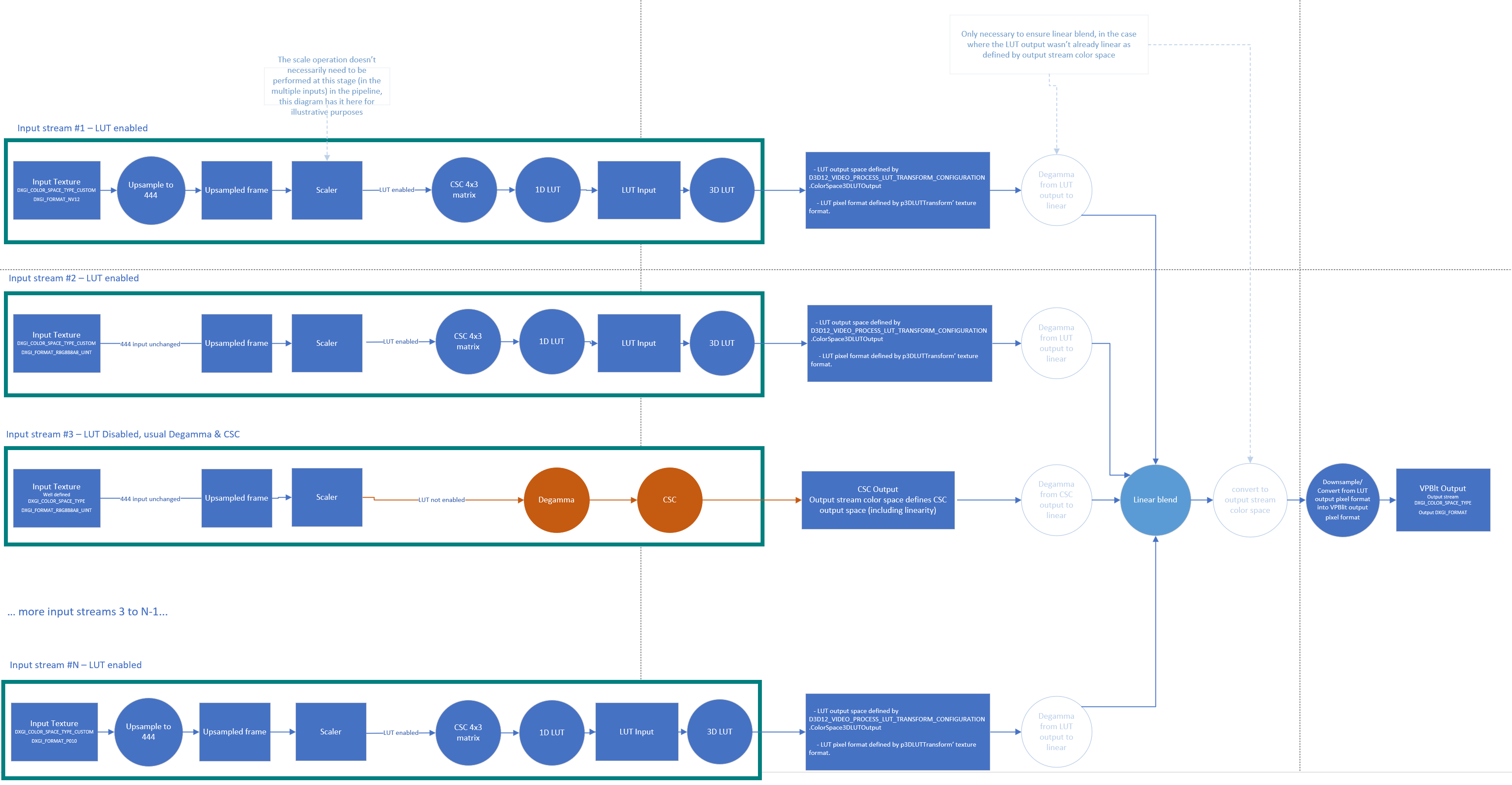

The diagram below depicts how multiple input streams interact when LUT compound is enabled, or not (using regular Degramma & CSC stages) are merged together at the Linear Blend stage.

The diagram is based on the high level diagram, but for each input stream has an actual input DXGI_FORMAT and was adjusted to skip upsampling to 444 (if necessary), and decide if the input stream goes through Degamma & CSC with a well defined DXGI_COLOR_SPACE_TYPE or if it goes through the LUT stages with DXGI_COLOR_SPACE_TYPE_CUSTOM.

VPBlit Multiple_streams

New structures for Video Processing API

D3D12 Resource API

D3D12_RESOURCE_FLAG

typedef struct D3D12_RESOURCE_FLAG
{
    ...
    D3D12_RESOURCE_FLAG_VIDEO_PROCESS_3DLUT_ONLY = ...,
    D3D12_RESOURCE_FLAG_VIDEO_PROCESS_1DLUT_ONLY = ...,
} D3D12_RESOURCE_FLAG;

D3D12_RESOURCE_FLAG_VIDEO_PROCESS_3DLUT_ONLY

Indicates the resource will contain a 3DLUT cube.

For hardware requiring special stride/allocation size alignment on any cube dimension, this must be addressed transparently by having the driver over-allocate accordingly when a caller creates a Texture3D ID3D12Resource with Flags containing D3D12_RESOURCE_FLAG_VIDEO_PROCESS_3DLUT_ONLY. When the D3D12 caller uses the resource within the [0..Width/Height/Depth] dimensions in any part of the pipeline (e.g 3D/Compute Shaders, VPBlit, etc), the driver must take care of handling the strides and layout/swizzle mappings transparently.

D3D12_RESOURCE_FLAG_VIDEO_PROCESS_1DLUT_ONLY

Indicates the resource will contain a 1DLUT table. Used for hardware requiring special layouts and needing to identify resources containing 1DLUTs for performing appropiate layout conversions on ResourceBarrier indicating the 1DLUT table contents changed (e.g WRITE to COMMON).

LUT Compound API

LUT Compound API - Support & Capabilities reporting

D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAGS

enum D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAGS
{
    D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAG_NONE	   = 0x0,
    D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAG_SUPPORTED = 0x1,
    D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAG_1DLUT_SPACING_CURVE = 0x2,
    D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAG_1DLUT_NON_MONOTONICALLY_INCREASING_CURVE = 0x4,
} D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAGS;

D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAG_NONE

Indicates no support for LUT compound.

D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAG_SUPPORTED

Indicates support for LUT compound including CSC, 1DLUT preshaper and 3DLUT.

D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAG_1DLUT_NON_MONOTONICALLY_INCREASING_CURVE

Indicates support for 1DLUT curves that do not monotonically increase.

D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE

enum D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE
{
    D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_TRILINEAR = 0,
    D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_TETRAHEDRAL = 1,
} D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE;

Interpolation mode for the 3DLUT cube.

D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_SUPPORT_FLAGS

enum D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_SUPPORT_FLAGS
{
    D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_SUPPORT_FLAG_NONE = 0x0,
    D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_SUPPORT_FLAG_TRILINEAR = (1 << D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_TRILINEAR),
    D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_SUPPORT_FLAG_TETRAHEDRAL = (1 << D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_TETRAHEDRAL)
} D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_SUPPORT_FLAGS;

Supported interpolation modes for the 3DLUT cube.

D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION

enum D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION
{
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_17x17x17 = 0;
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_33x33x33 = 1;
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_45x45x45 = 2;
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_65x65x65 = 3;
}

Dimensions for 3DLUT cubes.

D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAGS

enum D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAGS
{
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAG_NONE = 0x0,
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAG_17x17x17 = (1 << D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_17x17x17);
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAG_33x33x33 = (1 << D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_33x33x33);
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAG_45x45x45 = (1 << D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_45x45x45);
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAG_65x65x65 = (1 << D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_65x65x65);
} D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAGS

Supported dimensions for 3DLUT cubes.

D3D12_VIDEO_PROCESS_LUT_SUPPORT

typedef struct D3D12_VIDEO_PROCESS_LUT_SUPPORT
{
    DXGI_FORMAT Format1DLUT; // input
    DXGI_FORMAT Format3DLUT; // input
    DXGI_COLOR_SPACE_TYPE ColorSpace3DLUTOutput; // input
    D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAGS Flags; // output
    UINT Native1DLUTSize; // output
    D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_SUPPORT_FLAGS Interpolation3DLUTFlags; // output
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_SUPPORT_FLAGS Dimension3DLUTFlags; // output
} D3D12_VIDEO_PROCESS_LUT_SUPPORT;

Format1DLUT

Input parameter. Indicates the DXGI_FORMAT format intended by the app to be used in p1DLUTtransform.

Format3DLUT

Input parameter. Indicates the DXGI_FORMAT format intended by the app to be used in p3DLUTtransform.

ColorSpace3DLUTOutput

Input parameter. Indicates the DXGI_COLOR_SPACE_TYPE output space of p3DLUTtransform. If this parameter is equal to D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1.OutputFormat.ColorSpace then the color space output of the 3DLUT cube will match the VPBlit output stream color space (D3D12_VIDEO_PROCESS_OUTPUT_STREAM_DESC.ColorSpace). Otherwise, indicates that if the driver reports support in this support query, it will need to perform a conversion after the LUT and blend stages to match the VPBlit stream output color space.

Flags

Output Parameter. Indicates support for LUT based on the input parameters in D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1 and D3D12_VIDEO_PROCESS_LUT_SUPPORT.

Native1DLUTSize

Output Parameter. When LUT supported in Flags, indicates the dimensions of the hardware native 1DLUT size, the caller must adjust the 1DLUT texture Width to the native size.

The gap between the Native1DLUTSize size reported by the driver and the 2^bitdepth potential size of a full 1DLUT, will be resolved by the hardware doing interpolation.

Interpolation3DLUTFlags

Output Parameter. When LUT supported in Flags, indicates the 3DLUT interpolation support.

Dimension3DLUTFlags

Output Parameter. When LUT supported in Flags, indicates the 3DLUT dimensions support.

LUT Compound API - Input stream configuration

D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAGS

enum D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAGS
{
    D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_NONE = 0x0,
    D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_CSC = 0x1,
    D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_1DLUT = 0x2,
    D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_1DLUT_SPACING = 0x4,
    D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_3DLUT = 0x8,
} D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAGS;

D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_NONE

No flags.

D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_CSC

Indicates to the driver that an updated CSC is sent for hardware reconfiguration on this frame. In any subsequent calls to ProcessFrame, the user must send the same unchanged CSC matrix if not enabling this flag.

D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_1DLUT

Indicates to the driver that updated 1D LUTs are sent for hardware reconfiguration on this frame. In any subsequent calls to ProcessFrame, the user must send the same unchanged 1DLUT table if not enabling this flag.

D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_1DLUT_SPACING

Indicates to the driver that updated 1D LUTs spacing curves are sent for hardware reconfiguration on this frame. In any subsequent calls to ProcessFrame, the user must send the same unchanged 1DLUT spacing curve if not enabling this flag.

D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAG_3DLUT

Indicates to the driver that an updated 3DLUT is sent for hardware reconfiguration on this frame. In any subsequent calls to ProcessFrame, the user must send the same unchanged 3DLUT if not enabling this flag.

D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION_FLAGS

enum D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION_FLAGS
{
    D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION_FLAG_NONE = 0x0,
    D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION_FLAG_ENABLE = 0x1,
} D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION_FLAGS;

D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION_FLAG_NONE

No flags.

D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION_FLAG_ENABLE

Enables the LUT compound for this frame, including CSC, 1DLUT preshaper and 3DLUT. When this flag is enabled, the LUT compound replaces the “Degamma & CSC” stages in the previously defined VPBlit API. Otherwise, the pre-existing “Degamma & CSC” stages are used without tonemapping.

D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION

typedef struct D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION
{
    D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION_FLAGS ConfigFlags;
    DXGI_COLOR_SPACE_TYPE UpsampledChromaInput;
    DXGI_FORMAT Format1DLUT;
    DXGI_FORMAT Format3DLUT;
    DXGI_COLOR_SPACE_TYPE ColorSpace3DLUTOutput;
    D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE Interpolation3DLUT;
    D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION Dimension3DLUT;
} D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION;

ConfigFlags

Indicates the LUT configuration flags that will be used.

UpsampledChromaInput

If the input VPblit stream texture has a subsampled format (e.g NV12, YUY2, P010, etc), this parameter indicates the upsampling chroma properties (e.g sample siting positions) to be used for upsampling from the input stream texture format before being consumed. Parameter ignored by driver otherwise.

Please note that even as DXGI_COLOR_SPACE_TYPE also specifies other color space properties (e.g primaries), the driver should only consider UpsampledChromaInput relative to the siting information needed for the upsampling stage.

Format1DLUT

Indicates the DXGI_FORMAT format of p1DLUTtransform.

Format3DLUT

Indicates the DXGI_FORMAT format of p3DLUTTransform.

ColorSpace3DLUTOutput

Indicates the DXGI_COLOR_SPACE_TYPE output space of p3DLUTTransform.

Interpolation3DLUT

Indicates the 3DLUT interpolation that will be used.

Dimension3DLUT

Indicates the 3DLUT dimension that will be used.

LUT Compound API - ProcessFrames input stream parameters

D3D12_VIDEO_PROCESS_TRANSFORM_LUT

typedef struct D3D12_VIDEO_PROCESS_TRANSFORM_LUT
{
    // LUT Compound config
    D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION Configuration;

    // LUT Compound flags
    D3D12_VIDEO_PROCESS_LUT_UPDATE_FLAGS UpdateFlags;

    // CSC
    float pCSCMatrix[4][3];

    // 1DLUT
    ID3D12Resource *p1DLUTtransform;
    UINT Subresource1DLUT;
    ID3D12Resource *p1DLUTInputSpacing;
    UINT Subresource1DLUTInputSpacing;

    // 3DLUT
    ID3D12Resource *p3DLUTTransform; // No subresource for Texture3D
} D3D12_VIDEO_PROCESS_TRANSFORM_LUT;

Indicates the LUT parameters for this frame.

Params

Configuration

LUT configuration.

UpdateFlags

LUT Update flags indicating which stages have been modified and may require hardware reconfiguration for this frame.

pCSCMatrix

The CSC matrix.

p1DLUTtransform

1D LUT Table.

Subresource1DLUT

p1DLUTtransform subresource index.

p1DLUTInputSpacing

1D LUT input spacing curve.

Subresource1DLUTInputSpacing

p1DLUTInputSpacing subresource index.

p3DLUTTransform

3D LUT Table.

LUT compound remarks

When the LUT compound is enabled for a ProcessFrames call, it encompasses the CSC, 1DLUT and 3DLUT transforms in that order. To ensure a well defined format definition between stages within the LUT compound, all these stages are always enabled together, and the apps can use a linear ramp for 1DLUT and/or a identity matrix for CSC as defaults.

Note: The CSC output is clamped to [0, 1] before being passed to the 1DLUT as input, and the 1DLUT output is clamped to [0, 1] before being passed to the 3DLUT as input. See more details in the Data flow pseudocode section. The normalized range [0, 1] maps to the full representable range of the texture format: for _UNORM formats this corresponds to the unsigned normalized integer range, and for _FLOAT formats this corresponds to the floating-point range from 0.0 to 1.0. For more information about DXGI format ranges, see the DXGI_FORMAT documentation.

Note: If the application is using an input texture with values outside the [0, 1] range (for example, DXGI_FORMAT_R16G16B16A16_FLOAT with HDR values greater than 1.0), the app must use the CSC matrix to scale the input into the [0, 1] range to fit within the clamp operation that occurs after the CSC stage. Failure to do so will result in values being clipped at the CSC output clamp, potentially losing important HDR information.

DXGI_FORMAT mappings

The input D3D12_VIDEO_PROCESS_INPUT_STREAM.pTexture2D texture will be upsampled to 4:4:4 if necessary before the CSC stage.

If it’s already an 4:4:4 format input, the A,Y,U,V and R,G,B,A mappings are specified by the DXGI_FORMAT’s shader view rules. For example: For DXGI_FORMAT_AYUV one view provides a straightforward mapping of the entire surface and the mapping to the view channel is V->R8, U->G8, Y->B8, and A->A8.

For subsampled formats that use a single view (e.g DXGI_FORMAT_YUY2, DXGI_FORMAT_Y210, DXGI_FORMAT_Y216, etc), DXGI_FORMAT’s shader mapping to the view channel rules are used to map between A,Y,U,V and R,G,B,A channels, and using the packed RGB DXGI_FORMAT_RxGxBxAx_* as view formats. The precision x for each channel of the upsampled format matches the precision of the p1DLUTtransform texture’s format. Alpha channel is ignored.

For subsampled input formats that use multiple views (e.g DXGI_FORMAT_NV12, DXGI_FORMAT_P010, DXGI_FORMAT_P016, etc) the upsampling conversion matches the precision of the p1DLUTtransform texture’s format and maps to a single view with RGBA format. For example upsampling DXGI_FORMAT_NV12 maps to DXGI_FORMAT_R8G8B8A8_*, DXGI_FORMAT_P010 maps to DXGI_FORMAT_R10G10B10A10_* when the latter format matches the p1DLUTTransform’s texture format., etc with mapping to the channels between A,Y,U,V and R,G,B,A mappings beign V<->Rx, U<->Gx, Y<->Bx, and A<->Ax, where x is the bit depth of the channel. Alpha channel is ignored.

Since some DXGI formats do not have the RGBX variant (e.g R16G16B16X16 does not exist) and not all HW supports passthrough/copy of the alpha channel, the alpha channel (if present in the format) is ignored for simplicity, but the formats allowed to be used.

Data flow

Please see below a pseudocode of how the data would flow from the (see diagram) “Upsampled frame” (444) input to the “LUT Output” output. This example assumes the upsampled frame has 8 bit channel components.

Note that provides only a possible implementation of the lookup_1d/lookup_3d functions, the drivers/hardware may implement these differently based on their HW specifics.

// LUT_compound(...): Describes the DX12 LUT Compound pipeline of this spec as a whole

// The pipeline consists of the following stages:

// 1. Input Handling & Upsampling:
//     - Accepts a texture input (pTexture2D) from D3D12_VIDEO_PROCESS_INPUT_STREAM.
//     - If the input format is not 4:4:4, chroma upsampling is performed using the specified upsample mode.
//     - Extracts R8, G8, B8 channels, ignoring alpha if present.

// 2. Color Space Conversion (CSC):
//     - Applies a CSC matrix transformation to the upsampled RGB values.
//     - The output values (O_R8, O_G8, O_B8) are clamped to the [0, 1] range.

// 3. 1D LUT Stage:
//     - Applies a 1D LUT transformation to each color channel.
//     - If no input spacing resource is provided, assumes uniform spacing for LUT inputs.
//     - Uses lookup_1d to map the CSC output through the 1D LUTs for each channel.
//     - The results (S_R8, S_G8, S_B8) are clamped to [0, 1].

// 4. 3D LUT Stage:
//     - Applies a 3D LUT transformation using the outputs from the 1D LUT stage.
//     - Uses lookup_3d with the processed RGB values and the provided 3D LUT transform.

// 5. Output:
//     - Returns the final LUT_OUTPUT after all processing stages.

// Notes:
//     - The function assumes DXGI_FORMAT mappings and D3D12_VIDEO_PROCESS_LUT_SUPPORT.Native1DLUTSize for LUT sizing.
//     - The pipeline is designed for driver-level implementation and assumes certain defaults if resources are not provided by the application.
define LUT_compound(...):
{
    //...
    // App populates 3DLUT Cube with populate_3dlut_texture(p3DLUTTransform, N) where N corresponds to the D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_NxNxN and populate_1dlut_texture(p1DLUTtransform, p1DLUTInputSpacing, N) where N is D3D12_VIDEO_PROCESS_LUT_SUPPORT.Native1DLUTSize. Note the app does NOT need to load the 1D/3D nor CSC on every frame, but only as needed.
    //...

    // I_* is the input to the LUT compound after upsampling, following DXGI_FORMAT mappings specified above
    if (Format(D3D12_VIDEO_PROCESS_INPUT_STREAM.pTexture2D) is not 4:4:4)
    {
        I_R8, I_G8, I_B8 = upsample(D3D12_VIDEO_PROCESS_INPUT_STREAM.pTexture2D, upsample_mode=UpsampledChromaInput)
    }
    else
    {
        I_R8, I_G8, I_B8 = D3D12_VIDEO_PROCESS_INPUT_STREAM.pTexture2D; // ignore alpha channel if present
    }

    //
    // Apply CSC stage
    //
    // Note: The pCSCMatrix[4][3] structure maps directly to matrix elements as pCSCMatrix[x][y] = Mxy.
    // The mathematical 3x4 matrix is applied in transposed form as shown below:

    | O_R8 |   | M00  M10  M20  M30  |   | I_R8 |
    | O_G8 | = | M01  M11  M21  M31  | . | I_G8 |
    | O_B8 |   | M02  M12  M22  M32  |   | I_B8 |
    | 1.0f |   | 0.0f 0.0f 0.0f 1.0f |   | 1.0f |

    O_R8 = clamp(O_R8, 0, 1)
    O_G8 = clamp(O_G8, 0, 1)
    O_B8 = clamp(O_B8, 0, 1);

    //
    // Apply 1DLUT stage
    //

    //
    // if a p1DLUTInputSpacing resource is not provided by app
    // Driver assumes fixed uniform spacing for 1DLUT inputs.
    //
    if (p1DLUTInputSpacing == NULL)
    {
        // Driver assumes this is the input spacing when not specified by app:
        p1DLUTInputSpacing.Width = p1DLUTtransform.Width // D3D12_VIDEO_PROCESS_LUT_SUPPORT.Native1DLUTSize
        for (i = 0; i < p1DLUTInputSpacing.Width; i++)
        {
            p1DLUTInputSpacing[i] = i / (float)(p1DLUTInputSpacing.Width - 1);
        }
    }

    S_R8 = lookup_1d(O_R8, array_slice_channel(p1DLUTtransform.R8), array_slice_channel(p1DLUTInputSpacing.R16))
    S_G8 = lookup_1d(O_G8, array_slice_channel(p1DLUTtransform.G8), array_slice_channel(p1DLUTInputSpacing.R16))
    S_B8 = lookup_1d(O_B8, array_slice_channel(p1DLUTtransform.B8), array_slice_channel(p1DLUTInputSpacing.R16))

    S_R8 = clamp(S_R8, 0, 1)
    S_G8 = clamp(S_G8, 0, 1)
    S_B8 = clamp(S_B8, 0, 1);

    //
    // Apply 3DLUT stage
    //
    // R8 -> x; G8 -> y; B8 -> z
    LUT_OUTPUT = lookup_3d((S_R8,S_G8,S_B8), p3DLUTTransform)

    return LUT_OUTPUT;
}

//
// 3DLUT Texture Population (Application side)
//
// The 3DLUT texture should be populated following the R->G->B walking order:
// - R channel matches X dimension / Width
// - G channel matches Y dimension / Height
// - B channel matches Z dimension / Depth
//
// For a NxNxN cube, the texture coordinates map as follows:
define populate_3dlut_texture(p3DLUTTransform, N):
{
    for (int z = 0; z < N; z++)      // Blue matches z axis (depth)
    {
        for (int y = 0; y < N; y++)  // Green matches y axis (height)
        {
            for (int x = 0; x < N; x++)  // Red matches x axis (width)
            {
                // Input RGB coordinates in normalized [0,1] space
                float input_r = x / (float)(N-1);
                float input_g = y / (float)(N-1);
                float input_b = z / (float)(N-1);

                // Apply your color transformation function and
                // store the result in texture at coordinates (x,y,z)
                p3DLUTTransform[x][y][z] = transform_function(input_r, input_g, input_b);
            }
        }
    }
}

//
// 1DLUT Texture Population (Application side)
//
// The 1DLUT consists of two components:
// 1. p1DLUTtransform: The actual lookup table values for each channel (R, G, B)
// 2. p1DLUTInputSpacing: Optional spacing curve that defines non-uniform input sampling
//
// For a 1DLUT with N entries, the texture should be populated as follows:
define populate_1dlut_texture(p1DLUTtransform, p1DLUTInputSpacing, N):
{
    //
    // [Optional] Populate the input spacing curve with
    // a custom_spacing_function
    //
    // Note: If the app sends p1DLUTInputSpacing = NULL,
    // the driver assumes uniform spacing: i / (N-1)
    //
    if (p1DLUTInputSpacing != NULL)
    {
        for (int i = 0; i < N; i++)
        {
            // Store in R16_FLOAT format as required by the spec
            p1DLUTInputSpacing[i] = spacing_function(i, N, ...);
        }
    }

    // Populate the 1DLUT transform values for each channel
    for (int i = 0; i < N; i++)
    {
        float input_value = 0.0f;

        // Determine input value based on spacing
        if (p1DLUTInputSpacing != NULL)
        {
            // Use custom spacing
            input_value = p1DLUTInputSpacing[i];
        }
        else
        {
            // Use uniform spacing
            input_value = i / (float)(N-1);
        }

        // Apply your 1D transformation function for each channel
        // Format depends on Format1DLUT (e.g., R8G8B8A8, R10G10B10A2, etc.)
        p1DLUTtransform[i].r = red_transform_function(input_value);
        p1DLUTtransform[i].g = green_transform_function(input_value);
        p1DLUTtransform[i].b = blue_transform_function(input_value);
        // Alpha channel is ignored in 1DLUT processing
    }
}

//
// 1DLUT Lookup (Hardware/Driver side)
//
// The function iterates through the input spacing array to find the interval
// where O_R8 falls. It then interpolates between the corresponding LUT transform
// values to compute the output S_R8.
//
define lookup_1d(O_R8, p1DLUTtransform[], p1DLUTInputSpacing[]):
{
    for (i = 0; i < p1DLUTtransform.Width-1; i++)
    {
        if (O_R8 > p1DLUTInputSpacing[i] && O_R8 <= p1DLUTInputSpacing[i+1])
        {
            S_R8 = interpolate(O_R8, p1DLUTtransform[i], p1DLUTtransform[i+1]);
        }
    }
    return S_R8;
}

//
// 3DLUT Lookup (Hardware/Driver side)
//
// The function maps the input RGB values to corresponding coordinates in the LUT's 3D space:
//   - r -> x (Width)
//   - g -> y (Height)
//   - b -> z (Depth)
//
// Depending on the interpolation mode specified in `Interpolation3DLUT`, the function performs either:
//   - Trilinear interpolation (D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_TRILINEAR)
//   - Tetrahedral interpolation (D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_TETRAHEDRAL)
//
define lookup_3d(rgb_input, p3DLUTTransform):
{
    // rgb_input.r -> x coordinate (Width dimension)
    // rgb_input.g -> y coordinate (Height dimension)
    // rgb_input.b -> z coordinate (Depth dimension)

    float x_coord = rgb_input.r * (p3DLUTTransform.Width - 1);
    float y_coord = rgb_input.g * (p3DLUTTransform.Height - 1);
    float z_coord = rgb_input.b * (p3DLUTTransform.Depth - 1);

    // Perform interpolation based on Interpolation3DLUT mode
    if (Interpolation3DLUT == D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_TRILINEAR)
    {
        return trilinear_interpolate(p3DLUTTransform, x_coord, y_coord, z_coord);
    }
    else // D3D12_VIDEO_PROCESS_3DLUT_INTERPOLATION_MODE_TETRAHEDRAL
    {
        return tetrahedral_interpolate(p3DLUTTransform, x_coord, y_coord, z_coord);
    }
}

1DLUT remarks

1DLUTs are applied per each input format channels as independent map transforms.
The Format of p1DLUTtransform must be one supported by D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1.SupportLUT. This format indicates the output format of the 1DLUT transformation, and the input format for the subsequent (when enabled) 3DLUT transformation.
The Format defines the allowed value ranges, for example DXGI_FORMAT_B8G8R8A8_UNORM indicates unsigned-normalized-integer format that supports 8 bits for each color channel and so on. More details about the ranges of the available formats can be found at the DXGI_FORMAT documentation. For floating-point formats, the normalization and value interpretation is further defined by the combination of DXGI_FORMAT and DXGI_COLOR_SPACE_TYPE as described in the DXGI_COLOR_SPACE_TYPE documentation.
The Dimension of p1DLUTtransform must be D3D12_RESOURCE_DIMENSION_TEXTURE1D.
The Width of p1DLUTtransform must match D3D12_VIDEO_PROCESS_LUT_SUPPORT.Native1DLUTSize.
D3D12_RESOURCE_FLAG_VIDEO_PROCESS_1DLUT_ONLY must be specified when creating p1DLUTtransform.
The appropiate resources/subresources for p1DLUTtransform must be in D3D12_RESOURCE_STATE_VIDEO_PROCESS_READ state before executing ProcessFrames with it.

Note that when writing/loading contents to a resource with D3D12_RESOURCE_FLAG_VIDEO_PROCESS_1DLUT_ONLY (e.g with a CPU->GPU upload or with a shader or another way), the D3D12_RESOURCE_STATE_* -> D3D12_RESOURCE_STATE_COMMON resource state transition after the write may need to convert the compression/layout to a HW specific one, and this may have a performance cost. So it’s advised when possible to pre-generate/pre-load the contents and avoid such unnecessary transitions.

1DLUT input spacing remarks

Requires D3D12_VIDEO_PROCESS_LUT_SUPPORT_FLAG_1DLUT_SPACING_CURVE support from the driver. Otherwise p1DLUTInputSpacing must be always NULL.
When p1DLUTInputSpacing is passed as NULL, driver must assumes fixed uniform spacing for p1DLUTtransform input.
When a non NULL p1DLUTInputSpacing is passed by the app, it indicates a curve to shape the x axis input coordinates to p1DLUTtransform. Such curve maps from the [0..D3D12_VIDEO_PROCESS_LUT_SUPPORT.Native1DLUTSize] index space into the DXGI_FORMAT_R16_FLOAT range.

The app could send such a curve when needing to modify the spacing of the 1DLUT pre-shaper, to match custom linearities of the input. For example, when mapping from a linear input into a non-linear pre-shaper spacing, some areas of the input may require additional precision which may not well modeled by the default linear spacing of the 1DLUT pre-shaper.

The Format of a non NULL p1DLUTInputSpacing must be DXGI_FORMAT_R16_FLOAT.
The Dimension of a non NULL p1DLUTInputSpacing must be D3D12_RESOURCE_DIMENSION_TEXTURE1D.
The Width of a non NULL p1DLUTInputSpacing must match D3D12_VIDEO_PROCESS_LUT_SUPPORT.Native1DLUTSize.
The appropiate resources/subresources for p1DLUTInputSpacing must be in D3D12_RESOURCE_STATE_VIDEO_PROCESS_READ state before executing ProcessFrames with it.

3DLUT remarks

3DLUT is applied as a single transform to all the channels in the input/output formats.
Interpolation3DLUT mode is used for inputs that do not fall within exact entries in the cube.
The Dimension of the 3DLUT transform will be D3D12_RESOURCE_DIMENSION_TEXTURE3D.
The Width = Height = DepthOrArraySize of the 3DLUT transform will be given by D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION.Dimension3DLUT
- For example D3D12_VIDEO_PROCESS_3DLUT_TABLE_DIMENSION_33x33x33 implies Width = Height = DepthOrArraySize = 33.
D3D12_RESOURCE_FLAG_VIDEO_PROCESS_3DLUT_ONLY must be specified when creating p3DLUTTransform.
The Format of the 3DLUT transform must be one supported by D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1.SupportLUT and match the Format3DLUT parameter. This format indicates the output format of the 3DLUT transformation.
The Format defines the allowed value ranges, for example DXGI_FORMAT_B8G8R8A8_UNORM indicates unsigned-normalized-integer format that supports 8 bits for each color channel and so on. More details about the ranges of the available formats can be found at the DXGI_FORMAT documentation..

Note: For floating-point formats such as DXGI_FORMAT_R16G16B16A16_FLOAT, hardware implementations are not required to support the full theoretical range and precision of the format in their internal processing. Implementations must be capable of supporting the reduced range necessary for typical display output scenarios (e.g. nits peak luminance for in-market HDR displays), but may use optimized internal representations that trade off precision or range for performance while maintaining acceptable visual quality for the target use cases.

The ColorSpace3DLUTOutput parameter indicates the DXGI_COLOR_SPACE_TYPE output space of p3DLUTtransform. If this parameter is different to D3D12_VIDEO_PROCESS_OUTPUT_STREAM_DESC.ColorSpace then the driver must perform a conversion after the LUT and blend stages to match the VPBlit stream output color space.
- When ColorSpace3DLUTOutput is YUV but Format3DLUT is an RGB format, the same mappings between YUV/RGB channels apply as explained above in the DXGI_FORMAT mappings section.
p3DLUTTransform must be in D3D12_RESOURCE_STATE_VIDEO_PROCESS_READ state before executing ProcessFrames with it.

Note that when writing/loading contents to a resource with D3D12_RESOURCE_FLAG_VIDEO_PROCESS_3DLUT_ONLY (e.g with a CPU->GPU upload or with a shader or another way), the D3D12_RESOURCE_STATE_* -> D3D12_RESOURCE_STATE_COMMON resource state transition after the write may need to convert the compression/layout to a HW specific one, and this may have a performance cost. So it’s advised when possible to pre-generate/pre-load the contents and avoid such unnecessary transitions.

Extensions to existing structures for Video Processing API

These are the extension points to the existing VPBlit API to hold the new structures defined above.

Core Video Processing API - Support & Capabilities reporting for LUT compound

D3D12_FEATURE_VIDEO

typedef enum D3D12_FEATURE_VIDEO
{
    …,
    D3D12_FEATURE_VIDEO_PROCESS_SUPPORT1, // D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1
    D3D12_FEATURE_VIDEO_PROCESSOR_SIZE2, // D3D12_FEATURE_DATA_VIDEO_PROCESSOR_SIZE2
} D3D12_FEATURE_VIDEO;

D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1

typedef struct D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1
{
    // Existing in D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT

    UINT NodeIndex;
    D3D12_VIDEO_SAMPLE InputSample;
    D3D12_VIDEO_FIELD_TYPE InputFieldType;
    D3D12_VIDEO_FRAME_STEREO_FORMAT InputStereoFormat;
    DXGI_RATIONAL InputFrameRate;
    D3D12_VIDEO_FORMAT OutputFormat;
    D3D12_VIDEO_FRAME_STEREO_FORMAT OutputStereoFormat;
    DXGI_RATIONAL OutputFrameRate;
    D3D12_VIDEO_PROCESS_SUPPORT_FLAGS SupportFlags;
    D3D12_VIDEO_SCALE_SUPPORT ScaleSupport;
    D3D12_VIDEO_PROCESS_FEATURE_FLAGS FeatureSupport;
    D3D12_VIDEO_PROCESS_DEINTERLACE_FLAGS DeinterlaceSupport;
    D3D12_VIDEO_PROCESS_AUTO_PROCESSING_FLAGS AutoProcessingSupport;
    D3D12_VIDEO_PROCESS_FILTER_FLAGS FilterSupport;
    D3D12_VIDEO_PROCESS_FILTER_RANGE FilterRangeSupport[ 32 ];

    // New in D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1
    D3D12_VIDEO_PROCESS_LUT_SUPPORT SupportLUT;
} D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1;

New parameters are added respect to D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT for LUT compound.

SupportLUT contains in/out parameters regarding support for the LUT compound.

The driver must only take into consideration the inputs in D3D12_VIDEO_PROCESS_LUT_SUPPORT and report LUT support accordingly when D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1.InputSample.Format.ColorSpace == DXGI_COLOR_SPACE_TYPE_CUSTOM. Otherwise driver must not report any support for LUT, since with a well defined color space stream input, legacy CSC path is used without LUT compound.

D3D12_FEATURE_VIDEO_PROCESSOR_SIZE2

Revision for new struct D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1.

// D3D12_FEATURE_VIDEO_PROCESSOR_SIZE2
typedef struct D3D12_FEATURE_DATA_VIDEO_PROCESSOR_SIZE2
{
    UINT NodeMask;
    const D3D12_VIDEO_PROCESS_OUTPUT_STREAM_DESC* pOutputStreamDesc;    // input
    UINT NumInputStreamDescs;                                           // input
    const D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1 *pInputStreamDescs;    // input
    BOOL Protected;                                                     // input
    UINT64 MemoryPoolL0Size;                                            // output
    UINT64 MemoryPoolL1Size;                                            // output
} D3D12_FEATURE_DATA_VIDEO_PROCESSOR_SIZE2;

Replaced D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC in D3D12_FEATURE_DATA_VIDEO_PROCESSOR_SIZE1 with D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1 in D3D12_FEATURE_DATA_VIDEO_PROCESSOR_SIZE2.

Core Video Processing API - Input stream configuration for LUT compound

typedef struct D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1
{
    DXGI_FORMAT Format;
    DXGI_COLOR_SPACE_TYPE ColorSpace;
    DXGI_RATIONAL SourceAspectRatio;
    DXGI_RATIONAL DestinationAspectRatio;
    DXGI_RATIONAL FrameRate;
    D3D12_VIDEO_SIZE_RANGE SourceSizeRange;
    D3D12_VIDEO_SIZE_RANGE DestinationSizeRange;
    BOOL EnableOrientation;
    D3D12_VIDEO_PROCESS_FILTER_FLAGS FilterFlags;
    D3D12_VIDEO_FRAME_STEREO_FORMAT StereoFormat;
    D3D12_VIDEO_FIELD_TYPE FieldType;
    D3D12_VIDEO_PROCESS_DEINTERLACE_FLAGS DeinterlaceMode;
    BOOL EnableAlphaBlending;
    D3D12_VIDEO_PROCESS_LUMA_KEY LumaKey;
    UINT NumPastFrames;
    UINT NumFutureFrames;
    BOOL EnableAutoProcessing;
    D3D12_VIDEO_PROCESS_LUT_TRANSFORM_CONFIGURATION ConfigurationLUT;
} D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1;

New parameters are added respect to D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC for LUT compound.

ID3D12VideoProcessor2

Revision for new struct D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1.

interface ID3D12VideoProcessor2
    : ID3D12VideoProcessor1
{
    HRESULT GetInputStreamDescs1(UINT NumInputStreamDescs,
                                [annotation("_Out_writes_(NumInputStreamDescs)")] D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1 *pInputStreamDescs
    );
}

ID3D12VideoDevice4

Revision for new struct D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1.

interface ID3D12VideoDevice4
    : ID3D12VideoDevice3
{
    HRESULT CreateVideoProcessor2(
        UINT NodeMask,
        [annotation("_In_")] const D3D12_VIDEO_PROCESS_OUTPUT_STREAM_DESC* pOutputStreamDesc,
        UINT NumInputStreamDescs,
        [annotation("_In_reads_(NumInputStreamDescs)")] const D3D12_VIDEO_PROCESS_INPUT_STREAM_DESC1 *pInputStreamDescs,
        [annotation("_In_opt_")] ID3D12ProtectedResourceSession *pProtectedResourceSession,
        [annotation("_In_")] REFIID riid, // Expected: IID_ID3D12VideoProcessor2,
        [out, iid_is(riid), annotation("_COM_Outptr_")] void **ppVideoProcessor
        );
}

Core Video Processing API - ProcessFrames input stream parameters for LUT compound

typedef struct D3D12_VIDEO_PROCESS_INPUT_STREAM_ARGUMENTS2
{
    D3D12_VIDEO_PROCESS_INPUT_STREAM InputStream[D3D12_VIDEO_PROCESS_STEREO_VIEWS];
    D3D12_VIDEO_PROCESS_TRANSFORM Transform;
    D3D12_VIDEO_PROCESS_INPUT_STREAM_FLAGS Flags;
    D3D12_VIDEO_PROCESS_INPUT_STREAM_RATE RateInfo;
    INT FilterLevels[D3D12_VIDEO_PROCESS_MAX_FILTERS];
    D3D12_VIDEO_PROCESS_ALPHA_BLENDING AlphaBlending;
    D3D12_VIDEO_FIELD_TYPE FieldType;
    D3D12_VIDEO_PROCESS_TRANSFORM_LUT LUTMode;
} D3D12_VIDEO_PROCESS_INPUT_STREAM_ARGUMENTS2;

New parameters are added respect to D3D12_VIDEO_PROCESS_INPUT_STREAM_ARGUMENTS1 for LUT compound.

interface ID3D12VideoProcessCommandList4 : ID3D12VideoProcessCommandList3
{
    void ProcessFrames2(
        [annotation("_In_")] ID3D12VideoProcessor2* pVideoProcessor,
        [annotation("_In_")] const D3D12_VIDEO_PROCESS_OUTPUT_STREAM_ARGUMENTS *pOutputArguments,
        UINT NumInputStreams,
        [annotation("_In_reads_(NumInputStreams)")] const D3D12_VIDEO_PROCESS_INPUT_STREAM_ARGUMENTS2 *pInputArguments
        );
}

Known scenarios

While the API defined above must work with any input as a fully programmable LUT compound for any apps attempting to use it for diverse scenarios (e.g custom tonemapping operations with programmable LUTs), this section details specific scenarios that will be of particular interest to Media & other teams using this API. Please note that the output format/color space determination doesn’t depend directly on the input format/spaces, it may be determined by other factors such as display properties. So any input could go to either/any output format/space.

Media scenarios

RGB scenarios

Scenario	Input stream color space	Expected input color semantics (not passed in API/DDI)	Input stream format	CSC Matrix	1DLUT texture format (1DLUT output format)	3DLUT Format/Color space	Output stream color space	Output stream format
Custom to HDR10	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_TYPE` not defined	`DXGI_FORMAT_R10G10B10A2_UNORM`	As needed or identity	`DXGI_FORMAT_R10G10B10A2_UNORM`	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020` `DXGI_COLOR_SPACE_RGB_STUDIO_G2084_NONE_P2020`	`DXGI_FORMAT_R10G10B10A2_UNORM`
HDR10 to HDR10	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020`	`DXGI_FORMAT_R10G10B10A2_UNORM`	As needed or identity	`DXGI_FORMAT_R10G10B10A2_UNORM`	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020` `DXGI_COLOR_SPACE_RGB_STUDIO_G2084_NONE_P2020`	`DXGI_FORMAT_R10G10B10A2_UNORM`
Custom to sRGB	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_TYPE` not defined	`DXGI_FORMAT_R10G10B10A2_UNORM`	As needed or identity	`DXGI_FORMAT_R10G10B10A2_UNORM`	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709`	`DXGI_FORMAT_R8G8B8A8_UNORM`
HDR10 to sRGB	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020`	`DXGI_FORMAT_R10G10B10A2_UNORM`	As needed or identity	`DXGI_FORMAT_R10G10B10A2_UNORM`	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709`	`DXGI_FORMAT_R8G8B8A8_UNORM`
HDR10 to FP16 (CCCS)	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020`	`DXGI_FORMAT_R10G10B10A2_UNORM`	As needed or identity	`DXGI_FORMAT_R10G10B10A2_UNORM`	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709`	`DXGI_FORMAT_R16G16B16A16_FLOAT`
FP16 to FP16 (CCCS)	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709`	`DXGI_FORMAT_R16G16B16A16_FLOAT`	As needed or identity	`DXGI_FORMAT_R16G16B16A16_FLOAT`	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709`	`DXGI_FORMAT_R16G16B16A16_FLOAT`

YUV scenarios

Scenario	Input stream color space	Expected input color semantics (not passed in API/DDI)	Input stream format	CSC Matrix	1DLUT texture format (1DLUT output format)	3DLUT Format/Color space	Output stream color space	Output stream format
HDR10 (YUV) to HDR10	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_LEFT_P2020` `DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_TOPLEFT_P2020`	`DXGI_FORMAT_P010`	As needed or identity	`DXGI_FORMAT_R8G8B8A8_UNORM` `DXGI_FORMAT_R8G8B8X8_UNORM` (P010 input is upscaled to 4:4:4 for CSC input, 3 channel 1DLUT processing with alpha channel ignored)	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020` `DXGI_COLOR_SPACE_RGB_STUDIO_G2084_NONE_P2020`	`DXGI_FORMAT_R10G10B10A2_UNORM`
HDR10 (YUV) to sRGB	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_LEFT_P2020` `DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_TOPLEFT_P2020`	`DXGI_FORMAT_P010`	As needed or identity	`DXGI_FORMAT_R8G8B8A8_UNORM` `DXGI_FORMAT_R8G8B8X8_UNORM` (P010 input is upscaled to 4:4:4 for CSC input, 3 channel 1DLUT processing with alpha channel ignored)	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709`	`DXGI_FORMAT_R8G8B8A8_UNORM` `DXGI_FORMAT_B8G8R8A8_UNORM` `DXGI_FORMAT_B8G8R8X8_UNORM` `DXGI_FORMAT_R10G10B10A2_UNORM` `DXGI_FORMAT_R8G8B8A8_UNORM_SRGB` `DXGI_FORMAT_B8G8R8A8_UNORM_SRGB` `DXGI_FORMAT_B8G8R8X8_UNORM_SRGB`
FP16 to YUV 2084	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709`	`DXGI_FORMAT_R16G16B16A16_FLOAT`	As needed or identity	`DXGI_FORMAT_R16G16B16A16_FLOAT`	`DXGI_FORMAT_R10G10B10A2_UNORM`/`DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_LEFT_P2020` `DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_TOPLEFT_P2020` (output stream needs additional downsampling but no color space conversion)	`DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_LEFT_P2020` `DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_TOPLEFT_P2020`	`DXGI_FORMAT_P010`
HDR10 (YUV) to FP16 (CCCS)	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_LEFT_P2020` `DXGI_COLOR_SPACE_YCBCR_STUDIO_G2084_TOPLEFT_P2020`	`DXGI_FORMAT_P010`	As needed or identity	`DXGI_FORMAT_R8G8B8A8_UNORM` `DXGI_FORMAT_R8G8B8X8_UNORM` (P010 input is upscaled to 4:4:4 for CSC input, 3 channel 1DLUT processing with alpha channel ignored)	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709`	`DXGI_FORMAT_R16G16B16A16_FLOAT`

Other scenarios

HDR conversion scenarios

Scenario	Input stream color space	Expected input color semantics (not passed in API/DDI)	Input stream format	CSC Matrix	1DLUT texture format (1DLUT output format)	3DLUT Format/Color space	Output stream color space	Output stream format
RGB SDR to RGB HDR	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709`	`DXGI_FORMAT_R8G8B8A8_UNORM` `DXGI_FORMAT_B8G8R8A8_UNORM` `DXGI_FORMAT_B8G8R8X8_UNORM` `DXGI_FORMAT_R10G10B10A2_UNORM` `DXGI_FORMAT_R8G8B8A8_UNORM_SRGB` `DXGI_FORMAT_B8G8R8A8_UNORM_SRGB` `DXGI_FORMAT_B8G8R8X8_UNORM_SRGB`	As needed or identity	As needed or identity	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709` `DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020`	`DXGI_FORMAT_R16G16B16A16_FLOAT` `DXGI_FORMAT_R10G10B10A2_UNORM`
RGB HDR10 to YUV SDR 709	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020`	`DXGI_FORMAT_R10G10B10A2_UNORM`	As needed or identity	`DXGI_FORMAT_R10G10B10A2_UNORM` (same as input stream format)	`DXGI_FORMAT_R8G8B8A8_UNORM` (output stream needs additional downsampling for `DXGI_FORMAT_NV12` VPblit stream output format but no color space conversion) `DXGI_FORMAT_AYUV` (no output stream additional conversion)	`DXGI_COLOR_SPACE_YCBCR_STUDIO_G24_LEFT_P709` `DXGI_COLOR_SPACE_YCBCR_FULL_G22_LEFT_P709` `DXGI_COLOR_SPACE_YCBCR_FULL_G22_NONE_P709_X601`	`DXGI_FORMAT_NV12` `DXGI_FORMAT_AYUV`
FP16 to YUV SDR 709	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709`	`DXGI_FORMAT_R16G16B16A16_FLOAT`	As needed or identity	`DXGI_FORMAT_R16G16B16A16_FLOAT` (same as input stream format)	`DXGI_FORMAT_R8G8B8A8_UNORM` (output stream needs additional downsampling for `DXGI_FORMAT_NV12` VPblit stream output format but no color space conversion) `DXGI_FORMAT_AYUV` (no output stream additional conversion)	`DXGI_COLOR_SPACE_YCBCR_STUDIO_G24_LEFT_P709` `DXGI_COLOR_SPACE_YCBCR_FULL_G22_LEFT_P709` `DXGI_COLOR_SPACE_YCBCR_FULL_G22_NONE_P709_X601`	`DXGI_FORMAT_NV12` `DXGI_FORMAT_AYUV`
YUV 709 to RGB 2084	`DXGI_COLOR_SPACE_TYPE_CUSTOM`	`DXGI_COLOR_SPACE_YCBCR_STUDIO_G24_LEFT_P709` `DXGI_COLOR_SPACE_YCBCR_FULL_G22_LEFT_P709` `DXGI_COLOR_SPACE_YCBCR_FULL_G22_NONE_P709_X601`	`DXGI_FORMAT_NV12`	As needed or identity	`DXGI_FORMAT_R8G8B8A8_UNORM` `DXGI_FORMAT_R8G8B8X8_UNORM` (NV12 input is upscaled to 4:4:4 for CSC input, 3 channel 1DLUT processing with alpha channel ignored)	Same as VPBlit format/space output	`DXGI_COLOR_SPACE_RGB_FULL_G2084_NONE_P2020` `DXGI_COLOR_SPACE_RGB_STUDIO_G2084_NONE_P2020`	`DXGI_FORMAT_R10G10B10A2_UNORM` `DXGI_FORMAT_R16G16B16A16_FLOAT`

Note: In cases where the output format is YUV (e.g., P010, NV12), and the driver performs a downsampling conversion from the 3DLUT output DXGI_FORMAT, the channels RGB from the 3DLUT output DXGI_FORMAT directly map to the respective channels YUV in the output stream DXGI_FORMAT.

Note: For DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709 + DXGI_FORMAT_R16G16B16A16_FLOAT output VPBlit stream cases, when the hardware does not report support (in D3D12_FEATURE_DATA_VIDEO_PROCESS_SUPPORT1.SupportLUT) for DXGI_COLOR_SPACE_RGB_FULL_G10_NONE_P709 + DXGI_FORMAT_R16G16B16A16_FLOAT in p3DLUTTransform as format/colorspace, the app can alternatively query support for having the p3DLUTTransform in another format/space (e.g RGB10 + BT2020) and a subsequent conversion on the LUT output will be done by the driver to match VPBlit stream output color space + format.

This site is open source. Improve this page.
