Far Beam

The far beam component allows the user to visualise elements in the scene they can interact with from afar.

If you wish to customise the look of the beam, you can set the beam material by calling SetBeamMaterial with the material you wish to use. This material can have the following parameters if you wish to use them in your material.

• IsGrabbing: Scalar parameter. This value will be 0.0f if the user is not grabbing with the far cursor, 1.0f if they are.
• handIndex: Scalar parameter. This value will be 0.0f for the left hand, 1.0f for the right hand.

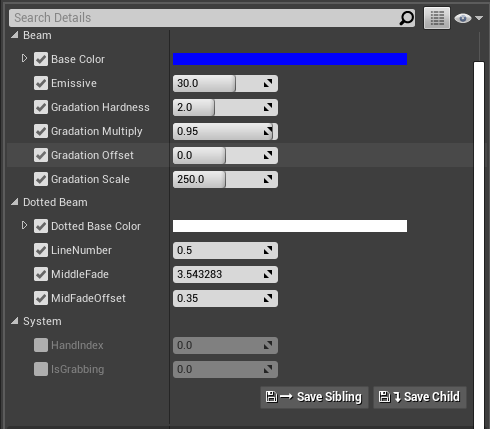

The default material for the far beam has the following parameters:

Far Beam Material Interface

Color

Color value for the solid beam

Emissive

Emissive intensity for the beam

Gradation Hardness

Scalar value to control the gradation hardness

Gradation Multiply

Scalar value for the gradation of the solid beam

Gradation Offset

Scalar value for the gradation start position offset

Gradation Scale

Scalar value to control the gradation scale

Line Number

Scalar value to control the dot amount in the beam

Middle Fade

Scalar value to control the fade-out intensity of the dotted beam

Mid Fade Offset

Scalar value to control the fade-out position of the dotted beam

Is Grabbing

System value for if the user is currently grabbing

Hand Index

System value used for distinguishing left from right hand

Spline Length

System value used for the beam length
