Pinch slider

PinchSliderActor

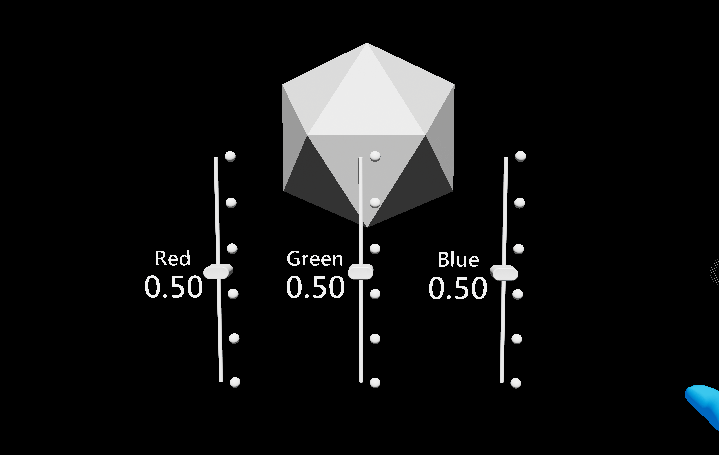

Sliders are UI components that allow you to continuously change a value by moving a slider on a track. Currently the Pinch Slider can be moved by directly grabbing the slider, either directly or at a distance.

Example scene

You can find examples in the SliderExample map in the UX Tools Examples plugin.

How to use sliders

You can simply add a UxtPinchSliderActor to your level. This will give you a HoloLens 2 style slider ready to use. To react to changes to the slider value subscribe to the OnValueUpdated event in the actor:

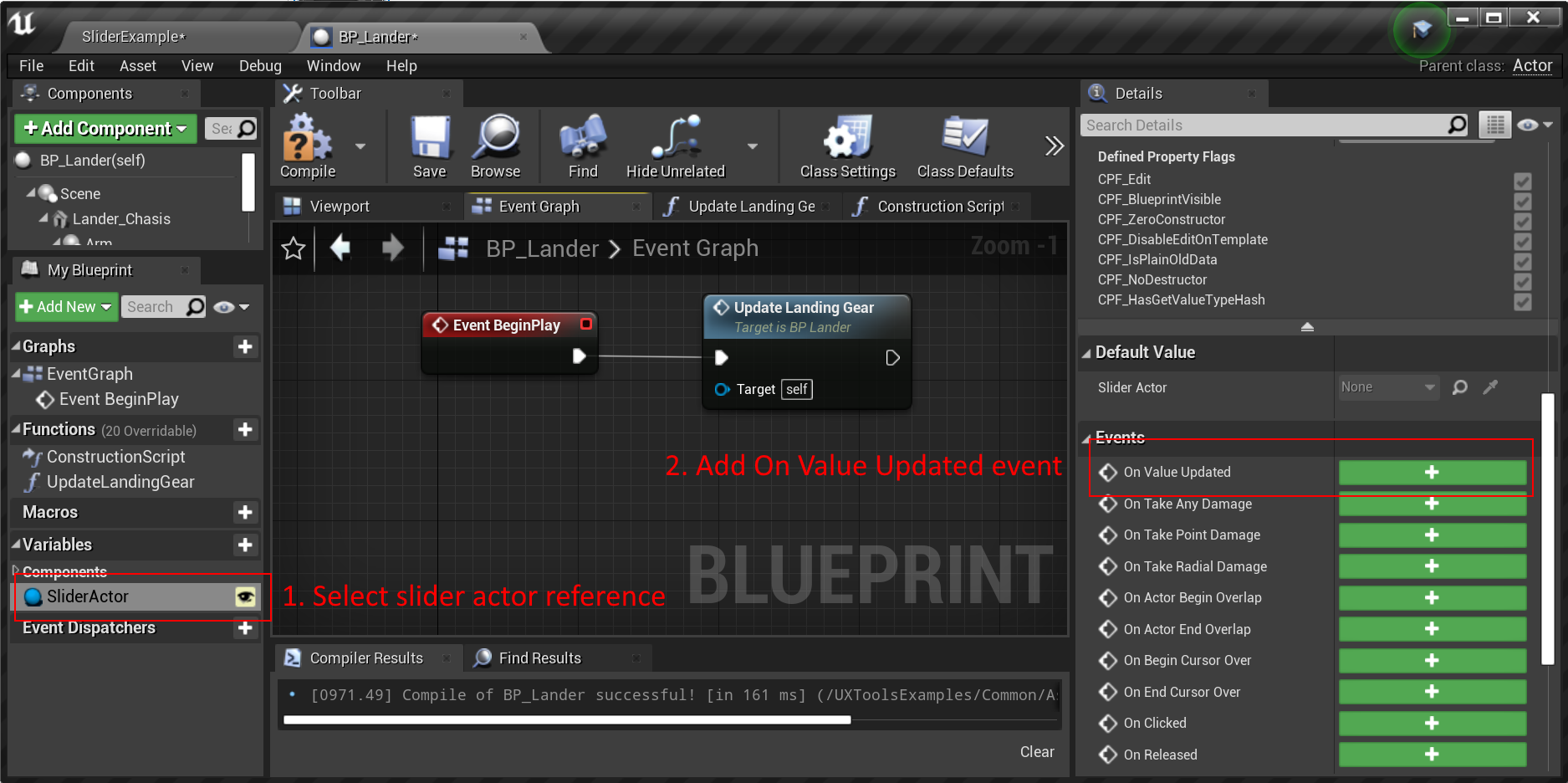

EventSubscription

If the default slider actor doesn't suit your needs, you can create your own slider from scratch following these steps:

  1. Create a new actor blueprint with a UxtPinchSliderComponent as the root component of the actor.

  2. Add a Sphere static mesh to the actor and call it Thumb. Set its scale to 0.025.

  3. Select the UxtPinchSliderComponent and set the Visuals property to reference the sphere mesh.

  4. Add a Cylinder static mesh to the actor and call it Track. Set its scale to (0.01, 0.01, 0.5) and its X rotation to 90 degrees.

  5. If the slider is configured correctly it will look like this:

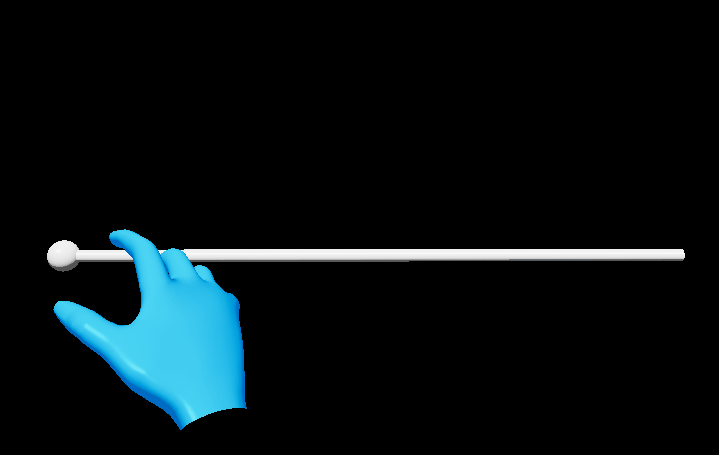

BasicSlider

Events

UxtPinchSliderActor has just one event, covering the most common use case:

  • OnValueUpdated: raised when the slider value changes.

UxtPinchSliderComponent has a number of events that can be used to respond to slider input:

  • OnUpdateState: raised when the slider changes state.
  • OnBeginFocus: raised when a pointer starts focusing the slider.
  • OnUpdateFocus: raised when a focusing pointer updates.
  • OnEndFocus: raised when a pointer stops focusing the slider.
  • OnBeginGrab: raised when the slider is grabbed.
  • OnUpdateValue: raised when the slider's value changes.
  • OnEndGrab: raised when the slider is released.
  • OnEnable: raised when the slider is enabled.
  • OnDisable: raised when the slider is disabled.
