Hybrid Detection

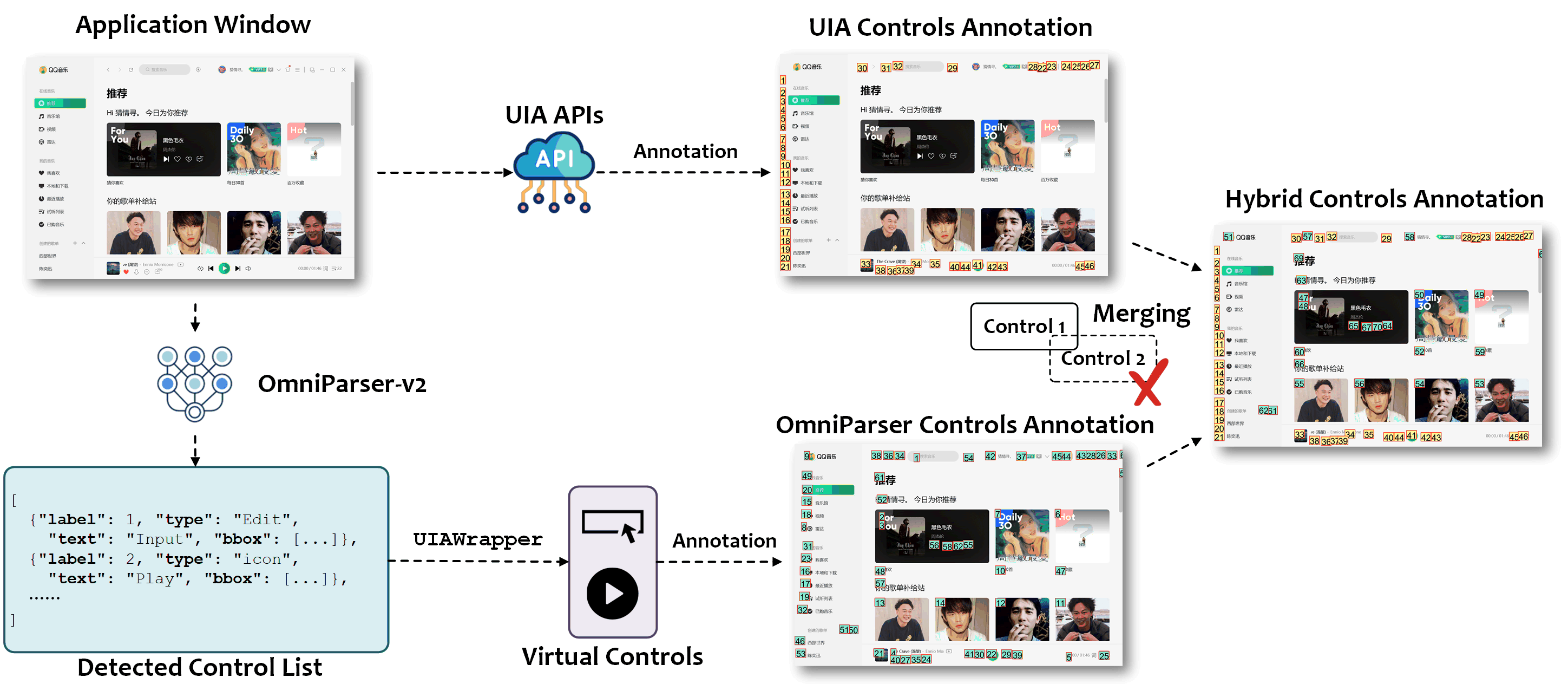

We also support hybrid control detection using both UIA and OmniParser-v2. This method is useful for detecting standard controls in the application using the UI Automation (UIA) framework, and for detecting custom controls in the application that may not be recognized by standard UIA methods. The visually detected controls are merged with the UIA controls by removing the duplicate controls based on IOU. We illustrate the hybrid control detection in the figure below:

Hybrid Control Detection

Configuration

Before using the hybrid control detection, you need to deploy and configure the OmniParser model. You can refer to the OmniParser deployment for more details.

To activate the icon control filtering, you need to set CONTROL_BACKEND to ["uia", "omniparser"] in the config_dev.yaml file.

CONTROL_BACKEND: ["uia", "omniparser"]

Reference

The following classes are used for visual control detection in OmniParser:

Bases: BasicGrounding

The OmniparserGrounding class is a subclass of BasicGrounding, which is used to represent the Omniparser grounding model.

parse_results(results, application_window=None)

Parse the grounding results string into a list of control elements infomation dictionaries.

Parameters:
  • results (List[Dict[str, Any]]) –

    The list of grounding results dictionaries from the grounding model.

  • application_window (UIAWrapper, default: None ) –

    The application window to get the absolute coordinates.

Returns:
  • List[Dict[str, Any]]

    The list of control elements information dictionaries, the dictionary should contain the following keys: { "control_type": The control type of the element, "name": The name of the element, "x0": The absolute left coordinate of the bounding box in integer, "y0": The absolute top coordinate of the bounding box in integer, "x1": The absolute right coordinate of the bounding box in integer, "y1": The absolute bottom coordinate of the bounding box in integer, }

Source code in automator/ui_control/grounding/omniparser.py
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
def parse_results(
    self, results: List[Dict[str, Any]], application_window: UIAWrapper = None
) -> List[Dict[str, Any]]:
    """
    Parse the grounding results string into a list of control elements infomation dictionaries.
    :param results: The list of grounding results dictionaries from the grounding model.
    :param application_window: The application window to get the absolute coordinates.
    :return: The list of control elements information dictionaries, the dictionary should contain the following keys:
    {
        "control_type": The control type of the element,
        "name": The name of the element,
        "x0": The absolute left coordinate of the bounding box in integer,
        "y0": The absolute top coordinate of the bounding box in integer,
        "x1": The absolute right coordinate of the bounding box in integer,
        "y1": The absolute bottom coordinate of the bounding box in integer,
    }
    """

    control_elements_info = []

    if application_window is None:
        application_rect = RECT(0, 0, 0, 0)
    else:
        try:
            application_rect = application_window.rectangle()
        except Exception:
            application_rect = RECT(0, 0, 0, 0)

    for control_info in results:

        if not self._filter_interactivity and control_info.get(
            "interactivity", True
        ):
            continue

        application_left, application_top = (
            application_rect.left,
            application_rect.top,
        )

        control_box = control_info.get("bbox", [0, 0, 0, 0])

        control_left = int(
            application_left + control_box[0] * application_rect.width()
        )
        control_top = int(
            application_top + control_box[1] * application_rect.height()
        )
        control_right = int(
            application_left + control_box[2] * application_rect.width()
        )
        control_bottom = int(
            application_top + control_box[3] * application_rect.height()
        )

        control_elements_info.append(
            {
                "control_type": control_info.get("type", "Button"),
                "name": control_info.get("content", ""),
                "x0": control_left,
                "y0": control_top,
                "x1": control_right,
                "y1": control_bottom,
            }
        )

    return control_elements_info

predict(image_path, box_threshold=0.05, iou_threshold=0.1, use_paddleocr=True, imgsz=640, api_name='/process')

Predict the grounding for the given image.

Parameters:
  • image_path (str) –

    The path to the image.

  • box_threshold (float, default: 0.05 ) –

    The threshold for the bounding box.

  • iou_threshold (float, default: 0.1 ) –

    The threshold for the intersection over union.

  • use_paddleocr (bool, default: True ) –

    Whether to use paddleocr.

  • imgsz (int, default: 640 ) –

    The image size.

  • api_name (str, default: '/process' ) –

    The name of the API.

Returns:
  • List[Dict[str, Any]]

    The predicted grounding results string.

Source code in automator/ui_control/grounding/omniparser.py
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
def predict(
    self,
    image_path: str,
    box_threshold: float = 0.05,
    iou_threshold: float = 0.1,
    use_paddleocr: bool = True,
    imgsz: int = 640,
    api_name: str = "/process",
) -> List[Dict[str, Any]]:
    """
    Predict the grounding for the given image.
    :param image_path: The path to the image.
    :param box_threshold: The threshold for the bounding box.
    :param iou_threshold: The threshold for the intersection over union.
    :param use_paddleocr: Whether to use paddleocr.
    :param imgsz: The image size.
    :param api_name: The name of the API.
    :return: The predicted grounding results string.
    """

    list_of_grounding_results = []

    if not os.path.exists(image_path):
        print_with_color(
            f"Warning: The image path {image_path} does not exist.", "yellow"
        )
        return list_of_grounding_results

    try:
        results = self.service.chat_completion(
            image_path, box_threshold, iou_threshold, use_paddleocr, imgsz, api_name
        )
        grounding_results = results[1].splitlines()

    except Exception as e:
        print_with_color(
            f"Warning: Failed to get grounding results for Omniparser. Error: {e}",
            "yellow",
        )

        return list_of_grounding_results

    for item in grounding_results:
        try:
            item = json.loads(item)
            list_of_grounding_results.append(item)
        except json.JSONDecodeError:
            try:
                # the item string is a string converted from python's dict
                item = ast.literal_eval(item[item.index("{"):item.rindex("}") + 1])
                list_of_grounding_results.append(item)
            except Exception:
                pass

    return list_of_grounding_results
