WTH - Advanced Kubernetes

Tommy Falgout - US OCP CSA

Agenda

  • Introductions
  • WTH is WTH?
  • Data Volumes Walkthrought
    • Key Concepts
    • Demo
  • Q&A

Introduction

  • Choose-Your-Own-Adventure WTH
    • Multiple, individual challenges
    • Pick the ones you’re interested in

Objectives

  • Create and deploy Helm charts
  • Build resiliency into your pods
  • Scale your cluster
  • Use Git as the Source of Truth for your cluster
  • Learn about the features of a Service Mesh
  • Bring data into your web application

Prerequisites

Before starting this hack you should have hands-on experience with the following:

  • AKS
  • Kubernetes Ingress
  • Github (Repo, Cloning)
  • Docker Hub

Challenge #1 - Setup

  • Only required challenge
  • Key Concepts
    • Azure CLI
    • Docker / Helm
    • Github / Dockerhub / ACR
    • AKS / ACR
    • curl / jq
    • kubectx / kubens / kube-aliases
  • You will:
    • Create your AKS Cluster
    • Install tools used in other challenges

Challenge #2 - Helm

  • Helm is the package manager for Kubernetes
  • Key Concepts
    • Helm Chart
    • Helm Release
    • Ingress / Ingress Controller
  • You will:
    • Create a Helm chart
    • Deploy a Helm release

Challenge #3 - Resiliency

  • Processes fail. Will your system too?
  • Key Concepts
    • Liveness Probe
    • Readiness Probe
  • You will:
    • Run multiple replicas of a pod
    • Enable the Liveness Probe
    • Enable the Readiness Probe

Challenge #4 - Scaling

  • Learn how to scale as well as when to scale
  • Key Concepts
    • Horizontal Pod Autoscaler
    • Cluster Scaling
    • Requests / Limits
  • You will:
    • Scale the pods (app)
    • Scale the cluster (VM)
    • Learn Requests and Limits

Challenge #5 - GitOps

  • Car drifting is cool. Configuration drifting isn’t.
  • Key Concepts
    • Kubernetes Operator
    • Flux
  • You will:
    • Learn principles behind GitOps
    • Install Flux
    • Update your cluster via a change on GitHub

Challenge #6 – Service Mesh

  • Service Meshes provide more control and insight into your cluster
    • At a cost
  • Key Concepts
    • Mutual TLS (mTLS)
    • Distributed Tracing
    • Envoy
  • You will:
    • Review the different Service Meshes
    • Install Istio, Linkerd, and/or Consul
    • Enable some of the basic functionality of each

Challenge #6 – Service Mesh - Comparison

Name Uses Supported by Platform Complexity
Istio Envoy Google K8S + VM Heavy
Linkerd Text Buoyant K8S Only Light
Consul Text Hashicorp K8S + VM Medium

Challenge #7 – Data Volumes

Used when your application runs in a container, but still needs access to local files

Key Concepts:

  • Persistent Volumes / Persistent Volume Claims
  • Access Modes
  • Storage Class

You will:

  • Deploy a sample app which stores state
  • The app writes to a file every second with a timestamp. Web requests to the app returns the file contents
  • Terminate the app to see how it responds to failure

Challenge #7 – Data Volumes – Key Concepts

Storage Class (SC) – Defines a storage profile

  • e.g. Azure Managed Disk with Standard_LRS in EastUS

Persistent Volume Claims (PVC) – A request for storage using a SC

  • e.g. 1 GB Disk using the above SC

Persistent Volumes (PV)– Instance of storage

  • e.g. /subscriptions/df8428d4-bc25-4601-b458-1c8533ceec0b/resourceGroups/mc_sandbox_sandbox_eastus2 /providers/Microsoft.Compute/disks/kubernetes-dynamic-pvc-593afd0e-4af4-49b5-a145-26a7bcd39a3e

Challenge #7 – Data Volumes – Key Concepts

Access Modes – The permission for the volumes

  • ReadWriteOnce (RWO) - The volume can be mounted as read-write by a single node
    • Supported: Azure Disk, Azure Files
  • ReadOnlyMany (ROX) - The volume can be mounted read-only by many nodes
    • Supported: Azure Files
  • ReadWriteMany (RWX) - The volume can be mounted as read-write by many nodes
    • Supported: Azure Files

Challenge #7 – Data Volumes – Gotchas

Availability Zones

  • Volumes that use Azure managed disks are currently not zone-redundant resources.
  • Volumes cannot be attached across zones and must be co-located in the same zone as a given node hosting the target pod.

Know your IOPS requirements

  • Azure Files is slower than Azure Disk

Challenge #7 – Data Volumes – Pop Quiz

  • Which of these storage solutions would you choose for:
  • Relational DB Instance? (e.g. MySQL)
  • API which saves files on shared directory for permanent storage?
  • API which saves files for temp storage?

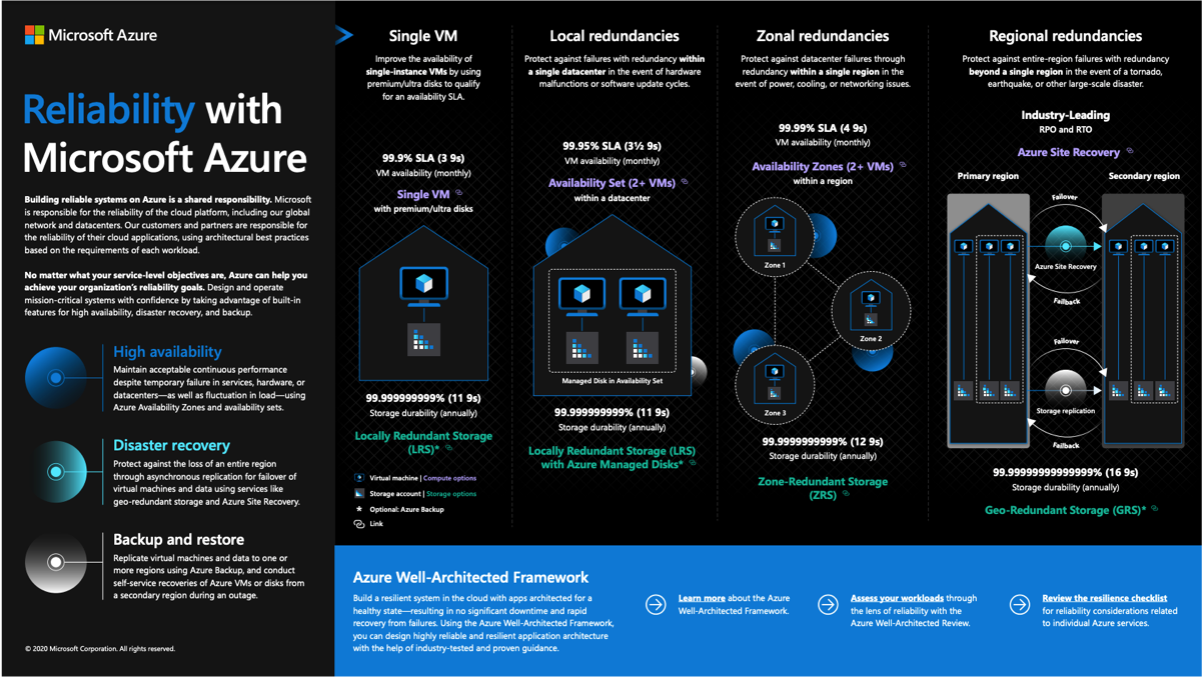

Challenge #8 – BC/DR

Challenge #8 – BC/DR (Key Concepts)

Availability Set

  • Logical group of VM's across Fault Domain (rack) and Update Domain (OS)
  • e.g. VMSS or VMAS

Availability Zone (AZ)

  • Physical zone (distinct power source, network, cooling)
  • e.g. Zone 1 in West US

Region

  • Group of Datacenters
  • e.g. West-US

Challenge #8 – BC/DR (Key Concepts)

Service Level Objectives (SLO)

  • Internal goals
  • More stringent
  • Target for service Metric
  • e.g. 99% of requests will be completed in 5ms

Challenge #8 – BC/DR (Key Concepts)

Availability % Downtime per year Downtime per quarter Downtime per month Downtime per week Downtime per day
99% ("two nines") 3.65 days 21.9 hours 7.31 hours 1.68 hours 14.40 minutes
99.5% ("two and a half nines") 1.83 days 10.98 hours 3.65 hours 50.40 minutes 7.20 minutes
99.9% ("three nines") 8.77 hours 2.19 hours 43.83 minutes 10.08 minutes 1.44 minutes
99.95% ("three and a half nines") 4.38 hours 65.7 minutes 21.92 minutes 5.04 minutes 43.20 seconds
99.99% ("four nines") 52.60 minutes 13.15 minutes 4.38 minutes 1.01 minutes 8.64 seconds
99.999% ("five nines") 5.26 minutes 1.31 minutes 26.30 seconds 6.05 seconds 864.00 milliseconds

Challenge #8 – BC/DR (Key Concepts)

High Availability (HA)

  • Maintain acceptable performance despite service, hardware or DC failure
  • e.g. VM Scale Set, Availability Zones

Business Continuity / Disaster Recovery (BC/DR)

  • Protect against loss of an entire region
  • e.g. South Central US goes down

Backup and Restore

  • Replicate data to 1+ regions
  • e.g. Azure Backup

Challenge #8 – BC/DR (Stateless)

You will:

  • Create 2 AKS clusters (east-us, west-us)
  • Deploy a sample stateless app + service with Public IP
  • Deploy a Traffic Manager instance
  • Watch traffic go from one primary region to backup
