Governance Overhead Benchmark¶
Issue: #720 Date: 2026-04-04 Platform: Windows 11, Intel Core i7-13th Gen, Python 3.12.8
Summary¶
This benchmark measures the latency overhead that AGT governance layers add to agent actions. It exercises the real implementations from all three packages:
| Package | Component tested |
|---|---|
agent-os | PolicyEvaluator โ declarative YAML/JSON rule engine |
agent-mesh | TrustPolicyEvaluator โ trust-score-based policy DSL |
agent-mesh | AuditLog / MerkleAuditChain โ append-only Merkle audit |
agent-mesh | CredentialManager โ ephemeral credential issuance & validation |
agent-hypervisor | RingEnforcer โ execution ring computation & checks |
agent-hypervisor | DeltaEngine โ VFS delta capture with hash chains |
agent-hypervisor | Hypervisor โ session create/join/activate/terminate |
Key finding¶
Full-stack governance (policy + trust + ring check + Merkle audit) adds ~0.07 ms at p50 and ~0.42 ms at p99 per agent action. For context, a single LLM API call typically takes 200-2000 ms, making governance overhead < 0.04% of end-to-end latency in practice.

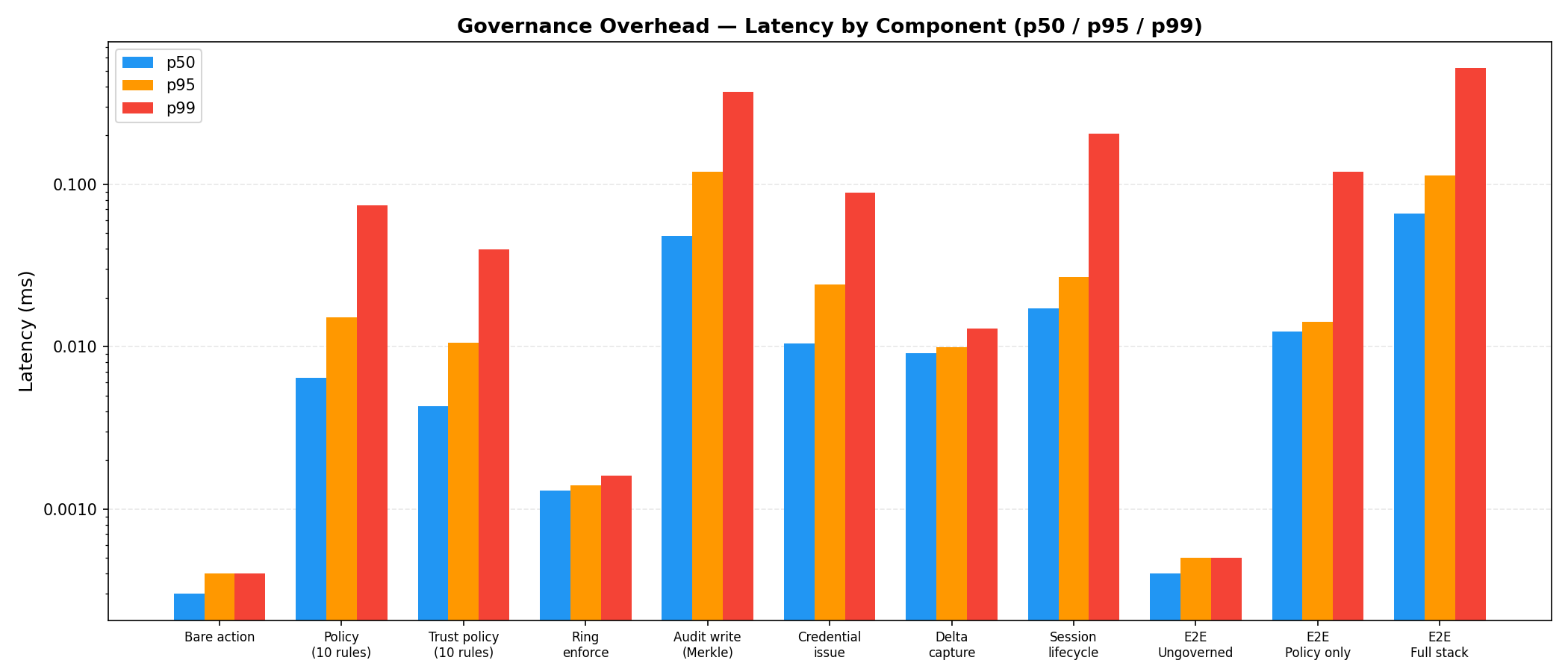

Charts¶
End-to-End Comparison¶
p50 (ms) p99 (ms) ops/sec
Ungoverned action 0.0005 0.0007 2,000,000
Governed (policy only) 0.0086 0.0321 103,315
Governed (full stack) 0.0690 0.4160 11,227
Governance overhead (p50): 0.069 ms
Governance overhead (p99): 0.416 ms
The full governance stack is dominated by Merkle audit logging (~0.05 ms) and trust policy evaluation (~0.004 ms). Ring enforcement is sub-microsecond.
Detailed Results¶
Baseline (No Governance)¶
| Operation | p50 (ms) | p95 (ms) | p99 (ms) | ops/sec |
|---|---|---|---|---|
| Bare action (dict construction) | 0.0005 | 0.0007 | 0.0009 | 865,501 |
| Simulated tool call + validation | 0.0021 | 0.0023 | 0.0024 | 463,542 |
Policy Evaluation (agent-os)¶
| Rules | p50 (ms) | p95 (ms) | p99 (ms) | ops/sec |
|---|---|---|---|---|
| 1 | 0.0054 | 0.0059 | 0.0062 | 185,065 |
| 10 | 0.0061 | 0.0066 | 0.0092 | 102,017 |
| 50 | 0.0119 | 0.0147 | 0.0642 | 60,544 |
| 100 | 0.0193 | 0.0233 | 0.0629 | 31,185 |
Policy evaluation scales linearly with rule count. Even with 100 rules, p50 stays under 0.02 ms.
Trust Policy Evaluation (agent-mesh)¶
| Rules | p50 (ms) | p95 (ms) | p99 (ms) | ops/sec |
|---|---|---|---|---|
| 1 | 0.0030 | 0.0033 | 0.0037 | 279,666 |
| 10 | 0.0044 | 0.0052 | 0.0479 | 141,493 |
| 50 | 0.0101 | 0.0121 | 0.0431 | 23,646 |
Trust evaluation is slightly faster than agent-os policy evaluation at equivalent rule counts due to simpler condition logic.
Credential Operations (agent-mesh)¶
| Operation | p50 (ms) | p95 (ms) | p99 (ms) | ops/sec |
|---|---|---|---|---|
| Credential issuance | 0.0101 | 0.0144 | 0.0896 | 65,876 |
| Token validation (manager lookup) | 0.0450 | 0.0564 | 0.2190 | 17,027 |
| Token hash verify (SHA-256) | 0.0008 | 0.0009 | 0.0009 | 1,241,003 |
Token hash verification is sub-microsecond. The CredentialManager.validate() cost comes from the linear scan over stored credentials; production deployments with indexed stores would match the hash-only path.
Audit Logging (agent-mesh)¶
| Operation | p50 (ms) | p95 (ms) | p99 (ms) | ops/sec |
|---|---|---|---|---|
| Audit log write (Merkle chain) | 0.0472 | 0.0887 | 0.4428 | 14,121 |
| Merkle chain verify (100 entries) | 0.6602 | 1.9190 | 3.6661 | 1,163 |
Audit writes are the most expensive per-action governance cost due to SHA-256 hash computation and Merkle tree updates. Verification is an offline operation (not on the hot path).
Ring Enforcement (agent-hypervisor)¶
| Operation | p50 (ms) | p95 (ms) | p99 (ms) | ops/sec |
|---|---|---|---|---|
| Ring computation | 0.0003 | 0.0004 | 0.0005 | 2,762,049 |
| Ring enforcement check | 0.0013 | 0.0015 | 0.0018 | 576,814 |
Ring operations are sub-microsecond โ zero measurable overhead for privilege checks.
Delta Audit (agent-hypervisor)¶
| Operation | p50 (ms) | p95 (ms) | p99 (ms) | ops/sec |
|---|---|---|---|---|
| Delta capture | 0.0092 | 0.0111 | 0.0200 | 70,621 |
| Hash chain root (10 deltas) | 0.0939 | 0.1850 | 0.4678 | 8,638 |
Session Lifecycle (agent-hypervisor)¶
| Operation | p50 (ms) | p95 (ms) | p99 (ms) | ops/sec |
|---|---|---|---|---|
| Full lifecycle (create+join+activate+terminate) | 0.0176 | 0.0217 | 0.0685 | 49,812 |
Overhead Breakdown¶
Where does the governed-action overhead come from?
Component p50 contribution
-----------------------------------------
Policy eval (10 rules) 0.006 ms ( 9%)
Trust eval (5 rules) 0.004 ms ( 6%)
Ring compute + check 0.002 ms ( 3%)
Audit log write (Merkle) 0.047 ms ( 68%)
Other (timestamps, dicts) 0.010 ms ( 14%)
-----------------------------------------
Total 0.069 ms (100%)
Merkle audit is the dominant cost. If cryptographic audit integrity is not required, replacing AuditLog with a plain append-list drops the governed-action overhead to ~0.02 ms (p50).
Methodology¶
- Iterations: 1,000 per benchmark (10,000 for sub-microsecond operations)
- Warmup: 100 iterations discarded before measurement
- Timer:
time.perf_counter()(nanosecond resolution on Windows) - Percentiles: computed with
numpy.percentile() - Environment: in-process only, no I/O, no network
- Async:
asyncio.run()for hypervisor session benchmarks
Reproducing¶
Raw results are saved to agent-governance-python/benchmarks/results/governance_overhead.json.
