Train SQL Agent with Agent-lightning and VERL¶
This walkthrough builds upon the Agent-lightning v0.2 SQL Agent example and explains how the system components integrate: a LangGraph-based SQL agent wrapped as a LitAgent, the VERL reinforcement learning (RL) algorithm, and the Trainer, which coordinates both training and debugging.
The command-line interface in examples/spider/train_sql_agent.py provides a complete runnable example. However, this document focuses on understanding the underlying architecture so you can effectively adapt the workflow to your own agents.
SQL Agent Architecture¶
Agent-lightning integrates seamlessly with various orchestration frameworks, including Agent Framework, AutoGen, CrewAI, LangGraph, and the OpenAI Agents SDK. It can also interoperate with custom Python logic.
In this example, LangGraph defines a cyclic workflow that mirrors an analyst’s iterative SQL development process. The following graph (rendered directly from sql_agent.py) illustrates how the agent drafts, executes, critiques, and refines queries until a satisfactory result is achieved.
---
config:
flowchart:
curve: linear
---
graph LR;
__start__([<p>__start__</p>]):::first
write_query(write_query)
execute_query(execute_query)
check_query(check_query)
rewrite_query(rewrite_query)
__end__([<p>__end__</p>]):::last
__start__ --> write_query;
check_query -.-> __end__;
check_query -.-> rewrite_query;
execute_query --> check_query;
rewrite_query --> execute_query;
write_query --> execute_query;
classDef default fill:#f2f2f2,line-height:1.2
classDef first fill-opacity:0
classDef last fill:#ccccccNote
The workflow proceeds through the following stages:
- write_query – Generates an initial SQL query from the user’s question and the database schema.
- execute_query – Executes the generated query against the target database.
- check_query – Evaluates the query and its results (or errors) using a specialized prompt (
CHECK_QUERY_PROMPT) to detect issues. - rewrite_query – If issues are identified, the agent rewrites the query using feedback from the previous step and re-enters the loop.
- END – The cycle terminates when the query is validated or the maximum iteration count (
max_turns) is reached. Each turn consists of one full loop through thewrite_query,execute_query,check_query, and (if applicable)rewrite_querystages.
In this tutorial, reinforcement learning (RL) is used to optimize the write_query and rewrite_query stages. While the check_query step shares the same underlying LLM weights, its trace data is not used for learning.
To keep the design modular and maintainable, it is recommended to define the LangGraph-based SQL Agent in a separate file and expose it via a builder function such as:
def build_langgraph_sql_agent(
database_path: str,
openai_base_url: str,
model: str,
sampling_parameters: Dict[str, Any],
max_turns: int,
truncate_length: int
):
builder = StateGraph(State)
builder.add_node(write_query)
...
builder.add_edge(START, "write_query")
...
return builder.compile().graph()
This approach isolates your LangGraph logic from Agent-lightning version changes, improving both readability and debuggability.
Bridging LangGraph and Agent-lightning¶
Tip
Keep sql_agent.py open on the side while reading this section. This will help you understand how the code snippets shown here work in practice.
The LitSQLAgent class defined in sql_agent.py acts as the bridge. It subclasses agl.LitAgent, allowing the runner to provision shared resources (e.g., LLMs) for each rollout.
Below is a simplified illustration of the key logic (note: this is conceptual pseudocode; the actual implementation includes dataset-specific details):
class LitSQLAgent(agl.LitAgent[Dict[str, Any]]):
def __init__(self, max_turns: int, truncate_length: int):
# Every turn here refers to a full cycle of write/exe/check/rewrite
self.max_turns = max_turns
self.truncate_length = truncate_length
def rollout(
self,
task: Dict[str, Any],
resources: agl.NamedResources,
rollout: agl.Rollout
) -> float | None:
llm: agl.LLM = resources["main_llm"]
agent = build_langgraph_sql_agent(
database_path="sqlite:///" + task["db_id"],
max_turns=self.max_turns,
truncate_length=self.truncate_length,
openai_base_url=llm.get_base_url(rollout.rollout_id, rollout.attempt.attempt_id),
model=llm.model,
sampling_parameters=llm.sampling_parameters,
)
result = agent.invoke({"question": question}, {
"callbacks": [self.tracer.get_langchain_handler()],
"recursion_limit": 100,
})
reward = evaluate_query(result["query"], ground_truth, db_path, raise_on_error=False)
return reward
The LitSQLAgent serves as a lightweight wrapper around the LangGraph agent, providing the correct interface for the rollout method. It constructs the LangGraph agent, invokes it, and returns the evaluation result as a reward signal.
The "main_llm" resource key is a convention between the agent and VERL. It is used to inject an OpenAI-compatible endpoint from the VERL algorithm during rollout. Two approaches are supported to use this agentlightning.LLM resource:
- Direct access – Use
llm.endpointfor a simple integration (identical to the v0.1 example). - Context-aware access – Use
get_base_urlwithrollout.rollout_idandrollout.attempt.attempt_id. This approach enables per-caller trace attribution, improving trace collection per rollout or attempt when runner-side tracers are unavailable. For details, see Working with Traces.
Reward Signal and Evaluation¶
The evaluate_query function provides the reward mechanism for RL training. In agent training, obtaining a consistent and meaningful reward signal is often challenging. Fortunately, this is simplified when using the Spider dataset. The dataset includes ~8k samples containing natural-language questions, database schemas, and ground-truth SQL queries.
Using the Spider evaluator, the agent's generated query is executed and compared to the ground-truth query on the target database. The two queries are considered equivalent if they produce identical execution results.
Attention
The ground-truth queries must never be exposed to the agent during training to prevent data leakage.
In this setup, the reward is returned directly from the rollout method, enabling the runner to forward it back to the RL algorithm.
Warning
Avoid using emit_reward in conjunction with returning a reward value. Doing both will cause the algorithm to receive duplicate reward signals, leading to inconsistent training behavior.
Configuring VERL for Reinforcement Learning¶
View examples/spider/train_sql_agent.py for a full reinforcement learning configuration, which is a plain Python dictionary. It mirrors (and actually is) the shell arguments used to launch training in the VERL framework but is easier to tweak programmatically:
verl_config: Dict[str, Any] = {
"algorithm": {"adv_estimator": "grpo", "use_kl_in_reward": False},
"data": {
# train_files and val_files are no longer needed here
# because data are read in agl.Trainer
...,
# Controls how many tasks are pooled per step
# (multiplied by actor_rollout_ref.rollout.n)
"train_batch_size": 32,
# Prompt and responses larger than these lengths are truncated
"max_prompt_length": 4096,
"max_response_length": 2048,
},
"actor_rollout_ref": {
"rollout": {
# Only vLLM is supported currently
"name": "vllm",
# Equals to group size of GRPO
"n": 4,
# Used to enable tool call parser in vLLM
"multi_turn": {"format": "hermes"},
...
},
"actor": {"ppo_mini_batch_size": 32, "optim": {"lr": 1e-6}, ...},
"model": {
# Config your preferred LLM here
"path": "Qwen/Qwen2.5-Coder-1.5B-Instruct",
...
},
},
"trainer": {
"n_gpus_per_node": 1,
# Validation once before training starts
"val_before_train": True,
# Validation every N training steps
"test_freq": 32,
# Save checkpoints every N training steps
"save_freq": 64,
# Go through the train dataset this many times
"total_epochs": 2
},
}
This is equivalent to the following CLI invocation:
python3 -m verl.trainer.main_ppo \
algorithm.adv_estimator=grpo \
algorithm.use_kl_in_reward=False \
data.train_batch_size=32 \
data.max_prompt_length=4096 \
data.max_response_length=2048 \
actor_rollout_ref.rollout.name=vllm \
actor_rollout_ref.rollout.n=4 \
actor_rollout_ref.rollout.multi_turn.format=hermes \
actor_rollout_ref.actor.ppo_mini_batch_size=32 \
actor_rollout_ref.actor.optim.lr=1e-6 \
actor_rollout_ref.model.path=Qwen/Qwen2.5-Coder-1.5B-Instruct \
trainer.n_gpus_per_node=1 \
trainer.val_before_train=True \
trainer.test_freq=32 \
trainer.save_freq=64 \
trainer.total_epochs=2
Warning
We used to provide a CLI called python -m agentlightning.verl to launch training in v0.1. This is no longer the recommended approach. Instead, use agl.Trainer to run VERL and agent runners together, or follow the debugging tutorial if you want an isolated experience similar to v0.1.
Orchestrating Training with Trainer¶
Trainer is the high-level orchestrator that integrates the agent, algorithm, dataset, and distributed runners. The key benefits of using the Trainer are:
- It allows you to launch everything with a single line of code:
trainer.fit(...). - It exposes configuration options such as
n_runnersto control parallelism andadapterto define how algorithms interpret the trace data produced by the agent.
An example usage is shown below:
import agentlightning as agl
agent = LitSQLAgent()
algorithm = agl.VERL(verl_config)
trainer = agl.Trainer(
n_runners=10,
algorithm=algorithm,
adapter={"agent_match": active_agent},
)
train_data = pd.read_parquet("data/train_spider.parquet").to_dict("records")
val_data = pd.read_parquet("data/test_dev_500.parquet").to_dict("records")
trainer.fit(agent, train_dataset=train_data, val_dataset=val_data)
First, agl.VERL(verl_config) launches the VERL algorithm and its OpenAI-compatible proxy. The train_data and val_data are passed into VERL, which enqueues tasks to a centralized task queue managed by the LightningStore, accessible to all runners.
When Trainer.fit is called, it launches 10 concurrent runners (as specified by n_runners=10). Each runner pulls tasks from the centralized task queue, executes the agent’s rollout method, collects traces, and returns rewards to VERL for training.
The Adapter, as discussed earlier, is used at the algorithm side, and receives the traces emitted by the agent and runners. The agent_match parameter ensures VERL only ingests spans from the specific agent you want to optimize.
In the example above, there are at least three agents—write_query, rewrite_query, and check_query. By setting agent_match to a regex like "write", both write_query and rewrite_query agents are optimized simultaneously. You can also set it to "write|check" or None to include all agents if desired.
Dry-Run the Pipeline with Trainer.dev¶
Before committing hours of GPU time, you can dry-run the agent with Trainer.dev(). This method swaps in the lightweight Baseline algorithm, enqueues up to ten tasks, and prints every span emitted by the agent. Because it uses the same runner stack as full training, it’s ideal for verifying database connections and LangGraph control flow.
To begin, the agent needs a valid OpenAI-compatible endpoint since VERL is not active in this mode. You can use OpenAI’s official API or your own local LLM endpoint. Wrap it as follows:
trainer = agl.Trainer(
n_workers=1,
initial_resources={
"main_llm": agl.LLM(
endpoint=os.environ["OPENAI_API_BASE"],
model="gpt-4.1-nano",
sampling_parameters={"temperature": 0.7},
)
},
)
Then, call trainer.dev(...) with a small number of tasks:
dev_data = pd.read_parquet("data/test_dev_500.parquet").to_dict("records")[:10]
trainer.dev(agent, dev_dataset=dev_data)
Run this in a Python session or adapt your script to include a --dev flag. Once the spans appear healthy and the rewards are non-zero, switch back to trainer.fit(...) for full RL training. See the debugging tutorial for more tips on how to debug the agent.
Running the Sample Code¶
The following tutorial explains how to run the complete example in examples/spider.
Dataset¶
The trainer expects three Parquet files inside examples/spider/data:
train_spider.parquet, test_dev_500.parquet, and test_dev.parquet.
Download the curated dataset bundle provided with the repository:
cd examples/spider
pip install gdown # included in the 'experiment' optional dependency
gdown --fuzzy https://drive.google.com/file/d/1oi9J1jZP9TyM35L85CL3qeGWl2jqlnL6/view
unzip -q spider-data.zip -d data
rm spider-data.zip
If you prefer to generate the files yourself, download Spider 1.0 and run:
Set VERL_SPIDER_DATA_DIR if you store the dataset outside the default data directory.
Dependencies¶
Create a clean virtual environment, activate it, and install Agent-lightning with the VERL extras required by this tutorial. Install LangChain-related dependencies as needed.
For full training profiles, plan to use a GPU with at least 40 GB of memory.
Launch Training¶
From examples/spider, run one of the helper scripts depending on your model preference:
python train_sql_agent.py qwen # Default Qwen-2.5-Coder-1.5B run
python train_sql_agent.py llama # LLaMA-3.2-1B with llama3_json tool parser
The script instantiates LitSQLAgent and launches trainer.fit.
Provide --active-agent my_agent_variant if you only want to train one of the agents in the graph.
For the LLaMA profile, export an HF_TOKEN before running so VERL can download the model weights.
Troubleshooting
If you have got some Ray worker errors on either WANDB_API_KEY not set, or HF_TOKEN not set, or data not found, please try to restart the Ray cluster with the helper script: scripts/restart_ray.sh, which essentially stops the ray cluster if any, and starts a new one:
Debugging the Agent without VERL¶
sql_agent.py also provides a debug_sql_agent() helper to run the LangGraph workflow directly against a local or hosted OpenAI-compatible endpoint before using VERL.
Set the following environment variables, then execute the file:
export OPENAI_API_BASE=<your_api_base>
export OPENAI_API_KEY=<your_api_key>
cd examples/spider
python sql_agent.py
This allows you to verify that the workflow and prompts behave as expected before reinforcement learning is introduced.
Evaluation¶
The following results were obtained by running python train_sql_agent.py qwen on a single 80 GB GPU.
Training completes in approximately 12 hours.

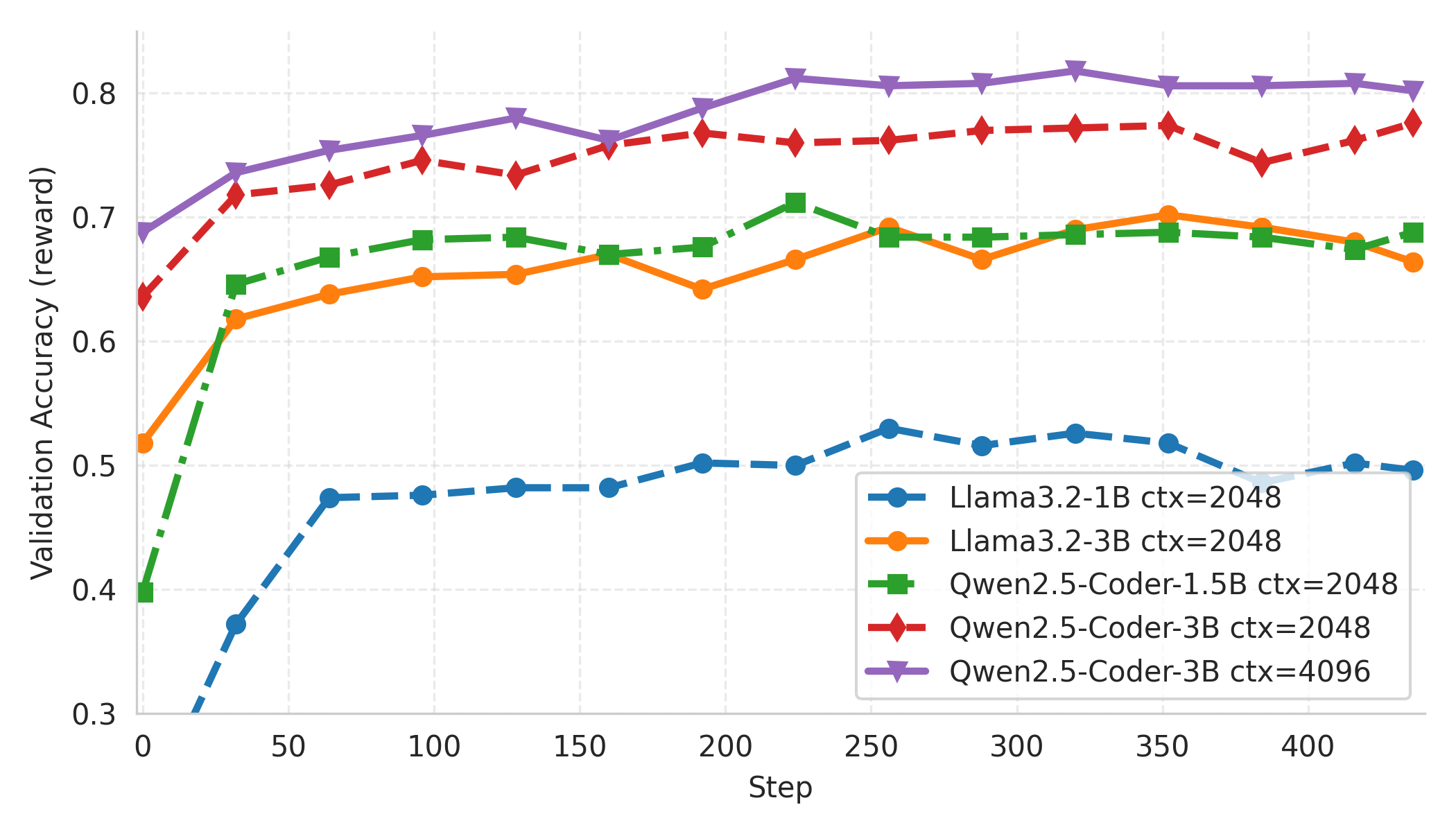

The training curves below are smoothed by aggregating every 16 steps for better visualization.
Additional evaluation results were collected with a legacy version — Agent-lightning v0.1.1, verl==0.5.0, and vllm==0.10.0.
You can find them in this write-up:
Training AI Agents to Write and Self-Correct SQL with Reinforcement Learning
