Working with Traces¶

Tracing is the secret capability that lets Agent-lightning train almost any agent without rewriting its core logic. The idea was born in observability tooling inside LLMOps workflows and, in Agent-lightning, evolved into a first-class primitive inside the learning loop. Beyond helping you understand what happened inside a rollout, traces provide reward spans and other learning signals that power reinforcement learning and fine-tuning algorithms.

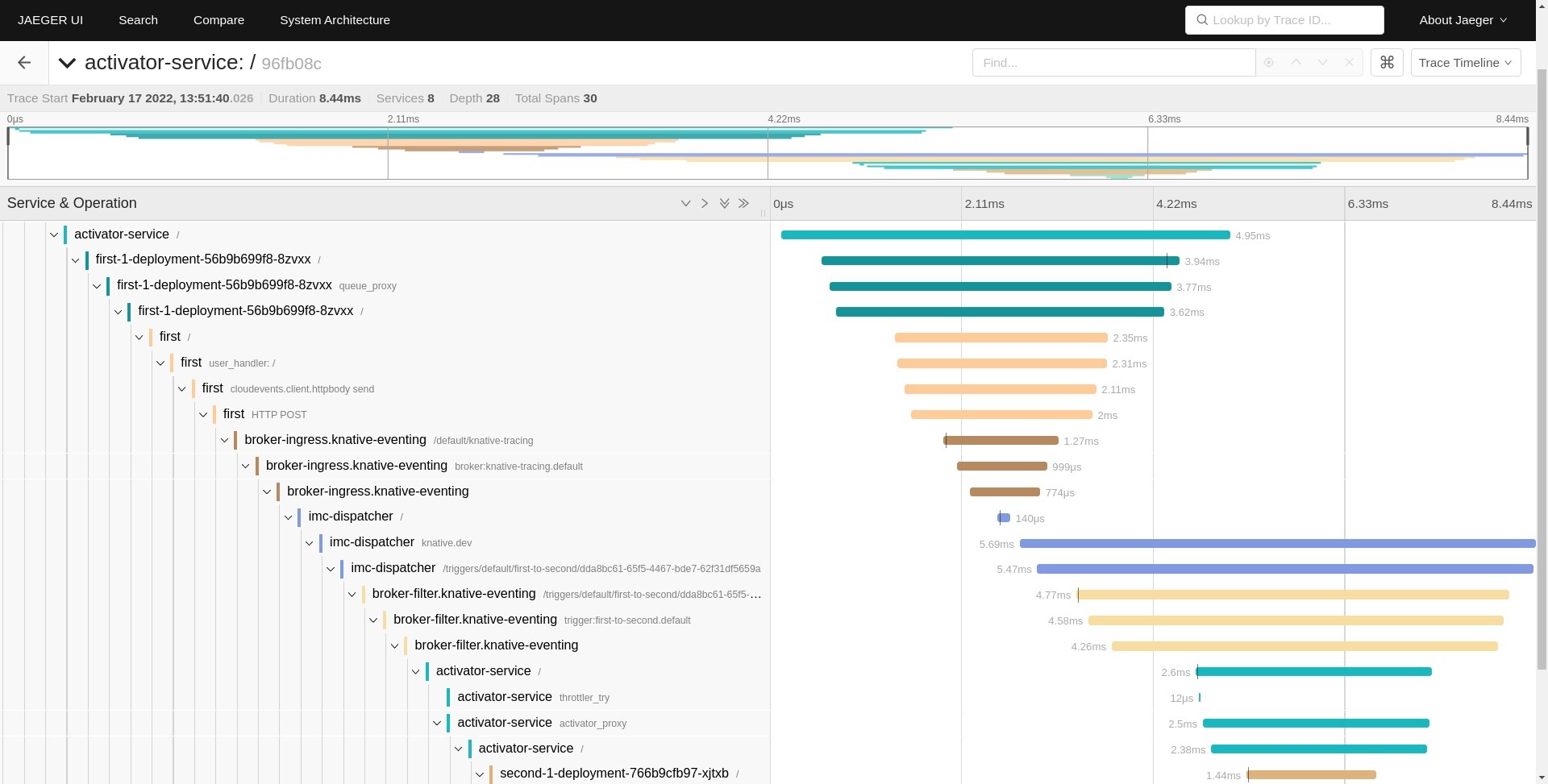

OpenTelemetry spans

Agent-lightning stores every recorded operation as a Span inside a LightningStore. The naming comes from OpenTelemetry spans, shown in the screenshot above. A span can represent an LLM call, a tool invocation, a graph edge, an explicit reward emission, or an arbitrary Python code block. Spans form a tree where parent spans describe higher-level steps and children record the detailed work. The sections below walk through how spans are produced and how to interpret them once they reach the store.

Writing Spans¶

Most Runner implementations wire a Tracer into the agent’s lifecycle. The tracer is responsible for installing instrumentation, buffering OpenTelemetry spans, and committing them to the LightningStore. When a runner executes a rollout, it allocates a store-backed tracing context:

async with tracer.trace_context(
    name="my-rollout",
    store=store,
    rollout_id=rollout.rollout_id,
    attempt_id=attempt.attempt_id,
):
    await run_agent_logic()

The context manager then requests sequence numbers from the store, converts OpenTelemetry spans into Span objects, and persists them in the middle or at the end of the attempt, depending on the tracer implementation. Agent-lightning ships two tracers out of the box; both rely on OpenTelemetry Traces and ignore metrics or logs.

What's instrumentation?

In simple terms, instrumentation means adding "patches" or hooks inside your code so you can observe what it’s doing while it runs. Think of it like putting flight recorders in an airplane — instrumentation records key actions, inputs, outputs, and timings without changing how the code behaves. In Agent-lightning tracers, this instrumentation automatically creates spans (small, structured records of work) that show what each part of an agent did, how long it took, and how different steps connect together.

AgentOps Tracer¶

AgentOpsTracer will be the default tracer when Trainer is used but no tracer is explicitly specified. It bootstraps the AgentOps SDK locally, installs the supplied instrumentation hooks (LangChain, LangGraph, LiteLLM, FastAPI, and others) provided by the AgentOps Python SDK, and forwards everything through a local OpenTelemetry TracerProvider. AgentOpsTracer never calls the hosted AgentOps service; instead, it attaches a LightningSpanProcessor implemented by the Agent-lightning team so that spans are captured and shipped straight into the store.

Because it shares the AgentOps instrumentation surface, any framework supported by AgentOps automatically gains tracing in Agent-lightning. We layer additional hooks on top of AgentOps to capture features that the SDK misses today:

Certain providers emit extra metadata — for example, token IDs returned by vLLM — that are not recorded by the stock SDK. We augment those spans with the missing payloads.
AgentOps constructs parent-child relationships on a best-effort basis, but mixed instrumentation (for example, OpenAI Agent SDK alongside direct OpenAI Chat Completion calls) can leave segments disconnected. Our implementation (actually implemented in the TracerTraceToTriplet adapter) repairs those relationships when the hierarchy can be inferred from rollout context.
Some versions of downstream frameworks simply do not emit spans for critical events (LangGraph node entrances are a common example). The tracer installs lightweight shims so those spans appear consistently.

If a vendor integration behaves unexpectedly, users are encouraged to combine the tracer with Hooks to inspect the raw spans or diagnostics, and/or implement a specialized tracer for the framework in question.

OpenTelemetry Tracer¶

OtelTracer is a minimal implementation that initializes a vanilla TracerProvider and gives you direct control over span creation through the standard opentelemetry.trace API. Use it when you already have explicit instrumentation in your agent, when the AgentOps SDK does not support your framework, or when you want to emit custom spans from business logic.

Note

Microsoft Agent Framework is a typical example with built-in OpenTelemetry support. Once you set OBSERVABILITY_SETTINGS.enable_otel = True, the framework will automatically emit OpenTelemetry spans, and OtelTracer will be able to capture them. No extra instrumentation is needed.

Inside your agent you can call opentelemetry.trace.get_trace_provider().get_tracer("my-agent") and use that tracer to create spans exactly as you would in any OpenTelemetry application. The Lightning span processor attached by OtelTracer guarantees that every span is sequenced, converted, and written to the store. The same applies for emitted rewards (emit_reward) and other emitter signals, which are just a special case of manually-created spans.

LLM Proxy¶

Sometimes the runner can’t observe the agent directly — because it’s in another language or running remotely. LLMProxy bridges that gap by instrumenting the server side of LLM calls. It wraps LiteLLM and adds middleware that accepts prefixed routes like /rollout/{rid}/attempt/{aid}/v1/chat/completions. Before forwarding, the middleware rewrites the path to /v1/chat/completions, fetches a monotonic sequence_id from the LightningStore, injects x-rollout-id, x-attempt-id, and x-sequence-id into the request headers, and then forwards the request to the backend LLM endpoint.

LiteLLM produces OpenTelemetry spans for the request/response. A custom LightningSpanExporter reads the rollout/attempt/sequence identifiers from the recorded request headers and persists each span to the store. Because the sequence_id is allocated at the start of the request, traces stay in strict order even across machines with skewed clocks or asynchronous responses.

sequenceDiagram
    participant Agent
    participant Proxy as LLM Proxy
    participant Backend as LLM Backend
    participant Store as LightningStore

    Agent->>Proxy: POST /rollout/{rid}/attempt/{aid}/v1/chat/completions
    Proxy->>Store: get_next_span_sequence_id(rid, aid)
    Store-->>Proxy: sequence_id
    Proxy->>Backend: Forward /v1/chat/completions<br>(headers: rid, aid, sid)
    Backend-->>Proxy: Response (tokens, usage, token_ids)
    Proxy->>Store: Export OTEL spans (rid, aid, sequence_id)
    Proxy-->>Agent: OpenAI-compatible response

LLMProxy actually provides more functionalities than just the middleware for tracing. Read Serving LLM for more details.

Distributed Tracing

Agent-lightning enforces deterministic span ordering by assigning a monotonic sequence_id to every span within an attempt. Before calling LightningStore.add_span or LightningStore.add_otel_span, tracers are expected to call LightningStore.get_next_span_sequence_id to get the next sequence id. This removes clock skew and merges spans produced on different machines or threads. If you implement a custom tracer or exporter, make sure you do this (or respect the one provided in headers by components such as LLMProxy); otherwise, adapters will struggle to properly reconstruct the execution tree.

Custom Tracer¶

If none of the built-in tracers fit your environment, the first option to consider is to return the spans directly from your agent implementation. If that's not possible, or you want to support multiple agents in a unified effort, you can implement your own tracer by subclassing Tracer.

Custom tracers must implement at least trace_context. The trace_context coroutine should install or activate whatever instrumentation you need, then yield a span processor that ultimately adds spans to the store. You can reuse the LightningSpanProcessor if you produce OpenTelemetry ReadableSpan objects, or call LightningStore.add_span directly if you generate Span instances yourself.

Advanced tracers often run auxiliary services (for example, starting a telemetry daemon or attaching to a container runtime) inside init_worker and tear them down in teardown_worker. The ParallelWorkerBase lifecycle that Tracer inherits from ensures those hooks are executed in every runner subprocess.

Reading Traces¶

Generally, there are two approaches to reading traces. When you only need a quick look, Tracer.get_last_trace returns the raw OpenTelemetry spans captured most recently. For historical analysis, use the LightningStore.query_spans API, which yields normalized Span objects keyed by rollout ID and attempt ID. Combine those queries with LightningStore.query_rollouts to align spans with rollout status, retries, and timing information.

Spans arrive asynchronously, originate from different processes, and form hierarchies rather than simple lists. The attributes of each span are tedious and unfriendly to human readers. This combination makes raw traces time-consuming to inspect, especially when you only care about specific signals such as rewards, LLM prompts, responses, or tool outputs. Understanding how the store exposes traces and how adapters reshape them will save hours when debugging or training.

Why traces can be difficult to read?

The trace tree for a single rollout typically mixes multiple abstraction layers: a planner span may contain several LLM spans, each of which contains tool execution spans that can themselves trigger nested agent invocations. There are also instrumentations at different levels. For example, when a request delegates to another library (e.g., from LangChain to OpenAI), two libraries might emit spans for the same request. At the top level, there could be concurrently running agents that may flush spans slightly out of order. Sorting by sequence_id restores the chronological view, but interpreting the tree requires additional context about parent-child relationships and rollout metadata.

Adapter¶

Adapters transform lists of spans into higher-level data structures that training algorithms can consume directly. Agent-lightning provides several adapters out of the box:

TracerTraceToTriplet converts spans into (prompt, response, reward) triplets, which power reinforcement-learning algorithms such as VERL and connect trace data to gradient updates.
TraceToMessages rewrites spans into OpenAI chat message JSON suitable for supervised fine-tuning or evaluation harnesses.
LlmProxyTraceToTriplet mirrors TracerTraceToTriplet but understands spans emitted by LLMProxy. It is experimental and might be merged with TracerTraceToTriplet in the future.

Adapters are regular Python callable instances, so you can plug them into Trainer via the adapter argument, or call them manually during exploration. When used in Trainer, adapters are bundled into the Algorithm before the algorithm runs, through the Algorithm.set_adapter method.

You can also customize an Adapter by extending the implementations above or subclassing the base class. If you need a bespoke format, subclass TraceAdapter (for store spans) or OtelTraceAdapter (for raw OpenTelemetry spans) and implement adapt (these two classes can usually share the same implementation).

Reading Rewards¶

Rewards are recorded as dedicated spans named agentlightning.reward. Emitting a reward through emit_reward or the @reward decorator ensures the value is stored in the span’s attributes["reward"]. To audit rewards, fetch spans from the store and use the helper utilities in agentlightning.emitter:

from agentlightning.emitter import find_final_reward

spans = await store.query_spans(rollout_id)
reward = find_final_reward(spans)
print(f"Final reward: {reward}")

find_reward_spans returns every reward span so you can visualize intermediate shaping signals, while find_final_reward extracts the last non-null reward per attempt. While these helpers are convenient, they may not help you fully understand the chronological or hierarchical relationships between reward spans and other spans. Using an Adapter — especially the same one used in the algorithm you’re working with — remains the recommended way to inspect your generated spans.
