Planning Design Pattern

(上の画像をクリックすると、このレッスンの動画が視聴できます)

計画設計

はじめに

このレッスンでは以下を学びます:

学習目標

このレッスンを完了すると、以下について理解が深まります:

全体目標の定義とタスクの分解

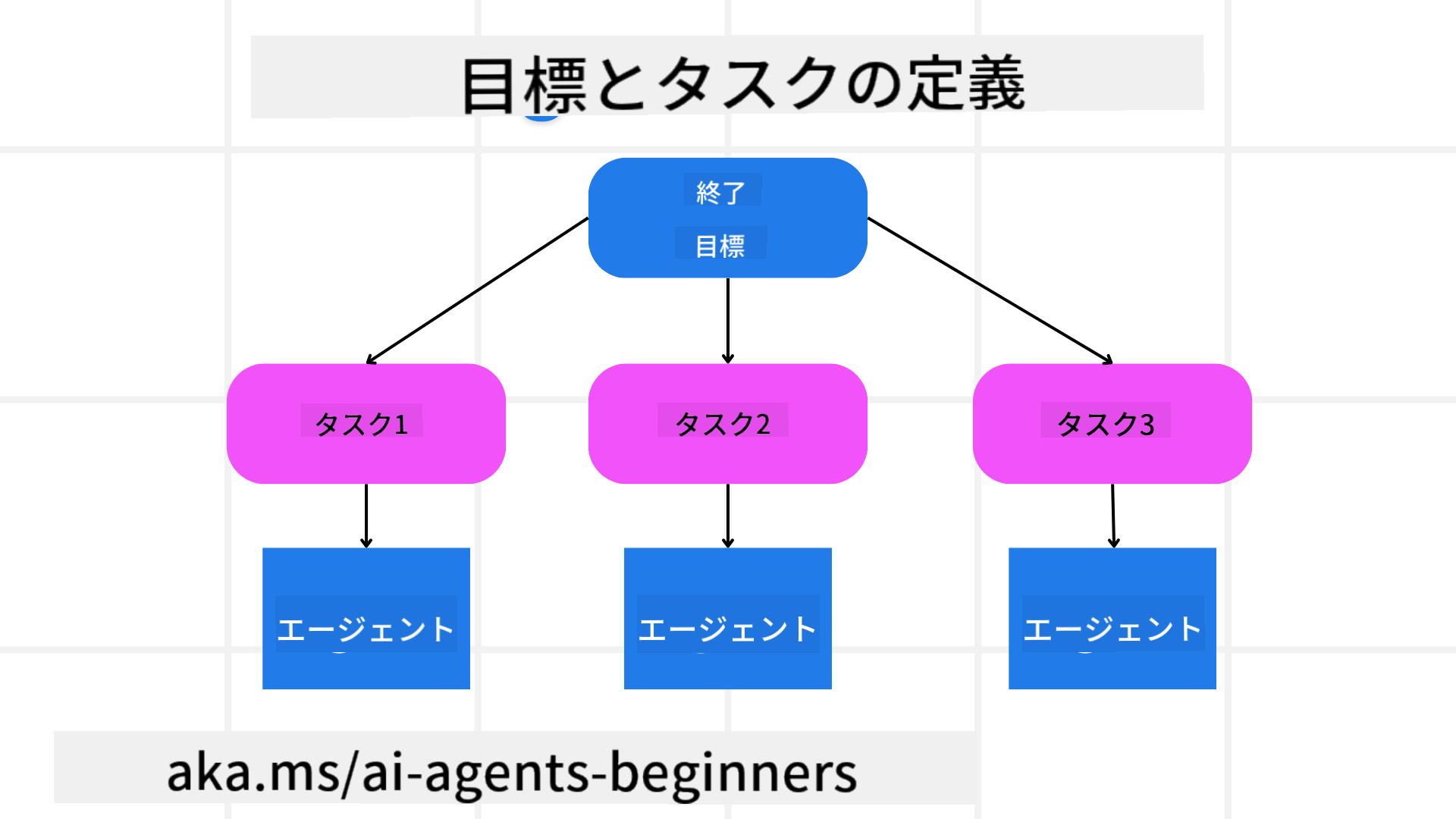

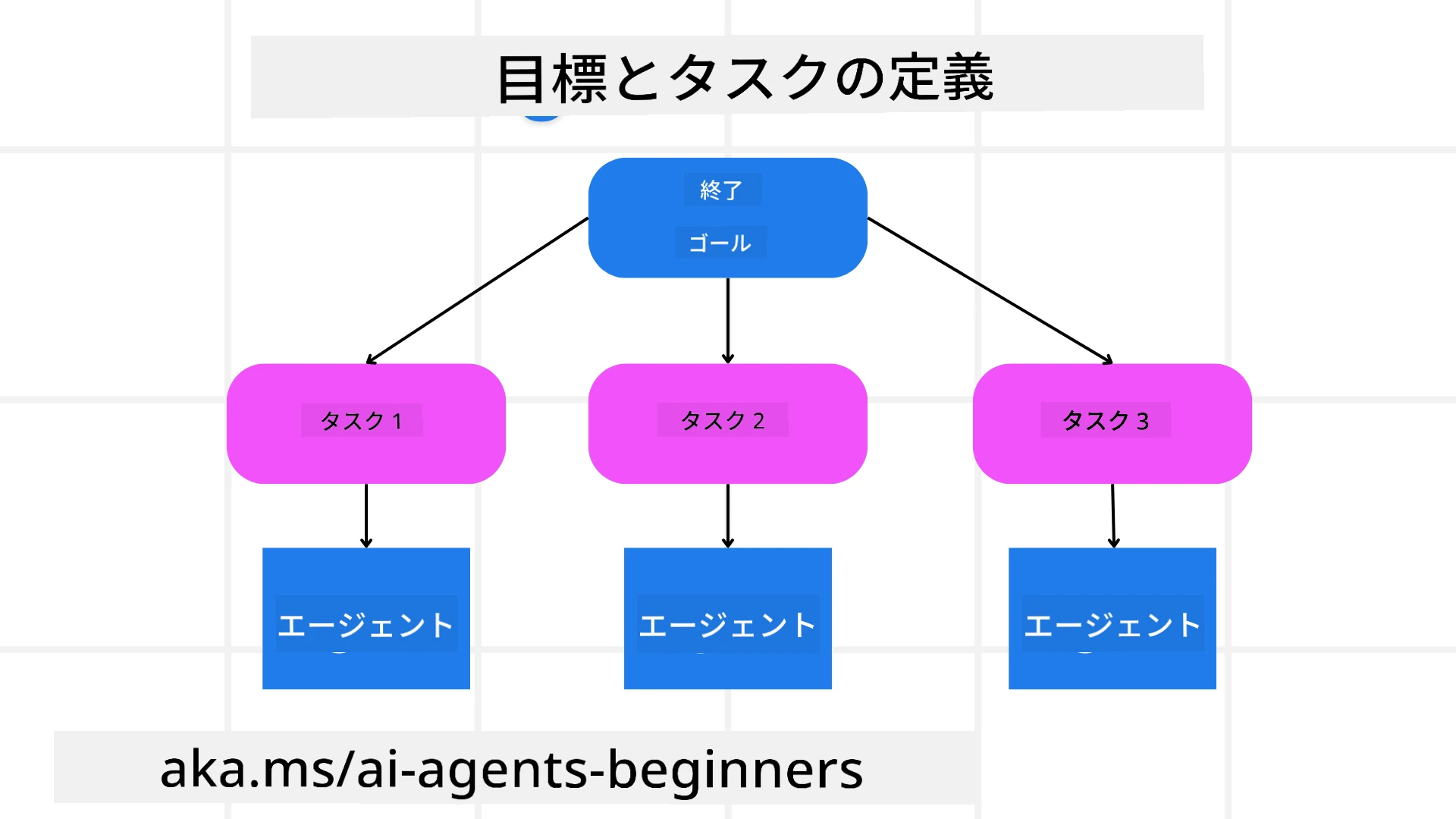

目標とタスクの定義

ほとんどの現実世界のタスクは、1ステップで解決するには複雑すぎます。AIエージェントには、計画と行動を導くための簡潔な目的が必要です。例えば、以下の目標を考えてみましょう:

"3日間の旅行プランを作成する。"

これは簡単に述べられていますが、まだ精緻化が必要です。目標が明確であればあるほど、エージェント(および人間の協力者)は、フライトオプション、ホテルのおすすめ、アクティビティの提案を含む包括的な旅程を作成するなど、適切な結果を達成することに集中できます。

タスクの分解

大規模または複雑なタスクは、小さく目標指向のサブタスクに分割することで管理しやすくなります。 旅行プランの例では、目標を以下のように分解できます:

各サブタスクは、専用のエージェントやプロセスによって処理されます。例えば、あるエージェントは最適なフライトの検索に特化し、別のエージェントはホテル予約に集中します。そして、調整役または「下流」のエージェントがこれらの結果をまとめて、最終的な旅程をユーザーに提供します。

このモジュール型アプローチは、段階的な改善も可能にします。例えば、食事のおすすめや地元のアクティビティの提案に特化したエージェントを追加し、旅程を時間をかけて洗練させることができます。

構造化された出力

大規模言語モデル(LLM)は、下流のエージェントやサービスが解析・処理しやすい構造化された出力(例:JSON)を生成できます。これは特にマルチエージェント環境で有用であり、計画の出力を受け取った後にこれらのタスクを実行できます。簡単な概要は以下の通りです。

以下のPythonコードスニペットは、目標をサブタスクに分解し、構造化された計画を生成するシンプルな計画エージェントを示しています:

from pydantic import BaseModel
from enum import Enum
from typing import List, Optional, Union
import json
import os
from typing import Optional
from pprint import pprint
from autogen_core.models import UserMessage, SystemMessage, AssistantMessage
from autogen_ext.models.azure import AzureAIChatCompletionClient
from azure.core.credentials import AzureKeyCredential

class AgentEnum(str, Enum):
    FlightBooking = "flight_booking"
    HotelBooking = "hotel_booking"
    CarRental = "car_rental"
    ActivitiesBooking = "activities_booking"
    DestinationInfo = "destination_info"
    DefaultAgent = "default_agent"
    GroupChatManager = "group_chat_manager"

# Travel SubTask Model
class TravelSubTask(BaseModel):
    task_details: str
    assigned_agent: AgentEnum  # we want to assign the task to the agent

class TravelPlan(BaseModel):
    main_task: str
    subtasks: List[TravelSubTask]
    is_greeting: bool

client = AzureAIChatCompletionClient(
    model="gpt-4o-mini",
    endpoint="https://models.inference.ai.azure.com",
    # To authenticate with the model you will need to generate a personal access token (PAT) in your GitHub settings.
    # Create your PAT token by following instructions here: https://docs.github.com/en/authentication/keeping-your-account-and-data-secure/managing-your-personal-access-tokens
    credential=AzureKeyCredential(os.environ["GITHUB_TOKEN"]),
    model_info={
        "json_output": False,
        "function_calling": True,
        "vision": True,
        "family": "unknown",
    },
)

# Define the user message
messages = [
    SystemMessage(content="""You are an planner agent.
    Your job is to decide which agents to run based on the user's request.
                      Provide your response in JSON format with the following structure:
{'main_task': 'Plan a family trip from Singapore to Melbourne.',
 'subtasks': [{'assigned_agent': 'flight_booking',
               'task_details': 'Book round-trip flights from Singapore to '
                               'Melbourne.'}
    Below are the available agents specialised in different tasks:
    - FlightBooking: For booking flights and providing flight information
    - HotelBooking: For booking hotels and providing hotel information
    - CarRental: For booking cars and providing car rental information
    - ActivitiesBooking: For booking activities and providing activity information
    - DestinationInfo: For providing information about destinations
    - DefaultAgent: For handling general requests""", source="system"),
    UserMessage(
        content="Create a travel plan for a family of 2 kids from Singapore to Melboune", source="user"),
]

response = await client.create(messages=messages, extra_create_args={"response_format": 'json_object'})

response_content: Optional[str] = response.content if isinstance(
    response.content, str) else None
if response_content is None:
    raise ValueError("Response content is not a valid JSON string" )

pprint(json.loads(response_content))

# # Ensure the response content is a valid JSON string before loading it
# response_content: Optional[str] = response.content if isinstance(
#     response.content, str) else None
# if response_content is None:
#     raise ValueError("Response content is not a valid JSON string")

# # Print the response content after loading it as JSON
# pprint(json.loads(response_content))

# Validate the response content with the MathReasoning model
# TravelPlan.model_validate(json.loads(response_content))

マルチエージェントオーケストレーションを備えた計画エージェント

この例では、Semantic Router Agentがユーザーのリクエスト(例:「旅行のためのホテルプランが必要です」)を受け取ります。

プランナーは以下を行います:

以下のPythonコードサンプルはこれらのステップを示しています:


from pydantic import BaseModel

from enum import Enum
from typing import List, Optional, Union

class AgentEnum(str, Enum):
    FlightBooking = "flight_booking"
    HotelBooking = "hotel_booking"
    CarRental = "car_rental"
    ActivitiesBooking = "activities_booking"
    DestinationInfo = "destination_info"
    DefaultAgent = "default_agent"
    GroupChatManager = "group_chat_manager"

# Travel SubTask Model

class TravelSubTask(BaseModel):
    task_details: str
    assigned_agent: AgentEnum # we want to assign the task to the agent

class TravelPlan(BaseModel):
    main_task: str
    subtasks: List[TravelSubTask]
    is_greeting: bool
import json
import os
from typing import Optional

from autogen_core.models import UserMessage, SystemMessage, AssistantMessage
from autogen_ext.models.openai import AzureOpenAIChatCompletionClient

# Create the client with type-checked environment variables

client = AzureOpenAIChatCompletionClient(
    azure_deployment=os.getenv("AZURE_OPENAI_DEPLOYMENT_NAME"),
    model=os.getenv("AZURE_OPENAI_DEPLOYMENT_NAME"),
    api_version=os.getenv("AZURE_OPENAI_API_VERSION"),
    azure_endpoint=os.getenv("AZURE_OPENAI_ENDPOINT"),
    api_key=os.getenv("AZURE_OPENAI_API_KEY"),
)

from pprint import pprint

# Define the user message

messages = [
    SystemMessage(content="""You are an planner agent.
    Your job is to decide which agents to run based on the user's request.
    Below are the available agents specialized in different tasks:
    - FlightBooking: For booking flights and providing flight information
    - HotelBooking: For booking hotels and providing hotel information
    - CarRental: For booking cars and providing car rental information
    - ActivitiesBooking: For booking activities and providing activity information
    - DestinationInfo: For providing information about destinations
    - DefaultAgent: For handling general requests""", source="system"),
    UserMessage(content="Create a travel plan for a family of 2 kids from Singapore to Melbourne", source="user"),
]

response = await client.create(messages=messages, extra_create_args={"response_format": TravelPlan})

# Ensure the response content is a valid JSON string before loading it

response_content: Optional[str] = response.content if isinstance(response.content, str) else None
if response_content is None:
    raise ValueError("Response content is not a valid JSON string")

# Print the response content after loading it as JSON

pprint(json.loads(response_content))

前述のコードからの出力例を以下に示します。この構造化された出力を使用してassigned_agentにルーティングし、旅行プランをエンドユーザーに要約することができます。

{
    "is_greeting": "False",
    "main_task": "Plan a family trip from Singapore to Melbourne.",
    "subtasks": [
        {
            "assigned_agent": "flight_booking",
            "task_details": "Book round-trip flights from Singapore to Melbourne."
        },
        {
            "assigned_agent": "hotel_booking",
            "task_details": "Find family-friendly hotels in Melbourne."
        },
        {
            "assigned_agent": "car_rental",
            "task_details": "Arrange a car rental suitable for a family of four in Melbourne."
        },
        {
            "assigned_agent": "activities_booking",
            "task_details": "List family-friendly activities in Melbourne."
        },
        {
            "assigned_agent": "destination_info",
            "task_details": "Provide information about Melbourne as a travel destination."
        }
    ]
}

前述のコードサンプルを含むサンプルノートブックはこちらで利用可能です。

繰り返し計画

一部のタスクでは、結果が次のサブタスクに影響を与えるため、再計画ややり取りが必要です。例えば、エージェントがフライト予約中に予期しないデータ形式を発見した場合、ホテル予約に進む前に戦略を適応させる必要があるかもしれません。

さらに、ユーザーのフィードバック(例:ユーザーが早い時間のフライトを希望する場合)が部分的な再計画を引き起こすことがあります。この動的で反復的なアプローチにより、最終的な解決策が現実世界の制約や進化するユーザーの好みに合致することを保証します。

例:サンプルコード

from autogen_core.models import UserMessage, SystemMessage, AssistantMessage
#.. same as previous code and pass on the user history, current plan
messages = [
    SystemMessage(content="""You are a planner agent to optimize the
    Your job is to decide which agents to run based on the user's request.
    Below are the available agents specialized in different tasks:
    - FlightBooking: For booking flights and providing flight information
    - HotelBooking: For booking hotels and providing hotel information
    - CarRental: For booking cars and providing car rental information
    - ActivitiesBooking: For booking activities and providing activity information
    - DestinationInfo: For providing information about destinations
    - DefaultAgent: For handling general requests""", source="system"),
    UserMessage(content="Create a travel plan for a family of 2 kids from Singapore to Melbourne", source="user"),
    AssistantMessage(content=f"Previous travel plan - {TravelPlan}", source="assistant")
]
# .. re-plan and send the tasks to respective agents

より包括的な計画については、Magnetic Oneをご覧ください。複雑なタスクを解決するための包括的なアプローチを提供します。

まとめ

この記事では、利用可能なエージェントを動的に選択するプランナーを作成する方法の例を見てきました。プランナーの出力はタスクを分解し、エージェントに割り当てて実行できるようにします。エージェントがタスクを実行するために必要な機能やツールにアクセスできることが前提です。エージェントに加えて、リフレクション、要約、ラウンドロビンチャットなどのパターンを追加してさらにカスタマイズすることも可能です。

追加リソース

AutoGen Magnetic One - 複雑なタスクを解決するための汎用マルチエージェントシステムで、複数の難しいエージェントベンチマークで優れた結果を達成しています。参考:

この実装では、オーケストレーターがタスク固有の計画を作成し、これらのタスクを利用可能なエージェントに委任します。オーケストレーターは計画だけでなく、タスクの進捗を監視し、必要に応じて再計画を行う追跡メカニズムも採用しています。

計画設計パターンについてさらに質問がありますか?

Azure AI Foundry Discordに参加して、他の学習者と交流したり、オフィスアワーに参加したり、AIエージェントに関する質問に答えてもらいましょう。
