Exploring Microsoft Agent Framework

Agent Framework

Introduction

Dis lesson go cover:

Learning Goals

After you don finish dis lesson, you go sabi how to:

Code Samples

Code samples for Microsoft Agent Framework (MAF) fit be found for dis repository under xx-python-agent-framework and xx-dotnet-agent-framework files.

Understanding Microsoft Agent Framework

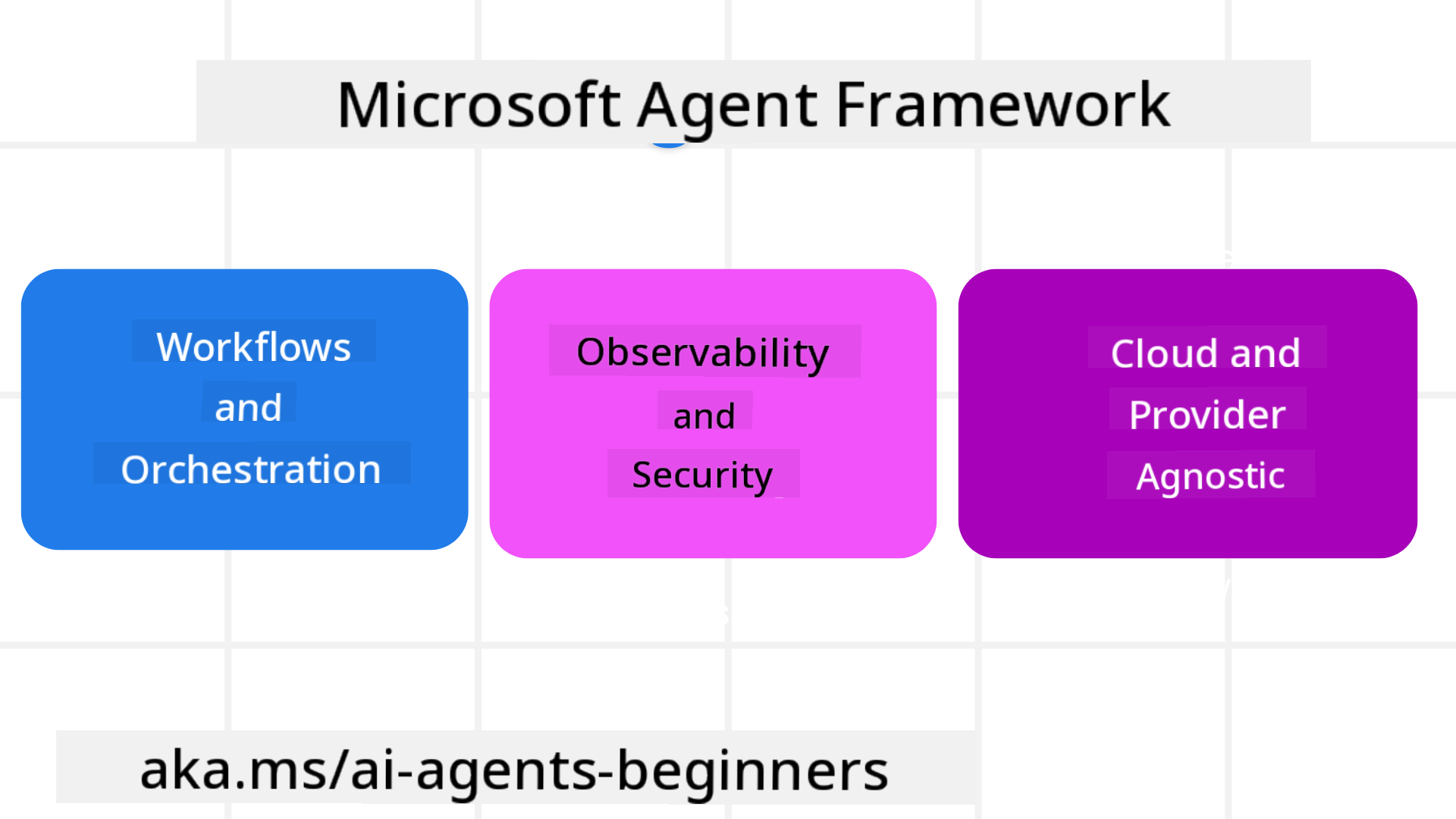

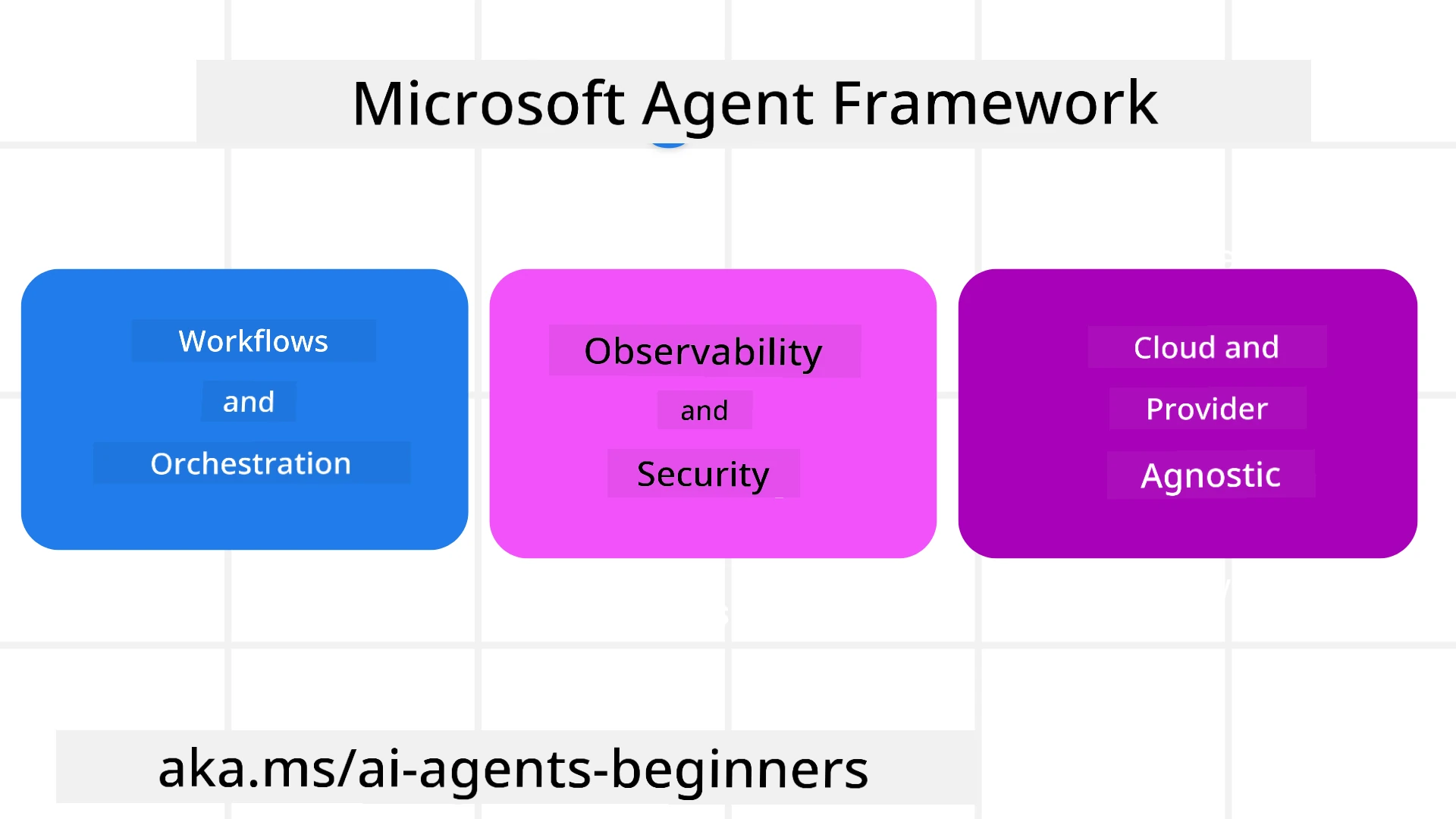

Framework Intro

Microsoft Agent Framework (MAF) na Microsoft unified framework wey dem dey use build AI agents. E dey give you flexibility to solve different kinds agentic use cases wey you go fit see for both production and research environments including:

To deliver AI Agents for Production, MAF sef get features for:

Microsoft Agent Framework dey also focused on being interoperable by:

Make we see how dem dey apply these features to some core concepts of Microsoft Agent Framework.

Key Concepts of Microsoft Agent Framework

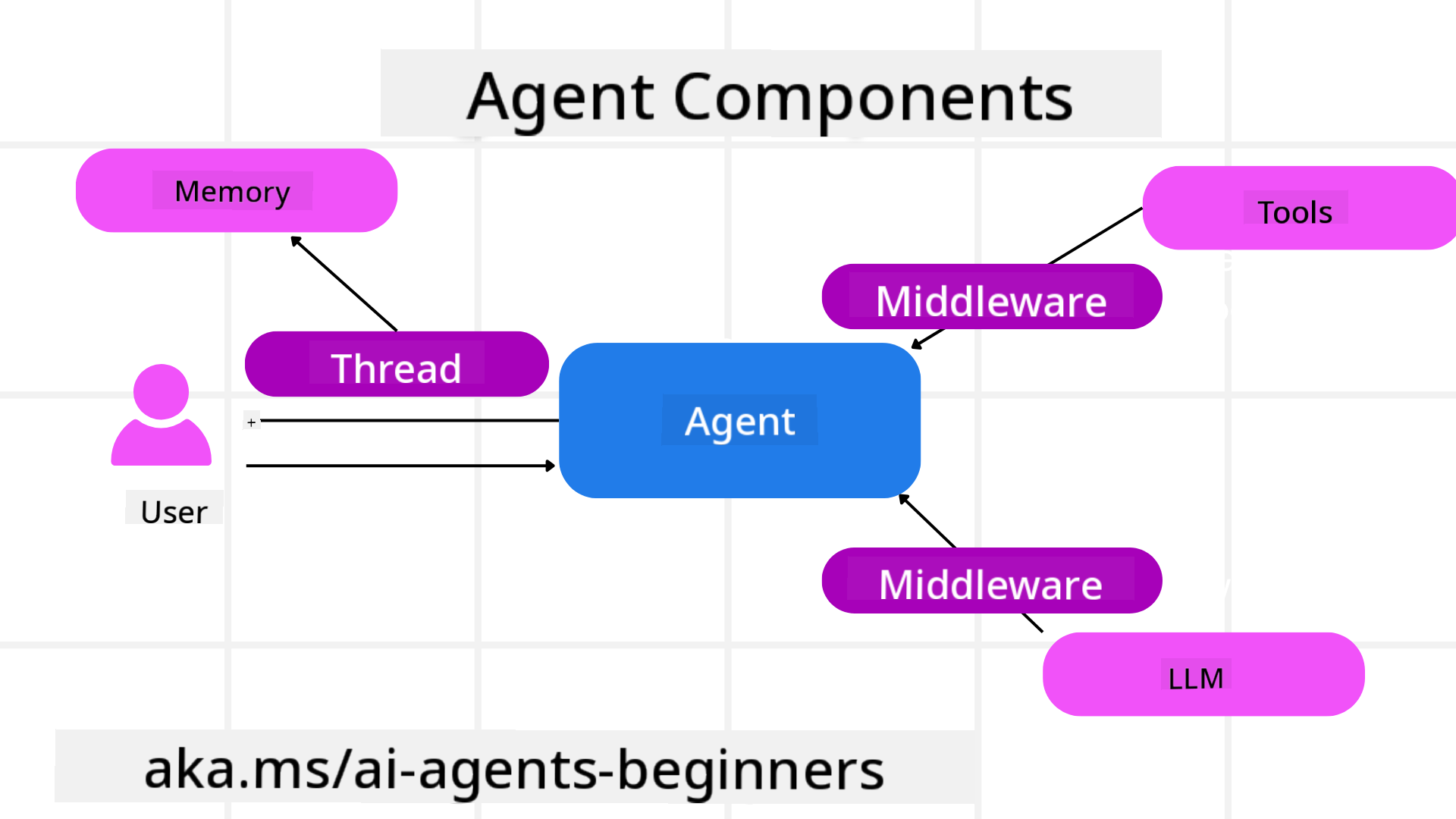

Agents

Agent Framework

Creating Agents

To create Agent, you go define the inference service (LLM Provider), put set instructions for the AI Agent to follow, plus assign name:

agent = AzureOpenAIChatClient(credential=AzureCliCredential()).create_agent( instructions="You are good at recommending trips to customers based on their preferences.", name="TripRecommender" )

The one we dey see above na Azure OpenAI but you fit create agents using different services like Microsoft Foundry Agent Service:

AzureAIAgentClient(async_credential=credential).create_agent( name="HelperAgent", instructions="You are a helpful assistant." ) as agent

OpenAI Responses, ChatCompletion APIs

agent = OpenAIResponsesClient().create_agent( name="WeatherBot", instructions="You are a helpful weather assistant.", )

agent = OpenAIChatClient().create_agent( name="HelpfulAssistant", instructions="You are a helpful assistant.", )

or MiniMax, wey get OpenAI-compatible API wey get large context windows (up to 204K tokens):

agent = OpenAIChatClient(base_url="https://api.minimax.io/v1", api_key=os.environ["MINIMAX_API_KEY"], model_id="MiniMax-M2.7").create_agent( name="HelpfulAssistant", instructions="You are a helpful assistant.", )

or remote agents using the A2A protocol:

agent = A2AAgent( name=agent_card.name, description=agent_card.description, agent_card=agent_card, url="https://your-a2a-agent-host" )

Running Agents

You fit run Agents with .run or .run_stream method for non-streaming or streaming responses.

result = await agent.run("What are good places to visit in Amsterdam?")
print(result.text)

async for update in agent.run_stream("What are the good places to visit in Amsterdam?"):
    if update.text:
        print(update.text, end="", flush=True)

Each agent run fit get options to change parameters like max_tokens wey agent go use, tools wey agent fit call, and even the model wey agent go use.

Dis dey important if specific models or tools dey needed to complete user task.

Tools

Tools fit be defined both when you dey define the agent:

def get_attractions( location: Annotated[str, Field(description="The location to get the top tourist attractions for")], ) -> str: """Get the top tourist attractions for a given location.""" return f"The top attractions for {location} are."


# Wen you dey create ChatAgent direct

agent = ChatAgent( chat_client=OpenAIChatClient(), instructions="You are a helpful assistant", tools=[get_attractions]

and also when you dey run the agent:


result1 = await agent.run( "What's the best place to visit in Seattle?", tools=[get_attractions] # Di tool na just for dis run only )

Agent Threads

Agent Threads dey used to manage multi-turn conversations. You fit create thread by:

To create one thread, the code look like this:

# Make new thread.
thread = agent.get_new_thread() # Run the agent wit di thread.
response = await agent.run("Hello, I am here to help you book travel. Where would you like to go?", thread=thread)

You fit serialize the thread to keep am for later use:

# Make new thread.
thread = agent.get_new_thread()

# Run the agent wit di thread.

response = await agent.run("Hello, how are you?", thread=thread)

# Arrange di thread for keep.

serialized_thread = await thread.serialize()

# Arrange di thread state again afta load from storage.

resumed_thread = await agent.deserialize_thread(serialized_thread)

Agent Middleware

Agents dey yok with tools and LLMs to complete user task. Sometimes we want execute or track things inside these interactions. Agent middleware dey help do that by:

Function Middleware

Dis middleware dey allow us run action inside between the agent and function/tool wey e go call. For example, you fit want do some logging on the function call.

For the code below, next na wetin tell whether to call the next middleware or the actual function.

async def logging_function_middleware(
    context: FunctionInvocationContext,
    next: Callable[[FunctionInvocationContext], Awaitable[None]],
) -> None:
    """Function middleware that logs function execution."""
    # Pre-processing: Log before function execution
    print(f"[Function] Calling {context.function.name}")

    # Continue to next middleware or function execution
    await next(context)

    # Post-processing: Log after function execution
    print(f"[Function] {context.function.name} completed")

Chat Middleware

Dis middleware allow us run or log action between agent and the requests between the LLM.

E get important info like the messages wey dem dey send to the AI service.

async def logging_chat_middleware(
    context: ChatContext,
    next: Callable[[ChatContext], Awaitable[None]],
) -> None:
    """Chat middleware that logs AI interactions."""
    # Pre-processing: Make log before you call AI
    print(f"[Chat] Sending {len(context.messages)} messages to AI")

    # Continue go next middleware or AI service
    await next(context)

    # Post-processing: Make log after AI don respond
    print("[Chat] AI response received")

Agent Memory

As we talk for Agentic Memory lesson, memory na important part to make agent fit work with different contexts. MAF get different kinds memories:

In-Memory Storage

Na memory wey dey store for threads during app running time.

# Make beta thread.
thread = agent.get_new_thread() # Run the agent wit the thread.
response = await agent.run("Hello, I am here to help you book travel. Where would you like to go?", thread=thread)

Persistent Messages

Dis memory dey use to store conversation history across different sessions. E dey defined wit chat_message_store_factory:

from agent_framework import ChatMessageStore

# Make custom message store
def create_message_store():
    return ChatMessageStore()

agent = ChatAgent(
    chat_client=OpenAIChatClient(),
    instructions="You are a Travel assistant.",
    chat_message_store_factory=create_message_store
)

Dynamic Memory

Dis memory dey add to context before agents run. Dem fit store this memory for external services like mem0:

from agent_framework.mem0 import Mem0Provider

# Di use of Mem0 na for advanced memory wahala
memory_provider = Mem0Provider(
    api_key="your-mem0-api-key",
    user_id="user_123",
    application_id="my_app"
)

agent = ChatAgent(
    chat_client=OpenAIChatClient(),
    instructions="You are a helpful assistant with memory.",
    context_providers=memory_provider
)

Agent Observability

Observability important to build reliable and maintainable agentic systems. MAF join with OpenTelemetry to provide tracing and meters for better observability.

from agent_framework.observability import get_tracer, get_meter

tracer = get_tracer()
meter = get_meter()
with tracer.start_as_current_span("my_custom_span"):
    # make sometin
    pass
counter = meter.create_counter("my_custom_counter")
counter.add(1, {"key": "value"})

Workflows

MAF get workflows wey na pre-defined steps to finish task and dem include AI agents as components for those steps.

Workflows get different components wey dey give better control flow. Workflows also dey support multi-agent orchestration and checkpointing to save workflow states.

The core components of workflow be:

Executors

Executors dey receive input messages, do their assigned tasks, then produce output message. Dis one dey push workflow go front to finish the bigger task. Executors fit be AI agent or custom logic.

Edges

Edges dey used to define how messages flow inside workflow. These ones fit be:

Direct Edges - Simple one-to-one connection between executors:

from agent_framework import WorkflowBuilder

builder = WorkflowBuilder()
builder.add_edge(source_executor, target_executor)
builder.set_start_executor(source_executor)
workflow = builder.build()

Conditional Edges - E dey activate after one particular condition happen. For example, if hotel rooms no dey available, executor fit suggest other options.

Switch-case Edges - E dey route messages go different executors based on defined conditions. For example, if travel customer get priority access their tasks fit run through another workflow.

Fan-out Edges - Dem send one message to many targets.

Fan-in Edges - Dem gather many messages from different executors and send to one target.

Events

To make observability better for workflows, MAF get in-built events for execution including:

Advanced MAF Patterns

The parts wey pass don explain the key concepts of Microsoft Agent Framework. As you dey build more complex agents, here na some advanced patterns wey you fit consider:

Code Samples

Code samples for Microsoft Agent Framework fit be found for dis repository under xx-python-agent-framework and xx-dotnet-agent-framework files.

Got More Questions About Microsoft Agent Framework?

Join the Microsoft Foundry Discord to link up with other learners, attend office hours and ask your AI Agents questions.
