Architecture Overview

Core technologies at a glance

  • Azure AI Foundry Agent Service Hosts the LLM-driven agent; orchestrates tools (including MCP Servers); manages context, Code Interpreter, and token streaming; and provides authentication, logging, and scaling.
  • MCP Servers MCP (Model Context Protocol) is an open standard that gives LLMs a unified interface to external tools, APIs, and data. It standardizes tool discovery (like OpenAPI for REST) and improves composability by making tools easy to update or swap as needs evolve.
  • PostgreSQL + pgvector Stores relational data and embeddings; supports both relational (SQL) and semantic (vector) queries (via pgvector), governed by SQL and RLS.

Together: the Agent Service routes user intents; the MCP server translates them into tool/SQL calls; PostgreSQL+pgvector answers semantic and analytical questions.

Solution Architecture

The Zava Sales Analysis solution architecture includes:

  • An Azure AI Foundry Agent Service instance that hosts the Zava Sales Analysis agent.
  • A PostgreSQL database with the pgvector extension, storing Zava sales data and embeddings.
  • An MCP Server that exposes the PostgreSQL database to the agent via MCP.
  • An Agent Manager app that manages the interaction between the user and the agent.
  • A Web Chat interface for real-time chat interaction with the agent.

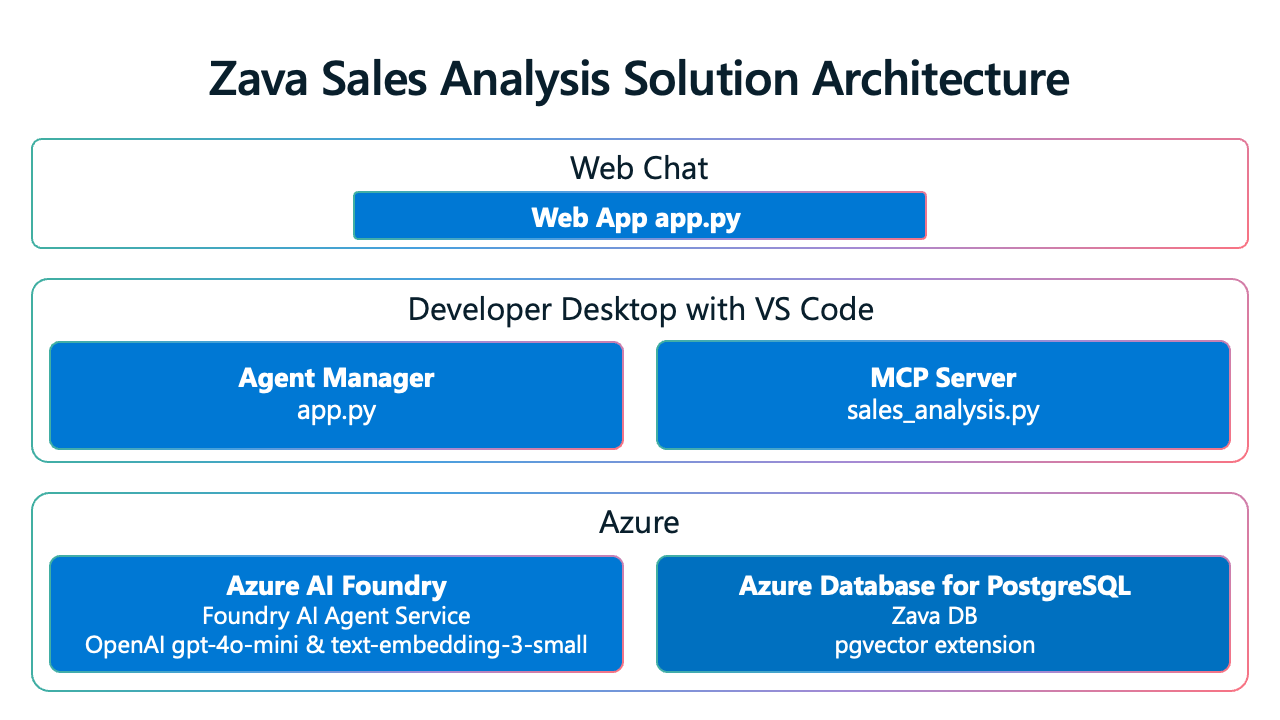

Image shows the architecture for the Zava Sales Analysis solution

Key benefits of MCP Servers

  • Interoperability – Connect AI agents to any vendor’s MCP‑enabled tools with minimal custom code.
  • Security hooks – Integrate sign‑in, permissions, and activity logging.
  • Reusability – Build once, reuse across projects, clouds, and runtimes.
  • Operational simplicity – A single contract reduces boilerplate and maintenance.

Best practices demonstrated

  • Asynchronous APIs: Agents service and PostgreSQL use async APIs; ideal with FastAPI/ASP.NET/Streamlit.
  • Token streaming: Improves perceived latency in the UI.
  • Observability: Built‑in tracing and metrics support monitoring and optimization.
  • Database security: PostgreSQL is secured with restricted agent privileges and Row‑Level Security (RLS), limiting agents to only their authorized data.
  • Code Interpreter: The Azure AI Agents Service Code Interpreter runs LLM‑generated code on demand in a sandboxed environment, preventing actions beyond the agent’s scope.

Extensibility

The workshop pattern can be adapted (e.g., customer support) by updating the database + agent instructions in Foundry.

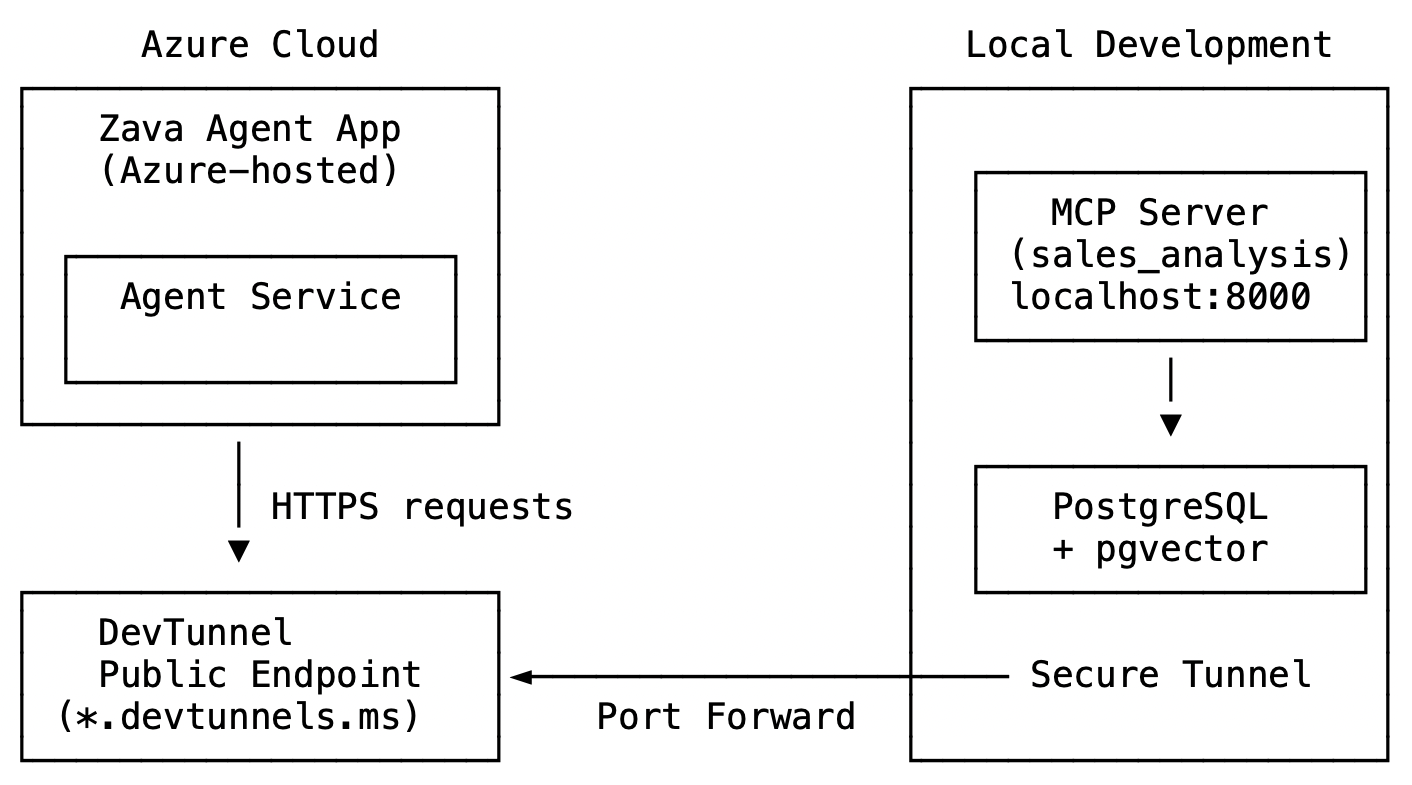

DevTunnel Architecture

In the workshop environment, the Agent Service runs in Azure but needs to connect to your locally-running MCP Server. DevTunnel creates a secure tunnel that exposes your local MCP Server to the cloud-based Agent Service.

          Azure Cloud                           Local Development
    ┌─────────────────────┐                  ┌─────────────────────┐
    │   Zava Agent App    │                  │                     │
    │   (Azure-hosted)    │                  │  ┌─────────────────┐│
    │                     │                  │  │   MCP Server    ││
    │ ┌─────────────────┐ │                  │  │ (sales_analysis)││
    │ │ Azure AI        │ │                  │  │ localhost:8000  ││
    │ │ Agents Service  │ │                  │  └─────────────────┘│
    │ └─────────────────┘ │                  │           │         │
    └─────────────────────┘                  │           ▼         │
              │                              │  ┌─────────────────┐│
              │ HTTPS requests               │  │   PostgreSQL    ││
              ▼                              │  │   + pgvector    ││
    ┌─────────────────────┐                  │  └─────────────────┘│
    │   DevTunnel         │                  │                     │
    │   Public Endpoint   │◄─────────────────┼──── Secure Tunnel   │
    │ (*.devtunnels.ms)   │    Port Forward  │                     │
    └─────────────────────┘                  └─────────────────────┘

How DevTunnel Works in the Workshop:

  1. Local Development: You run the MCP Server locally on localhost:8000
  2. DevTunnel Creation: DevTunnel creates a public HTTPS endpoint (e.g., https://abc123.devtunnels.ms) connected to localhost:8000.
  3. Azure Integration: The Azure-hosted Agent Service connects to the MCP Server through the DevTunnel endpoint.
  4. Transparent Operation: The agent service operates normally, unaware it's accessing the MCP Server running locally through a tunnel.

This setup allows you to:

  • Develop and debug locally while using cloud-hosted AI services
  • Test realistic scenarios without deploying the MCP Server to Azure
