Lab 3 Semantic Search

What You'll Learn¶

In this lab, you enable semantic search capabilities in the Azure AI Agent using the MCP Server and the PostgreSQL database with the PostgreSQL Vector extension enabled.

Introduction¶

This lab upgrades the Azure AI Agent with semantic search using the MCP Server and PostgreSQL.

All of Zava's product names and descriptions have been converted to vectors with the OpenAI embedding model (text-embedding-3-small) and stored in the database. This enables the agent to understand user intent and provide more accurate responses.

🚀 For Developers: How does PostgreSQL Semantic Search work?

Vectorizing the Product Descriptions and Names¶

To learn more about how Zava product names and descriptions were vectorized, see the Zava DIY PostgreSQL Database Generator README.

PythonC#

LLM calls the MCP Server Tool¶

Based on the user's query and the instructions provided, the LLM decides to call the MCP Server tool semantic_search_products to find relevant products.

The following sequence of events occurs:

The MCP tool semantic_search_products is invoked with the user's query description.
The MCP server generates a vector for the query using the OpenAI embedding model (text-embedding-3-small). See the code for vectorizing the query is in the generate_query_embedding method.
The MCP server then performs a semantic search against the PostgreSQL database to find products with similar vectors.

PostgreSQL Semantic Search Overview¶

The semantic_search_products MCP Server tool then executes a SQL query that uses the vectorized query to find the most similar product vectors in the database. The SQL query uses the <-> operator provided by the pgvector extension to calculate the distance between vectors.

async def search_products_by_similarity(
    self, query_embedding: list[float],
        rls_user_id: str,
        max_rows: int = 20,
        similarity_threshold: float = 30.0
) -> str:
        ...
        query = f"""
            SELECT
                p.*,
                (pde.description_embedding <=> $1::vector) as similarity_distance
            FROM {SCHEMA_NAME}.product_description_embeddings pde
            JOIN {SCHEMA_NAME}.products p ON pde.product_id = p.product_id
            WHERE (pde.description_embedding <=> $1::vector) <= $3
            ORDER BY similarity_distance
            LIMIT $2
        """

        rows = await conn.fetch(query, embedding_str, max_rows, distance_threshold)
        ...

LLM calls the MCP Server Tool¶

Based on the user's query and the instructions provided, the LLM decides to call the MCP Server tool semantic_search_products to find relevant products.

The following sequence of events occurs:

The MCP tool semantic_search_products is invoked with the user's query description.
The MCP server generates a vector for the query using the OpenAI embedding model (text-embedding-3-small). See GenerateVectorAsync method in the EmbeddingGeneratorExtensions.cs file.
The MCP server then performs a semantic search against the PostgreSQL database to find products with similar vectors.

PostgreSQL Semantic Search Overview¶

The semantic_search_products MCP Server tool then executes a SQL query that uses the vectorized query to find the most similar product vectors in the database. The SQL query uses the <-> operator provided by the pgvector extension to calculate the distance between vectors.

public async Task<IEnumerable<SemanticSearchResult>> SemanticSearchProductsAsync(
...
    await using var searchCmd = new NpgsqlCommand("""
    SELECT
        p.*,
        (pde.description_embedding <=> $1::vector) as similarity_distance
    FROM retail.product_description_embeddings pde
    JOIN retail.products p ON pde.product_id = p.product_id
    WHERE (pde.description_embedding <=> $1::vector) <= $3
    ORDER BY similarity_distance
    LIMIT $2
    """, connection);
    searchCmd.Parameters.AddWithValue(new Vector(embeddings));
    searchCmd.Parameters.AddWithValue(maxRows);
    searchCmd.Parameters.AddWithValue(distanceThreshold);

    await using var reader = await searchCmd.ExecuteReaderAsync();
    var results = new List<SemanticSearchResult>();

Lab Exercise¶

From the previous lab you can ask the agent questions about sales data, but it was limited to exact matches. In this lab, you extend the agent's capabilities by implementing semantic search using the Model Context Protocol (MCP). This will allow the agent to understand and respond to queries that are not exact matches, improving its ability to assist users with more complex questions.

Paste the following question into the Web Chat tab in your browser:

What 18 amp circuit breakers do we sell?

The agent cannot find matching products because it's performing text matching. It will respond that no products were found and may suggest trying different search terms.

Stop the Agent App¶

From VS Code, stop the agent app by pressing Shift + F5.

PythonC#

Implement Semantic Search¶

In this section, you will implement semantic search using the Model Context Protocol (MCP) to enhance the agent's capabilities.

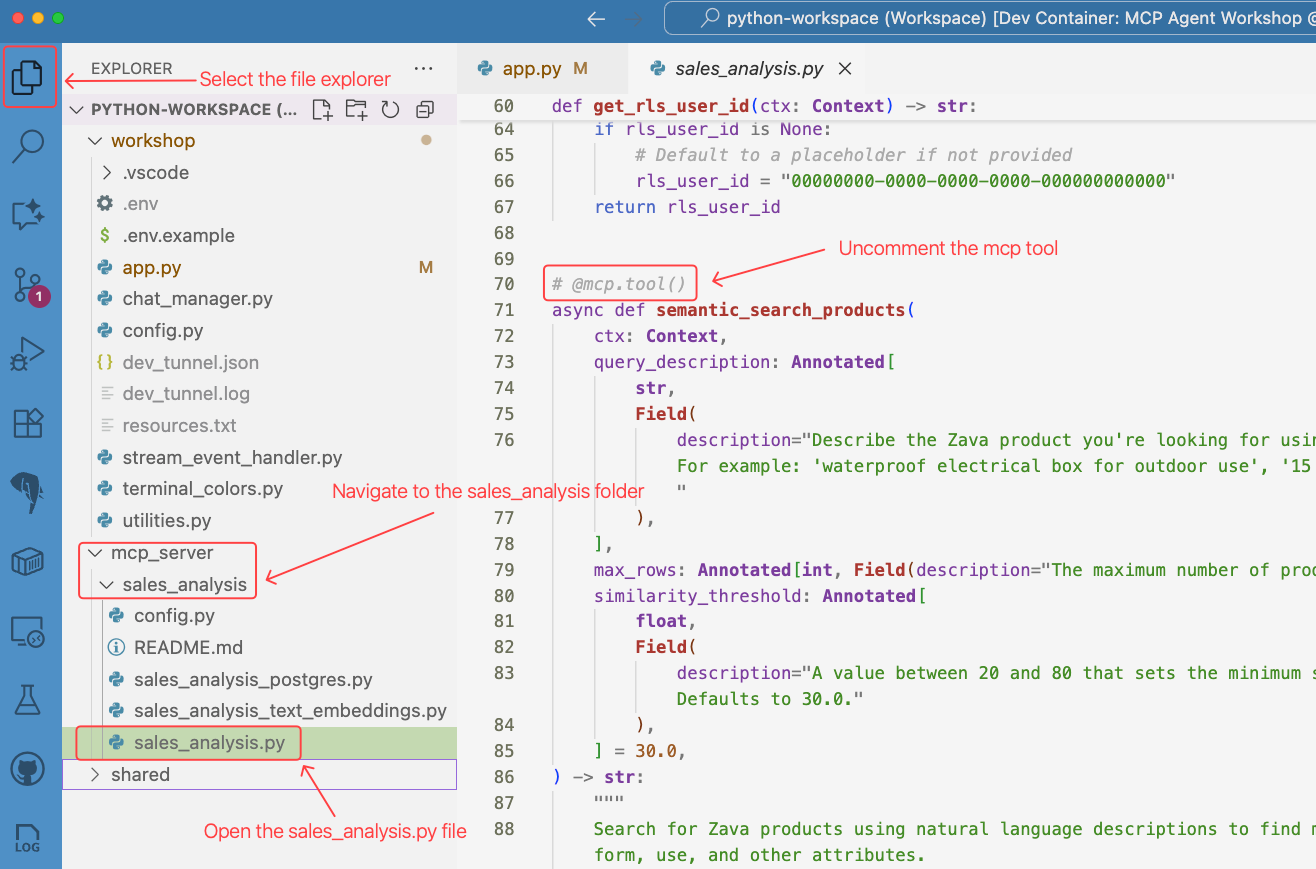

Select the Explorer icon from the sidebar of VS Code.
Navigate to the mcp_server/sales_analysis folder.
Open the sales_analysis.py file.

This file contains the MCP tools for the sales analysis agent, including the semantic search tool.
Scroll down to around line 70 and look for the semantic_search_products method. This method is responsible for performing semantic search on the sales data. You'll notice the @mcp.tool() decorator is commented out. This decorator is used to register the method as an MCP tool, allowing it to be called by the agent.
Remove the # symbol and following space character before the # @mcp.tool() decorator to enable the semantic search mcp tool.
```
# @mcp.tool()
async def semantic_search_products(
    ctx: Context,
    query_description: Annotated[str, Field(
    ...
```
After enabling the decorator, the method should look like this:
```
@mcp.tool()
async def semantic_search_products(
    ctx: Context,
    query_description: Annotated[str, Field(
    ...
```
🚀 For Developers: Set a breakpoint in the semantic search method and debug

Prerequisites: These instructions assume you're familiar with setting breakpoints in VS Code. If you need help with this, see the VS Code documentation on breakpoints.

Purpose: Setting a breakpoint in the semantic_search_products method lets you observe exactly how the semantic search process works, including query processing and database interactions.

Steps:
1. Set the breakpoint: Click in the gutter (left margin) next to line 104, where you see rls_user_id = get_rls_user_id(ctx). A red dot will appear, confirming the breakpoint is set.
2. Debug and observe: When you run the agent app in debug mode, execution will pause at this breakpoint. You can then:
3. Inspect variable values
4. Step through the code line by line
5. Observe how the RLS user ID is extracted from the MCP request header
6. Watch the query get converted to a vector
7. See the semantic search execute against the PostgreSQL database
Next, you need to enable the Agent instructions to use the semantic search tool. Switch back to the app.py file.
Scroll down to around line 30 and find the line # INSTRUCTIONS_FILE = "instructions/mcp_server_tools_with_semantic_search.txt".
Uncomment the line by removing the # at the beginning. This will enable the agent to use the semantic search tool.
```
INSTRUCTIONS_FILE = "instructions/mcp_server_tools_with_semantic_search.txt"
```

Implement Semantic Search¶

In this section, you will implement semantic search using the Model Context Protocol (MCP) to enhance the agent's capabilities.

Open the McpHost.cs file from the McpAgentWorkshop.McpServer project.
Locate where the other MCP tools are registered with the MCP server, and register the SemanticSearchTools class as an MCP tool using WithTools:
```
.WithTools<SemanticSearchTools>();
```
Note

Have a read of the implementation of SemanticSearchTools to learn how the MCP server will be performing the search.
Next, you need to enable the Agent instructions to use the semantic search tool. Switch back to the AgentService class and change the const InstructionsFile to mcp_server_tools_with_semantic_search.txt.

Review the Agent Instructions¶

Press F1 to open the VS Code Command Palette.
Type Open File and select File: Open File....
Paste the following path into the file picker and press Enter:

/workspace/src/shared/instructions/mcp_server_tools_with_semantic_search.txt

Review the instructions in the file. These instructions instruct the agent to use the semantic search tool to answer questions about sales data.

Start the Agent App with the Semantic Search Tool¶

Start the agent app by pressing F5. This will start the agent with the updated instructions and the semantic search tool enabled.
Open the Web Chat in your browser.
Enter the following question in the chat:
```
What 18 amp circuit breakers do we sell?
```
The agent now understands the semantic meaning of the question and responds accordingly with relevant sales data.
Note

The MCP Semantic Search tool works as follows:
1. The question is converted into a vector using the same OpenAI embedding model (text-embedding-3-small) as the product descriptions.
2. This vector is used to search for similar product vectors in the PostgreSQL database.
3. The agent receives the results and uses them to generate a response.

Write an Executive Report¶

The final prompt for this workshop is as follows:

Write an executive report on the sales performance of different stores for these circuit breakers.

Leave the Agent App Running¶

Leave the agent app running as you will use it in the next lab to explore secure agent data access.
