Lab 6 Understand Tracing

Introduction

Tracing helps you understand and debug your agent's behavior by showing the sequence of steps, inputs, and outputs during execution. In Azure AI Foundry, tracing lets you observe how your agent processes requests, calls tools, and generates responses. You can use the Azure AI Foundry portal or integrate with OpenTelemetry and Application Insights to collect and analyze trace data, making it easier to troubleshoot and optimize your agent.

View Traces

You can view the traces of your agent's execution in the Azure AI Foundry portal or by using OpenTelemetry. The traces will show the sequence of steps, tool calls, and data exchanged during the agent's execution. This information is crucial for debugging and optimizing your agent's performance.

Using Azure AI Foundry Portal

To view traces in the Azure AI Foundry portal, follow these steps:

  1. Navigate to the Azure AI Foundry portal.
  2. Select your project.

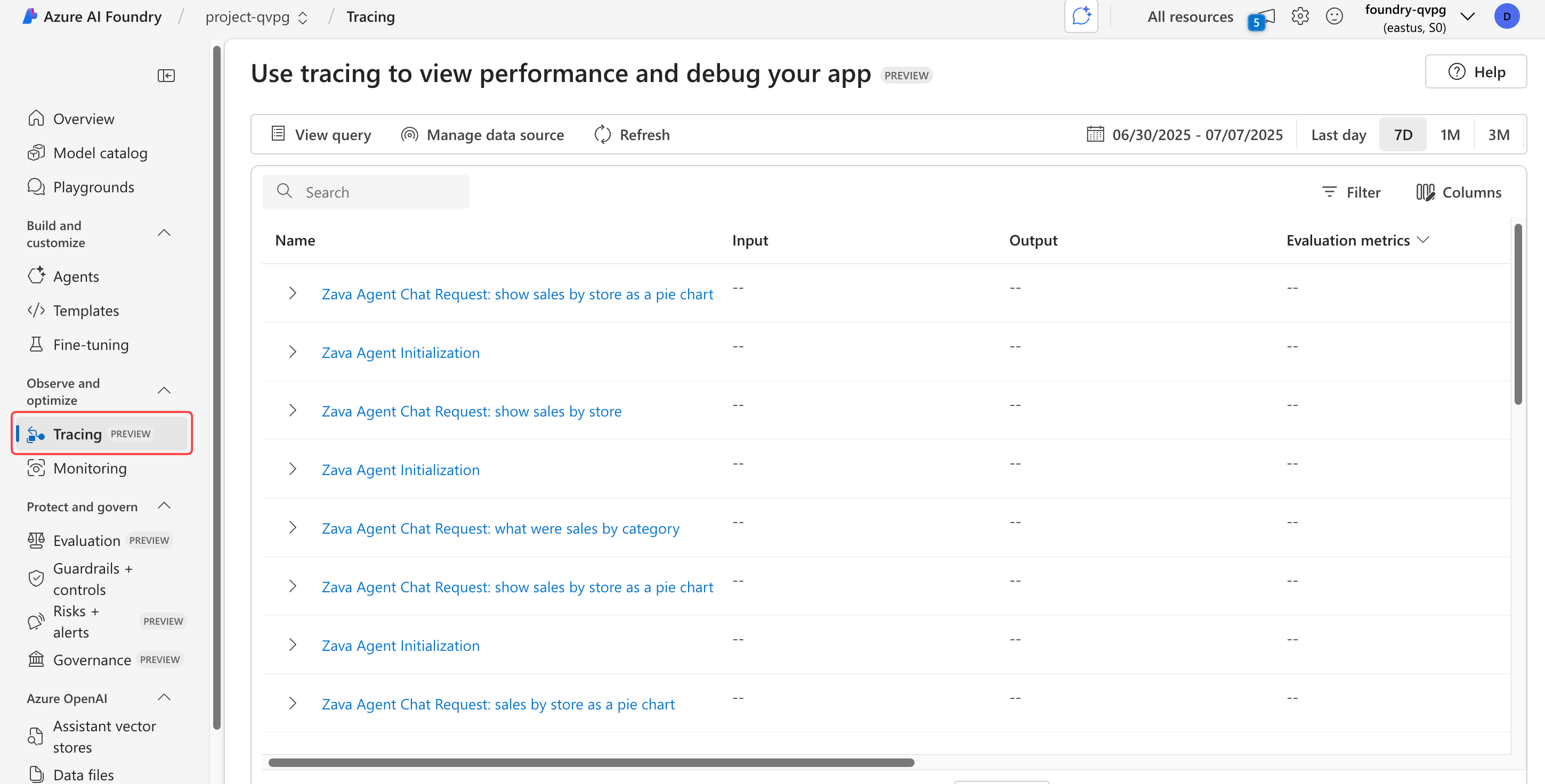

  3. Select the Tracing tab in the left-hand menu.
  4. Here, you can see the traces generated by your agent.

Drilling Down into Traces

  1. You may need to click on the Refresh button to see the latest traces as traces may take a few moments to appear.

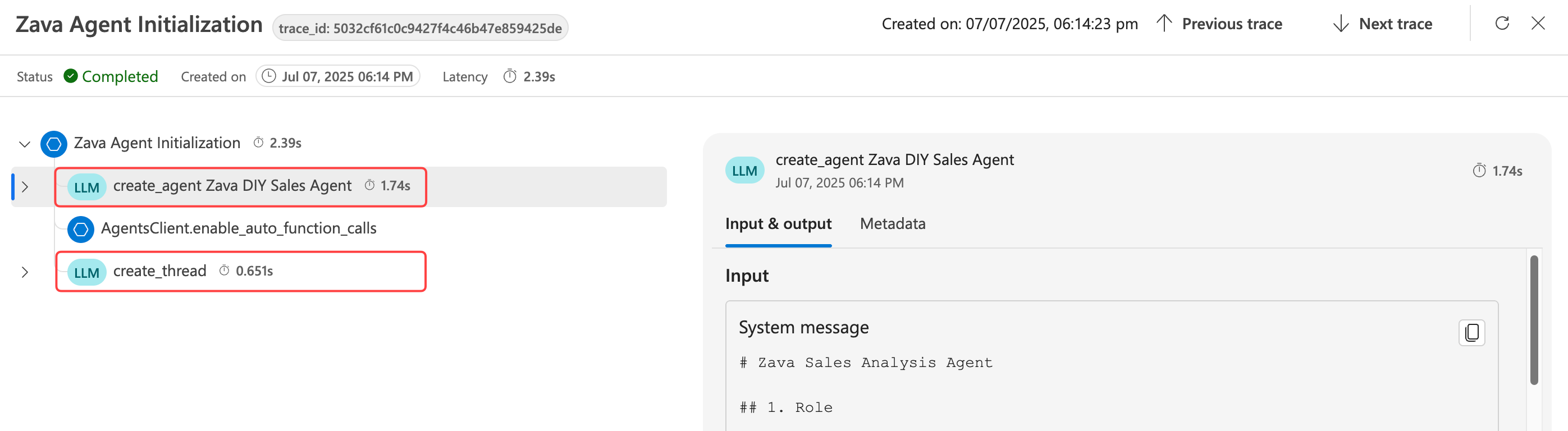

  2. Select the trace named Zava Agent Initialization to view the details.
  3. Select the create_agent Zava DIY Sales Agent trace to view the details of the agent creation process. In the Input & outputs section, you'll see the Agent instructions.
  4. Next, select the Zava Agent Chat Request: Write an executive... trace to view the details of the chat request. In the Input & outputs section, you'll see the user input and the agent's response.
