Lab BAF1 - Build and Run Your First Agent

In this lab, you'll build and run a custom engine agent using the Microsoft 365 Agents SDK with the Agent Framework. You'll explore the starter project, understand the core components, and see your agent come to life in Microsoft 365 Copilot.

The Zava Insurance Agent is designed to help insurance adjusters streamline claims processing. In this initial lab, you'll start with a basic conversational agent that can greet users and provide information using AI-powered responses.

What are the Microsoft 365 Agents SDK and Agent Framework?

Microsoft 365 Agents SDK provides the container and scaffolding to deploy agents across Microsoft 365 channels (Teams, Copilot, etc.), handling activities, events, and communication. It's AI-agnostic, allowing you to use any AI services you choose.

Agent Framework is an open-source development kit for building AI agents with LLMs, tool calling, and multi-agent workflows. It's the successor to Semantic Kernel and AutoGen, providing the AI capabilities and agent logic.

Together, they allow you to build intelligent agents with the Agent Framework and deploy them to Microsoft 365 using the Agents SDK.

Exercise 1: Clone and Explore the Project

In this exercise, you'll clone the Copilot Camp repository and explore the starter project structure to understand how the agent is organized.

Step 1: Clone the Repository

Let's start by cloning the Copilot Camp repository and navigating to the Agent Framework starter project.

1️⃣ Open a terminal or command prompt.

2️⃣ Clone the repository:

git clone https://github.com/microsoft/copilot-camp.git
cd copilot-camp/src/agent-framework/begin

3️⃣ Open the project in Visual Studio Code:

code .

Step 2: Explore the Project Structure

Let's understand the organization of the agent project.

1️⃣ In Visual Studio Code, expand the folders in the Explorer view. You should see this structure:

begin/
├── src/
│   ├── Agent/
│   │   └── ZavaInsuranceAgent.cs       # Main agent implementation
│   ├── Plugins/                        # Custom plugins (tools) for the agent
│   │   ├── StartConversationPlugin.cs  # Welcome message plugin
│   │   └── DateTimeFunctionTool.cs     # Date/time utility
├── appPackage/                         # Teams app manifest and icons
├── env/                                # Environment configuration files (API keys, endpoints)
├── infra/                              # All required scripts, data and templates for the agent's infrastructure
├── Program.cs                          # Application entry point - configures services and starts web app
├── InsuranceAgent.csproj               # Project file
└── m365agents.local.yml                # M365 Agents provisioning config

Step 3: Understand the Agent Implementation

Let's examine the main agent file to understand how it works.

1️⃣ Open src/Agent/ZavaInsuranceAgent.cs in Visual Studio Code.

2️⃣ Find the AgentInstructions property near the top of the class. Notice how these instructions act as the system prompt for the AI model:

  • It defines the agent's role: "You are a professional insurance claims assistant for Zava Insurance..."
  • It lists available tools using the {{PluginName.FunctionName}} syntax
  • It includes {{StartConversationPlugin.StartConversation}} and {{DateTimeFunctionTool.getDate}}

These instructions tell the AI how to behave and what tools it can use.

3️⃣ Scroll down and find the constructor method ZavaInsuranceAgent(...). Notice it sets up event handlers:

  • OnConversationUpdate(ConversationUpdateEvents.MembersAdded, WelcomeMessageAsync) - sends a welcome message when a user joins
  • OnActivity(ActivityTypes.Message, OnMessageAsync) - handles incoming messages

4️⃣ Find the GetClientAgent method. Look for where it creates toolOptions and registers plugins:

  • It creates a ChatOptions object with a Tools list
  • It adds startConversationPlugin.StartConversation using AIFunctionFactory.Create
  • It adds DateTimeFunctionTool.getDate the same way

This is where we register plugins (tools) that the AI can call during conversations.

Step 4: Explore the Plugins

Now let's look at how plugins work.

1️⃣ Open src/Plugins/StartConversationPlugin.cs.

2️⃣ Notice the plugin structure:

public class StartConversationPlugin
{
    [Description("Starts a new conversation suggesting a conversation flow.")]
    public async Task<string> StartConversation()
    {
        var welcomeMessage = "👋 Welcome to Zava Insurance Claims Assistant!...";
        return welcomeMessage;
    }
}

Key points:

  • The [Description] attribute tells the AI when to use this tool
  • The method returns a formatted welcome message
  • It's a simple plugin with no parameters

3️⃣ Open src/Plugins/DateTimeFunctionTool.cs.

4️⃣ Notice how it provides current date/time:

  • It has a [Description] that says "Gets the current date and time"
  • The getDate() method is static and returns DateTime.Now as a formatted string

This plugin demonstrates how the agent can access system information to answer user queries.

Step 5: View the App Manifest and Conversation Starters

Let's check the app manifest to see how your agent appears in Microsoft 365 Copilot.

1️⃣ Open appPackage/manifest.json.

2️⃣ Find the name section to see your agent's display name:

"name": {
    "short": "Zava Insurance Agent",
    "full": "Zava Insurance Claims Assistant"
}

3️⃣ Scroll down to the conversationStarters array. These are the suggested prompts users see when they first interact with your agent:

"conversationStarters": [
    {
        "title": "Instructions",
        "description": "What can you do?"
    },
    {
        "title": "Today's Date",
        "description": "What's today's date?"
    },
    {
        "title": "About Insurance",
        "description": "Tell me about insurance claims"
    },
    {
        "title": "Claims Process",
        "description": "Explain how claims processing works"
    }
]

These conversation starters help guide users on how to interact with your agent. You can customize these to match your agent's capabilities.

4️⃣ Notice the copilotAgents.declarativeAgent section that defines your agent as a custom engine agent with specific capabilities.

Step 6: Review the Application Entry Point

Let's see how everything comes together in Program.cs.

1️⃣ Open Program.cs.

2️⃣ Key sections to understand:

Configuration Loading: Find the section where builder.Configuration loads settings. Notice it loads from multiple sources:

  • .env files for environment-specific settings using AddEnvFile
  • User secrets for sensitive data (API keys) using AddUserSecrets
  • Environment variables using AddEnvironmentVariables

Service Registration: Find where services are registered with builder.Services. Notice:

  • AddSingleton<IStorage, MemoryStorage>() - registers memory storage for conversation state
  • AddAgentApplicationOptions() - registers agent configuration
  • AddAgent<ZavaInsuranceAgent>() - registers the agent itself as a service

Chat Client Configuration: Find where IChatClient is registered as a singleton. Observe how it:

  • Retrieves the endpoint, API key, and deployment name from configuration
  • Creates an AzureOpenAIClient with the endpoint and credentials
  • Returns a chat client for the specified deployment (gpt-4.1)

This creates the connection to Azure OpenAI, which powers the agent's AI capabilities.

Exercise 2: Configure the Agent

Before running the agent, you need to configure it with your Azure AI credentials.

Step 1: Configure Environment Files

The agent uses environment files to store configuration. Let's set them up.

1️⃣ In Visual Studio Code, navigate to the env/ folder.

2️⃣ You should see two sample files:

  • .env.local.sample
  • .env.local.user.sample

3️⃣ Copy .env.local.sample to .env.local:

Windows PowerShell:

Copy-Item env/.env.local.sample env/.env.local

macOS/Linux:

cp env/.env.local.sample env/.env.local

4️⃣ Copy .env.local.user.sample to .env.local.user:

Windows PowerShell:

Copy-Item env/.env.local.user.sample env/.env.local.user

macOS/Linux:

cp env/.env.local.user.sample env/.env.local.user

Step 2: Add Your Azure AI Credentials

Now let's configure the agent to use your Azure AI Foundry deployment.

1️⃣ Open env/.env.local in Visual Studio Code.

2️⃣ Find the MODELS_ENDPOINT variable and update it with your Azure AI endpoint from Lab BAF0:

MODELS_ENDPOINT=https://your-resource.cognitiveservices.azure.com/

Finding Your Endpoint

If you don't remember your endpoint:

  1. Go to Azure AI Foundry
  2. Select your project
  3. Go to Settings → Properties
  4. Copy the Endpoint URL

3️⃣ Open env/.env.local.user in Visual Studio Code.

4️⃣ Find the SECRET_MODELS_API_KEY variable and update it with your API key:

SECRET_MODELS_API_KEY=your-api-key-here

Keep Your API Key Secret

The .env.local.user file contains sensitive information and is already included in .gitignore. Never commit this file to source control!

Step 3: Sign in to Microsoft 365 and Azure

The Microsoft 365 Agents Toolkit needs to authenticate with both Microsoft 365 and Azure.

1️⃣ In Visual Studio Code, click on the Microsoft 365 Agents Toolkit icon in the Activity Bar (left side).

2️⃣ In the toolkit panel, find the ACCOUNTS section.

3️⃣ Click Sign in to Microsoft 365 and complete the sign-in flow.

4️⃣ Click Sign in to Azure and complete the sign-in flow.

First Time Sign-In

The first time you sign in, you may need to grant permissions to the Microsoft 365 Agents Toolkit extension.

Exercise 3: Run and Test the Agent

Now it's time to run the agent and see it in action!

Step 1: Start the Agent

Let's run the agent using the F5 debug experience.

1️⃣ In Visual Studio Code, press F5 or select Run → Start Debugging from the menu.

2️⃣ When prompted to select a debug target, choose (Preview) Debug in Copilot (Edge).

Debug Target Options

You may see multiple options like "Debug in Teams (Edge)", "Debug in Teams (Chrome)", etc. Make sure to select (Preview) Debug in Copilot (Edge) to test your agent in Microsoft 365 Copilot.

3️⃣ The first time you run the agent, the Microsoft 365 Agents Toolkit will:

  • Prompt you to select an Azure subscription
  • Ask you to create a new resource group or select existing one
  • Select a region for your resources (choose one close to your Azure AI Foundry project)
  • Provision Azure resources (Azure Bot Service, App Registration)

This provisioning process usually takes 2-3 minutes.

Provisioning Azure Resources

During first run, the toolkit creates:

  • Azure Bot Service - Handles message routing
  • App Registration - Manages authentication
  • Dev Tunnel - Creates a secure tunnel to your local machine

4️⃣ Watch the Terminal output in Visual Studio Code. You should see:

🌍 Environment: local
🏢 Starting Zava Insurance Agent...
🤖 Main agent using model: gpt-4.1
✅ Agent initialized successfully!

5️⃣ A browser window will open with Microsoft 365 Copilot.

6️⃣ You'll see an install dialog for the Zava Insurance Agent. Click Add.

7️⃣ After installation, click Open in Copilot or Chat.

Step 2: Test Basic Conversations

Now let's interact with your agent!

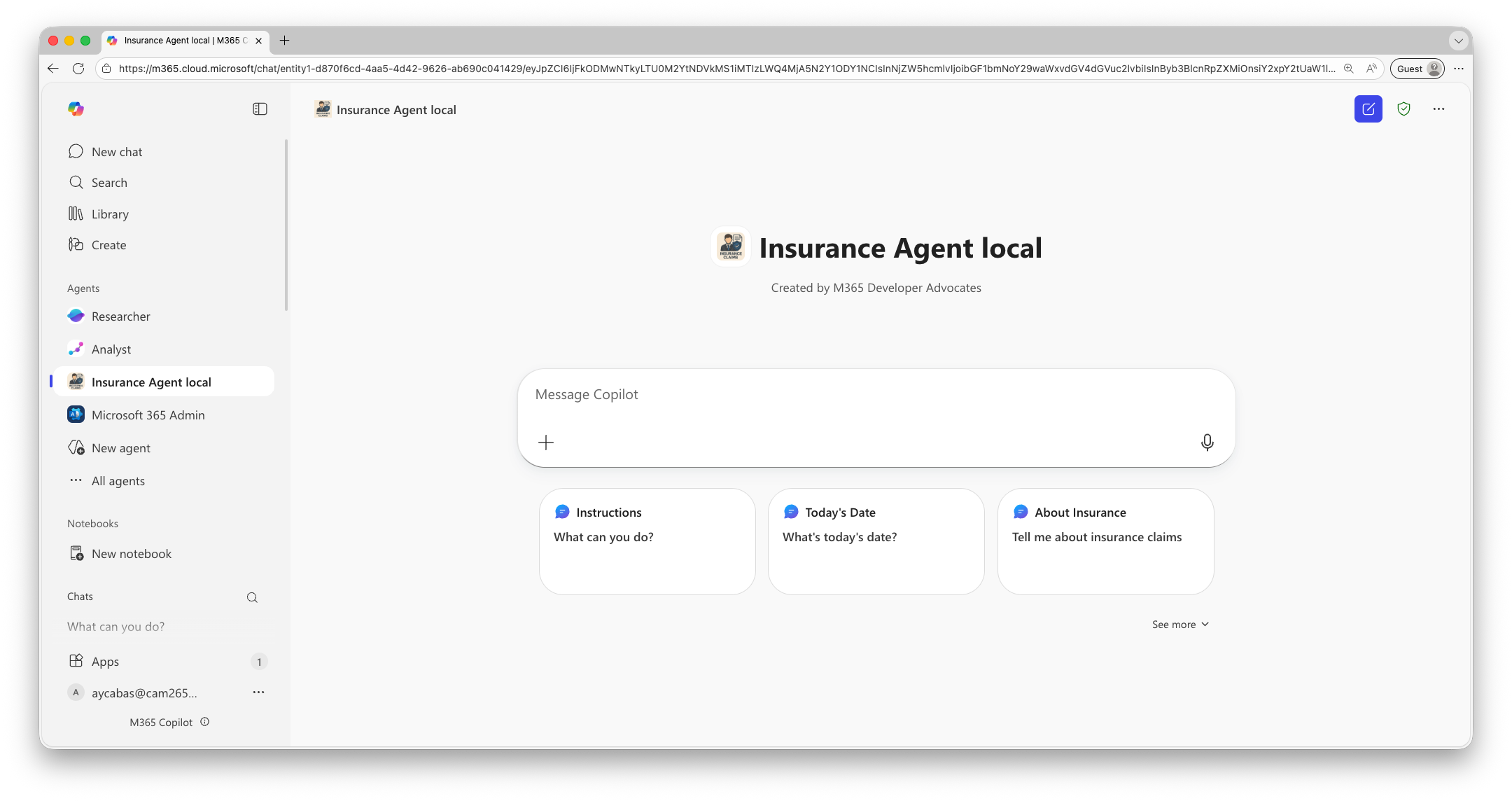

1️⃣ In Microsoft 365 Copilot, you should see your agent with conversation starters in your chat window.

Conversation starters in Microsoft 365 Copilot

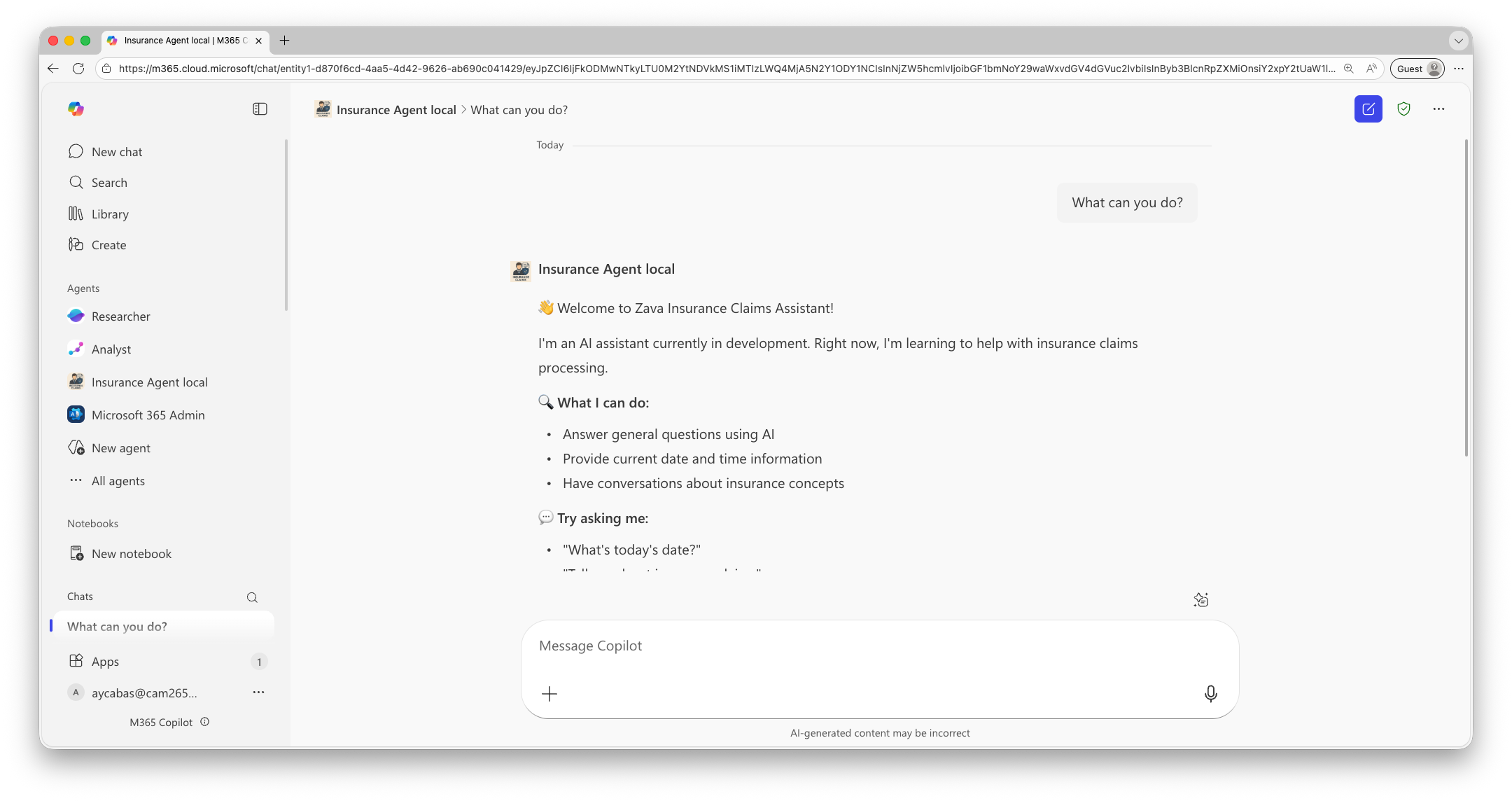

2️⃣ Select "What can you do?" to see the welcome message:

Conversation starters in Microsoft 365 Copilot

3️⃣ Try asking: "What's today's date?"

The agent should call the DateTimeFunctionTool and return the current date and time.

4️⃣ Try asking: "What can you do?" or "Start over"

The agent should call the StartConversationPlugin and show the welcome message again.

5️⃣ Try a general question: "Tell me about insurance claims"

The agent should use its AI knowledge to provide a helpful explanation about insurance claims.

6️⃣ Try something outside its scope: "What's the weather today?"

The agent should politely indicate that this is outside its scope as an insurance assistant.

Step 3: Check the Debug Output

1️⃣ Return to Visual Studio Code and check the Debug Console.

2️⃣ Notice logs showing plugin calls, AI responses, and message processing in real-time.

Exercise 4: Customize Your Agent

Let's make a simple modification to personalize the agent.

Step 1: Update the Welcome Message

1️⃣ Stop the debugger (press Shift+F5).

2️⃣ Open src/Plugins/StartConversationPlugin.cs and find the welcomeMessage variable.

3️⃣ Add your name to the first line: "👋 Welcome! I'm [Your Name]'s Agent!\n\n"

4️⃣ Save, press F5 to restart, and type "start over" in Copilot to see your change.

CONGRATULATIONS!

You have completed Lab BAF1 - Build and Run Your First Agent!

You've learned how to:

  • ✅ Clone and explore an Agent Framework project
  • ✅ Configure the agent with Azure AI credentials
  • ✅ Run and debug the agent locally
  • ✅ Test the agent in Microsoft 365 Copilot
  • ✅ Understand the core components (Agent, Plugins, Instructions)
  • ✅ Make simple modifications to customize behavior

In the next lab, you'll add more powerful capabilities by integrating document search with Azure AI Search and gpt-4.1!
