0008 - Non-member Operator Overloading
| Status | Accepted |
|---|---|
| Author | |
| Sponsor |
- Planned Version: 202y
- Related Proposal(s): [0006 Reference Types](0006-reference types.md)
Introduction
HLSL 2021 introduced operator overloading for member operators of user defined data types. Only supporting member operators has some drawbacks, specifically defining binary operators where the LHS is a built-in type is impossible, additionally scoping operators to namespaces is also impossible.
Motivation
Beyond common use cases where global operators are nice to have, users adopting HLSL 2021 have provided feedback that global operator overloading would be a significant benefit.
HLSL 2021’s introduction of short circuiting boolean operators users have been
forced to translate their code that operates on HLSL vector types to use the
new select, and and or intrinsics. We believe the new intrinsics are the
right step for the language in removing ambiguity and clearly expressing code
meaning. Global operator overloading provides an opportunity for the language to
remain clear and unambiguous, while allowing users to define custom operators
that allow them to not migrate legacy code.
Proposed solution
This change requires fully adopting C++ rules for operator overload resolution and supporting defining global and namespace scoped operator overloads. The limitations currently in place on operator overloading (disallowing overloading operators that idiomatically return references) will remain in effect on non-member operators as well unless the restrictions are lifted as proposed in [0006 Reference Types](0006-reference types.md).
Because this solution should not break existing code, it could also be enabled under HLSL 2021 as an extension. Using the feature in HLSL 2021 mode as an extension will produce warnings so that users can be aware of portability issues that may arise between compiler versions.
Detailed Design

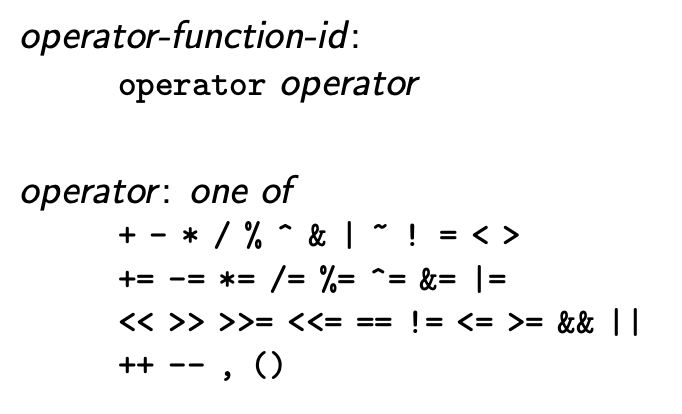

Overloaded Operators Spec Language
\begin{grammar}
\define{operator-function-id}\br
\terminal{operator} operator\br
\define{operator} one of\br
\terminal{+} \terminal{-} \terminal{*} \terminal{/} \terminal{\%}
\terminal{\^{}} \terminal{\&} \terminal{|} \terminal{\~{}} \terminal{!}
\terminal{=} \terminal{<} \terminal{>}\br
\terminal{+=} \terminal{-=} \terminal{*=} \terminal{/=} \terminal{\%=}
\terminal{\^{}=} \terminal{\&=} \terminal{|=}\br
\terminal{<<} \terminal{>>} \terminal{>>=} \terminal{<<=}
\terminal{==} \terminal{!=} \terminal{<=} \terminal{>=} \terminal{\&\&}
\terminal{||}\br
\terminal{++} \terminal{--} \terminal{,} \terminal{()}
\terminal{\[\]}\br
\end{grammar}
An operator function is a function declared with an operator-function-id as its name. An operator function template is a function template operator-function-id as its name.
Both the binary and unary forms of +, -, * and & can be overloaded.
Except in the case of the unary ++ operator (see below), binary and unary operators are
differentiated by the sum of implicit and explicit parameters; two for a
binary operator and one for a unary operator.
An operator function can be called explicitly by using the _operator-function_id as the name of the function.
An operator function shall either be a non-static member function or a non-member function. If an operator is a non-member function it must have at least one parameter of class or enumeration type.
No argument to an operator function shall have a default value. Operators cannot have more or fewer parameters than the number required for the corresponding operator.
Increment and Decrement Operators
A user-defined function operator++ or operator-- implements the prefix and
postfix operators. If the function has only one implicit or explicit parameter
it defines a prefix operator for the type of the single parameter. Otherwise the
function will have two parameters where the implicit object or first parameter
are of class type, and the second parameter is of int type, and it will
implement the postfix operator for the type of the first parameter.
When a user-defined post-fix operator is called the value of the int parameter
will be 0.
Overload Resolution Language
The HLSL draft specification already defines overload resolution to occur in all the relevant places required for non-member overload resolution (see: [Overload.Res]).
Alternatives considered
Non-member operator overloading is a feature that is generally useful, an no alternatives have been considered to the feature itself. Reflecting on the problems caused by HLSL 2021 removing boolean operators from vector types other options were considered.
One considered option was to roll back the HLSL 2021 removal of vector operators. Operator short circuiting was introduced in HLSL 2021 to reduce behavioral differences between HLSL and C/C++. With operator short circuiting vector operator aren’t intuitive because they can’t short circuit.
Having scalar operators short circuit and vector operators not was also considered. The argument against that approach is that having two code representations that look the same but behave differently is unintuitive. This gets more unintuitive when you consider that with the introduction of templates the same literal line of code could be used for both vector and scalar conditionals with different behavior.
For these reasons, this proposal posits that HLSL 2021’s decision is the correct approach for the language. This proposal gives users the ability to introduce source compatibility if they choose, but at their own maintenance expense. It also adopts behavior that is consistent with C++ for evaluation of logical operators.
Acknowledgments
This proposal is the result of conversations with users and teammates. Thank you everyone who contributed feedback on HLSL 2021.
