Copilot Studio Tools

⏱️ 60 minutes 📊 Level 300 🏷️ Local

Learn how to extend your agents with powerful tools including connectors, agent flows, MCP servers, and custom prompts in Microsoft Copilot Studio.

🧭 Lab Details

Level	Persona	Duration	Purpose
300	Maker	60 minutes	After completing this lab, participants will be able to use connectors to integrate external services, build deterministic business logic with agent flows, connect MCP servers for live data access, and create custom prompts for structured responses. An optional extra credit section covers Computer Using Agents (CUA) for legacy system automation.

📚 Table of Contents

🧭 Lab Details
🤔 Why This Matters
🌐 Introduction
🎓 Core Concepts Overview
📄 Documentation and Additional Training Links
✅ Prerequisites
🎯 Summary of Targets
🧩 Use Cases Covered
🛠️ Instructions by Use Case
🧱 Use Case #1: Extend Your Agent with Connectors
🔄 Use Case #2: Build Deterministic Logic with Agent Flows

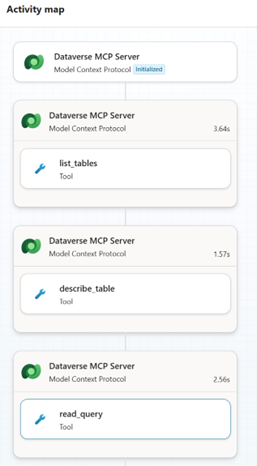

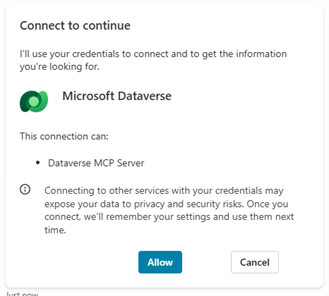

🧱 Use Case #3: Connect an MCP Server for Live Data Access
🔄 Use Case #4: Create Custom Prompts for Structured Responses

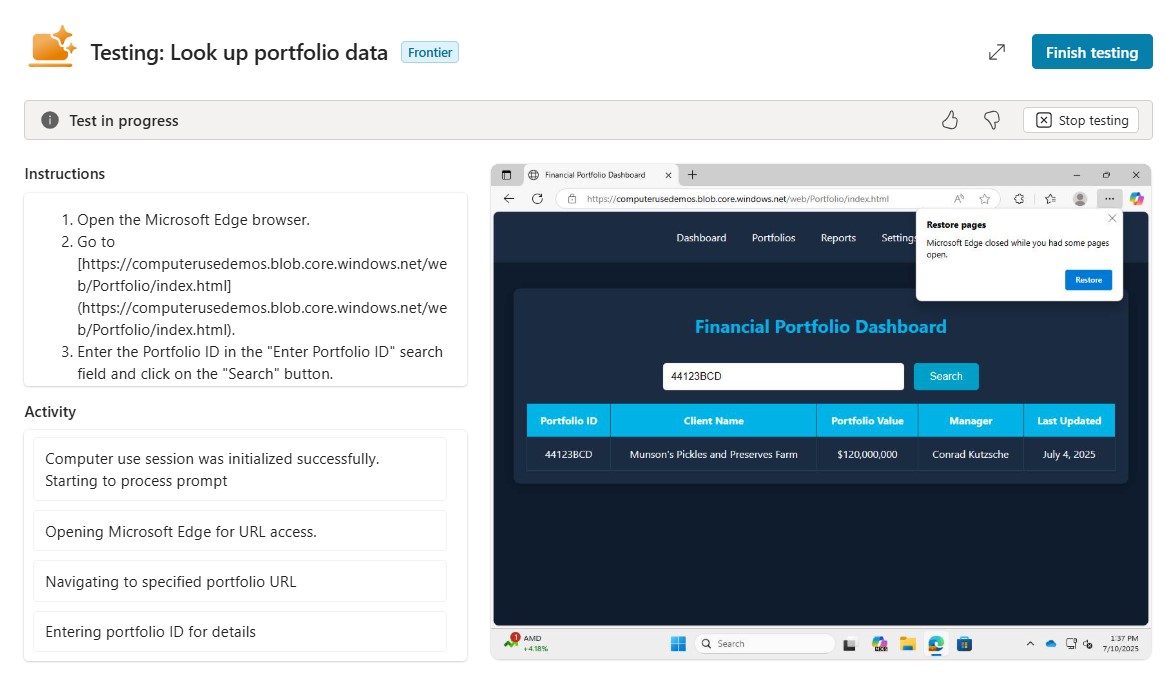

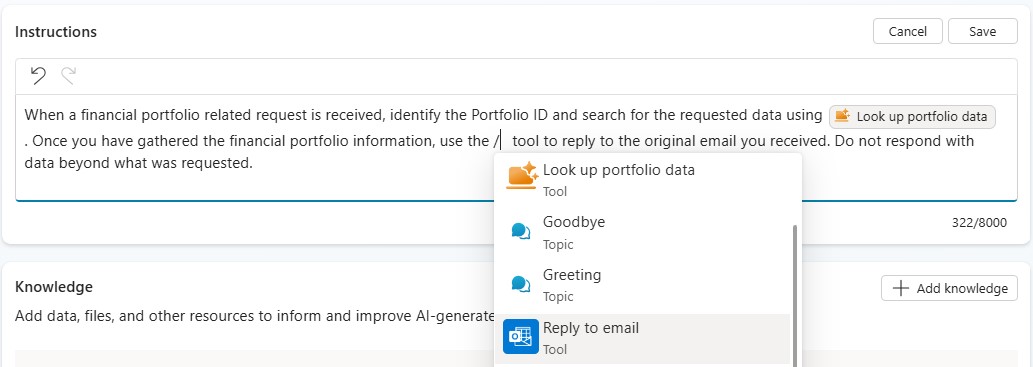

🧱 Extra Credit: Automate Legacy Systems with Computer Using Agents (CUA)
🏆 Summary of learnings

🤔 Why This Matters

Makers and Developers - Want to know how to go beyond basic agent capabilities and connect your agents to real data, business logic, and external systems?

Think of tools as the hands and feet of your agent:

Without Tools: Your agent can only respond based on its knowledge sources and instructions - it can't take action, access live data, or execute business logic
With Tools: Your agent becomes a true assistant that can query databases, run calculations, call APIs, interact with legacy systems, and deliver structured, actionable responses

Common challenges solved by this lab:

"My agent can answer questions but can't actually do anything"
"I need my agent to access live data from Dataverse and other systems"
"I have business rules that must always produce the same result - AI alone isn't deterministic enough"
"I need to connect to legacy systems that don't have APIs"

In 60 minutes, you'll learn four different ways to extend your agents with tools - giving you the skills to build agents that don't just talk, but take action.

🌐 Introduction

Tools are what transform a conversational agent into a powerful business assistant. Microsoft Copilot Studio offers multiple types of tools, each designed for different integration scenarios. Connectors provide pre-built integrations with hundreds of services. Agent flows enable deterministic, rule-based business logic using Power Fx. MCP (Model Context Protocol) servers provide real-time access to data sources like Dataverse. Custom prompts structure agent responses for consistent, business-relevant outputs. And for systems without APIs, Computer Using Agents (CUA) can simulate human interaction with graphical interfaces.

Real-world example: A sales organization needs an agent that can calculate commissions based on fixed business rules (agent flow), look up account details from Dataverse in real time (MCP server), send notifications through Teams or email (connectors), present data in a consistent format (custom prompts), and even pull data from a legacy portfolio system with no API (CUA). Each tool type addresses a different integration need, and together they create a comprehensive, capable agent.

This lab teaches you how to use each tool type through hands-on scenarios.

🎓 Core Concepts Overview

Concept	Why it matters
Connectors	Pre-built integrations with hundreds of Microsoft and third-party services, enabling agents to take actions like sending emails, creating records, or querying external APIs
Agent Flows	Deterministic, rule-based workflows that process inputs and produce predictable outputs using Power Fx - essential for business logic that must always be consistent
MCP Servers	Model Context Protocol servers that provide real-time, dynamic access to data sources like Dataverse, enabling natural language queries against live business data
Custom Prompts	Structured prompt templates that standardize agent responses by pulling specific fields from data sources, ensuring consistent and relevant output formats
Computer Using Agents (CUA)	Agents that simulate human interaction with graphical user interfaces, enabling automation of legacy systems that lack API connectivity

📄 Documentation and Additional Training Links

✅ Prerequisites

Access to Microsoft Copilot Studio with appropriate licensing
Power Platform environment enabled for Copilot Studio
Basic familiarity with the Copilot Studio interface
Office 365 environment with Outlook integration enabled (for CUA extra credit)

🎯 Summary of Targets

In this lab, you'll extend agents with multiple tool types to address different integration scenarios. By the end of the lab, you will:

Use connectors to integrate external services with your agent
Build an agent flow with deterministic business logic for commission calculations
Connect a Dataverse MCP server for real-time natural language data access
Create custom prompts that structure agent responses with specific data fields
(Extra Credit) Configure a Computer Using Agent to automate a legacy system without API access

🧩 Use Cases Covered

Step	Use Case	Value added	Effort
1	Extend Your Agent with Connectors	Integrate external services and take actions through pre-built connectors	15 min
2	Build Deterministic Logic with Agent Flows	Implement business rules that always produce consistent, predictable results	15 min
3	Connect an MCP Server for Live Data Access	Enable natural language queries against live Dataverse business data	20 min
4	Create Custom Prompts for Structured Responses	Standardize agent outputs for consistent, business-relevant responses	10 min
EC	Extra Credit: Automate Legacy Systems with CUA	Automate systems that lack API connectivity using desktop simulation (Optional)	~20 min

🛠️ Instructions by Use Case

🧱 Use Case #1: Extend Your Agent with Connectors

Create a custom connector for the Free Dictionary API and use it as a tool in your agent to look up word definitions.

Use case	Value added	Estimated effort
Extend Your Agent with Connectors	Build a custom connector and use it as a tool to integrate an external API	15 minutes

Summary of tasks

In this section, you'll learn how to create a custom connector from a public API, define its actions and response schema, add it as a tool in your agent, and test natural language queries against it.

Scenario: Your organization needs a Dictionary Agent that can look up word definitions, origins, and pronunciations on demand. The Free Dictionary API provides this data, but there's no pre-built connector for it. You'll create a custom connector and wire it into your agent as a tool.

Objective

Create a custom connector for the Free Dictionary API, add it as a tool in your agent, and test word lookups through natural language conversation.

Step-by-step instructions

Create the Dictionary Agent

Go to Microsoft Copilot Studio and make sure you are in your development environment.
Select Agents on the left navigation.
Select Create blank agent in the upper right corner.
Once the agent is provisioned, rename it to Dictionary Agent by selecting Edit in the Details section on Overview.

Enter the following as the Description:

 This agent allows a user to lookup the definition of a word

Select Save.

Create the Custom Connector

Select Tools in the top navigation.
Select Add Tool.
Under Create new, Select See all.
Select Custom connector.
In the top navigation, Select New custom connector.
Select Create from blank.
Enter Lookup Word in Dictionary into the Connector name field
Select Continue.
In the Host field, enter api.dictionaryapi.dev
In the Base URL field, enter api/v2/
Select Security at the bottom.

[!NOTE] This API doesn't require authentication, but this is where you would select the authentication type for APIs that do.
Make sure the authentication type is set to No authentication and Select Definition.

Define the API Action

Select + New action in the Actions section.
In the Summary field, enter Word Lookup
In the Description field, enter:
```
 Lookup a word in the dictionary
```
[!TIP] The description will later be used as the tool description, which allows the orchestrator to know when to use this tool. Make sure you are descriptive here to allow the best conversation routing.
In the Operation ID field, enter WordLookup
Under Request, Select Import from sample.
Select Get as the Verb.

In the URL field, enter:

 https://api.dictionaryapi.dev/api/v2/entries/en/{word}

Select Import.
Select the down arrow next to word and Select Edit.

In the Description field, enter:

 The word that you want to lookup the definition of

Select Back at the top of the form.

Define the Response Schema

Select default in the Response section.
Select Import from sample.

This JSON is an array containing a dictionary entry for the word “hello,” including its spelling, pronunciation (text and audio), origin, and its meanings broken down by part of speech (exclamation, noun, and verb) with definitions and examples. It helps give the agent the needed context. In the Body field, copy and paste the following JSON sample:

 [
     {
       "word": "hello",
       "phonetic": "həˈləʊ",
       "phonetics": [
         {
           "text": "həˈləʊ",
           "audio": "//ssl.gstatic.com/dictionary/static/sounds/20200429/hello--_gb_1.mp3"
         },
         {
           "text": "hɛˈləʊ"
         }
       ],
       "origin": "early 19th century: variant of earlier hollo ; related to holla.",
       "meanings": [
         {
           "partOfSpeech": "exclamation",
           "definitions": [
             {
               "definition": "used as a greeting or to begin a phone conversation.",
               "example": "hello there, Katie!",
               "synonyms": [],
               "antonyms": []
             }
           ]
         },
         {
           "partOfSpeech": "noun",
           "definitions": [
             {
               "definition": "an utterance of 'hello'; a greeting.",
               "example": "she was getting polite nods and hellos from people",
               "synonyms": [],
               "antonyms": []
             }
           ]
         },
         {
           "partOfSpeech": "verb",
           "definitions": [
             {
               "definition": "say or shout 'hello'.",
               "example": "I pressed the phone button and helloed",
               "synonyms": [],
               "antonyms": []
             }
           ]
         }
       ]
     }
   ]

Select Import.
Update the following body items by selecting the down arrow on each and selecting Edit, change the data and then select back:

origin
- Title: origin
- Description: Where the word originated from including data such as the definition, part of speech, example of its use, synonyms, antonyms. It includes all potential uses of the word in part of speech such as if it is used as a verb, noun, or an exclamation what the meaning is when used in that way.
phonetic
- Title: phonetic
- Description: How to pronounce the word including the audio file of it being spoken.
word
- Title: word
- Description: The word that was looked up

Select Create connector on the top menu.

Add the Custom Connector as a Tool

Go back to the browser tab with Copilot Studio.
Refresh the page.
In the Add tool screen, enter the following into the search box and press Enter:
```
 Lookup a word in the dictionary
```
[!NOTE] It can sometimes take a few minutes for a new connector to sync to Copilot Studio. If you don't see it, try clearing your browser cache by refreshing the page.
Select the Word Lookup connector from the search results.
Select the down arrow next to the Connection and select Create new connection.
Select Create.
You should see the connection with a green check mark. Select Add and configure.
Select Additional details and set Credentials to use to Maker-provided credentials.

[!TIP] For unauthenticated APIs, it is best to use Maker-provided credentials so you don't require users to create a connection for anonymous connectors.
In the Inputs section, Select Customize next to word.
Notice that all your inputs have been populated from your connector definition - this is why it is important to provide detailed descriptions when building your connector.
Select Save to save the tool configuration.

Test Your Dictionary Agent

Select Settings in the upper right corner.
Scroll to the bottom of the Generative AI list of settings.
Turn off Use general knowledge.

[!NOTE] Disabling general knowledge make sure that only your custom connector API provides answers, not the underlying language model.
Select Save.
Close Settings using the X in the upper right-hand corner.

In the test pane, try the following queries:

 What is the meaning of the word copilot?

 Where does it come from?

 How about the word amazing?

Verify that the agent uses your custom connector tool to retrieve definitions, origins, and phonetic information from the Free Dictionary API.

🏅 Congratulations! You've completed Use Case #1!

Test your understanding

Key takeaways:

Custom Connectors - You can create connectors from any REST API, giving your agent access to virtually any external service
Descriptive Metadata - Detailed descriptions on actions, parameters, and response fields help the orchestrator route conversations correctly and improve tool selection
Maker-Provided Credentials - For unauthenticated APIs, use maker-provided credentials so end users don't need to create connections

Lessons learned & troubleshooting tips:

New custom connectors may take a few minutes to sync to Copilot Studio - refresh your browser if the connector doesn't appear immediately
Disabling general knowledge forces the agent to rely solely on your tools, which is useful for validating that the connector works correctly
Always define response schemas with descriptive titles and descriptions so the agent can present results meaningfully

🔄 Use Case #2: Build Deterministic Logic with Agent Flows

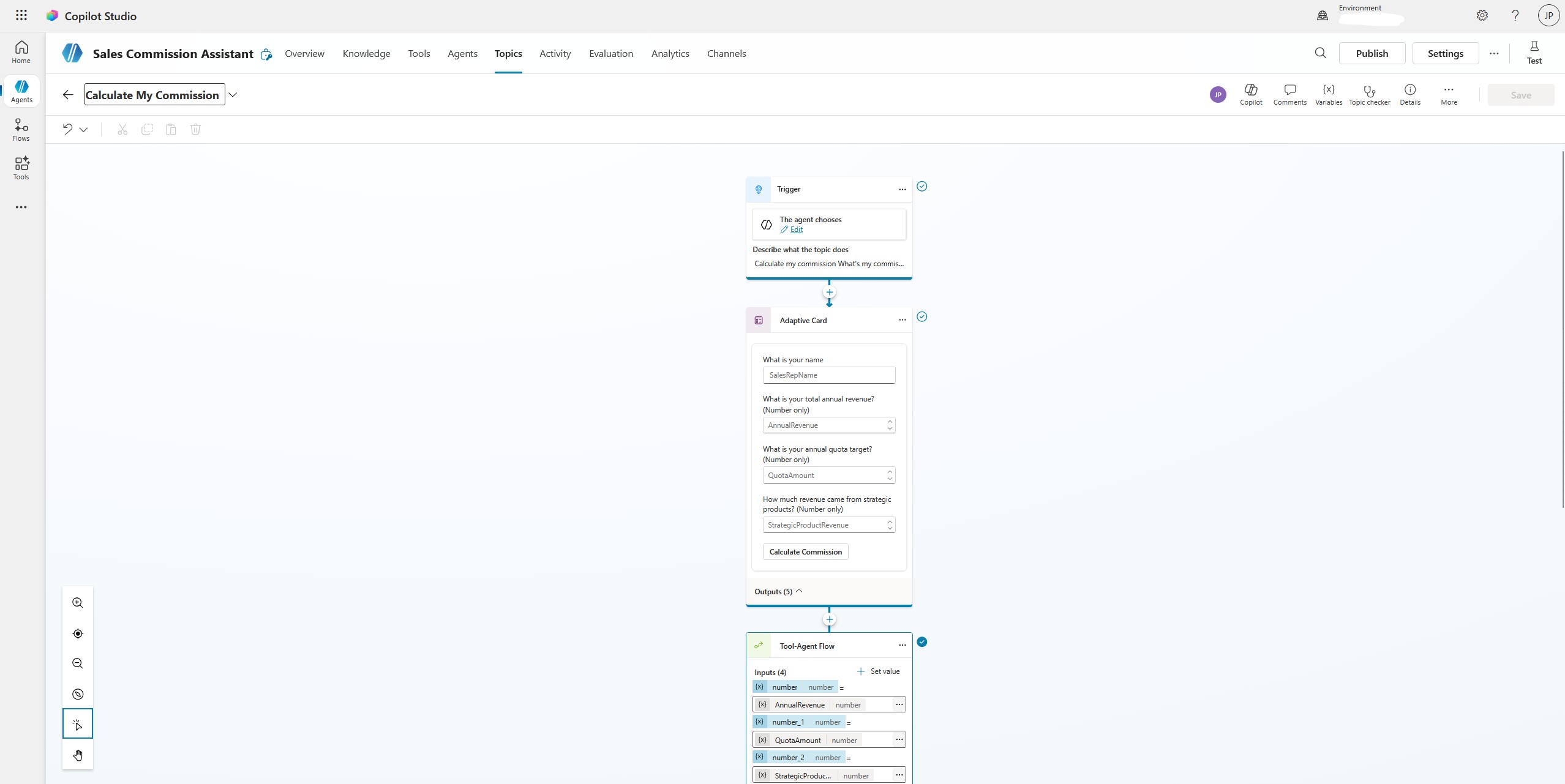

Build a Sales Commission Calculator using agent flows to implement deterministic business logic that always produces consistent, predictable results.

Use case	Value added	Estimated effort
Build Deterministic Logic with Agent Flows	Implement business rules that always produce consistent, predictable results	15 minutes

Summary of tasks

In this section, you'll learn how to create an agent flow with deterministic business logic, implement tier-based commission calculations using Power Fx, build a conversational topic that collects inputs and calls the flow, and test multiple scenarios to validate business rules.

Scenario: Contoso Electronics has a sales team that needs instant visibility into their commission earnings. Commission calculations involve performance tiers with different percentage rates and product mix bonuses - rules that must always produce the same result for the same inputs. Agent flows are the ideal tool because they provide deterministic, rule-based processing rather than AI-generated responses.

Objective

Create an agent flow that calculates sales commissions using deterministic business rules, build a conversational topic to collect inputs, and test the complete workflow.

Step-by-step instructions

Create a New Agent

Go to Microsoft Copilot Studio at https://copilotstudio.microsoft.com.
Select Agents on left navigation.
Select Create blank agent in the upper right corner.
Select Edit in the Details section.
Enter the following details:
- Name: Sales Commission Assistant
- Description: Calculates sales commissions based on performance data
Select Save in the upper right corner of the Details section.

[!TIP] The agent creation may take 30-60 seconds. You'll see a loading indicator while your agent is being provisioned.

Create the Agent Flow

In the top navigation panel, Select Tools.
Select + Add a tool.
In the Create new section, select Agent flow.
Select Publish.
Select Stay in flow when the publish completes.
Select Overview tab in the top navigation.
Select Edit in the upper right corner of the Details section.
Enter Calculate Sales Commission for the Flow name.

Enter the following for the description:

 Deterministic commission calculation with tiers, bonuses, and accelerators

Change Express mode at the bottom of that right panel to Enabled.
Select Save.

Define Input Parameters

In the top navigation select the Designer tab.
Select When an agent calls the inputs at the top.
Select + Add input for each parameter below:

Parameter Name	Type
`SalesRepName`	Text
`AnnualRevenue`	Number
`QuotaAmount`	Number
`StrategicProductRevenue`	Number

Select Save draft in the upper right corner after adding all inputs.

[!IMPORTANT] Make sure parameter names match exactly (case-sensitive) as they'll be referenced in formulas.

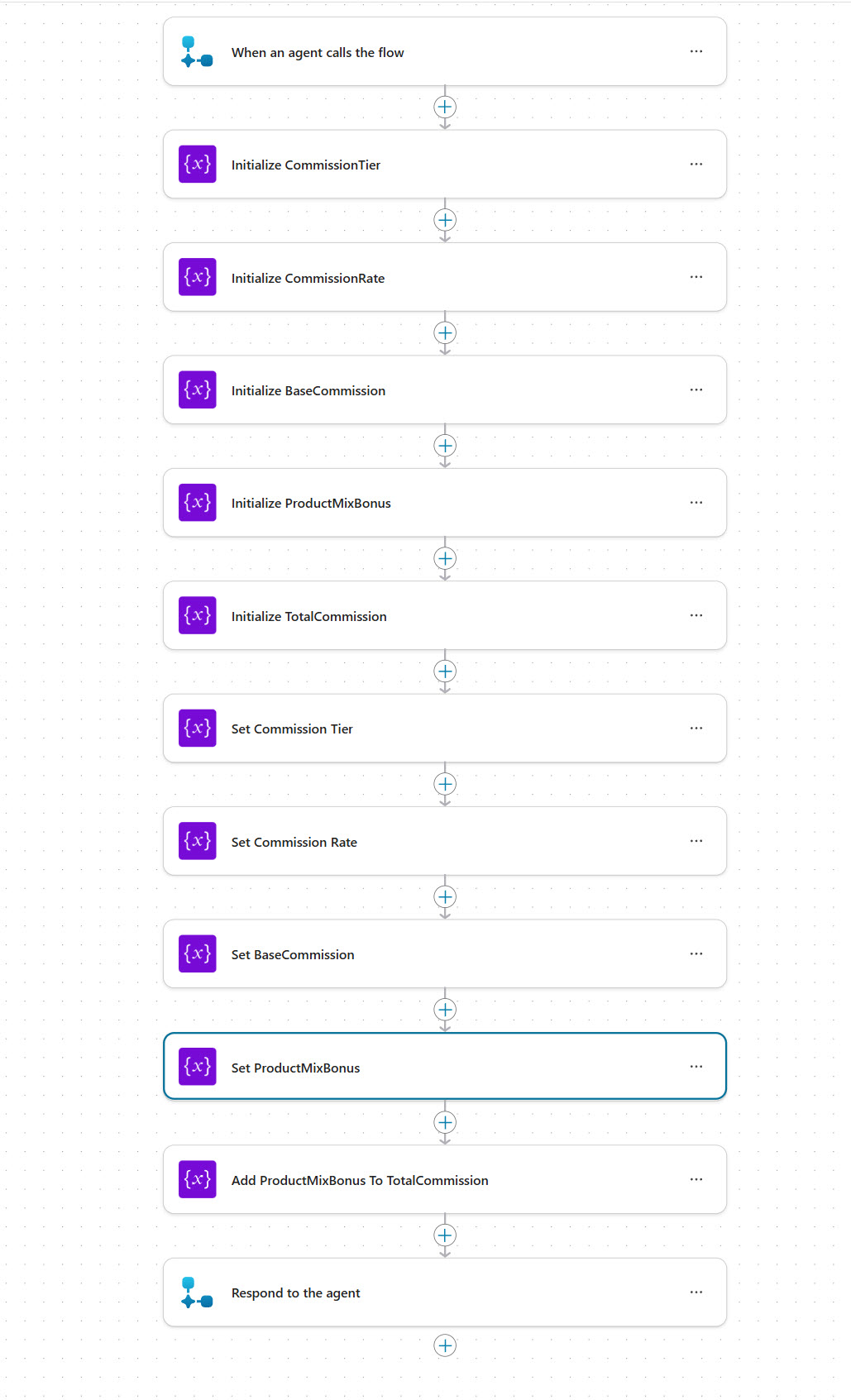

Initialize Variables

Select + Add node in the flow canvas before the last node Respond to the agent.
Select Variable > Initialize variable, Enter the name and select the type based on the list in the next step. You will repeat this for each of the 5 variables.

Initialize the following variables:

Variable name	Type	Value
`CommissionTier`	String	(leave empty)
`CommissionRate`	Float	`0`
`BaseCommission`	Float	`0`
`ProductMixBonus`	Float	`0`
`TotalCommission`	Float	`0`

Optionally, select "…" on each Initialize node and select *Rename" and change them from generic Initialize variable 1 to Initialize and the name of the variable they are initializing. This step is not required, however, it is a best practice.
Select Save draft to save your progress.

Determine Commission Tier

Select + Add node just before the last node Respond to the agent.
Select Variable and then Select Set variable.
Select CommissionTier in the list of variable names.
Select fx on the right side of the value field to open the Insert expression pane.
Select Create an expression with Copilot.

Enter the following in the input area for Copilot to create an expression:

 Create a calculated field called “Tier” based on the value of the Number field. If Number is greater than 500,000, set Tier to “Tier 3”. If Number is greater than 250,000 but less than or equal to 500,000, set Tier to “Tier 2”. If Number is greater than 100,000 but less than or equal to 250,000, set Tier to “Tier 1”. Otherwise, set Tier to “Tier 0”.

Select Create Expression and then select OK

Review the expression it should look like the following if not update it from here:

 if(greater(triggerBody()?['number'], 500000), 'Tier 3', if(greater(triggerBody()?['number'], 250000), 'Tier 2', if(greater(triggerBody()?['number'], 100000), 'Tier 1', 'Tier 0')) )

Select Add.
Optionally, select … and then select Rename to change the step name to Set CommissionTier.

Determine Commission Rate

Select + Add node just before the last node Respond to the agent.
Select Variable and then Select Set variable.
Select CommissionRate in the list of variable names.
Select fx on the right side of the value field to open the Insert expression pane.
Select Create an expression with Copilot.

Enter the following in the input area for Copilot to create an expression:

 Create a calculated field called “Rate” based on the value of the Number field. If Number is greater than 500,000, set Rate to 0.12. If Number is greater than 250,000 but less than or equal to 500,000, set Rate to 0.10. If Number is greater than 100,000 but less than or equal to 250,000, set Rate to 0.05. Otherwise, set Rate to 0.00.

Select Create Expression and then select OK

Review the expression it should look like the following if not update it from here:

   if(greater(triggerBody()?['number'], 500000), 0.12, if(greater(triggerBody()?['number'], 250000), 0.10, if(greater(triggerBody()?['number'], 100000), 0.05, 0.00)))

Select Add.
Optionally, select … and then select Rename to change the step name to Set CommissionRate.

Calculate Base Commission

Select + Add node just before the last node Respond to the agent.
Select Variable and then Select Set variable.
Select BaseCommission in the list of variable names.
Select fx on the right side of the value field to open the Insert expression pane.
Select Create an expression with Copilot.
Enter the following in the input area for Copilot to create an expression:
```
 Multiply AnnualRevenue times CommissionRate
```
Select Create Expression and then select OK
Review the expression it should look like the following if not update it from here:
```
 mul(triggerBody()?['number'], variables('CommissionRate'))
```
Select Add.
Optionally, select … and then select Rename to change the step name to Set CommissionBase.
Select + Add node just before the last node Respond to the agent.
Select Variable and then select Increment variable.
Select TotalCommission from the list of variable names.
Select the lightening bolt next to the Value field to bring up the available dynamic data fields.
Select BaseCommission.
Optionally, select … and then select Rename to change the step name to Add BaseCommission To TotalCommission.

Calculate Product Mix Bonus

Select Variable and then select Set variable.
Select ProductMixBonus in the list of variable names.
Select fx on the right side of the value field to open the Insert expression pane.
Select Create an expression with Copilot.

Enter the following in the input area for Copilot to create an expression:

 If you Divide StrategicProductRevenue by AnnualRevenue and it is >= 0.30 then ProductMixBonus is 3000 otherwise it is 0. Make sure you convert the two values to Float before dividing.

Select Create Expression and then select OK

Review the expression it should look like the following if not update it from here:

 if(greaterOrEquals(div(float(triggerBody()?['number_2']), float(triggerBody()?['number'])), 0.3), 3000, 0)

Select Add.
Optionally, select … and then select Rename to change the step name to Set ProductMixBonus.
Select + Add node just before the last node Respond to the agent.
Select Variable and then Select Increment variable.
Select TotalCommission from the list of variable names.
Select the lightening bolt next to the Value field to bring up the available dynamic data fields.
Select ProductMixBonus.
Optionally, select … and then select Rename to change the step name to Add ProductMixBonus To TotalCommission.

Create the Response Message

Select the Respond to the agent node at the bottom of the flow.
Select Add an output and Select Text.
Map CommissionReport in the name.

Enter the following in the description:

 Report of the results of the commission calculation

Select fx to the right of the Enter a value to respond with field.

Next we need to define the report details based on the variables we initiated and set. Enter the following in the formula input area:

 concat('COMMISSION CALCULATION REPORT
 ===================================

 SALES REPRESENTATIVE: ', triggerBody()?['text'], '

 PERFORMANCE SUMMARY
 -----------------------------------
 Annual Revenue: $', formatNumber(triggerBody()?['number'], '#,##0.00'), '
 Annual Quota: $', formatNumber(triggerBody()?['number_1'], '#,##0.00'), '
 Strategic Product Revenue: $', formatNumber(triggerBody()?['number_2'], '#,##0.00'), '

 COMMISSION BREAKDOWN
 -----------------------------------
 Commission Tier: ', variables('CommissionTier'), '
 Commission Rate: ', formatNumber(mul(variables('CommissionRate'), 100), '#,##0.0'), '%
 Base Commission: $', formatNumber(variables('BaseCommission'), '#,##0.00'), '

 BONUS
 -----------------------------------
 ', if(greater(variables('ProductMixBonus'), 0), concat('Product Mix Bonus: $', formatNumber(variables('ProductMixBonus'), '#,##0.00'), ' (Strategic products >=30%)'), 'Product Mix Bonus: $0.00 (Strategic products <30%)'), '

 TOTAL COMMISSION
 -----------------------------------
 $', formatNumber(variables('TotalCommission'), '#,##0.00'), '

 ===================================
 Calculation Date: ', formatDateTime(utcNow(), 'MMM dd, yyyy'))

Select Add to add the formula
Select Save Draft in upper right corner of the screen.
Select Publish to make your changes available for the agent to use.

Agent Flow

Build the Conversation Topic

Select Agents in the left side navigation.
Select Sales Commission Assistant in the list of agents.
In the top agent navigation, Select Topics.
Select + Add a Topic > From blank.
Enter Calculate My Commission for the Name by selecting Untitled in the upper left corner of the screen.

Enter the following in the Describe what the topic does input area:

 Calculate my commission
 What's my commission
 How much commission did I earn
 Check commission
 Commission calculator
 Show my earnings
 Calculate earnings

Select Save.
Under the Trigger node, add an Ask with adaptive card node.
Select "…" in the upper right corner of the node you just added and select Properties.

Select Edit adaptive card. We need to tell the card what to display to the user, and then what to do with the responses. Enter the following into the Card payload editor replacing the existing text:

 {
     "type": "AdaptiveCard",
     "$schema": "https://adaptivecards.io/schemas/adaptive-card.json",
     "version": "1.5",
     "body": [
         {
             "type": "Input.Text",
             "label": "What is your name",
             "placeholder": "SalesRepName",
             "id": "SalesRepName"
         },
         {
             "type": "Input.Number",
             "label": "What is your total annual revenue? (Number only)",
             "placeholder": "AnnualRevenue",
             "id": "AnnualRevenue"
         },
         {
             "type": "Input.Number",
             "label": "What is your annual quota target? (Number only)",
             "placeholder": "QuotaAmount",
             "id": "QuotaAmount"
         },
         {
             "type": "Input.Number",
             "label": "How much revenue came from strategic products? (Number only)",
             "placeholder": "StrategicProductRevenue",
             "id": "StrategicProductRevenue"
         },
         {
             "type": "ActionSet",
             "actions": [
                 {
                     "type": "Action.Submit",
                     "title": "Calculate Commission"
                 }
             ]
         }
     ]
 }

Adaptive Card

Select Save and then Select Close in upper right corner to exit the editor.
After the Adaptive card node, Select + Add node > Add a tool and select the Calculate Sales Commission.
Select your flow: Calculate Sales Commission and map the inputs:
- SalesRepName > Select variable SalesRepName
- AnnualRevenue > Select variable AnnualRevenue
- QuotaAmount > Select variable QuotaAmount
- StrategicProductRevenue > Select variable StrategicProductRevenue
After the Calculate Sales Commission node, Select + Add node > Send a message.
Enter Here is your report: in the message area.
Select +Add and select Basic Card.
In the Basic Card properties, Enter Commission Report in the Title field.
Select CommissionReport for the Text field.
Select Save.

Sales Commission Assistant workflow in Copilot Studio showing trigger, adaptive card form, and tool agent flow components

Test Your Commission Calculator

Select Test in the upper right-hand corner of Copilot Studio.
Type Calculate my commission and fill in the adaptive card with the following test data:
- Name: Jennifer Rodriguez
- Annual Revenue: 675000
- Annual Quota: 400000
- Strategic Product Revenue: 250000
Verify the results:
- Commission Tier: Tier 3 (12% rate)
- Base Commission: $81,000.00
- Product Mix Bonus: $3,000.00 (250K/675K = 37%, above 30%)
- Total Commission: $84,000.00
Reset the conversation and test with a below-quota scenario:
- Name: David Park
- Annual Revenue: 75000
- Annual Quota: 100000
- Strategic Product Revenue: 10000
Verify: Commission Tier: Tier 0 (0% rate), Total Commission: $0.00

🏅 Congratulations! You've completed Use Case #2!

Test your understanding

Key takeaways:

Deterministic Logic - Same inputs always produce the same commission outputs with no AI variability, which is critical for financial calculations
Power Fx Formulas - Used to calculate percentages, apply rates, and aggregate totals within the flow
Agent Flows vs. AI - Use agent flows for business rules that must be predictable and auditable; use AI for open-ended, conversational responses

Lessons learned & troubleshooting tips:

Parameter names in agent flows are case-sensitive - make sure they match exactly between the flow and topic
Use the Express mode for simpler flows that don't require complex error handling
Test with edge cases (zero revenue, exactly at tier boundaries) to validate business rules

🧱 Use Case #3: Connect an MCP Server for Live Data Access

Create a Copilot Agent that connects to the Dataverse MCP Server for real-time natural language access to business data.

Use case	Value added	Estimated effort
Connect an MCP Server for Live Data Access	Enable natural language queries against live Dataverse business data	20 minutes

Summary of tasks

In this section, you'll learn how to create a Copilot Agent, configure it with proper instructions and suggested prompts, integrate the Dataverse MCP Server as a tool, and test natural language queries against live Account and Contact data.

Scenario: A sales team at Contoso needs to quickly access and update account and contact information without leaving their Teams environment. The Dataverse MCP Server enables natural language access to critical business data stored in Dataverse.

Objective

Create and configure a Copilot Agent with Dataverse MCP Server integration that can read and query account and contact information using natural language.

Step-by-step instructions

Create and Configure the Agent

Go to Copilot Studio. Make sure you are logged in using the credentials for the lab and are in the correct environment.
Select Agents in the left navigation then select Create blank agent in the upper right corner.
Select Edit and fill in the Name and Description:

Name: Contoso Agent

Description: This agent will help Contoso sales reps update their accounts and contacts using the Dataverse MCP Server.
Select Save.

Select Edit in the upper right corner of the Instructions section and enter the following instructions:

 This agent will:
 Read accounts and contact information from the Account and Contact Tables in Dataverse using the Dataverse MCP Server.
 Update accounts and contact information from the Account and Contact Tables in Dataverse using the Dataverse MCP Server.
 Create new accounts and contact information in the Account and Opportunity Tables in Dataverse using the Dataverse MCP Server.
 Do not use outside knowledge. Only use the Dataverse MCP Tool to create, read, update and delete.

Select Save

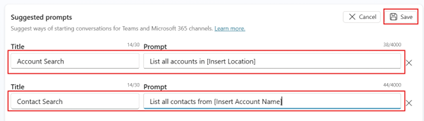

Scroll down in the Overview tab to the Suggested prompts section and select Add suggested prompts.
Add the following prompts, then Select Save:
- Title: Account Search Prompt: List all accounts in Redmond
- Title: Contact Search Prompt: List all contacts from Coho Winery
[!TIP] You can configure up to six suggested prompts that customers can choose from to start a conversation. In Teams and in Copilot Chat, suggested prompts appear on the agent's welcome page before you start a new chat. You can't see or use them when you test your agent in Copilot Studio.

Add the Dataverse MCP Server as a Tool

In the Tools section on the Overview tab, Select + Add tool.
Search for Dataverse and select Dataverse MCP Server from the results. If there are multiple do not select the deprecated one and do not select the one that has preview in its description.
In the Connection list if it says Not connected, select it and then select Create new connection.
Review Authentication Type it should already be set to Oauth, no changes are required, Select Create. If prompted, confirm your student credentials.

[!IMPORTANT] The Dataverse MCP Server will allow you natural language access to your tables in Dataverse. We have sample data in the Accounts and Contacts tables that we will use. The tools available are: list tables, describe table, read data, create record, update record, list prompts, execute prompt, list knowledge sources, and retrieve knowledge.
Select Add and configure.

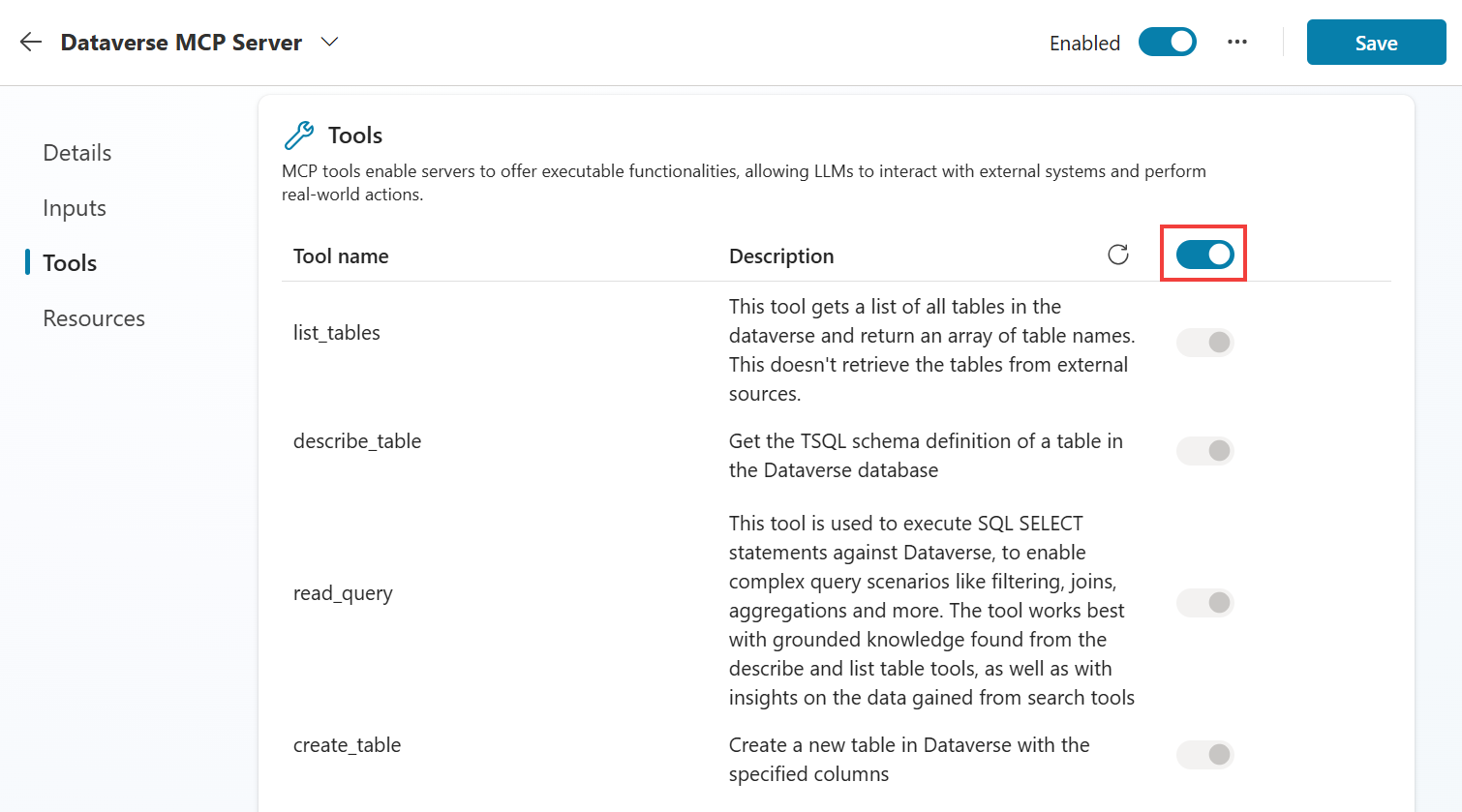

Review the tools available for the Dataverse MCP Server. You can select and deselect which tools are available to the agent. When the tool is executed, the list is dynamically updated from the MCP Server.

[!NOTE] You cannot call an MCP Server from a Topic. MCP tools are invoked by the agent's orchestrator during natural language conversations.

Test Your Agent

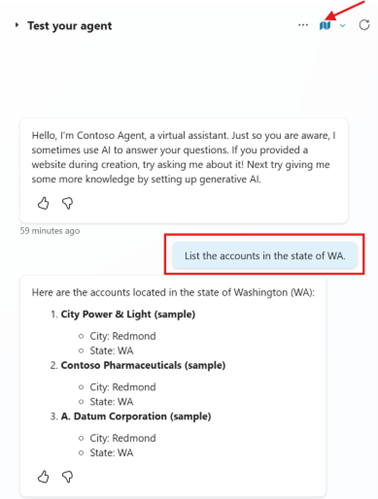

In the testing panel, ask the following question: List the accounts in the state of WA.
For the first run, you will get a consent dialog as by default the tool is configured to use "End user credentials". Select Allow to continue.

[!NOTE] If you are using Service Principals or Client Certification Auth to connect to Dataverse, you may need to use "Maker-provided credentials". To change this, go to the Details section > Additional details section > Credentials to use.

[!TIP] Select the Activity Map at the top of the agent testing panel to track what topics or tools the agent is using. You can see that the Dataverse MCP server is initiated and then which tools are being used - list_tables, describe_tables, read_query.

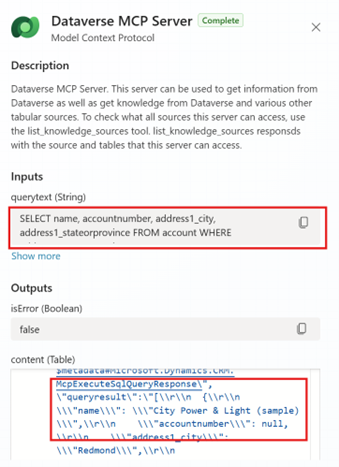

If you select the tool that was used, you will see the Inputs and Outputs of the tool.
If no accounts are found, try running the following prompt to create some test data. and then retry your previous prompt:
```
 Create 10 account rows with test data for the common fields, include some accounts with a State of WA
```

Use the following prompt to add some contacts to each account:

 for each account create a test contact associated with the account

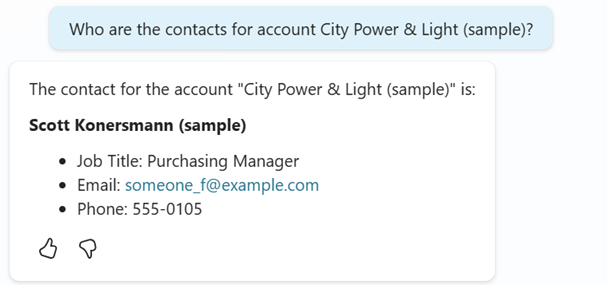

Continue testing by asking: Who are the contacts for each account

🏅 Congratulations! You've completed Use Case #3!

Test your understanding

Key takeaways:

MCP Server Integration - The Dataverse MCP Server provides dynamic, real-time access to business data through natural language queries
Activity Tracking - The Activity Map helps troubleshoot agent behavior by showing which tools are executed and their inputs/outputs
Agent Configuration - Proper instructions and descriptions help the agent understand its role and limitations, ensuring it uses only the specified tools

Lessons learned & troubleshooting tips:

You must create your agent before adding MCP Servers as tools
Use Activity Map to debug and understand tool execution flow
Suggested prompts help guide users but don't appear in Copilot Studio testing

🔄 Use Case #4: Create Custom Prompts for Structured Responses

Create a custom prompt tool that controls how your agent responds to conversations, including selecting which AI model to use.

Use case	Value added	Estimated effort
Create Custom Prompts for Structured Responses	Control agent response behavior with prompt-based tools and model selection	10 minutes

Summary of tasks

In this section, you'll learn how to create a custom prompt tool with specific response instructions, configure text inputs and sample data, select and compare different AI models, and wire the prompt into your agent using system variables.

Scenario: Your organization wants an agent that handles casual chit chat conversations in a friendly and professional manner, while staying focused on appropriate topics. A custom prompt tool gives you fine-grained control over exactly how the agent responds, including the ability to select which AI model powers the responses.

Objective

Create a Chit Chat Agent with a custom prompt tool that controls response behavior, test with different AI models, and validate that the agent stays within defined boundaries.

Step-by-step instructions

Create the Chit Chat Agent

Go to Copilot Studio. Make sure you are logged in using the credentials for the lab and are in the correct environment.
Select Agents in the left navigation then select Create blank agent in the upper right corner.
Once the agent is provisioned, rename it to Chit Chat Agent by selecting Edit in the Details section.

Enter the following as the Description:

 This agent allows a user to chit chat and have general conversation

Select Save.

Create the Chit Chat Prompt Tool

Select Tools in the top navigation.
Select Add a tool.
Select Prompt under Create new.
Select the prompt name (it will show "Custom prompt" followed by the date) and change it to Chit Chat Prompt.

In the Instructions field, paste the following text:

 Respond to this (Replace this text) with an appropriate chit chat response. Do not leverage any information within the model to provide details outside of a simple chit chat response to the question. You should make the response be friendly and professional. It should never talk about politics, religion, or anything that is not just simple chit chat type discussion such as "Hello", "How are you?", or "How old are you?". Do not ask follow up questions as part of your response.

Select (Replace this text) with your mouse and replace it with a text input by Selecting Add content and selecting Text.
Select the Text input in your instructions and set the Name to Query
In the Sample data field, enter the following text:
```
 Hey there. I like cats do you?
```
Select Close.

[!NOTE] The sample data is used for testing within the Prompt Builder interface. It simulates what a user might say so you can preview how the prompt responds.

Test and Select an AI Model

Select Test to test your prompt.
Review the response in the Model response section.
Select the down arrow next to GPT-4.1 mini to see the list of available model options.
Select a different model and Select Test again.
Notice how the response style changes depending on the model selected.

[!NOTE] You can also add additional models from Foundry if needed. Different models may produce different response styles and levels of detail.
Change the model back to GPT-4.1 mini as it is the most cost-effective and fastest option.
Select Save.
Select Add and configure.

Configure the Prompt Tool

Change the Description to the following text:

 This tool provides capabilities to allow the user to do chit chat with this agent. It should stay focused to only handle simple chit chat scenarios like "Hello" or "How old are you?" type of things but stay away from any non-chit chat related topics. Do not use this topic for things like "Goodbye".

In the Inputs section, change the Query input's Fill Using setting to Custom value.
In the Value field, Select the … button, then Select System and select Activity.Text.

[!TIP] System.Activity.Text stores the last thing the user said to the agent. This automatically passes the user's message into your custom prompt.
Select Save on your Chit Chat Prompt tool.

Disable General Knowledge

Select Settings in the upper right-hand corner.
Scroll to the bottom of the Generative AI menu and turn off Use general knowledge.

[!TIP] To limit hallucinations, it is common practice to turn off the model's general knowledge. This restricts the agent to only the tools and knowledge you have provided.
Select Save.
Close the Settings menu using the X in the upper right corner.

Test Your Chit Chat Agent

In the test pane, try the following chit chat queries:

   Hey do you like cats? I have a tabby

   How old are you?

   What time is it?

Verify that the agent responds with friendly, professional chit chat responses.
Now test that the agent stays within its defined boundaries by asking non-chit-chat questions:

  How tall is the Empire State Building?

  Who is the president of the United States?

Verify that the agent does not answer these factual questions and instead keeps the conversation within chit chat boundaries.

🏅 Congratulations! You've completed Use Case #4!

Test your understanding

Key takeaways:

Custom Prompts as Tools - Prompts give you fine-grained control over how your agent responds, allowing you to define tone, boundaries, and behavior
Model Selection - You can choose and compare different AI models for your prompt, balancing cost, speed, and response quality
System Variables - Using System.Activity.Text automatically passes the user's latest message into your prompt, eliminating the need for manual input mapping

Lessons learned & troubleshooting tips:

Use detailed prompt instructions to define both what the agent should and should not do
Test with boundary cases to make sure the agent stays within its defined scope
GPT-4.1 mini is typically the most cost-effective choice for simple conversational scenarios
Disabling general knowledge helps validate that your prompt tool is handling responses correctly

🧱 Extra Credit: Automate Legacy Systems with Computer Using Agents (CUA)

[!NOTE] Optional - Extra Credit (~20 minutes): This use case is optional and not included in the 60-minute lab time. Complete it if you have additional time or want to explore advanced autonomous agent capabilities.

Build an autonomous agent that retrieves financial portfolio data from a legacy system without API connectivity using Computer Using Agents (CUA).

Use case	Value added	Estimated effort
Automate Legacy Systems with CUA	Automate systems that lack API connectivity using desktop simulation	~20 minutes

Summary of tasks

In this section, you'll learn how to create an autonomous agent with email triggers, configure the Computer use tool to simulate GUI-based data retrieval, set up email response capabilities, and test the complete workflow.

Scenario: A financial advisor needs quick access to portfolio details - such as client name, portfolio value, and assigned manager - but the data resides in a legacy system that lacks an API. Traditional RPA tools rely on fragile screen-scraping and require constant maintenance. Computer Using Agents provide a smarter, more resilient approach to automating legacy system access.

Objective

Create an autonomous agent that uses the Computer use tool to retrieve portfolio data from a legacy web interface and responds via email.

Step-by-step instructions

Create the Agent and Configure Email Trigger

Go to copilotstudio.microsoft.com.
Select Agents in the left navigation and then select Create from blank in the upper right corner.
In the Details section select Edit and change the name to Portfolio Lookup Agent.
Select Save.

Configure Email Triggers

Scroll down to the triggers section and Select + Add trigger.
Search and select When a new email arrives (V3) (Office 365 Outlook).
Select Next.
Rename the trigger to When a portfolio lookup email arrives.
Select Next.
In the Subject Filter (Optional) field, enter Portfolio to filter emails that contain the word "Portfolio" in the subject line.
Select Create trigger.
Select Close.

Configure the Computer Use Tool

Go to Tools in the top-level menu.
Select + Add a tool.
Select + New tool.
Select Computer use.

Enter the following into the Instructions:

Go to https://computerusedemos.blob.core.windows.net/web/Portfolio/index.html.
Enter the Portfolio ID in the "Enter Portfolio ID" search field and Select the "Search" button.
Retrieve the "Client Name", "Portfolio Value" and "Manager" values exactly as shown.
Return those three values as the final output.

 If no portfolio data is found, reply that you couldn't find a portfolio with the specified ID.

Keep Use hosted browser enabled to create a connection to the hosted browser.
Update the Name of the Computer use tool to Look up portfolio data.
Update the Description to Search and retrieve financial portfolio data.
In the Inputs section, select + Add input.
Enter name Portfolio ID and description The ID of the portfolio and select Done.
Select Save.

[!TIP] During execution, Computer use combines your instructions with the input values to complete the task.

Test the Computer Use Tool

In the Instructions section, select the Test button on the right.
Add the sample value 44123BCD and select Test now.
Observe the Computer use tool logging into the computer and performing the requested actions:
- The left panel shows your instructions and a step-by-step log of the tool's reasoning and actions
- The right panel shows a preview of the actions on the machine
Select Finish testing.

[!TIP] If the result isn't what you expect, refine your instructions with more details and test again. Allow sufficient time between tests to make sure the previous Computer use task has been fully completed before starting a new one.

Set Up Email Response

Return to the Tools tab and select + Add a tool.
Search for Send an email (V2) (Office 365 Outlook) and select it.
Select Add and configure.
Update the name to Reply to email.
Update the description to: Use this operation to reply to the email received
Under Additional details, set Credentials to use to Maker-provided credentials.
Customize the input descriptions:
- To: Use the "from" email of the triggering received email.
- Subject: Write the email subject.
- Body: Write the email body using HTML and highlight the requested data.
Select Save.

Configure Agent Instructions

Go to the Overview tab and Select Edit on the Instructions.

Enter the following instructions:

 When a financial portfolio related request is received, identify the Portfolio ID and search for the requested data using (replace this text). Once you have gathered the financial portfolio information, use the (replace this text) tool to reply to the original email you received. Do not respond with data beyond what was requested.

For each (replace this text) placeholder in the instructions, select the placeholder, type / to open the dropdown menu, and select the corresponding tool:
- First placeholder: Select Look up portfolio data
- Second placeholder: Select Reply to email
[!IMPORTANT] Using the / reference technique creates a direct link between your instructions and the configured tools, ensuring the agent knows exactly which tools to invoke.
Save the instructions.
Go to the agent's Settings, and in the Knowledge section disable the Use general knowledge option to ground agent responses only to data retrieved from CUA.
Save the settings.

Test the Complete Workflow

Send a test email from an email address of your preference to your training user's email account with:

Subject: Portfolio data request
Body:

 Hi!

 I hope you're doing well!
 I'm looking for the portfolio manager and value of portfolio #44123BCD.

 Much appreciated.
 Thanks!

Make sure you receive the email in your training user's inbox at outlook.office.com.

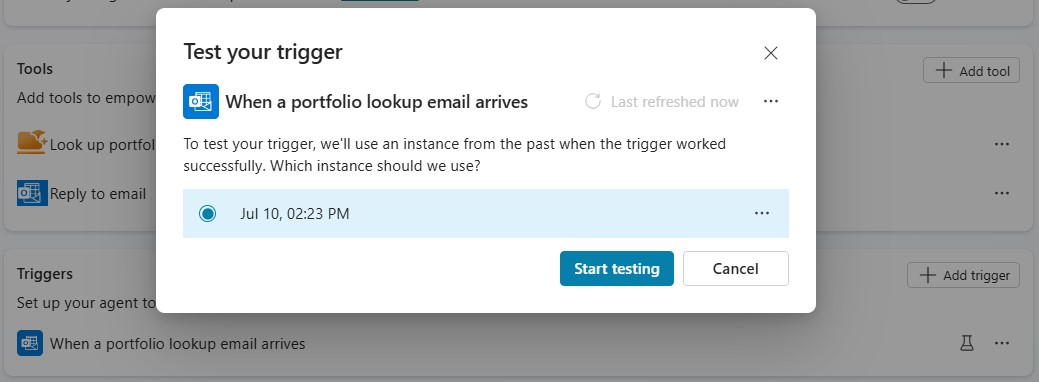

In the Overview tab, go to the Triggers section and select Test trigger.
Select the trigger instance and then Start testing.
Check your emails for the agent's reply.
[!TIP]
- Monitor the Computer use tool's actions in the Test chat window or through the agent's Activity page.
- In the Activity page, select the current run and switch from Activity map to Transcript for a real-time view of all Computer use tool steps with screenshots.

🏅 Congratulations! You've completed the Extra Credit section!

🏆 Summary of learnings

True learning comes from doing, questioning, and reflecting - so let's put your skills to the test.

To maximize the impact of tools in Copilot Studio:

Choose the Right Tool Type - Connectors for pre-built service integrations, agent flows for deterministic business logic, MCP servers for live data access, custom prompts for structured responses, and CUA for legacy system automation
Use Agent Flows for Predictable Logic - Financial calculations, compliance rules, and other business logic that must be auditable and consistent should use deterministic flows, not AI
Leverage MCP for Real-Time Data - The Dataverse MCP Server provides natural language access to live business data without building custom APIs or connectors
Standardize with Custom Prompts - Use structured prompts to make sure all users get consistent, relevant responses with the specific data fields they need
Test Thoroughly - Use the Activity Map to understand tool execution flow, validate calculations with edge cases, and verify end-to-end workflows

Conclusions and recommendations

Copilot Studio tools golden rules:

Match the tool type to the integration need - don't force one approach for all scenarios
Use agent flows for any business logic that must produce the same result every time
Always configure proper agent instructions that specify which tools to use and when
Use Activity Map to debug and optimize tool execution
Test with realistic data and edge cases before deploying
Structure agent responses with custom prompts when consistency matters for business decisions

By following these principles, you'll build agents that go beyond conversation - they take action, access live data, execute business logic, and integrate with the systems your organization relies on.

📄 Download Options

📄 Download PDF Version Professional PDF with table of contents and internal navigation. Generated automatically from lab content.

Copilot Studio Tools

🧭 Lab Details

📚 Table of Contents

🤔 Why This Matters

🌐 Introduction

🎓 Core Concepts Overview

📄 Documentation and Additional Training Links

✅ Prerequisites

🎯 Summary of Targets

🧩 Use Cases Covered

🛠️ Instructions by Use Case

🧱 Use Case #1: Extend Your Agent with Connectors

Objective

Step-by-step instructions

Create the Dictionary Agent

Create the Custom Connector

Define the API Action

Define the Response Schema

Add the Custom Connector as a Tool

Test Your Dictionary Agent

🏅 Congratulations! You've completed Use Case #1!

Test your understanding

🔄 Use Case #2: Build Deterministic Logic with Agent Flows

Objective

Step-by-step instructions

Create a New Agent

Create the Agent Flow

Define Input Parameters

Initialize Variables

Determine Commission Tier

Determine Commission Rate

Calculate Base Commission

Calculate Product Mix Bonus

Create the Response Message

Build the Conversation Topic

Test Your Commission Calculator

🏅 Congratulations! You've completed Use Case #2!

Test your understanding

🧱 Use Case #3: Connect an MCP Server for Live Data Access

Objective

Step-by-step instructions

Create and Configure the Agent

Add the Dataverse MCP Server as a Tool

Test Your Agent

🏅 Congratulations! You've completed Use Case #3!

Test your understanding

🔄 Use Case #4: Create Custom Prompts for Structured Responses

Objective

Step-by-step instructions

Create the Chit Chat Agent

Create the Chit Chat Prompt Tool

Test and Select an AI Model

Configure the Prompt Tool

Disable General Knowledge

Test Your Chit Chat Agent

🏅 Congratulations! You've completed Use Case #4!

Test your understanding

🧱 Extra Credit: Automate Legacy Systems with Computer Using Agents (CUA)

Objective

Step-by-step instructions

Create the Agent and Configure Email Trigger

Configure Email Triggers

Configure the Computer Use Tool

Test the Computer Use Tool

Set Up Email Response

Configure Agent Instructions

Test the Complete Workflow

🏅 Congratulations! You've completed the Extra Credit section!

🏆 Summary of learnings

Conclusions and recommendations

📄 Download Options

📋 On This Page
