Using MCP Resources in Copilot Studio

Resources in MCP: How Copilot Studio Uses Them

If you’re building MCP (Model Context Protocol) servers for Copilot Studio, here’s something important to understand: Copilot Studio’s orchestrator always lists MCP resources through tools, never directly.

This is an architectural choice in Copilot Studio’s implementation that makes sense for enterprise environments with large-scale resource catalogs.

How Copilot Studio Lists Resources

Here’s the flow in Copilot Studio:

1. Discovery through tools: The agent calls tools/call to invoke a tool that returns resources
2. Tool returns resources: The tool can return either:
   • Resource links (resource_link): References that the agent can read via resources/read requests
   • Embedded resources (resource): Full content delivered immediately in the tool response
3. Reading resources (for resource links): The agent can send resources/read requests to fetch resource content
4. Response generation: The agent uses the retrieved information to generate its response

This design enables scalability—imagine a documentation system with 10,000 articles. The agent doesn’t enumerate all 10,000; it searches for why do penguins waddle and gets back 5 relevant references.

Note: The MCP protocol itself supports direct resource enumeration through resources/list and clients can call this directly. However, Copilot Studio’s orchestrator architecture is designed to use tool-based discovery for resource access. Other MCP clients may implement resource access differently.

The Biological Species Sample

The new search-species-resources-typescript sample demonstrates this pattern with a practical example. It provides information about animal species through search-based discovery.

What’s in the sample:

• 5 species (African Elephant, Monarch Butterfly, Great White Shark, Red Panda, Blue Whale)
• 8 total resources (5 text overviews + 3 images)
• Two tools: searchSpeciesData (fuzzy search) and listSpecies (simple listing)

How It Works

1. Define Your Resources

Resources are dynamically generated from a species database:

// Species data with details
export const SPECIES_DATA: Species[] = [
  {
    id: "monarch-butterfly",
    commonName: "Monarch Butterfly",
    scientificName: "Danaus plexippus",
    description: "Famous for its distinctive orange and black wing pattern...",
    habitat: "North America, with migration routes...",
    diet: "Larvae feed on milkweed; adults feed on nectar",
    conservationStatus: "Vulnerable",
    interestingFacts: [...],
    tags: ["insect", "butterfly", "migration"],
    image: encodeImage("butterfly.png")
  },
  // ... more species
];

// Resources generated from species data
export const RESOURCES: SpeciesResource[] = SPECIES_DATA.flatMap(species => {
  const resources = [
    {
      uri: `species:///${species.id}/info`,
      name: `${species.commonName} - Species Overview`,
      description: `Detailed information about the ${species.commonName}`,
      mimeType: "text/plain",
      speciesId: species.id,
      resourceType: "text"
    }
  ];

  // Add image resource if available
  if (species.image) {
    resources.push({
      uri: `species:///${species.id}/image`,
      name: `${species.commonName} - Photo`,
      mimeType: "image/png",
      speciesId: species.id,
      resourceType: "image"
    });
  }

  return resources;
});

This generates 8 resources from 5 species (5 text overviews + 3 images).

2. Implement Search Tool

The searchSpeciesData tool uses Fuse.js for fuzzy matching and returns resource_link references (rather than embedded resources).

When Copilot Studio calls your tool (via tools/call request), your handler responds with resource links:

server.setRequestHandler(CallToolRequestSchema, async (request) => {
  if (request.params.name === "searchSpeciesData") {
    const searchResults = fuse.search(searchTerms);
    const topResults = searchResults.slice(0, 5);

    // Return resource references, not full content
    const content = [
      {
        type: "text",
        text: `Found ${topResults.length} resources matching "${searchTerms}"`
      }
    ];

    topResults.forEach(result => {
      content.push({
        type: "resource_link",
        uri: result.item.uri,
        name: result.item.name,
        description: result.item.description,
        mimeType: result.item.mimeType,
        annotations: {
          audience: ["assistant"],
          priority: 0.8
        }
      });
    });

    return { content };
  }
});

3. Handle Resource Reads

When the agent sends resources/read requests, your server provides the full content:

server.setRequestHandler(ReadResourceRequestSchema, async (request) => {
  const uri = request.params.uri;
  const resource = RESOURCES.find(r => r.uri === uri);
  const species = SPECIES_DATA.find(s => s.id === resource.speciesId);

  if (resource.resourceType === 'text') {
    return {
      contents: [{
        uri,
        mimeType: "text/plain",
        text: formatSpeciesText(species)
      }]
    };
  }

  if (resource.resourceType === 'image') {
    return {
      contents: [{
        uri,
        mimeType: "image/png",
        blob: species.image  // Base64-encoded PNG
      }]
    };
  }
});

Quickstart with Copilot Studio

To get started quickly:

1. Clone the repository

   git clone https://github.com/microsoft/CopilotStudioSamples.git
   cd CopilotStudioSamples/MCPSamples/search-species-resources-typescript


2. Install dependencies

   npm install


3. Start the server

   npm run dev


4. Create a public dev tunnel for port 3000

5. Configure in Copilot Studio under Tools → + Add a tool → + New Tool → Model Context Protocol

Important URL Format: Use https://abc123-3000.devtunnels.ms/mcp (port in hostname with hyphen), not https://abc123.devtunnels.ms:3000/mcp. The wrong format will cause connection failures.

The sample includes detailed instructions for dev tunnel setup and deployment options in the README.

How It Works in Copilot Studio

Let’s walk through a real example of how the agent uses resources to answer questions.

User asks: “Tell me about the Blue Whale”

The agent:

1. Calls searchSpeciesData("blue whale") tool
2. Receives resource links for two resources: Blue Whale text overview and photo
3. Reads both resources via resources/read requests
4. Generates a response combining information from the text resource and displays the image

The response includes details about habitat, diet, conservation status, and interesting facts, along with a photo of the blue whale.

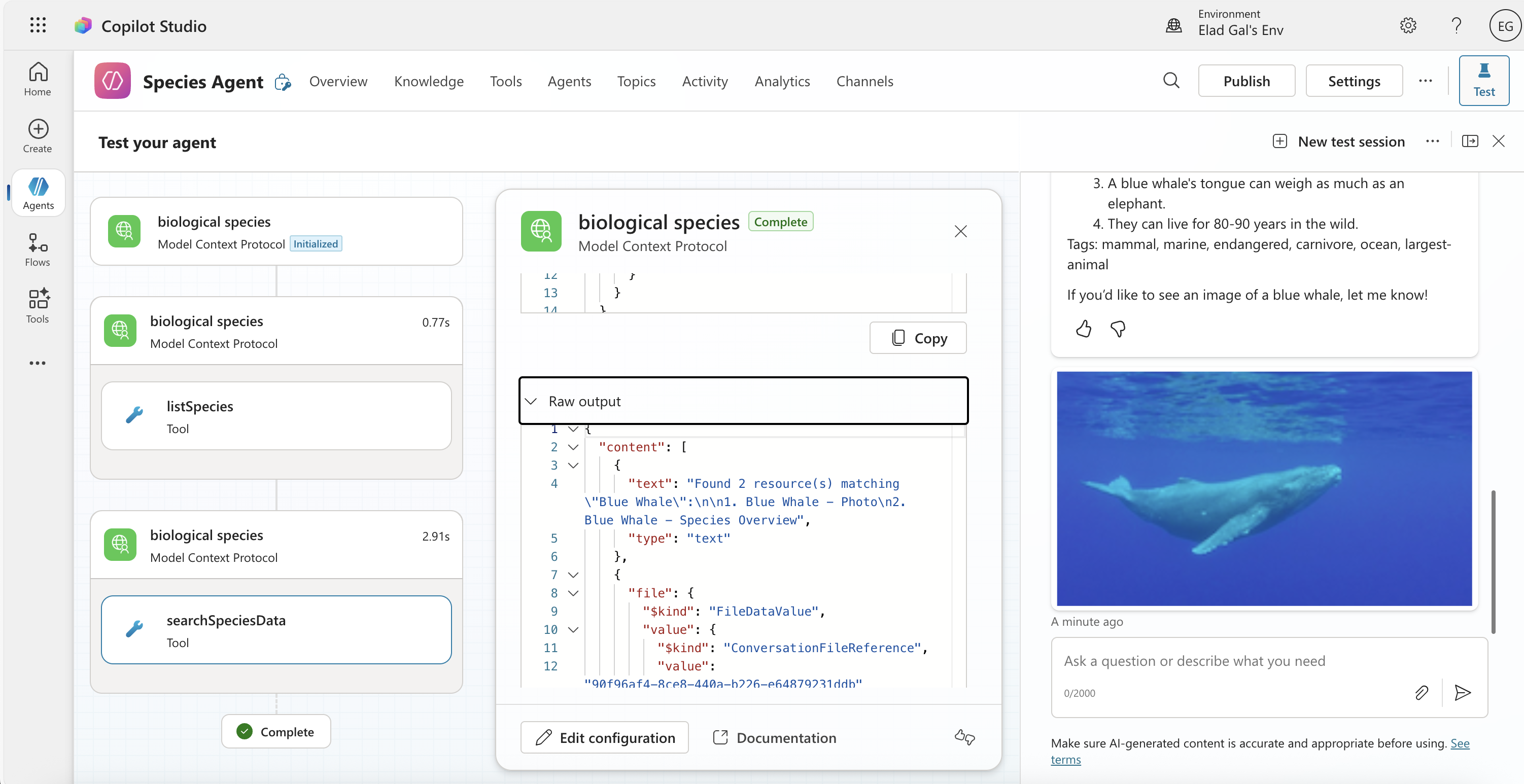

Agent provides comprehensive information from text resource with embedded image from image resource

User asks: “What does the Red Panda look like?”

Following the same pattern:

1. Agent calls searchSpeciesData("red panda")
2. Receives resource links for both text and image resources
3. Selects and reads resources via resources/read
4. Provides a detailed visual description based on the image that was returned from the server

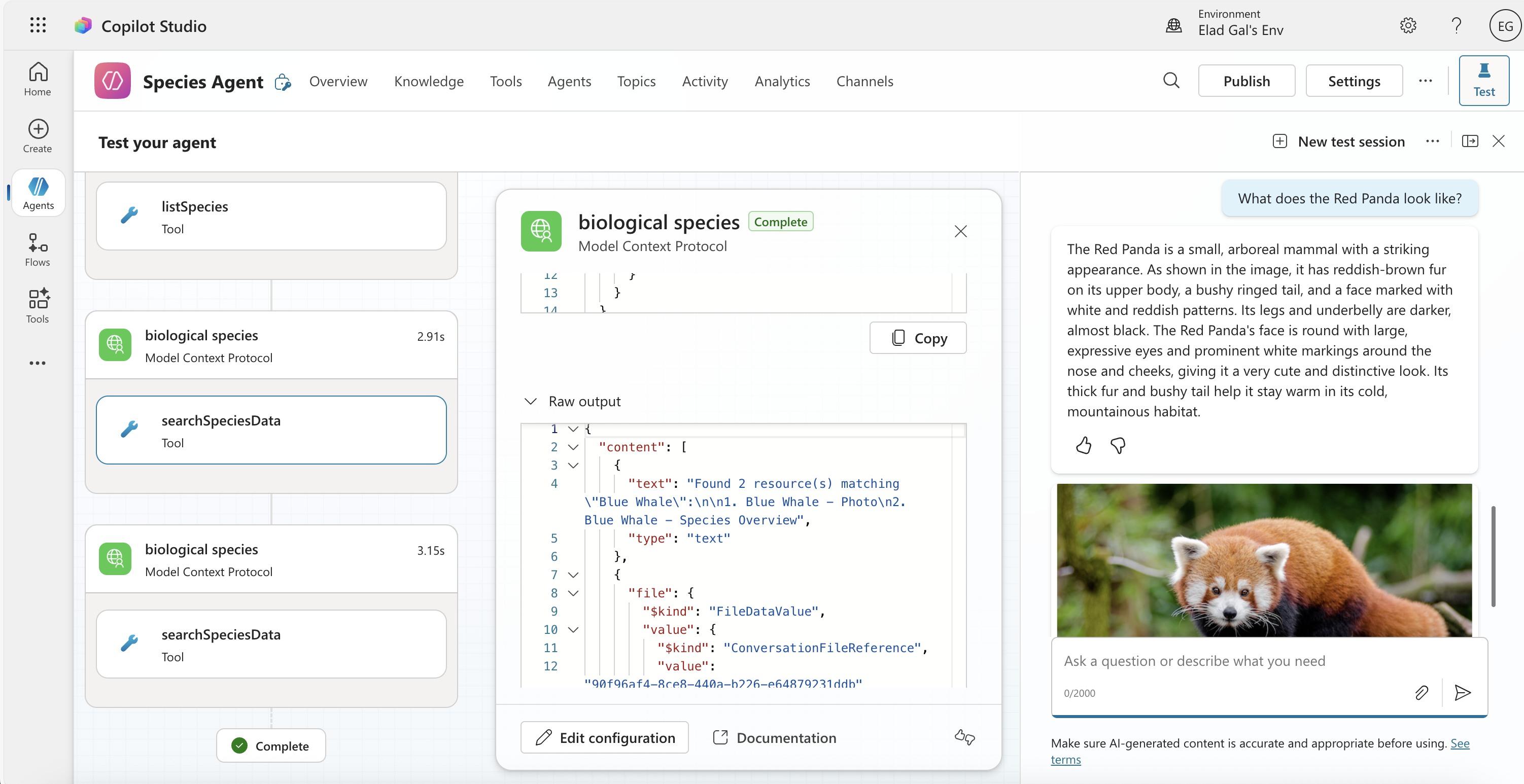

Agent selects the appropriate resource (image) from the links and provides a detailed description

Key Takeaways

1. Resources need tool-based discovery: Copilot Studio won’t enumerate resources directly. Tools provide filtered references or content
2. Tools can return references or content: Use resource_link for lazy loading or embedded resource for immediate delivery
3. The agent uses resources to inform responses: It determines which resource content is relevant to answering the user’s question
4. The pattern scales: Works for 5 resources or 50,000

Important Note: Resource Pre-Registration Not Required

If you check Copilot Studio’s UI under Tools → Resources, you might see only 5 resources listed, or even an error message about limiting resources. Don’t worry—this isn’t a problem when using resource_link in your tools.

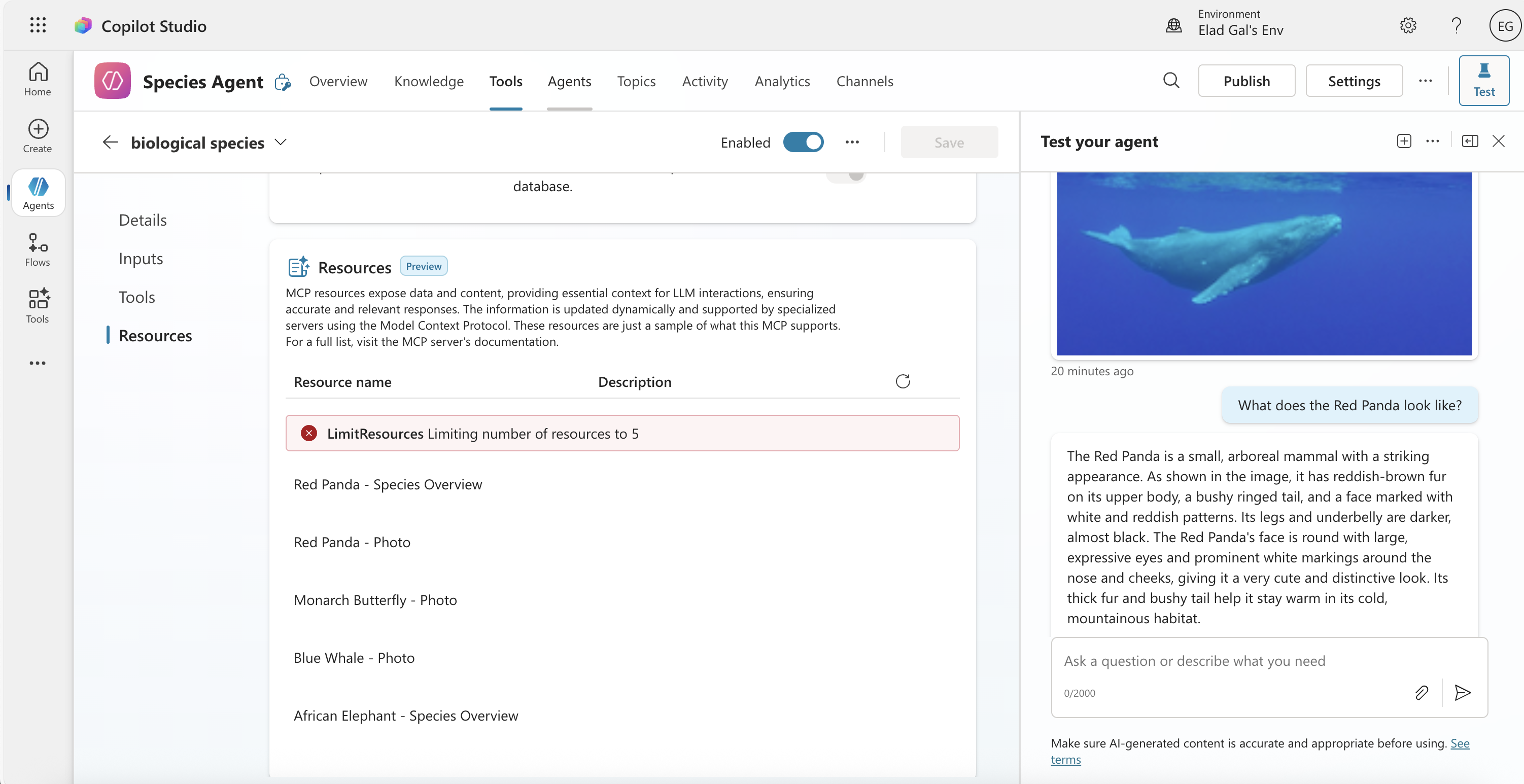

Copilot Studio UI shows a limitation, but this doesn’t affect resource_link functionality

Here’s why: when your tool returns a resource_link, the agent can request that resource via resources/read even if it was never listed in a resources/list response. According to the MCP specification:

Resource links returned by tools are not guaranteed to appear in the results of a resources/list request.

This means you can:

• Generate resource URIs dynamically based on search results
• Return links to resources that don’t exist until they’re requested
• Scale to large numbers of potential resources without listing them all

Try It Yourself

Clone the search-species-resources-typescript sample and experiment with your Copilot Studio agent. Try:

---

Have you used MCP resources for Copilot Studio? What discovery patterns are you using? Share your experiences in the comments!
