MSCCL++ DSL

Introduction

The MSCCL++ Domain-Specific Language (DSL) provides a Python-native API for defining and executing GPU-based communication collectives. With a few high-level calls, users can construct complex data movement and synchronization workflows without dealing with low-level CUDA code.

Here are the highlights of the MSCCL++ DSL:

  • Fine-grained Python-native API: MSCCL++ DSL provides a Pythonic, fine-grained API for defining and executing GPU-based communication collectives. Users can construct complex data movement and synchronization workflows without writing low-level CUDA code, while still achieving performance comparable to hand-tuned CUDA implementations.

  • Effortless performance tuning: The MSCCL++ DSL analyzes data dependencies and synchronization patterns to automatically fuse operations to eliminate data movement overhead, while instance counts can be manually configured to boost performance.

  • Flexible execution model: The MSCCL++ DSL allows users to load different execution plans at runtime, enabling dynamic optimization based on the current workload and hardware configuration.

MSCCL++ DSL Concepts

Collectives

Collectives define the communication pattern for distributed operations such as AllReduce, AllGather, and ReduceScatter. The input and output buffers are predefined based on the collective type and parameters. The number of chunks in each buffer is determined by the chunk_factor parameter multiplied by num_ranks where appropriate. For example, AllReduce uses num_ranks * chunk_factor chunks for both input and output, while AllGather uses chunk_factor input chunks and num_ranks * chunk_factor output chunks per rank.

Buffer/Chunk

Buffer is a data structure that holds the data to be sent or received. The input/output buffer is predefined based on communication patterns. Users can allocate scratch buffers for intermediate data movement. Chunk is a slice of the buffer.

rank = Rank(rank_id)
input_buffer = rank.get_input_buffer()
dst_chunk = input_buffer[0:1]
src_chunk = input_buffer[1:2]
rank.copy(dst_chunk, src_chunk, tb=0)
rank.reduce(dst_chunk, src_chunk, op=ReduceOperationType.sum, tb=0)

Channel

Users need to use channels to communicate between ranks. Now we have three types of channels: MemoryChannel, PortChannel and SwitchChannel.

  • MemoryChannel: Uses peer-to-peer memory access to communicate between GPUs.

  • PortChannel: Uses interconnection ports to communicate between GPUs.

  • SwitchChannel: Uses interconnection-switch-enabled multimem memory access to communicate between GPUs.

Note: Each time a channel is called, a new one will be created. If users want to reuse the channel, please keep the channel object.

Here is an example for two ranks synchronizing with each other.

nranks = 2
for i in range(nranks):
    src_rank = i
    dst_rank = (i + 1) % nranks
    channel = MemoryChannel(dst_rank, src_rank)
    channel.signal(tb=0, data_sync=SyncType.none)
    channel.wait(tb=0, data_sync=SyncType.after)

For SwitchChannel

SwitchChannel associates a group of buffers from a specified set of ranks. All operations invoked on the channel will be applied to those buffers.

Example for two ranks allreduce via SwitchChannel.

# Creating Channels
switch_chan = SwitchChannel(rank_list=[gpu for gpu in range(gpu_size)], buffer_type=BufferType.input)
for gpu in range(gpu_size):
    buffer_offset = gpu
    rank = Rank(gpu)
    input_buffer = rank.get_input_buffer()
    switch_chan.at_rank(gpu).reduce(buffer_offset, size=1, dst_chunk=input_buffer[gpu : gpu + 1], tb=0)
    switch_chan.at_rank(gpu).broadcast(input_buffer[gpu : gpu + 1], buffer_offset, size=1, tb=0)

Synchronization

We provide some synchronization primitives to sync thread blocks inside a rank. The synchronization is done through a barrier or semaphore. The barrier is used to synchronize a set of thread blocks in the rank, while the semaphore allows asynchronous signaling and waiting between thread blocks.

rank = Rank(0)
rank.barrier([0, 1])
sem = Semaphore(rank=0, initial_value=1)
sem.acquire(tb=0, data_sync=SyncType.after)
sem.release(tb=0, data_sync=SyncType.before)

The synchronization inside the thread-block can be inferred by MSCCL++ DSL automatically. This means if we have data dependence between two operations, we will insert a synchronization point between them.

But for multi-thread-blocks synchronization and cross-ranks synchronization, we need to insert the synchronization point manually.

Operation Fusion (Instruction Fusion)

MSCCL++ DSL performs operation fusion by analyzing all operations scheduled within the same thread‐block. For each thread‐block, the DSL builds a directed acyclic graph (DAG) of chunk‐level operations and tracks data dependencies and usage patterns. When two or more operations meet fusion criteria—such as contiguous chunk access, no intervening dependencies, and compatible resource requirements—the DSL merges them into a single operation function. This fusion strategy reduces memory traffic and avoids unnecessary synchronization, resulting in more efficient execution.

For example:

# Reduce operation followed by put operation
rank.reduce(dst_chunk, src_chunk, op=ReduceOperationType.sum, tb=0)
channel.put(remote_chunk, dst_chunk, tb=0)

When the DSL detects that a reduce operation is immediately followed by a put operation using the same data chunk, it automatically fuses them into a single operation internally, eliminating intermediate memory writes and improving performance.

Data dependencies analysis

The MSCCL++ DSL automatically tracks data dependencies at the chunk level within each thread block by maintaining the last writer and active readers for each memory slot. When operations have data dependencies, the DSL automatically inserts necessary synchronization points to ensure correct execution order. Additionally, the system analyzes the dependency graph to remove redundant synchronization operations (such as unnecessary barriers) when the execution order already guarantees correctness, optimizing performance while maintaining safety.

For example:

# Within the same thread block - copy then put dependency
rank.copy(dst_chunk, src_chunk, tb=0)
channel.put(remote_chunk, dst_chunk, tb=0)  # Same tb reads from dst_chunk

The DSL automatically inserts a nop operation to synchronize within the thread block:

rank.copy(dst_chunk, src_chunk, tb=0)
rank.nop(tb=0)  # Inserted for intra-block synchronization, nop is an internal operation, hidden from users
channel.put(remote_chunk, dst_chunk, tb=0)

Pipeline Loop

Pipeline enables overlapping operations across thread blocks. Using Semaphore for cross-block synchronization, it overlaps stages—such as copying data from the input buffer to a scratch buffer—with subsequent peer transfers. A pipelined loop orchestrates these stages to run concurrently, maximizing overall throughput.

This example demonstrates a pipelined loop that copies data from an input buffer to a scratch buffer, then transfers it to other peers. The Semaphore is used to synchronize the two stages. unit specifies the size of each chunk, and num_chunks indicates how many chunks will be processed in the loop.

sem = Semaphore(rank=rank, initial_value=0)
rank = Rank(rank)
channel = MemoryChannel(dst_rank, src_rank)
with LoopIterationContext(unit=2**20, num_chunks=1):
    # The dst_chunk and src_chunk sizes should match the num_chunks parameter in the loop context.
    rank.copy(dst_chunk, src_chunk, tb=0)
    sem.release(tb=0)
    sem.acquire(tb=1)
    channel.put(other_peer_chunk, dst_chunk, tb=1)

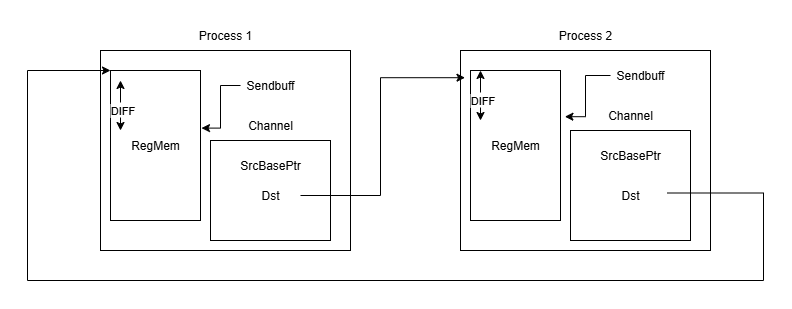

Here is an example for two ranks allreduce which achieves zero-copy and uses nvls. We use 3 thread-blocks to do the allreduce. The first thread-block is used to copy data from input buffer to scratch buffer, the second thread-block is used to do allreduce in scratch buffer, and the third thread-block is used to copy data from scratch buffer to output buffer. The thread-blocks are synchronized by semaphores.

nvls_chan = SwitchChannel(rank_list=[0, 1], buffer_type=BufferType.scratch)
scratch_buffer = []
for i in range(nranks):
    scratch_buffer.append(Buffer(i, nranks))

for i in range(nranks):
    src_rank = i
    dst_rank = (i + 1) % nranks
    chan = MemoryChannel(dst_rank, src_rank)
    chan1 = MemoryChannel(dst_rank, src_rank)
    rank = Rank(i)
    sem0 = Semaphore(rank=i, initial_value=0)
    sem1 = Semaphore(rank=i, initial_value=0)
    input_buffer = rank.get_input_buffer()
    output_buffer = rank.get_output_buffer()

    # Define loop iteration context for processing data chunks
    with LoopIterationContext(unit=2**20, num_chunks=1):
        # Copy input data to scratch buffers
        for offset in range(nranks):
            dst_chunk = scratch_buffer[i][offset : offset + 1]
            src_chunk = input_buffer[offset : offset + 1]
            rank.copy(dst_chunk, src_chunk, tb=0)

        # Synchronize with other ranks
        chan.signal(tb=0, data_sync=SyncType.before)
        chan.wait(tb=0, data_sync=SyncType.after)
        sem0.release(tb=0)  # Release semaphore to allow next step to proceed

        # Wait for previous step completion
        sem0.acquire(tb=1, data_sync=SyncType.after)

        # Reduce operation: combine data from multiple ranks into local chunk
        nvls_chan.at_rank(src_rank).reduce(
            buffer_offset=i, size=1, dst_chunk=scratch_buffer[i][i : i + 1], tb=1
        )

        # Broadcast the reduced result to all participating ranks
        nvls_chan.at_rank(src_rank).broadcast(
            src_chunk=scratch_buffer[i][i : i + 1], buffer_offset=i, size=1, tb=1
        )

        # Signal completion of reduction stage and prepare for next stage
        chan1.signal(tb=1, data_sync=SyncType.before)
        sem1.release(tb=1)

        # Wait for previous stage completion
        sem1.acquire(tb=2)
        chan1.wait(tb=2, data_sync=SyncType.after)

        # Copy all reduced chunks from scratch buffer to final output buffer
        for index in range(nranks):
            dst_chunk = output_buffer[index : index + 1]
            src_chunk = scratch_buffer[i][index : index + 1]
            rank.copy(dst_chunk, src_chunk, tb=2)

Adjust the number of instances

The MSCCL++ DSL supports replicating algorithm instances to increase parallelism and improve performance. When instances > 1 is specified in CollectiveProgram, the DSL automatically replicates thread blocks, channels, and buffer chunks across multiple instances. Each instance operates on separate data partitions, allowing concurrent execution of the same algorithm pattern. The replication uses configurable policies: interleaved (default) distributes data chunks across instances in round-robin fashion, while other policies can control how channels and thread block IDs are mapped. This feature is particularly useful for scaling algorithms across larger data sizes or increasing GPU utilization.

For example:

# Create program with 2 instances for increased parallelism
program = CollectiveProgram(
    name="allreduce_2x",
    collective=AllReduce(num_ranks=8, chunk_factor=1),
    num_ranks=8,
    instances=2  # Replicate algorithm 2 times
)

The following figure shows how thread blocks and channels are replicated across multiple instances. Each instance operates on separate data chunks, with thread block IDs and channel mappings automatically adjusted by the DSL to avoid conflicts:

MSCCL++ DSL Replication

MSCCL++ DSL Instance Replication Overview

Thread Block Group

This feature is currently a prototype. It allows you to define and use a set of thread blocks as a group to execute operations. By grouping thread blocks, you can allocate thread blocks in a non-uniform way, giving different operations different amounts of thread blocks as needed.

For example:

# Create a Thread Block Group with 4 thread blocks
tbg = ThreadBlockGroup(tb_list=[0, 1, 2, 3])
# Use the Thread Block Group to perform the copy operation
rank.copy(output_buffer[0:1], input_buffer[0:1], tb_group=tbg)

Execution plan

The MSCCL++ DSL generates an execution plan in JSON format, describing the operations to be executed on each rank. The execution plan contains details about buffers, channels, and synchronization points, and is distributed to all participating machines. Once distributed, the MSCCL++ executor can use this JSON file to run the algorithm.

The following picture shows the overall workflow for running with MSCCL++ DSL:

workflow for running with MSCCL++ DSL

Overall workflow for running with MSCCL++ DSL

All2All support

Currently, the DSL only supports the static all2all algorithm. To support all2allv, we need to obtain the send/receive sizes at runtime. This may require using placeholders in the JSON execution plan, which would be replaced with the actual sizes during execution. If we can make the chunk size variable, the same approach could be used to support all2allv.
