Quick Start

Setting up a single-step model¶

Let's start by creating a test molecule and querying LocalRetro for proposed reactions.

In [1]:

from syntheseus import Molecule
from syntheseus.reaction_prediction.inference import LocalRetroModel

test_mol = Molecule("Cc1ccc(-c2ccc(C)cc2)cc1")
model = LocalRetroModel()

from syntheseus import Molecule from syntheseus.reaction_prediction.inference import LocalRetroModel test_mol = Molecule("Cc1ccc(-c2ccc(C)cc2)cc1") model = LocalRetroModel()

Note that we didn't provide a path to the model checkpoint, so syntheseus will download a default checkpoint trained on USPTO-50K and cache it for later use. This behaviour can be overriden by providing a model_dir argument.

In [2]:

print(model.model_dir)

print(model.model_dir)

/home/krmaziar/.cache/torch/syntheseus/LocalRetro_backward

Now let's print the top 5 predictions for our test molecule.

In [3]:

def mols_to_str(mols) -> str:
    return " + ".join([mol.smiles for mol in mols])

def print_results(results) -> None:
    for idx, prediction in enumerate(results):
        print(f"{idx + 1}: " + mols_to_str(prediction.reactants))

[results] = model([test_mol], num_results=5)
print_results(results)

def mols_to_str(mols) -> str: return " + ".join([mol.smiles for mol in mols]) def print_results(results) -> None: for idx, prediction in enumerate(results): print(f"{idx + 1}: " + mols_to_str(prediction.reactants)) [results] = model([test_mol], num_results=5) print_results(results)

1: Cc1ccc(B(O)O)cc1 + Cc1ccc(Br)cc1
2: Cc1ccc(B(O)O)cc1 + Cc1ccc(I)cc1
3: Cc1ccc(Br)cc1 + Cc1ccc([Mg+])cc1

We only got 3 results (despite requesting 5) as syntheseus automatically deduplicates the model outputs.

As all single-step models are set up in a consistent way, it's easy to run several models and compare their outputs.

In [4]:

from syntheseus.reaction_prediction.inference import *

models = [
    ChemformerModel(),
    Graph2EditsModel(),
    LocalRetroModel(),
    MEGANModel(),
    MHNreactModel(),
    RetroKNNModel(),
    RootAlignedModel(),
]

for model in models:
    # When interested in very few predictions (e.g. one), it may be
    # useful to set `num_results > 1`, as this will cause e.g.
    # larger beam size for models based on beam search.
    [results] = model([test_mol], num_results=5)

    top_prediction = results[0].reactants
    print(f"{model.name + ':':12} {mols_to_str(top_prediction)}")

from syntheseus.reaction_prediction.inference import * models = [ ChemformerModel(), Graph2EditsModel(), LocalRetroModel(), MEGANModel(), MHNreactModel(), RetroKNNModel(), RootAlignedModel(), ] for model in models: # When interested in very few predictions (e.g. one), it may be # useful to set `num_results > 1`, as this will cause e.g. # larger beam size for models based on beam search. [results] = model([test_mol], num_results=5) top_prediction = results[0].reactants print(f"{model.name + ':':12} {mols_to_str(top_prediction)}")

Chemformer:  Cc1ccc(Br)cc1 + Cc1ccc(Br)cc1
Graph2Edits: Cc1ccc(Br)cc1 + Cc1ccc([Sn](C)(C)C)cc1
LocalRetro:  Cc1ccc(B(O)O)cc1 + Cc1ccc(Br)cc1
MEGAN:       Cc1ccc(Br)cc1 + Cc1ccc([Mg+])cc1
MHNreact:    Cc1ccc(Br)cc1 + Cc1ccc([Mg+])cc1
RetroKNN:    Cc1ccc(B(O)O)cc1 + Cc1ccc(Br)cc1
RootAligned: Cc1ccc(Br)cc1 + Cc1ccc([Mg+])cc1

Running search¶

To run multi-step search we need three things:

• a reaction model
• an inventory of purchasable (building block) molecules
• a search algorithm

In [5]:

from syntheseus.search.mol_inventory import SmilesListInventory
from syntheseus.search.algorithms.breadth_first import (
    AndOr_BreadthFirstSearch
)

# Set up a reaction model with caching enabled. Number of reactions
# to request from the model at each step of the search needs to be
# provided at construction time.
model = LocalRetroModel(use_cache=True, default_num_results=10)

# Dummy inventory with just two purchasable molecules.
inventory = SmilesListInventory(
    smiles_list=["Cc1ccc(B(O)O)cc1", "O=Cc1ccc(I)cc1"]
)

search_algorithm = AndOr_BreadthFirstSearch(
    reaction_model=model,
    mol_inventory=inventory,
    limit_iterations=100,  # max number of algorithm iterations
    limit_reaction_model_calls=100,  # max number of model calls
    time_limit_s=60.0  # max runtime in seconds
)

from syntheseus.search.mol_inventory import SmilesListInventory from syntheseus.search.algorithms.breadth_first import ( AndOr_BreadthFirstSearch ) # Set up a reaction model with caching enabled. Number of reactions # to request from the model at each step of the search needs to be # provided at construction time. model = LocalRetroModel(use_cache=True, default_num_results=10) # Dummy inventory with just two purchasable molecules. inventory = SmilesListInventory( smiles_list=["Cc1ccc(B(O)O)cc1", "O=Cc1ccc(I)cc1"] ) search_algorithm = AndOr_BreadthFirstSearch( reaction_model=model, mol_inventory=inventory, limit_iterations=100, # max number of algorithm iterations limit_reaction_model_calls=100, # max number of model calls time_limit_s=60.0 # max runtime in seconds )

In [6]:

output_graph, _ = search_algorithm.run_from_mol(test_mol)

output_graph, _ = search_algorithm.run_from_mol(test_mol)

In [7]:

print(f"Explored {len(output_graph)} nodes")

print(f"Explored {len(output_graph)} nodes")

Explored 1256 nodes

The resulting graph contains all the explored molecules and reactions, some of which might have led to complete routes while others remained unsolved. From that we can extract complete routes.

In [8]:

from syntheseus.search.analysis.route_extraction import (
    iter_routes_time_order,
)
from syntheseus.search.graph.and_or import AndNode

# Extract the routes simply in the order they were found.
routes = list(iter_routes_time_order(output_graph, max_routes=10))

for idx, route in enumerate(routes):
    num_reactions = len({n for n in route if isinstance(n, AndNode)})
    print(f"Route {idx + 1} consists of {num_reactions} reactions")

from syntheseus.search.analysis.route_extraction import ( iter_routes_time_order, ) from syntheseus.search.graph.and_or import AndNode # Extract the routes simply in the order they were found. routes = list(iter_routes_time_order(output_graph, max_routes=10)) for idx, route in enumerate(routes): num_reactions = len({n for n in route if isinstance(n, AndNode)}) print(f"Route {idx + 1} consists of {num_reactions} reactions")

Route 1 consists of 2 reactions
Route 2 consists of 3 reactions

We can use visualization utilities to get a quick look at the routes found.

In [9]:

from syntheseus.search.visualization import visualize_andor

for idx, route in enumerate(routes):
    visualize_andor(
        output_graph, filename=f"route_{idx + 1}.pdf", nodes=route
    )

from syntheseus.search.visualization import visualize_andor for idx, route in enumerate(routes): visualize_andor( output_graph, filename=f"route_{idx + 1}.pdf", nodes=route )

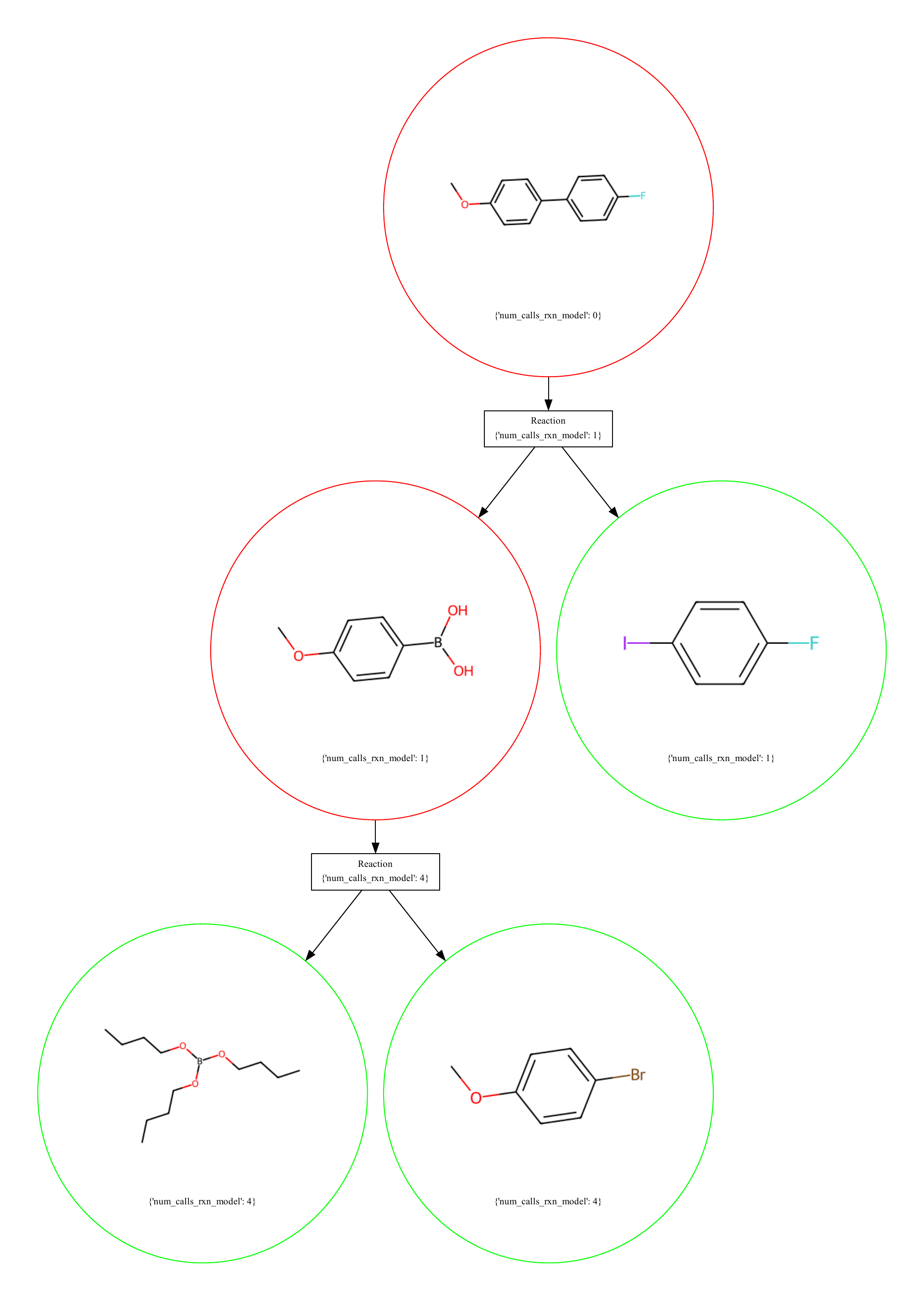

The contents of the files route_{1, 2}.pdf should look roughly like the below.
