Task 02: Complete offline and online migration

Introduction

Migrating databases to the cloud requires careful planning to balance downtime, data integrity, and service continuity. The City of Metropolis needs to migrate its PostgreSQL database from an on-premises server to Azure Database for PostgreSQL while minimizing disruption. To achieve this, you’ll perform both offline and online migrations.

An offline migration transfers all data in a single operation, requiring downtime but offering a simpler process. In contrast, an online migration allows data replication while keeping the source database operational until the final cutover. By using both methods, the city can assess migration strategies that best meet its operational needs.

Description

In this task, you’ll complete an offline and an online migration of the City of Metropolis’s PostgreSQL database to Azure Database for PostgreSQL. You’ll start by performing an offline migration, which involves stopping database activity, transferring all data at once, and validating the results. Next, you’ll configure and execute an online migration, allowing data replication while keeping the database available.

These steps help ensure the city’s critical services can transition to Azure Database for PostgreSQL efficiently, with minimal downtime and maximum data integrity.

Success criteria

You successfully configured and executed an offline migration of the PostgreSQL database.
You validated that all data was migrated correctly in offline mode.
You successfully configured logical replication for an online migration.
You executed an online migration, ensuring data synchronization between on-premises and Azure.
You verified that all database records were successfully transferred and are accessible in Azure.

Learning resources

01: Perform offline migration

You will finalize necessary configurations and perform an offline migration of the Adventureworks database. This approach is suitable when a brief service interruption is acceptable.

From the Azure portal, on the top global search bar, enter and select Private DNS zones.
Select azuredb@lab.labInstance.Id.private.postgres.database.azure.com.
On the left service menu, select DNS Management > Recordsets.
Identify the private IP address listed under Value. This should be the only address, which belongs to the new server.

Your IP may differ from the screenshot.
Enter the IP address in a notepad for future use:

If you see this in the next steps @lab.TextBox(privateIP), you’ll need to replace it with the IP address you’ve saved here.
Select Windows Explorer from the taskbar, and then go to C:\Program files\PostgreSQL\16\data.
Right-click the pg_hba.conf file, then select Edit in Notepad.

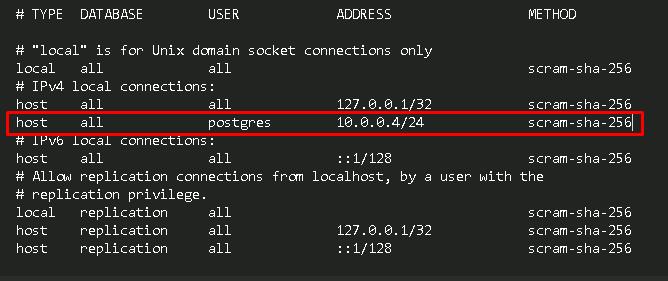

In Notepad, go to the bottom of the pg_hba.conf file and add an entry under # IPv4 local connections with the following:

Item Value

TYPE host

DATABASE all

USER postgres

ADDRESS @lab.Variable(privateIP)/24

METHOD scram-sha-256

The ADDRESS listed above is the IP address from the earlier text box. If it’s blank here, ensure the text box from step 5 is filled out.
Ensure the file looks like the above, with the exception of the ADDRESS, if it’s different.
Save and close the file.
In Azure’s global search bar, enter and select the azuredb@lab.LabInstance.Id Azure Database for PostegreSQL flexible server.
On the azuredb@lab.LabInstance.Id page, on the leftmost service menu, select Settings > Server parameters.
Enter azure.extensions in the search filter.
For the azure.extensions parameter, select the Value dropdown menu, then select the checkboxes for:
- TABLEFUNC
- UUID-OSSP
On the top bar, select Save.
Once the deployment of the parameters is complete, select Go to resource.
On the azuredb@lab.LabInstance.Id page, on the leftmost service menu, select Migration.
On the Migration page, select + Create.
Enter the following settings:

Item Value

Migration name +++offlinemigration+++

Source server type On-premises server

Migration option Validate and migrate

Migration mode Offline
Select Next: Runtime server >.
On the Select Runtime Server step, leave the default option of No selected, then select Next: Source server >.

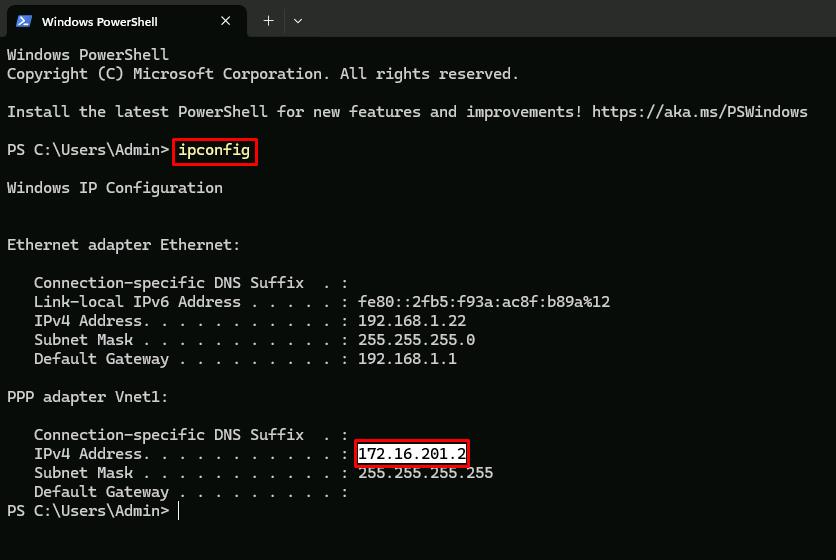

On the Windows taskbar, open Windows PowerShell.
Run
```
 ipconfig
```
Select and copy the IP address listed under the Vnet1 connection, then close PowerShell.

Select the text and select Ctrl+C to copy.
Enter the IP address in a notepad for future use:

When you see this @lab.TextBox(VPN) in a formula in the next steps, you need to replace it with the IP address for the VPN.

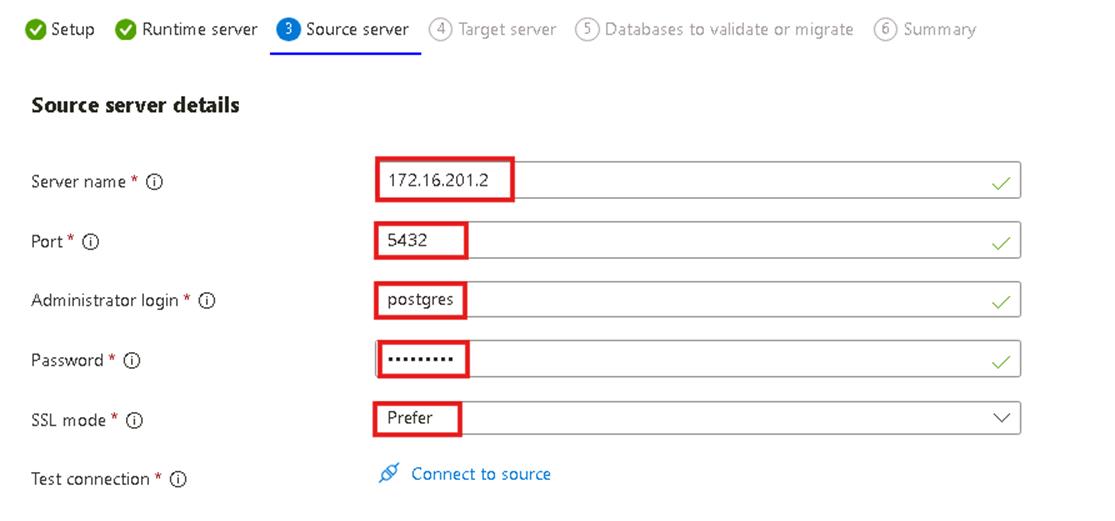

In Azure portal, on the Source server tab, configure the following settings:

Item Value

Server name @lab.Variable(VPN)

Port 5432

Administrator login postgres

Password Passw0rd!

SSL mode Prefer

Your IP may differ from the screenshot.
Select Connect to source.
Once the connection test completes, select Next: Target server >.
For Password, enter Passw0rd!, then select Connect to target.
Once the connection test completes, select Next: Databases to validate or migrate >.
Select the checkbox for Adventureworks, then select Next: Summary >.
Select Start validation and migration.

This process may take 3-4 minutes.

In an offline migration, all applications that connect to the source instance are stopped. The tradeoff is that it requires less configuration and performs faster. This can be useful in situations where downtime or maintenance is expected.
Select Refresh on the azuredb@lab.LabInstance.Id - Migration page periodically until the offlinemigration job is complete.
Once the migration is complete, select offlinemigration.
Everything should show as Succeeded. At the bottom, select the link to the Adventureworks database.
In the Validation and migration details for Adventureworks flyout menu, select the Migration tab.
Verify the Database Status shows as Succeeded and the Number of tables copied shows as 68.

Item	Value
TYPE	`host`
DATABASE	`all`
USER	`postgres`
ADDRESS	`@lab.Variable(privateIP)/24`
METHOD	`scram-sha-256`

Item	Value
Migration name	+++offlinemigration+++
Source server type	On-premises server
Migration option	Validate and migrate
Migration mode	Offline

Item	Value
Server name	`@lab.Variable(VPN)`
Port	`5432`
Administrator login	`postgres`
Password	`Passw0rd!`
SSL mode	Prefer

02: Perform online migration

Next, you will configure connection options and execute an online migration, ensuring minimal disruption and enabling the city to continue providing public services without extended downtime.

From Windows File Explorer, go to C:\Program Files\PostgreSQL\16\data.
Right-click postgresql.conf > Edit with Notepad.

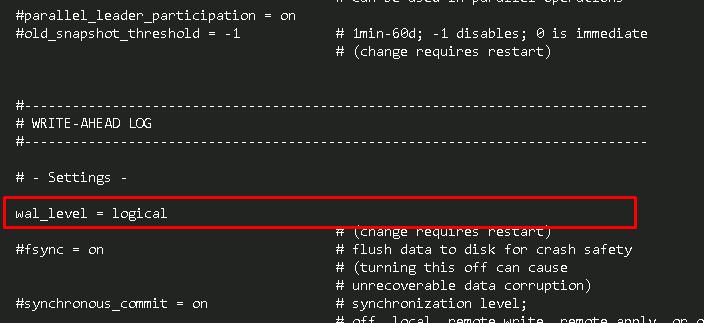

In Notepad, select Ctrl+F to find the value wal_level.
Delete the # at the start of the line to uncomment the setting.
Set the wal_level value to logical, and then remove the comment to the right.
Save and close the file.
A server restart is required for the changes to take effect. Right-click the Windows icon in the lower left, select Shut down or sign out, then select Restart to reboot the VM.
You’ll see a dialog to reconnect to the VM. Select Retry Connection.
Sign back in to the VM using your credentials:
Reconnect to the VPN. In the lower-right corner of the Windows Taskbar, right-click the network icon, then select Network and Internet settings.
Select VPN.
On the line for Vnet1, select Connect.
In the elevated privlege dialog, select Continue.
In the User Account Control dialog, select Yes.
Verify that Vnet1 is connected successfully. The word “Connected” should show under the Vnet1 connection.
Open Microsoft Edge. If your session is not restored, open it and go to portal.azure.com.
Sign in again to the Azure portal using your credentials.
From the Azure portal home page, select the azuredb@lab.LabInstance.Id Azure Database from the Recent list of resources.
On the azuredb@lab.LabInstance.Id page, select Migration from the leftmost service menu.
Select + Create.
Enter the following settings:

Item Value

Migration name +++onlinemigration+++

Source server type On-premises Server

Migration option Validate and Migrate

Migration mode Online

When switching from Offline to Online for the Migration mode, you might notice an additional prerequisite is added below. The additional prerequisite for the online connection is to set the WAL_LEVEL to logical in the source server. This is the reason for the extra configuration and server reboot earlier.
Select Next: Runtime server >.
On the Select Runtime Server tab, leave the default option of No selected and select Next: Source server >.

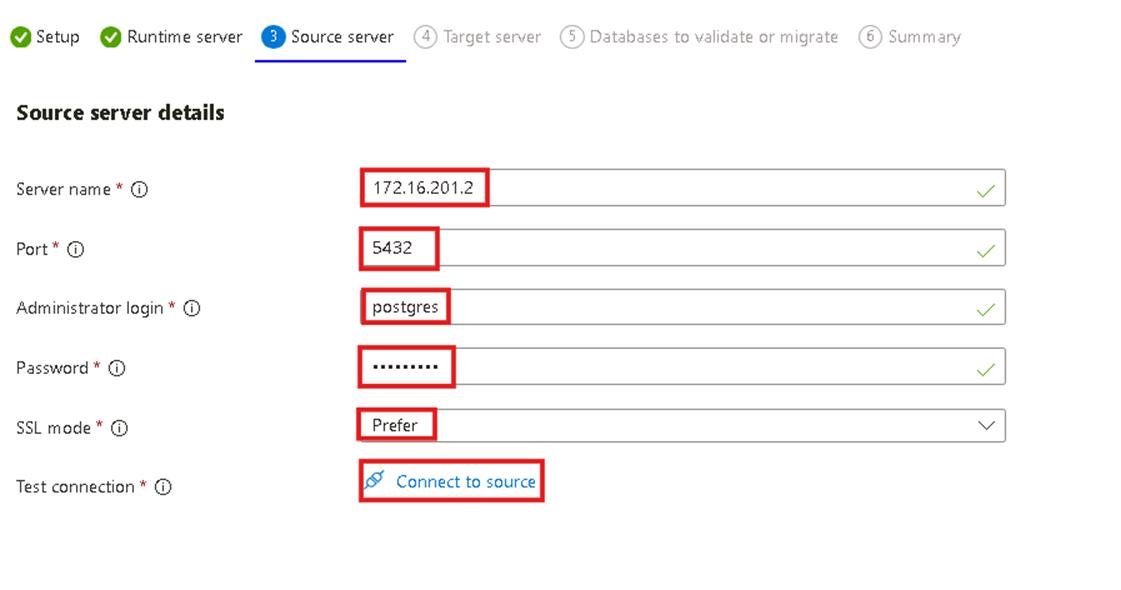

Enter the following settings:

Item Value

Server name @lab.Variable(VPN)

Port 5432

Administrator login postgres

Password Passw0rd!

SSL mode Prefer
Select Connect to source.
Once the connection test completes, select Next: Target server >.
For Password, enter Passw0rd!, then select Connect to target.
Once the connection test completes, select Next: Databases to validate or migrate >.
Select the checkbox for Adventureworks, then select Next: Summary >.

After selecting the Adventureworks database, there will be an additional checkbox. This is authorizing Azure to overwrite the data from the previous migration with the data from this one. In this case, the data is the same and we can proceed without fear of data loss. However, in a production environment, pay attention to this setting to determine when you’re about to overwrite data.
Select Start Validation and Migration.

This process may take 3-4 minutes.

An online migration has more steps and takes a bit more time, but the source server applications aren’t stopped in the process. Data is copied to the target server, then a cutover is performed to finalize the migration with no downtime in between.
Select Refresh on the azuredb@lab.LabInstance.Id - Migration page periodically until the onlinemigration job status shows as Waiting For Use.
From the Windows taskbar, select Windows PowerShell.
Run the following command to connect to the newly migrated Adventureworks database:
```
 psql -h @lab.Variable(privateIP) -p 5432 -U postgres Adventureworks
```
Enter @lab.VirtualMachine(Windows1124H2).Password for the password.

The text cursor for password entry does not move. You may need to select Enter a couple times.

The warning is safe to ignore.
Once connected to the Adventureworks database, run the following command:
```

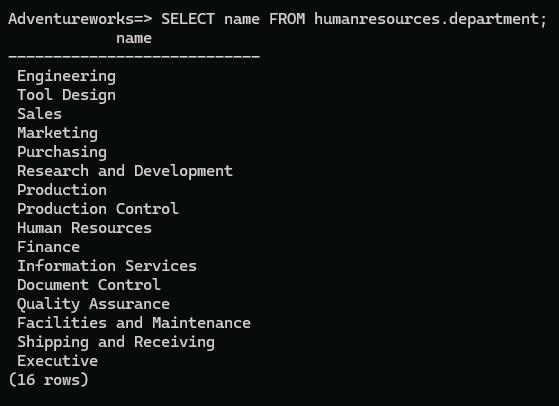

 SELECT name FROM humanresources.department;
```
This command should return a list of 16 rows, showing the records in the department table. Since the online migration hasn’t been completed yet, the data is being pulled from the offline migration performed earlier. With the online migration method, data can be added even after the migration has started, as long as the cutover hasn’t been performed yet. Let’s add a new row now to test this.

Item	Value
Migration name	+++onlinemigration+++
Source server type	On-premises Server
Migration option	Validate and Migrate
Migration mode	Online

Item	Value
Server name	`@lab.Variable(VPN)`
Port	`5432`
Administrator login	`postgres`
Password	`Passw0rd!`
SSL mode	Prefer

Run the following command to add a new row to the department table.

 INSERT INTO humanresources.department VALUES (17, 'Logistics', 'Inventory Management', DEFAULT);

Minimize the PowerShell connection, you’ll return to it later.
Return to the Azure portal and the azuredb@lab.LabInstance.Id - Migration page.
Select onlinemigration from the list.
On the onlinemigration page, select Cutover, then select Yes.

This process may take 5-7 minutes to complete.
Select Refresh on the onlinemigration page until the Validation status shows as Succeeded.
At the bottom of the onlinemigration page, select the link to the Adventureworks database.
In the Validation and migration details for Adventureworks flyout menu, select the Migration tab.
Verify the Database Status shows as Succeeded and the Number of tables copied shows as 69.
Return to the azuredb@lab.LabInstance.Id - Migration page selecting the breadcrumb link in the upper left.
Refresh the azuredb@lab.LabInstance.Id - Migration page and verify that the onlinemigration shows as Succeeded.
Go back to Windows PowerShell. You should still be connected to the Adventureworks database.
If you closed the window and need to reconnect, run the following command:
```
psql -h @lab.Variable(privateIP) -p 5432 -U postgres Adventureworks
```
Password: @lab.VirtualMachine(Windows1124H2).Password
Run the following command:
```
 SELECT name FROM humanresources.department;
```
We’re running this command again to check the row names in the department table. At the bottom of the results, notice that the Logistics record was migrated successfully.

Conclusion

Congratulations! You’ve successfully completed this task and have completed the Migrate an on-premises PostgreSQL server to Azure Database for PostgreSQL lab.
