Lab E4 - Enhance the API and Plugin
Do these labs if you want to build a Declarative agent where Microsoft 365 provides the AI model and orchestration
Table of Contents
In this lab you will add additional REST calls to the API and add them to the API Plugin packaging so Copilot can call them. In the process you will learn all the places where an API needs to be defined for Copilot.
Note
This lab builds on the previous one, Lab E3. You should be able to continue working in the same folder for labs E2-E6, but solution folders have been provided for your reference. The finished solution for this lab is in the /src/extend-m365-copilot/path-e-lab04-enhance-api-plugin/trey-research-lab04-END folder.
Exercise 1: Add /projects resource
In this exercise you will add a /projects resource to the Trey Research API. This will allow you to request information about projects using GET requests, and to assign a consultant to a project using a POST request. In the process, you'll learn about the appPackage/trey-Plugin.json and trey-definition.json files as you modify them to add the new projects API calls.
Step 1: Add Azure function code
To begin, create a new file, projects.ts in the /src/functions folder of your solution from Lab 2. Then copy the code from here.
This will implement a new Azure function to provide access to Trey Research projects
Step 2: Review the Azure function code (optional)
Let's take a moment to review the code.
This is a version 4 Azure function, so the code looks a lot like traditional Express code for NodeJS. The projects class implements an HTTP request trigger, which is called when the "/projects" path is accessed. This is followed by some in-line code that defines the methods and route. For now, access is anonymous; we'll add authentication in Lab E6.
export async function projects(
req: HttpRequest,
context: InvocationContext
): Promise<Response> {
// ...
}
app.http("projects", {
methods: ["GET", "POST"],
authLevel: "anonymous",
route: "projects/{*id}",
handler: projects,
});
The class includes a switch statement for handling GET vs. POST requests, and obtains the parameters from the URL path (in the case of a project ID), query strings (such as ?projectName=foo, in the case of a GET), and the request body (in the case of a POST). It then accesses the project data using the ProjectApiService, which was part of the starting solution. It also sends responses for each request and logging of requests to the debug console.
Step 3: Add HTTP test requests
Now let's add the new requests to the http/treyResearchAPI.http file so we can try them out. Open the file and add this text to the bottom, then save your changes, or copy the updated file from here
########## /api/projects - working with projects ##########
### Get all projects
{{base_url}}/projects
### Get project by id
{{base_url}}/projects/1
### Get project by project or client name
{{base_url}}/projects/?projectName=supply
### Get project by consultant name
{{base_url}}/projects/?consultantName=dominique
### Add consultant to project
POST {{base_url}}/projects/assignConsultant
Content-Type: application/json
{
"projectName": "contoso",
"consultantName": "sanjay",
"role": "architect",
"forecast": 30
}
Step 4: Test the new resource
If your app is still running from Lab 2, stop the debugger and restart it. Or, just start the debugger normally and wait for the app to start. When everything is ready, Teams Toolkit will display a web browser wanting you to log into Microsoft 365. Minimize this browser as you don't need it yet, but closing it would stop the debugger.
Now try sending the new requestsm and you should be able to see Trey Research project details or assign a new consultant to a project using the POST request.
Exercise 2: Add projects to the application package
The API plugin's application package is a zip file that contains all the information Copilot needs to use the API. In this exercise, you'll add information about the new /projects resource to the app package.
Step 1: Update the Open API Specifiction file
An important part of the application package is the Open API Specification (OAS) definition file. OAS defines a standard format for describing a REST API, and is based on the popular "Swagger" definition.
To begin, in the /appPackage folder, open the file trey-definition.json. Since editing large JSON files can be tricky, please just copy the updated file from here and save the new trey-definition.json. In the steps that follow, you can review and understand the changes.
Step 2: Review the updates (optional)
The first update was to add the /projects/ path to the paths collection in the JSON.
As you can see, this includes all the available query strings when retrieving the /projects/ resource, along with data types and required fields. It also includes the data that will be returned in API responses, including different payloads for status 200 (successful) and 400 (failed) responses.
"/projects/": {
"get": {
"operationId": "getProjects",
"summary": "Get projects matching a specified project name and/or consultant name",
"description": "Returns detailed information about projects matching the specified project name and/or consultant name",
"parameters": [
{
"name": "consultantName",
"in": "query",
"description": "The name of the consultant assigned to the project",
"required": false,
"schema": {
"type": "string"
}
},
{
"name": "projectName",
"in": "query",
"description": "The name of the project or name of the client",
"required": false,
"schema": {
"type": "string"
}
}
],
"responses": {
"200": {
"description": "Successful response",
"content": {
"application/json": {
"schema": {
"type": "object",
"properties": {
"results": {
"type": "array",
"items": {
"type": "object",
"properties": {
"name": {
"type": "string"
},
"description": {
"type": "string"
},
"location": {
"type": "object",
"properties": {
"street": {
"type": "string"
},
"city": {
"type": "string"
},
"state": {
"type": "string"
},
"country": {
"type": "string"
},
"postalCode": {
"type": "string"
},
"latitude": {
"type": "number"
},
"longitude": {
"type": "number"
},
"mapUrl": {
"type": "string",
"format": "uri"
}
}
},
"role": {
"type": "string"
},
"forecastThisMonth": {
"type": "integer"
},
"forecastNextMonth": {
"type": "integer"
},
"deliveredLastMonth": {
"type": "integer"
},
"deliveredThisMonth": {
"type": "integer"
}
}
}
},
"status": {
"type": "integer"
}
}
}
}
}
},
"404": {
"description": "Project not found"
}
}
}
},
You will also find that a path has been added at /projects/assignConsultant to handle the POST requests.
Descriptions are important!
This file, along with all the files in the app package, are going to be read by an intelligence. It may be artificial, but it's still intelligent enough to read the descriptions! You can help Copilot properly use your API by using descriptive names and descriptions in this and all the application package files!
Step 3: Add projects to the plugin definition file
Now open the file trey-plugin.json within the /appPackage folder. This file contains extra information not included in the OAS definition file. Replace the contents of trey-plugin.json with this updated JSON.
Step 4: Review the changes to the plugin definition file (optional)
The plugin JSON file contains a collection of functions, each of which corresponds to a type of API call. Copilot will choose among these functions when utilizing your plugin at runtime.
The new trey-plugin.json file includes new functions getProjects and postAssignConsultant. For example, here is getProjects:
{
"name": "getProjects",
"description": "Returns detailed information about projects matching the specified project name and/or consultant name",
"capabilities": {
"response_semantics": {
"data_path": "$.results",
"properties": {
"title": "$.name",
"subtitle": "$.description"
}
}
}
},
Notice that it includes some response_semantics which instruct Copilot in the important properties to mention when referring to a project in its responses. The POST request has a similar function:
{
"name": "postAssignConsultant",
"description": "Assign (add) consultant to a project when name, role and project name is specified.",
"capabilities": {
"response_semantics": {
"data_path": "$",
"properties": {
"title": "$.results.clientName",
"subtitle": "$.results.status"
}
},
"confirmation": {
"type": "AdaptiveCard",
"title": "Assign consultant to a project when name, role and project name is specified.",
"body": "* **ProjectName**: {{function.parameters.projectName}}\n* **ConsultantName**: {{function.parameters.consultantName}}\n* **Role**: {{function.parameters.role}}\n* **Forecast**: {{function.parameters.forecast}}"
}
}
}
It includes an adaptive card to be used in the confirmation card, which is shown to users to confirm an action prior to issuing a POST request.
Scrolling down, you can see the runtimes object which defines the type of plugin, the OAS definition file location, and a list of functions. The new functions have been added to the list.
"runtimes": [
{
"type": "OpenApi",
"auth": {
"type": "None"
},
"spec": {
"url": "trey-definition.json"
},
"run_for_functions": [
"getConsultants",
"getUserInformation",
"getProjects",
"postBillhours",
"postAssignConsultant"
]
}
],
Finally, it includes some conversation starters which are prompt suggestions shown to users; the new file has a conversation starter relating to projects.
"capabilities": {
"localization": {},
"conversation_starters": [
{
"text": "What Trey projects am i assigned to?"
},
{
"text": "Charge 5 hours to the Contoso project for Trey Research"
},
{
"text": "Which Trey consultants are Azure certified?"
},
{
"text": "Find a Trey consultant who is available now and has Python skills"
},
{
"text": "Add Avery as a developer on the Contoso project for Trey"
}
]
}
Exercise 3: Test the plugin in Copilot
Step 1: Restart the application
Stop and restart your project to force it to re-deploy the application package. You will be brought into Microsoft Teams. Once you're back in Copilot, open the right flyout 1️⃣ to show your previous chats and agents and select the Trey Genie Local agent 2️⃣.
Step 2: Prompt the Trey Genie

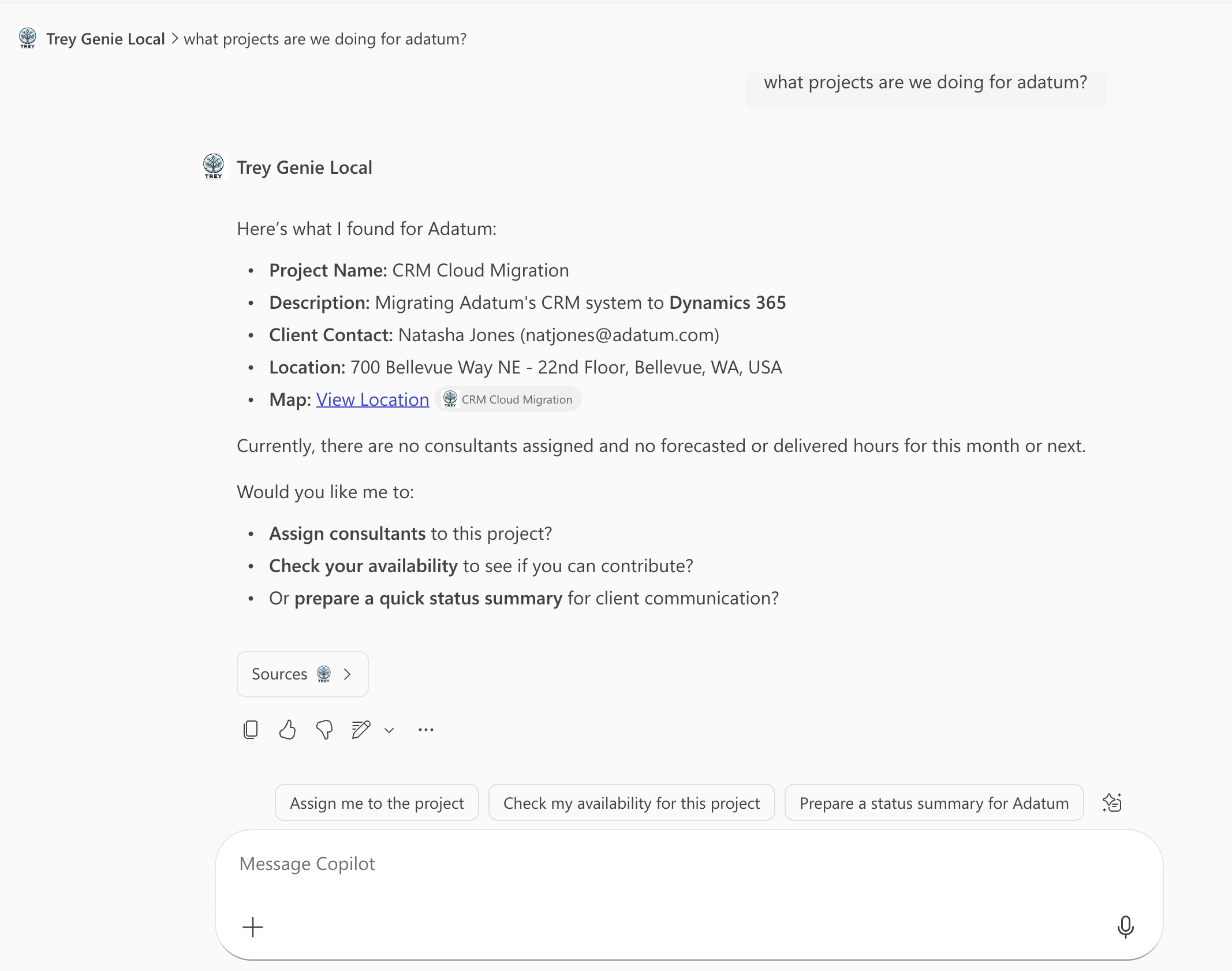

Now try a prompt such as "what projects are we doing for adatum?"

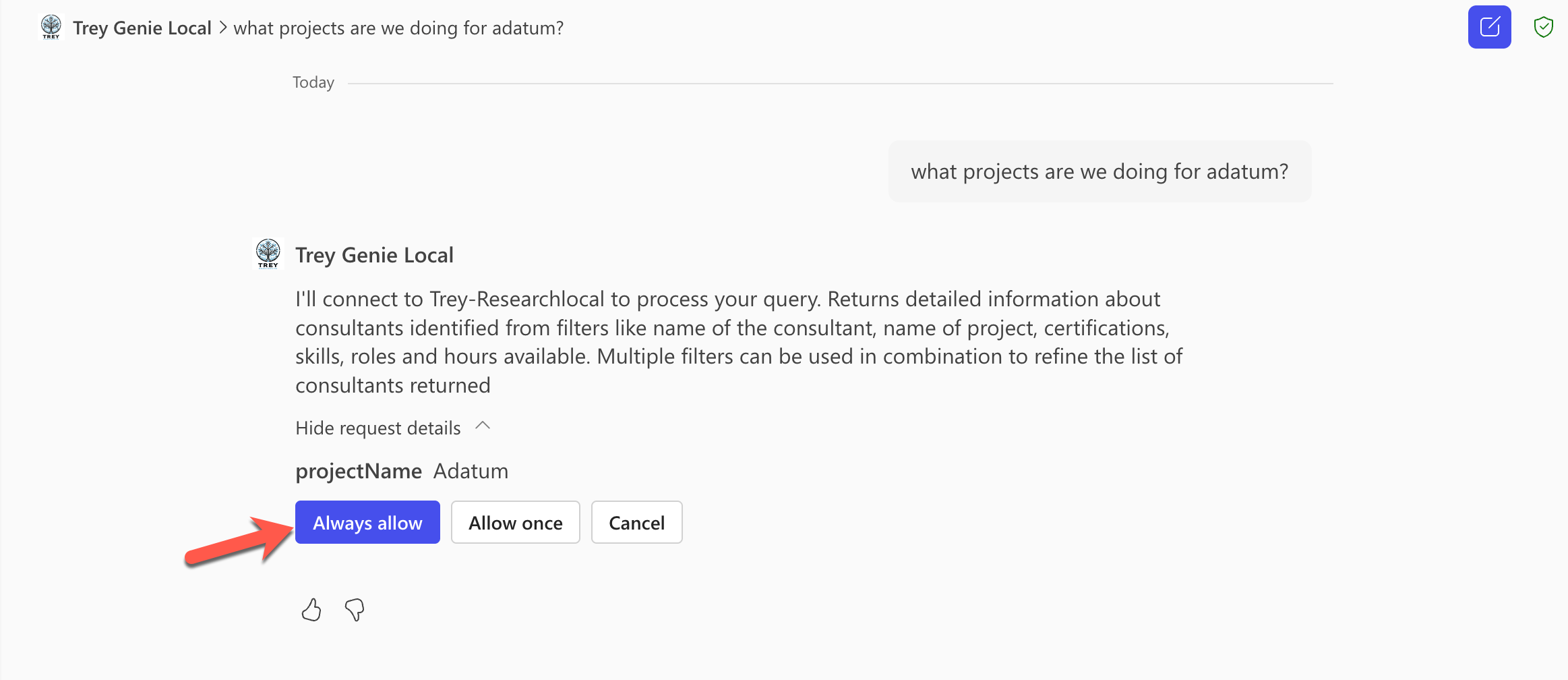

You may see a confirmation card, even for the GET request. If you do, allow the request to view the project details.
CONGRATULATIONS!
You've now completed enhancing your API plugin. You are now ready to proceed to the next lab to add rich card responses using adaptive cards.
