Forms are the Microsoft.UI.Reactor (Reactor) surface most apps spend most of their UI time inside. Every input control on this page follows the same controlled-input contract: you own the current value, you provide a change handler, the control renders what you pass and calls your handler when the user edits. There is no two-way Binding, no INotifyPropertyChanged, no DependencyProperty.SetValue — the value flows one direction (state → control) and edits flow one direction back (handler → state). That shape comes from hooks and components, and it makes every form testable: the form is whatever the UseState snapshot says it is. Validation layers on top through UseValidationContext and the .Validate(...) modifier — the validators run on every render, the FormField wrapper handles label / required marker / error display, and the ValidationContext tracks touched/dirty per field so errors only appear when the user has interacted. Read the controlled-input section first; everything else on this page is a specialization.

Forms and Input

Every form control in Reactor follows the controlled-input pattern: you own the value, you provide the change handler, and the control reflects your state. There is no two-way binding. The data always flows one direction.

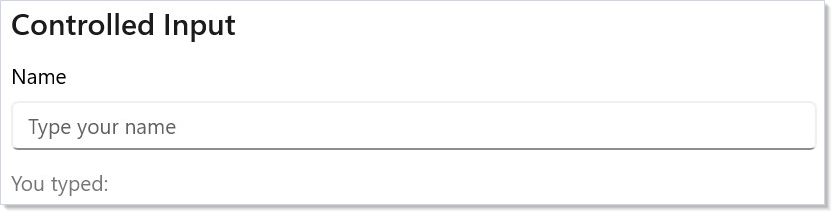

The Controlled-Input Pattern

Pass the current value and a setter. When the user types, onChange fires with the new value. You call the setter, Reactor re-renders, and the control shows the updated text:

class ControlledInputDemo : Component
{
    public override Element Render()
    {
        var (name, setName) = UseState("");

        return VStack(12,
            SubHeading("Controlled Input"),
            TextBox(name, setName, placeholderText: "Type your name",
                header: "Name"),
            TextBlock($"You typed: {name}").Opacity(0.6)
        ).Padding(24);
    }
}

This is the same UseState pattern from Getting Started, applied to form inputs. The control never holds its own state — your component is the single source of truth.

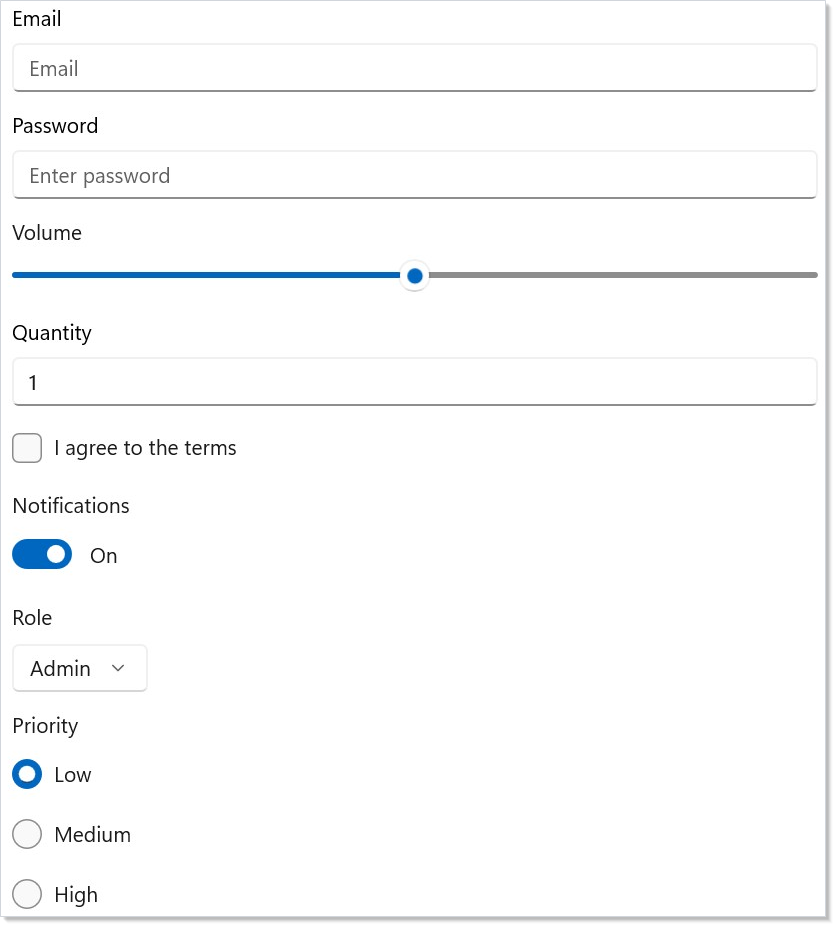

Input Control Types

Reactor provides controls for every common input type. Each follows the same pattern: current value in, change handler out.

class InputTypesDemo : Component
{
    public override Element Render()
    {
        var (text, setText) = UseState("");
        var (password, setPassword) = UseState("");
        var (volume, setVolume) = UseState(50.0);
        var (count, setCount) = UseState(1.0);
        var (agree, setAgree) = UseState(false);
        var (notify, setNotify) = UseState(true);
        var (role, setRole) = UseState(0);
        var (priority, setPriority) = UseState(0);

        return VStack(12,
            TextBox(text, setText, placeholderText: "Email",
                header: "Email"),
            PasswordBox(password, setPassword,
                placeholderText: "Enter password")
                .Header("Password"),
            Slider(volume, 0, 100, setVolume).Header("Volume"),
            NumberBox(count, setCount, header: "Quantity"),
            CheckBox(agree, setAgree, label: "I agree to the terms"),
            ToggleSwitch(notify, setNotify,
                header: "Notifications"),
            ComboBox(["Admin", "Editor", "Viewer"],
                role, setRole).Header("Role"),
            (RadioButtons(["Low", "Medium", "High"],
                priority, setPriority) with { Header = "Priority" })
        ).Padding(24);
    }
}

Control	Value type	Change handler
TextBox	string	Action<string>
PasswordBox	string	Action<string>
Slider	double	Action<double>
NumberBox	double	Action<double>
CheckBox	bool	Action<bool>
ToggleSwitch	bool	Action<bool>
ComboBox	int (index)	Action<int>
RadioButtons	int (index)	Action<int>

All controls accept optional parameters for labels, headers, and placeholder text. Check the API reference for each control's full signature.

Configuring TextBox

TextBox covers the common WinUI TextBox knobs through dedicated fluents so you rarely need .Set(...). The named-input shapes set the appropriate InputScope for soft-keyboard and IME hinting:

class TextBoxConfigDemo : Component
{
    public override Element Render()
    {
        var (qty, setQty) = UseState("");
        var (email, setEmail) = UseState("");
        var (url, setUrl) = UseState("");
        var (phone, setPhone) = UseState("");
        var (search, setSearch) = UseState("");
        var (note, setNote) = UseState("");

        return VStack(12,
            TextBox(qty, setQty, header: "Quantity")
                .NumericInput(),
            TextBox(email, setEmail, header: "Email")
                .EmailInput(),
            TextBox(url, setUrl, header: "URL")
                .UrlInput(),
            TextBox(phone, setPhone, header: "Phone")
                .PhoneInput(),
            TextBox(search, setSearch, placeholderText: "Search…",
                header: "Search")
                .SearchInput(),
            TextBox(note, setNote, header: "Reference code")
                .MaxLength(8)
                .CharacterCasing(CharacterCasing.Upper)
                .TextAlignment(TextAlignment.Center)
                .IsSpellCheckEnabled(false)
                .Description("Eight characters, automatically uppercased.")
        ).Padding(24);
    }
}

Fluent	Effect
.NumericInput()	InputScope = Number — numeric soft keyboard
.EmailInput()	InputScope = EmailSmtpAddress
.UrlInput()	InputScope = Url
.PhoneInput()	InputScope = TelephoneNumber
.SearchInput()	InputScope = Search
.MaxLength(n)	Caps input length at n characters
.IsSpellCheckEnabled(bool)	Toggles the squiggle underline
.CharacterCasing(casing)	Normal / Upper / Lower
.TextAlignment(alignment)	Aligns text within the field
.Description(text)	Helper text rendered below the field

These fluents chain freely; the named-input shapes are the canonical way to hint mobile / touch keyboards instead of reaching for .Set(c => c.InputScope = ...). See spec 039 §2.3 and §4.7 for the rationale.

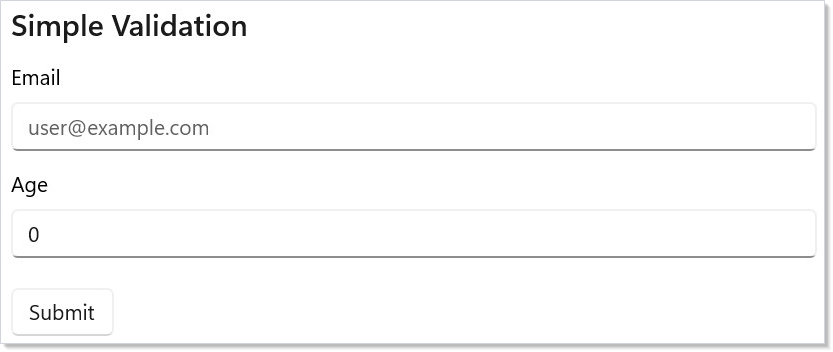

Simple Validation

For quick forms, derive validation from state. Compute booleans on every render, show inline error messages, and re-check the booleans inside the submit handler:

class ValidationDemo : Component
{
    public override Element Render()
    {
        var (email, setEmail) = UseState("");
        var (age, setAge) = UseState(0.0);
        var (showErrors, setShowErrors) = UseState(false);

        var emailValid = email.Contains('@') && email.Contains('.');
        var ageValid = age >= 18 && age <= 120;
        var formValid = emailValid && ageValid
            && !string.IsNullOrWhiteSpace(email);

        return VStack(12,
            SubHeading("Simple Validation"),
            TextBox(email, setEmail, placeholderText: "user@example.com",
                header: "Email"),
            When(!string.IsNullOrEmpty(email) && !emailValid, () =>
                TextBlock("Enter a valid email address")
                    .Foreground(Theme.SystemCritical).FontSize(12)),
            NumberBox(age, setAge, header: "Age"),
            When((showErrors || age > 0) && !ageValid, () =>
                TextBlock("Age must be between 18 and 120")
                    .Foreground(Theme.SystemCritical).FontSize(12)),
            Button("Submit", () =>
            {
                setShowErrors(true);
                if (!formValid) return;
                // submit...
            }).Margin(0, 8, 0, 0)
        ).Padding(24);
    }
}

This works well for small forms. For larger forms with cross-field rules, touched/dirty tracking, and error display policies, use the validation framework described next.

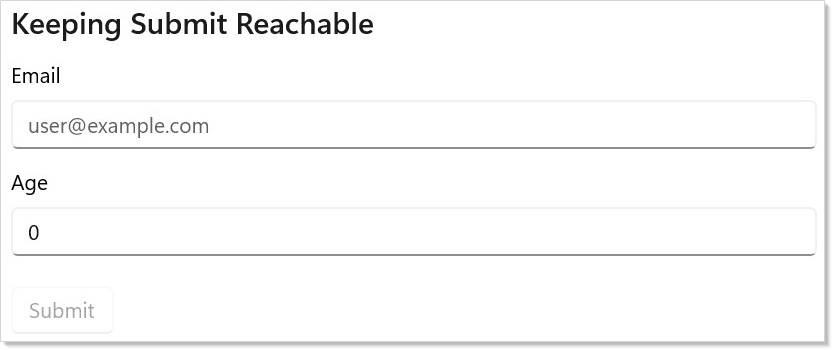

Keeping Submit Reachable

A common form pattern — disable the Submit button until the form is valid — is a keyboard accessibility trap when combined with controls like NumberBox, DatePicker, and CalendarDatePicker, which commit their value on blur rather than per keystroke. The user fixes the last invalid field, presses Tab to reach Submit, and focus skips the still-disabled button. By the time the field commits and Submit becomes enabled, focus has already moved on. The user is stranded with no keyboard route to a button they can now press.

Reactor offers two opt-in fixes for this. They compose:

class KeepSubmitReachableDemo : Component
{
    public override Element Render()
    {
        var (email, setEmail) = UseState("");
        var (age, setAge) = UseState(0.0);

        var emailValid = email.Contains('@') && email.Contains('.');
        var ageValid = age >= 18 && age <= 120;
        var formValid = emailValid && ageValid;

        return VStack(12,
            SubHeading("Keeping Submit Reachable"),
            TextBox(email, setEmail, header: "Email",
                placeholderText: "user@example.com"),

            // .Immediate() switches NumberBox from commit-on-blur to
            // commit-on-keystroke, so validation reacts as the user types.
            NumberBox(age, setAge, header: "Age").Immediate(),

            // .IsDisabledFocusable() keeps the button tab-reachable and
            // visually dimmed while preventing invocation. Pattern mirrors
            // Fluent UI's `disabledFocusable` and ARIA `aria-disabled`.
            Button("Submit", () => { /* submit */ })
                .IsDisabledFocusable(!formValid)
                .Margin(0, 8, 0, 0)
        ).Padding(24);
    }
}

.IsDisabledFocusable(bool) on Button keeps the button keyboard-focusable and tab-reachable while presenting it as disabled (dimmed; the click is suppressed). Mirrors Fluent UI React's disabledFocusable and ARIA's aria-disabled. Use it for any Submit gated on validation, busy state, or other derived conditions.

.Immediate() on NumberBox (in Microsoft.UI.Reactor.Controls.Validation) switches the control from commit-on-blur to commit-on-keystroke, so validation reacts to every parseable digit instead of waiting for focus to leave the field. Opt-in by design — commit-on-blur is the WinUI default and the right choice when an intermediate value would be expensive or surprising (snapping 2.50 to 2.5 mid-edit). Apply when validation gates UI state and you want it to feel live.

Use .IsDisabledFocusable() whenever a button is conditionally disabled in a form — even if you've also applied .Immediate() to every commit-on-blur input. The two cover different failure modes: .Immediate() keeps validity in sync with typing; .IsDisabledFocusable() keeps the button discoverable when validity is gated on async checks, required-but-untouched fields, cross-field rules, or any derived condition that can't be made instantaneous.

Where not to use .IsDisabledFocusable(): only buttons. For data-entry controls (TextBox, NumberBox, CheckBox, etc.), IsEnabled=false usually means "this field isn't part of your current task" (cascading from another input), and tab-skipping is the correct UX. Use IsReadOnly if you need a visible-but-non-editable text control.

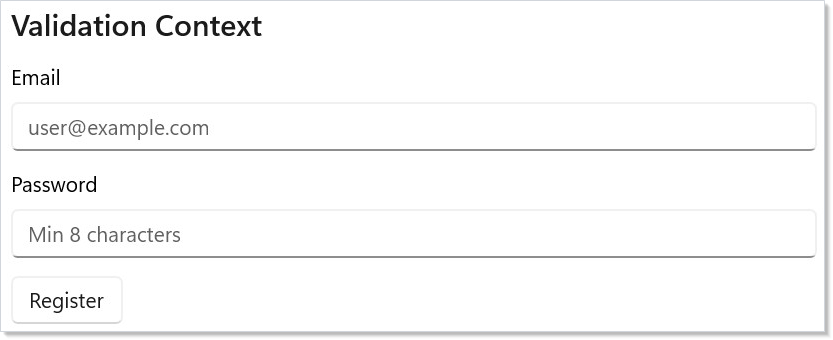

Validation Context

UseValidationContext() creates a ValidationContext that tracks messages, touched/dirty state, and field registration. Attach validators to controls with .Validate():

class ValidationContextDemo : Component
{
    public override Element Render()
    {
        var ctx = this.UseValidationContext();
        var (email, setEmail) = UseState("");
        var (password, setPassword) = UseState("");
        var (submitted, setSubmitted) = UseState(false);

        return VStack(12,
            SubHeading("Validation Context"),
            TextBox(email, v => { setEmail(v); ctx.NotifyValueChanged("email", v); },
                placeholderText: "user@example.com", header: "Email")
                .Validate("email", email,
                    Validate.Required(),
                    Validate.Email()),
            When(ctx.IsTouched("email") && ctx.HasError("email"), () =>
                TextBlock(ctx.GetMessages("email").First().Text)
                    .Foreground(Theme.SystemCritical).FontSize(12)),
            PasswordBox(password, v => { setPassword(v); ctx.NotifyValueChanged("password", v); },
                placeholderText: "Min 8 characters")
                .Header("Password")
                .Validate("password", password,
                    Validate.Required(),
                    Validate.MinLength(8)),
            When(ctx.IsTouched("password") && ctx.HasError("password"), () =>
                TextBlock(ctx.GetMessages("password").First().Text)
                    .Foreground(Theme.SystemCritical).FontSize(12)),
            Button("Register", () =>
            {
                ctx.MarkAllTouched();
                if (ctx.IsValid()) setSubmitted(true);
            }).IsEnabled(!submitted),
            When(submitted, () =>
                TextBlock("Registration successful!")
                    .Foreground(Theme.SystemSuccess).SemiBold())
        ).Padding(24);
    }
}

Key pieces:

• UseValidationContext() creates or retrieves the nearest validation context.
• .Validate(fieldName, value, validators...) attaches validators to a control.
• Validate.Required(), Validate.Email(), etc. are the 11 built-in validators.
• ctx.IsValid() returns true when no error-severity messages exist.
• ctx.MarkAllTouched() reveals all errors on submit attempt.

How validation runs

Four behaviours make the example above work without any extra wiring. They are worth knowing because they explain when a result becomes visible.

Validators run during render, not after it. The value-carrying .Validate(fieldName, value, …) overload evaluates its validators immediately and writes the result into the enclosing context. C# evaluates arguments left to right, so the .Validate(…) call above produces the verdict that the later When(ctx.HasError("email"), …) sibling reads — in the same pass. Put your error display after the field it describes and it will never lag a render behind.

The context is provided to the subtree for you. When UseValidationContext() creates a component-local context (nothing up the tree provided one), that context is published to whatever the component returns, so FormField, ValidationVisualizer, and nested components find it.

Writing .Provide(ValidationContexts.Current, ctx) yourself still works, and the value you provide is what descendants resolve. It does not redirect the providing component's own .Validate() calls: those already ran while the element tree was being built, against the context UseValidationContext() returned — the same reason UseContext can't observe a value the same component provides. To collect several components' fields into one context, provide it from a parent and let each child call UseValidationContext().

Mutating the context repaints the form. ctx.MarkAllTouched() changes no component state, so nothing else would schedule a render; the component that called UseValidationContext() re-renders when the context changes. Re-running the same validators over an unchanged value is silent, so this does not loop.

FormField marks its field touched on blur. That is what makes the default ShowWhen.WhenTouched work: focus the editor, move away, and the error replaces the description. Outside FormField — the hand-rolled example above — decide for yourself when a field counts as touched, typically ctx.MarkAllTouched() on a failed submit.

Attach-only cases. .Validate(fieldName, validators…) without a value has nothing to check: it records the validators and nothing else. Inside a FormField the field is still registered on mount, so MarkAllTouched() covers it, but the validators are not run — they would be checking null against a control that has a value. On a bare control the attachment is inert: no verdict and no registration. A value-carrying attachment built outside a render pass — cached in a field, assembled inside an event handler — has no context to reach at attach time, and that one FormField does run when it mounts. Pass the value if you want validators to run.

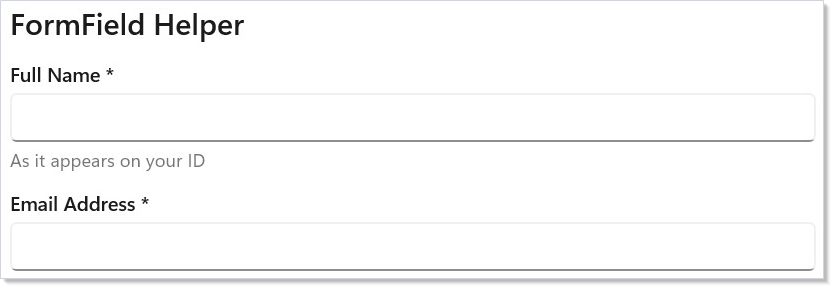

FormField Helper

FormField() wraps a control with a label, required indicator, description text, and inline error display:

class FormFieldDemo : Component
{
    public override Element Render()
    {
        var ctx = this.UseValidationContext();
        var (name, setName) = UseState("");
        var (email, setEmail) = UseState("");

        return VStack(12,
            SubHeading("FormField Helper"),
            FormField(
                TextBox(name, v => { setName(v); ctx.NotifyValueChanged("name", v); })
                    .AutomationName("Full Name")
                    .Validate("name", name, Validate.Required()),
                label: "Full Name",
                required: true,
                description: "As it appears on your ID"),
            FormField(
                TextBox(email, v => { setEmail(v); ctx.NotifyValueChanged("email", v); })
                    .AutomationName("Email Address")
                    .Validate("email", email,
                        Validate.Required(), Validate.Email()),
                label: "Email Address",
                required: true)
        ).Padding(24);
    }
}

FormField auto-detects the field name from the .Validate() attachment on its content. Errors appear below the field after the field is touched (focus then blur). The ShowWhen parameter controls when errors become visible: WhenTouched (default), WhenDirty, AfterFirstSubmit, Always, or Never.

Two of those need a signal you have to send yourself. WhenDirty compares against a baseline, so it stays silent until SetInitialValue(field, value) records one. AfterFirstSubmit waits for MarkAllTouched() — the call the submit handler above already makes — and ResetAll() puts it back. ShowWhen gates display only: IsValid() and GetMessages() are current from the first render whichever policy you pick.

Built-in Validators

Validator	Purpose
Validate.Required()	Non-null, non-empty, non-default
Validate.MinLength(n)	String length >= n
Validate.MaxLength(n)	String length <= n
Validate.Range(min, max)	Numeric value in range
Validate.Match(regex)	Regex pattern match
Validate.Email()	Valid email address
Validate.Url()	Valid URL (http/https)
Validate.Must<T>(predicate, message)	Custom predicate
Validate.MustAsync<T>(predicate, message)	Async predicate
Validate.MustBeTrue()	Boolean is true (checkboxes)
Validate.EqualTo<T>(value)	Equality check (password confirm)

Every validator accepts an optional custom error message as its last parameter.

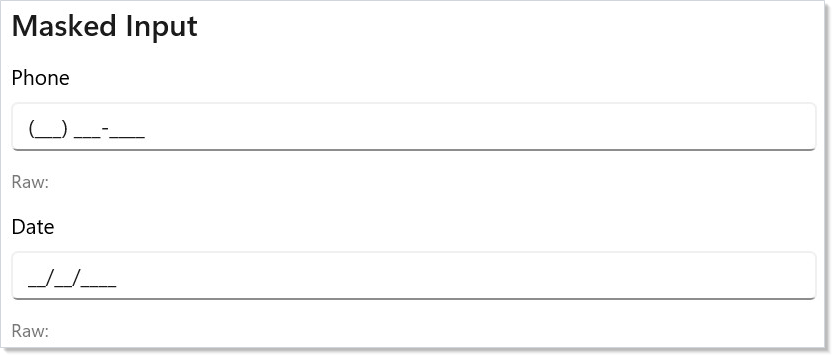

Masked Input

MaskEngine applies input masks with auto-inserted literals. Use the built-in presets or define your own pattern:

class MaskedInputDemo : Component
{
    public override Element Render()
    {
        var phoneMask = UseMemo(() => new MaskEngine(MaskPreset.PhoneUS));
        var dateMask = UseMemo(() => new MaskEngine(MaskPreset.Date));
        var (phone, setPhone) = UseState("");
        var (date, setDate) = UseState("");

        return VStack(12,
            SubHeading("Masked Input"),
            TextBox(phoneMask.Apply(phone), v => setPhone(phoneMask.GetRawValue(v)),
                placeholderText: "(___) ___-____", header: "Phone"),
            TextBlock($"Raw: {phone}").FontSize(12).Opacity(0.6),
            TextBox(dateMask.Apply(date), v => setDate(dateMask.GetRawValue(v)),
                placeholderText: "__/__/____", header: "Date"),
            TextBlock($"Raw: {date}").FontSize(12).Opacity(0.6)
        ).Padding(24);
    }
}

Mask tokens: 0 = required digit, 9 = optional digit, A = required letter, a = optional letter, * = required alphanumeric. All other characters are literals inserted automatically.

Preset	Pattern
MaskPreset.PhoneUS	(000) 000-0000
MaskPreset.SSN	000-00-0000
MaskPreset.CreditCard	0000 0000 0000 0000
MaskPreset.Date	00/00/0000
MaskPreset.ZipCode	00000
MaskPreset.IPv4	099.099.099.099

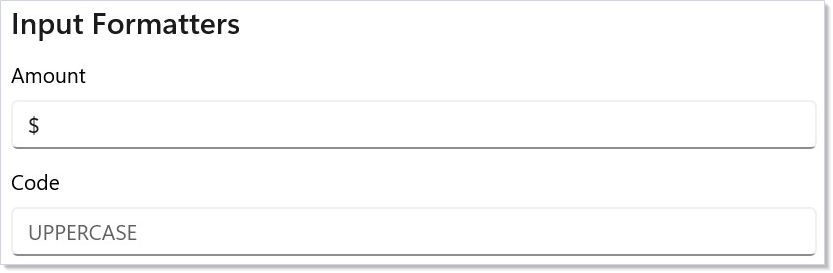

Input Formatters

InputFormatter transforms text as the user types. Chain formatters into a pipeline for complex formatting:

class InputFormattersDemo : Component
{
    public override Element Render()
    {
        var (currency, setCurrency) = UseState("");
        var (upper, setUpper) = UseState("");

        var currencyFmt = UseMemo(() => InputFormatter.Currency());
        var upperFmt = UseMemo(() => InputFormatter.UpperCase);

        return VStack(12,
            SubHeading("Input Formatters"),
            TextBox(currencyFmt.Format(currency, 0).Output,
                v => setCurrency(currencyFmt.Parse(v)),
                placeholderText: "$0.00", header: "Amount"),
            TextBox(upperFmt.Format(upper, 0).Output,
                v => setUpper(upperFmt.Parse(v)),
                placeholderText: "UPPERCASE", header: "Code")
        ).Padding(24);
    }
}

Built-in formatters: PhoneUS, Currency(), UpperCase, LowerCase, TitleCase, TrimWhitespace, MaxLength(n), AllowOnly(regex), DenyOnly(regex), and Custom(format, parse).

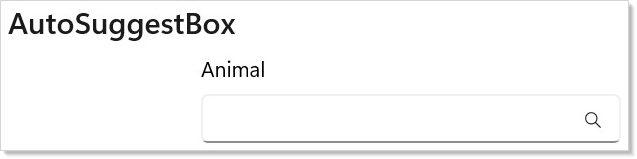

AutoSuggestBox

AutoSuggestBox is the search-with-suggestions input — type a prefix, see a filtered list, pick one or submit free-form. The factory takes the text value, an onTextChanged handler, and an optional onQuerySubmitted handler that fires on Enter or suggestion pick:

class AutoSuggestDemo : Component
{
    static readonly string[] Catalog =
    [
        "Aardvark", "Albatross", "Antelope", "Badger",
        "Beaver", "Buffalo", "Camel", "Capybara"
    ];

    public override Element Render()
    {
        var (text, setText) = UseState("");

        var matches = string.IsNullOrEmpty(text)
            ? Array.Empty<string>()
            : Catalog.Where(c =>
                c.StartsWith(text, StringComparison.OrdinalIgnoreCase))
                .ToArray();

        return VStack(8,
            SubHeading("AutoSuggestBox"),
            AutoSuggestBox(text, setText,
                onQuerySubmitted: q => setText(q))
                .Header("Animal")
                .QueryIcon(SymbolIcon("Find"))
                .Width(280),
            // Suggestion list — bind to AutoSuggestBox.ItemsSource via .Set
            // when you need the in-control dropdown; the inline list below
            // is a custom presentation that gives full styling control.
            When(matches.Length > 0, () =>
                VStack(2,
                    ForEach(matches, m =>
                        TextBlock(m).Padding(8, 4).WithKey(m))
                ).Background(Theme.CardBackground).Width(280))
        ).Padding(24);
    }
}

Fluent	Effect
.Header(string)	Label rendered above the box.
.QueryIcon(IconData)	Trailing icon (a search glyph is typical).
.IsSuggestionListOpen(bool)	Force the dropdown open/closed.
.SuggestionChosen(Action<string>)	Fires when the user picks an item from the underlying dropdown.
.Set(b => b.ItemsSource = ...)	Bind to the WinUI suggestion list.

The snippet above renders an inline suggestion list as a custom presentation — more layout freedom than the built-in dropdown, at the cost of writing the visual surface yourself. For the canonical search-results recipe see recipes/search-with-suggestions.

WinUI design page: Auto-suggest box.

Date and time controls

Reactor exposes three date/time inputs and a calendar surface, each covering a different shape of the same problem:

Control	Value	Shape	Use when
DatePicker	DateTimeOffset (non-null)	Inline three-spinner picker	The date is always required and inline real estate is available.
CalendarDatePicker	DateTimeOffset?	Button that opens a popup calendar	Date is optional; you want a compact trigger.
CalendarView	IReadOnlyList<DateTimeOffset>	Full month grid	Single, multiple, or range selection from a grid.
TimePicker	TimeSpan	Hours / minutes / am-pm spinner	Time-of-day independent of a date.

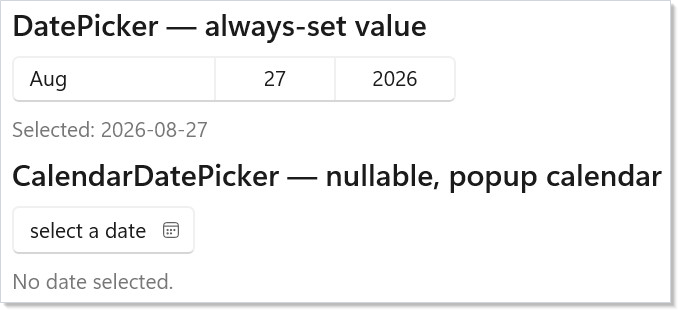

class DatePickerDemo : Component
{
    public override Element Render()
    {
        var (date, setDate) = UseState(DateTimeOffset.Now);
        var (optionalDate, setOptionalDate) = UseState<DateTimeOffset?>(null);

        return VStack(8,
            SubHeading("DatePicker — always-set value"),
            DatePicker(date, setDate)
                .DayFormat("{day.integer(2)}")
                .MonthFormat("{month.abbreviated}")
                .YearFormat("{year.full}"),
            TextBlock($"Selected: {date:yyyy-MM-dd}").Opacity(0.6),
            SubHeading("CalendarDatePicker — nullable, popup calendar"),
            CalendarDatePicker(optionalDate, setOptionalDate)
                .DateFormat("{month.abbreviated} {day.integer(2)}, {year.full}")
                .IsTodayHighlighted(),
            TextBlock(optionalDate is null
                ? "No date selected."
                : $"Selected: {optionalDate:yyyy-MM-dd}").Opacity(0.6)
        ).Padding(24);
    }
}

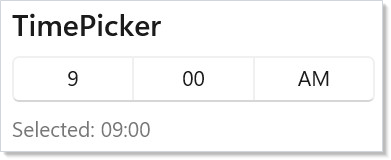

class TimePickerDemo : Component
{
    public override Element Render()
    {
        var (time, setTime) = UseState(TimeSpan.FromHours(9));

        return VStack(8,
            SubHeading("TimePicker"),
            TimePicker(time, setTime),
            TextBlock($"Selected: {time:hh\\:mm}").Opacity(0.6)
        ).Padding(24);
    }
}

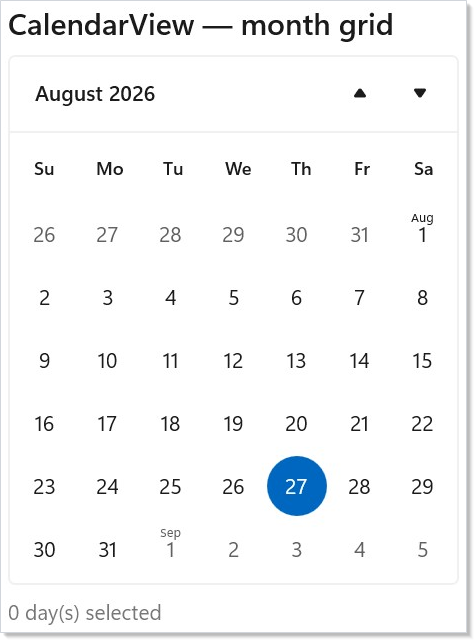

class CalendarViewDemo : Component
{
    public override Element Render()
    {
        var (dates, setDates) = UseState<IReadOnlyList<DateTimeOffset>>(
            Array.Empty<DateTimeOffset>());

        return VStack(8,
            SubHeading("CalendarView — month grid"),
            CalendarView()
                .MinDate(DateTimeOffset.Now.AddYears(-1))
                .MaxDate(DateTimeOffset.Now.AddYears(1))
                .NumberOfWeeksInView(6)
                .SelectedDatesChanged(setDates)
                .SelectedDates(dates),
            TextBlock($"{dates.Count} day(s) selected").Opacity(0.6)
        ).Padding(24);
    }
}

DatePicker / TimePicker / CalendarDatePicker share their format strings with the underlying WinUI DateTimeFormatter — "{day.integer(2)}", "{month.abbreviated}", "{year.full}", and friends. CalendarView exposes .MinDate / .MaxDate for range constraint and .NumberOfWeeksInView to compress the grid. For multi-day selection, pair .SelectedDates(...) with .SelectedDatesChanged(...) — the event hands you the full snapshot of the current selection, not add/remove deltas (same shape as ListView multi-select).

WinUI design pages: Date picker, Time picker, Calendar view.

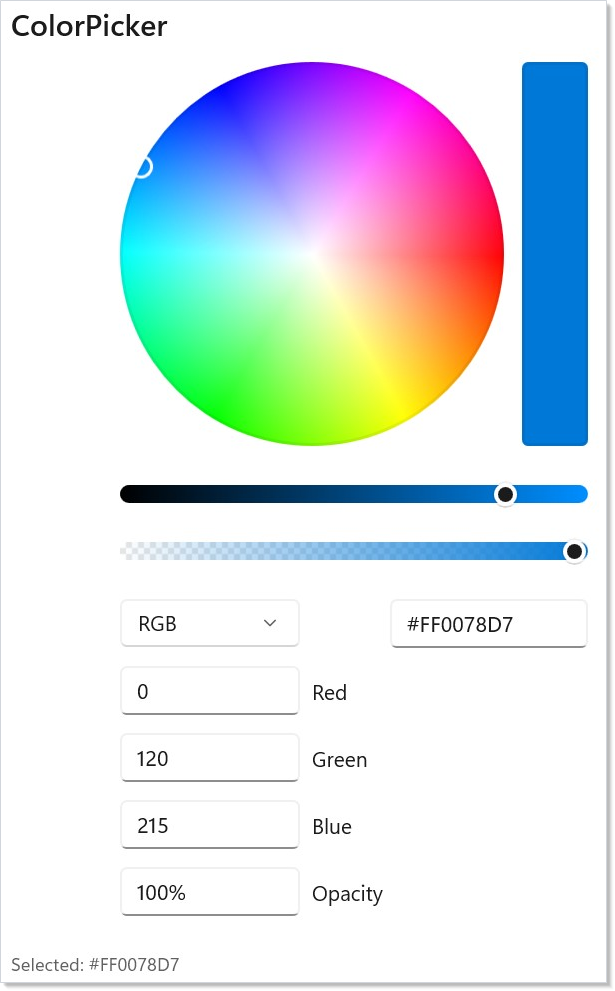

ColorPicker

ColorPicker takes a Windows.UI.Color and a change handler — same controlled pattern as Slider. Its surface is the largest of any input on this page; configure it for the shape of the chooser you need:

class ColorPickerDemo : Component
{
    public override Element Render()
    {
        var (color, setColor) = UseState(
            global::Windows.UI.Color.FromArgb(255, 0, 120, 215));

        return VStack(8,
            SubHeading("ColorPicker"),
            ColorPicker(color, setColor)
                .AlphaEnabled()
                .HexInputVisible(true)
                .ColorSpectrumShape(
                    Microsoft.UI.Xaml.Controls.ColorSpectrumShape.Ring),
            TextBlock($"Selected: #{color.A:X2}{color.R:X2}{color.G:X2}{color.B:X2}")
                .FontSize(12)
                .Foreground(Theme.SecondaryText)
        ).Padding(24);
    }
}

Fluent	Effect
.AlphaEnabled(bool)	Show the alpha slider and pre-multiply by the alpha value.
.ColorSpectrumShape(shape)	Box (default) or Ring.
.HexInputVisible(bool)	Toggle the hex-input field.
.ColorSpectrumVisible(bool)	Toggle the main 2D spectrum.
.ColorSliderVisible(bool)	Toggle the hue slider.
.ColorChannelTextInputVisible(bool)	Toggle RGB number inputs.
.HueRange(min, max) / .SaturationRange(min, max) / .ValueRange(min, max)	Constrain pickable hue / sat / value.
.MoreButtonVisible(bool)	"More" chevron that expands the picker.

For palette pickers (Material-style swatch grids), build the surface out of Buttons and Background(color) rather than this control — ColorPicker is the right shape only when the user needs continuous selection from the full color space.

WinUI design page: Color picker.

Caveat: Commit-on-blur inputs (NumberBox, DatePicker, CalendarDatePicker, TimePicker) do not fire their change handlers per keystroke — they fire when focus leaves the field. Validation derived from these controls' values is therefore stale until the user tabs out. The classic failure mode: a Submit button disabled until the form is valid stays disabled while the user is still inside a NumberBox that already contains a valid value. The user fixes the last field, presses Tab to reach Submit, focus skips the still-disabled button, and the user is stranded. Two fixes compose: .Immediate() on the input switches it to per-keystroke commit (see Keeping Submit Reachable), and .IsDisabledFocusable() on the Submit button keeps it keyboard-focusable while it's gated.

Patterns

Multi-step form with shared ValidationContext

A wizard-style form spans multiple pages but the validation lives in one place. Hoist UseValidationContext() to the wizard component and pass it down via context — every step's .Validate(...) writes to the same store, and the final Submit checks ctx.IsValid() across all steps. The recipes/multi-step-form recipe walks the full pattern; the key shape is one context per form, not one per page.

Submit on Enter

For a single-field form (search box, comment input), wire submission to Enter rather than a Submit button. AutoSuggestBox does this automatically via onQuerySubmitted. For TextBox, route through .OnKeyDown and check for VirtualKey.Enter; see input-and-gestures for the routed-events surface.

Validating async (uniqueness checks)

Validate.MustAsync<T>(...) runs a predicate that returns Task<bool>. Unlike the synchronous validators, an async attachment is never run for you: .ValidateAsync(field, value, …) attaches the validators and registers the field, and nothing else. A render pass is synchronous, so there is nowhere for it to await them.

Run them yourself from an effect, through ValidationReconciler.ValidateFieldAsync, which carries the generation guard that discards a result the user has already typed past:

class AsyncValidationDemo : Component
{
    static async Task<bool> IsEmailFree(string value)
    {
        await Task.Delay(300);
        return value != "taken@example.com";
    }

    public override Element Render()
    {
        var ctx = this.UseValidationContext();
        var (email, setEmail) = UseState("");

        // Async validators are never run for you: a render pass is synchronous, so
        // there is nowhere for it to await them. Drive them from an effect, through
        // ValidateFieldAsync, whose generation guard discards a result the user has
        // already typed past.
        UseEffect(() =>
        {
            var cts = new CancellationTokenSource();
            if (email.Length > 0)
            {
                // Observed, not discarded. `_ = SomeTask()` drops the returned task on
                // the floor, so a uniqueness check that fails for a real reason — the
                // network is down, the service 500s — vanishes silently and the field
                // just never gets a verdict. Await it inside a local async helper and
                // handle the two outcomes separately.
                _ = RunCheckAsync(cts.Token);
            }
            // Cancel on cleanup so the superseded check cannot install its verdict, and
            // dispose the source with it — the effect allocates a fresh one per run.
            // Note this does not interrupt work already in flight: `Validate.MustAsync`
            // awaits your predicate without a token and only observes cancellation once
            // it returns. Take a `CancellationToken` in the predicate itself if you need
            // the request abandoned rather than its result discarded.
            return () =>
            {
                try { cts.Cancel(); }
                finally { cts.Dispose(); }
            };

            async Task RunCheckAsync(CancellationToken token)
            {
                try
                {
                    await ValidationReconciler.ValidateFieldAsync(
                        ctx, "email", email,
                        [Validate.MustAsync<string>(IsEmailFree, "Email is taken")],
                        token);
                }
                catch (OperationCanceledException)
                {
                    // Expected: the user typed again and this check was superseded.
                }
                catch (Exception ex)
                    when (ex is not OutOfMemoryException and not StackOverflowException)
                {
                    // Anything else is a real failure — the network is down, the service
                    // erroring. Surface it however your app reports background faults;
                    // here, as a message on the field so it cannot pass silently.
                    //
                    // Deliberately broad rather than a list of expected exception types:
                    // the predicate is yours, so the framework cannot know what it can
                    // throw, and enumerating types means the one you forgot disappears.
                    // The filter excludes only the two that must never be caught. This
                    // is the same shape the framework itself uses for app callbacks
                    // (see CompositeLifecycle.RunAsyncRuleAsync).
                    ctx.AddExternal("email", $"Could not check availability: {ex.Message}");
                }
            }
        }, email);

        return VStack(12,
            SubHeading("Async Validation"),
            TextBox(email, v => { setEmail(v); ctx.NotifyValueChanged("email", v); },
                placeholderText: "user@example.com", header: "Email"),
            When(ctx.HasError("email"), () =>
                TextBlock(ctx.GetMessages("email").First().Text)
                    .Foreground(Theme.SystemCritical).FontSize(12))
        ).Padding(24);
    }
}

Track the in-flight state with your own UseState flag if the Submit button should disable while the check runs — the context does not expose one. Pair that with .IsDisabledFocusable() so the button stays in tab order while validating — same accessibility concern as Keeping Submit Reachable.

For a cross-field async check, ValidationRuleAsync is run for you when it is placed in the element tree, with cancellation on update and unmount.

Common Mistakes

Letting the control hold its own state

// Don't — there is no `initial:` parameter. The bare string binds a value
// with no `onChanged`, so it seeds the box and then nothing reads it back:
// the user's typing lives only in the native control:
TextBox("default value")

class ControlledInputDemo : Component
{
    public override Element Render()
    {
        var (name, setName) = UseState("");

        return VStack(12,
            SubHeading("Controlled Input"),
            TextBox(name, setName, placeholderText: "Type your name",
                header: "Name"),
            TextBlock($"You typed: {name}").Opacity(0.6)
        ).Padding(24);
    }
}

The distinction that matters is not "controlled vs. uncontrolled" but whether the binding is complete. Omit the value entirely and the control owns its own state, which the parent cannot read, reset, or pre-fill. Pass a value without onChanged — as above — and you get a half binding: the value is pre-filled and the parent can still replace it by passing a different one, but nothing flows back. The user's edits stay in the native control and never reach application state, so a later read of your state returns the original string as if nothing was typed.

Note this does not fight the user keystroke-by-keystroke: the element is unchanged between renders, so the reconciler's shallow-equality skip fires and never re-writes the box. That is what makes the bug quiet — the text looks accepted and is simply never collected. If the text really is fixed, say so with .IsReadOnly(true); otherwise supply both halves. Reactor inputs take (value, onChanged) together; supply both and the control is a passive view of state.

Validating in the click handler

// Don't:
Button("Submit", () =>
{
    if (string.IsNullOrEmpty(email)) { setError("…"); return; }
    if (!email.Contains('@'))         { setError("…"); return; }
    if (age < 18)                      { setError("…"); return; }
    // submit…
})

Imperative checks duplicate every field's validation in the submit handler, drift from the inline error display, and fall out of date when fields are added. Use UseValidationContext + .Validate(...) so each field carries its rules with it; the submit handler becomes one ctx.IsValid() call.

Tips

Always use controlled inputs. Never let a control manage its own state. Your Render() method is the single source of truth — if you need to pre-fill, validate, or reset a field, you just set the state value.

Use FormField for production forms. It handles labels, required indicators, and error display with consistent styling. Avoid building your own field wrapper.

Use Validate.Must<T>() for custom rules. When built-in validators don't cover your case, Must takes any Func<T, bool> predicate.

Call ctx.MarkAllTouched() on submit. This reveals all validation errors at once, so the user sees everything that needs fixing.

Reset forms with ctx.ResetAll(). It returns all fields to their initial values, clears touched/dirty state, and removes all messages.

Next Steps

• Flex Layout — Previous: flexible box layout for adaptive UIs
• Collections — Next: render lists, grids, and virtualized data sets
• Hooks — UseState, UseMemo, and other hooks that power form logic
• Commanding — wire submit buttons to async commands with busy/error handling
• Styling and Theming — theme your forms with tokens and lightweight styling
