⚙️ Settings

You can add a settings page that allows users to configure settings for your app.

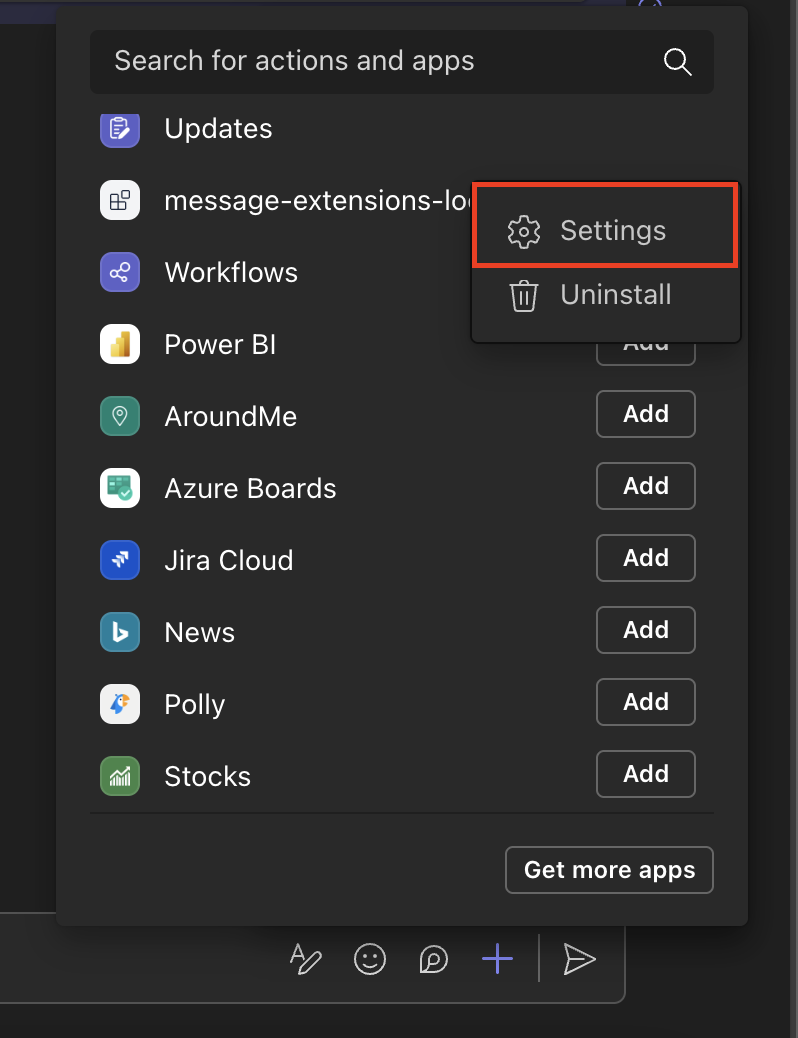

The user can access the settings by right-clicking the app item in the compose box


Settings

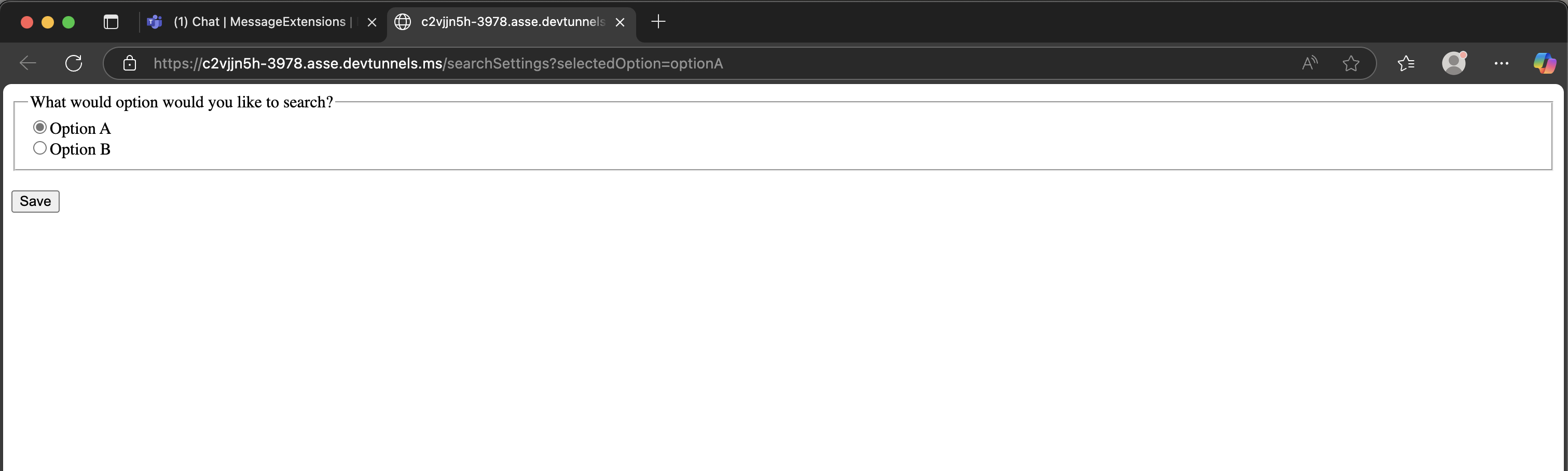

This guide will show how to enable user access to settings, as well as setting up a page that looks like this:

Settings Page

1. Update the Teams Manifest​

Set the canUpdateConfiguration field to true in the desired message extension under composeExtensions.

"composeExtensions": [
    {
        "botId": "${{BOT_ID}}",
        "canUpdateConfiguration": true,
        ...
    }
]

2. Serve the settings html page​

This is the code snippet for the settings html page:

<!DOCTYPE html>
<html>
<head>
  <title>Message Extension Settings</title>
  <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/css/bootstrap.min.css">
  <script src="https://statics.teams.cdn.office.net/sdk/v1.11.0/js/MicrosoftTeams.min.js"></script>
  <style>
    body { margin: 0; padding: 10px; }
    .form-group { margin-bottom: 10px; }
  </style>
</head>
<body>
  <div class="container">
    <h3>Message Extension Settings</h3>
    <form id="settingsForm">
      <div class="form-group">
        <label>Selected Option:</label>
        <select class="form-control" id="selectedOption" name="selectedOption">
          <option value="">Please select an option</option>
          <option value="option1">Option 1</option>
          <option value="option2">Option 2</option>
          <option value="option3">Option 3</option>
        </select>
      </div>
      <button type="submit" class="btn btn-primary">Save Settings</button>
    </form>
  </div>

  <script>
    microsoftTeams.initialize();

    // Get the selectedOption from URL parameters
    const urlParams = new URLSearchParams(window.location.search);
    const selectedOption = urlParams.get('selectedOption');
    if (selectedOption) {
      document.getElementById('selectedOption').value = selectedOption;
    }

    document.getElementById('settingsForm').addEventListener('submit', function(event) {
      event.preventDefault();
      let selectedValue = document.getElementById('selectedOption').value;
      microsoftTeams.tasks.submitTask(selectedValue);
    });
  </script>
</body>
</html>

Save it in the index.html file in the same folder as where your app is initialized.

You can serve it by adding the following code to your app:

// In your startup configuration (Program.cs or Startup.cs)
app.UseStaticFiles();
app.MapGet("/tabs/settings", async context =>
{
    var html = await File.ReadAllTextAsync("wwwroot/settings.html");
    context.Response.ContentType = "text/html";
    await context.Response.WriteAsync(html);
});
note

This will serve the HTML page to the ${BOT_ENDPOINT}/tabs/settings endpoint as a tab.

3. Specify the URL to the settings page​

To enable the settings page, your app needs to handle the message.ext.query-settings-url activity that Teams sends when a user right-clicks the app in the compose box. Your app must respond with the URL to your settings page. Here's how to implement this:

using Microsoft.Teams.Api.Cards;
using Microsoft.Teams.Cards;

[MessageExtension.QuerySettingsUrl]
public Microsoft.Teams.Api.MessageExtensions.Response OnMessageExtensionQuerySettingsUrl(
    [Context] Microsoft.Teams.Api.Activities.Invokes.MessageExtensions.QuerySettingsUrlActivity activity,
    [Context] IContext.Client client,
    [Context] Microsoft.Teams.Common.Logging.ILogger log)
{
    log.Info("[MESSAGE_EXT_QUERY_SETTINGS_URL] Settings URL query received");

    // Get user settings (this could come from a database or user store)
    var selectedOption = ""; // Default or retrieve from user preferences

    var botEndpoint = Environment.GetEnvironmentVariable("BOT_ENDPOINT") ?? "https://your-bot-endpoint.com";
    var settingsUrl = $"{botEndpoint}/tabs/settings?selectedOption={Uri.EscapeDataString(selectedOption)}";

    var settingsAction = new CardAction
    {
        Type = CardActionType.OpenUrl,
        Title = "Settings",
        Value = settingsUrl
    };

    var suggestedActions = new Microsoft.Teams.Api.MessageExtensions.SuggestedActions
    {
        Actions = new List<CardAction> { settingsAction }
    };

    var result = new Microsoft.Teams.Api.MessageExtensions.Result
    {
        Type = Microsoft.Teams.Api.MessageExtensions.ResultType.Config,
        SuggestedActions = suggestedActions
    };

    return new Microsoft.Teams.Api.MessageExtensions.Response
    {
        ComposeExtension = result
    };
}

4. Handle Form Submission​

When a user submits the settings form, Teams sends a message_ext_setting activity with the selected option in the activity.value.state property. Handle it to save the user's selection:

[MessageExtension.Setting]
public Microsoft.Teams.Api.MessageExtensions.Response OnMessageExtensionSetting(
    [Context] Microsoft.Teams.Api.Activities.Invokes.MessageExtensions.SettingActivity activity,
    [Context] IContext.Client client,
    [Context] Microsoft.Teams.Common.Logging.ILogger log)
{
    log.Info("[MESSAGE_EXT_SETTING] Settings submission received");

    var state = activity.Value?.State;
    log.Info($"[MESSAGE_EXT_SETTING] State: {state}");

    if (state == "CancelledByUser")
    {
        log.Info("[MESSAGE_EXT_SETTING] User cancelled settings");
        return CreateEmptyResult();
    }

    var selectedOption = state;
    log.Info($"[MESSAGE_EXT_SETTING] Selected option: {selectedOption}");

    // Here you would typically save the user's settings to a database or user store
    // SaveUserSettings(activity.From.Id, selectedOption);

    // Return empty result to close the settings dialog
    return CreateEmptyResult();
}

// Helper method to create empty result
private static Microsoft.Teams.Api.MessageExtensions.Response CreateEmptyResult()
{
    return new Microsoft.Teams.Api.MessageExtensions.Response
    {
        ComposeExtension = new Microsoft.Teams.Api.MessageExtensions.Result
        {
            Type = Microsoft.Teams.Api.MessageExtensions.ResultType.Result,
            AttachmentLayout = Microsoft.Teams.Api.Attachment.Layout.List,
            Attachments = new List<Microsoft.Teams.Api.MessageExtensions.Attachment>()
        }
    };
}
