Overview

Enterprise networking for Simple Chat involves:

• Private Endpoints: Secure connections to Azure services
• Virtual Networks (VNets): Isolated network environments
• Subnets: Segmented network spaces for different components
• Private DNS Zones: Internal name resolution

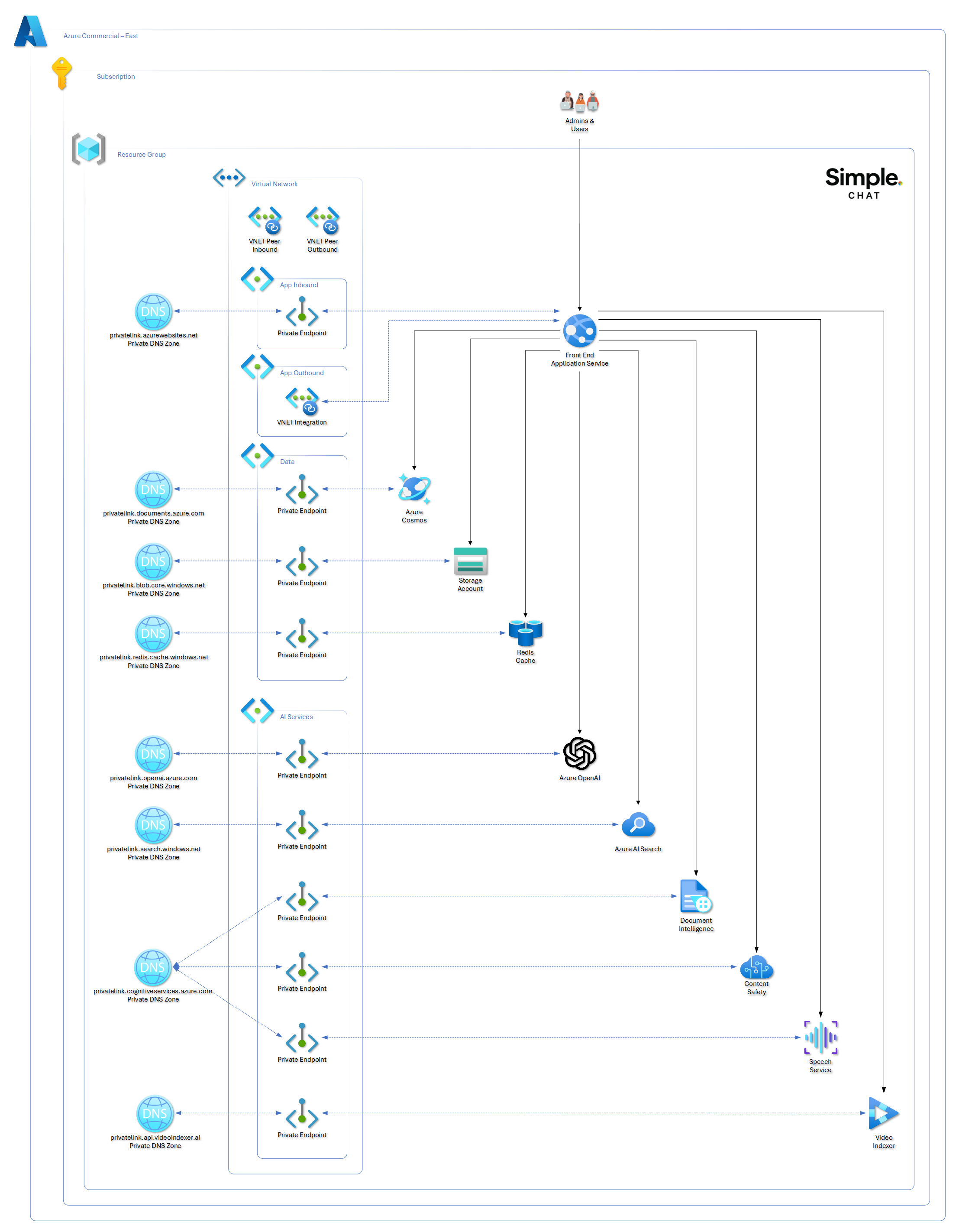

Networking in Azure Commercial

Networking in Azure Government

Prerequisites

• Azure subscription with network administrator permissions
• Simple Chat already deployed (can be reconfigured for private networking)
• Understanding of Azure networking concepts
• Planning for IP address ranges and network topology

Deployment Runner Connectivity

For enterprise deployments, the important question is whether the machine running azd up can already reach the private endpoints for Cosmos DB, Azure Container Registry, and the other protected services.

Leave allowedIpAddresses blank when:

• The deployment runner is on a corporate network with routing to the private LAN or connected VNet.
• The deployment runner is connected through VPN or ExpressRoute and can resolve the private DNS zones.
• The deployment runs from a jump host, build agent, or management workstation already inside the private network boundary.

Provide allowedIpAddresses when:

• Private networking is enabled.
• The machine running azd up must temporarily reach protected services over a public path during deployment.
• Cosmos DB or Azure Container Registry still need a temporary allowlist entry for the deployment runner before public access is disabled at the end of the workflow.

When a value is needed, provide the public egress IP address or CIDR that Azure sees for the deployment runner. In many enterprises this is a company NAT or proxy address, not the laptop’s local 10.x.x.x, 172.16.x.x to 172.31.x.x, or 192.168.x.x address.

If you are unsure which public egress IP is being used, run the lookup from the same machine and network path that will execute azd up, for example by searching what is my IP in Bing.

Step 1: Plan Your Network Architecture

Network Topology Planning

Decide on VNet structure:

Production VNet (10.0.0.0/16):
├── App Service Subnet (10.0.1.0/24)
├── Private Endpoint Subnet (10.0.2.0/24)
├── Database Subnet (10.0.3.0/24)
└── Management Subnet (10.0.4.0/24)

Consider connectivity requirements:

• On-premises connectivity (ExpressRoute/VPN)
• Multi-region deployment needs
• Integration with existing networks
• Compliance and security requirements

Service Endpoint Requirements

Services requiring Private Endpoints:

• Azure App Service (inbound)
• Azure OpenAI
• Azure Cosmos DB
• Azure AI Search
• Azure Storage (for Enhanced Citations)
• Azure Document Intelligence
• Azure Content Safety
• Azure Speech Services (if used)

Step 2: Create Virtual Network Infrastructure

Create Main VNet

1. Go to Azure Portal → Create a resource → Virtual Network
2. Configure basic settings:

   Name: simplechat-prod-vnet
   Region: Your deployment region
   Resource Group: Your Simple Chat resource group


3. Configure IP addresses:

   IPv4 address space: 10.0.0.0/16


4. Create subnets:

   Subnet 1:
   Name: app-service-subnet
   Address range: 10.0.1.0/24

   Subnet 2:
   Name: private-endpoint-subnet
   Address range: 10.0.2.0/24

   Subnet 3:
   Name: database-subnet
   Address range: 10.0.3.0/24


Configure Subnet Delegation

For App Service integration:

1. Select app-service-subnet
2. Configure delegation:
   • Delegate subnet to: Microsoft.Web/serverFarms
   • This allows App Service to integrate with the subnet

Network Security Groups (NSGs)

Create NSGs for each subnet:

App Service NSG rules:

Inbound Rules:
- Allow HTTPS (443) from Internet
- Allow HTTP (80) from Internet (redirect to HTTPS)
- Deny all other inbound

Outbound Rules:
- Allow HTTPS (443) to Private Endpoint subnet
- Allow DNS (53) to Azure DNS
- Deny Internet access (force through Private Endpoints)

Private Endpoint NSG rules:

Inbound Rules:
- Allow traffic from App Service subnet
- Deny all other inbound

Outbound Rules:
- Allow as needed for service communication

Step 3: Configure App Service VNet Integration

Enable VNet Integration

1. Go to your App Service → Settings → Networking
2. Click “VNet integration”
3. Select “Add VNet integration”
4. Configure:

   Virtual Network: simplechat-prod-vnet
   Subnet: app-service-subnet


Configure Route All Traffic

Enable route all traffic through VNet:

1. In VNet integration settings
2. Enable “Route All”
3. This forces all outbound traffic through the VNet

Test VNet Integration

Verify integration:

1. Go to App Service → Advanced Tools → Kudu
2. Open Debug console
3. Test name resolution:

   nslookup your-cosmosdb-account.documents.azure.com
   # Should resolve to private IP (10.x.x.x)


Step 4: Create Private Endpoints

Create Private Endpoints for each Azure service Simple Chat uses.

Azure Cosmos DB Private Endpoint

1. Go to Cosmos DB account → Settings → Private endpoint connections
2. Click “+ Private endpoint”
3. Configure:

   Name: simplechat-cosmos-pe
   Region: Same as VNet
   Virtual Network: simplechat-prod-vnet
   Subnet: private-endpoint-subnet
   Target sub-resource: SQL


4. Configure DNS:

   Integrate with private DNS zone: Yes
   Private DNS Zone: privatelink.documents.azure.com


Azure OpenAI Private Endpoint

1. Go to OpenAI resource → Networking → Private endpoint connections
2. Create endpoint:

   Name: simplechat-openai-pe
   Target sub-resource: account
   Private DNS Zone: privatelink.openai.azure.com


Azure AI Search Private Endpoint

1. Go to Search service → Settings → Private endpoint connections
2. Create endpoint:

   Name: simplechat-search-pe
   Target sub-resource: searchService
   Private DNS Zone: privatelink.search.windows.net


Storage Account Private Endpoint

1. Go to Storage Account → Security + networking → Private endpoint connections
2. Create endpoint:

   Name: simplechat-storage-pe
   Target sub-resource: blob
   Private DNS Zone: privatelink.blob.core.windows.net


Document Intelligence Private Endpoint

1. Go to Document Intelligence → Networking → Private endpoint connections
2. Create endpoint:

   Name: simplechat-doc-intel-pe
   Target sub-resource: account
   Private DNS Zone: privatelink.cognitiveservices.azure.com


Step 5: Configure Private DNS

Verify DNS Zone Creation

Private DNS zones should be created automatically with Private Endpoints:

• privatelink.documents.azure.com
• privatelink.openai.azure.com
• privatelink.search.windows.net
• privatelink.blob.core.windows.net
• privatelink.cognitiveservices.azure.com

Link DNS Zones to VNet

For each Private DNS zone:

1. Go to Private DNS zone
2. Settings → Virtual network links
3. Add link:

   Link name: simplechat-vnet-link
   Virtual network: simplechat-prod-vnet
   Enable auto registration: No (for Private Endpoint zones)


Test DNS Resolution

From App Service Kudu console:

# Test each service resolves to private IP
nslookup your-cosmos-account.documents.azure.com
nslookout your-openai-account.openai.azure.com
nslookup your-search-service.search.windows.net

Expected results:

• All should resolve to 10.0.2.x addresses (Private Endpoint subnet)
• No public IP addresses should be returned

Step 6: Secure Service Access

Disable Public Access

For each Azure service:

Cosmos DB:

1. Settings → Firewall and virtual networks
2. Select “Deny all networks”
3. Ensure Private Endpoint access is allowed

Azure OpenAI:

1. Networking → Firewalls and virtual networks
2. Selected networks and private endpoints
3. Remove any public IP allowlists

AI Search:

1. Settings → Networking
2. Private access → All networks disabled
3. Verify Private Endpoint access only

Storage Account:

1. Security + networking → Firewalls and virtual networks
2. Selected networks
3. Clear all public network access

Configure Service-Specific Settings

Cosmos DB additional settings:

Connection Policy: Gateway mode (recommended for Private Endpoints)
Firewall: Disabled for public networks
Private Endpoint: Enabled

Azure OpenAI additional settings:

Network access: Private endpoint and selected networks
Custom subdomain: Required for Private Endpoints
Managed Identity: Recommended for authentication

Step 7: Update Application Configuration

Endpoint URLs

Verify application uses correct endpoints:

In Admin Settings, confirm endpoints use private connectivity:

Azure OpenAI: https://your-account.openai.azure.com/
Cosmos DB: Endpoint should connect via private network
AI Search: https://your-service.search.windows.net/

Connection Testing

Test each service connection:

1. Go to Admin Settings
2. Test each service connection
3. Verify successful private connectivity
4. Check application logs for any public endpoint attempts

Monitor Network Traffic

Enable network monitoring:

1. Configure Network Watcher for the VNet
2. Enable Flow logs on NSGs
3. Set up monitoring for unusual traffic patterns

Step 8: Configure Additional Security

Application Gateway (Optional)

For additional security and routing:

1. Deploy Application Gateway in dedicated subnet
2. Configure Web Application Firewall (WAF)
3. Route traffic: Internet → App Gateway → App Service
4. Enable SSL termination

ExpressRoute/VPN Integration

For on-premises connectivity:

1. Configure ExpressRoute or Site-to-Site VPN
2. Update route tables for proper routing
3. Configure BGP for dynamic routing (ExpressRoute)
4. Test connectivity from on-premises

Azure Bastion (Management)

For secure VM management:

1. Deploy Azure Bastion in dedicated subnet
2. Configure management VM in management subnet
3. Use Bastion for secure administrative access

Step 9: Monitoring and Troubleshooting

Network Monitoring Setup

Configure monitoring:

1. Network Watcher → Connection Monitor
2. Monitor connectivity between App Service and services
3. Set up alerts for connectivity failures
4. Configure topology monitoring

Application Insights Network Dependency

Monitor application dependencies:

1. Enable Application Insights network dependency tracking
2. Monitor Private Endpoint connectivity
3. Set up alerts for dependency failures
4. Track performance across private connections

Common Troubleshooting

DNS Resolution Issues:

Problem: Services resolving to public IPs
Solution:
- Check Private DNS zone configuration
- Verify VNet links are active
- Restart App Service to refresh DNS cache

Connectivity Issues:

Problem: Connection timeouts or failures
Solution:
- Check NSG rules allow required traffic
- Verify Private Endpoints are approved
- Test network connectivity with tcpping
- Review firewall settings on services

Performance Issues:

Problem: Slower response times with Private Endpoints
Solution:
- Verify optimal routing configuration
- Check for network latency between subnets
- Monitor bandwidth utilization
- Consider Express Route for better performance

Security Best Practices

Network Segmentation

• ✅ Use separate subnets for different tiers
• ✅ Apply principle of least privilege with NSGs
• ✅ Regularly review and update security rules
• ✅ Monitor for unauthorized network access

DNS Security

• ✅ Use Private DNS zones for all private services
• ✅ Prevent DNS leakage to public resolvers
• ✅ Monitor DNS queries for suspicious activity
• ✅ Implement DNS filtering where appropriate

Monitoring and Alerting

• ✅ Enable comprehensive network monitoring
• ✅ Set up alerts for connectivity issues
• ✅ Regular security assessments of network configuration
• ✅ Document network architecture and changes

Compliance Considerations

Data Residency

• All traffic stays within Azure backbone
• No data traverses public internet
• Regional data boundaries maintained
• Audit trail of network access

Regulatory Requirements

• Meets most compliance frameworks (FedRAMP, SOC 2, etc.)
• Supports data sovereignty requirements
• Enables network-level audit logging
• Facilitates compliance reporting

Deployment Checklist

Pre-deployment:

• Plan IP address ranges and avoid conflicts
• Design network topology and subnet structure
• Review compliance and security requirements
• Prepare rollback plan for network changes

Deployment:

• Create VNet and subnets with appropriate sizing
• Configure NSGs with security rules
• Enable App Service VNet integration
• Create Private Endpoints for all services
• Configure Private DNS zones and VNet links
• Disable public access on all services
• Test connectivity and DNS resolution

Post-deployment:

• Verify all services accessible via private network
• Test application functionality end-to-end
• Configure monitoring and alerting
• Document network configuration
• Train operations team on troubleshooting

This enterprise networking setup provides the foundation for a secure, compliant Simple Chat deployment that meets the strictest enterprise security requirements.
