Capability Map

Features

A structured view of the Simple Chat experience, from core workspace flows to optional feature packs and the Azure services behind them.

Core workspace experience Optional admin-enabled packs Azure-native services

Simple Chat starts with a grounded chat experience, then expands through optional modules for governance, media processing, feedback loops, advanced citations, and operational scale.

Core experience

What ships with the day-one product surface

These are the capabilities most teams use immediately after deployment.

Always relevant
Conversation

Chat with AI

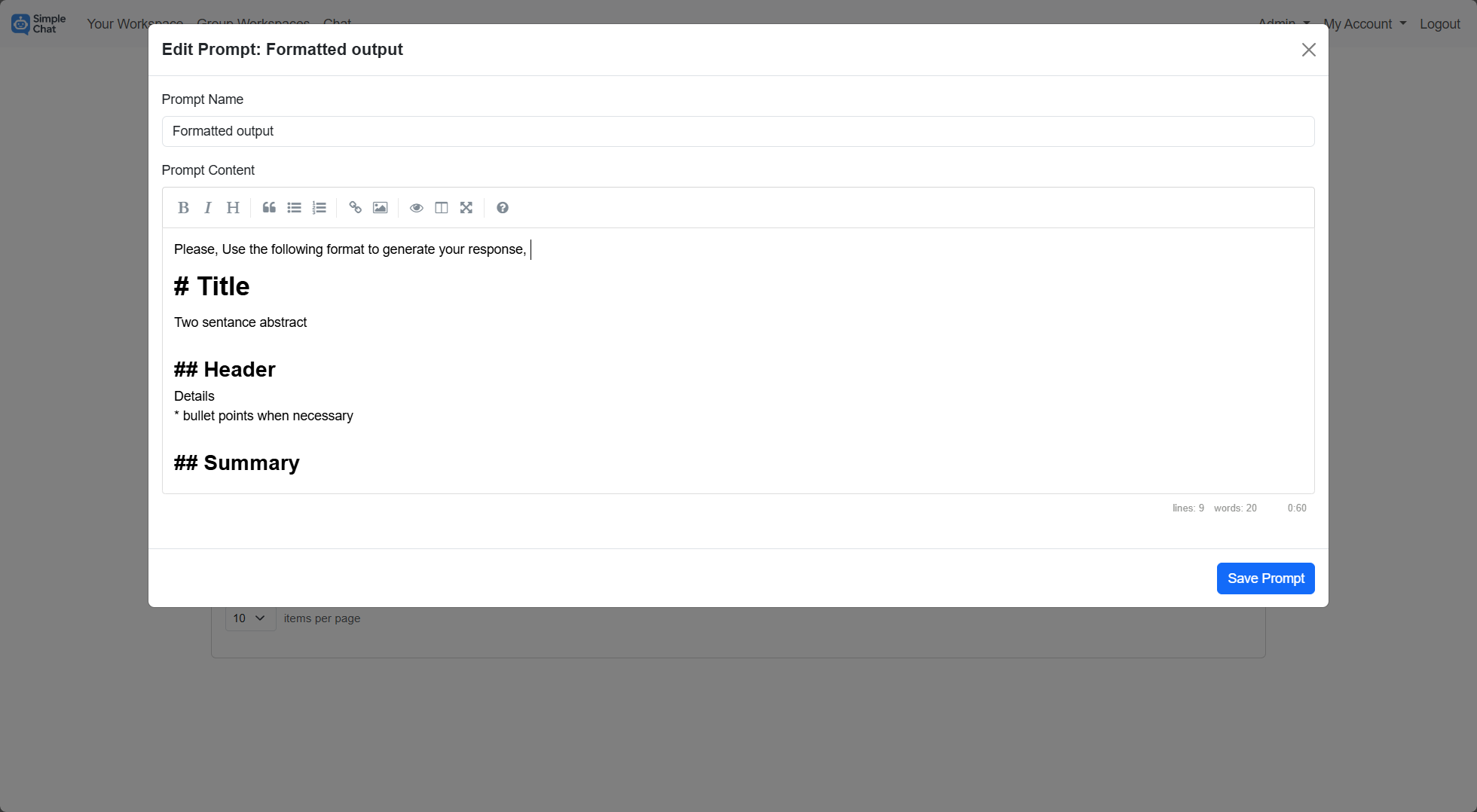

Interact with Azure OpenAI deployments through a workspace-aware chat surface built for grounded answers, prompt reuse, and iterative conversations.

Retrieval

RAG with hybrid search

Combine vector and keyword retrieval over uploaded files so chat responses can pull directly from the indexed document set.

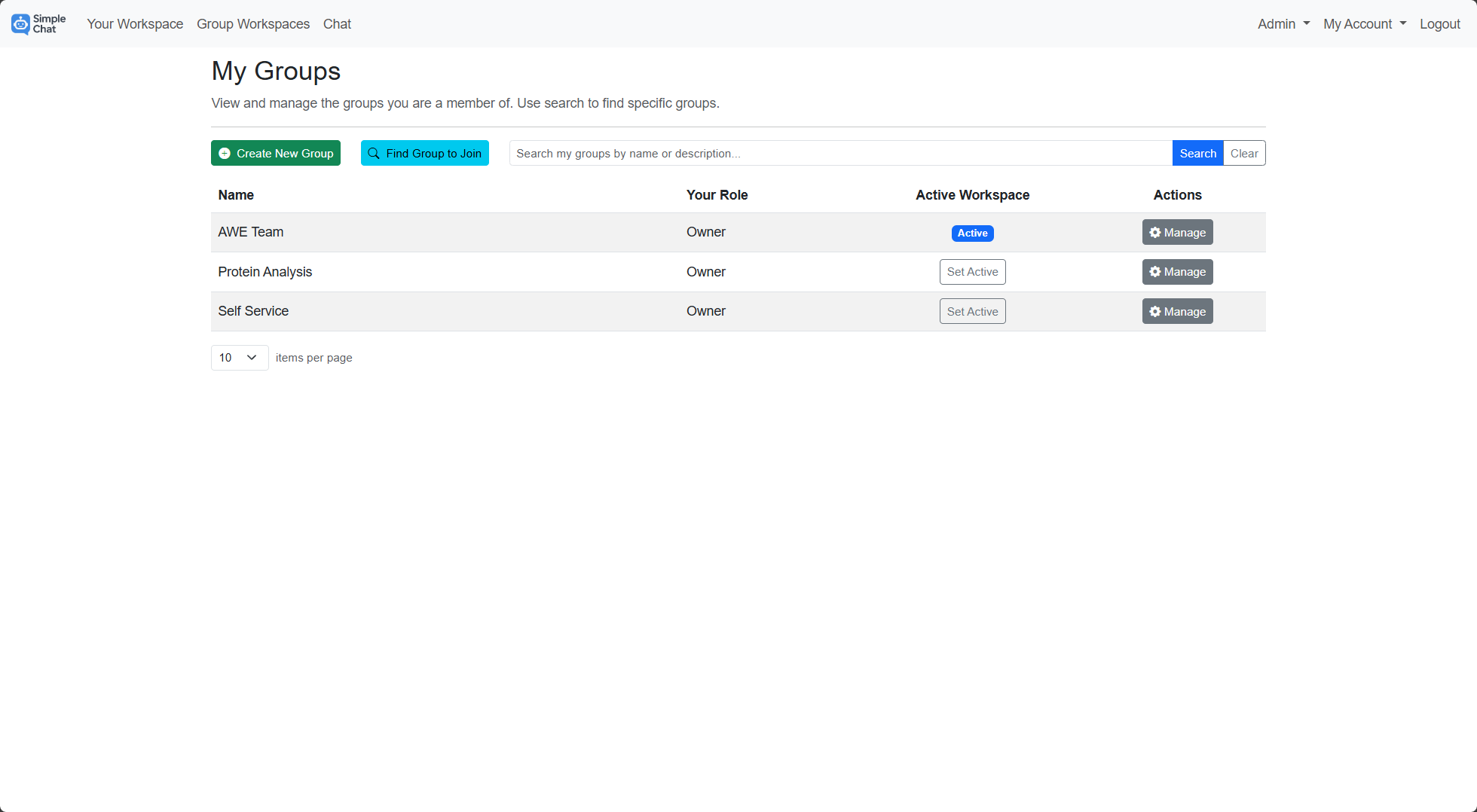

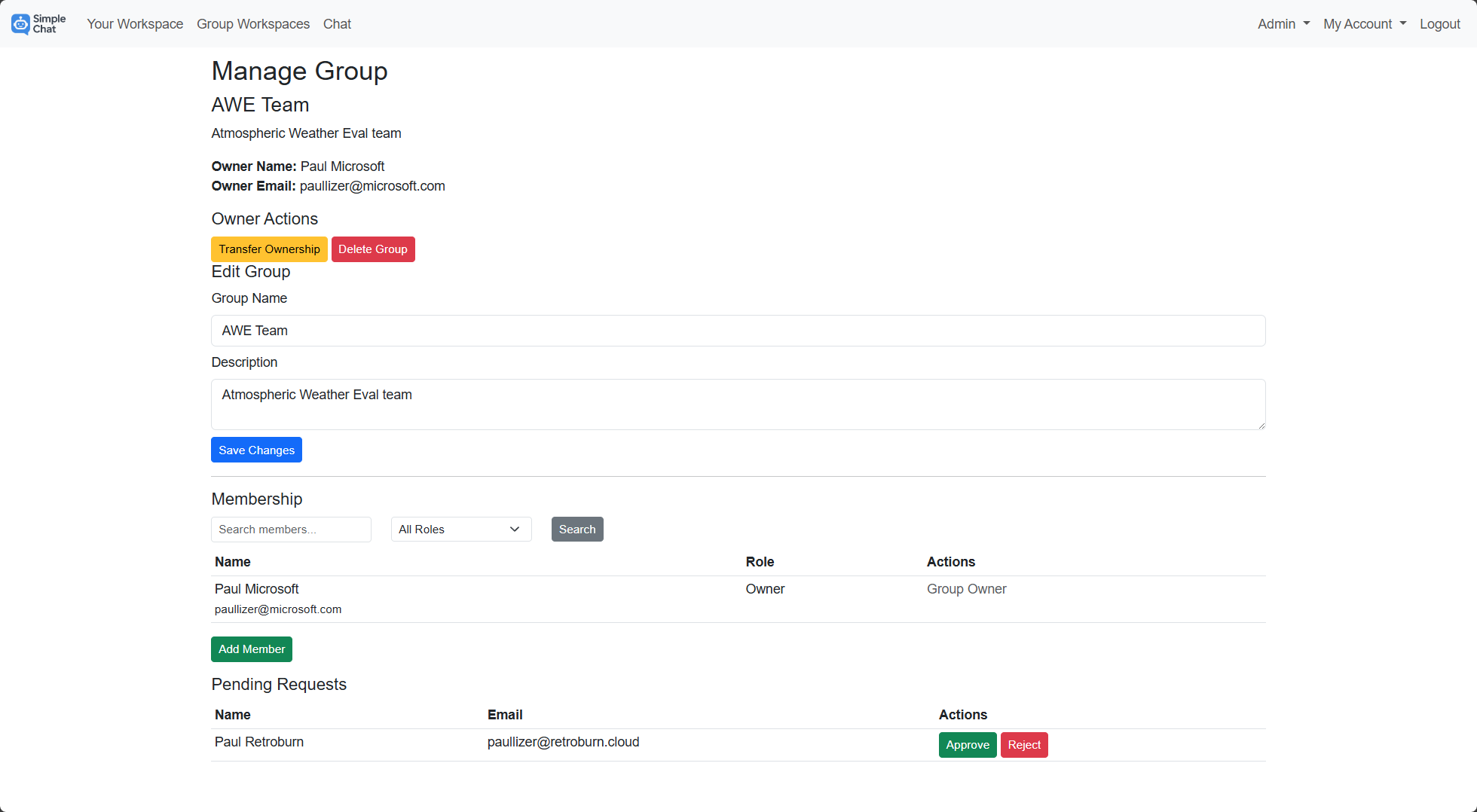

Workspaces

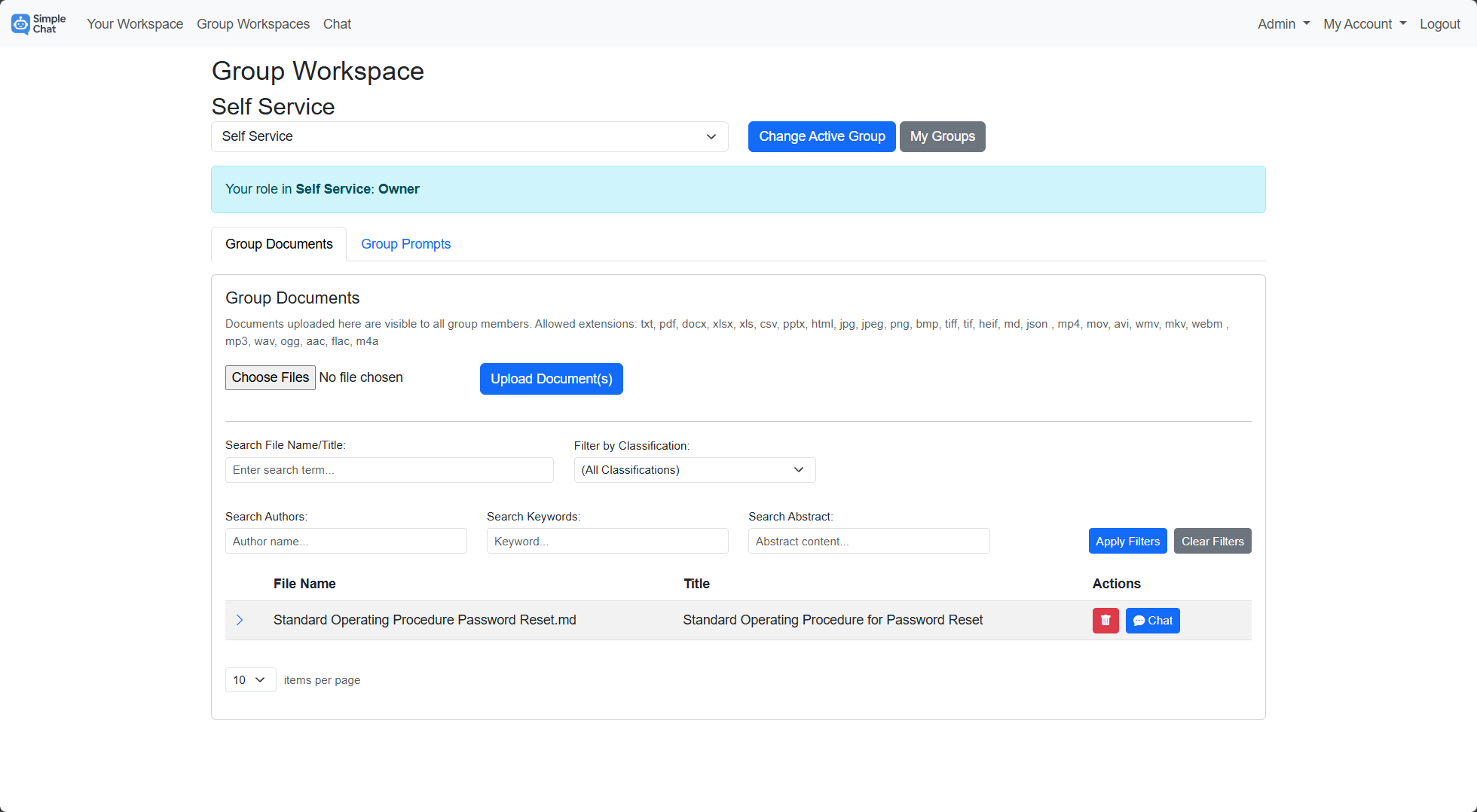

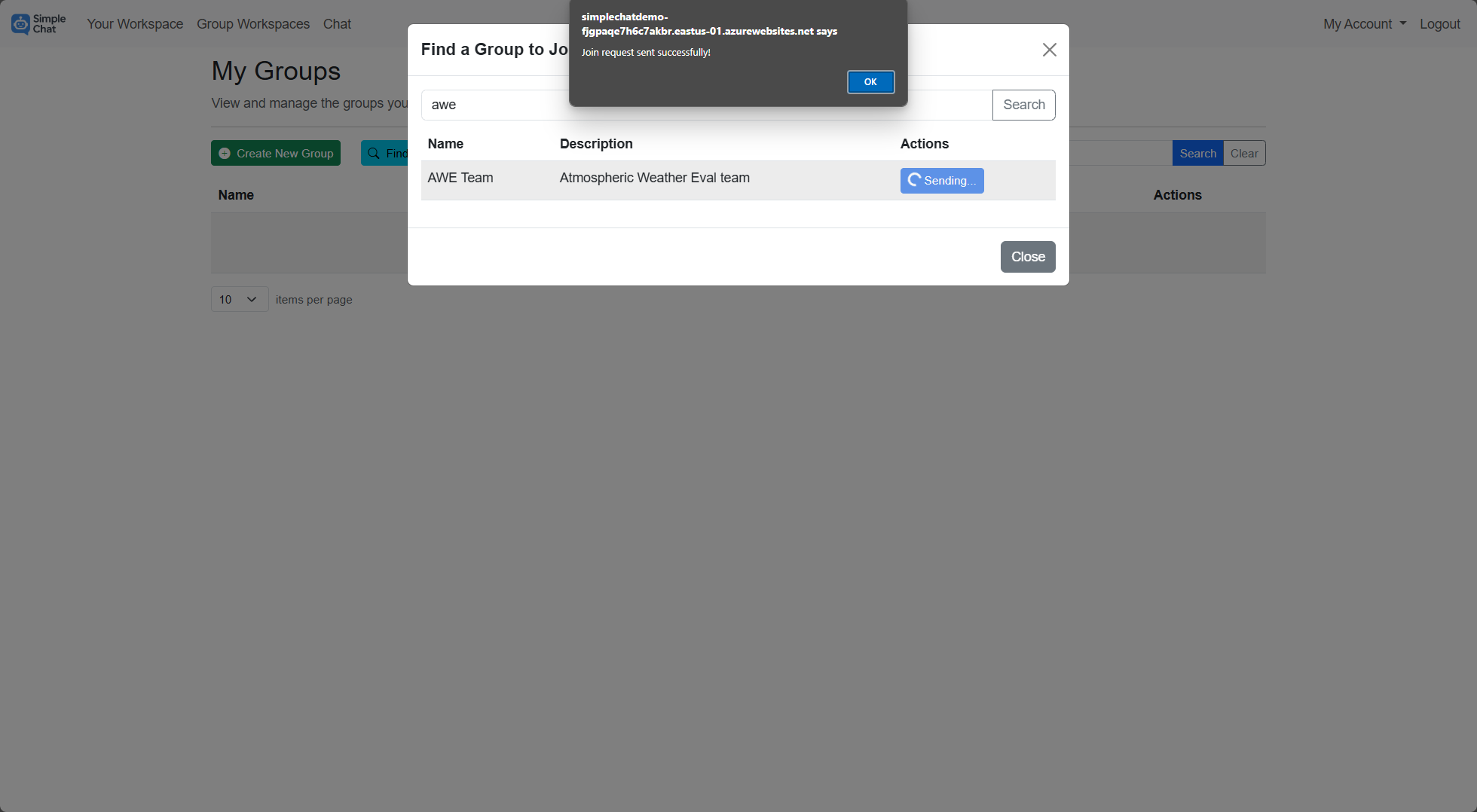

Personal and group document management

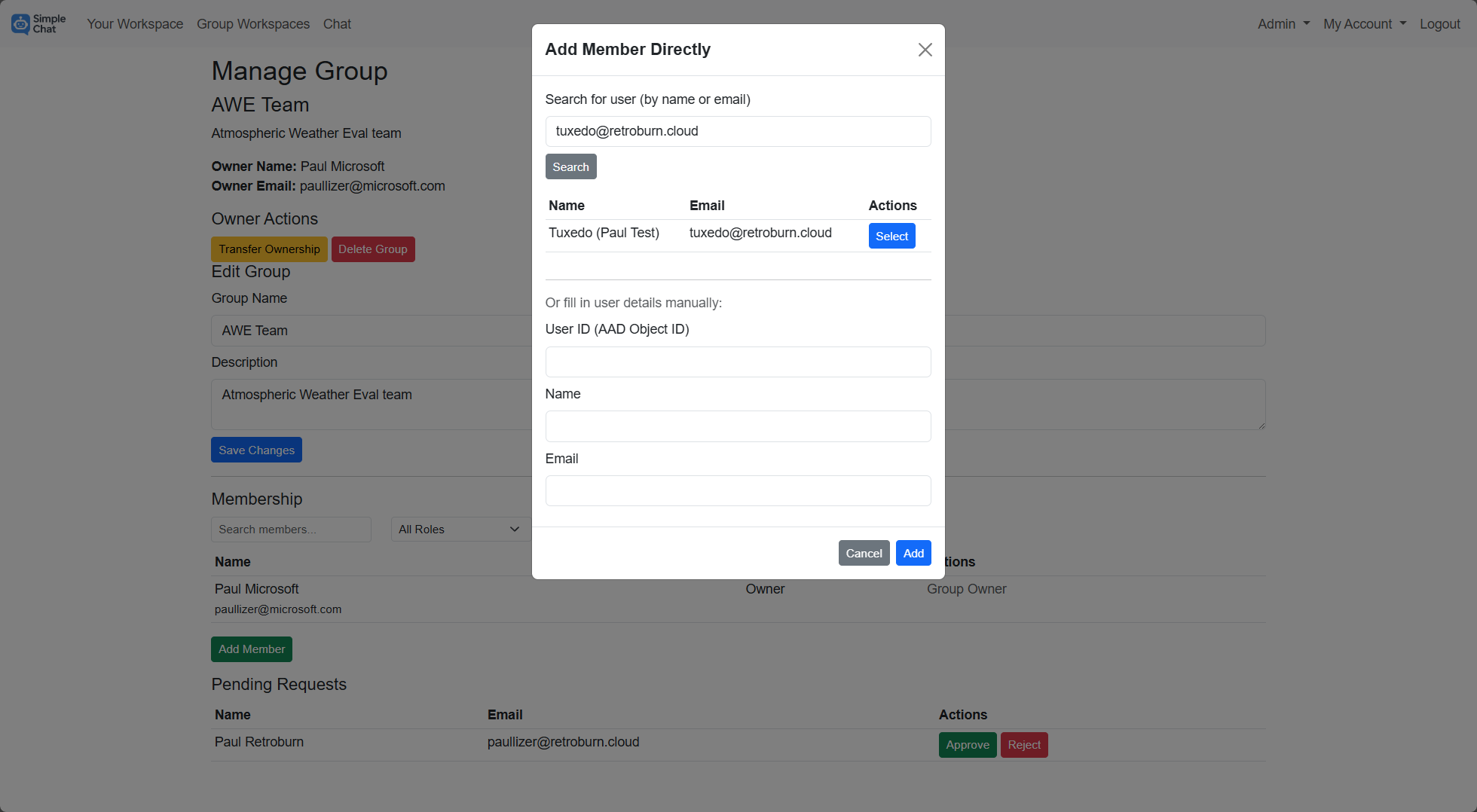

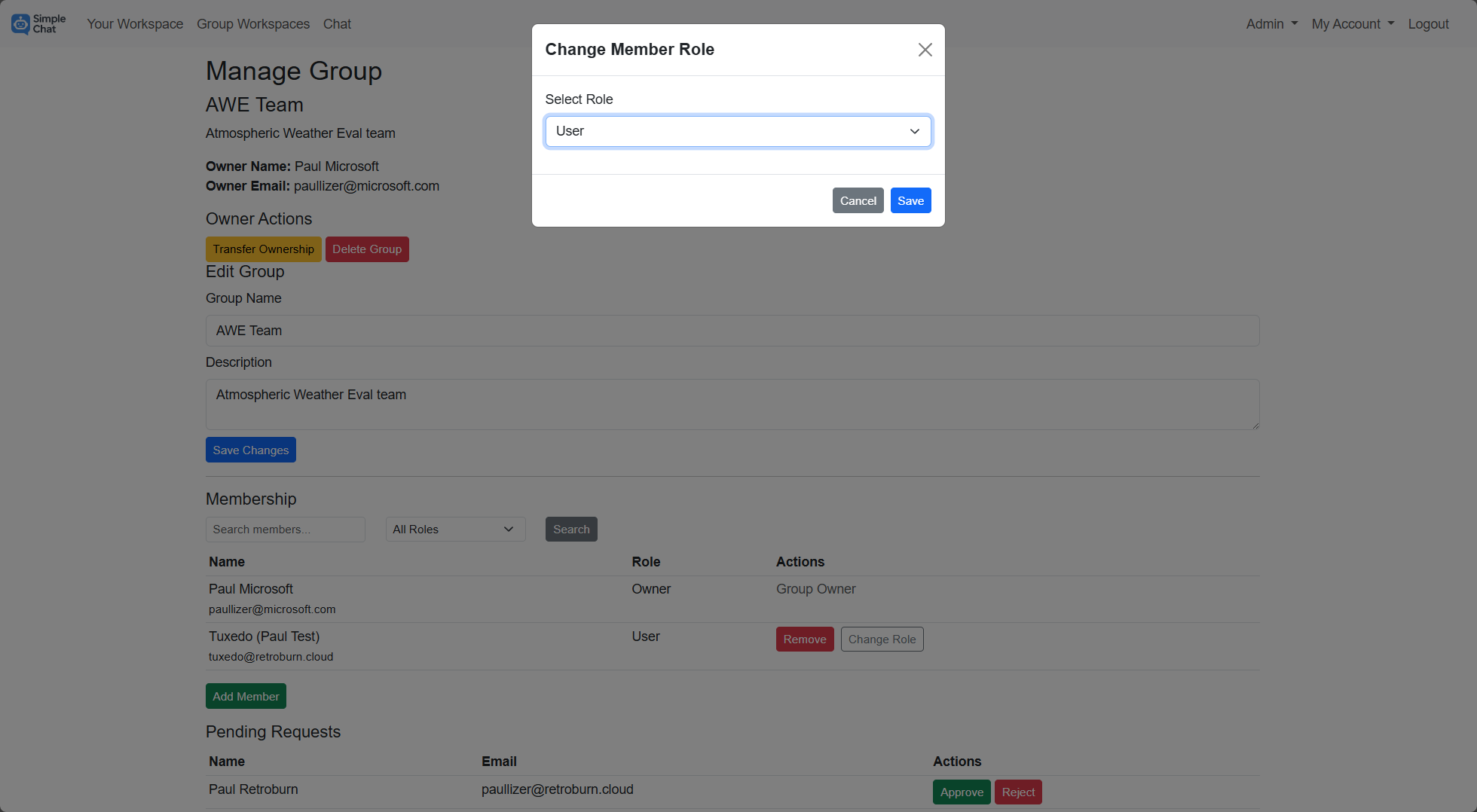

Upload, version, organize, and reuse files in personal workspaces or share them through group workspaces with role-aware access control.

Session scope

Ephemeral chat uploads

Attach single-conversation documents when you need temporary grounding without committing those files to persistent search indexes.

Access

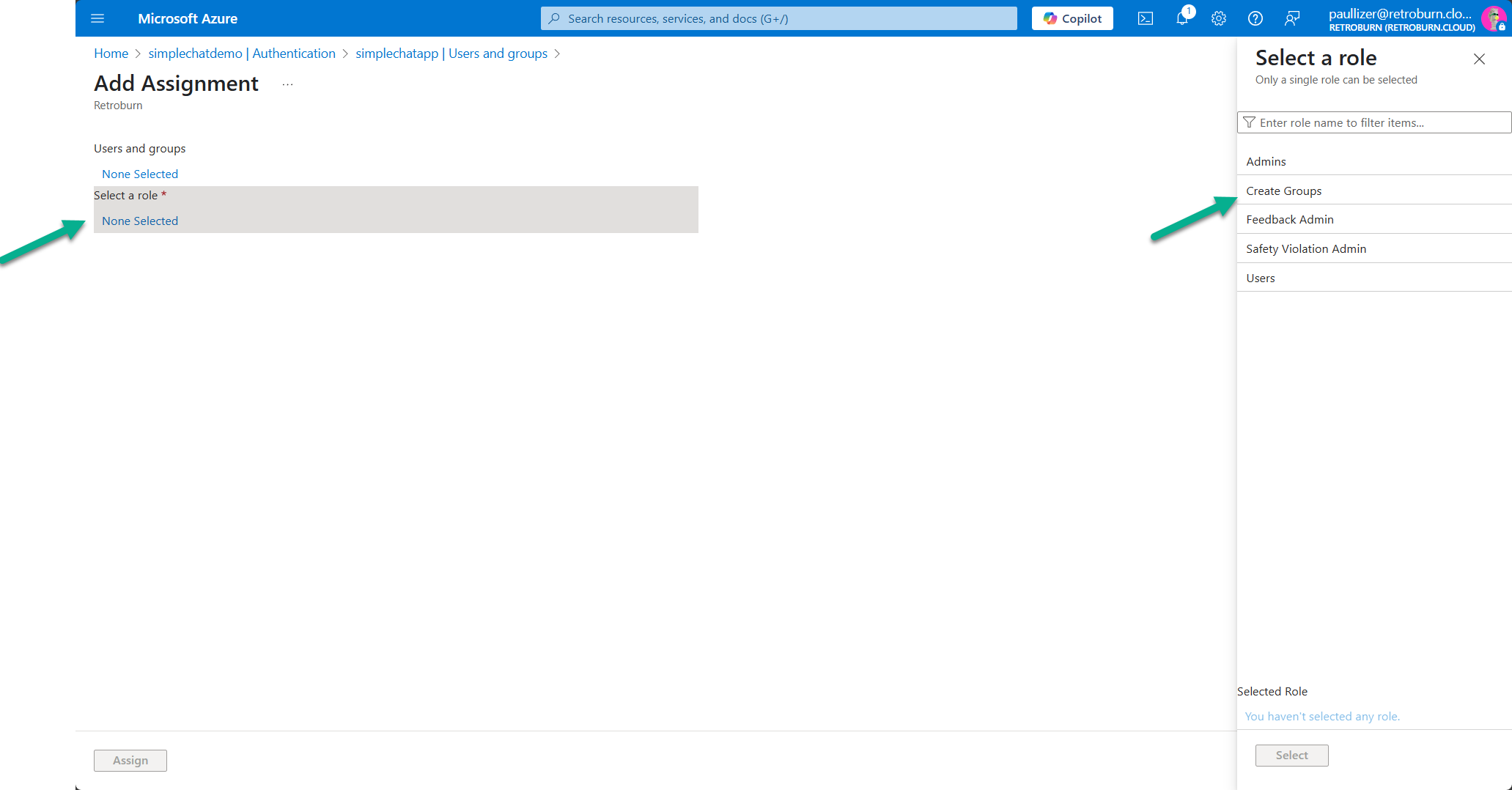

Authentication and RBAC

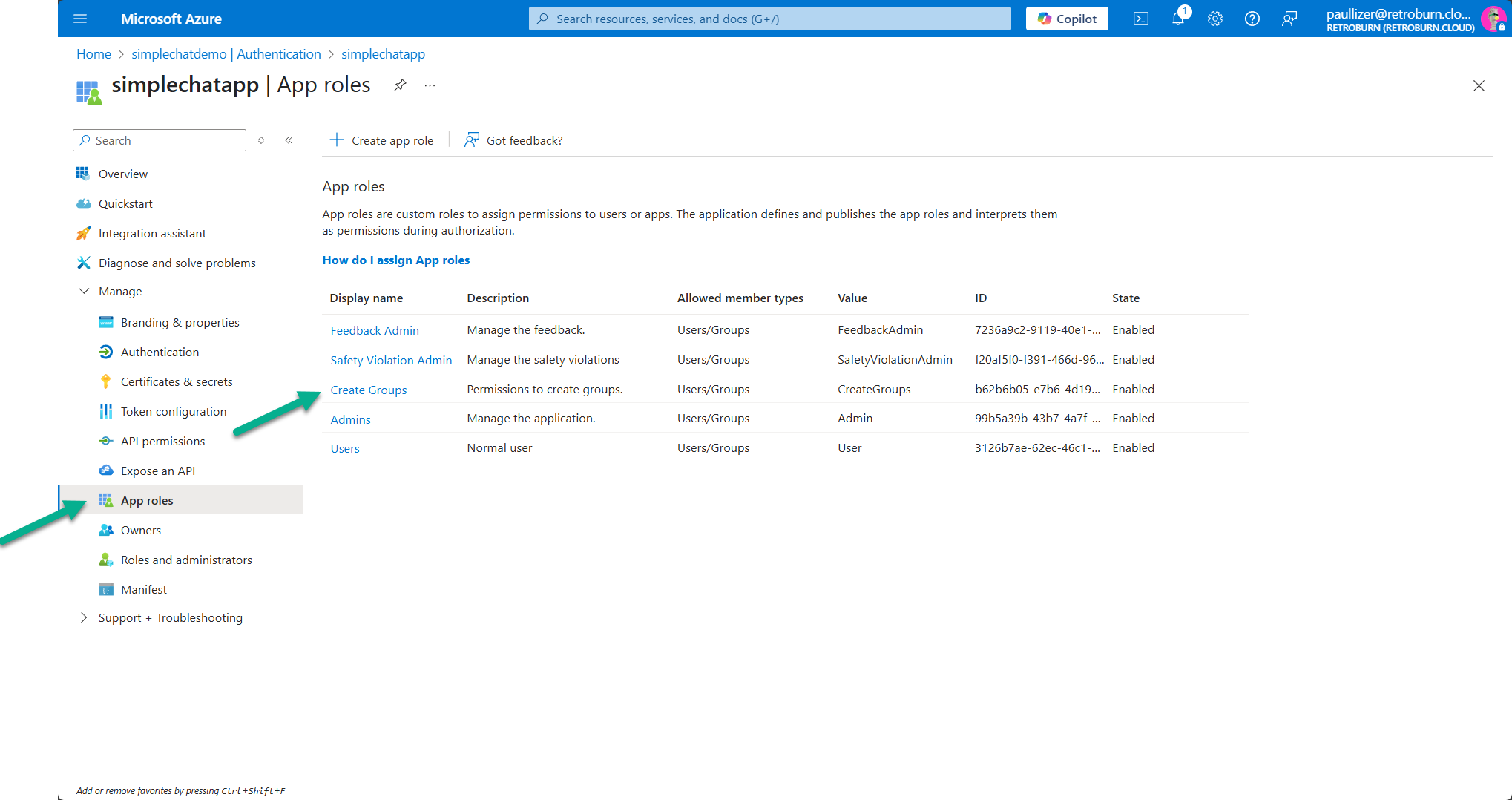

Secure the app with Entra ID, managed identities, and app roles such as Admin, User, CreateGroup, SafetyAdmin, and FeedbackAdmin.

Optional capability packs

Modules you can enable as the rollout matures

These features are designed to layer onto the base experience through admin settings and supporting Azure services.

Admin controlled
Governance

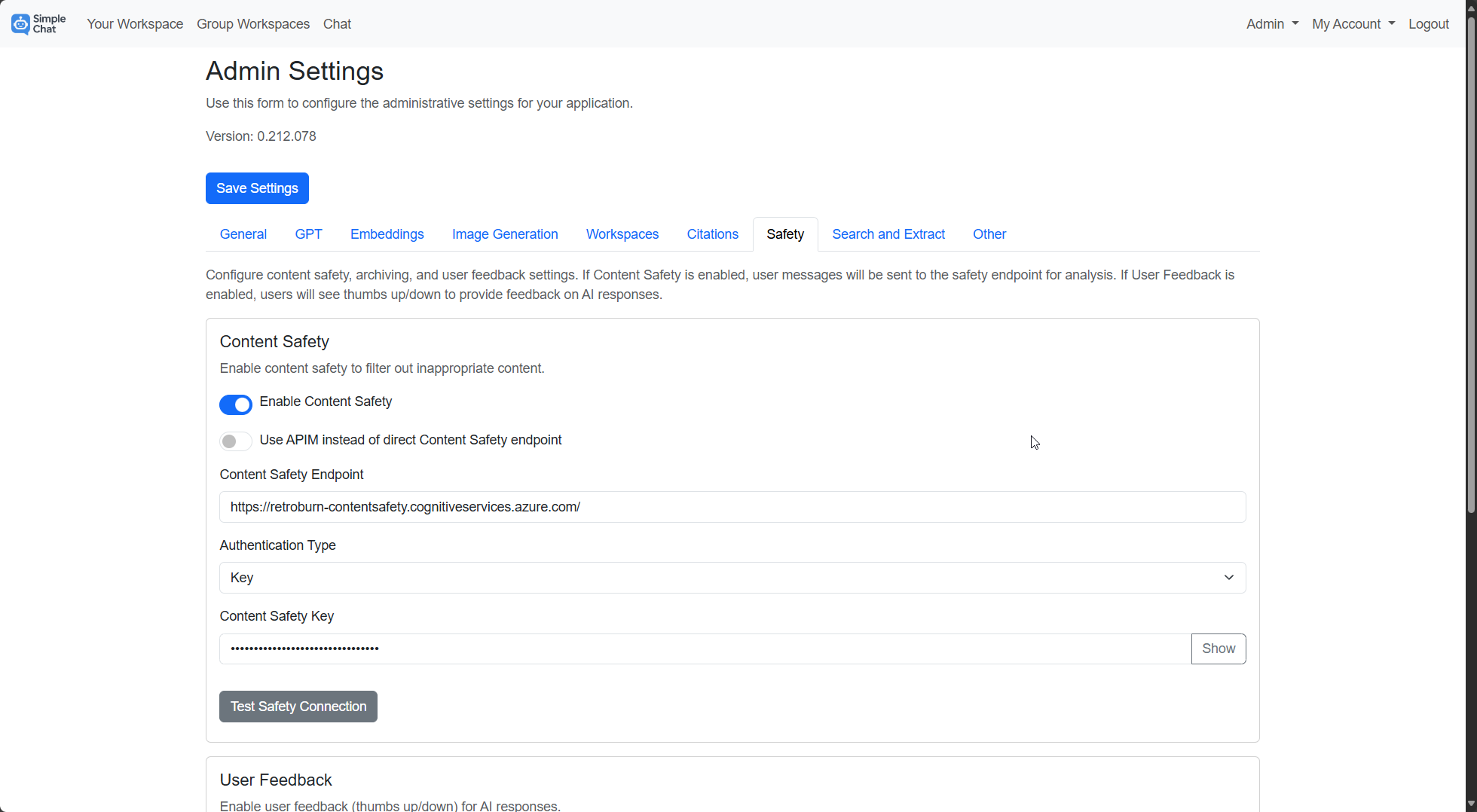

Content safety and policy controls

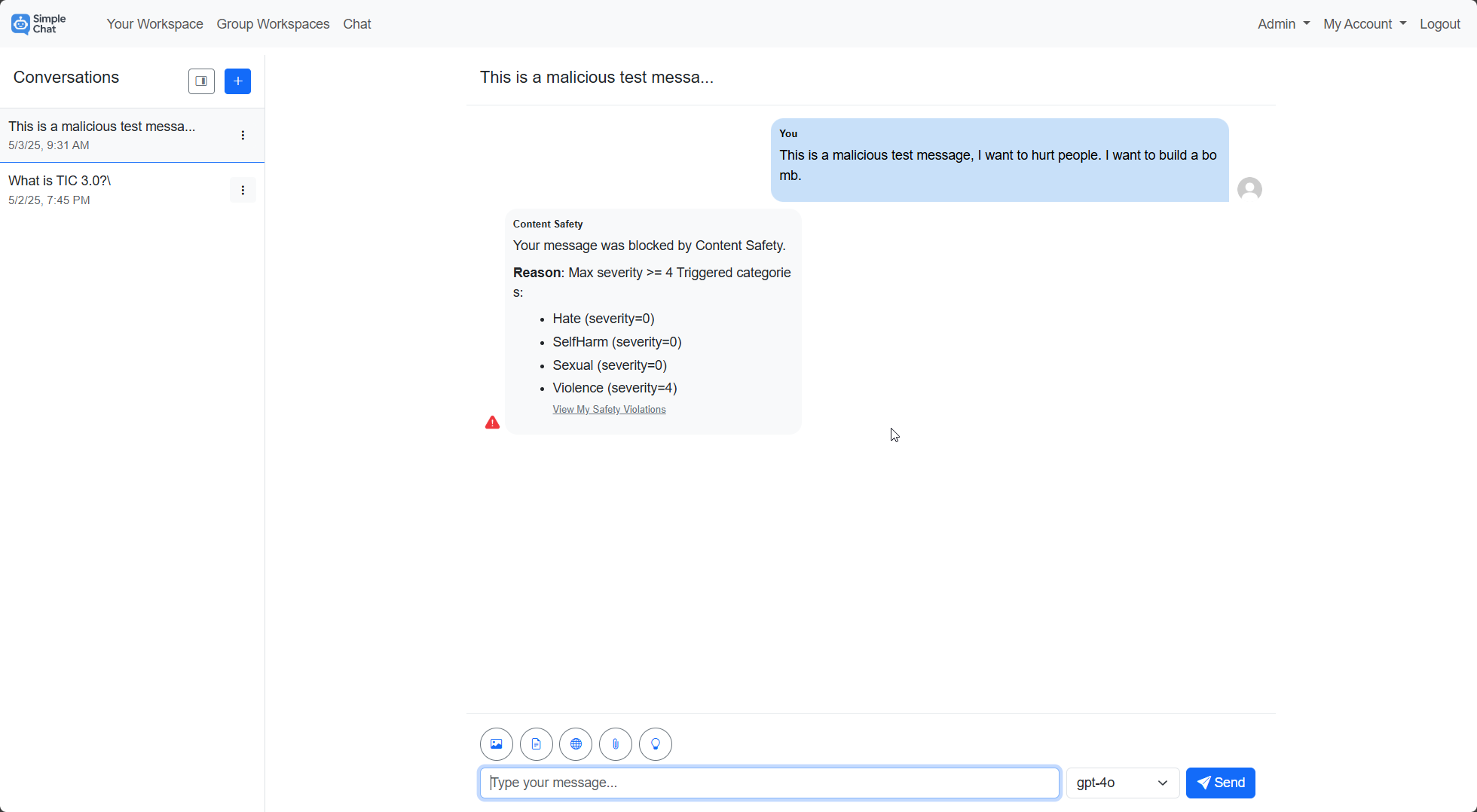

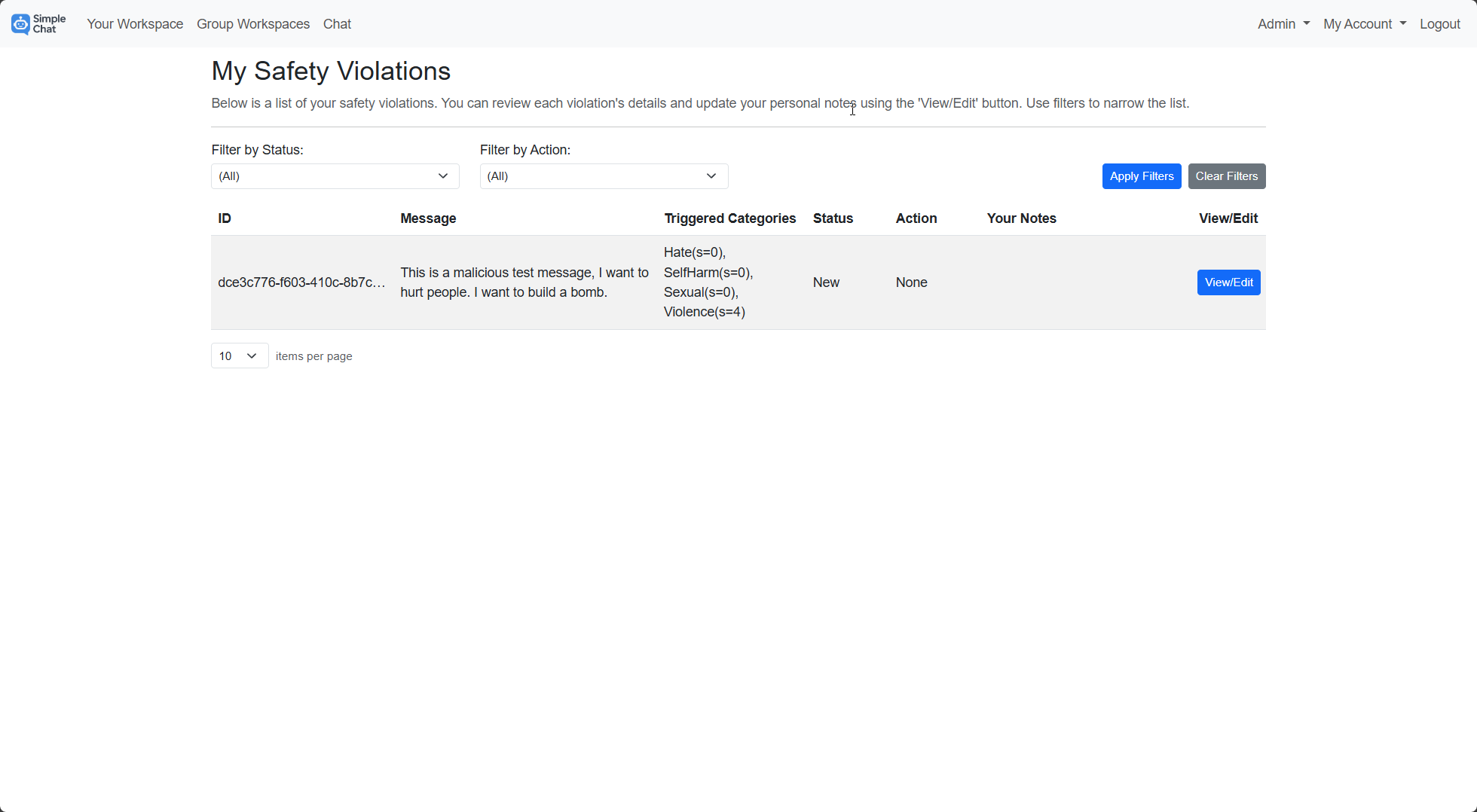

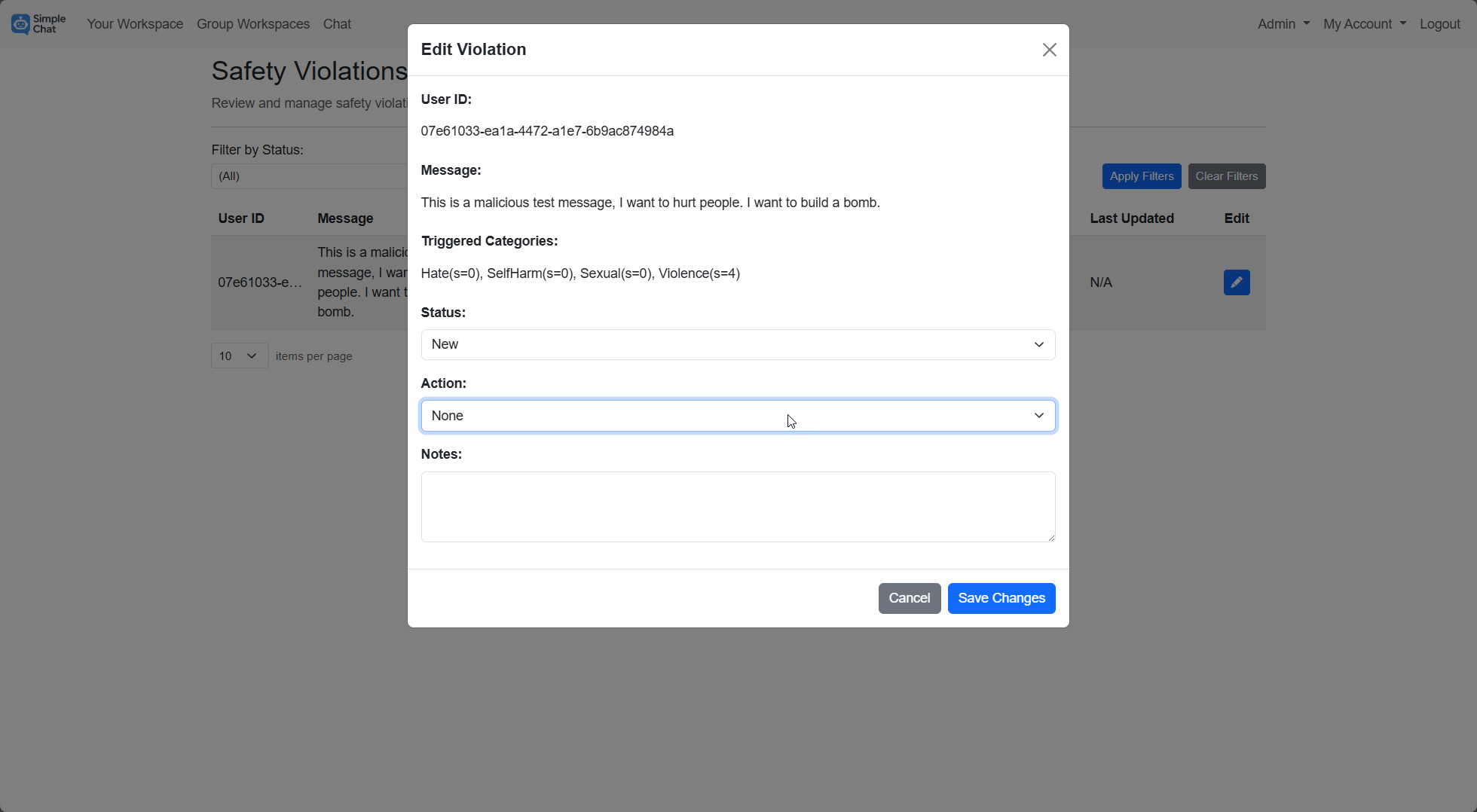

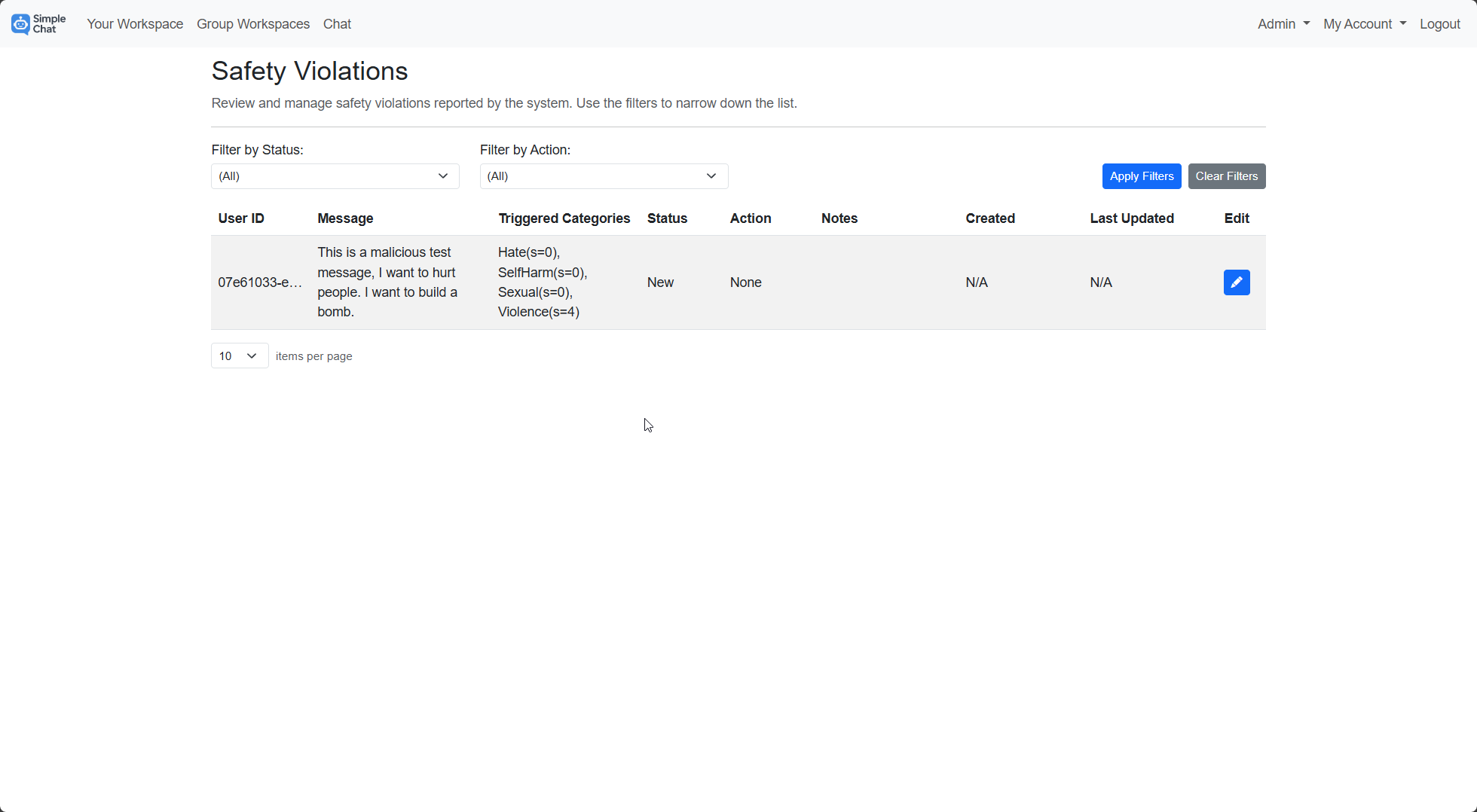

Review user prompts before they reach AI models, search, or image generation and give designated reviewers a place to inspect flagged activity.

Generation

Image generation and live web results

Add DALL-E powered image creation and Bing-powered web search when your users need current results or generated visuals inside the same app.

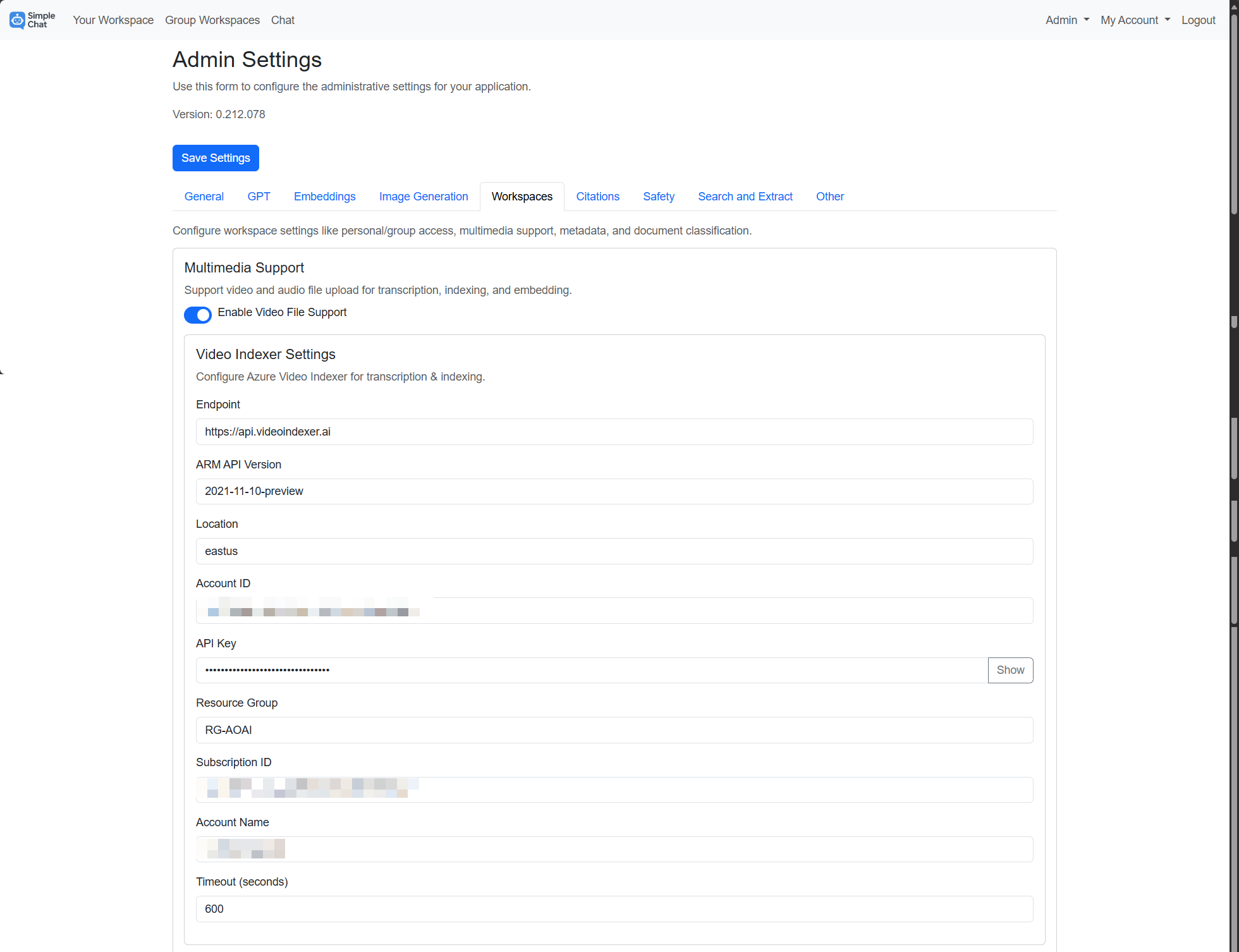

Media

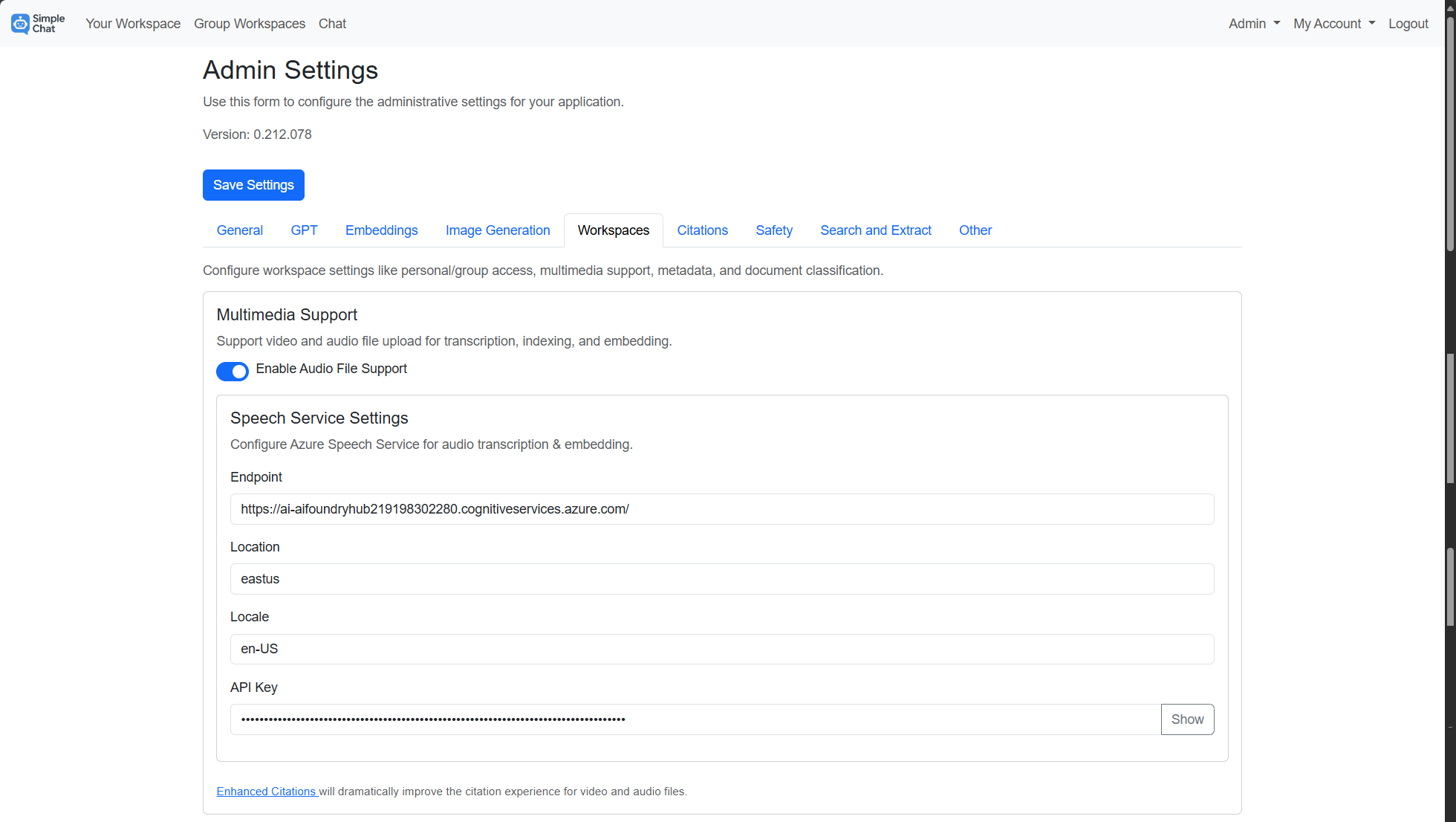

Video and audio extraction

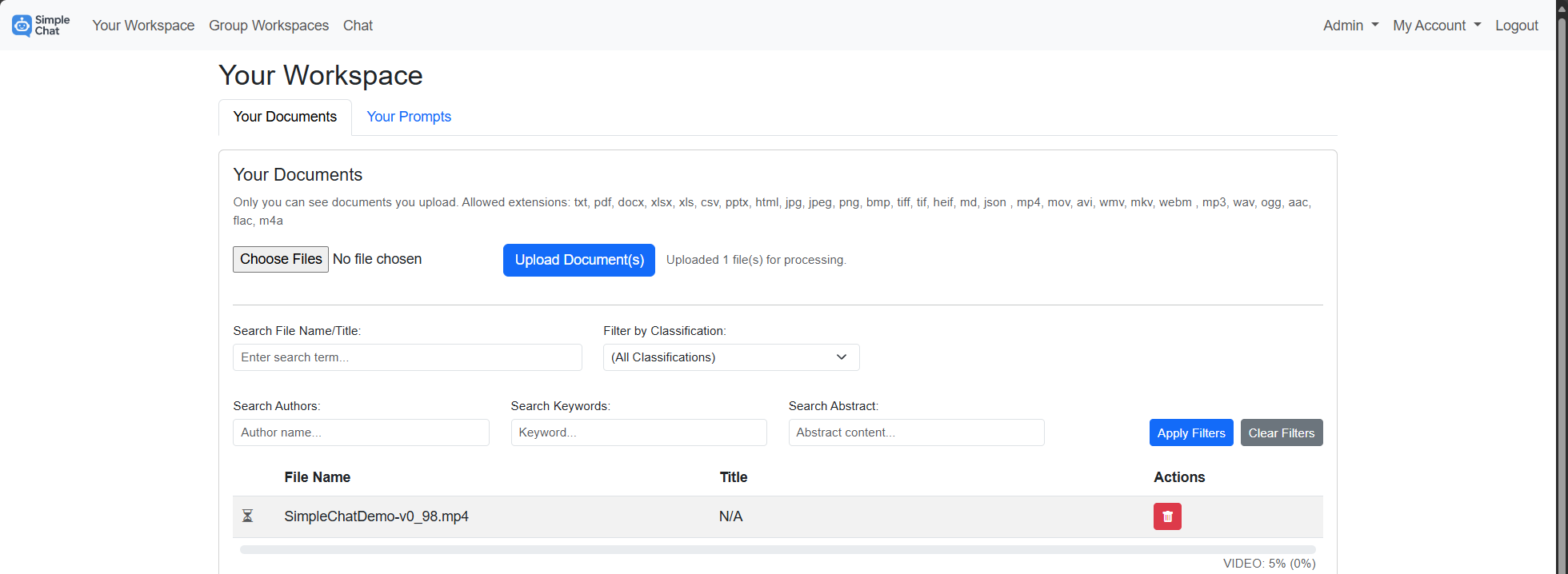

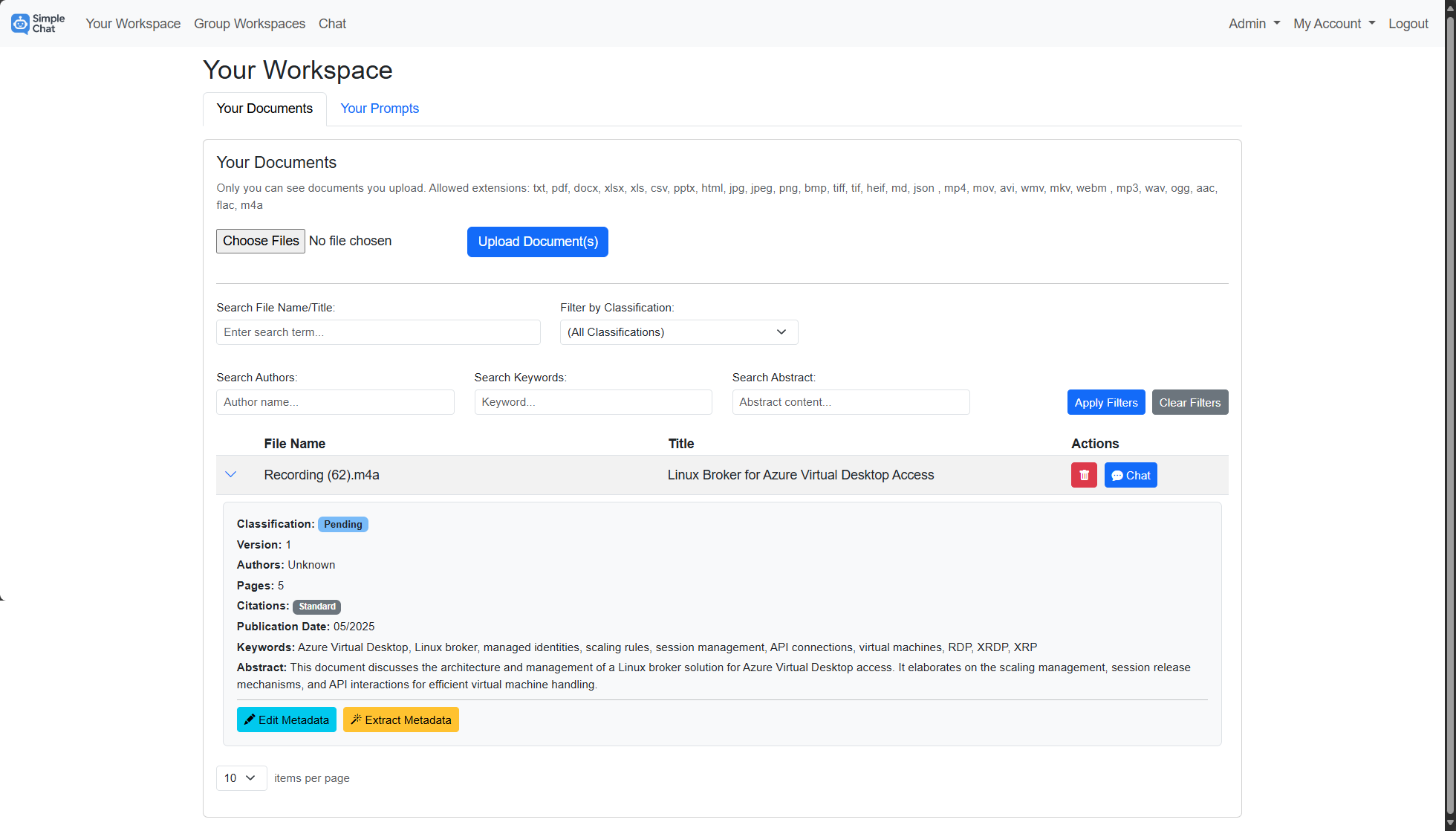

Transcribe media, capture timestamps, and turn recordings into searchable assets with citations that can point back to the right moment.

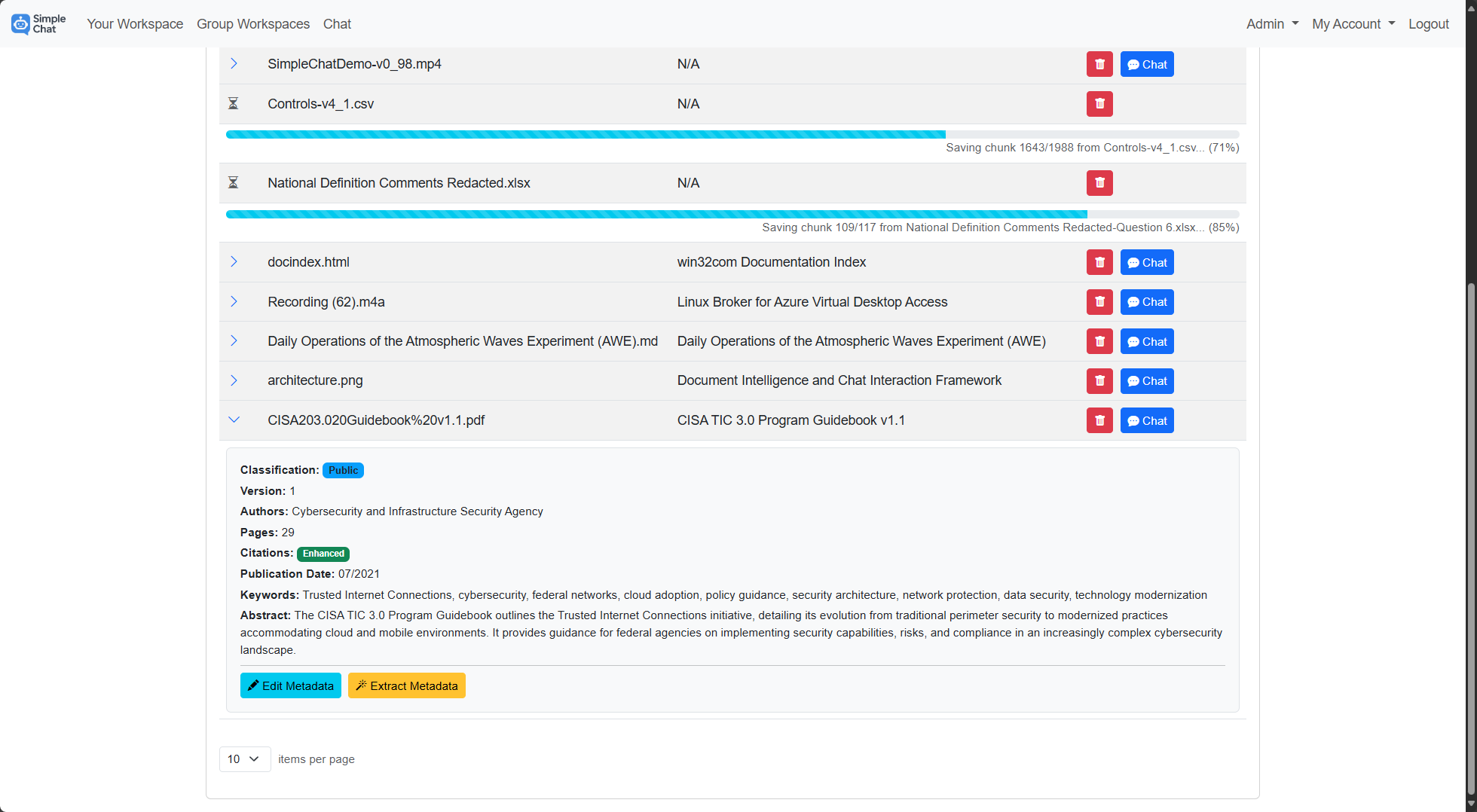

Document context

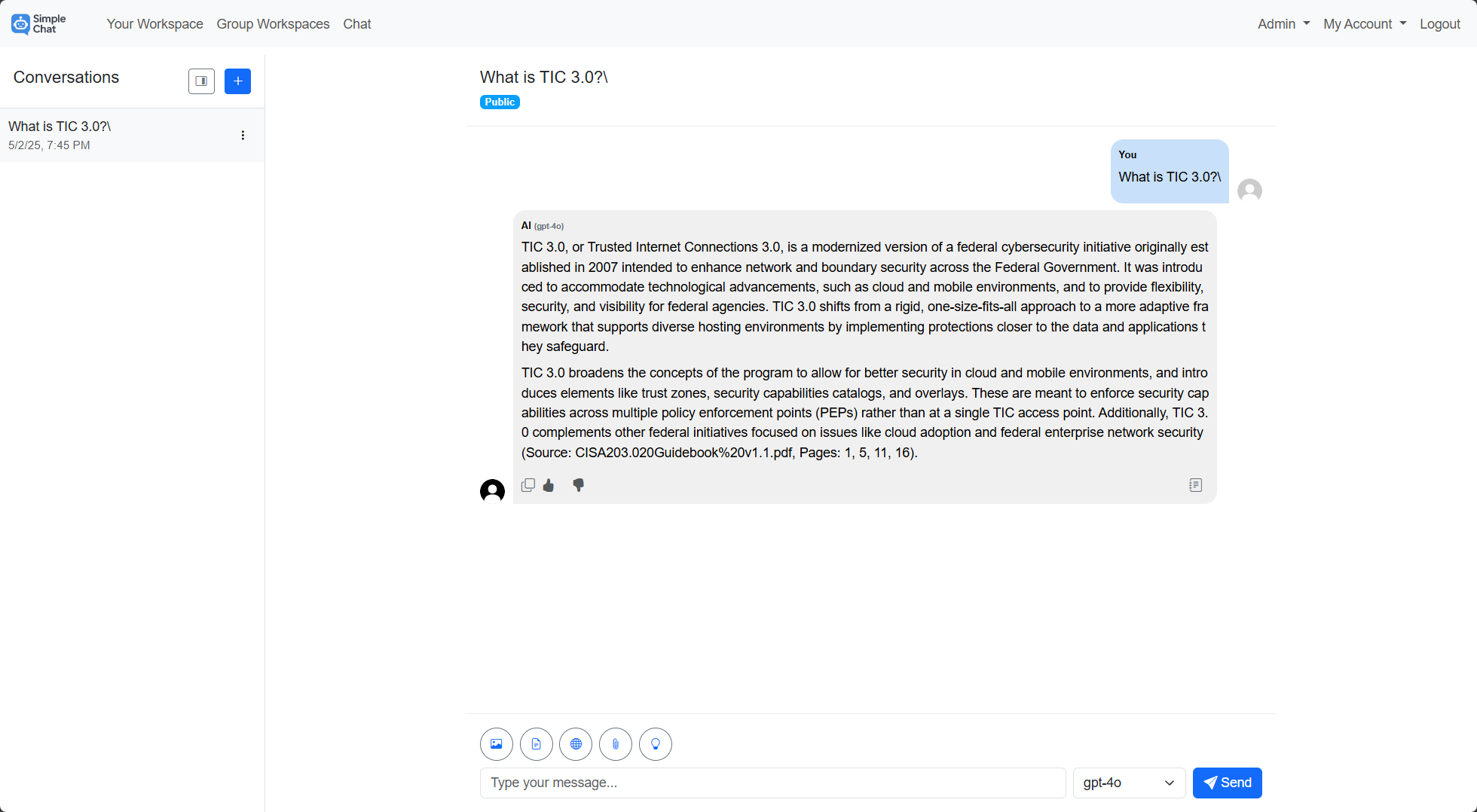

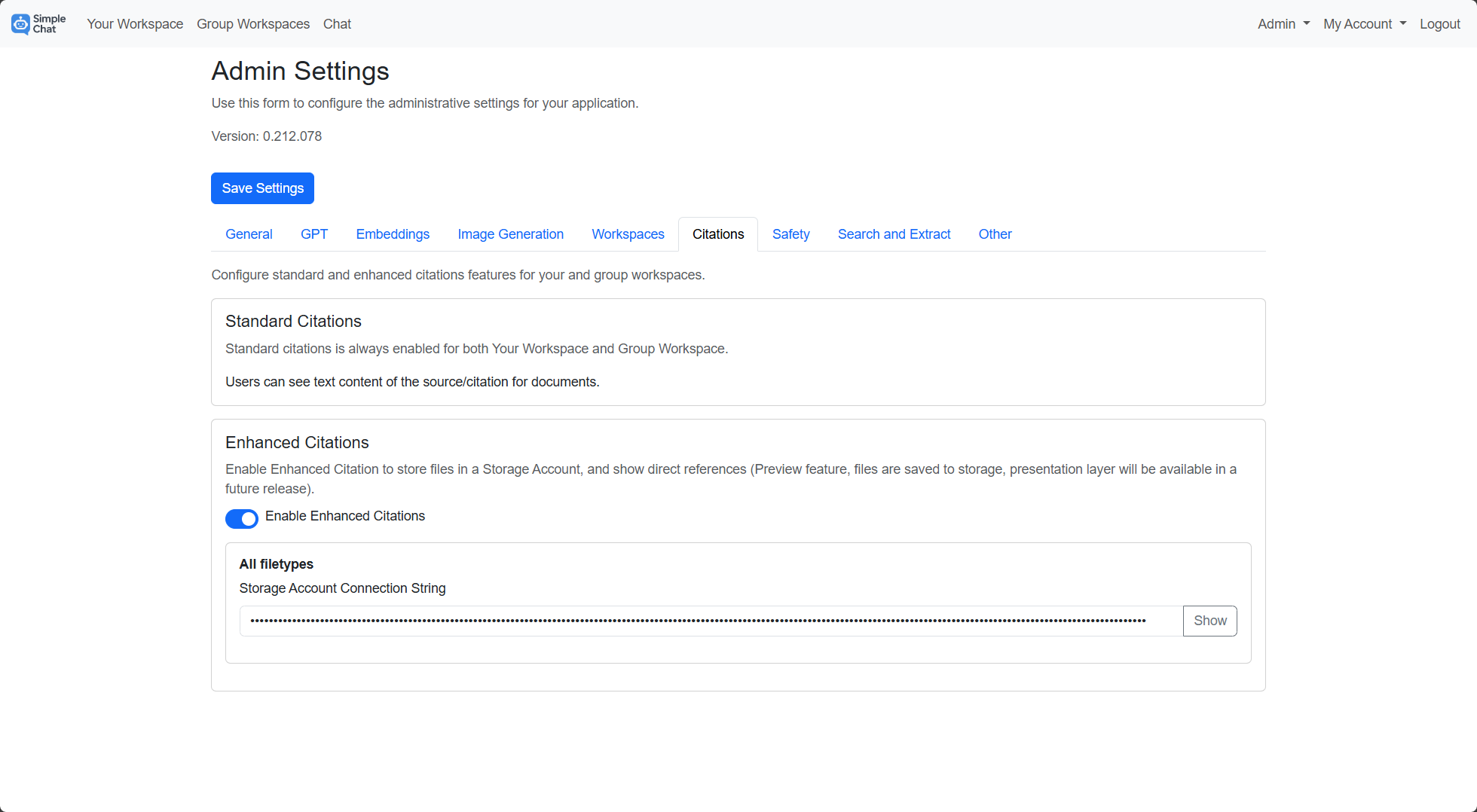

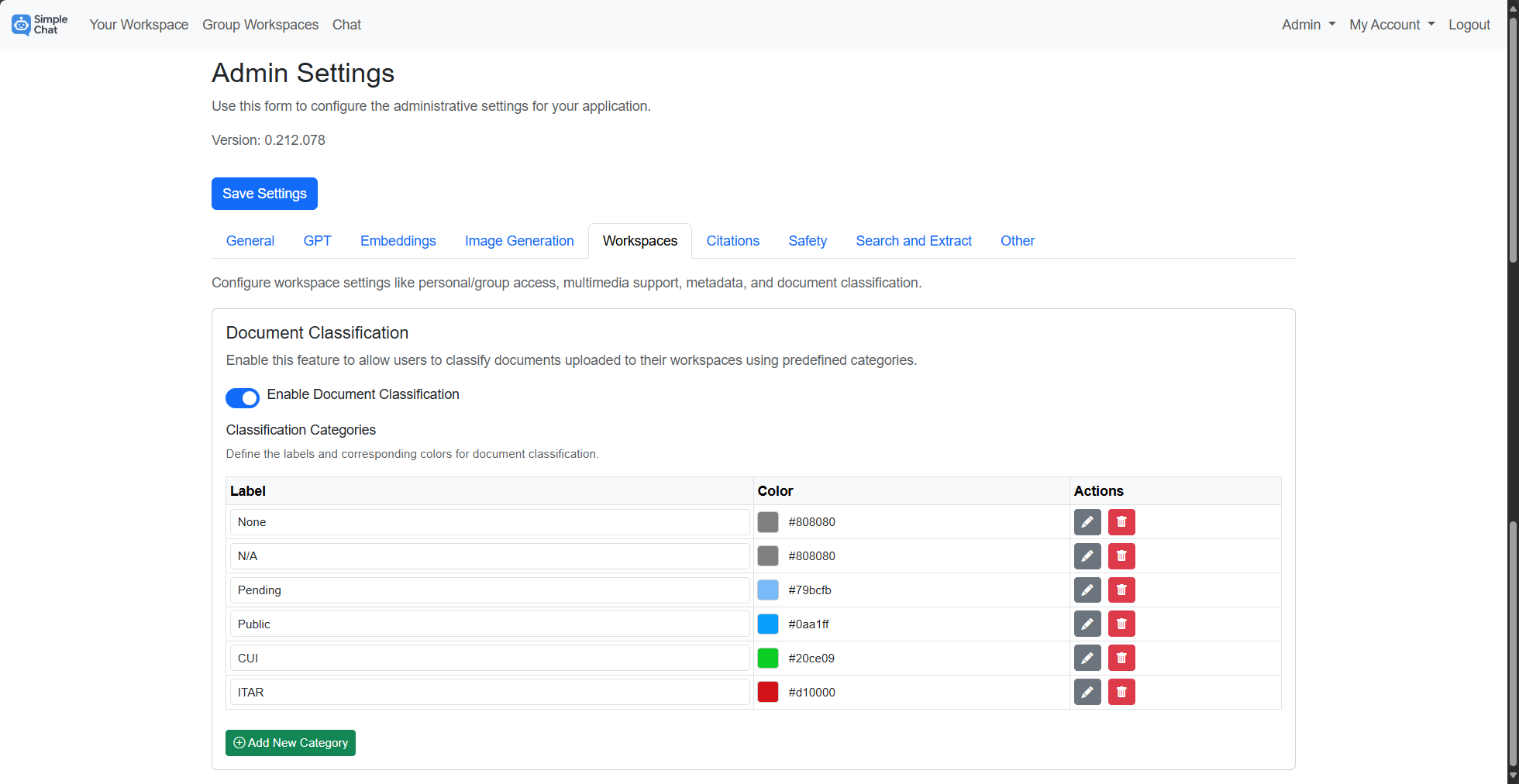

Classification, metadata, and enhanced citations

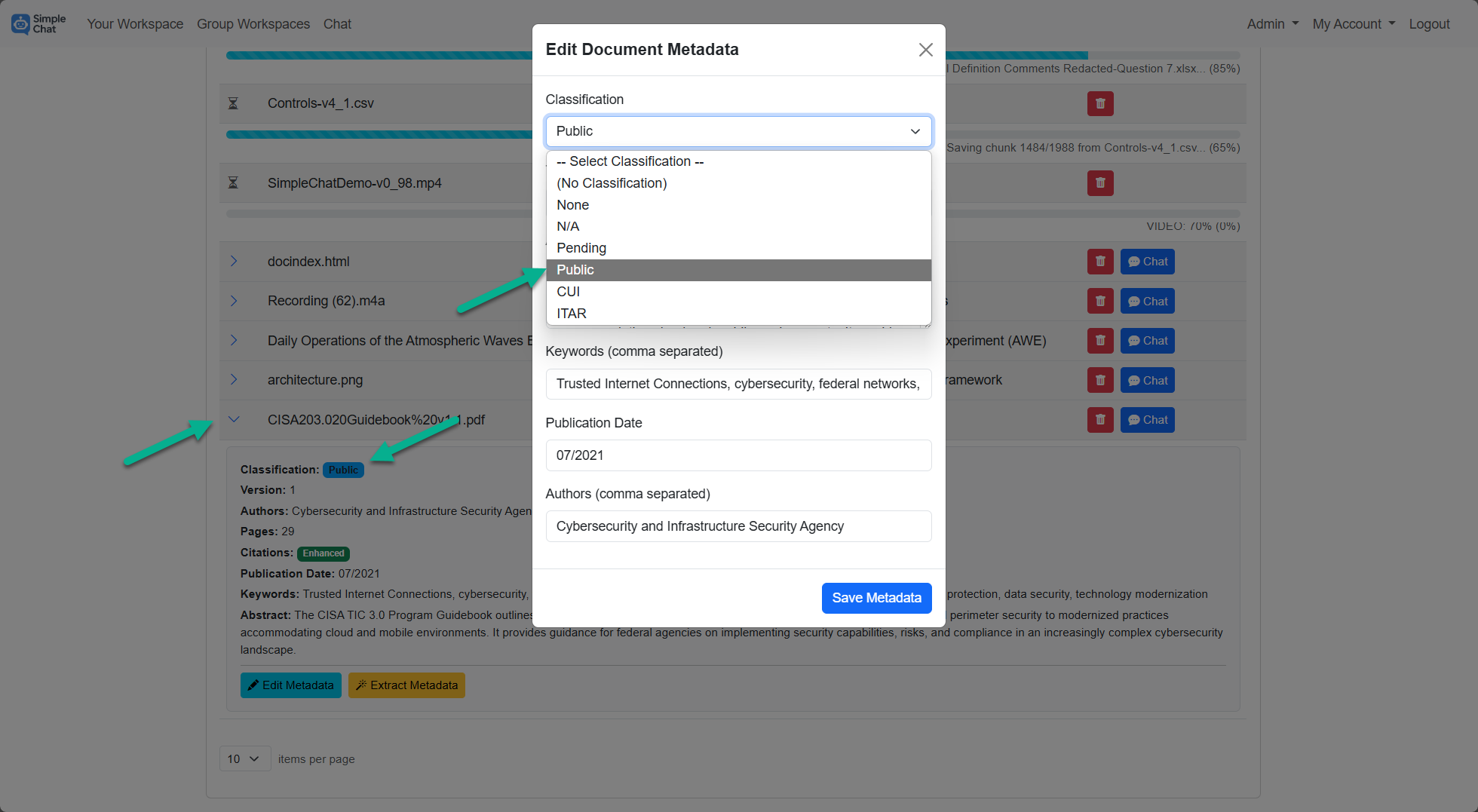

Add labels, AI-generated summaries, author/date inference, and source-linked previews so users can understand where an answer came from.

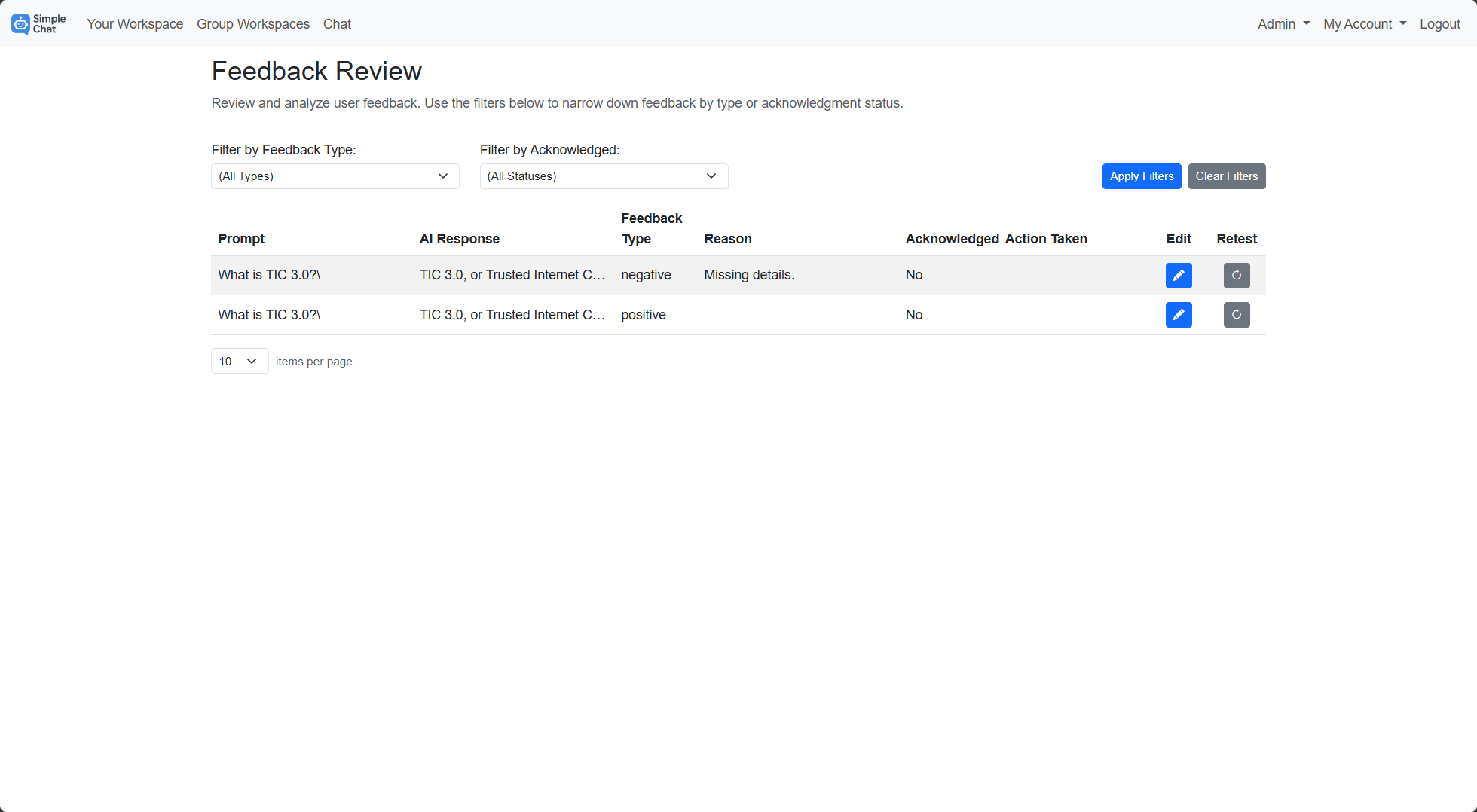

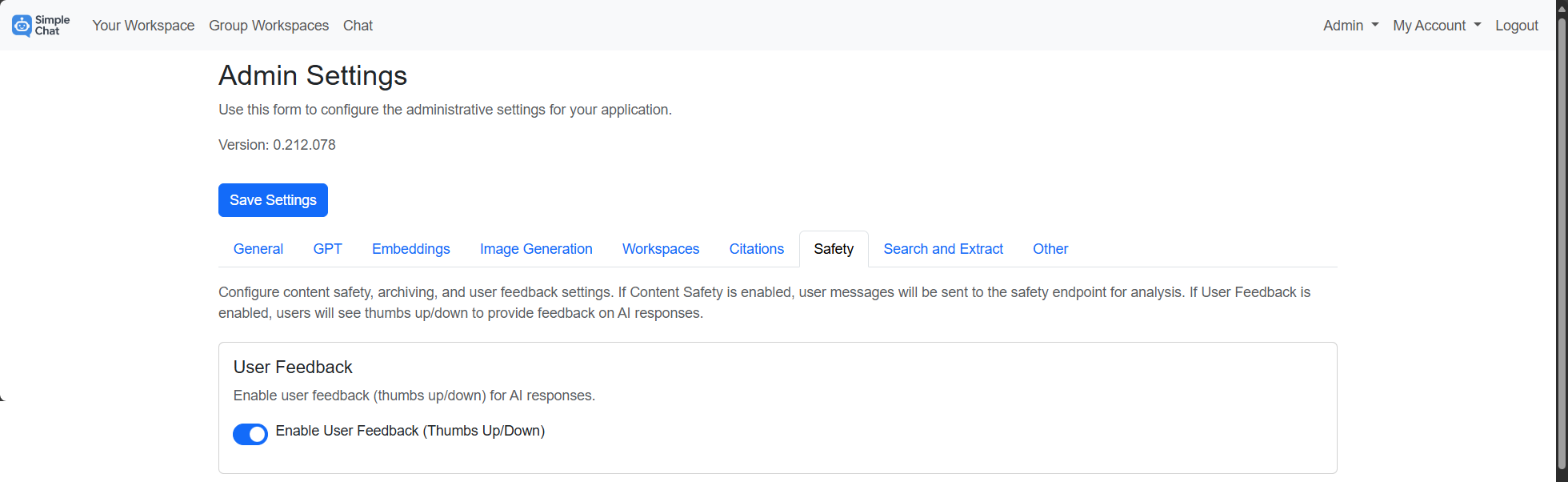

Feedback + retention

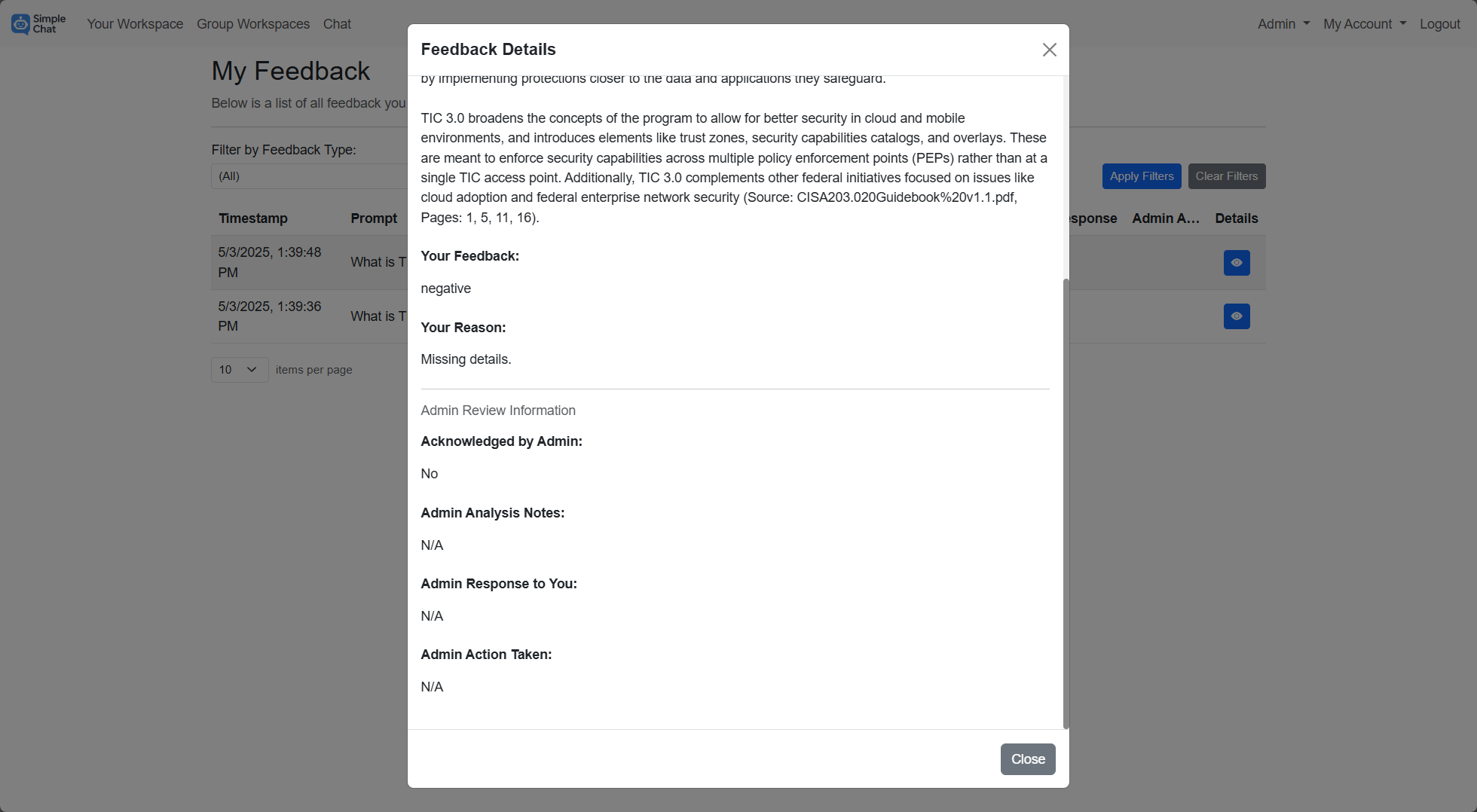

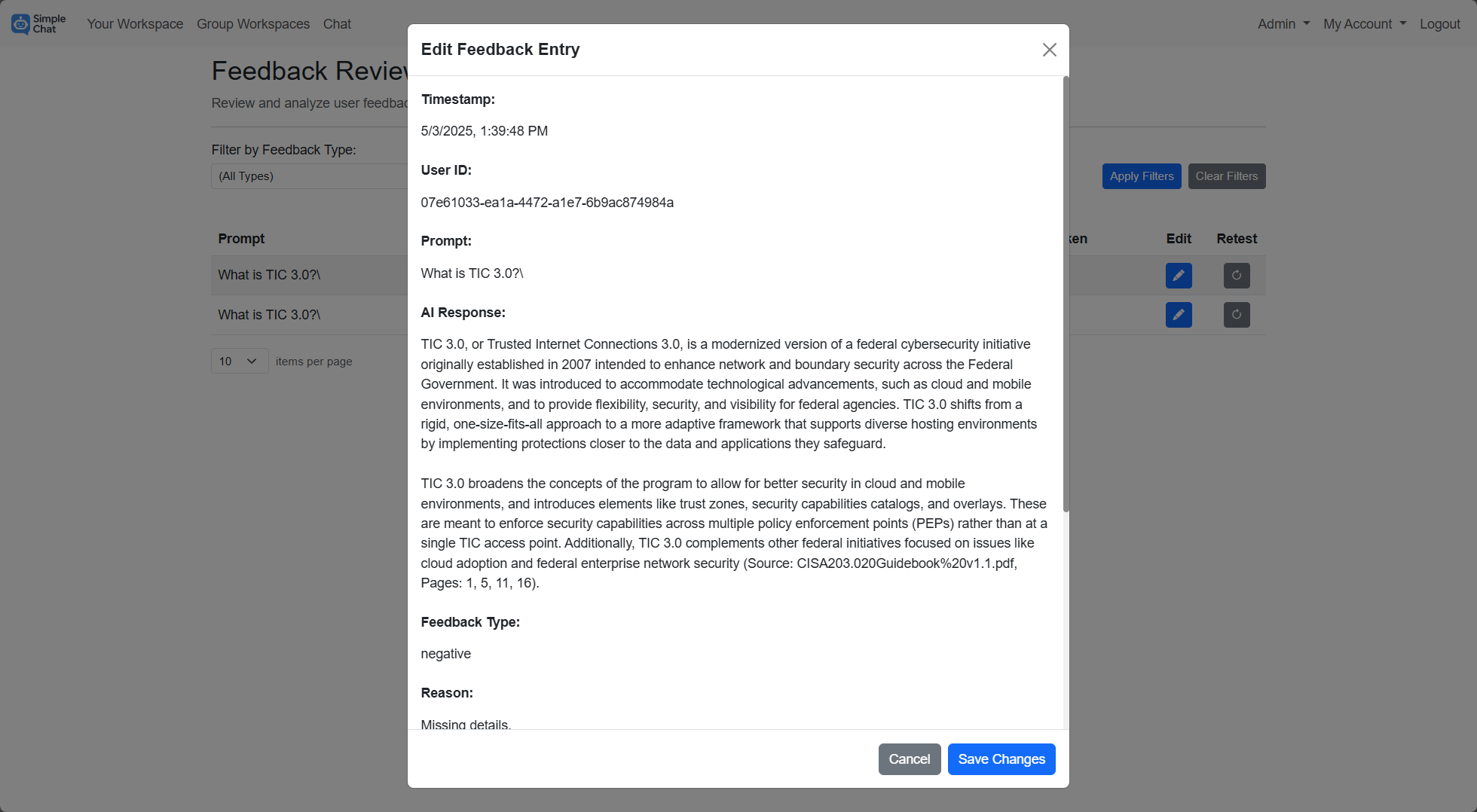

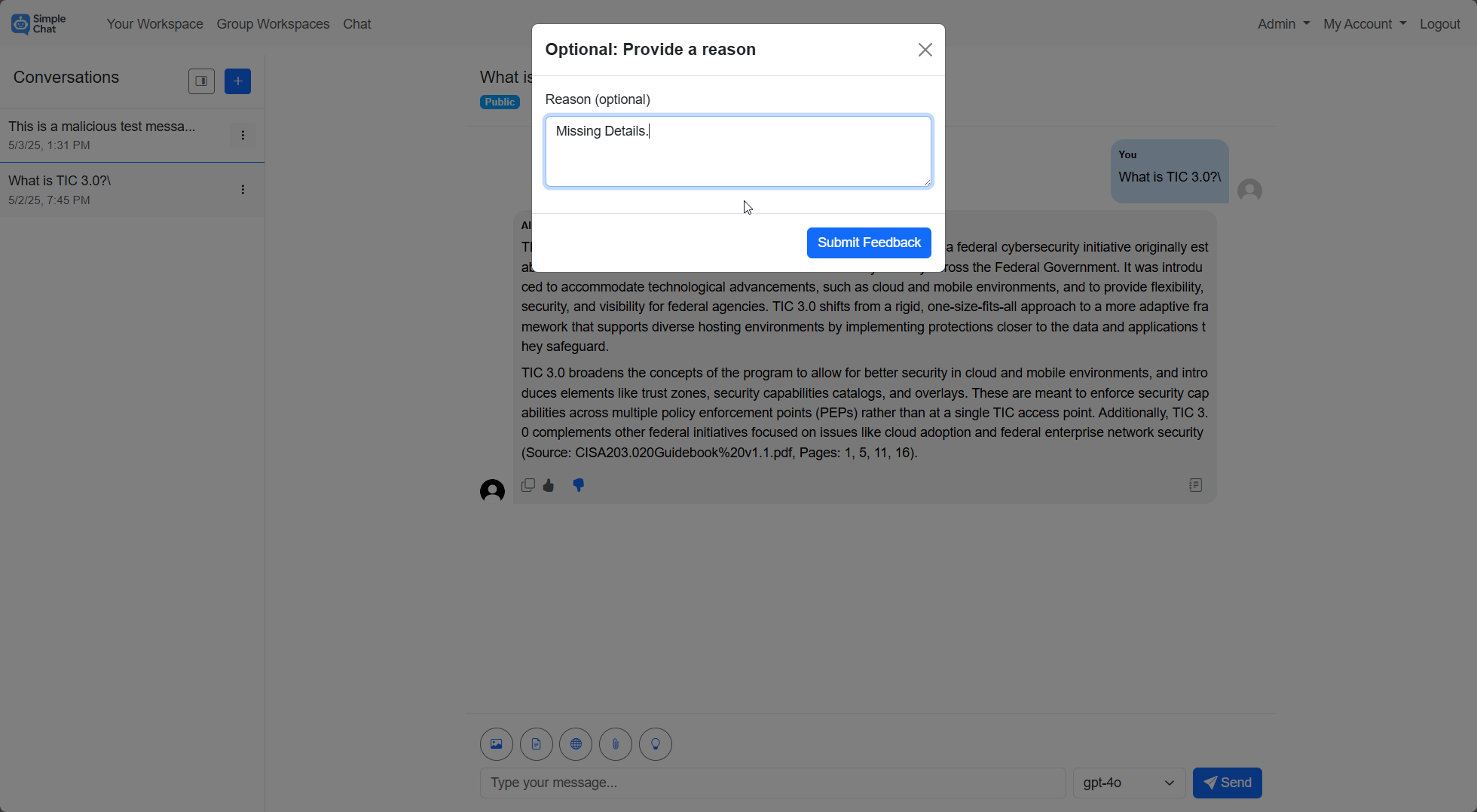

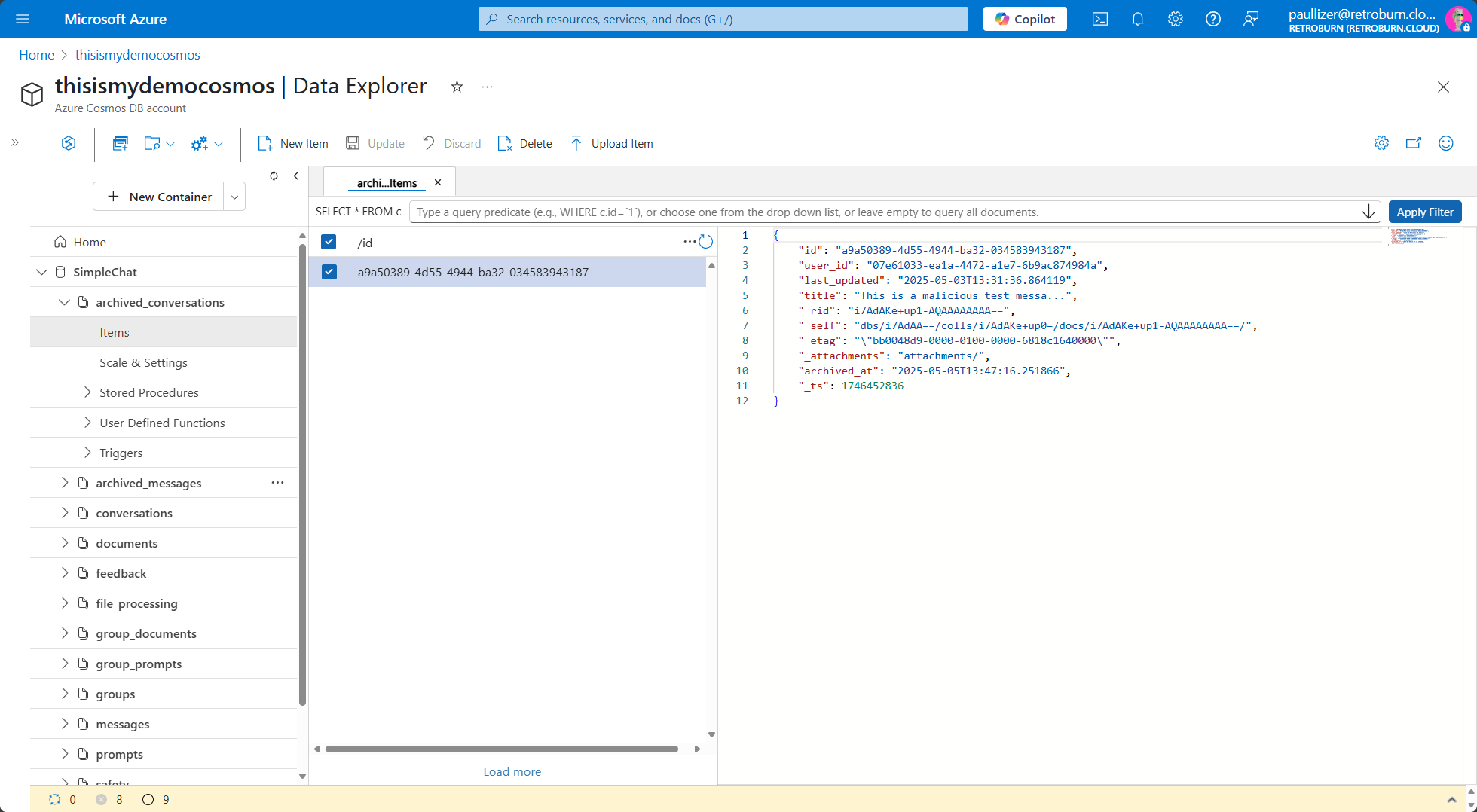

User feedback and conversation archiving

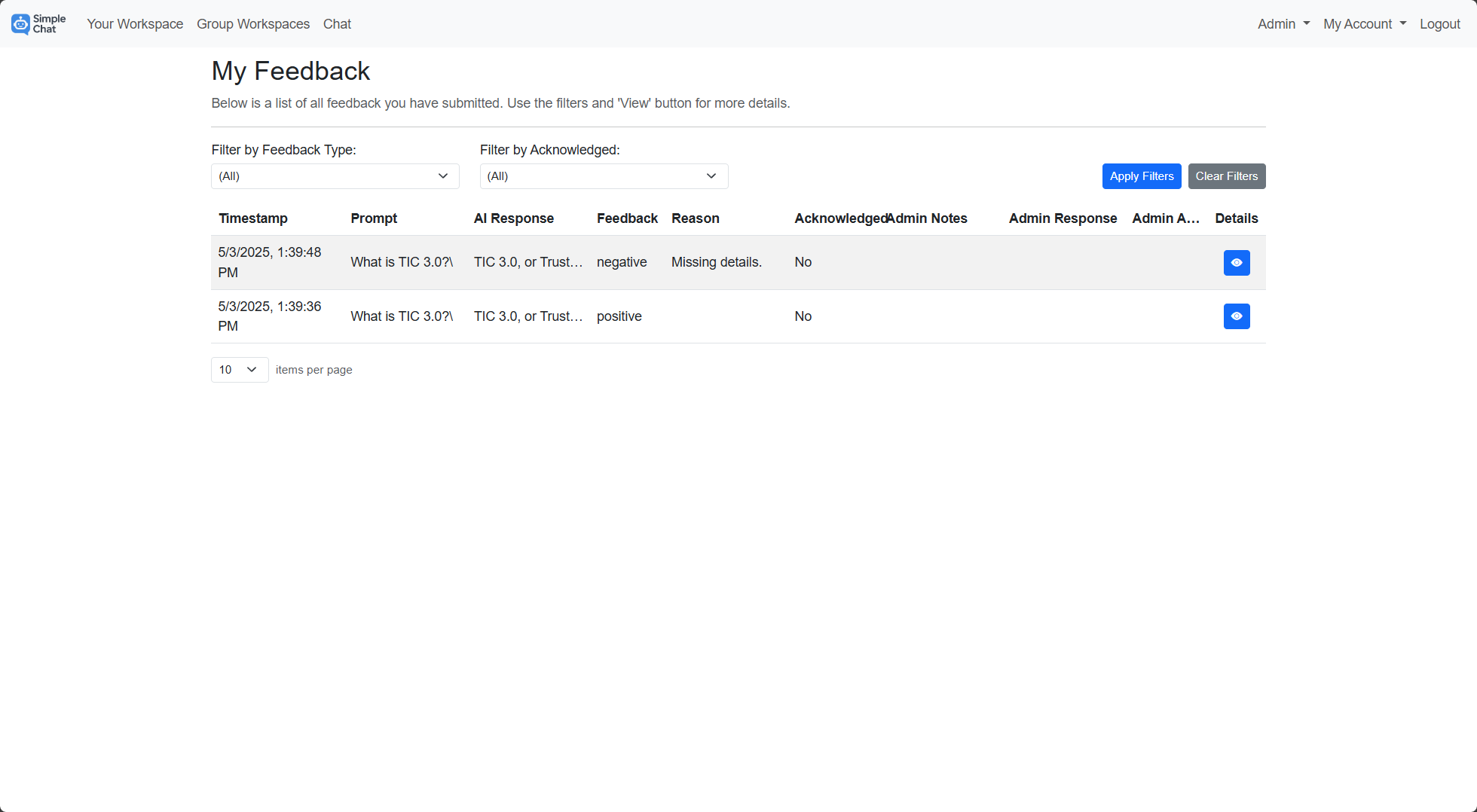

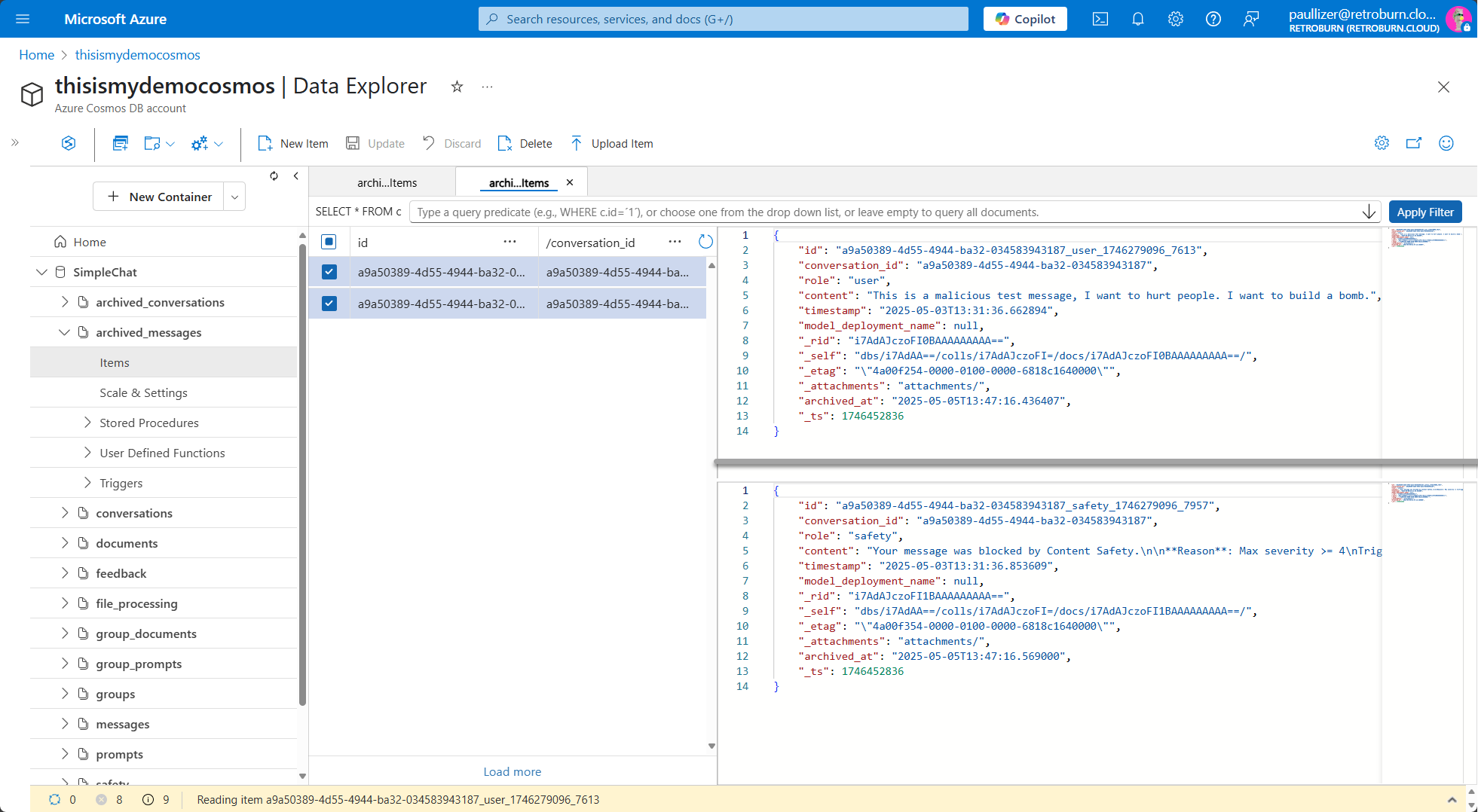

Collect structured sentiment on responses and, when needed, retain conversations in a dedicated archive for audit and compliance workflows.

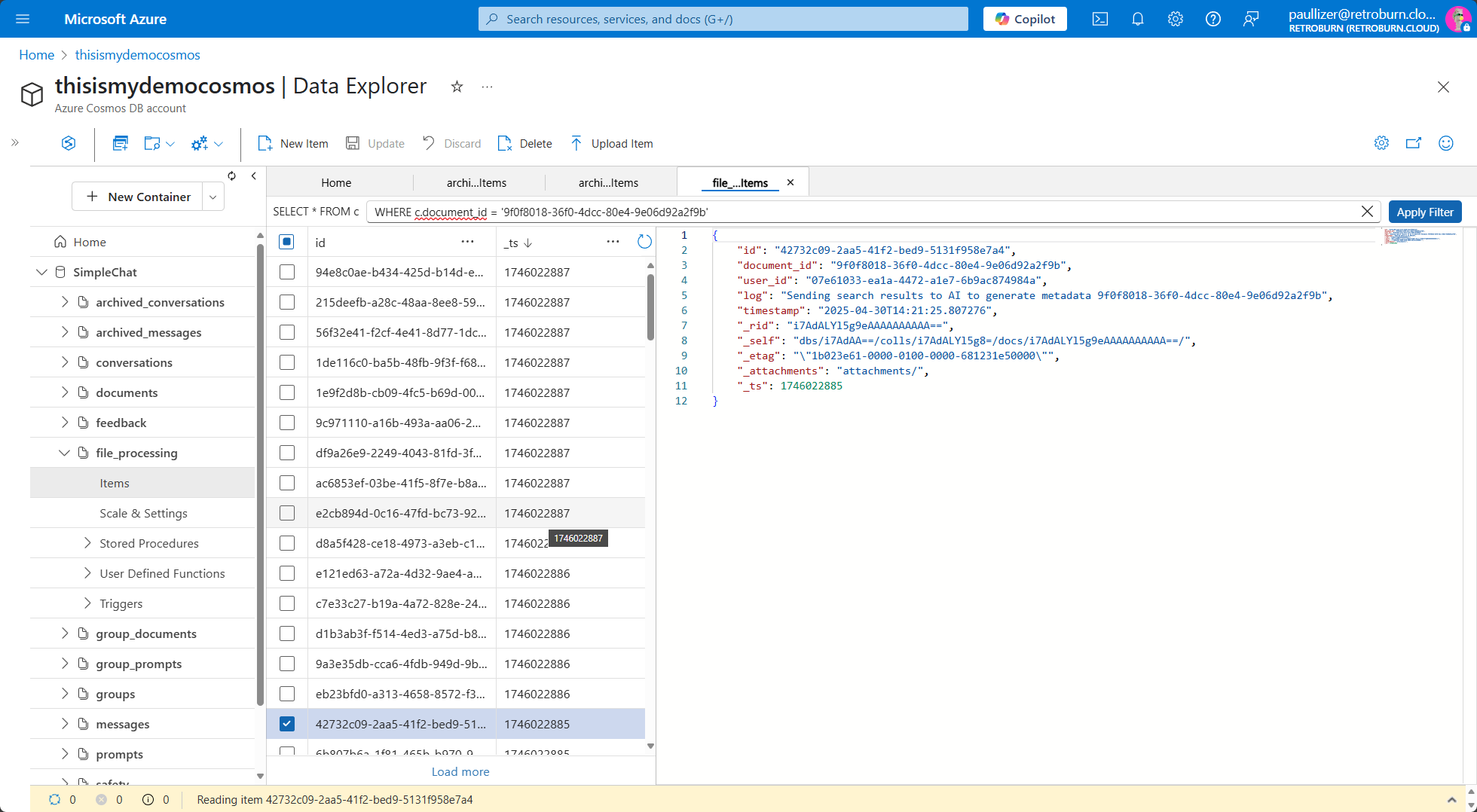

Scale + extensibility

Redis cache, SQL agents, and processing logs

Scale session handling, inspect ingestion activity, and connect agent workflows to SQL data sources through configurable plugins.

Platform services

Azure building blocks behind the product

Simple Chat is opinionated about which Azure services handle which part of the workload.

Service map

Primary service roles

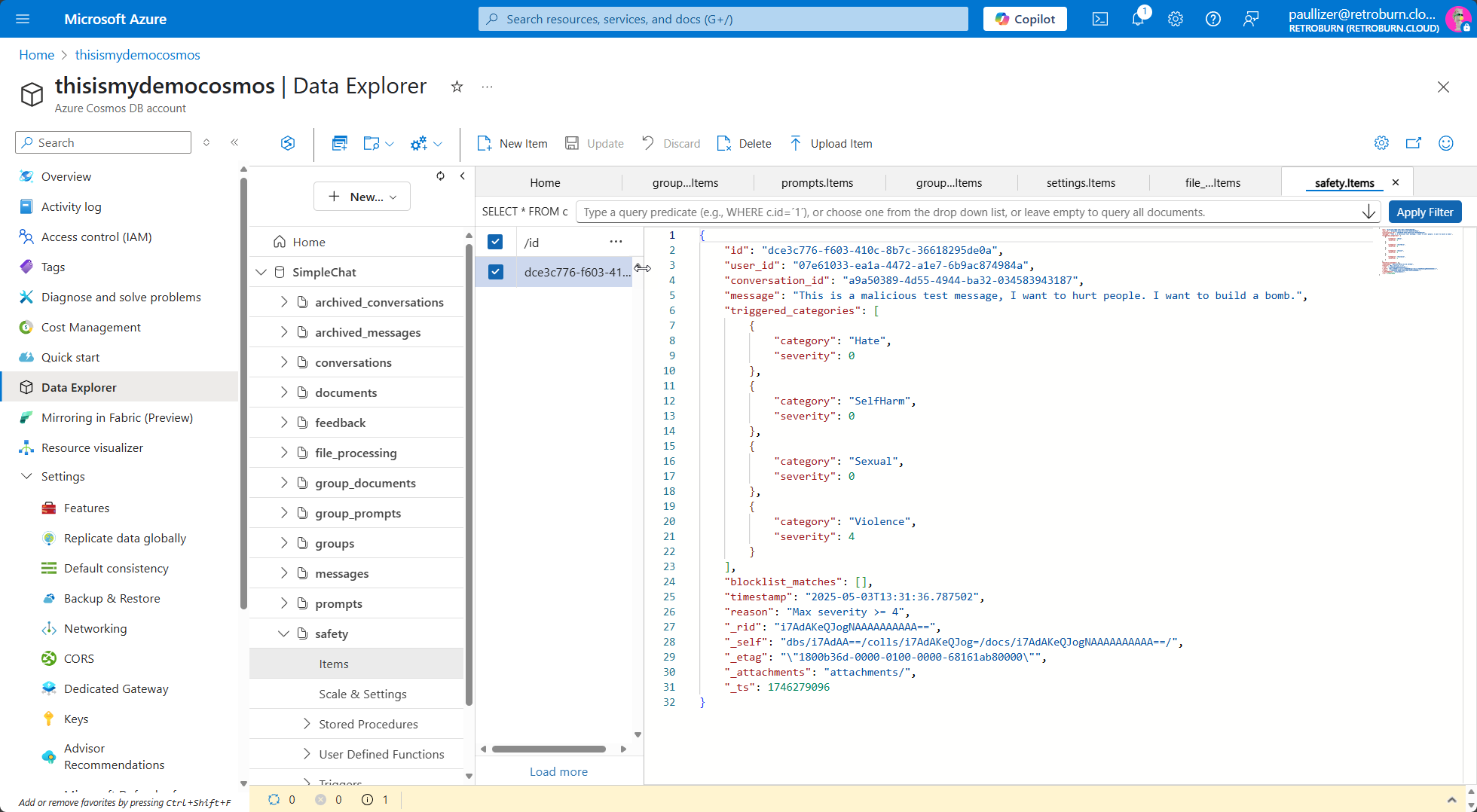

  • Azure Cosmos DB stores conversations, metadata, settings, user and group records, and optional archive or feedback data.
  • Azure AI Search powers hybrid retrieval across indexed personal and group content.
  • Azure AI Document Intelligence extracts text and layout from uploaded files during ingestion.
  • Azure OpenAI handles chat completions, embeddings, optional image generation, and AI-driven metadata extraction.

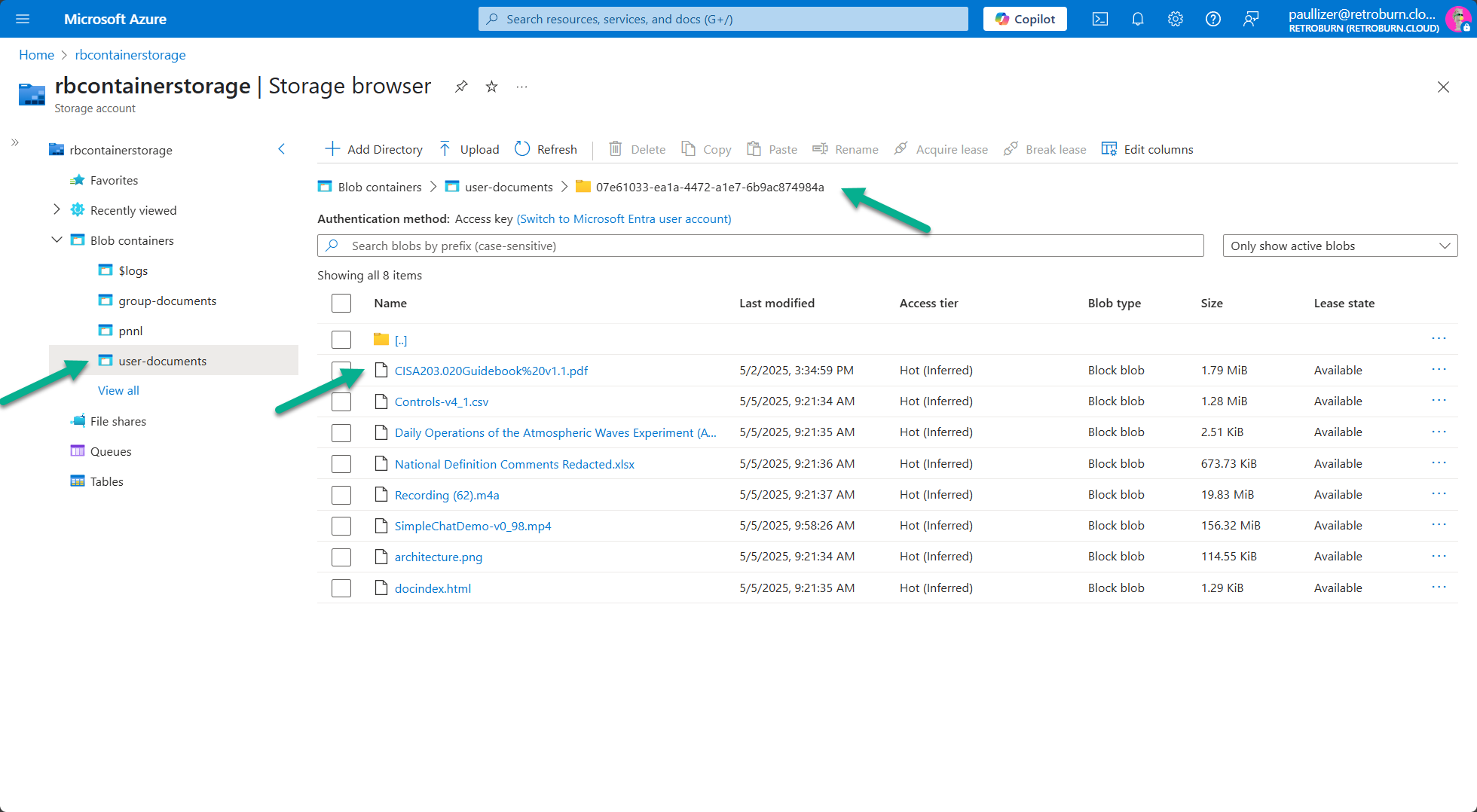

  • Azure Storage supports enhanced citation content and related document assets.
  • Azure Cache for Redis is optional and becomes important when you need horizontal scale with shared sessions.
Supported inputs

File types the platform is built to understand

Exact behavior depends on which optional extraction features you enable, but these are the main content categories the app is designed around.

Coverage
Text

Structured and plain text

`txt`, `md`, `html`, `json`, `xml`, `yaml`, `yml`, and `log` files fit the basic ingestion pipeline well.

Documents

Office and tabular documents

`pdf`, `doc`, `docm`, `docx`, `pptx`, `xlsx`, `xlsm`, `xls`, and `csv` cover the common enterprise file set.

Images

Image ingestion with OCR support

`jpg`, `jpeg`, `png`, `bmp`, `tiff`, `tif`, and `heif` can be processed through document analysis and OCR-aware workflows.

Media

Audio and video formats

`mp4`, `mov`, `avi`, `wmv`, `mkv`, `webm`, `mp3`, `wav`, `ogg`, `aac`, `flac`, and `m4a` become searchable when the related media services are enabled.

Visual reference

Architecture and admin surface

The deployment architecture and admin settings page are usually the fastest way to explain how the feature set is organized.

Screens

Architecture overview

Use this diagram when you need to explain how App Service, Azure OpenAI, AI Search, Cosmos DB, and storage fit together.

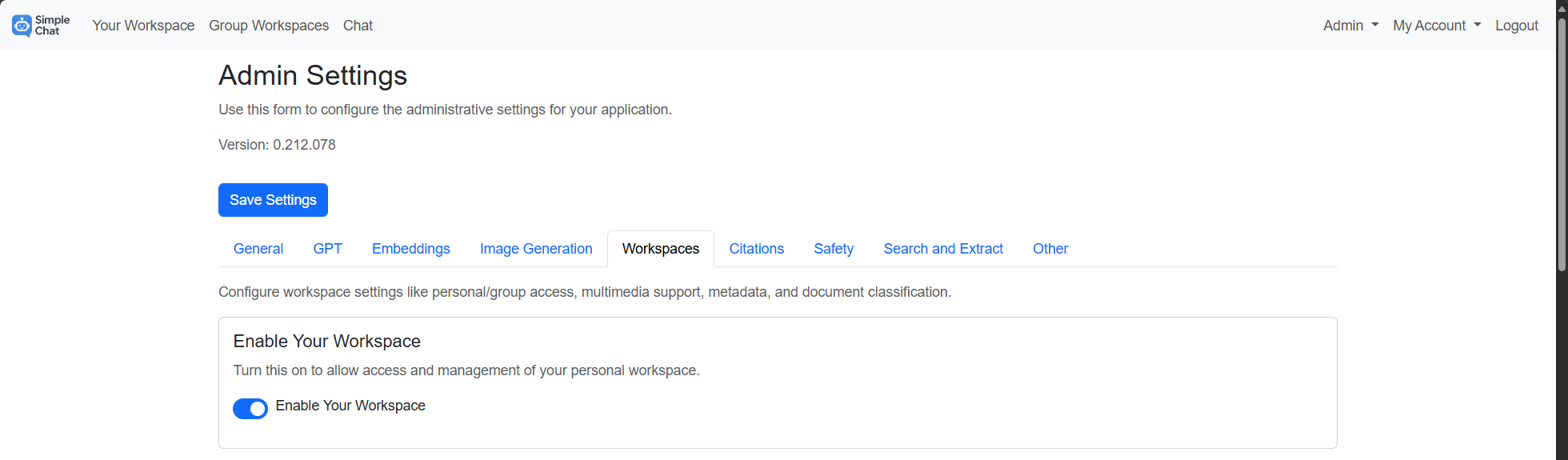

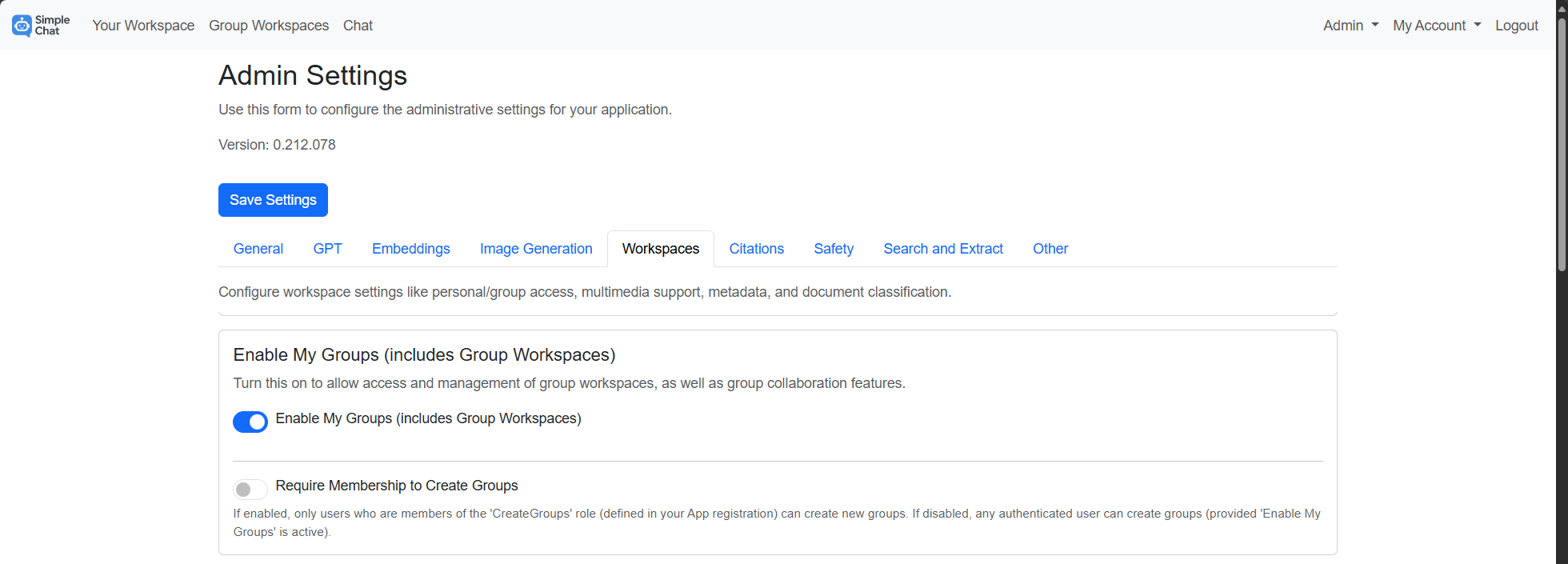

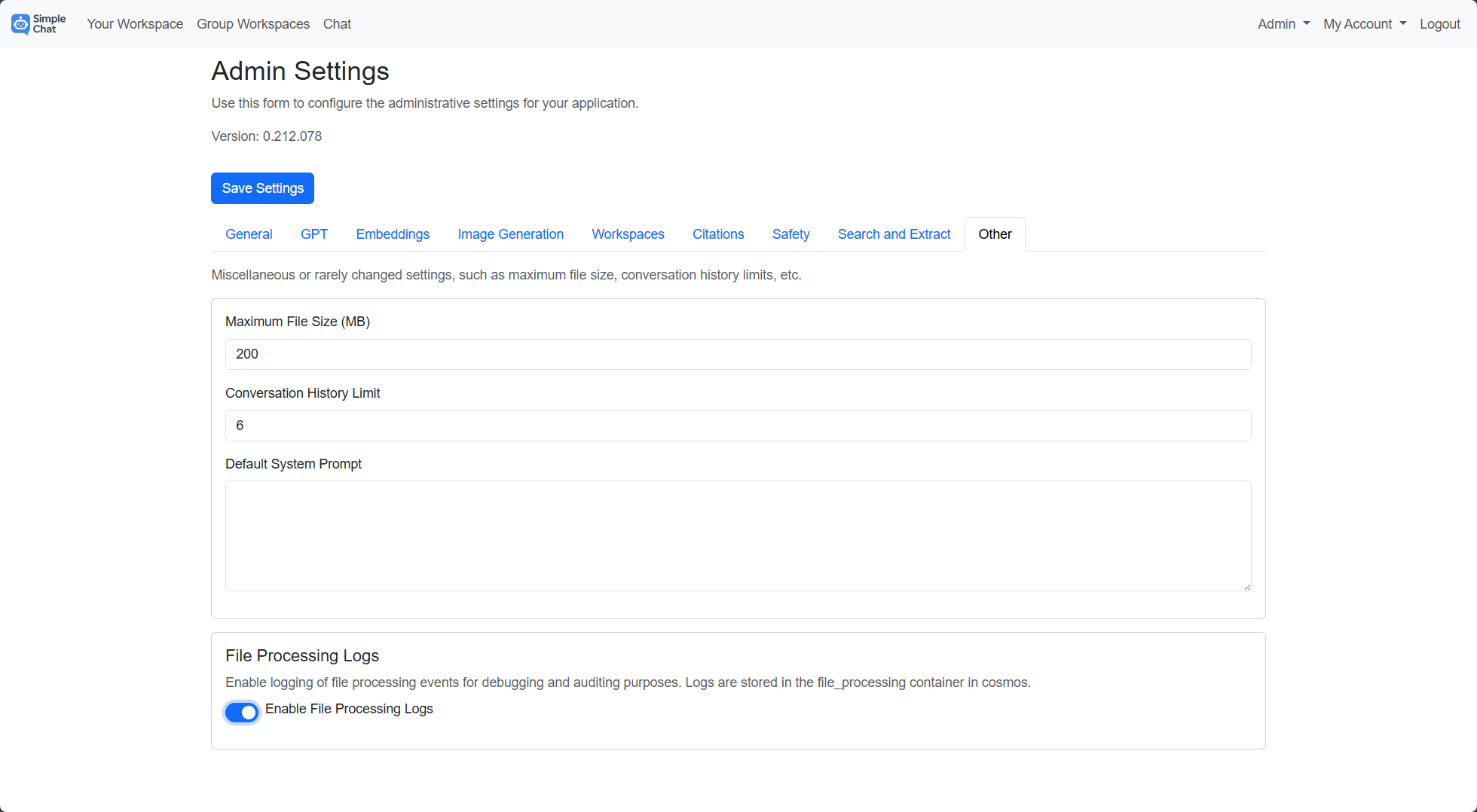

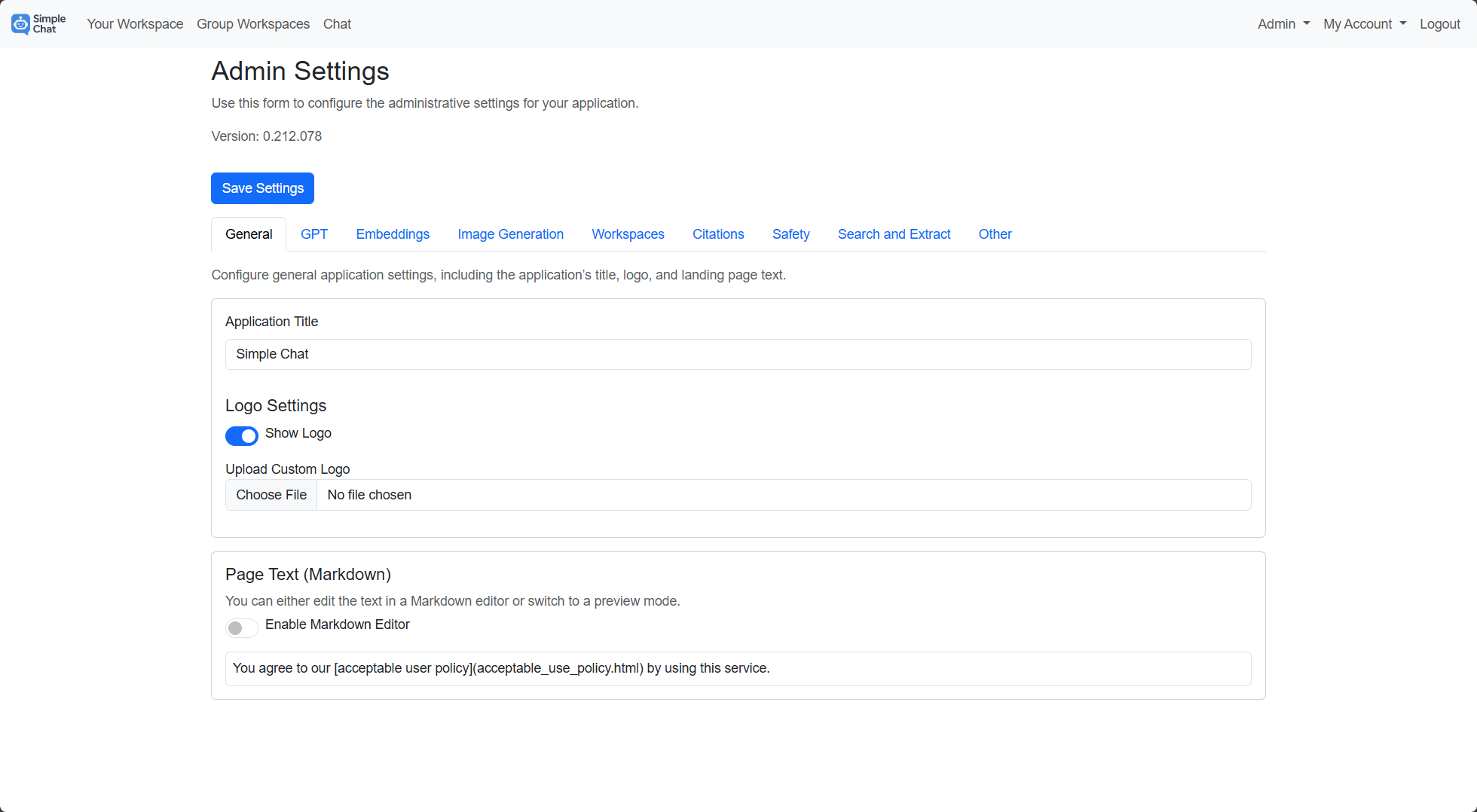

Admin configuration surface

Most optional features are exposed through the admin settings experience, which keeps rollout decisions in one operational surface.
