Task 01 - Prepare an Azure SQL Database (20 minutes)

Introduction

The Contoso Suites team is interested in learning how they can use Semantic Kernel to extend their application capabilities. The development team is currently responsible for creating any new API endpoints that end users will consume through front-end applications, but a common complaint is that the turnaround time for new API endpoint is too slow. The development team is interested in learning more about Semantic Kernel and whether it could be a viable solution for their problem.

Throughout the course of this exercise, you will complete a simple Web API to support database calls. Then, you will implement a Semantic Kernel plugin to enable arbitrary database query generation (of SELECT statements), and display the results as a table in the front-end application.

In this first task, you will prepare an Azure SQL Database and wire up function calls from a C#-based Web API project to read from the Azure SQL Database. You will then deploy the Web API project and ensure that your Streamlit-based dashboard application can successfully read data from Azure SQL Database via the Web API project. This will prepare you for Task 2, where you will enable your GPT-4 model deployment to generate function calls based on chat input.

Description

In this task, you will load data that Contoso Suites staff has provided to you into Azure SQL DB. This data contains a sample of customer, hotel, and bookings data from their SQL Server-based bookings system. From there, they would like you to implement a .NET Web API endpoint exposing this customer information. They have provided you with most of the code but did not have time to complete the task.

Success Criteria

• You have created a series of tables in the ContosoSuitesBookings Azure SQL Database.
• You have added a sql db user for your User-assigned Managed Identity.
• You have updated the .NET Web API endpoint to allow querying against hotel and bookings data.

Tips

• If your .NET application build is failing when you try to run dotnet run and you receive an error that the build cannot load the required packages from NuGet, you may be missing a link to the Microsoft NuGet repository. Run the command dotnet nuget list source and see if you have an entry enabled for nuget.org. If not, you can add it with the following command: dotnet nuget add source https://api.nuget.org/v3/index.json -n nuget.org. If you have one but it is currently disabled, you can enable it with the command dotnet nuget enable source nuget.org.

Learning Resources

• Azure SQL Database and Azure Synapse IP firewall rules
• Environment variables and app settings in Azure App Service

Key Tasks

01: Set firewall rules

Add your IP address to your Azure SQL Server’s firewall allow list and also enable the Allow Azure services and resources to access this server setting.

02: Load sample data

Connect to your remote Azure SQL Database and run the script in src/data/BookingsHistory.sql against that database, creating several tables and populating them with sample data. Then, run the script src/data/AddManagedIdentityUser.sql replacing the name TechExcelMI with the name of the User-assigned Managed Identity that was created in your resource group.

03: Create a local connection string

Create the ContosoSuites connection string in your local src/ContosoSuitesWebAPI/appsettings.Development.json file for your Azure SQL DB. Use Active Directory Default authentication.

{
  "ConnectionStrings": {
    "ContosoSuites": "Server=tcp:{your server}.database.windows.net,1433;Initial Catalog=ContosoSuitesBookings;Encrypt=True;TrustServerCertificate=False;Connection Timeout=30;Authentication='Active Directory Default';"
  }
}

04: Update endpoint code

Complete the function mappings in src/ContosoSuitesWebAPI/Program.cs for the /Hotels/ endpoints. Each endpoint should call the relevant database service and return the results of the appropriate method.

// Retrieve the set of hotels from the database.
app.MapGet("/Hotels", async () =>
{
    var hotels = await app.Services.GetRequiredService<IDatabaseService>().GetHotels();
    return hotels;
})
    .WithName("GetHotels")
    .WithOpenApi();

// Retrieve the bookings for a specific hotel.
app.MapGet("/Hotels/{hotelId}/Bookings/", async (int hotelId) =>
{
    var bookings = await app.Services.GetRequiredService<IDatabaseService>().GetBookingsForHotel(hotelId);
    return bookings;
})
    .WithName("GetBookingsForHotel")
    .WithOpenApi();

// Retrieve the bookings for a specific hotel that are after a specified date.
app.MapGet("/Hotels/{hotelId}/Bookings/{min_date}", async (int hotelId, DateTime min_date) =>
{
    var bookings = await app.Services.GetRequiredService<IDatabaseService>().GetBookingsByHotelAndMinimumDate(hotelId, min_date);
    return bookings;
})
    .WithName("GetRecentBookingsForHotel")
    .WithOpenApi();

05: Test Web API service

Build and run the Web API service locally. Connect to the URL provided in the “Now listening on:” line and navigate to the /Hotels endpoint. For example, if your host is localhost and on port 5292, navigate to http://localhost:5292/Hotels. You should see a list of four hotels. Test the other two endpoints as well.

If you are using GitHub Codespaces, select the Open in Browser button when you receive an informational message that “Your application running on port 5292 is available.” From there, you can navigate to the /Hotels endpoint in your browser.

dotnet restore
dotnet build
dotnet run

06: View API Integration page

Open the Streamlit application and navigate to the API Integration page. You should see a drop-down list asking you to select a hotel, followed by a table of bookings for that hotel.

07: Deploy Web API service

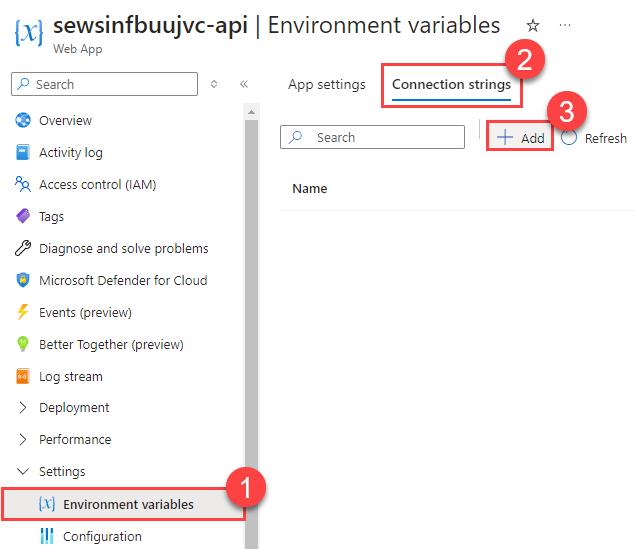

Deploy your App Service code changes and ensure they propagate to Azure App Services. Then, add a new connection string to the App Service’s environment variables called ContosoSuites. The Value should be the value of your connection string and the Type should be SQLAzure. Azure App Services will automatically add the SQLAZURECONNSTR_ to the beginning of your environment variable, so you should not add it yourself when creating this variable.

08: Test dashboard application

Test your deployed Streamlit application and ensure that it is able to load the hotels drop-down list and bookings table as expected.

If you receive an error message indicating a timeout against the API server, you may need to stop and restart the API App Service and then wait a couple of minutes for it to be ready.
