Task 02 - Create a function call for the customer account information API endpoint (40 minutes)

Introduction

Using the Semantic Kernel library, you can translate natural language input into a function call. This allows organizations to extend existing code bases and APIs with a natural language front end.

We currently have three Web API endpoints reading data from Azure SQL Database. In this task, you will create two additional endpoints for reading data, as well as a general-purpose endpoint to accept natural language input and return the appropriate output based on user request. This approach to querying data can be more intuitive for end users who have some familiarity with the specific capabilities of our API.

Description

In the prior task, you populated bookings history data in Azure SQL Database and built three endpoints on top of it. The Contoso Suites development team would like to continue building API endpoints, but want to take advantage of natural language capabilities to make front-end development easier. In this task, you will use the Semantic Kernel library to make the database service calls into kernel functions that can run based on user request.

Success Criteria

  • You have added two new methods to the IDatabaseService interface and its associated DatabaseService class.
  • You have implemented the Chat endpoint and can call any of the DatabaseService functions.
  • You are able to interact with the Chat endpoint from the API Integration page in Streamlit.

Learning Resources

Tips

  • The Semantic Kernel .NET library is rapidly changing, and some examples you may find online relate to the old methods for interacting with Semantic Kernel. Furthermore, if you are using GitHub Copilot to assist with development, it may provide you with code that no longer functions with recent versions of Semantic Kernel. Be sure to use recent code examples as guidance.

Key Tasks

01: Add local secrets

Add three local secrets to the src/ContosoSuitesWebAPI project using dotnet user-secrets. They should be named AzureOpenAI:DeploymentName, AzureOpenAI:Endpoint, and AzureOpenAI:ApiKey, and these secret names are case-sensitive.

Expand this section to view the solution

In order to add user secrets to your .NET project, open a console in the Web API directory containing your ContosoSuitesWebAPI.csproj file. Then, run the following commands, replacing the secret values with your actual endpoint and API key, respectively.

dotnet user-secrets init
dotnet user-secrets set "AzureOpenAI:DeploymentName" "gpt-4o"
dotnet user-secrets set "AzureOpenAI:Endpoint" "{your_endpoint}"
dotnet user-secrets set "AzureOpenAI:ApiKey" "{your_key}"

02: Update database service code

The DatabaseService class and IDatabaseService interface have three methods associated with them. Contoso Suites would like to add two more methods. One will be called GetBookingsMissingHotelRooms() and will return all bookings that do not have associated hotel rooms. The second will be called GetBookingsWithMultipleHotelRooms() and will return all bookings with more than one hotel room. Neither method should take an input parameter, and you will not need to add explicit endpoints for these.

Expand this section to view the solution

The code for the GetBookingsMissingHotelRooms() method is in the DatabaseService class as follows:

public async Task<IEnumerable<Booking>> GetBookingsMissingHotelRooms()
    {
        var sql = """
            SELECT
                b.BookingID,
                b.CustomerID,
                b.HotelID,
                b.StayBeginDate,
                b.StayEndDate,
                b.NumberOfGuests
            FROM dbo.Booking b
            WHERE NOT EXISTS
                (
                    SELECT 1
                    FROM dbo.BookingHotelRoom h
                    WHERE
                        b.BookingID = h.BookingID
                );
            """;
        using var conn = new SqlConnection(
            connectionString: connectionString!
        );
        conn.Open();
        using var cmd = new SqlCommand(sql, conn);
        using var reader = await cmd.ExecuteReaderAsync();
        var bookings = new List<Booking>();
        while (await reader.ReadAsync())
        {
            bookings.Add(new Booking
            {
                BookingID = reader.GetInt32(0),
                CustomerID = reader.GetInt32(1),
                HotelID = reader.GetInt32(2),
                StayBeginDate = reader.GetDateTime(3),
                StayEndDate = reader.GetDateTime(4),
                NumberOfGuests = reader.GetInt32(5)
            });
        }
        conn.Close();

        return bookings;
    }

The code for the GetBookingsWithMultipleHotelRooms() method in the DatabaseService class is as follows:

public async Task<IEnumerable<Booking>> GetBookingsWithMultipleHotelRooms()
    {
        var sql = """
            SELECT
                b.BookingID,
                b.CustomerID,
                b.HotelID,
                b.StayBeginDate,
                b.StayEndDate,
                b.NumberOfGuests
            FROM dbo.Booking b
            WHERE
                (
                    SELECT COUNT(1)
                    FROM dbo.BookingHotelRoom h
                    WHERE
                        b.BookingID = h.BookingID
                ) > 1;
            """;
        using var conn = new SqlConnection(
            connectionString: connectionString!
        );
        conn.Open();
        using var cmd = new SqlCommand(sql, conn);
        using var reader = await cmd.ExecuteReaderAsync();
        var bookings = new List<Booking>();
        while (await reader.ReadAsync())
        {
            bookings.Add(new Booking
            {
                BookingID = reader.GetInt32(0),
                CustomerID = reader.GetInt32(1),
                HotelID = reader.GetInt32(2),
                StayBeginDate = reader.GetDateTime(3),
                StayEndDate = reader.GetDateTime(4),
                NumberOfGuests = reader.GetInt32(5)
            });
        }
        conn.Close();

        return bookings;
    }

The new code for the IDatabaseService interface is as follows:

Task<IEnumerable<Booking>> GetBookingsMissingHotelRooms();
    Task<IEnumerable<Booking>> GetBookingsWithMultipleHotelRooms();

03: Add Semantic Kernel package

Add the Semantic Kernel version 1.20.0 NuGet package to the Web API project.

Expand this section to view the solution

To add the Semantic Kernel NuGet package, you can run the following command from the command line, in the Web API directory containing your ContosoSuitesWebAPI.csproj file.

dotnet add package Microsoft.SemanticKernel --version 1.20.0

04: Apply tags to database service methods

Tag each of the methods in the DatabaseService class as kernel functions and provide a description for each method and input parameter.

Expand this section to view the solution

In order to tag a method in the DatabaseService.cs file, you will need to include the Microsoft.SemanticKernel and System.ComponentModel namespaces at the top of the file, along with the other using statements.

using Microsoft.SemanticKernel;
using System.ComponentModel;

Then, add [KernelFunction] and [Description()] descriptors to each of the five methods you want to be available for Semantic Kernel to call. For example, the GetHotels() method signature would look like:

[KernelFunction]
    [Description("Get all hotels.")]
    public async Task<IEnumerable<Hotel>> GetHotels()

For methods with parameters, include as well a [Description()] descriptor for each parameter. For example, the GetBookingsForHotel() method would look like:

[KernelFunction]
    [Description("Get all bookings for a single hotel.")]
    public async Task<IEnumerable<Booking>> GetBookingsForHotel(
        [Description("The ID of the hotel")] int hotelId
        )

Make sure to do this for all five methods, including the two you created in Step 2 of this task.

05: Use configuration builder

The AppConfig.cs file contains a simple configuration class. Update the Program.cs file to use this configuration class to build out a configuration. Add in any user secrets associated with the (implicit) Program class as well as environment variables, and then validate the configuration.

Expand this section to view the solution

Add the Semantic Kernel namespaces we will need to the top of Program.cs:

using Microsoft.SemanticKernel;
using Microsoft.SemanticKernel.Connectors.OpenAI;
using Microsoft.SemanticKernel.ChatCompletion;

From there, after creating the builder object, add the following code:

var config = new ConfigurationBuilder()
    .AddUserSecrets<Program>()
    .AddEnvironmentVariables()
    .Build();

06: Add Semantic Kernel singleton

In Program.cs, add a singleton of type Microsoft.SemanticKernel.Kernel. It should create an IKernelBuilder and then add Azure OpenAI chat completion, using the deployment name, endpoint, and API key from your configuration. It should also add as a plugin everything in the DatabaseService class.

Expand this section to view the solution

The code to create a singleton Kernel is as follows, and should be added below the singleton builder for CosmosClient.

builder.Services.AddSingleton<Kernel>((_) =>
{
    IKernelBuilder kernelBuilder = Kernel.CreateBuilder();
    kernelBuilder.AddAzureOpenAIChatCompletion(
        deploymentName: builder.Configuration["AzureOpenAI:DeploymentName"]!,
        endpoint: builder.Configuration["AzureOpenAI:Endpoint"]!,
        apiKey: builder.Configuration["AzureOpenAI:ApiKey"]!
    );
    var databaseService = _.GetRequiredService<IDatabaseService>();
    kernelBuilder.Plugins.AddFromObject(databaseService);
    return kernelBuilder.Build();
});

07: Implement chat request

Implement the /Chat POST request. It should use the Kernel singleton and get chat message content from the chat completion service. Return to the end user response?.Content!.

Expand this section to view the solution

The code to implement the /Chat POST request is as follows:

app.MapPost("/Chat", async Task<string> (HttpRequest request) =>
{
    var message = await Task.FromResult(request.Form["message"]);
    var kernel = app.Services.GetRequiredService<Kernel>();
    var chatCompletionService = kernel.GetRequiredService<IChatCompletionService>();
    var executionSettings = new OpenAIPromptExecutionSettings
    {
        ToolCallBehavior = ToolCallBehavior.AutoInvokeKernelFunctions
    };
    var response = await chatCompletionService.GetChatMessageContentAsync(message.ToString(), executionSettings, kernel);
    return response?.Content!;
})
    .WithName("Chat")
    .WithOpenApi();

08: Test Web API project

  1. Run the Web API project and ensure that things work correctly. If you are using GitHub Codespaces, run the following command:

    curl -d 'message="Which bookings do not currently have hotel rooms associated with them?"' http://localhost:5292/Chat


    You can alternatively perform a simple test in PowerShell using the following request.

     $postParams = @{ message="Which bookings do not currently have hotel rooms associated with them?" }
     Invoke-WebRequest -Uri http://localhost:5292/Chat -Method POST -Body $postParams


    Change the -Uri parameter as needed, if your local port is not 5292.

  2. With the Web API package running, run your Streamlit front end and navigate to the API Integration page. Ask the following questions and ensure that you get back the results you expect.

    1. Please show me the bookings for hotel 3 for any date later than December 1, 2024.
    2. Which bookings currently do not have hotel rooms assigned to them?
    3. How many bookings have included at least two hotel rooms?

09: Deploy to App Service

Deploy your App Service code changes and ensure they propagate to Azure App Services. Then, add a three new environment variables to the App Service: AzureOpenAI__ApiKey. This environment variables should have two underscores between “AzureOpenAI” and the name.

In a production environment, it would be better to save these as secrets in Azure Key Vault and then enable a managed identity to access the Key Vault secrets from your App Service. The reason for this is, with the current configuration, anyone with access to manage the App Service can view the deployment name, endpoint, and API key secrets.

Expand this section to view the solution

In order to create an environment variable for your App Service, perform the following actions.

  1. Navigate back to your resource group in the Azure Portal. Then, select the App Service named {your_unique_id}-api. In the Settings menu, choose the Environment variables option. Then, navigate to the App settings tab and select the Add button.

    Creating a new environment variable for an Azure App Service

  2. Create theAzureOpenAI__ApiKey which should have a value of your Azure OpenAI API key. After entering data for an application setting, select Apply to save the setting.

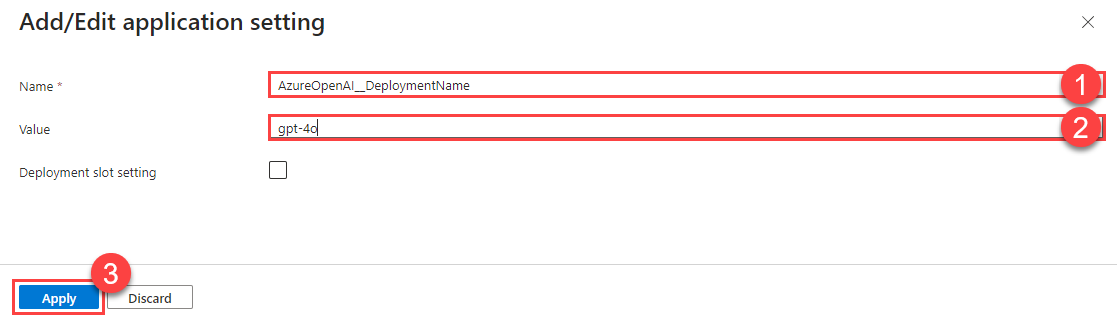

    Filling in details for the new environment variable for an Azure App Service

These environment variables should have two underscores between “AzureOpenAI” and the name.

After creating the three application settings, select the Apply button to finish saving them. This will restart your API service.

Once the deployment has finished, test your deployed Streamlit application and ensure that it is able to answer user questions about bookings as expected.
