Example: Predictions for ERA5#
In this example, we will download ERA5 data for 1 Jan 2023 at 0.25 degrees resolution and run Aurora on this data. The fine-tuned version of Aurora specifically only works with IFS HRES T0, so we use the non-fine-tuned version of Aurora in this example.
Running this notebook requires additional Python packages. You can install these as follows:
pip install cdsapi xarray netcdf4 matplotlib
Downloading the Data#
To begin with, register an account with the Climate Data Store and create $HOME/.cdsapirc with the following content:
url: https://cds-beta.climate.copernicus.eu/api
key: <API key>
You can find your API key on your account page.
In order to be able to download ERA5 data, you need to accept the terms of use in the dataset page.
We now download the ERA5 data.
from pathlib import Path
import cdsapi
# Data will be downloaded here.
download_path = Path("~/downloads")
c = cdsapi.Client()
download_path = download_path.expanduser()
download_path.mkdir(parents=True, exist_ok=True)
# Download the static variables.
if not (download_path / "static.nc").exists():
c.retrieve(
"reanalysis-era5-single-levels",
{
"product_type": "reanalysis",
"variable": [
"geopotential",
"land_sea_mask",
"soil_type",
],
"year": "2023",
"month": "01",
"day": "01",
"time": "00:00",
"format": "netcdf",
},
str(download_path / "static.nc"),
)
print("Static variables downloaded!")
# Download the surface-level variables.
if not (download_path / "2023-01-01-surface-level.nc").exists():
c.retrieve(
"reanalysis-era5-single-levels",
{
"product_type": "reanalysis",
"variable": [
"2m_temperature",
"10m_u_component_of_wind",
"10m_v_component_of_wind",
"mean_sea_level_pressure",
],
"year": "2023",
"month": "01",
"day": "01",
"time": ["00:00", "06:00", "12:00", "18:00"],
"format": "netcdf",
},
str(download_path / "2023-01-01-surface-level.nc"),
)
print("Surface-level variables downloaded!")
# Download the atmospheric variables.
if not (download_path / "2023-01-01-atmospheric.nc").exists():
c.retrieve(
"reanalysis-era5-pressure-levels",
{
"product_type": "reanalysis",
"variable": [
"temperature",
"u_component_of_wind",
"v_component_of_wind",
"specific_humidity",
"geopotential",
],
"pressure_level": [
"50",
"100",
"150",
"200",
"250",
"300",
"400",
"500",
"600",
"700",
"850",
"925",
"1000",
],
"year": "2023",
"month": "01",
"day": "01",
"time": ["00:00", "06:00", "12:00", "18:00"],
"format": "netcdf",
},
str(download_path / "2023-01-01-atmospheric.nc"),
)
print("Atmospheric variables downloaded!")
Static variables downloaded!
Surface-level variables downloaded!
Atmospheric variables downloaded!
Preparing a Batch#
We convert the downloaded data to an aurora.Batch, which is what the model requires.
import torch
import xarray as xr
from aurora import Batch, Metadata
static_vars_ds = xr.open_dataset(download_path / "static.nc", engine="netcdf4")
surf_vars_ds = xr.open_dataset(download_path / "2023-01-01-surface-level.nc", engine="netcdf4")
atmos_vars_ds = xr.open_dataset(download_path / "2023-01-01-atmospheric.nc", engine="netcdf4")
i = 1 # Select this time index in the downloaded data.
batch = Batch(
surf_vars={
# First select time points `i` and `i - 1`. Afterwards, `[None]` inserts a
# batch dimension of size one.
"2t": torch.from_numpy(surf_vars_ds["t2m"].values[[i - 1, i]][None]),
"10u": torch.from_numpy(surf_vars_ds["u10"].values[[i - 1, i]][None]),
"10v": torch.from_numpy(surf_vars_ds["v10"].values[[i - 1, i]][None]),
"msl": torch.from_numpy(surf_vars_ds["msl"].values[[i - 1, i]][None]),
},
static_vars={
# The static variables are constant, so we just get them for the first time.
"z": torch.from_numpy(static_vars_ds["z"].values[0]),
"slt": torch.from_numpy(static_vars_ds["slt"].values[0]),
"lsm": torch.from_numpy(static_vars_ds["lsm"].values[0]),
},
atmos_vars={
"t": torch.from_numpy(atmos_vars_ds["t"].values[[i - 1, i]][None]),
"u": torch.from_numpy(atmos_vars_ds["u"].values[[i - 1, i]][None]),
"v": torch.from_numpy(atmos_vars_ds["v"].values[[i - 1, i]][None]),
"q": torch.from_numpy(atmos_vars_ds["q"].values[[i - 1, i]][None]),
"z": torch.from_numpy(atmos_vars_ds["z"].values[[i - 1, i]][None]),
},
metadata=Metadata(
lat=torch.from_numpy(surf_vars_ds.latitude.values),
lon=torch.from_numpy(surf_vars_ds.longitude.values),
# Converting to `datetime64[s]` ensures that the output of `tolist()` gives
# `datetime.datetime`s. Note that this needs to be a tuple of length one:
# one value for every batch element.
time=(surf_vars_ds.valid_time.values.astype("datetime64[s]").tolist()[i],),
atmos_levels=tuple(int(level) for level in atmos_vars_ds.pressure_level.values),
),
)
Loading and Running the Model#

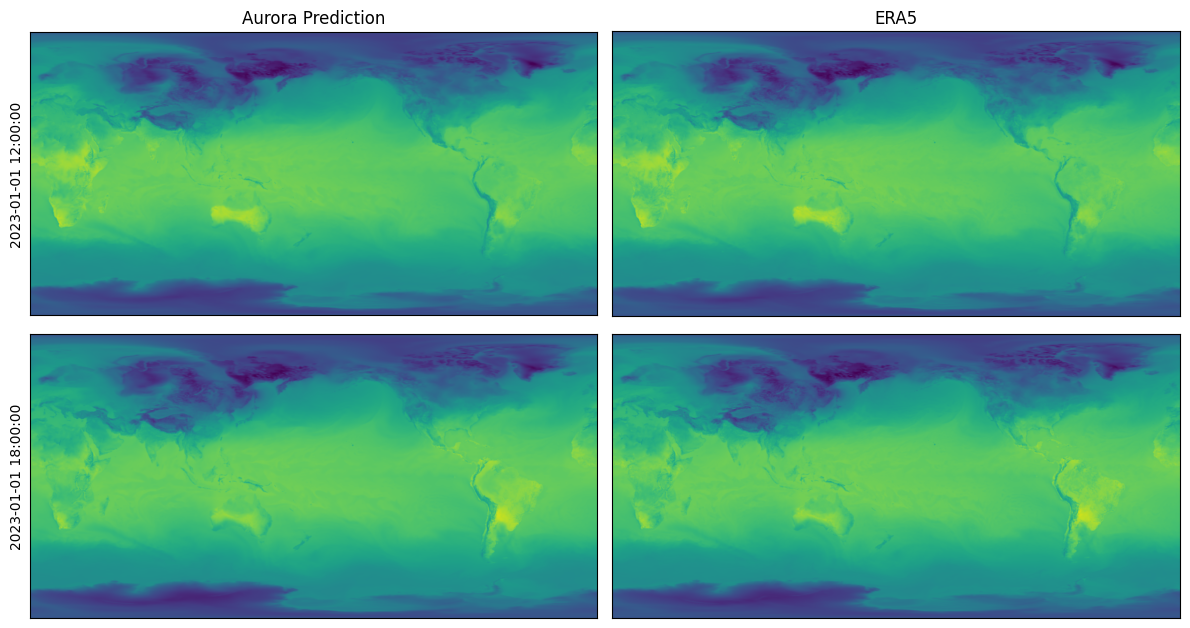

Finally, we are ready to load and run the model and visualise the predictions. We perform a roll-out for two steps, which produces predictions for hours 12:00 and 18:00.
from aurora import Aurora, rollout
model = Aurora(use_lora=False) # The pretrained version does not use LoRA.
model.load_checkpoint("microsoft/aurora", "aurora-0.25-pretrained.ckpt")
model.eval()
model = model.to("cuda")
with torch.inference_mode():
preds = [pred.to("cpu") for pred in rollout(model, batch, steps=2)]
model = model.to("cpu")
import matplotlib.pyplot as plt
fig, ax = plt.subplots(2, 2, figsize=(12, 6.5))
for i in range(ax.shape[0]):
pred = preds[i]
ax[i, 0].imshow(pred.surf_vars["2t"][0, 0].numpy() - 273.15, vmin=-50, vmax=50)
ax[i, 0].set_ylabel(str(pred.metadata.time[0]))
if i == 0:
ax[i, 0].set_title("Aurora Prediction")
ax[i, 0].set_xticks([])
ax[i, 0].set_yticks([])
ax[i, 1].imshow(surf_vars_ds["t2m"][2 + i].values - 273.15, vmin=-50, vmax=50)
if i == 0:
ax[i, 1].set_title("ERA5")
ax[i, 1].set_xticks([])
ax[i, 1].set_yticks([])
plt.tight_layout()
