Predictions for Ocean Waves#
In this example, we run Aurora 0.25° Wave on HRES-WAM data for the 16th of September 2022, that is data from ECMWF’s ocean wave model called HRES-WAM. We supplement the wave variables with meteorological variables taken from HRES T0 on WeatherBench2.
Running this notebook requires additional Python packages. You can install these as follows:
pip install ecmwf-api-client gcsfs zarr cfgrib matplotlib
Downloading HRES-WAM From MARS#
To begin with, register an account with ECMWF and create $HOME/.ecmwfapirc with the following content:
{
"url" : "https://api.ecmwf.int/v1",
"key" : <API key>,
"email" : <email>
}
You can find your API key on your account page.
We now download the HRES-WAM data.
from pathlib import Path
import ecmwfapi
# Data will be downloaded here.
download_path = Path("~/downloads/wave")
download_path = download_path.expanduser()
download_path.mkdir(parents=True, exist_ok=True)
# Day to download. This will download all times for that day.
day = "2022-09-16"
# Set up the variables we want to download
variables: dict[str, str] = {
"swh": "140229", # Significant wave height
"pp1d": "140231", # Peak wave period
"mwp": "140232", # Mean wave period
"mwd": "140230", # Mean wave direction
"shww": "140234", # Significant height of wind waves
"mdww": "140235", # Mean direction of wind waves
"mpww": "140236", # Mean period of wind waves
"shts": "140237", # Significant height of total swell
"mdts": "140238", # Mean direction of total swell
"mpts": "140239", # Mean period of total swell
"swh1": "140121", # Significant wave height of first swell
"mwd1": "140122", # Mean direction of first swell
"mwp1": "140123", # Mean period of first swell
"swh2": "140124", # Significant wave height of second swell
"mwd2": "140125", # Mean wave direction of second swell
"mwp2": "140126", # Mean wave period of second swell
"dwi": "140249", # 10 m neutral wind direction
"wind": "140245", # 10 m neutral wind speed
}
# Convert to form required by MARS.
for k, v in variables.items():
assert len(v) == 6
variables[k] = v[3:6] + "." + v[0:3]
if not (download_path / f"{day}-wave.grib").exists():
c = ecmwfapi.ECMWFService("mars")
c.execute(
f"""
request,
class=od,
date={day}/to/{day},
domain=g,
expver=1,
param={"/".join(variables.values())},
stream=wave,
time=00:00:00/06:00:00/12:00:00/18:00:00,
grid=0.25/0.25,
type=an,
target="{day}-wave.grib"
""",
str(download_path / f"{day}-wave.grib"),
)
print("HRES-WAM data downloaded!")
HRES-WAM data downloaded!
Downloading HRES T0 from WeatherBench2#
We download the corresponding meteorological variables from HRES T0 on WeatherBench2.
import fsspec
import xarray as xr
# We will download from Google Cloud.
url = "gs://weatherbench2/datasets/hres_t0/2016-2022-6h-1440x721.zarr"
ds = xr.open_zarr(fsspec.get_mapper(url), chunks=None)
# Download the surface-level variables. We write the downloaded data to another file to cache.
if not (download_path / f"{day}-surface-level.nc").exists():
surface_vars = [
"10m_u_component_of_wind",
"10m_v_component_of_wind",
"2m_temperature",
"mean_sea_level_pressure",
]
ds_surf = ds[surface_vars].sel(time=day).compute()
ds_surf.to_netcdf(str(download_path / f"{day}-surface-level.nc"))
print("Surface-level variables downloaded!")
# Download the atmospheric variables. We write the downloaded data to another file to cache.
if not (download_path / f"{day}-atmospheric.nc").exists():
atmos_vars = [
"temperature",
"u_component_of_wind",
"v_component_of_wind",
"specific_humidity",
"geopotential",
]
ds_atmos = ds[atmos_vars].sel(time=day).compute()
ds_atmos.to_netcdf(str(download_path / f"{day}-atmospheric.nc"))
print("Atmospheric variables downloaded!")
Surface-level variables downloaded!
Atmospheric variables downloaded!
Downloading the Static Variables#
For this model, we also need to include the correct static variables. We have made these available on HuggingFace.
from huggingface_hub import hf_hub_download
# Download the static variables from HuggingFace.
static_path = hf_hub_download(
repo_id="microsoft/aurora",
filename="aurora-0.25-wave-static.pickle",
)
print("Static variables downloaded!")
Static variables downloaded!
Preparing a Batch#
We convert the downloaded data to an aurora.Batch, which is what the model requires. Note again that data is a combination of HRES-WAM ocean wave variables and HRES T0 meteorological variables.
import pickle
import numpy as np
import torch
import xarray as xr
from aurora import Batch, Metadata
with open(static_path, "rb") as f:
static_vars = pickle.load(f)
surf_vars_ds = xr.open_dataset(
download_path / f"{day}-surface-level.nc",
engine="netcdf4",
decode_timedelta=True,
)
wave_vars_ds = xr.open_dataset(
download_path / f"{day}-wave.grib",
engine="cfgrib",
backend_kwargs={"indexpath": ""},
)
atmos_vars_ds = xr.open_dataset(
download_path / f"{day}-atmospheric.nc",
engine="netcdf4",
decode_timedelta=True,
)
def _prepare_hres(x: np.ndarray) -> torch.Tensor:
"""Prepare an HRES variable from WeatherBench2.
This does the following things:
* Select the first two time steps: 00:00 and 06:00.
* Insert an empty batch dimension with `[None]`.
* Flip along the latitude axis to ensure that the latitudes are decreasing.
* Copy the data, because the data must be contiguous when converting to PyTorch.
* Convert to PyTorch.
"""
return torch.from_numpy(x[:2][None][..., ::-1, :].copy())
def _prepare_wave(x: np.ndarray) -> torch.Tensor:
"""Prepare a wave variable.
This does the following things:
* Select the first two time steps: 00:00 and 06:00.
* Insert an empty batch dimension with `[None]`.
"""
return torch.from_numpy(x[:2][None])
batch = Batch(
surf_vars={
"2t": _prepare_hres(surf_vars_ds["2m_temperature"].values),
"10u": _prepare_hres(surf_vars_ds["10m_u_component_of_wind"].values),
"10v": _prepare_hres(surf_vars_ds["10m_v_component_of_wind"].values),
"msl": _prepare_hres(surf_vars_ds["mean_sea_level_pressure"].values),
"swh": _prepare_wave(wave_vars_ds["swh"].values),
"mwd": _prepare_wave(wave_vars_ds["mwd"].values),
"mwp": _prepare_wave(wave_vars_ds["mwp"].values),
"pp1d": _prepare_wave(wave_vars_ds["pp1d"].values),
"shww": _prepare_wave(wave_vars_ds["shww"].values),
"mdww": _prepare_wave(wave_vars_ds["mdww"].values),
"mpww": _prepare_wave(wave_vars_ds["mpww"].values),
"shts": _prepare_wave(wave_vars_ds["shts"].values),
"mdts": _prepare_wave(wave_vars_ds["mdts"].values),
"mpts": _prepare_wave(wave_vars_ds["mpts"].values),
"swh1": _prepare_wave(wave_vars_ds["swh1"].values),
"mwd1": _prepare_wave(wave_vars_ds["mwd1"].values),
"mwp1": _prepare_wave(wave_vars_ds["mwp1"].values),
"swh2": _prepare_wave(wave_vars_ds["swh2"].values),
"mwd2": _prepare_wave(wave_vars_ds["mwd2"].values),
"mwp2": _prepare_wave(wave_vars_ds["mwp2"].values),
"wind": _prepare_wave(wave_vars_ds["wind"].values),
"dwi": _prepare_wave(wave_vars_ds["dwi"].values),
},
static_vars={k: torch.from_numpy(v) for k, v in static_vars.items()},
atmos_vars={
"t": _prepare_hres(atmos_vars_ds["temperature"].values),
"u": _prepare_hres(atmos_vars_ds["u_component_of_wind"].values),
"v": _prepare_hres(atmos_vars_ds["v_component_of_wind"].values),
"q": _prepare_hres(atmos_vars_ds["specific_humidity"].values),
"z": _prepare_hres(atmos_vars_ds["geopotential"].values),
},
metadata=Metadata(
# Flip the latitudes from WeatherBench2! We need to copy because converting
# to PyTorch, because the data must be contiguous.
lat=torch.from_numpy(surf_vars_ds.latitude.values[::-1].copy()),
lon=torch.from_numpy(surf_vars_ds.longitude.values),
# Converting to `datetime64[s]` ensures that the output of `tolist()` gives
# `datetime.datetime`s. Note that this needs to be a tuple of length one:
# one value for every batch element. Select element 1, corresponding to time
# 06:00.
time=(surf_vars_ds.time.values.astype("datetime64[s]").tolist()[1],),
atmos_levels=tuple(int(level) for level in atmos_vars_ds.level.values),
),
)
/home/meganstanley/miniconda3/envs/aurora-dev/lib/python3.10/site-packages/cfgrib/xarray_plugin.py:131: FutureWarning: In a future version, xarray will not decode timedelta values based on the presence of a timedelta-like units attribute by default. Instead it will rely on the presence of a timedelta64 dtype attribute, which is now xarray's default way of encoding timedelta64 values. To continue decoding timedeltas based on the presence of a timedelta-like units attribute, users will need to explicitly opt-in by passing True or CFTimedeltaCoder(decode_via_units=True) to decode_timedelta. To silence this warning, set decode_timedelta to True, False, or a 'CFTimedeltaCoder' instance.
vars, attrs, coord_names = xr.conventions.decode_cf_variables(
Loading and Running the Model#
Finally, we are ready to load and run the model and visualise the predictions. We perform a roll-out for two steps, which produces predictions for hours 12:00 and 18:00.
Note that some specific postprocessing is required for the HRES-WAM ocean wave variables. See Section C.5 of the Supplementary Information.
The model can be run locally, or run on Azure AI Foundry. To run on Foundry, the environment variables FOUNDRY_ENDPOINT, FOUNDRY_TOKEN, and BLOB_URL_WITH_SAS need to be set. If you’re unsure on how to set environment variables, see here.
# Set to `False` to run locally and to `True` to run on Foundry.
run_on_foundry = False
if not run_on_foundry:
from aurora import AuroraWave, rollout
model = AuroraWave()
model.load_checkpoint()
model.eval()
model = model.to("cuda")
with torch.inference_mode():
predictions = [pred.to("cpu") for pred in rollout(model, batch, steps=2)]
model = model.to("cpu")
if run_on_foundry:
import logging
import os
import warnings
from aurora.foundry import BlobStorageChannel, FoundryClient, submit
# In this demo, we silence all warnings.
warnings.filterwarnings("ignore")
# But we do want to show what's happening under the hood!
logging.basicConfig(level=logging.WARNING, format="%(asctime)s [%(levelname)s] %(message)s")
logging.getLogger("aurora").setLevel(logging.INFO)
foundry_client = FoundryClient(
endpoint=os.environ["FOUNDRY_ENDPOINT"],
token=os.environ["FOUNDRY_TOKEN"],
)
channel = BlobStorageChannel(os.environ["BLOB_URL_WITH_SAS"])
predictions = list(
submit(
batch,
model_name="aurora-0.25-wave",
num_steps=2,
foundry_client=foundry_client,
channel=channel,
)
)

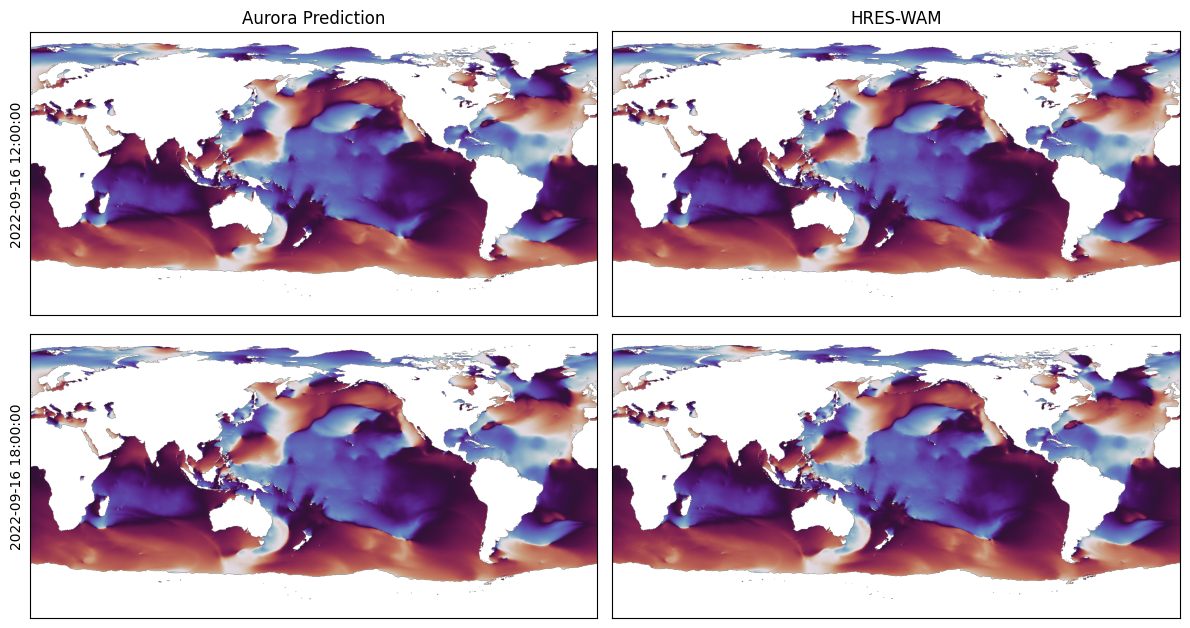

Plotting the Results#
import matplotlib.pyplot as plt
fig, axs = plt.subplots(2, 2, figsize=(12, 6.5))
for i in range(axs.shape[0]):
pred = predictions[i]
ax = axs[i, 0]
ax.imshow(pred.surf_vars["mwd"][0, 0].numpy(), vmin=0, vmax=360, cmap="twilight")
ax.set_ylabel(str(pred.metadata.time[0]))
if i == 0:
ax.set_title("Aurora Prediction")
ax.set_xticks([])
ax.set_yticks([])
ax = axs[i, 1]
ref = wave_vars_ds["mwd"][2 + i].values
# If the wave has practically zero magnitude, we say that the wave direction is missing.
# See Section C.5 of the Supplementary Information.
ref[wave_vars_ds["swh"][2 + i].values < 1e-4] = np.nan
ax.imshow(ref, vmin=0, vmax=360, cmap="twilight")
if i == 0:
ax.set_title("HRES-WAM")
ax.set_xticks([])
ax.set_yticks([])
plt.tight_layout()
