OpenAPI

Full guide for the OpenAPI SimpleChat action.

What this action does

OpenAPI turns a YAML or JSON OpenAPI specification into callable operations. The action can list available APIs, inspect operation details, and call operations by operationId with configured authentication.

Why and when to use it

Use OpenAPI when an HTTP API has a maintained OpenAPI spec and users need agents to call multiple documented operations. Do not use it for arbitrary web pages or PDFs; use Smart HTTP. Do not use it for MCP servers; use MCP. Tool-call quality depends on clear operation IDs and parameter schemas.

Before you start

An OpenAPI specification file in YAML or JSON, max 5 MB according to the modal help.
API Base URL, auto-populated from the spec when available but editable.
Authentication details: no auth, API key, bearer token, basic auth, OAuth2 access token, or compatible reusable identity.
Agents/actions enabled with enable_semantic_kernel.

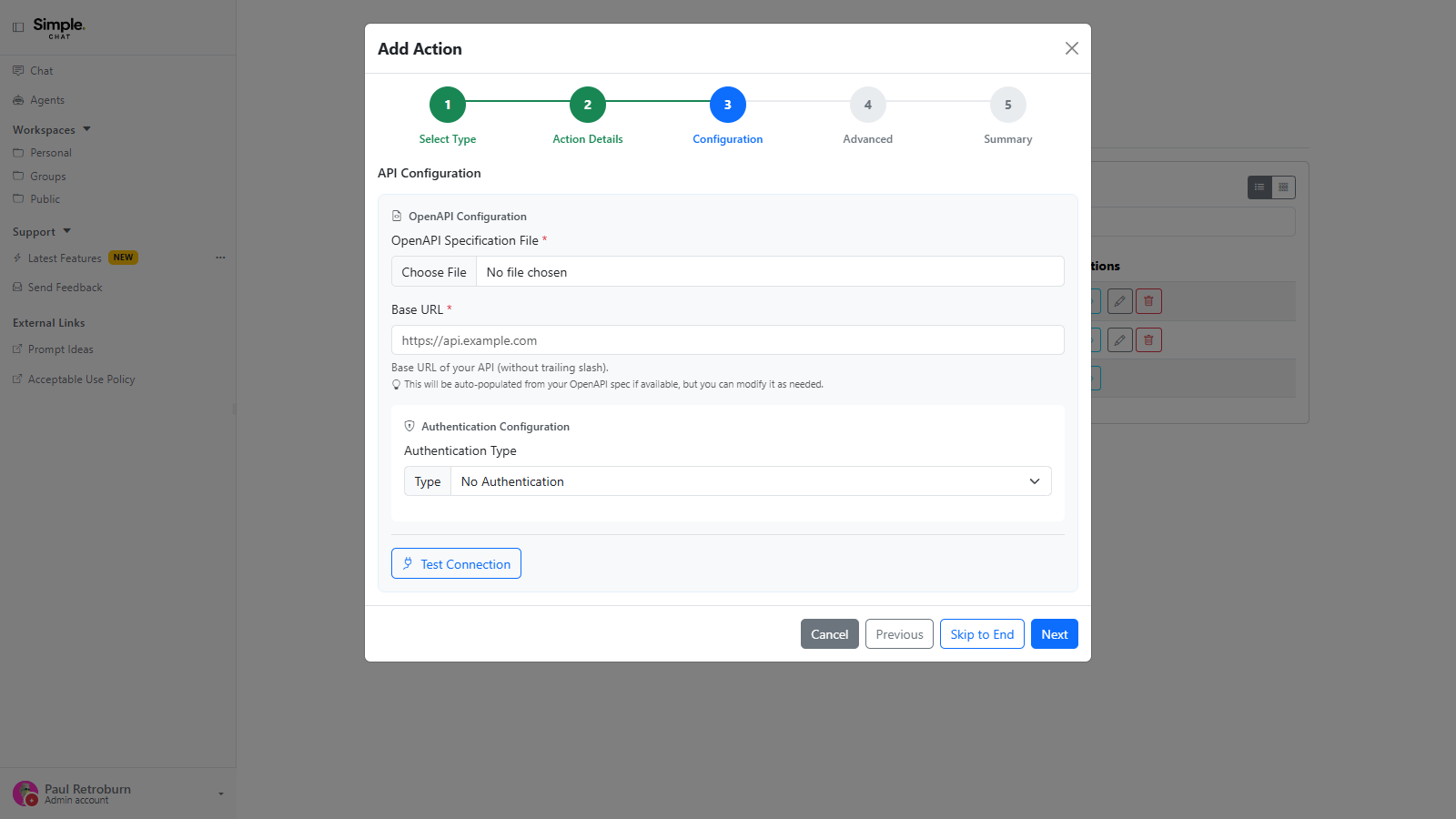

Configure the action

Choose OpenAPI.
Upload OpenAPI Specification File.
Review or edit Base URL.
Read the API Information panel after parsing.
Choose Authentication Type: No Authentication, API Key, bearer token, Basic Auth, or OAuth2.
For API key auth, choose Location, fill Key Name, and fill API Key.
For bearer, basic, or OAuth2 auth, fill the shown token, username/password, or access token fields.
Use Test Connection.

Example prompts

“List the available API operation IDs for this action.”
“Call the customer status endpoint for account 12345 and summarize the response.”
“Get operation details for createIncident before using it.”

Troubleshooting
