Modernize applications to be AI ready

TechExcel: Modernize applications to be AI ready (level 300 / CSU) lab


The estimated time to complete this lab is 360 minutes.

Contoso Suites is a luxury hotel chain owning properties in seven countries, including the United States, Costa Rica, French Guiana, and several Caribbean islands. A large amount of marketing for Contoso Suites comes from word of mouth. The company is strategically modernizing its technology to further adopt cloud infrastructure, as well as leverage AI.

Contoso Suites is strategically modernizing its technology to further adopt cloud infrastructure, as well as leverage AI. The company is migrating from on-premises data centers to Azure cloud services, addressing legacy system scalability, and maintenance cost challenges.

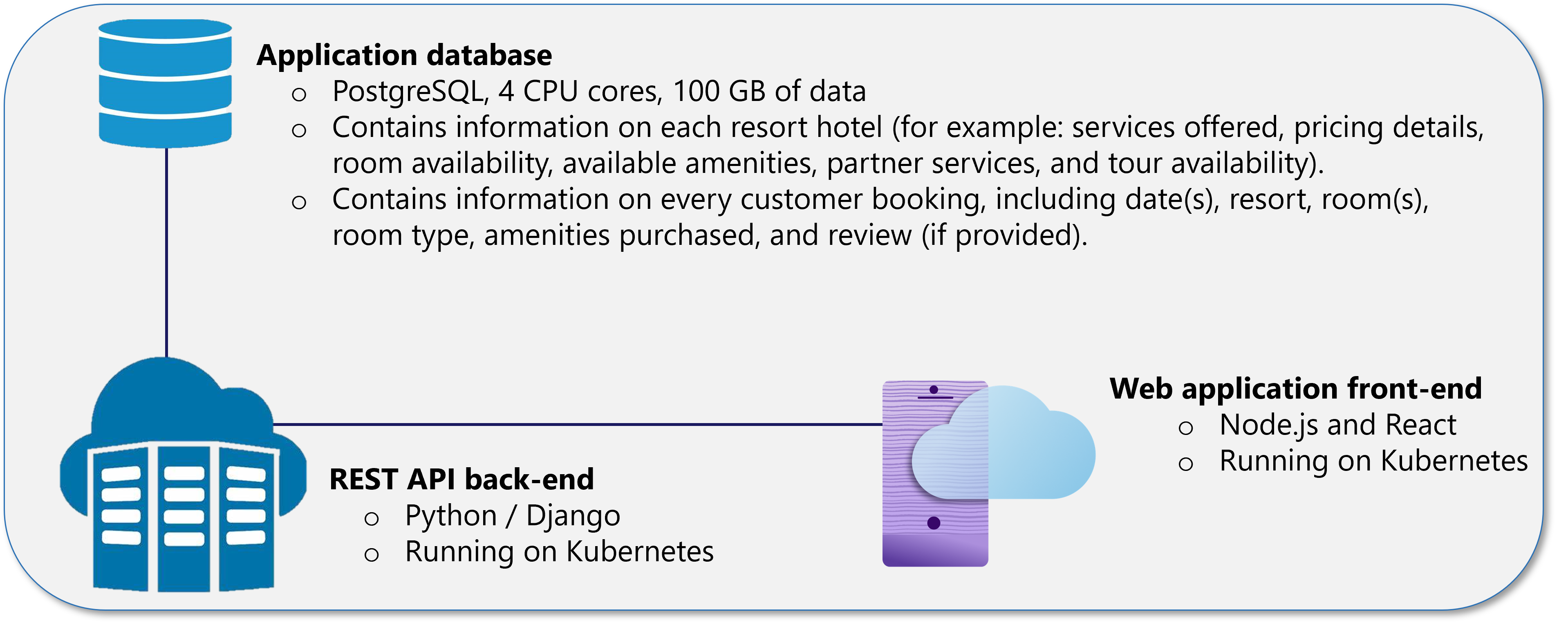

The Contoso Suites application is a legacy system, hosted on-premises, which has a three-tier pattern in support of Contoso’s digital commerce website.

CurrentArchitectureContoso

The goal of this lab is to modernize a legacy application to be AI-ready by containerizing its components, deploying them in Azure, and integrating AI services such as Azure OpenAI and Search to enhance functionality with intelligent chatbot capabilities.

To successfully complete this lab, you need to perform the following tasks:

  • Install client tools: Identify required tools like Visual Studio Code, PowerShell, Azure CLI, and Git, and install or update them as necessary.
  • Set up and configure Azure resources: Select a region that supports Azure AI services, create a resource group, and provision the necessary resources for the lab.
  • Deploy the legacy app: Clone the GitHub repository, build a Docker container for the app, and push the container to Azure Container Registry (ACR).
  • Provision the database: Deploy a PostgreSQL database in Azure to support the app and run the containerized app with a database connection.
  • Split and repackage app components: Separate the app’s front-end and back-end components, refactor the code, and deploy the components as containers.
  • Configure Azure Search and OpenAI services: Upload hotel brochures, configure Azure Search and OpenAI services to extract and index data, and test the search index.
  • Set up and configure AI tools: Install Promptflow for Visual Studio Code and set up AI services, including an AI hub, to create a chatbot integrated into the Contoso Hotel app.

Exercises

This lab has exercises on:

  • Installing and configuring Visual Studio Code, PowerShell, Azure CLI, Git, and Docker Desktop
  • Setting up Azure resources in supported regions and creating a resource group
  • Cloning GitHub repositories, building Docker containers, and pushing them to Azure Container Registry
  • Provisioning Azure Database for PostgreSQL Flexible Server to support the app
  • Running the containerized app, creating a database schema, and populating tables with data
  • Splitting front-end and back-end app components and refactoring the code
  • Deploying and running the split app components as Docker containers in Azure
  • Configuring and using Azure Blob Storage, Azure Search Service, and Azure OpenAI Service to extract and index data from hotel brochures
  • Setting up managed identities for secure communication between Azure services
  • Importing and configuring pre-built flows in PromptFlow, testing flows, and integrating chatbot functionality into the Contoso Hotel app
