Task 02: Create and store embeddings in the Azure SQL Database

1. Return to the browser that is signed into the Azure portal and go to the RG1 resource group.

2. Select the Azure OpenAI resource.

3. On the menu, select Go to Azure AI Foundry portal to open the portal in a new tab.

4. On the left menu, select Shared resources > Deployments.

5. On the Model deployments tab select + Deploy model > Deploy base model.

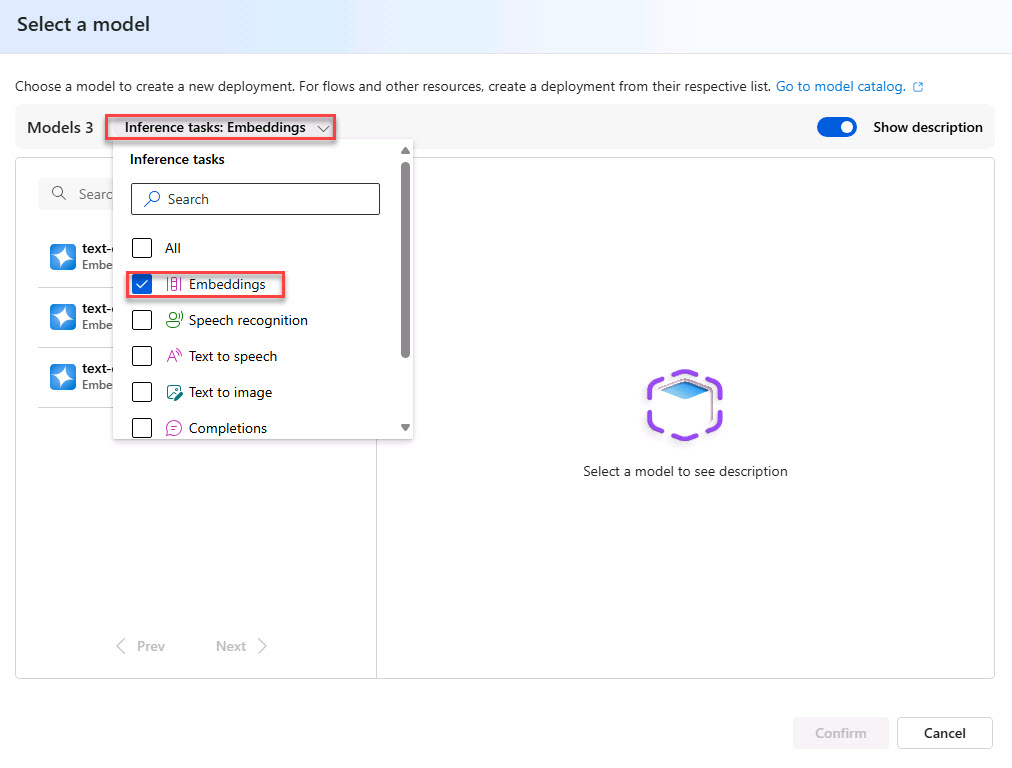

6. Select the Inference tasks menu and select Embeddings.



7. From the Embedding options, select text-embedding-ada-002 and then select Confirm.

8. On the Deploy model text-embedding-ada-002 window, select Deploy.

   If the deployment fails, redeploy with the Standard Deployment type instead of the Global Standard type.

   Standard: Pay per API call with lower rate limits. Adheres to Azure data residency promises. Best for intermittent workloads with low to medium volume. Learn more about Standard deployments <help Standard deployments.

9. On the Details tab, under Endpoint, copy and paste the following values in a notepad file for later use:

   Default	Value
   Target URI:
   Key:

In this task, you’ll configure the SQL Server to store credentials for calling Azure OpenAI’s text embedding API. First, you’ll ensure the database has a master key, which is required to encrypt sensitive information in the database. Then, you’ll create a database-scoped credential to store the API key, allowing the SQL Server to authenticate REST API calls to Azure OpenAI for AI-powered functionalities like text embeddings.

1. Return to VS Code and execute the following in a new query:

    -- Create a master key for the database if it doesn't exist
    IF NOT EXISTS (SELECT *
    FROM sys.symmetric_keys
    WHERE [name] = '##MS_DatabaseMasterKey##')
    BEGIN
        CREATE MASTER KEY ENCRYPTION BY PASSWORD = N'V3RYStr0NGP@ssw0rd!';
    END
    GO

    -- Create the database scoped credential for Azure OpenAIa
    IF NOT EXISTS (SELECT * FROM sys.database_scoped_credentials WHERE [name] = 'https://<your-openai-resource-name>.openai.azure.com/')
    BEGIN
        CREATE DATABASE SCOPED CREDENTIAL [https://azopenai@lab.LabInstance.Id.openai.azure.com/]
        WITH IDENTITY = 'HTTPEndpointHeaders', secret = '{"api-key":"<YourAzureOpenAIKey>"}';
    END
    GO


Now you need to migrate an existing JSON column containing embeddings into a native vector format in SQL Server. Converting JSON embeddings to a native vector format in SQL Server improves query performance, storage efficiency, and AI-readiness.

Native vectors allow faster similarity searches, lower storage overhead, and optimized indexing compared to JSON, which requires extra parsing. This transformation ensures scalability for AI-driven applications like product recommendations and semantic search.

1. Enter the following as a new query:

   /*
   Create a column to store the embeddings as a native vector format.
   */
   alter table dbo.[walmart_product_details]
   add embedding_vector vector(1536)
   go
   /*
   Convert the JSON array to a native vector format.
   */
   update dbo.[walmart_product_details]
   set embedding_vector = cast(embedding as vector(1536))
   go

   /*
   Drop the JSON column.
   */
   alter table dbo.[walmart_product_details]
   drop column [embedding]
   go

   /*
   Rename the new column to the original column name.
   */
   exec sp_rename 'dbo.[walmart_product_details].embedding_vector', 'product_description_vector', 'COLUMN'
   go

   /*
   Look at the first row to verify the conversion.
   */
   select top (1) * from dbo.[walmart_product_details]


This SQL script retrieves a product description from a database and sends it to Azure OpenAI’s text embedding API using sp_invoke_external_rest_endpoint. It then extracts the AI-generated embedding (a vector representation of the text) from the API response and converts it into a VECTOR(1536) data type for further analysis or search within SQL Server.

1. Enter the following SQL code into a new query:

   declare @url nvarchar(4000) = N'<YourOpenAIEmbeddingsEndpointURL>';
   declare @headers nvarchar(300) = N'{"api-key": "<YourOpenAIKey>"}';
   declare @message nvarchar(max);
   SET @message = (SELECT [description]
   FROM [dbo].[walmart_product_details]
   WHERE id = 2);
   declare @payload nvarchar(max) = N'{"input": "' + @message + '"}';
   declare @ret int, @response nvarchar(max);
   exec @ret = sp_invoke_external_rest_endpoint
   @url = @url,
   @method = 'POST',
   @credential = [https://<your-openai-resource>.openai.azure.com/],
   @payload = @payload,
   @timeout = 230,
   @response = @response output;

   /*-- The REST API response*/
   select @ret as ReturnCode, @response as Response;

   /*-- Extract the JSON Array*/
   declare @json_embedding nvarchar(max) = json_query(@response, '$.result.data[0].embedding');
   select @json_embedding, CAST(@json_embedding AS VECTOR(1536)) as embedding;


   This SQL Server stored procedure interacts with Azure OpenAI to generate embeddings for a given text input. It sends the text to the text-embedding-ada-002 model and returns the resulting 1536-dimensional vector.

2. Execute the SQL statement.

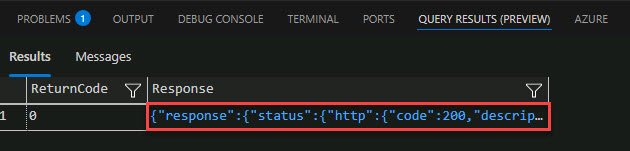

3. View the return message by selecting the response in the terminal.



   Output:

   It contains the vector representation of the product name input that can now be easily consumed by machine learning models and other algorithms. It can even be stored locally in the Azure SQL Database for vector similarity searches.

   "result": {
   "object": "list",
   "data": [
   {
   "object": "embedding",
   "index": 0,
   "embedding": [
   0.009926898,
   0.042216457,
   \-0.0139917405,
   \-0.0063626235,
   0.008509632,
   \-0.059923247,
   0.0271874,
   \-0.019902045,
   0.024992144,
   \-0.04006945,
   0.031915642,


In this task, you’ll create a stored procedure that generates text embeddings using Azure OpenAI. The procedure takes an input text, sends it to the OpenAI embedding API, and retrieves a 1536-dimensional vector representation of the text.

It uses sp_invoke_external_rest_endpoint to make a secure API call, processes the response, and converts the returned JSON embedding into a native SQL Server vector format. This enables efficient storage and retrieval of text embeddings for AI-driven applications like search and recommendation systems.

1. Generate the embedding and store them in the table by entering and running the following as a new query:

   create or alter procedure dbo.create_embeddings
   (
   @input_text nvarchar(max),
   @embedding vector(1536) output
   )
   AS
   BEGIN
   declare @url varchar(max) = '<YourOpenAIEmbeddingsEndpointURL>';
   declare @payload nvarchar(max) = json_object('input': @input_text);
   declare @response nvarchar(max);
   declare @retval int;

   /*-- Call to Azure OpenAI to get the embedding of the search text*/
   begin try
   exec @retval = sp_invoke_external_rest_endpoint
   @url = @url,
   @method = 'POST',
   @credential = [https://<your-openai-resource>.openai.azure.com/],
   @payload = @payload,
   @response = @response output;
   end try

   begin catch
   select
   'SQL' as error_source,
   error_number() as error_code,
   error_message() as error_message
   return;
   end catch

   if (@retval != 0) begin
   select
   'OPENAI' as error_source,
   json_value(@response, '$.result.error.code') as error_code,
   json_value(@response, '$.result.error.message') as error_message,
   @response as error_response
   return;
   end

   /*-- Parse the embedding returned by Azure OpenAI*/
   declare @json_embedding nvarchar(max) = json_query(@response, '$.result.data[0].embedding');

   /*-- Convert the JSON array to a vector and set return parameter*/
   set @embedding = CAST(@json_embedding AS VECTOR(1536));
   END;

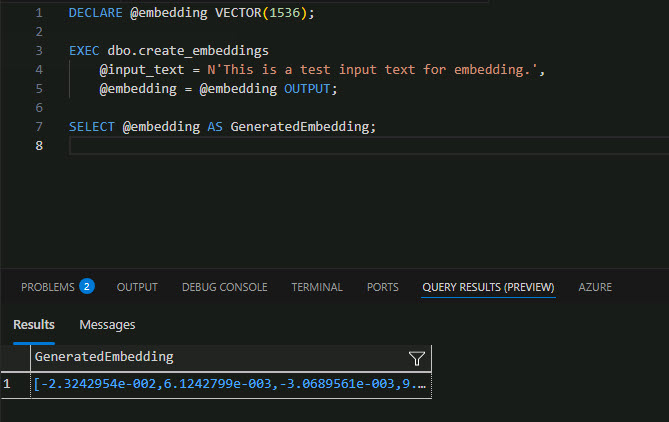

2. Verify that a valid embedding is returned by entering the following in a new query:

   DECLARE @embedding VECTOR(1536);
   EXEC dbo.create_embeddings
   @input_text = N'This is a test input text for embedding.',
   @embedding = @embedding OUTPUT;
   SELECT @embedding AS GeneratedEmbedding;


   Example Output



Congratulations! You’ve successfully completed this task.
