Task 06: Use generative AI for image generation and description

The image generation API creates an image from a text prompt.

1. Return to the Visual Studio Code workspace and enter the following in a new query:

   SELECT [Description] FROM [SalesLT].[ProductDescription] WHERE ProductDescriptionID = 457


   This returns a product description “This bike is ridden by race winners. Developed with the Adventure Works Cycles professional race team, it has an extremely light heat-treated aluminum frame, and steering that allows precision control.” which will be sent to the DALL-E 3 text to image endpoint.

2. The following script retrieves a product description from the walmart_product_details table and sends it as a prompt to the DALL·E API, requesting a 1024x1024 image based on the description. Upon successful execution, the script extracts and displays the URL of the generated image. Enter the following in a new query:

   declare @url nvarchar(max) = N'@lab.Variable(dalle3)';
   declare @headers nvarchar(300) = N'{"api-key": "@lab.Variable(key)"}';
   declare @message nvarchar(max) = (SELECT [description] FROM [dbo].[walmart_product_details] WHERE id = 2);
   declare @payload nvarchar(max) = N'{
   "prompt": "' + @message + '",
   "size": "1024x1024",
   "n": 1
   }';

   declare @ret int, @response nvarchar(max);

   exec @ret = sp_invoke_external_rest_endpoint
   @url = @url,
   @method = 'POST',
   @credential = [https://azopenai@lab.LabInstance.Id.openai.azure.com/],
   @payload = @payload,
   @timeout = 230,
   @response = @response output;

   select @ret as ReturnCode, @response as Response;

   if (@ret=0)
   select json_value(@response, '$.result.data[0].url')


3. Execute the SQL statement.

4. Open the resulting code and copy the resulting URL here: @lab.TextBox(dalle3url)

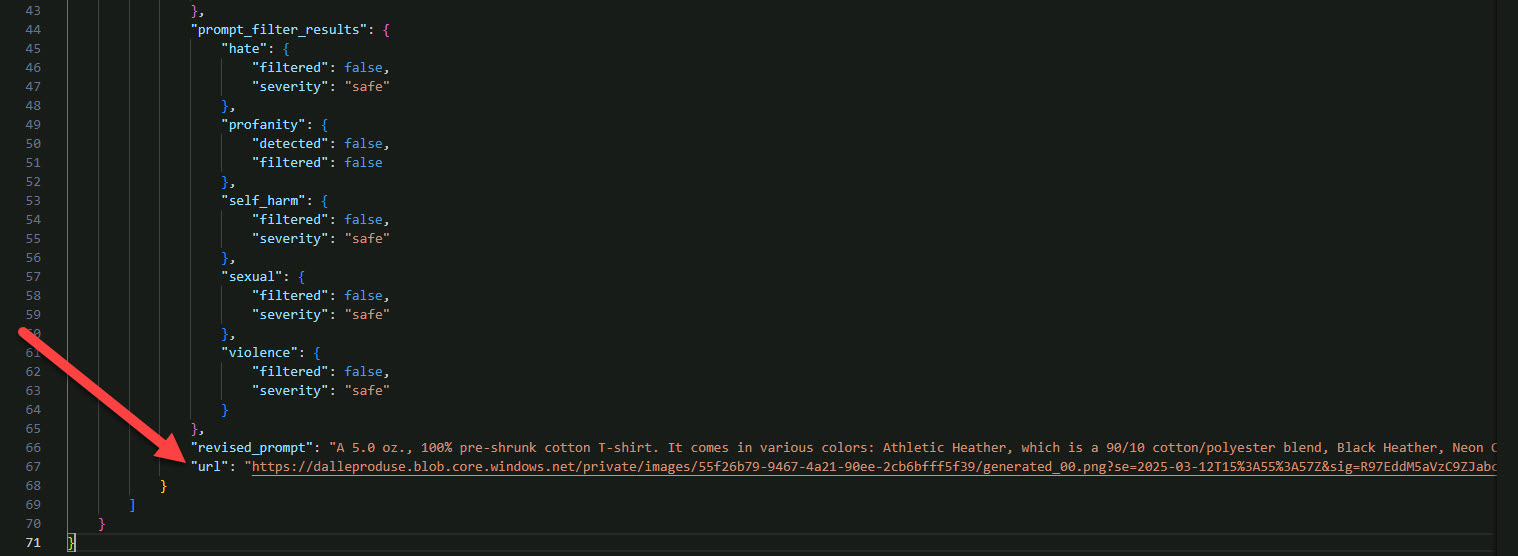

   The URL is near the bottom of the resulting json output.



5. Open a new browser tab and visit the URL: ++@lab.Variable(dalle3url)++

   Example dall-e-3 Output:



6. Now, you are in charge. Either select a new product description ID or try creating an image yourself! Here is some inspiration:

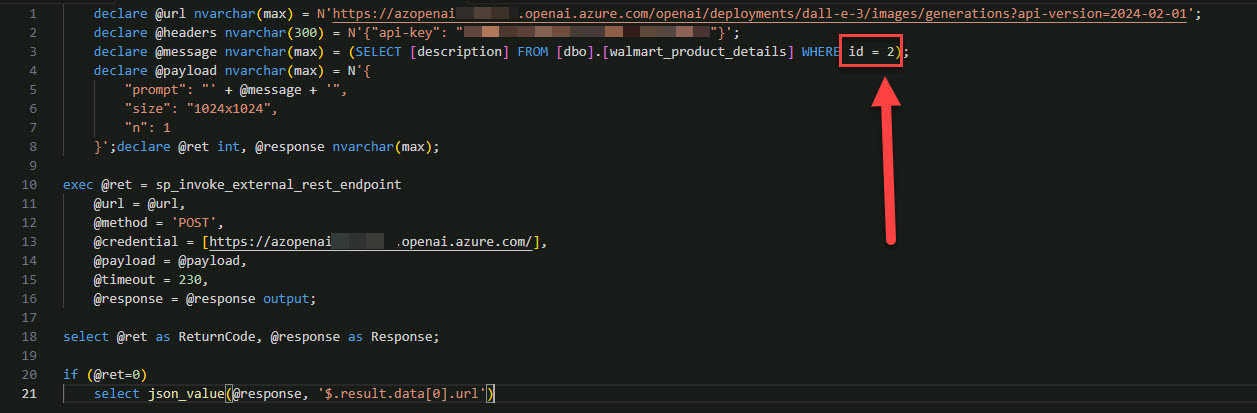

   Note that description id can be modified at the end of line 3 as seen below.



   Example dall-e-3 Output. id=51



Let’s use the new GPT-4o model for this next call. You’re going to ask it to describe a picture you make using the previous DALL-E 3 endpoint. To start, go wild and ask it to create some fantastical image for you. Once you’ve got that URL, you’re going to use it in the REST call.

1. Return to the browser that is signed into the Azure AI Foundry | Azure OpenAI Service.

2. On the left menu, select Shared resources > Deployments.

3. On the Model deployments tab select + Deploy model > Deploy base model.



4. Select the Inference tasks menu and select Chat completion.

5. From the Chat completion options, select gpt-4o and then select Confirm.

6. On the Deploy model gpt-4o window, select Deploy.

7. On the Details tab, under Endpoint, copy and paste in a notepad file the following values, for future use:

   Default	Value
   Target URI:
   KEY:

8. Return to Visual Studio Code and enter the following in a new query:

   declare @url nvarchar(4000) = N'@lab.Variable(gpt4o)';
   declare @headers nvarchar(102) = N'{"api-key":"@lab.Variable(key)"}';
   declare @payload nvarchar(max) = N'{
       "messages": [
           {
               "role": "system",
               "content": "You are an AI assistant that helps people find information."
           },
           {
               "role": "user",
               "content": [
                   {
                       "type": "text",
                       "text": "what is this an image of?"
                   },
                   {
                       "type": "image_url",
                       "image_url": {
                           "url": "@lab.Variable(dalle3url)"
                       }
                   }
               ]
           }
       ]
   }';
   declare @ret int, @response nvarchar(max);
   exec @ret = sp_invoke_external_rest_endpoint
   @url = @url,
   @method = 'POST',
   @credential = [https://azopenai@lab.LabInstance.Id.openai.azure.com/],
   @payload = @payload,
   @timeout = 230,
   @response = @response output;
   select @ret as ReturnCode, @response as Response;


   Notice that the DALLE3_IMAGE_URL for the image just created is inserted on line 19.

9. Execute the SQL statement.

10. Select the result and format it to view the return message and see if the new GPT-4o model was able to describe it.

    Example output

    >"message": {
    >"content": "This image shows a customized Nvidia Shield TV set-top box and controller with a vivid, colorful psychedelic design. The artistic patterns feature an abstract, vibrant, multicolor theme, giving the devices a unique, eye-catching appearance.", "refusal": null, "role": "assistant"}


Congratulations! You’ve successfully completed this task.
