4.1 最小二乘法⚓︎

4.1.1 历史⚓︎

1801年，意大利天文学家朱赛普·皮亚齐发现了第一颗小行星谷神星。经过40天的跟踪观测后，由于谷神星运行至太阳背后，使得皮亚齐失去了谷神星的位置。随后全世界的科学家利用皮亚齐的观测数据开始寻找谷神星，但是根据大多数人计算的结果来寻找谷神星都没有结果。时年24岁的高斯也计算了谷神星的轨道。奥地利天文学家海因里希·奥尔伯斯根据高斯计算出来的轨道重新发现了谷神星。

1829年，高斯提供了最小二乘法的优化效果强于其他方法的证明，因此被称为高斯-马尔可夫定理。

4.1.2 数学原理⚓︎

z_i=w \cdot x_i+b \tag{1}

z_i \simeq y_i \tag{2}

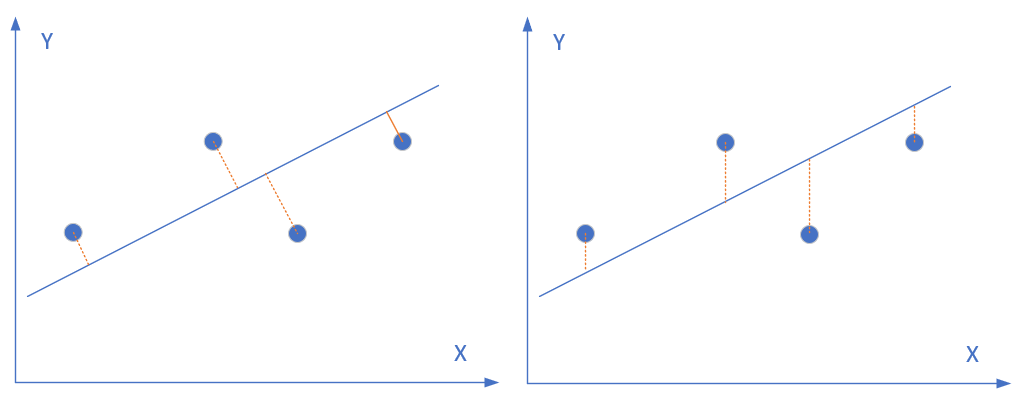

$J$ 称为损失函数。实际上就是试图找到一条直线，使所有样本到直线上的残差的平方和最小。

\begin{aligned} \frac{\partial{J}}{\partial{w}} &=\frac{\partial{(\frac{1}{2m}\sum_{i=1}^m(y_i-wx_i-b)^2)}}{\partial{w}} \\\\ &= \frac{1}{m}\sum_{i=1}^m(y_i-wx_i-b)(-x_i) \end{aligned} \tag{4}

\sum_{i=1}^m(y_i-wx_i-b)x_i=0 \tag{5}
\begin{aligned} \frac{\partial{J}}{\partial{b}} &=\frac{\partial{(\frac{1}{2m}\sum_{i=1}^m(y_i-wx_i-b)^2)}}{\partial{b}} \\\\ &=\frac{1}{m}\sum_{i=1}^m(y_i-wx_i-b)(-1) \end{aligned} \tag{6}

\sum_{i=1}^m(y_i-wx_i-b)=0 \tag{7}

\sum_{i=1}^m b = m \cdot b = \sum_{i=1}^m{y_i} - w\sum_{i=1}^m{x_i} \tag{8}

b = \frac{1}{m}\left(\sum_{i=1}^m{y_i} - w\sum_{i=1}^m{x_i}\right)=\bar y-w \bar x \tag{9}

\bar y = \frac{1}{m}\sum_{i=1}^m y_i, \bar x=\frac{1}{m}\sum_{i=1}^m x_i \tag{10}

\sum_{i=1}^m(y_i-wx_i-\bar y + w \bar x)x_i=0
\sum_{i=1}^m(x_i y_i-wx^2_i-x_i \bar y + w \bar x x_i)=0
\sum_{i=1}^m(x_iy_i-x_i \bar y)-w\sum_{i=1}^m(x^2_i - \bar x x_i) = 0
w = \frac{\sum_{i=1}^m(x_iy_i-x_i \bar y)}{\sum_{i=1}^m(x^2_i - \bar x x_i)} \tag{11}

w = \frac{\sum_{i=1}^m (x_i \cdot y_i) - \sum_{i=1}^m x_i \cdot \frac{1}{m} \sum_{i=1}^m y_i}{\sum_{i=1}^m x^2_i - \sum_{i=1}^m x_i \cdot \frac{1}{m}\sum_{i=1}^m x_i} \tag{12}

w = \frac{m\sum_{i=1}^m x_i y_i - \sum_{i=1}^m x_i \sum_{i=1}^m y_i}{m\sum_{i=1}^m x^2_i - (\sum_{i=1}^m x_i)^2} \tag{13}
b= \frac{1}{m} \sum_{i=1}^m(y_i-wx_i) \tag{14}

w = \frac{\sum_{i=1}^m y_i(x_i-\bar x)}{\sum_{i=1}^m x^2_i - (\sum_{i=1}^m x_i)^2/m} \tag{15}
w = \frac{\sum_{i=1}^m x_i(y_i-\bar y)}{\sum_{i=1}^m x^2_i - \bar x \sum_{i=1}^m x_i} \tag{16}

\begin{aligned} \sum_{i=1}^m (x_i \bar y) &= \bar y \sum_{i=1}^m x_i =\frac{1}{m}(\sum_{i=1}^m y_i) (\sum_{i=1}^m x_i) \\\\ &=\frac{1}{m}(\sum_{i=1}^m x_i) (\sum_{i=1}^m y_i)= \bar x \sum_{i=1}^m y_i \\\\ &=\sum_{i=1}^m (y_i \bar x) \end{aligned} \tag{17}

4.1.3 代码实现⚓︎

计算 $w$ 值⚓︎

# 根据公式15
def method1(X,Y,m):
x_mean = X.mean()
p = sum(Y*(X-x_mean))
q = sum(X*X) - sum(X)*sum(X)/m
w = p/q
return w

# 根据公式16
def method2(X,Y,m):
x_mean = X.mean()
y_mean = Y.mean()
p = sum(X*(Y-y_mean))
q = sum(X*X) - x_mean*sum(X)
w = p/q
return w

# 根据公式13
def method3(X,Y,m):
p = m*sum(X*Y) - sum(X)*sum(Y)
q = m*sum(X*X) - sum(X)*sum(X)
w = p/q
return w


计算 $b$ 值⚓︎

# 根据公式14
def calculate_b_1(X,Y,w,m):
b = sum(Y-w*X)/m
return b

# 根据公式9
def calculate_b_2(X,Y,w):
b = Y.mean() - w * X.mean()
return b


4.1.4 运算结果⚓︎

w1=2.056827, b1=2.965434
w2=2.056827, b2=2.965434
w3=2.056827, b3=2.965434
