TechExcel Sentinel onboarding

Task 2.3: Connect the target machine to Microsoft Sentinel - Custom Events DCR

In this task, you’ll connect the target machine on which the attacks will be performed to Microsoft Sentinel using a custom data collection rule targeting specific Windows Event IDs.

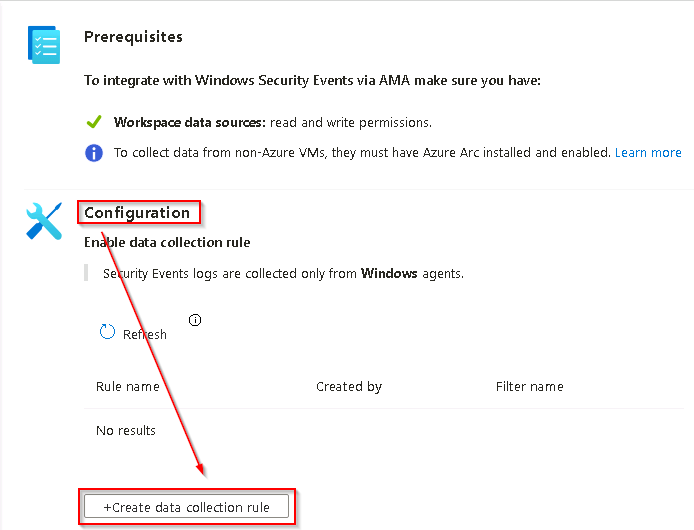

  1. On the Windows Security Events via AMA blade in the Configuration section, select +Create data collection rule.


  2. On the Create Data Collection Rule blade, in the Basic tab, use the following table to complete the fields and then select Next: Resources >.


    Rule name CustomDCR
    Subscription @lab.CloudSubscription.Name
    Resource group @lab.CloudResourceGroup(RG1).Name

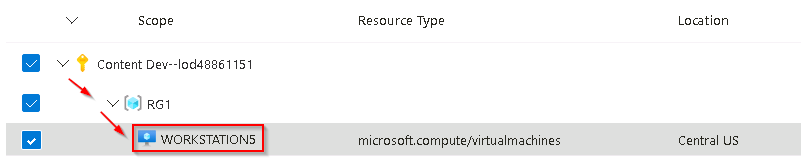

  3. On the Resources tab expand the @lab.CloudSubscription.Name subscription scope, then expand the @lab.CloudResourceGroup(RG1).Name resource group scope, then select the virtual machine WORKSTATION5.


  4. Select Next: Collect >.

  5. To save the custom event expressions to the data collection rule, on the Collect tab, in the Select which events to stream section, select Custom, enter the following event list in the custom box and then select Add.

    “Security!*[System[(EventID=5136 or EventID=5139)]]”,”Security!*[System[(EventID=5137)]]”,”Security!*[System[(EventID=5141)]]”,”Security!*[System[(EventID=4662 or EventID=4661)]]”,”Security!*[System[(EventID=4768 or EventID=4769)]]”,”Security!*[System[(EventID=4688)]]

  6. Advance to the next tab by selecting Next: Review + create >.

  7. On the Review + create tab wait for the validation to pass and then select Create

  8. When the data collection rule has been properly created you will be returned to the Windows Security Events via AMA page. In the Configuration section select Refresh to display the newly created data collection rule in the list.
