Task 02: Create a recurring operational job

Introduction

Recurring KQL jobs continuously process incoming telemetry for near-real-time analytics or dashboard metrics.

Description

You’ll schedule a recurring job that aggregates Security Alert data every 15 minutes by severity.

Success criteria

• A recurring KQL job named QuarterHourly_Alert_Trend is created and active.
• The job runs automatically every 15 minutes.
• Output table AlertSummary_15m_KQL_CL is populated and queryable.

Key steps:

1. Open the KQL job wizard and create a new job with the following details:

   Expand here for detailed steps

   1. In the Defender portal, go to Microsoft Sentinel > Data Lake exploration > KQL queries.
   2. In the upper right of the query, select Create job.

   3. On the Name & details page, enter the following and select Next:

      Item	Value
      Job name:	QuarterHourly_Alert_Trend
      Description:	15-minute recurring alert trend by severity
      Destination workspace:	law-sentinel-xdr-lab
      New table name:	AlertSummary_15m_KQL_CL

   4. On the Query page, define and validate the query by entering the following and select Next:

       SecurityAlert
       | where TimeGenerated > ago(64h)
       | extend Severity = tostring(column_ifexists("Severity", "Unknown"))
       | summarize Alerts = count() by bin(TimeGenerated, 15m), Severity
       | order by TimeGenerated desc




   5. On the Schedule page, configure schedule and limits.

      • Set Job frequency to Scheduled.
      • Under Schedule interval, configure:
        • Run every: 15 minutes
        • Start time: Next quarter-hour mark
      • Review the schedule summary. {: .note }The schedule summary confirms: The job runs every 15 minutes.



   6. Select Next.

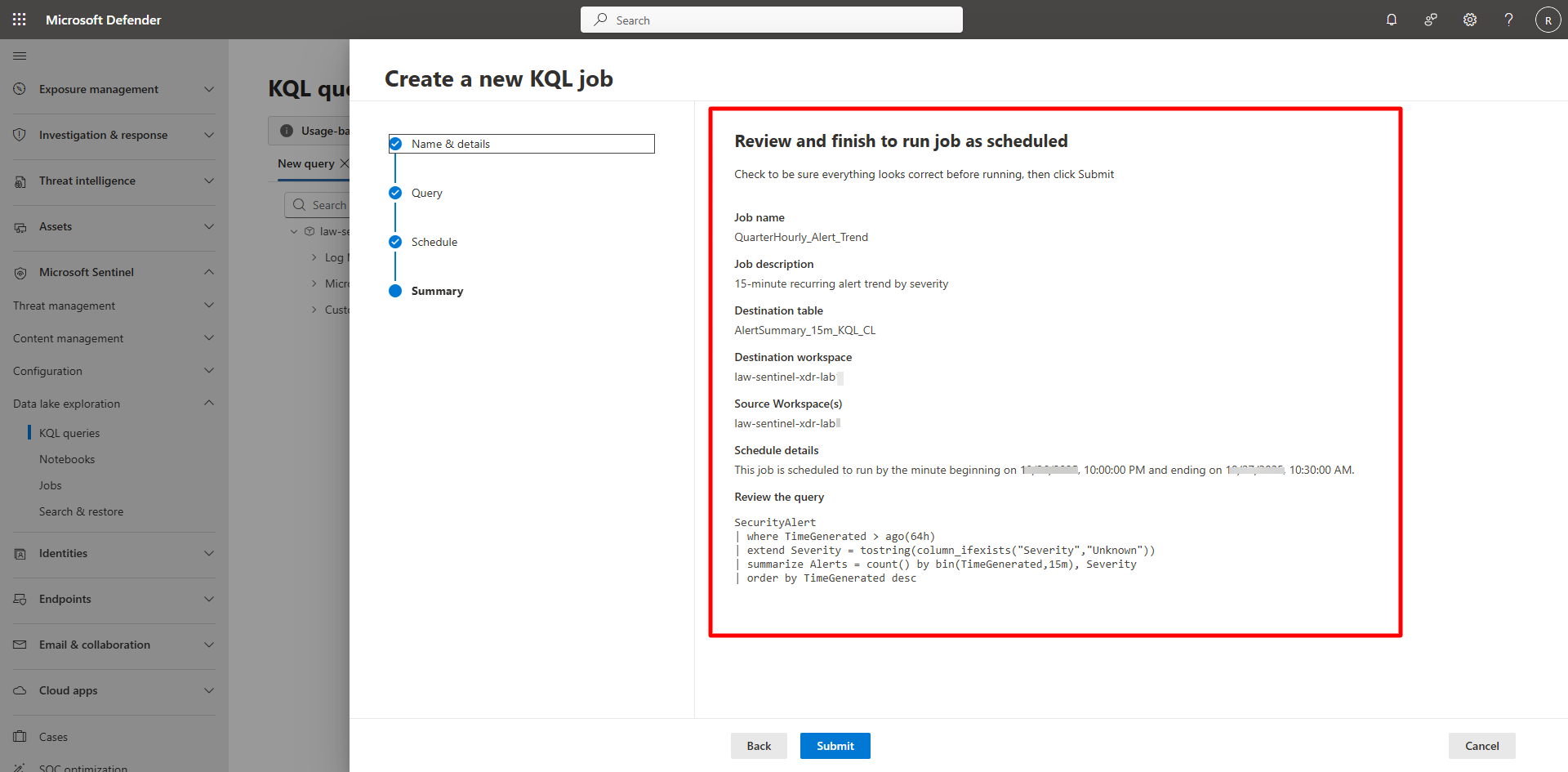

   7. Verify the details and select Submit.

      • Job name: QuarterHourly_Alert_Trend
      • Destination table: AlertSummary_15m_KQL_CL
      • Workspace: law-sentinel-xdr-lab1
      • Frequency: Every 15 minutes
      • Query: Your validated KQL

   8. Select Done.



2. Verify recurring job execution.

   Expand here for detailed steps

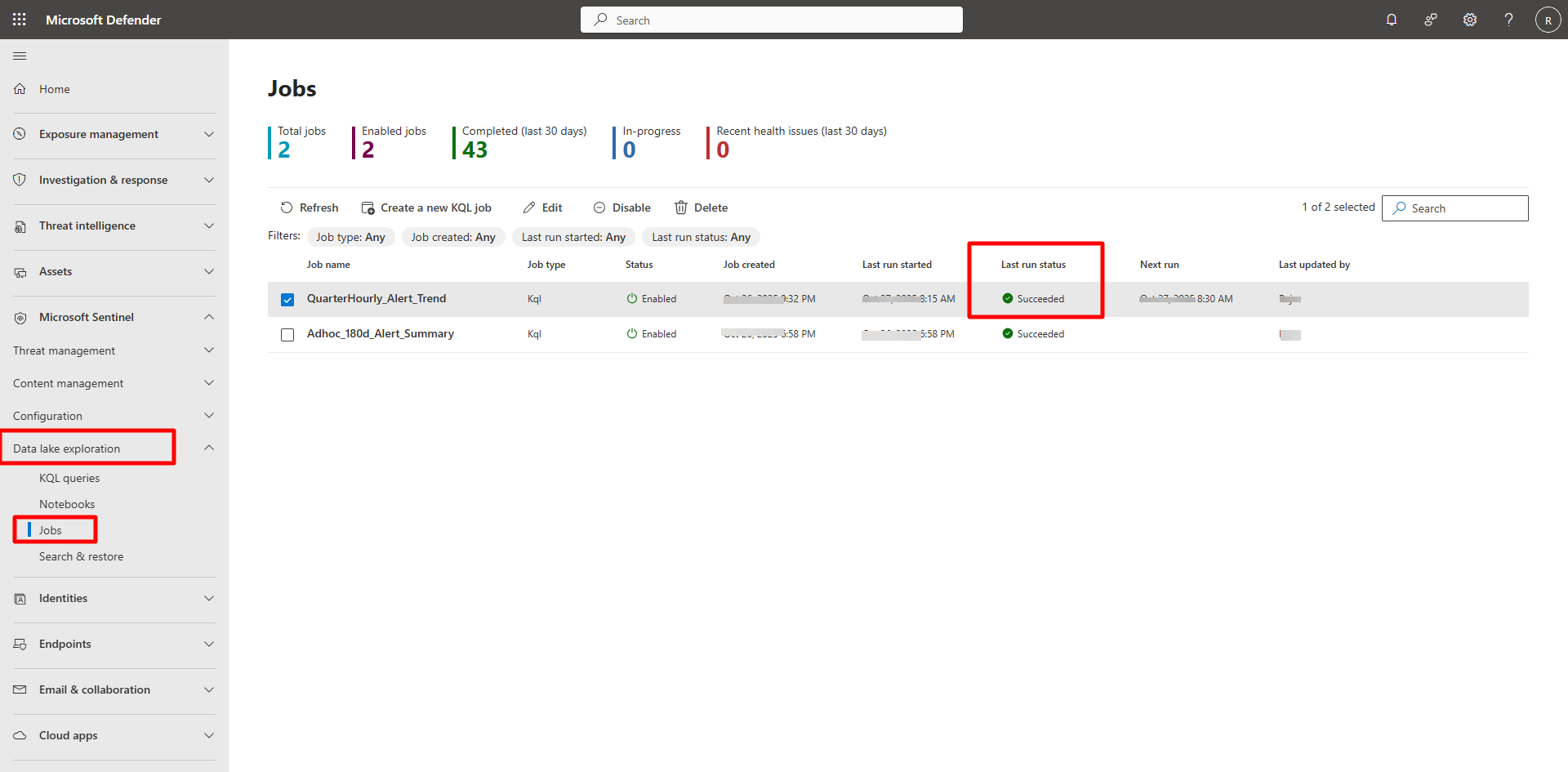

   1. In the Defender portal, go to Microsoft Sentinel > Data Lake exploration > Jobs.
   2. Confirm metrics such as Total jobs, Enabled jobs, and Completed.

   3. Verify QuarterHourly_Alert_Trend, status should show Succeeded after 15 minutes.

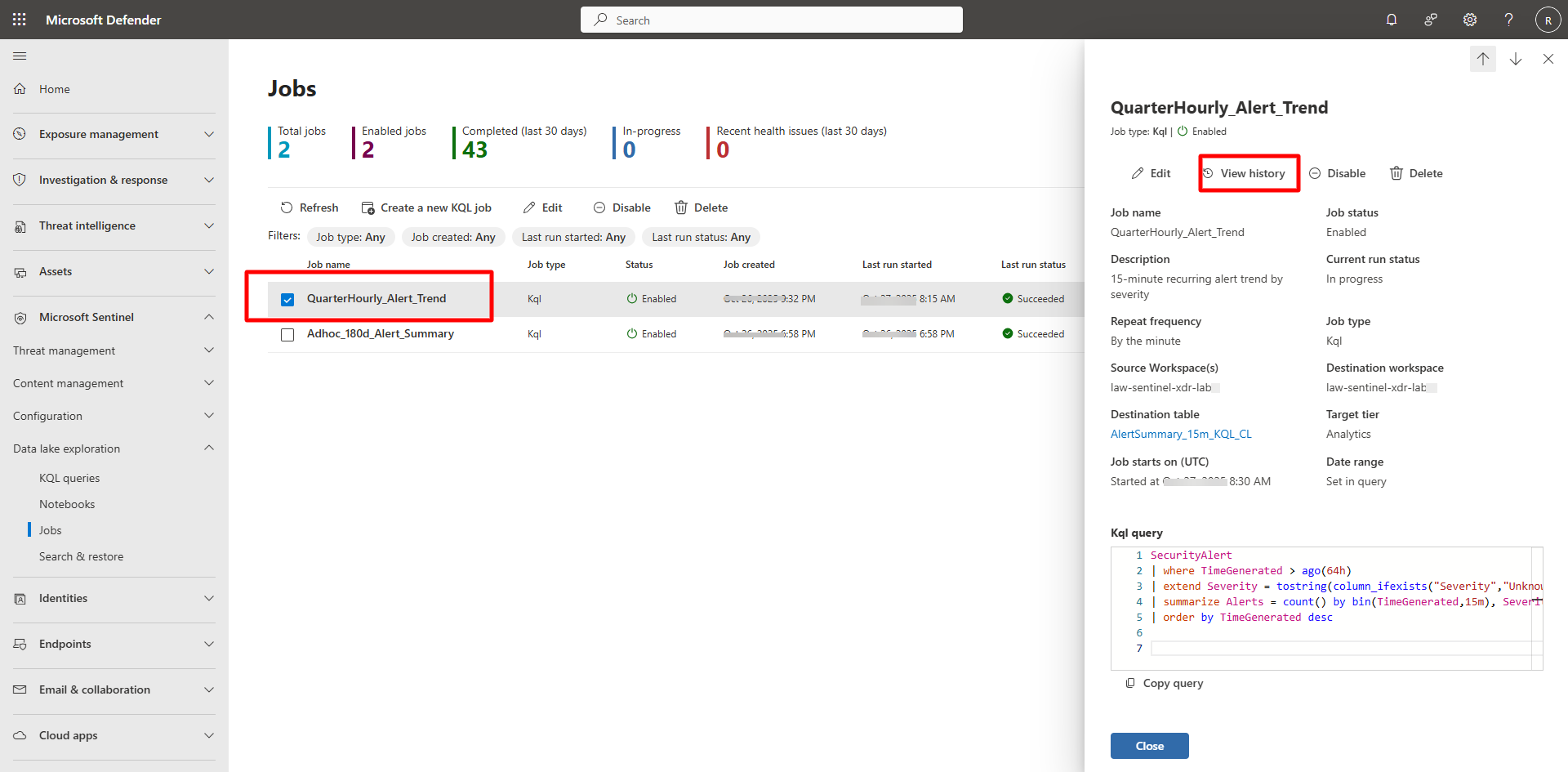

   4. To view history, open the job pane and select View history.



3. Explore the job output.

   Expand here for detailed steps

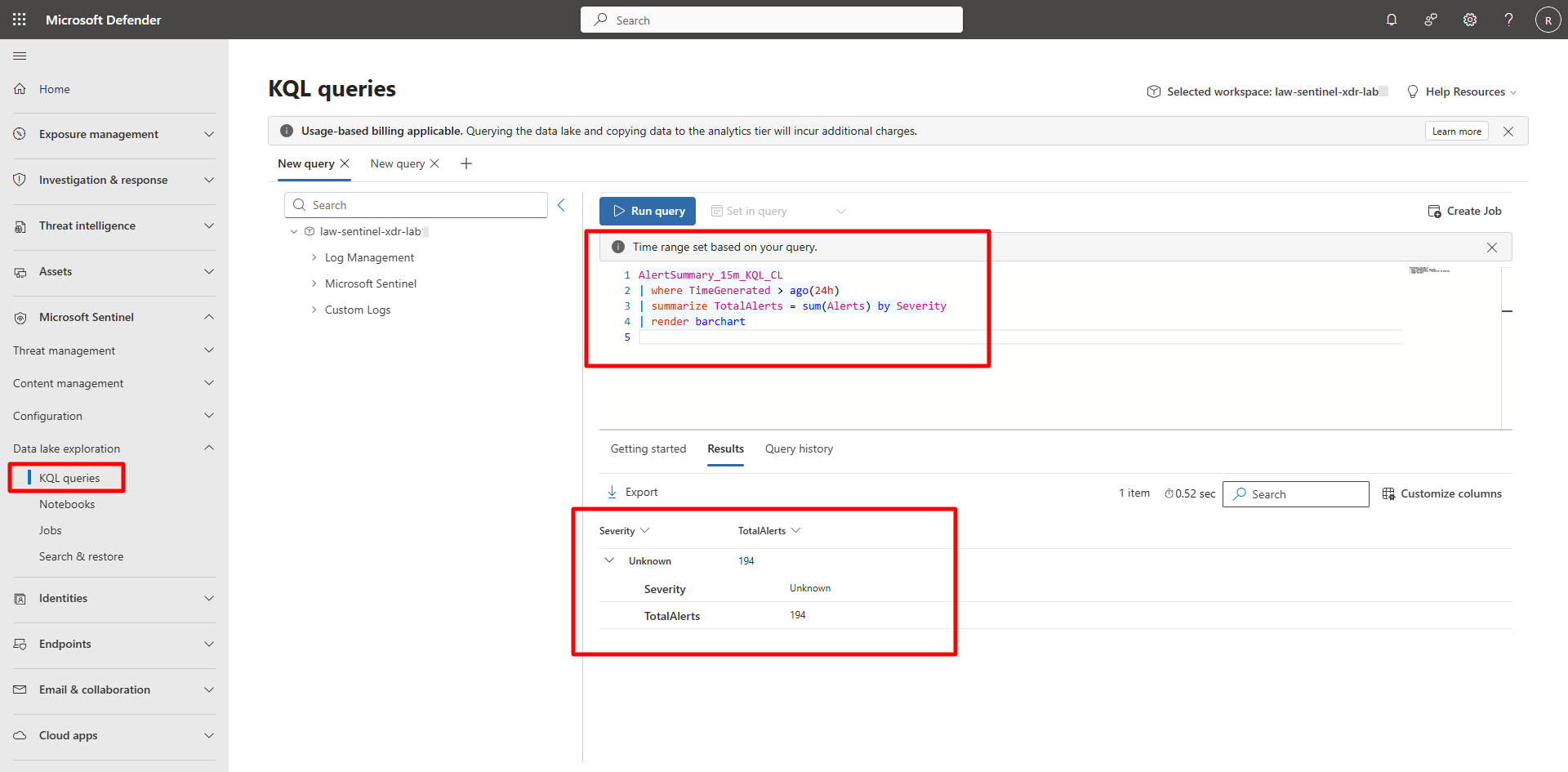

   1. In the Defender portal, go to Microsoft Sentinel > Data Lake exploration > KQL queries.

   2. Run the following query:

       AlertSummary_15m_KQL_CL
       | where TimeGenerated > ago(24h)
       | summarize TotalAlerts = sum(Alerts) by Severity
       | render barchart
