Microsoft.UI.Reactor (Reactor) draws the visible part of a frame by handing each immutable element record off to a per-control-type plug-in called a handler. The handler knows two things the reconciler doesn't: which WinUI control to instantiate, and which of that control's properties and events to wire to which element fields. The protocol is designed so authors do not pay for what they do not use — a handler that declares no children does no child dispatch, a controlled prop with no callback does not subscribe its event trampoline, a one-way prop whose value did not change does not write — and so every built-in control and every control you add yourself dispatches through the same tight loop. Read this page before adding a new native control or before reaching for a debugger when an existing one mis-updates.

The Control Reconciler Protocol

This page documents the data path between Reconciler.Reconcile and the WinUI control it edits. The audience is anyone extending Reactor with a new native control, or anyone debugging why an existing element does not update the way it should. The companion Extending Reactor with Native Controls walks through adding a control end-to-end; this page is the reference under that recipe.

Dispatch — one handler per element type

The reconciler holds a dictionary keyed by System.Type of the element record. When a re-render passes a new element to Reconcile, the dictionary entry for that element's exact runtime type is fetched, and that entry's Mount / Update / Unmount methods run against the existing WinUI control. There is no base-class fallback for ordinary handlers — registering ButtonElement does not also catch a MyButtonElement that inherits from it; each concrete element type has its own registration. (The one exception, RegisterHandlerForDerivedTypes, exists for the T-erased templated-list family and is called out explicitly below.)

public UIElement Mount(Element element, Action requestRerender, Reconciler reconciler)
{
    var typedEl = (TElement)element;
    var ctx = new MountContext(reconciler, requestRerender);
    var control = _handler.Mount(ctx, typedEl);

    // Anchor element identity on the control via the attached state DP so
    // event trampolines can re-fetch the live element on each fire.
    if (control is FrameworkElement fe)
        Reconciler.SetElementTag(fe, typedEl);

    // Strategy dispatch — only when the handler declares a non-None Children strategy.
    var strategy = _handler.Children;
    if (strategy is not null)
        DispatchChildrenMount(strategy, ctx, typedEl, control);

    // Post-children mount hook. Fires after every child has mounted
    // (whether via the strategy switch above or an items-binder strategy
    // the handler dispatched inline before returning). Lets handlers
    // subscribe events that must wire after children-add. Default no-op
    // for handlers that don't override it.
    _handler.AfterChildrenMount(ctx, typedEl, control);

    return control;
}

The adapter shown above is the engine-side bridge between the typed IElementHandler<TElement, TControl> shape and the type-erased entry the registry stores. The hot path is dictionary lookup → interface call → a cast that the JIT folds at monomorphic call sites. The cost is measured at one or two nanoseconds per element on warmed paths and is the reason the protocol does not expose a switch-on-type dispatcher to authors.

Subsystem	File	What it owns
Handler contract	src/Reactor/Core/V1Protocol/IElementHandler.cs	The Mount / Update / Unmount / Children surface
Contexts	src/Reactor/Core/V1Protocol/MountContext.cs	Ref-struct mount/update/unmount contexts
Adapter	src/Reactor/Core/V1Protocol/V1HandlerAdapter.cs	Type-erasure bridge into the registry
Children strategies	src/Reactor/Core/V1Protocol/ChildrenStrategy.cs	Declarative child-dispatch shapes
Bindings	src/Reactor/Core/V1Protocol/ReactorBindingT.cs	Event helpers + echo suppression
Descriptors	src/Reactor/Core/V1Protocol/Descriptor/	Declarative handlers + the interpreter
Pool	src/Reactor/Core/ElementPool.cs	TryRent / Return for poolable controls

The handler contract

[Experimental("REACTOR_V1_PREVIEW")]
public interface IElementHandler<TElement, TControl>
    where TElement : Element
    where TControl : UIElement
{
    /// <summary>Create or rent the WinUI control, apply initial writes,
    /// and subscribe event trampolines. Returns the control the engine
    /// places into the parent's children collection.</summary>
    TControl Mount(MountContext ctx, TElement element);

    /// <summary>Diff <paramref name="oldEl"/> vs <paramref name="newEl"/>
    /// and apply minimal writes to <paramref name="control"/>. Returns void:
    /// the control identity is preserved (§13 Q12).</summary>
    void Update(UpdateContext ctx, TElement oldEl, TElement newEl, TControl control);

    /// <summary>Optional override for handlers with explicit teardown
    /// (e.g. control-side IDisposable resources). Default no-op — the
    /// engine still runs the pool reset contract.</summary>
    void Unmount(UnmountContext ctx, TControl control) { }

    /// <summary>Optional override for handlers that want to drive child
    /// reconciliation manually instead of through
    /// <see cref="Children"/>. Phase 1 strategy dispatch routes through
    /// <see cref="Children"/>; this overload is retained for parity with
    /// the spec §4 surface and Phase 3 use.</summary>
    void ReconcileChildren(MountContext ctx, TElement oldEl, TElement newEl, TControl control) { }

    /// <summary>Optional children strategy. Engine dispatches through it
    /// when non-null (and not <see cref="None{TElement,TControl}"/>);
    /// otherwise the handler is a leaf for the purposes of child
    /// reconciliation.</summary>
    ChildrenStrategy<TElement, TControl>? Children => null;

    /// <summary>Spec 047 §14 Phase 3 prelude (Engine A1) — optional hook the
    /// engine invokes from <see cref="V1HandlerAdapter{TElement,TControl}"/>
    /// after the <see cref="Children"/> strategy has mounted/bound every child
    /// (and after any items-binder strategy the handler dispatched inline).
    /// Default no-op.
    ///
    /// <para>Override this to wire events whose subscription must happen
    /// strictly after children-add — e.g. <c>TabView.SelectionChanged</c>,
    /// which WinUI fires spuriously while the first tab is being added if the
    /// handler subscribes during the prop-apply phase. Subscribing here side-
    /// steps that first-add echo.</para></summary>
    void AfterChildrenMount(MountContext ctx, TElement element, TControl control) { }
}

Mount runs the first time the reconciler sees an element of this type at a given slot. It rents a control from the pool (or allocates one), applies initial property writes, subscribes the events it cares about, and returns the control the reconciler will install in the parent's child collection. Update runs every subsequent render where the same slot still holds an element of the same type — it diffs the old element against the new and applies the minimum writes needed. Unmount runs when the slot disappears or its element type changes; the default body is a no-op because the engine handles pool return and child teardown for the standard case. The optional Children property declares how child elements are dispatched — see Children strategies below.

The contract has two deliberate constraints worth pointing out. First, Update returns void — handlers do not swap control instances across renders. If a re-render genuinely needs a different control type (a Button becoming a HyperlinkButton, for example), it is encoded as a different Element subclass, and the reconciler's type-change path unmounts the old and mounts the new at that slot. Second, Mount and Update run on the dispatcher thread that owns the reconciler — handler bodies are free to touch control state without synchronization, and code that crosses threads is the author's responsibility (and a debug-build assert).

Caveat: Mount is called exactly once per realized control, but the same control may be passed back to a different handler instance through the pool. If you stash per-control state in a field on the handler instance, it survives pool rent — and that is almost certainly a bug. Per-control state lives on the control, either as an attached state DP or as the typed event payload box (Reconciler.GetOrCreateControlEventPayload), both of which the pool reset contract clears. The handler instance is a stateless interpreter.

Contexts and bindings

The reconciler passes three contexts into a handler, one per lifecycle phase. Each is a readonly ref struct, so the context cannot escape the call stack, cannot be captured by a closure, and does not allocate.

[Experimental("REACTOR_V1_PREVIEW")]
public readonly ref struct MountContext
{
    private readonly Reconciler _reconciler;
    private readonly Action _requestRerender;

    internal MountContext(Reconciler reconciler, Action requestRerender)
    {
        _reconciler = reconciler;
        _requestRerender = requestRerender;
    }

    /// <summary>The rerender callback for the owning component subtree.</summary>
    public Action RequestRerender => _requestRerender;

    /// <summary>The owning reconciler. Provided as an escape hatch for handlers
    /// that need to forward a child mount through some non-strategy path.</summary>
    public Reconciler Reconciler => _reconciler;

    /// <summary>Mount a child element through the reconciler. The returned
    /// <see cref="UIElement"/> is whatever the reconciler decided to mount
    /// (possibly null for <c>EmptyElement</c>).</summary>
    public UIElement? MountChild(Element child) => _reconciler.Mount(child, _requestRerender);

    /// <summary>Apply a setter array to the control. Equivalent to the public
    /// <see cref="Reconciler.ApplySetters{T}(Action{T}[], T)"/> helper; provided
    /// on the context for symmetry with handler-authored mount bodies.</summary>
    public void ApplySetters<T>(Action<T>[] setters, T control) where T : class
        => Reconciler.ApplySetters(setters, control);

    /// <summary>Construct a per-binding event helper for the given control + element.
    /// The returned binding closes over the control identity, not the element
    /// — handlers re-fetch the live element via <c>ReactorState.Element</c> on
    /// each event fire, so the same binding survives element re-renders.</summary>
    public ReactorBinding<TElement> BindFor<TElement>(FrameworkElement control, TElement element)
        where TElement : Element
        => new ReactorBinding<TElement>(_reconciler, control, element);

    /// <summary>Rent a control instance from the per-type pool, or allocate
    /// a fresh one if the pool is empty / the policy opts out.</summary>
    public T RentControl<T>(PoolPolicy<T>? policy = null, Func<T>? factory = null) where T : class, new()
        => _reconciler.RentControl(policy, factory);

    /// <summary>Push a typed context value for the duration of the returned
    /// <see cref="IDisposable"/>. Used by handlers that mount children which
    /// must see an author-supplied context.</summary>
    public IDisposable PushContext<T>(Context<T> context, T value) => _reconciler.PushContextDisposable(context, value);

    /// <summary>Push a stagger scope; children mounted inside the scope
    /// consume stagger indices for their enter transitions.</summary>
    public IDisposable PushStaggerScope(TimeSpan delay) => _reconciler.PushStaggerScopeDisposable(delay);

    /// <summary>Escape hatch (Q11) — attach a raw routed handler directly to
    /// the control. Handlers should prefer the typed <c>On*</c> family on
    /// <see cref="ReactorBinding{TElement}"/>; use this only for events the
    /// binding doesn't cover (e.g. <c>UIElement.PreviewKeyDown</c> on a
    /// non-FrameworkElement, or app-side custom routed events).</summary>
    public void AddRawRoutedHandler(UIElement target, RoutedEvent re, Delegate h, bool handledEventsToo)
        => target.AddHandler(re, h, handledEventsToo);
}

MountContext.RentControl<T>() is how a handler obtains its WinUI control. By default the engine pools every type that opts in via PoolableTypes — Button, TextBlock, Border, every common leaf — and RentControl returns a reset instance from the per-type stack when one is available. Authors can override the pool policy or supply a custom Func<T> factory for controls that need constructor arguments or that should never pool. RentControl is therefore the single place a handler crosses into native land, and the engine ensures that every rented control reaches ReturnControl on unmount.

MountContext.BindFor(control, element) produces a ReactorBinding<TElement> that wires events from the WinUI side back to element callbacks. The binding has typed On… methods for the WinUI routed-event families (pointer, key, tap, focus) and a general OnCustomEvent<TArgs> for plain CLR events (Click, ValueChanged, TextChanged). The critical property of every On… method is that the event trampoline captures the control, not the element — at fire time it re-reads the live element from Reconciler.GetElementTag(control). The same subscription therefore survives every re-render without re-subscribing.

UpdateContext is the same surface as MountContext minus RentControl — update bodies run against an existing control, and allocating a new one is forbidden on this path. UnmountContext is narrower still: it carries only ReturnControl<T> for the optional pool-return contract.

The mount-then-subscribe invariant

A controlled property — a property whose value the framework writes and whose value the user can edit on the WinUI side — would race if the handler subscribed to the change event before writing the initial value. The descriptor interpreter (and every hand-coded handler that follows the same shape) sequences the work in two passes so the race cannot happen:

public TControl Mount(MountContext ctx, TElement el)
{
    var ctrl = ctx.RentControl(_descriptor.PoolPolicy, _descriptor.Factory);

    // §14 Phase 3-final: when the descriptor declares an ItemsHost,
    // populate the items collection BEFORE the prop loop. Initial writes
    // for selection-tracking props (SelectedIndex/SelectedItem) need the
    // collection populated first — WinUI silently clamps selection
    // against an empty collection.
    if (_descriptor.Children is ItemsHost<TElement, TControl> ih)
        DispatchItemsHostMount(in ctx, el, ctrl, ih);
    // §14 Phase 3 finish — consolidated dispatch arm: every items-
    // binder variant uses the same "bind before prop loop" ordering so
    // SelectedIndex initial writes land against a populated list.
    else if (_descriptor.Children is IItemsBinderStrategy binder && ctrl is FrameworkElement feBinder)
        binder.Bind(feBinder, oldElement: null, el, ctx.Reconciler, ctx.RequestRerender, isMount: true);

    // Phase 1: all bare initial writes (no echo possible — subscriptions
    // not yet live). §14 Phase 3-final: dispatch through the
    // context-carrying overload so OneWayBridged entries can reach the
    // reconciler/rerender helpers; existing entries forward to the
    // parameterless overload via the virtual default on PropEntry.
    var props = _descriptor.Properties;
    for (int i = 0; i < props.Count; i++)
        props[i].Mount(in ctx, ctrl, el);

    // Phase 2: subscribe controlled entries.
    var binding = ctx.BindFor(ctrl, el);
    for (int i = 0; i < props.Count; i++)
        props[i].EnsureSubscribed(binding, ctrl, el);

    var getSetters = _descriptor.GetSetters;
    if (getSetters is not null)
        ctx.ApplySetters(getSetters(el), ctrl);
    return ctrl;
}

The first loop runs the bare initial writes for every entry. The second loop wires the trampolines. Because no trampoline is listening during the first loop, the synchronous change events WinUI raises when the framework writes IsOn = true, Value = 3.5, or Text = "hi" go nowhere — and the user's callback receives no spurious initial fire on Mount. On Update the equivalent property writes go through ReactorBinding.WriteSuppressed, which marks a per-control suppress counter that the trampoline drains before invoking the callback. The net effect is that the callback fires exactly when the user interacted with the control, never when the framework wrote a value the user did not type.

The same invariant covers pool rent: a control returned to the pool keeps its typed event-payload box, and re-mount checks the box's Trampoline slot to skip re-subscription. A pooled RatingControl that gets rented out for a fresh StarMeterElement does not double-subscribe its ValueChanged event.

Children strategies

A handler's Children property declares how its child elements get dispatched. The strategy is a sealed record subclass; the adapter's switch over the strategy types runs after Mount / Update return, so the handler body itself never has to walk children.

[Experimental("REACTOR_V1_PREVIEW")]
public abstract record ChildrenStrategy<TElement, TControl>
    where TElement : Element
    where TControl : UIElement;

/// <summary>Leaf — no children. Engine performs no dispatch beyond the
/// handler's Mount/Update body.</summary>
[Experimental("REACTOR_V1_PREVIEW")]
public sealed record None<TElement, TControl>() : ChildrenStrategy<TElement, TControl>
    where TElement : Element
    where TControl : UIElement;

/// <summary>Single-content host (Border, ContentControl, Viewbox). The
/// engine mounts <paramref name="GetChild"/>'s result and assigns it via
/// <paramref name="SetChild"/>.
///
/// <para><b>Structural reconcile:</b> set <see cref="GetCurrentChild"/> so
/// the engine can read the existing slot value during <c>Update</c> and
/// route through <c>Reconciler.ReconcileV1Child</c> — that preserves
/// descendant component state across parent re-renders. When left null,
/// the engine remounts the child on every update (only safe for slots that
/// are reset every render anyway). All built-in handlers set it.</para></summary>
[Experimental("REACTOR_V1_PREVIEW")]
public sealed record SingleContent<TElement, TControl>(
    Func<TElement, Element?> GetChild,
    Action<TControl, UIElement?> SetChild) : ChildrenStrategy<TElement, TControl>
    where TElement : Element
    where TControl : UIElement
{
    /// <summary>Optional: read the current child from the control. Required
    /// for structural child reconciliation; if null the engine falls back to
    /// remounting the child every Update.</summary>
    public Func<TControl, UIElement?>? GetCurrentChild { get; init; }
}

/// <summary>Panel host (StackPanel, Grid, Canvas). Engine mounts each
/// child and appends to the panel's <see cref="UIElementCollection"/>.
///
/// <para><b>Phase 1 limitation:</b> the dispatch is append-only; structural
/// diff against the previous render goes through the host's child
/// collection wholesale. Spec-042 keyed-reconcile integration is a
/// Phase 3 follow-up.</para>
///
/// <para><b>§14 Phase 3-final addition:</b>
/// <see cref="PerChildAttached"/> — optional callback invoked after each
/// child mount AND after each child Update. Receives the mounted
/// <see cref="UIElement"/> alongside the child element so the descriptor
/// can write WinUI attached DPs (e.g. <c>Grid.SetRow</c>,
/// <c>Canvas.SetLeft</c>) based on attached-prop hints carried on the
/// child element. No-op by default.</para>
///
/// <para><b>§14 Phase 3 close-out addition:</b>
/// <see cref="PerChildAttachedAfterAll"/> — optional two-pass callback
/// invoked once after every child has been mounted (Mount path) or
/// reconciled (Update path). Receives the full <c>(UIElement, Element)</c>
/// pair list in collection order so the descriptor can apply attached
/// DPs that reference OTHER children by name (e.g.
/// <c>RelativePanel.SetRightOf(b, a)</c>). Distinct from
/// <see cref="PerChildAttached"/>, which fires per-child mid-pass and
/// cannot see siblings that haven't mounted yet. Most descriptors set
/// only one of the two; <c>RelativePanel</c> is the canonical consumer
/// of the after-all shape.</para>
/// </summary>
[Experimental("REACTOR_V1_PREVIEW")]
public sealed record Panel<TElement, TControl>(
    Func<TElement, IReadOnlyList<Element>> GetChildren,
    Func<TControl, UIElementCollection> GetCollection) : ChildrenStrategy<TElement, TControl>
    where TElement : Element
    where TControl : UIElement
{
    /// <summary>Optional per-child attached-prop writer. Called by the
    /// engine after each child is mounted (Mount path) AND after each child
    /// is reconciled (Update path). The descriptor reads attached-prop
    /// hints off the child element (via <c>Element.GetAttached&lt;T&gt;()</c>
    /// or similar) and writes the corresponding WinUI attached DPs onto
    /// the mounted <see cref="UIElement"/>. Defaults to <c>null</c> for
    /// containers that don't carry per-child attached props
    /// (e.g. <c>StackPanel</c>).</summary>
    public Action<TControl, UIElement, Element>? PerChildAttached { get; init; }

    /// <summary>Optional two-pass callback fired once after every child has
    /// been mounted/reconciled, receiving the full ordered list of
    /// <c>(UIElement, Element)</c> pairs. Use for attached DPs that
    /// reference siblings by name — e.g. <c>RelativePanel.SetRightOf</c>.
    /// Defaults to <c>null</c>; only RelativePanel-shaped descriptors set
    /// it.</summary>
    public Action<TControl, IReadOnlyList<(UIElement Mounted, Element ChildElement)>>? PerChildAttachedAfterAll { get; init; }
}

Strategy	Shape	Used by
None	Leaf — no children	Button, TextBlock, Slider, RatingControl, every leaf
SingleContent	One child slot, GetCurrentChild for structural reconcile	Border, ContentControl, Viewbox, Expander body
Panel	Ordered child list against UIElementCollection, optional PerChildAttached for attached DPs	Grid, StackPanel, Canvas, RelativePanel
NamedSlots	Multiple named slots, each binding via a NamedSlot record	SplitView (Pane + Content), NavigationView (Header + Content + PaneFooter)
ItemsHost	Flat items collection — IReadOnlyList<object> projected into the control's Items sink	ListBox, ComboBox, RadioButtons, simple FlipView
TemplatedItems<TItem,…>	Keyed templated list — routes through BindKeyedItemsSource for spec-042 keyed reconcile	ListView<T>, GridView<T>
TemplatedItemsErased	Same shape, T erased via IKeyedItemSource for typed-list base types	TemplatedListViewElement<T> family
TreeChildren	Hierarchical TreeViewNode tree, optional per-node ContentElement	TreeView
TabItemsHost	Heterogeneous items (TabViewItem / PivotItem) with in-place positional reconcile	TabView, Pivot
PreMountedItems	Pre-mounted items against a flat sink with no ContainerContentChanging	Templated FlipView
Imperative	Escape hatch — handler reconciles children itself	Custom containers that span multiple WinUI properties

The strategy switch is the engine's seam between the handler protocol and the rest of the reconciler — SingleContent and NamedSlots route through Reconciler.ReconcileV1Child, which is the same diff path the rest of Reactor uses; Panel walks the new and old child lists in lockstep and preserves descendant component state across reorderings that do not change identity; TemplatedItems and TemplatedItemsErased route through Reconciler.BindKeyedItemsSource, which owns the spec-042 KeyedListDiff realization plumbing — and so on. Adding a new strategy is a Reactor-internals task; adding a new handler that consumes one of these strategies is what extension authors do.

Pool integration

The descriptor's PoolPolicy (and the corresponding parameter to MountContext.RentControl<T>) determines whether the control type pools at all and, if so, how to reset its mutable state when it goes back into the pool. Most leaf controls — Button, TextBlock, Border, RatingControl, every input the form catalog covers — opt in by default; the per-type entry in PoolableTypes declares the reset hook (clearing handlers, restoring default property values) so a rented instance is observably indistinguishable from a fresh one. Authors writing a new handler should generally accept the default and let the engine pool the control; the policy escape hatch exists for controls whose state is too large or whose teardown is too expensive to be worth pooling.

MountContext.RentControl<T> is the single rent path. The engine guarantees that every rent reaches a ReturnControl on unmount — the default adapter body calls Unmount with a V1UnmountDisposition result that opts into pool collection, the engine then walks the unmounted subtree and returns each control to its per-type stack. An author writing Unmount does not have to call ReturnControl themselves unless they rented from the engine via the manual RentControl overload — the default lifecycle is fully managed.

Echo suppression and WriteSuppressed

When the framework writes the controlled prop, the WinUI control raises its change event synchronously. The event trampoline cannot distinguish "the user typed this" from "the framework just wrote this" without help, and forwarding the framework's own write to the element callback would round-trip the same value through the user's state setter and trigger a spurious re-render. ReactorBinding suppresses that echo with a per-control counter:

Method	When to call	Effect
binding.WriteSuppressed(mutate)	Inside Update when writing a controlled prop	Increments the suppress counter, runs the mutate, decrements
ChangeEchoSuppressor.ShouldSuppress(fe)	Inside an event trampoline	Drains a pending suppress count and returns true; trampoline short-circuits

The trampolines ReactorBinding.OnCustomEvent<TArgs> generates call ShouldSuppress on entry — every controlled prop in every built-in handler is echo-safe without the handler author having to think about it. Hand-authored trampolines (the ones that bypass OnCustomEvent for performance) follow the same shape; see Reconciler.GetOrCreateControlEventPayload for the per-control payload box that anchors the trampoline for the control's lifetime.

Element identity via the tag

Every framework element record is anchored on its mounted FrameworkElement via Reconciler.SetElementTag(fe, element), an attached state DP. The tag is what makes event trampolines safe across re-renders: the trampoline closes over the control instance, calls Reconciler.GetElementTag(control) at fire time, casts the result to the typed element, and invokes the callback. The element value is refreshed by Reconciler.SetElementTag on every Update, so the trampoline always sees the live element — including the live callback, the live state captured by the user's component, and any intervening prop changes.

Handler authors get the tag wiring for free — the adapter writes it after Mount returns and after every Update. Hand-authored trampolines that need to read the tag (e.g. the descriptor's static ClickTrampoline for Button) call GetElementTag and pattern-match on the expected element type.

Descriptors — declarative handlers

IElementHandler is the imperative shape; ControlDescriptor is the declarative one. A descriptor is a list of PropEntry objects (each encoding one property's binding shape) plus an optional children strategy, optional factory, and optional pool policy. The DescriptorHandler<TElement, TControl> interpreter is itself an IElementHandler, so the registry sees no difference between a hand-coded handler and a descriptor — the dispatch shell is identical, and any cost difference is the interpreter's iteration over a small list of entries.

// A descriptor declares property bindings against the WinUI control the
// element targets. The framework's DescriptorHandler interprets the entries
// during Mount and Update — there is no per-element interpreter overhead
// beyond a dictionary lookup and the entry-loop iteration.

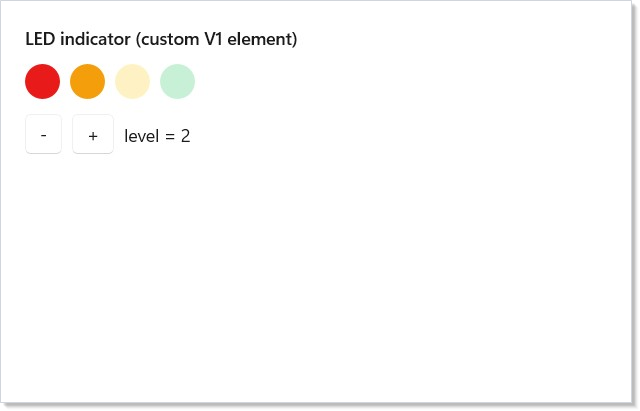

public static class LedIndicatorDescriptor
{
    public static readonly ControlDescriptor<LedIndicatorElement, WinUI.Border> Descriptor =
        new ControlDescriptor<LedIndicatorElement, WinUI.Border>
        {
            // The descriptor's children strategy says "no children" — this is
            // a leaf control. See ChildrenStrategy survey in the prose.
            Children = new None<LedIndicatorElement, WinUI.Border>(),
        }
        // OneWay: write on Mount, diff-and-write on Update. Equality skips
        // the write when the element value didn't change.
        .OneWay(
            get: static e => e.Size,
            set: static (c, v) => { c.Width = v; c.Height = v; c.CornerRadius = new Microsoft.UI.Xaml.CornerRadius(v / 2); })
        // The IsOn → Background mapping coerces both inputs onto one WinUI
        // property. A single OneWay entry observes (Color, IsOn) jointly
        // by reading both off the element in the get/set lambdas.
        .OneWay(
            get: static e => (e.Color, e.IsOn),
            set: static (c, v) =>
                c.Background = new SolidColorBrush(
                    v.IsOn ? v.Color : Color.FromArgb(0x40, v.Color.R, v.Color.G, v.Color.B)));
}

The descriptor above declares a single one-way mapping from (Color, IsOn) onto Border.Background, plus a size hook that writes Width, Height, and CornerRadius in one entry. It is a complete extension: every LedIndicatorElement the app renders flows through this descriptor, including pool rent, prop diff, and unmount.

PropEntry shapes — the prop-binding vocabulary

The fluent builder methods on ControlDescriptor add one entry per call. The full vocabulary covers the common cases plus the escape hatches a hand-coded handler would otherwise need:

Builder	When to reach for it
.OneWay(get, set)	Plain one-way prop; write on Mount, diff-write on Update. No event subscription.
.OneWayConditional(get, set, shouldWrite)	Nullable / optional prop where leaving the control's default is the intent when the element didn't set a value.
.Initial(get, set)	Write once at Mount and never again. Use for seed-only props (TextBox.InitialText, etc.).
.Controlled<TValue, TArgs>(get, set, subscribe, unsubscribe, callback, readBack)	Two-way prop. Framework writes with echo suppression; user input rounds back via the change event. Subscription is gated on callback returning non-null.
.CoercingOneWay(get, set, coercesController)	One-way prop whose write may coerce a sibling controlled value (e.g. Slider.Minimum re-clamping Slider.Value); writes through WriteSuppressed when the coercion fires.
.HandCodedControlled<TPayload, TValue, TDelegate>	Two-way prop with a multi-event control where the standard Controlled shape would collide on the per-control event payload (TextBox.Text alongside SelectionChanged).
.HandCodedEvent<TPayload, TDelegate>	Fire-and-forget event with no associated DP (Button.Click, Image.ImageOpened).
.CollectionDiffControlled<…>	Two-way prop whose value is an IReadOnlyList<TItem> round-tripped against a control-side IList<TItem> (CalendarView.SelectedDates).
.OneWayBridged(get, set, shouldWrite)	One-way prop whose set lambda needs access to the reconciler (used by the button-family flyout port).
.Imperative(mount, update)	Property-level escape hatch — the lambdas receive (control, element) and (control, oldEl, newEl) so an entry can express a diff the standard builders cannot.
.ImperativeBridged(mount, update)	Same shape with the MountContext / UpdateContext available — primary use is a secondary Element slot that needs structural reconcile via ReconcileV1Child.

The entries iterate as a flat list, in declaration order. The descriptor's children strategy runs first when it is an items binder (so selection-tracking props see the populated collection at Mount); otherwise the strategy fires after the entry loop. The mount-then- subscribe ordering invariant is preserved by running every entry's Mount body before any entry's EnsureSubscribed.

Registration

Handlers are registered with a Reactor host's reconciler before the first render. The standard call is Reconciler.RegisterHandler<TElement, TControl>(handler):

// Registration is one call per Reactor host. RegisterDescriptor wraps
// RegisterHandler<...>(new DescriptorHandler<...>(descriptor)) — both shapes
// land on the same dispatch table. Duplicate registrations for the same
// element type throw.
public sealed class LedIndicatorRegistration
{
    public static void Register(Reconciler reconciler)
    {
        reconciler.RegisterHandler<LedIndicatorElement, WinUI.Border>(
            new DescriptorHandler<LedIndicatorElement, WinUI.Border>(
                LedIndicatorDescriptor.Descriptor));
    }
}

There are two variants worth knowing about:

Method	Use when
RegisterHandler<TElement, TControl>(handler)	Standard registration — exact-type dispatch on element.GetType().
RegisterHandlerForDerivedTypes<TBase, TControl>(handler)	T-erased registration on a non-generic base type — every closed-T variant whose chain reaches TBase routes to the same handler. Used by the typed templated-list family (TemplatedListViewElement<T>, etc.).

Exact-type registrations always win over a derived-type registration for the same chain. Duplicate registration for the same element type throws — there is no last-writer-wins. If you need a different mapping for the same element type (e.g., a test harness substituting a fake control), build a separate Reconciler instance for the scope that needs the override.

Patterns

A handful of recurring patterns cover the long tail of real handlers:

Map two element fields onto one control property. Use a single .OneWay entry whose get returns a tuple and whose set reads both fields. The descriptor's value comparer treats the tuple atomically, so the write fires only when either field changes. This is how the LED demo collapses (Color, IsOn) into a single Background update.

Map one element field onto multiple control properties. Same shape: one .OneWay entry whose set body writes all of them. The diff-check still runs only against the element's source field.

Gate subscription on callback presence. Pass e => e.OnXxx as the callback parameter to .Controlled or .HandCodedEvent. When the element returns null the engine skips subscription entirely — callback-less controls pay zero per-fire dispatch cost. This is the standard idiom; do not gate manually inside a hand-authored trampoline.

Survive across re-renders. Hand-authored trampolines that bypass OnCustomEvent must read the live element via Reconciler.GetElementTag(control) rather than capturing the element in the closure — the closure-captured element goes stale every render and the callback observes the wrong state. Every built-in HandCodedEvent trampoline follows this shape; copy it.

Common Mistakes

Subscribing inside Update. Each Update call runs against an existing control whose subscriptions are already wired from Mount. Subscribing again in Update multiplies the trampolines across re-renders. The protocol's contract is: subscribe in Mount (or, for descriptors, in EnsureSubscribed which the interpreter calls after the Mount entry loop and lazily on null → non-null callback transitions).

Writing without WriteSuppressed from Update. A controlled prop write from Update raises the change event synchronously and echoes through the trampoline back into the user's setter. Every controlled-shape descriptor entry already wraps the write; hand-coded handlers should mirror this. Forgetting it is the most common cause of "the value snaps back when I type" bugs.

Capturing the element in a trampoline closure. Closures over the element observe a stale value on the next render. Re-fetch via Reconciler.GetElementTag(control) on every fire instead.

Stashing state on the handler instance. Handler instances are registered once per host and live as long as the reconciler. Per- control state needs to live on the control (attached state DP, typed event payload box), not on the handler. The handler is a stateless interpreter.

Registering a handler against an open generic. The dispatch table keys on System.Type, so an open generic like typeof(DataGrid<>) has no usable runtime type. Use RegisterHandlerForDerivedTypes with a non-generic intermediate base when you need to catch every closed variant of a generic element family.

Tips

Prefer descriptors for new ports. A descriptor is a declarative list that the interpreter executes against the same surface a hand- coded handler uses. The dispatch shape is identical; the descriptor just reads better. Reach for a hand-coded handler when the prop diffing legitimately needs imperative logic (multi-source props, template-part trampolines), and use the .Imperative / .HandCoded… escape hatches inside a descriptor before writing a full hand-coded handler.

Read the RatingControl descriptor before writing your own. The built-in descriptors in src/Reactor/Core/V1Protocol/Descriptor/Descriptors/ are the authoritative examples of every shape. Start from the closest match to your control and adapt; copy the comments along with the code so future maintainers see the rationale.

Let the engine handle pool integration. Default PoolPolicy covers every leaf control already in PoolableTypes. Custom pool policies exist for the cases where the default does not fit; do not reach for them as a first move.

Test the controlled-prop round trip with a real pointer driver. The echo-suppression contract is invisible until two writes race. The existing SelfTests fixtures (in tests/Reactor.AppTests.Host/SelfTest/Fixtures/) are the template — copy the pattern that drives the control via an AutomationPeer IInvokeProvider/IValueProvider and asserts the callback fired exactly once.

Next Steps

• Extending Reactor with Native Controls — the cookbook companion to this page.
• Reconciliation — how the reconciler decides Mount vs Update vs Unmount, and where Reconcile calls into the handler.
• Element Pool — what RentControl and ReturnControl actually do.
• Hooks Internals — how the re-render side of the same loop works.
• Modifier System — the Setters chain a descriptor applies after its own prop loop.
