Recipe: Master-detail

Master-detail in Microsoft.UI.Reactor (Reactor) is the canonical multi-pane shape: a list of records on one side, the selected record's details on the other. The whole thing is one UseState for the selected id and two slots in an HStack.

Primitives

Slot	API
Selection state	UseState<int?>
List render	VStack + Select(...).ToArray()
Selected highlight	Per-row .Background(...)
Detail branch	Element typed local for null case
Layout split	HStack(0, list, detail)

record Note(int Id, string Title, string Body);

class NoteBrowser : Component
{
    private static readonly Note[] Notes = new[] {
        new Note(1, "Project plan", "Draft the milestone sequence; ship before Friday."),
        new Note(2, "Grocery list", "Bread, olive oil, lemons, parsley, two limes."),
        new Note(3, "Bug triage",   "Refocus on the persistence regression; defer the WinForms host."),
    };

The data layer is plain C#. A real app pulls notes from IDataSource<T> or an async-resources source; the shape stays the same.

Selection state

// Single source of truth for "which note is selected" — the list
// writes to it via the button click; the detail pane reads from it.
// Re-renders are scoped to slots that actually changed.
var (selectedId, setSelectedId) = UseState<int?>(1);
var selected = Notes.FirstOrDefault(n => n.Id == selectedId);

One UseState<int?> holds the id; the list writes via a button click, the detail reads via FirstOrDefault. Both slots re-render only when the selection actually changes.

Layout

var list = VStack(2,
    Notes.Select(n =>
        Button(n.Title, () => setSelectedId(n.Id))
            .HAlign(Microsoft.UI.Xaml.HorizontalAlignment.Stretch)
            .Background(n.Id == selectedId ? "#E5F1FB" : "#FFFFFF")
    ).ToArray()
).Width(200).Padding(8);

Element detail = selected is null
    ? TextBlock("No selection").Opacity(0.6).Padding(20)
    : VStack(8,
        Heading(selected.Title),
        TextBlock(selected.Body).Opacity(0.8)
    ).Padding(20);

return HStack(0, list, detail);

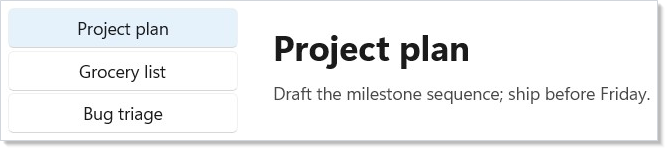

The list is a VStack of full-width buttons; the selected row gets a distinct background. The detail pane is conditional — selected is null renders the empty state, otherwise the title + body. Both sides are plain elements; no intermediate component is needed.

Tips

Lift the selection into context only when a third component needs it. A list and a detail pane in the same Render share the selection through a local — no UseContext needed until a third pane (toolbar, status bar) wants to read or write.

Pre-resolve the selected record once. A FirstOrDefault is fine for short lists; for large catalogs put the records in a Dictionary<int, Note> so the lookup is O(1).

Don't reach for a ListView<T> for three rows. The full collection control earns its weight at 50+ rows. A VStack of buttons is fine for the recipe-sized case and trivial to read.

Next Steps

• Collections — Promote to ListView<T> when the row count grows or each row gets non-trivial.
• Navigation — When the detail belongs on its own page rather than a sibling pane.
• Data System — Pull the data layer behind an IDataSource<T> once it's a network source.
• Recipe: Login — Sibling recipe — adjacent shape but different validation surface.
• Recipes index — Back to the gallery.
