WinUI reference: For the full property surface and design guidance, see Input.

Input flows from raw pointer and keyboard events through Microsoft.UI.Reactor (Reactor)'s modifier tower into your component's render logic, with gesture recognizers and focus state stacked on top. The bottom layer is the raw .OnPointerPressed / .OnKeyDown / .OnGotFocus etc. surface, which mirrors WinUI's routed events one-to-one and uses bubbling by default — events start at the deepest element and propagate up the tree. Above that sit the high-level recognizers: .OnTapped, .OnDoubleTapped, .OnPan, .OnPinch, .OnRotate, .OnLongPress — each auto-enables the underlying WinUI flag (e.g. IsDoubleTapEnabled) and installs a single stable trampoline so re-rendering with a new handler closure costs no re-subscription. Focus is the third tower: declarative .TabIndex / .AccessKey / .IsTabStop modifiers, the UseElementFocus / UseElementRef hooks for imperative focus, and UseFocusTrap for modal containment. Everything is re-render-safe by design; the focus-and-input-internals page covers the dispatcher and trampoline mechanics for readers who want the implementation details.

Input and gestures

Reactor's input surface is declarative: attach handlers via .On* modifiers and the reconciler wires WinUI events, auto-enables the matching flags (for example IsDoubleTapEnabled), and survives re-renders without re-subscribing the underlying WinUI event.

This page covers the modifiers you'll reach for on most screens, the higher-level gesture recognizers for continuous input, and the imperative escape hatches — ref-based focus and access keys — that round out the commanding story.

Reference

Modifier / hook	Purpose
.OnPointerPressed / .OnPointerReleased / .OnPointerEntered / .OnPointerExited / .OnPointerMoved	Raw pointer events. Bubble by default.
.OnTapped / .OnDoubleTapped / .OnRightTapped / .OnHolding	High-level tap recognizers. Auto-enable the matching IsXEnabled flag.
.OnPan / .OnPinch / .OnRotate / .OnLongPress	Continuous-gesture recognizers. Take onBegan / onChanged / onEnded.
.OnKeyDown / .OnKeyUp / .OnPreviewKeyDown / .OnPreviewKeyUp / .OnCharacterReceived	Keyboard events. Preview-pair tunnels; the unprefixed pair bubbles.
.OnGotFocus / .OnLostFocus	Focus events; bubble by default.
.OnDragStart<TEl,T> / .OnDrop<TEl,T> / .OnDragOver	Drag-and-drop sources and targets with typed in-process payloads.
.TabIndex(n) / .IsTabStop() / .AccessKey("S") / .TabNavigation(...)	Declarative focus order and keyboard navigation.
UseElementFocus	Untyped element ref + dispatcher-scheduled RequestFocus() action.
UseElementRef<T>	Typed element ref for calling methods on the underlying control.
UseFocusTrap	Keyboard focus trapping for modals and flyouts.

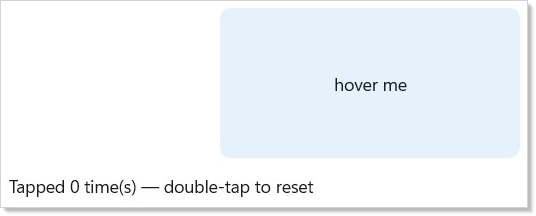

Pointer, tap, and keyboard modifiers

Every component exposes the full WinUI input event surface as .On* modifiers. Attach a handler; Reactor auto-enables the matching flag and installs a trampoline so re-renders don't re-subscribe the underlying event.

class PointerModifiersExample : Component
{
    public override Element Render()
    {
        var (hover, setHover) = UseState(false);
        var (tapCount, setTapCount) = UseState(0);

        return VStack(12,
            Border(TextBlock(hover ? "hovered" : "hover me")
                .HAlign(HorizontalAlignment.Center).VAlign(VerticalAlignment.Center))
                .Width(240).Height(120)
                .Background(hover ? "#BFE3FF" : "#E5F1FB")
                .CornerRadius(8)
                .OnPointerEntered((_, _) => setHover(true))
                .OnPointerExited((_, _) => setHover(false))
                .OnTapped((_, _) => setTapCount(tapCount + 1))
                .OnDoubleTap(() => setTapCount(0)),

            TextBlock($"Tapped {tapCount} time(s) — double-tap to reset")
        ).Padding(24);
    }
}

Auto-enablement keeps handlers honest: attaching .OnDoubleTapped(...) sets IsDoubleTapEnabled = true on the mounted control so the WinUI event actually fires. Remove the handler on a later render and the flag goes back to its default. Shape subclasses (for example Rectangle and Ellipse) also get a transparent Fill auto-assigned when a pointer handler is attached and no fill was set — otherwise hit-testing would miss the unfilled shape entirely.

Keyboard events

TextBox(value, setValue)
    .OnKeyDown((_, e) => { if (e.Key == VirtualKey.Enter) Submit(); })
    .OnPreviewKeyDown((_, e) => Trace("preview"))
    .OnCharacterReceived((_, e) => Validate(e.Character));

OnPreviewKeyDown / OnPreviewKeyUp map to the WinUI tunneling events and fire before the bubbling OnKeyDown / OnKeyUp pair, which is the right spot for shortcut interception that needs to suppress further routing.

Focus events

TextBox(value, setValue)
    .OnGotFocus((_, _) => ShowValidationHint())
    .OnLostFocus((_, _) => HideValidationHint());

Focus events flow through the same trampoline pattern as pointer events, so the handler closure is updated in-place on each render and the WinUI subscription is installed exactly once per element.

Continuous gestures

Pan, pinch, and rotate are continuous gestures: a single user interaction produces a stream of callbacks with deltas relative to the gesture start. Each gesture takes an onChanged action plus optional onBegan / onEnded callbacks that fire exactly once per interaction.

Pan

Rectangle()
    .OnPan(
        onChanged: g => Translate(g.Translation),
        onEnded: g => SnapToGrid(g.Translation),
        minimumDistance: 8.0,
        axis: PanAxis.Both,
        withInertia: true);

minimumDistance gates callbacks: until the cumulative translation exceeds the threshold, nothing dispatches. On first crossing the reconciler emits onBegan (with Phase = Began) followed by the current delta as Phase = Changed. If the manipulation completes before the threshold is crossed, neither onBegan nor onEnded fire.

PanGesture.Translation is cumulative since Began; PanGesture.Delta is per-callback.

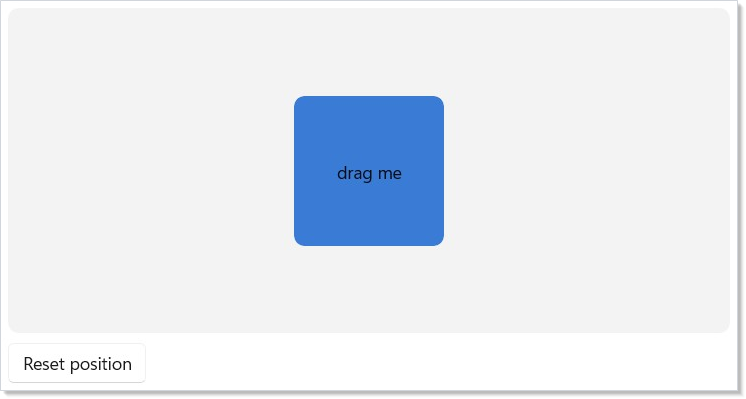

Keep pans at 60 Hz: write Translation directly

Reactor's render loop re-enqueues at DispatcherQueuePriority.Low on every tick so layout and paint aren't starved by back-to-back setState calls. That's correct for general UI, but it means a per-event setState during pan drops frames — by the time the Low-priority render drains, several manipulation events have already piled up. setOffset(offset + g.Delta) would also read a stale offset closure, compounding the problem.

For smooth 60 Hz panning, grab a ref to the mounted element and write Translation directly inside onChanged. No reconciler round-trip; the compositor property update is cheap enough to run on every tick. Only call setState at gesture end — once per drag, not 60× per second.

class PanGestureExample : Component
{
    public override Element Render()
    {
        // For 60 Hz smooth panning, write directly to the mounted element's
        // Translation inside onChanged. Going through setState would queue
        // Low-priority re-renders that get starved by the manipulation event
        // stream itself, producing a laggy drag. The committedRef holds the
        // position at the last gesture end so successive drags accumulate.
        // Reset lives on a sibling Button because WinUI suppresses the tap
        // recognizer when ManipulationMode ≠ System — .OnDoubleTap on the same
        // element as .OnPan wouldn't fire.
        var cardRef = UseRef<FrameworkElement?>(null);
        var committedRef = UseRef(Vector2.Zero);
        var (offset, setOffset) = UseState(Vector2.Zero);

        void Reset()
        {
            committedRef.Current = Vector2.Zero;
            setOffset(Vector2.Zero);
            if (cardRef.Current is { } fe)
                fe.Translation = System.Numerics.Vector3.Zero;
        }

        return VStack(8,
            Border(
                Border(TextBlock("drag me")
                    .HAlign(HorizontalAlignment.Center).VAlign(VerticalAlignment.Center))
                    .Width(120).Height(120)
                    .Background("#3A7BD5")
                    .Foreground("#ffffff")
                    .CornerRadius(8)
                    .Translation(offset.X, offset.Y, 0)
                    .OnMount(fe => cardRef.Current = fe)
                    .OnPan(
                        onChanged: g =>
                        {
                            var next = committedRef.Current +
                                new Vector2((float)g.Translation.X, (float)g.Translation.Y);
                            if (cardRef.Current is { } fe)
                                fe.Translation = new System.Numerics.Vector3(next.X, next.Y, 0);
                        },
                        onEnded: g =>
                        {
                            committedRef.Current += new Vector2((float)g.Translation.X, (float)g.Translation.Y);
                            setOffset(committedRef.Current);
                        },
                        withInertia: true)
            ).Height(260).Background("#f3f3f3").CornerRadius(8).Padding(16),

            Button("Reset position", Reset)
        );
    }
}

If the panned position doesn't drive anything else on the screen (no adjacent counter, no snap-to-grid indicator), you can even skip the setState at gesture end and treat the ref as the single source of truth.

Can I combine .OnPan with .OnTapped / .OnDoubleTapped on the same element?

Not reliably. WinUI suppresses the tap, double-tap, right-tap, and hold recognizers whenever ManipulationMode is set to anything other than System — adding .OnPan (or .OnPinch / .OnRotate) flips the mode to the specific gesture bits, so taps stop firing on the same element. If you need "drag, but also click to reset," put the click target on a separate sibling (a Reset button, an overlay, a parent Border) rather than the drag surface itself.

axis: PanAxis.Horizontal restricts to X-axis translation; withInertia: true adds the inertia flag so WinUI continues to emit callbacks after the pointer lifts.

Pinch and rotate

Image(uri)
    .OnPinch(
        onChanged: g => Scale(g.Scale),
        withInertia: true)
    .OnRotate(
        onChanged: g => Rotate(g.Angle));

Both gestures share the same Phase lifecycle as pan. ScaleDelta and AngleDelta report the per-callback delta; Scale and Angle are cumulative since Began. Combining gestures on one element is expected — the reconciler unions the required ManipulationModes flags.

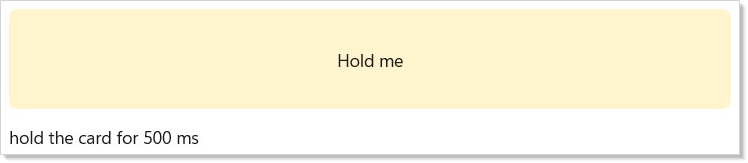

Long press

class LongPressExample : Component
{
    public override Element Render()
    {
        var (log, setLog) = UseState("hold the card for 500 ms");

        return VStack(12,
            Border(TextBlock("Hold me")
                .HAlign(HorizontalAlignment.Center).VAlign(VerticalAlignment.Center))
                .Height(80).Background("#FFF4CE").CornerRadius(6).Padding(12)
                .OnLongPress(
                    g => setLog($"long-press after {g.Duration.TotalMilliseconds:F0}ms"),
                    enableMouseEmulation: true),

            TextBlock(log)
        ).Padding(24);
    }
}

Long-press is touch-and-pen first: the reconciler routes Holding events into the callback and sets IsHoldingEnabled = true. Mouse long-press is off by default because WinUI's Holding event doesn't fire for mouse pointers; opt in with enableMouseEmulation: true and the reconciler arms a DispatcherTimer that cancels on release, capture loss, or pointer motion past cancelDistance.

listItem.OnLongPress(() => ShowContextMenu(), enableMouseEmulation: true);

Focus and access keys

Declarative focus modifiers

Button("Submit", onClick)
    .TabIndex(3)
    .AccessKey("S")
    .IsTabStop();   // default-true overload

AccessKey bound on a .Command(...) can be overridden per-site: a later .AccessKey(...) wins via the normal modifier-after-command ordering.

var save = new Command { Label = "Save", Execute = OnSave, AccessKey = "S" };
Button(save).AccessKey("F");   // "F" wins on this site

Advanced focus knobs are first-class too:

container
    .TabNavigation(KeyboardNavigationMode.Once)
    .XYFocusKeyboardNavigation(XYFocusKeyboardNavigationMode.Enabled);

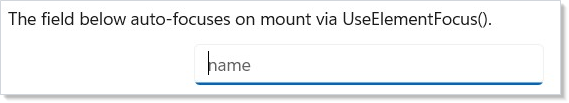

Imperative focus with refs

Sometimes you need to focus a control from an effect or event handler — for example, auto-focusing the first input on mount. Use UseElementFocus to get a stable ElementRef plus a RequestFocus action that schedules the focus on the UI dispatcher so it runs after the current reconcile pass.

class UseElementFocusExample : Component
{
    public override Element Render()
    {
        var (name, setName) = UseState("");
        var (inputRef, requestFocus) = this.UseElementFocus();
        UseEffect(() => requestFocus(), Array.Empty<object>());

        return VStack(12,
            TextBlock("The field below auto-focuses on mount via UseElementFocus()."),
            TextBox(name, setName, placeholderText: "name").Width(280).Ref(inputRef)
        ).Padding(24);
    }
}

ElementRef.Current is null until the referenced element mounts; the ref survives re-renders so the same instance reliably points at the currently mounted control. Call Microsoft.UI.Reactor.Input.FocusManager.Focus(ref) for a synchronous focus attempt or FocusManager.FocusAsync(ref) for WinUI's async API with a success result.

Typed refs

When you actually need to call methods on the underlying control (e.g. SelectAll() on a TextBox, Focus(FocusState.Programmatic) on a Button), use UseElementRef<T>() instead. It gives you an ElementRef<T> whose .Current is already typed as T — no as TextBox cast at the call site:

public class SearchBox : Component
{
    public override Element Render()
    {
        var inputRef = Context.UseElementRef<TextBox>();

        Context.UseEffect(() => inputRef.Current?.SelectAll(), Array.Empty<object>());

        return TextBox(query, setQuery).Ref(inputRef);
    }
}

The constraint T : FrameworkElement keeps the ref type-checked. In DEBUG builds Reactor asserts the actual mounted element is a T; in release the mismatch is silent and .Current returns null.

Behind the scenes: trampoline dispatch

Re-rendering an element with a fresh handler closure is the common case in a data-driven UI. Naively subscribing / unsubscribing on every render costs a COM round-trip per event per element — enough to dominate a 1,000-item list's frame budget. Reactor installs one stable trampoline delegate per event per element and updates a mutable field that the trampoline reads. Re-renders swap the field; the WinUI subscription is untouched.

You don't opt in or configure this — every .On* modifier routes through the trampoline path automatically. Inspect the devtools ETW EventDispatch keyword (0x40) to see exactly when each trampoline attaches and dispatches.

Migration from .Set(...) passthrough

Pre-Tier-1 code often reaches through .Set(...) to subscribe to an event that the element type didn't model declaratively:

// Before — escapes the declarative surface and bypasses trampoline dispatch.
Rectangle().Set(r =>
{
    r.PointerEntered += (_, _) => Hover();
    r.PointerExited += (_, _) => Unhover();
});

After Tier 1 lands, every pointer, tap, keyboard, and focus event has a first-class modifier. Replace the .Set(...) block with one modifier call per event — shorter, re-render-safe, and covered by the reconciler's auto-enable logic:

// After
Rectangle()
    .OnPointerEntered((_, _) => Hover())
    .OnPointerExited((_, _) => Unhover());

Drag and drop

Reactor's DnD surface is a declarative wrapper over the full Windows drag-and-drop protocol (CanDrag sources, AllowDrop targets, DragStarting / Drop / DropCompleted, DataPackage with text / URI / HTML / RTF / files / bitmap / custom formats, DragUIOverride drop-indicator tweaks). Sources and targets auto-wire the underlying flags — you set a modifier, the reconciler flips the bit and subscribes once via the same trampoline path every other event uses.

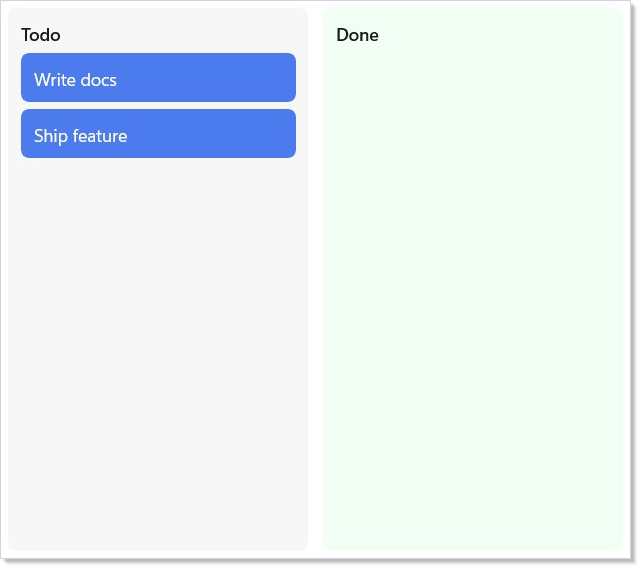

Typed in-process payloads

For reorder-within-one-app scenarios (kanban columns, sortable lists), attach a typed payload on the source and a matching typed drop handler on the target. The payload is ferried through an in-memory transfer registry keyed by a GUID written into DataPackage.Properties, so arbitrary CLR objects can round-trip without a serializer.

sealed record KanbanCard(string Id, string Title);

class KanbanDndExample : Component
{
    public override Element Render()
    {
        var (todo, setTodo) = UseState<IReadOnlyList<KanbanCard>>(new KanbanCard[]
        {
            new("k1", "Write docs"),
            new("k2", "Ship feature"),
        });
        var (done, setDone) = UseState<IReadOnlyList<KanbanCard>>(Array.Empty<KanbanCard>());

        Element Column(string label,
            IReadOnlyList<KanbanCard> cards,
            Action<IReadOnlyList<KanbanCard>> setThis)
        {
            var children = new List<Element> { TextBlock(label).SemiBold() };
            foreach (var card in cards)
            {
                var captured = card;
                children.Add(
                    Border(TextBlock(captured.Title).Foreground("#ffffff"))
                        .Background("#4B7BEC").CornerRadius(6).Padding(10)
                        .OnDragStart<BorderElement, KanbanCard>(
                            getPayload: () => captured,
                            allowedOperations: DragOperations.Move,
                            onEnd: ctx =>
                            {
                                if (!ctx.WasCancelled && ctx.CompletedOperation == DragOperations.Move)
                                    setThis(cards.Where(c => c.Id != captured.Id).ToList());
                            }));
            }
            return VStack(6, children.ToArray())
                .OnDrop<StackElement, KanbanCard>(
                    onDrop: c =>
                    {
                        if (!cards.Any(x => x.Id == c.Id))
                            setThis(cards.Append(c).ToList());
                    },
                    acceptedOps: DragOperations.Move);
        }

        return HStack(12,
            Border(Column("Todo", todo, setTodo))
                .Width(240).Background("#F7F7F7").CornerRadius(6).Padding(10),
            Border(Column("Done", done, setDone))
                .Width(240).Background("#F1FFF4").CornerRadius(6).Padding(10)
        ).Padding(24);
    }
}

Standard formats + cross-process interop

Eager setters (.WithText, .WithUri, .WithHtml, .WithRtf, .WithFiles, .WithBitmap, .WithCustomFormat) write directly to the DataPackage, so Notepad / Word / File Explorer pick the drop up natively. On the target side, TryGetText(out string) and GetTextAsync(CancellationToken) work the same whether the drag originated from the same process or a different one.

Border(Text("Drag me to Notepad"))
    .OnDragStart<BorderElement>(() => new DragData().WithText("hello world"));

Rectangle()
    .OnDrop<RectangleElement>(args =>
    {
        if (args.Data.TryGetText(out var text))
            Log(text);
        args.AcceptedOperation = DragOperations.Copy;
    });

Lazy providers — pay only when the target asks

If producing the payload is expensive (rendering HTML from a view model, reading a large file, round-tripping through a server), register a provider instead of an eager value. Reactor adapts your Func<T> or Func<CancellationToken, Task<T>> onto WinUI's DataProviderHandler: the deferral is acquired, your code runs on the thread pool, and the result is published when the target requests that format. A target that only reads text never pays the HTML cost.

Border(Text("Rich content"))
    .OnDragStart<BorderElement>(() => new DragData()
        .WithText("plain fallback")
        .WithHtml(ct => RenderExpensiveHtmlAsync(ct)));

Drop indicator overrides

Drop-over callbacks can tweak the caption, glyph, and content-preview visibility via DragTargetArgs.UIOverride — Reactor writes the changes back onto WinUI's DragUIOverride after your callback returns.

VStack(children)
    .OnDragOver(args =>
    {
        args.UIOverride.Caption = "Move to Inbox";
        args.UIOverride.IsGlyphVisible = false;
        args.AcceptedOperation = DragOperations.Move;
    })
    .OnDrop<VStackElement, Card>(card => inbox.Add(card));

The move-on-confirmation pattern

When a source declares DragOperations.Move, the source is responsible for removing the moved item — but only after the drop is confirmed. Never remove optimistically in getPayload: the user might cancel (ESC), the drop might land outside any target, or a Ctrl-drag might downgrade Move to Copy. Wait for onEnd and branch on CompletedOperation:

Border(Text(card.Title))
    .OnDragStart<BorderElement, Card>(
        getPayload: () => card,
        allowedOperations: DragOperations.Move | DragOperations.Copy,
        onEnd: ctx =>
        {
            if (ctx.WasCancelled) return;
            if (ctx.CompletedOperation == DragOperations.Move)
                column.Remove(card);  // confirmed move — safe to remove
            // else: Copy succeeded, source keeps the item
        });

DragEndContext.WasCancelled is true when the drop fell outside every valid target (ESC, dropped on empty space, system abort). DragEndContext.CompletedOperation carries the final negotiated operation — whatever the target set via DragTargetArgs.AcceptedOperation — or DragOperations.None when cancelled.

Caveat: .OnPointerPressed on a parent fires after its children when using the default bubbling phase — Reactor mirrors WinUI's routed-event model, where events start at the deepest hit-tested element and propagate up. If a parent needs to capture the press before children see it, you have two options: (1) set the matching .On<Event>Handled(true) on the parent (the handled-too overload) so the parent runs even if a child marked the event handled, and bubble order still applies (parent runs last); (2) attach to the preview/tunnel pair (.OnPreviewKeyDown for keys; for pointer events there is no preview pair — you must drop down to the manual AddHandler(PointerPressedEvent, handler, handledEventsToo: true) via .Set(c => ...)). The trap: relying on tunneling for pointer capture silently does the wrong thing in 80% of cases because the tunnel pair doesn't exist for pointer events. The focus-and-input-internals page walks the routed-event phases end-to-end.

Patterns

Drag-reorder a list

Combine .OnDragStart<TEl, T> on each item with .OnDrop<TEl, T> on the list container. The kanban example above is the canonical shape — typed payload, GUID transfer registry, move-on-confirmation. For a recipe-style walkthrough with full state management and animation, see recipes/drag-reorder.

Pinch-to-zoom on an image

Combine .OnPinch with a Translation scale modifier driven from state. Scale is cumulative since Began — apply it directly to the element's Scale compositor property in onChanged for 60 Hz behavior (same pattern as pan above), then commit to UseState in onEnded. The reconciler unions ManipulationModes so adding .OnRotate on the same element is free.

Trap focus inside a modal

Wrap the modal's content tree in a container with .FocusTrap(handle) where the handle comes from UseFocusTrap(isActive). Tab and Shift+Tab cycle within the trap; the modal's close handler flips isActive to false, which lifts the trap and returns focus to the previously-focused element. The accessibility page covers the full ARIA dialog shape (announcement, restore-focus-on-close, aria-labelledby via AutomationName).

Common Mistakes

Relying on tunneling for pointer capture

Reactor exposes pointer events through the bubbling phase only — there is no .OnPreviewPointerPressed / .OnPreviewPointerReleased modifier because WinUI's routed-event surface for pointer events doesn't expose a tunneling pair the same way it does for keyboard. If a parent needs to see the press before children consume it, use .OnPointerPressed with the handled-too overload (or .Set(c => c.AddHandler(...)) for the manual case). The caveat above goes into the routing detail.

Using .OnKeyDown for accelerator chords

.OnKeyDown fires per element on focus — a Ctrl+S handler attached to a TextBox only fires while that field has focus. For app-wide accelerators (Save, Find, Run), use Reactor's commanding system: new Command { ..., AccessKey = "S", AccessKeyModifiers = VirtualKeyModifiers.Control } registers the chord with the WinUI accelerator infrastructure, which routes through the window's AccessKeyManager regardless of focus. The analyzer REACTOR_INPUT_001 flags Ctrl/Alt key combinations attached via .OnKeyDown and suggests the Command rewrite.

Forgetting Focusable(true) on a clickable Border

A Border with .OnTapped(...) is hit-testable for pointer events but is not in the keyboard tab order by default — pressing Tab skips right past it, which fails accessibility (every interactive control must be keyboard-reachable). Add .IsTabStop() or set .TabIndex(n) to put the Border in the tab order, and pair it with .OnKeyDown for Enter/Space activation. The AccessibilityScanner catches this as A11Y_KEYBOARD_001.

Tips

Use the high-level recognizer when one exists. .OnTapped is the right primitive for click — it filters out drags, handles touch and mouse uniformly, and respects the system's tap-distance threshold. Reach for .OnPointerPressed only when you need the raw event (preview, capture, multi-touch coordination).

Write Translation directly during pan. A per-event setState during pan drops frames — Reactor's render loop priorities lose to the manipulation event stream. Grab a ref to the mounted element and write Translation inside onChanged; commit to state once on onEnded. The pan snippet above is the canonical shape.

Long-press needs enableMouseEmulation: true for mouse users. WinUI's Holding event doesn't fire for mouse pointers by design. If your context-menu trigger needs mouse support (most do), opt in explicitly. Touch and pen work without it.

Bridge to Command for anything keyboard-shortcut-shaped. Per-element .OnKeyDown handlers are right for "Enter submits this form"; app-wide chords belong on a Command with AccessKey + AccessKeyModifiers. See commanding for the full surface.

Run the a11y scanner. A keyboard-focusable interactive control without AutomationName or a focus-visible affordance is a bug. AccessibilityScanner flags both at runtime.

Next Steps

• Focus and Input Internals — under-the-hood: trampoline dispatch, routed-event phases, dispatcher coalescing for focus
• Accessibility — UseFocusTrap, UseAnnounce, AccessibilityScanner, ARIA patterns
• Commanding — app-wide accelerators, command bars, the Command and Command<T> types
• Animation — pairing gestures with .InteractionStates() for hover / press / focus visuals
• recipes/drag-reorder — full drag-to-reorder list recipe
• Components — previous topic: components, props, and composition
