Extending Reactor with Native Controls¶

The audience is anyone wrapping a native Windows control — a third- party WinUI control, a custom Control subclass, or an existing WinUI control that the built-in catalog has not yet covered. The walk-through ports Microsoft.UI.Xaml.Controls.RatingControl end-to-end so the shape of every step is concrete; the patterns transfer to anything that descends from FrameworkElement. Cross-reference the built-in descriptors in src/Reactor/Core/V1Protocol/Descriptor/Descriptors/ as you adapt the example — they are the production examples of every shape this page mentions.

The five-step playbook¶

The whole flow is five steps, plus an optional sixth for control families that need a derived-type registration. The same five steps cover every leaf control in the built-in catalog; you can do them in any order, but the listing order is the order they typically come up.

Step	What you write	Where it lives
1	An `Element` record subclass with one field per prop and one field per event callback	App code, next to the component that uses it
2	A `ControlDescriptor<TElement, TControl>` (or `IElementHandler<TElement, TControl>`) wiring each field to a WinUI property or event	A `static class` in the same file or a sibling
3	A `Register` extension method that calls `reconciler.RegisterHandler(...)`	Co-located with the descriptor
4	A call to `Register` against your host's reconciler at startup	App bootstrap, before the first render
5	A factory (`new MyElement { ... }` or a `static Element` helper)	Anywhere — usage shape is up to you

A sixth step — RegisterHandlerForDerivedTypes against a non-generic intermediate base — lets one registration catch every closed-T variant of a generic element family. It is what the typed templated- list ports use; you only need it if you are adding a similar family.

Step 1 — Define the Element record¶

// An Element subclass with one controlled prop (Value), three one-way
// props (MaxRating, Caption, IsClearEnabled), and one callback (OnValueChanged).
// Records give the reconciler value-equality for free — two StarMeterElement
// instances with identical fields compare equal and Update becomes a no-op.
public sealed record StarMeterElement : Element
{
    public double Value { get; init; }
    public int MaxRating { get; init; } = 5;
    public string? Caption { get; init; }
    public bool IsClearEnabled { get; init; } = true;
    public System.Action<double>? OnValueChanged { get; init; }
}

The record encodes everything the element exposes — controlled props, one-way props, the optional caption, and the user's OnValueChanged callback. The choice of record matters: the reconciler diffs elements with value equality, so two StarMeterElement instances with identical fields compare equal and the descriptor's Update path becomes a no-op. Reach for record class when the element will be created millions of times per second (so the sealed-record allocation is the dominant cost); reach for record struct only after profiling shows the heap pressure matters — most custom controls are well-served by the default sealed-record shape.

The fields below are the only thing your component author touches. Every named property maps to one descriptor entry in Step 2.

Field	Kind	Why
`Value`	controlled `double`	The user can edit it; the framework writes it; the callback echoes the user's edits.
`MaxRating`	one-way `int`	Driven by the element, never edited on the WinUI side.
`Caption`	optional one-way `string?`	Should leave the control's default when the element didn't supply one.
`IsClearEnabled`	one-way `bool`	Same as MaxRating — declarative knob.
`OnValueChanged`	callback `Action<double>?`	Subscribes only when non-null; the descriptor gates the trampoline on it.

Inherit from Element (not FrameworkElement, not Control) — this is the Reactor record, not the WinUI control. The built-in fluent modifier chain (.Width(...), .Margin(...), .Foreground(...)) applies to the built-in element types it was authored against; a custom element does not get those modifiers for free. Authors who want chainable modifiers on their own element add an Action<TControl>[] Setters field and an extension-method namespace that appends to it, then point the descriptor's GetSetters selector at the field. The Modifier System page walks through the chain shape; keeping the demo focused, the cookbook below omits it.

Step 2 — Choose a shape (descriptor vs hand-coded)¶

Reactor's handler protocol has two surfaces — declarative (ControlDescriptor) and imperative (IElementHandler) — that land on the same dispatch table. New controls should default to a descriptor; reach for a hand-coded handler only when the descriptor escape hatches (.Imperative, .HandCoded…) still cannot express the diff.

Use a descriptor when	Reach for a hand-coded handler when
Props map 1:1 to WinUI properties, or jointly through a tuple `get`	Mount has irreducible imperative logic (template-part lookups via `OnApplyTemplate`, multi-control composition)
Events follow `subscribe(handler) ↔ readBack(control)`	Events route through non-CLR shapes (raw routed events, native callbacks)
The control fits one of the standard `ChildrenStrategy` shapes	The control has a children-realization model the strategy set does not cover (custom virtualization, mixed item types per slot)
You want the next reader to skim the spec, not the code	You are wrapping a control whose contract the framework cannot yet express declaratively, and adding a new entry shape would not pay back

Every built-in port in src/Reactor/Core/V1Protocol/Descriptor/Descriptors/ is a descriptor. The few hand-coded IElementHandler implementations in src/Reactor/Core/V1Protocol/Handlers/ are the ones whose diff shape genuinely does not fit a declarative entry list — read them as the bar for "complicated enough to write by hand."

Step 3 — Wire props¶

public static class StarMeterDescriptor
{
    public static readonly ControlDescriptor<StarMeterElement, WinUI.RatingControl> Descriptor =
        new ControlDescriptor<StarMeterElement, WinUI.RatingControl>
        {
            // Leaf control — no children. (See ChildrenStrategy survey for
            // the other shapes: SingleContent, Panel, NamedSlots, ItemsHost…)
            Children = new None<StarMeterElement, WinUI.RatingControl>(),
        }
        // OneWay props: written on Mount, diff-and-written on Update.
        .OneWay(
            get: static e => e.MaxRating,
            set: static (c, v) => c.MaxRating = v)
        .OneWay(
            get: static e => e.IsClearEnabled,
            set: static (c, v) => c.IsClearEnabled = v)
        // OneWayConditional skips the write when the predicate is false —
        // leaves Caption at the control's default for elements that didn't
        // supply one, rather than forcing it to null and losing a style.
        .OneWayConditional(
            get:         static e => e.Caption,
            set:         static (c, v) => c.Caption = v!,
            shouldWrite: static e => e.Caption is not null)
        // Controlled is the two-way binding shape: the framework writes the
        // element's value at Mount (and on diff), suppresses the echo when
        // the framework is the writer, and forwards user input back through
        // OnValueChanged. Subscription is gated on the callback being non-
        // null — if the caller didn't pass OnValueChanged, no trampoline
        // is wired and the per-fire dispatch cost stays at zero.
        .Controlled<double, object>(
            get:         static e => e.Value,
            set:         static (c, v) => c.Value = v,
            subscribe:   static (fe, h) => ((WinUI.RatingControl)fe).ValueChanged += (s, e) => h(s, e!),
            unsubscribe: static (fe, h) => { /* trampoline anchored for control lifetime */ },
            callback:    static e => e.OnValueChanged,
            readBack:    static c => c.Value);
}

Each fluent builder call adds one PropEntry to the descriptor. The interpreter iterates them in declaration order during Mount and Update. The descriptor above uses three of the common shapes:

.OneWay(get, set) — MaxRating and IsClearEnabled. The interpreter writes the value at Mount; on Update it compares the old element's value against the new and writes only when the values differ. The default comparer is EqualityComparer<TValue>.Default; pass an explicit comparer to the optional comparer parameter for floating-point tolerance or custom-type equality.

.OneWayConditional(get, set, shouldWrite) — Caption. When the element does not set a caption, the predicate returns false and the write is skipped, leaving the control's default in place. This is the shape to reach for whenever "no value" is a meaningful state — every nullable / optional prop in the built-in catalog uses it.

.Controlled<TValue, TArgs>(...) — Value. The framework writes the element's value on Mount (bare, no echo possible because the trampoline is not yet wired). On Update it writes through ReactorBinding.WriteSuppressed so the WinUI side's synchronous ValueChanged echo is dropped. On user interaction the trampoline reads the live element off the control via the tag, drains the suppress counter (which is zero when the user is the writer), and calls OnValueChanged with the new value. The subscribe lambda's shape is (FrameworkElement, EventHandler<TArgs>) → void; the engine boxes the control identity through FrameworkElement to keep the entry generic across closed-T tuples. TArgs is whatever the WinUI event carries — for RatingControl.ValueChanged the args type is object because WinUI authors the event with TypedEventHandler<RatingControl, object>. Subscription is gated on callback returning non-null — if the element doesn't carry OnValueChanged, no trampoline is wired and the dispatch cost for that prop stays at zero.

Caveat: The unsubscribe lambda is intentionally a no-op body — descriptor trampolines anchor to the control's lifetime, not the element's. The control returns to the pool, the pool reset contract clears the trampoline slot on the typed event-payload box, and the next Mount finds an empty slot and re-subscribes. Writing a real unsubscribe into the lambda double-frees the subscription when the control pools and is the most common source of "the event stops firing after a re-render" bugs. If your control genuinely needs explicit unsubscribe on unmount, override IElementHandler.Unmount and tear down there.

Step 4 — Wire events (the non-DP case)¶

StarMeterElement.Value is bound to a property and an event together, so it uses the .Controlled shape above. Events that do not round-trip a DP — Button.Click, Image.ImageOpened, TextBox.SelectionChanged — use a sibling builder:

Builder	Use when
`.HandCodedEvent<TPayload, TDelegate>(subscribe, callbackPresent, trampoline, slotIsNull, setSlot)`	Fire-and-forget event with no associated DP. The `trampoline` is a `static` delegate that closes over no per-instance state; per-control state goes on the `TPayload` slot.
`binding.OnCustomEvent<TArgs>(subscribe, unsubscribe, handler)` inside a hand-coded handler	When you have already chosen the hand-coded shape and want the simpler closure-based trampoline. Allocates a closure per Mount instead of reusing a static delegate.

The ButtonDescriptor source (in src/Reactor/Core/V1Protocol/Descriptor/Descriptors/ButtonDescriptor.cs) is the canonical example of .HandCodedEvent — including the short-circuit for IsDisabledFocusable and the Reconciler.GetElementTag tag refresh.

Step 5 — Declare a child strategy¶

StarMeterElement is a leaf, so the descriptor declares Children = new None<…>(). The dispatch surface is the same as the ChildrenStrategy survey; the right strategy is whichever matches your WinUI control's structural contract:

Your WinUI control's child shape	Strategy
No children	`None`
One `Content` / `Child` slot	`SingleContent(GetChild, SetChild) { GetCurrentChild = … }`
`Children` collection on a `Panel`	`Panel(GetChildren, GetCollection)`
Named slots (`Header`, `Content`, `Footer`)	`NamedSlots([NamedSlot("Header", …), …])`
Flat items collection (`Items`) of values or pre-built elements	`ItemsHost(GetItems, GetCollection)`
Typed templated list with keyed reconcile	`TemplatedItems<TItem, TElement, TControl>(GetItems, KeySelector, BuildItemView)`
Hierarchical tree	`TreeChildren(GetNodes)`
Tabs / pivots with per-item containers	`TabItemsHost(GetItems, GetCollection, GetContent, CreateContainer)`

The standard strategies cover everything in the built-in catalog. The Imperative<TElement, TControl> escape hatch exists for the case where none of them fit — for example, a control whose children live on three different non-collection properties that must reconcile together. Reach for it last; you give up the engine's keyed reconcile and lose descendant component state across re-renders that touch the imperative slot.

Step 6 — Register and use¶

public static class StarMeterInterop
{
    // One call per Reactor host. RegisterHandler accepts any IElementHandler,
    // and DescriptorHandler<TElement,TControl> is the canonical interpreter
    // for a ControlDescriptor. Duplicate registration for the same element
    // type throws — register exactly once on each host you mount.
    public static void Register(Reconciler reconciler) =>
        reconciler.RegisterHandler<StarMeterElement, WinUI.RatingControl>(
            new DescriptorHandler<StarMeterElement, WinUI.RatingControl>(
                StarMeterDescriptor.Descriptor));
}

The Register call is the single bridge between your descriptor and the Reactor host. Call it once per ReactorHost instance, before the first render against that host — typically from your app bootstrap, next to any other interop registrations (DockingNativeInterop.Register, XamlInterop.Register, etc.). The call shape is the same whether you registered a descriptor or a hand- coded handler; both land on the same dispatch table.

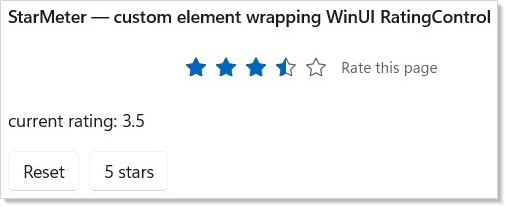

class ExtendingApp : Component
{
    public override Element Render()
    {
        var (rating, setRating) = UseState(3.5);

        return VStack(16,
            TextBlock("StarMeter — custom element wrapping WinUI RatingControl")
                .FontSize(14).SemiBold(),

            new StarMeterElement
            {
                Value = rating,
                MaxRating = 5,
                Caption = "Rate this page",
                OnValueChanged = setRating,
            },

            TextBlock($"current rating: {rating:0.0}"),

            HStack(8,
                Button("Reset", () => setRating(0)),
                Button("5 stars", () => setRating(5)))
        ).Padding(20);
    }
}

That is the entire path from setRating(5) to a frame. The component sets state, the reconciler walks the new element tree, the registered descriptor is invoked for StarMeterElement, the interpreter diffs against the previous element (only Value changed), writes through WriteSuppressed, the trampoline drains the suppress counter on the next echo, and the loop ends with the control at 5 stars. The rest of the app's controls dispatch through the built-in handlers in lockstep.

Patterns¶

A few recurring shapes turn up across most custom-control ports:

Match a built-in's perf bar without thinking about it. Use a descriptor; let RentControl pool the WinUI control; let Controlled suppress its own echoes. The interpreter's per-entry diff is a single equality check against the previous element's value — unchanged props pay one comparison and zero writes. Pool reuse, echo suppression, and static trampolines are defaults of the protocol, not opt-ins.

Bundle related fields into one prop entry. A control that exposes (Color, IsOn) → Background is one entry, not two — the get returns a tuple and the set reads both fields. The diff fires exactly when either input changes. This is how the LED indicator in the Control Reconciler Protocol reference collapses two element fields into one WinUI write.

Layer in a Reactor-friendly default for an awkward control. Many WinUI controls require an initial property write to "behave" (TextBox.PlaceholderText, RatingControl.MaxRating). Use .Initial(get, set) to seed those once at Mount without paying the diff-and-write cost on Update. The interpreter ignores Initial entries on the Update path.

Wrap a third-party control whose API is unstable. Put the descriptor in a sealed static class, mark every reference to the third-party type internal, and re-export an Element-typed factory. Your component authors depend on the element, not the control. When the third-party control breaks compatibility, you update one file; every component keeps compiling.

Pre-flight the perf bar with the bench harness. The Reactor repo includes a perf_bench project (tests/perf_bench/) that exercises descriptors against the M1 / M2 / M5 / M7 / M10 micro-benches the spec uses to validate the descriptor model. Drop your descriptor into the harness and run the relevant bench before locking your port in.

Common Mistakes¶

Subscribing in Update instead of Mount. A descriptor's Controlled entry already gates subscription on the mount-then-subscribe ordering — the interpreter calls EnsureSubscribed once after the Mount loop and again on each Update to catch null→non-null callback transitions. If you are hand-coding a handler and forget to centralize subscription in Mount, every re-render double-subscribes the event.

Forgetting WriteSuppressed in a hand-coded Update. A controlled prop write from Update echoes through the trampoline back into the user's state setter. The descriptor's Controlled entry wraps the write for you; a hand-coded handler must mirror it with binding.WriteSuppressed(() => ctrl.Value = newValue). Forgetting it is the single most common cause of "the value snaps back when I edit it" bugs.

Stashing per-control state on the descriptor / handler. The descriptor and the handler instance are registered once per host. Per-control state needs to live on the control — either on the attached state DP (use Reconciler.SetElementTag / GetElementTag) or on the typed event payload box (use Reconciler.GetOrCreateControlEventPayload<TPayload>). The pool reset contract clears both on ReturnControl; descriptor-level state survives pool rent and corrupts the next mount.

Registering against the wrong reconciler. If your app uses multiple ReactorHost instances (a tray icon host, a settings window, an interop host inside XAML islands), each host has its own reconciler. Register on every host that will render your element. The exact-type dispatch will throw Mount for an unregistered element type — it does not fall back to a base type.

Capturing the element in a static trampoline. The static trampoline pattern works because it reads the live element on every fire. Capturing the element in the static closure is a contradiction in terms — there is no closure on a static — but the equivalent mistake on a hand-coded trampoline that closes over the element instance does exactly that, and the trampoline observes the element that existed at Mount forever.

Tips¶

Start from the closest built-in descriptor. Copy the most similar descriptor in src/Reactor/Core/V1Protocol/Descriptor/Descriptors/, strip what does not apply, and adapt. The built-ins encode the production patterns for every shape you are likely to need — including the coercion edge cases (Slider.Min, NumberBox.Max) and the multi-event control patterns (TextBox's Text + SelectionChanged).

Keep the element record minimal. Every field is a public contract — once consumers depend on it, you cannot drop or rename it without churn. Add fields as components need them, not preemptively.

Test the round trip with the existing fixture harness. Add a fixture in tests/Reactor.AppTests.Host/SelfTest/Fixtures/ that drives your control via an automation peer (IInvokeProvider/IValueProvider) and asserts the callback fires the right number of times for the right values. The pattern is established and the fixture runner gives you a stable stable cross- process test rig for free.

Document the perf shape inline. If your control has non-obvious performance characteristics — pool opt-out, custom comparer for floating-point tolerance, deliberately imperative entry — capture the reason in a comment on the descriptor field, not on the calling component. The descriptor is where future maintainers will look.

Read the Control Reconciler Protocol reference once end-to-end. Steps 1 through 6 above are the recipe; the protocol page is the specification it implements. The two pages together are the complete contract — bookmark both.

Next Steps¶

The Control Reconciler Protocol — the model the steps on this page plug into.
Reconciliation — what happens before the registered handler is invoked, and how Mount vs Update vs Unmount get chosen.
Element Pool — what RentControl actually does, and how the per-type pool keeps Mount allocation-free.
Modifier System — how the Setters chain a descriptor applies after its own prop loop works.
Hooks Internals — how state changes turn into Render calls, which is the upstream half of every loop the protocol on this page is the downstream half of.
