TechWorkshop L300 Understanding XDR

Task 02: Onboard the VM to MDE

  1. In the Azure Portal search box, search for and select Microsoft Defender for Cloud.

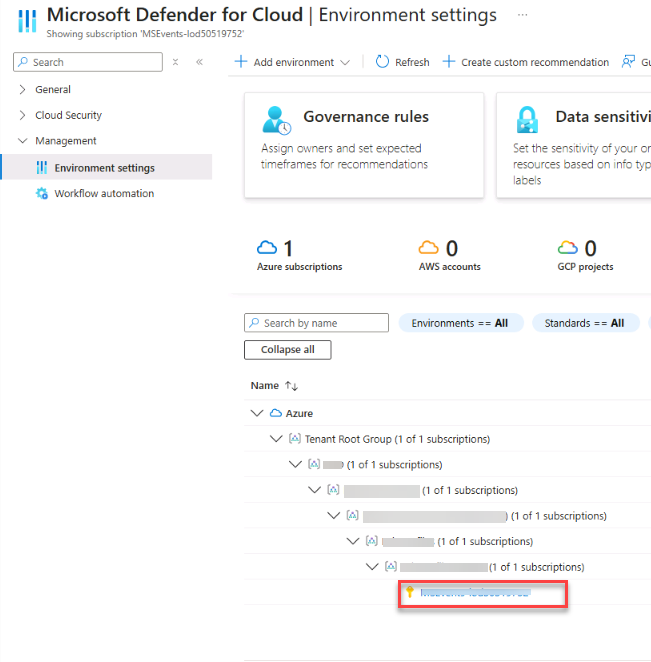

  2. On the leftmost pane, select Management > Environment settings.

  3. Expand the Environment until your subscription is visible and then select it.

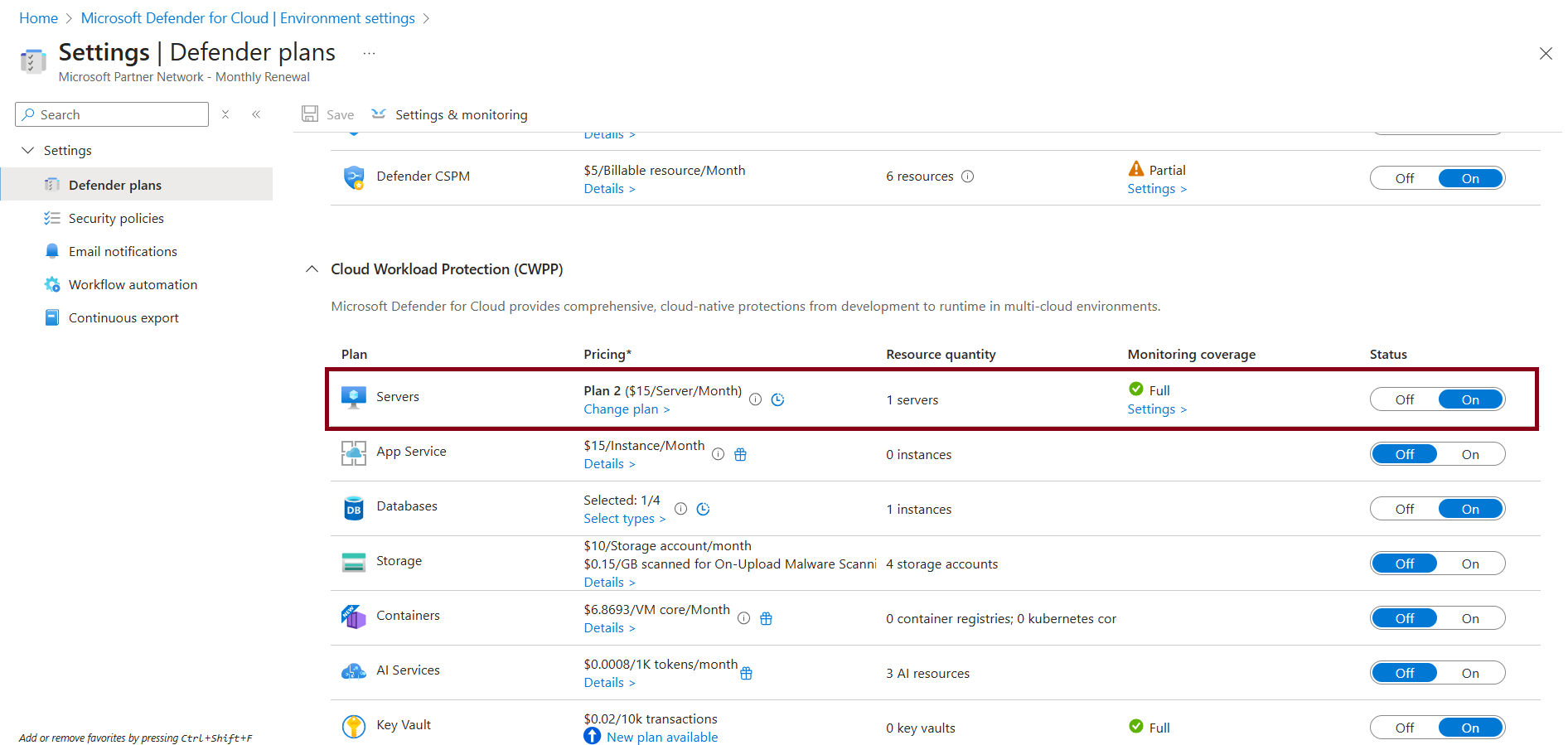

  4. Under Cloud Workload Protection (CWPP), ensure Defender for Servers is On.

    If not already, set to On.


  5. On the Servers plan, under Monitoring coverage, select Settings >.

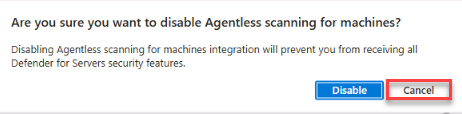

    If necessary, select Cancel if prompted to disable Agentless scanning for machines.

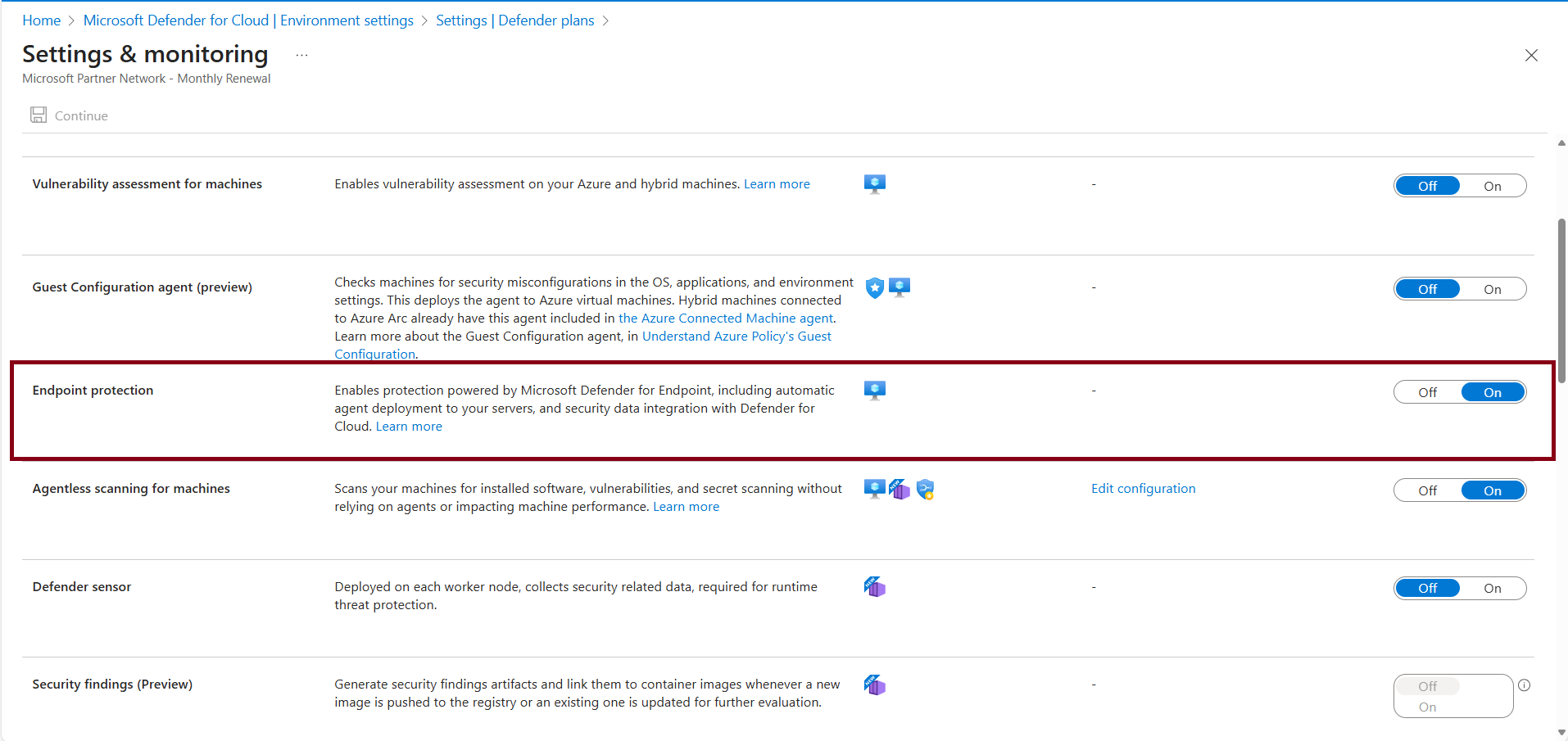

  6. On the Settings & monitoring page, verify that Endpoint protection is set to On.


  7. Near the top of the page, select Continue.

  8. Near the top of the Defender plans page, select Save.

    The above step will automatically deploy the MDE sensor/extension to supported Windows machines in the subscription.

    Wait up to 1 hour for the VM to appear in MDE/XDR by navigating to security.microsoft.com
