TechWorkshop L300 Understanding XDR

Task 04: Create an incident

  1. In the leftmost pane, select Investigation & response > Hunting > Advanced hunting.

  2. Copy the following KQL into the query window, select the entire query, then select Run query.

    Expand here to copy the KQLQuery-4

    Selecting the Copy option in the upper-right corner of the code block and pasting with Ctrl+V will be significantly faster than selecting Type!

     // ---------- LAB CLOCK: dynamic window ----------
 let T0      = now(-45m);   // window start (adjust as you like)
 let Window  = 60m;         // 60-minute window
 let Start   = T0;
 let End     = T0 + Window;

 // ---------- YOUR LAB DUMMY DATA (unchanged schemas) ----------
 let Lab_IdentityLogonEvents = datatable (Timestamp: datetime, AccountUpn: string, AccountObjectId: string, ActionType: string, FailureReason: string, LogonType:    string, Protocol: string, Application: string, DeviceName: string, IPAddress: string, Location: string, ReportId: string)
 [
     // timestamps will be overwritten dynamically below
     datetime(2000-01-01), "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft  Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9001",
     datetime(2000-01-01), "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft  Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9002",
     datetime(2000-01-01), "bailey.smith@contoso.com", "id-bailey.smith", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9003",
     datetime(2000-01-01), "bailey.smith@contoso.com", "id-bailey.smith", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9004",
     datetime(2000-01-01), "chris.lee@contoso.com", "id-chris.lee", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",     "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9005",
     datetime(2000-01-01), "chris.lee@contoso.com", "id-chris.lee", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",     "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9006",
     datetime(2000-01-01), "dana.kim@contoso.com", "id-dana.kim", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9007",
     datetime(2000-01-01), "dana.kim@contoso.com", "id-dana.kim", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9008",
     datetime(2000-01-01), "elena.garcia@contoso.com", "id-elena.garcia", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9009",
     datetime(2000-01-01), "elena.garcia@contoso.com", "id-elena.garcia", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9010",
     datetime(2000-01-01), "frank.wong@contoso.com", "id-frank.wong", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9011",
     datetime(2000-01-01), "frank.wong@contoso.com", "id-frank.wong", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9012",
     datetime(2000-01-01), "gina.martin@contoso.com", "id-gina.martin", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",     "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9013",
     datetime(2000-01-01), "gina.martin@contoso.com", "id-gina.martin", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",     "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9014",
     datetime(2000-01-01), "hank.wilson@contoso.com", "id-hank.wilson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",     "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9015",
     datetime(2000-01-01), "hank.wilson@contoso.com", "id-hank.wilson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",     "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9016",
     datetime(2000-01-01), "irene.patel@contoso.com", "id-irene.patel", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",     "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9017",
     datetime(2000-01-01), "irene.patel@contoso.com", "id-irene.patel", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",     "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9018",
     datetime(2000-01-01), "jason.ng@contoso.com", "id-jason.ng", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9019",
     datetime(2000-01-01), "jason.ng@contoso.com", "id-jason.ng", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams",   "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9020",
     // benign successes
     datetime(2000-01-01), "user1@contoso.com", "id-user1", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com",     "203.0.113.10", "Seattle, United States", "9021",
     datetime(2000-01-01), "user2@contoso.com", "id-user2", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com",     "203.0.113.10", "Seattle, United States", "9022",
     datetime(2000-01-01), "user3@contoso.com", "id-user3", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com",     "203.0.113.10", "Seattle, United States", "9023",
     datetime(2000-01-01), "user4@contoso.com", "id-user4", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com",     "203.0.113.10", "Seattle, United States", "9024",
     datetime(2000-01-01), "user5@contoso.com", "id-user5", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com",     "203.0.113.10", "Seattle, United States", "9025",
     datetime(2000-01-01), "user6@contoso.com", "id-user6", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com",     "203.0.113.10", "Seattle, United States", "9026",
     datetime(2000-01-01), "user7@contoso.com", "id-user7", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com",     "203.0.113.10", "Seattle, United States", "9027",
     datetime(2000-01-01), "user8@contoso.com", "id-user8", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com",     "203.0.113.10", "Seattle, United States", "9028",
     datetime(2000-01-01), "user9@contoso.com", "id-user9", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com",     "203.0.113.10", "Seattle, United States", "9029",
     datetime(2000-01-01), "user10@contoso.com", "id-user10", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com",   "203.0.113.10", "Seattle, United States", "9030"
 ];

 let Lab_AADSignInEventsBeta = datatable (Timestamp: datetime, Application: string, ApplicationId: string, LogonType: string, ErrorCode: int, AccountUpn: string,    AccountObjectId: string, DeviceName: string, OSPlatform: string, AuthenticationRequirement: string, RiskLevelAggregated: int, UserAgent: string, ClientAppUsed:    string, Browser: string, IPAddress: string, Country: string, State: string, City: string, ReportId: string)
 [
     // timestamps will be overwritten dynamically below
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "AlexW@LODSM200522.OnMicrosoft.com",  "id-alex.johnson", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle",   "9101",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "AlexW@LODSM200522.OnMicrosoft.com",  "id-alex.johnson", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle",   "9102",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "bailey.smith@contoso.com", "id-bailey.smith",    "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9103",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "bailey.smith@contoso.com", "id-bailey.smith",    "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9104",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "chris.lee@contoso.com", "id-chris.lee",  "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9105",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "chris.lee@contoso.com", "id-chris.lee",  "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9106",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "dana.kim@contoso.com", "id-dana.kim",    "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9107",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "dana.kim@contoso.com", "id-dana.kim",    "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9108",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "elena.garcia@contoso.com", "id-elena.garcia",    "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9109",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "elena.garcia@contoso.com", "id-elena.garcia",    "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9110",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "frank.wong@contoso.com", "id-frank.wong",    "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9111",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "frank.wong@contoso.com", "id-frank.wong",    "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9112",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "gina.martin@contoso.com", "id-gina.martin",  "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9113",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "gina.martin@contoso.com", "id-gina.martin",  "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9114",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "hank.wilson@contoso.com", "id-hank.wilson",  "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9115",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "hank.wilson@contoso.com", "id-hank.wilson",  "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9116",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "irene.patel@contoso.com", "id-irene.patel",  "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9117",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "irene.patel@contoso.com", "id-irene.patel",  "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9118",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "jason.ng@contoso.com", "id-jason.ng",    "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9119",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "jason.ng@contoso.com", "id-jason.ng",    "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "UA", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9120",
     // benign successes
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user1@contoso.com", "id-user1", "SEA-WKS-001.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9121",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user2@contoso.com", "id-user2", "SEA-WKS-002.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9122",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user3@contoso.com", "id-user3", "SEA-LAP-003.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9123",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user4@contoso.com", "id-user4", "SEA-WKS-001.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9124",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user5@contoso.com", "id-user5", "SEA-WKS-002.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9125",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user6@contoso.com", "id-user6", "SEA-LAP-003.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9126",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user7@contoso.com", "id-user7", "SEA-WKS-001.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9127",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user8@contoso.com", "id-user8", "SEA-WKS-002.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9128",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user9@contoso.com", "id-user9", "SEA-LAP-003.contoso.com",  "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9129",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user10@contoso.com", "id-user10", "SEA-WKS-001.contoso.com",    "Windows 11", "multiFactorAuthentication", 1, "UA", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9130"
 ];

 let Lab_DeviceEvents = datatable (Timestamp: datetime, DeviceName: string, ActionType: string, AccountName: string, ReportId: long, RemoteIP: string, LocalIP:  string)
 [
     // timestamps will be overwritten dynamically below
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "alex.johnson", 9001, "198.51.100.23", "10.0.0.10",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "bailey.smith", 9002, "198.51.100.23", "10.0.0.11",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "chris.lee", 9003, "198.51.100.23", "10.0.0.12",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "dana.kim", 9004, "198.51.100.23", "10.0.0.13",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "elena.garcia", 9005, "198.51.100.23", "10.0.0.14",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "frank.wong", 9006, "198.51.100.23", "10.0.0.15",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "gina.martin", 9007, "198.51.100.23", "10.0.0.16",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "hank.wilson", 9008, "198.51.100.23", "10.0.0.17",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "irene.patel", 9009, "198.51.100.23", "10.0.0.18",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "jason.ng", 9010, "198.51.100.23", "10.0.0.19",
     // benign device events
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user1", 9101, "203.0.113.10", "10.0.1.10",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusSignatureUpdated", "user2", 9102, "203.0.113.10", "10.0.1.11",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusSignatureUpdated", "user3", 9103, "203.0.113.10", "10.0.1.12",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user4", 9104, "203.0.113.10", "10.0.1.13",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusSignatureUpdated", "user5", 9105, "203.0.113.10", "10.0.1.14",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusSignatureUpdated", "user6", 9106, "203.0.113.10", "10.0.1.15",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user7", 9107, "203.0.113.10", "10.0.1.16",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusSignatureUpdated", "user8", 9108, "203.0.113.10", "10.0.1.17",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusSignatureUpdated", "user9", 9109, "203.0.113.10", "10.0.1.18",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user10", 9120, "203.0.113.10", "10.0.1.29"
 ];

 // ---------- MAKE LAB DATES DYNAMIC (shift into [Start..End]) ----------
 let Lab_IdentityLogonEvents_dyn =
     Lab_IdentityLogonEvents
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 let Lab_AADSignInEventsBeta_dyn =
     Lab_AADSignInEventsBeta
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 let Lab_DeviceEvents_dyn =
     Lab_DeviceEvents
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 // ---------- FRIENDLY UNIONS (use these in all queries) ----------
 // In Defender AH, the real tables exist; isfuzzy handles column drift.
 let IdentityLogonEvents_all = union isfuzzy=true IdentityLogonEvents, Lab_IdentityLogonEvents_dyn;
 let AADSignInEventsBeta_all = union isfuzzy=true AADSignInEventsBeta, Lab_AADSignInEventsBeta_dyn;
 let DeviceEvents_all        = union isfuzzy=true DeviceEvents, Lab_DeviceEvents_dyn;

 // ---------- SPRAY FINDER ----------
 let FailAad =
     AADSignInEventsBeta_all
     | where Timestamp between (Start .. End)
     | where ErrorCode != 0
     | where isnotempty(IPAddress)
     | extend ReportId = coalesce(tolong(ReportId), abs(tolong(hash(strcat(AccountUpn, IPAddress, tostring(Timestamp))))))
     | project Timestamp, IPAddress, AccountUpn, ReportId, SrcTable = "AAD";

 let FailId =
     IdentityLogonEvents_all
     | where Timestamp between (Start .. End)
     | where ActionType =~ "LogonFailed" or isnotempty(FailureReason)
     | where isnotempty(IPAddress)
     | extend ReportId = coalesce(tolong(ReportId), abs(tolong(hash(strcat(AccountUpn, IPAddress, tostring(Timestamp))))))
     | project Timestamp, IPAddress, AccountUpn, ReportId, SrcTable = "ID";

 let Failures = union isfuzzy=true FailAad, FailId;

 let SprayIPs =
     Failures
     | summarize Attempts = count(), DistinctAccounts = dcount(AccountUpn), FirstSeen = min(Timestamp), LastSeen = max(Timestamp) by IPAddress
     | where DistinctAccounts >= 5 and Attempts >= 10;

 Failures
 | where IPAddress in (SprayIPs | project IPAddress)
 | summarize SprayAttempts = count(), LastSeen = max(Timestamp) by IPAddress, AccountUpn
 | join kind=leftouter (
     Failures
     | summarize arg_max(Timestamp, ReportId) by IPAddress, AccountUpn
 ) on IPAddress, AccountUpn
 | project Timestamp = LastSeen, IPAddress, AccountUpn, ReportId, SprayAttempts
 | order by Timestamp desc, IPAddress, AccountUpn

    The KQL uses demo Lab_tables to simulate telemetry, not your production logs. We populate the Lab_IdentityLogonEvents, Lab_AADSignInEventsBeta, and Lab_DeviceEvents with realistic fields and timestamps generated relative to now() so the scenarios always produce results. To run against real data, replace the Lab_* references (currently pointing at the lab tables) with your actual tables.

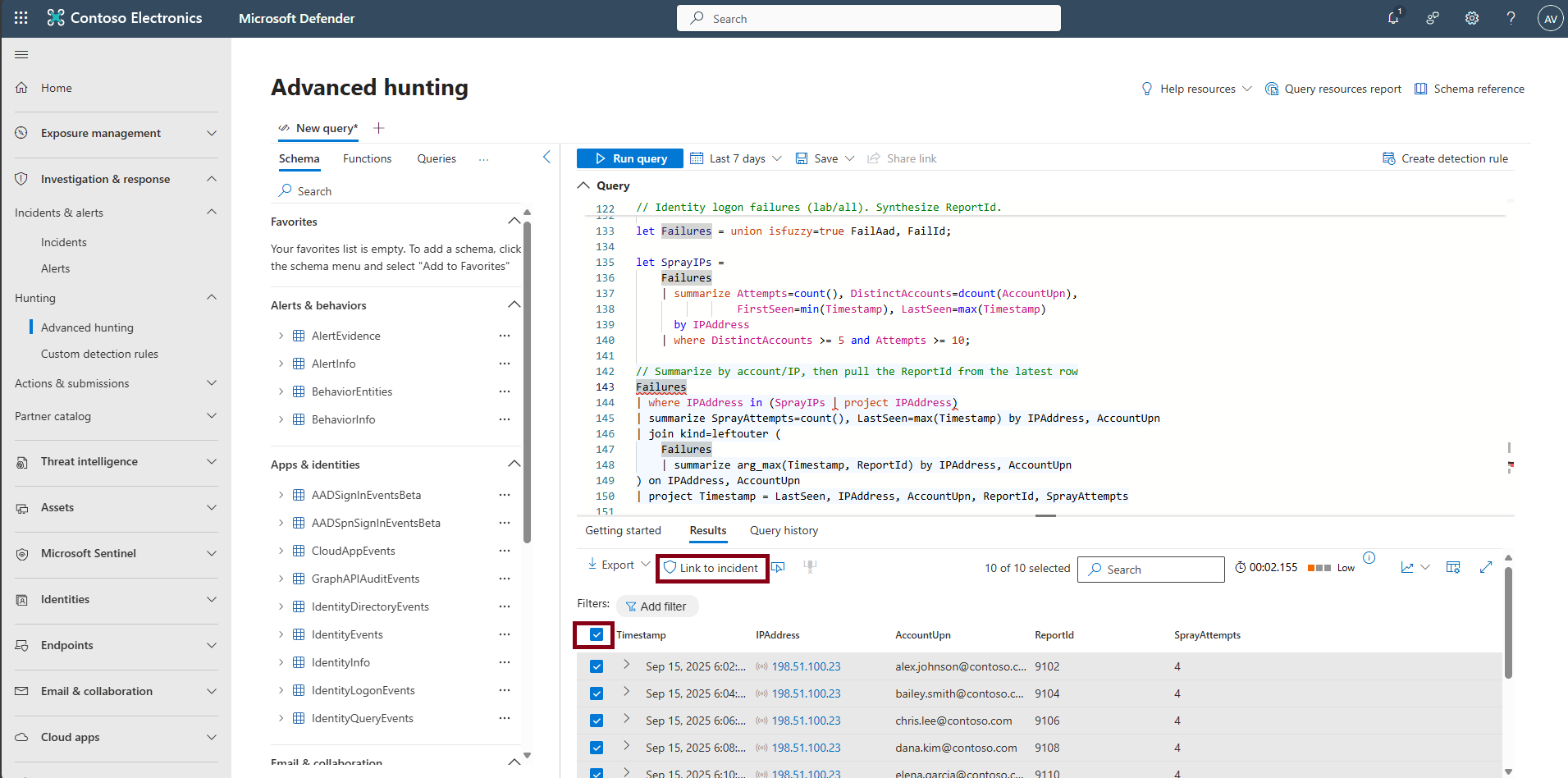

  3. Below the query, on the Results tab, select the top checkbox to select all results, then select Link to incident.

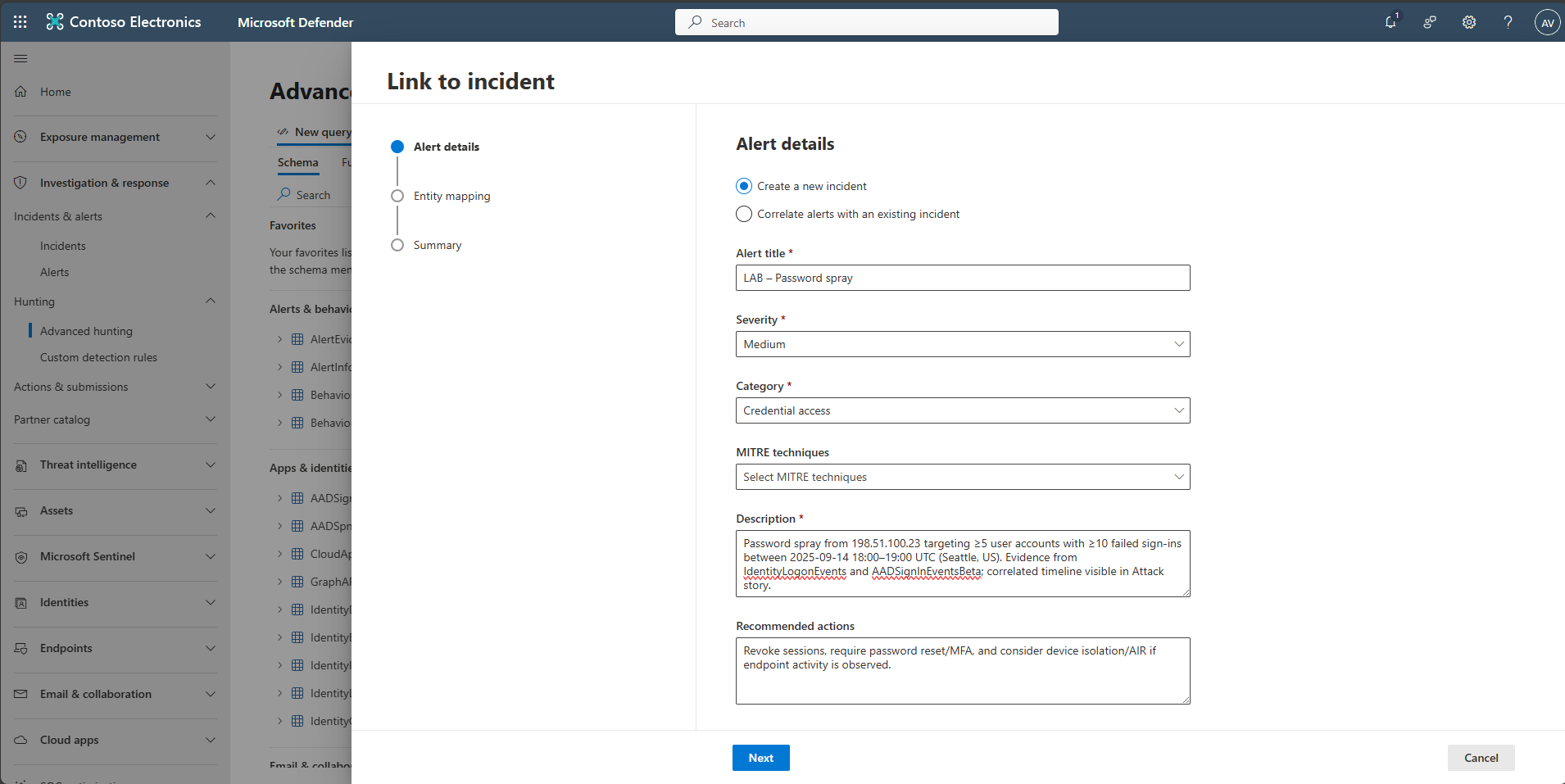

  4. On the Alert details page, enter the following, then select Next.

    Item Value
    Alert title LAB - Password spray
    Severity Medium
    Category Credential access
    Description Password spray from 198.51.100.23 targeting ≥5 accounts with ≥10 failed sign-ins (Seattle, US). Evidence from IdentityLogonEvents and AADSignInEventsBeta; correlated timeline visible in Attack story.
    Recommended actions Revoke sessions, enforce password reset/MFA, consider AIR/device isolation if endpoints are involved.


  5. Leave the defaults for the Entity mapping page and select Next.

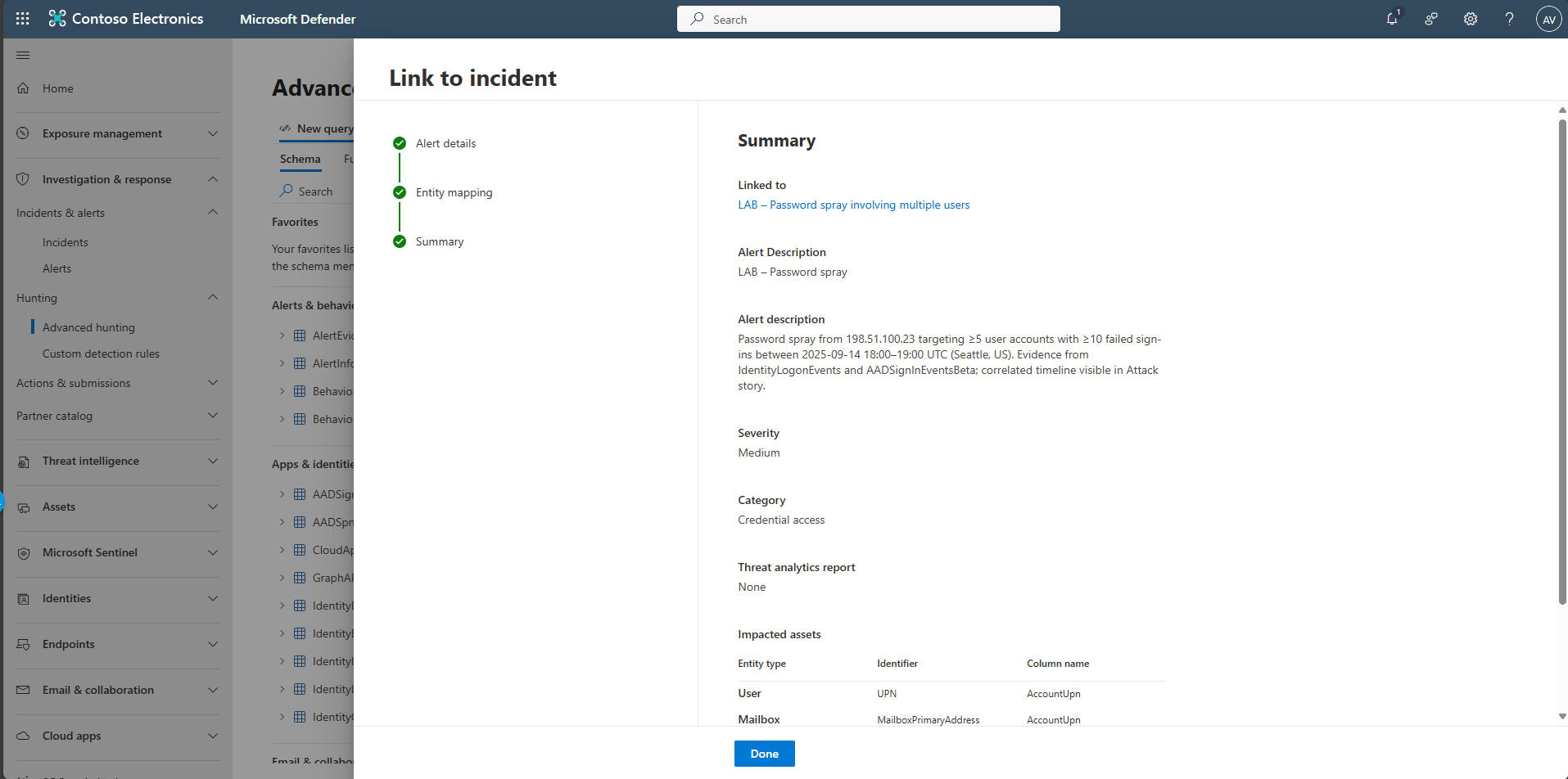

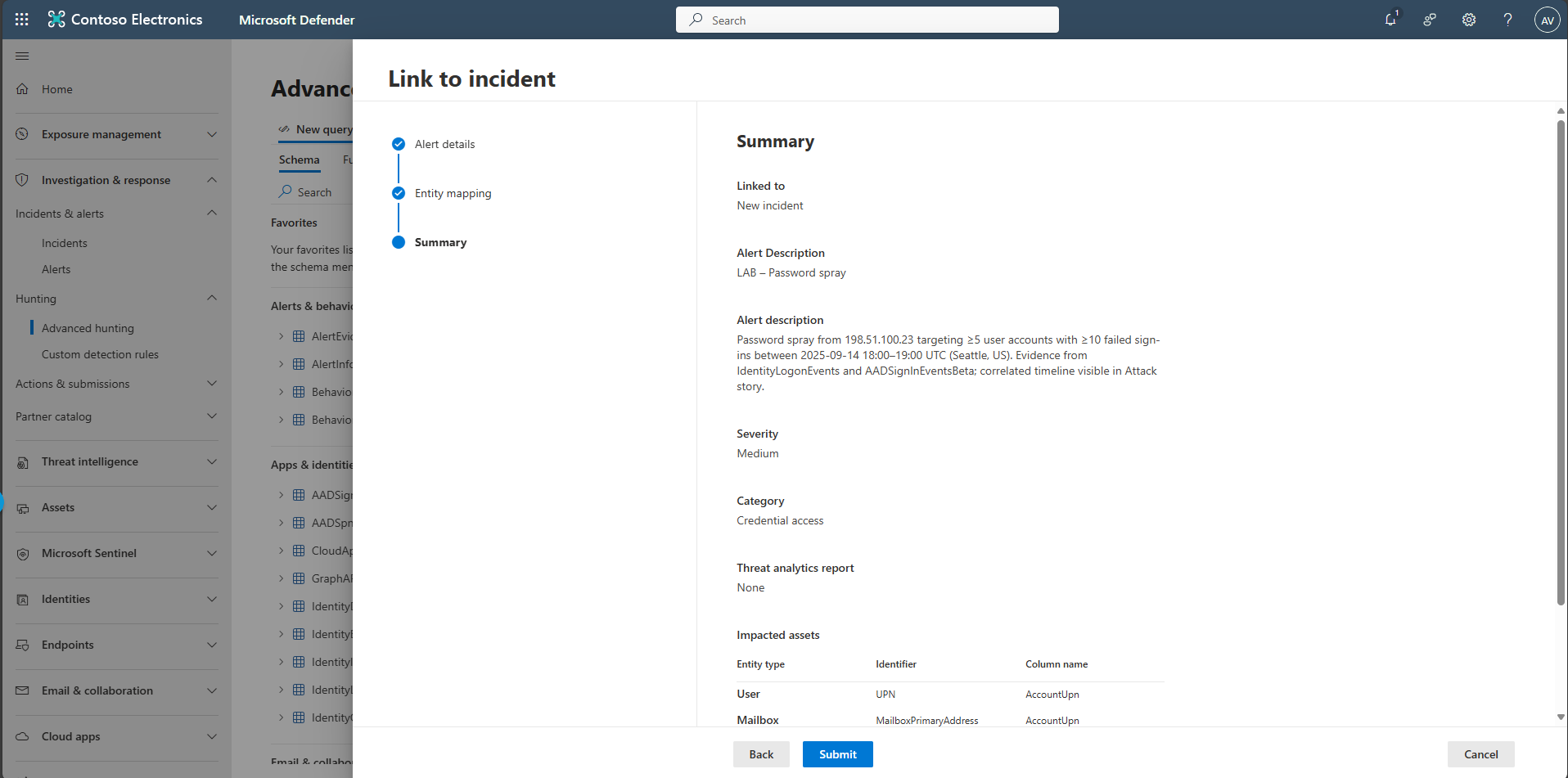

  6. Select Submit, then select Done.
