08: Verify containment and close incident

Task 08: Verify containment and close incident

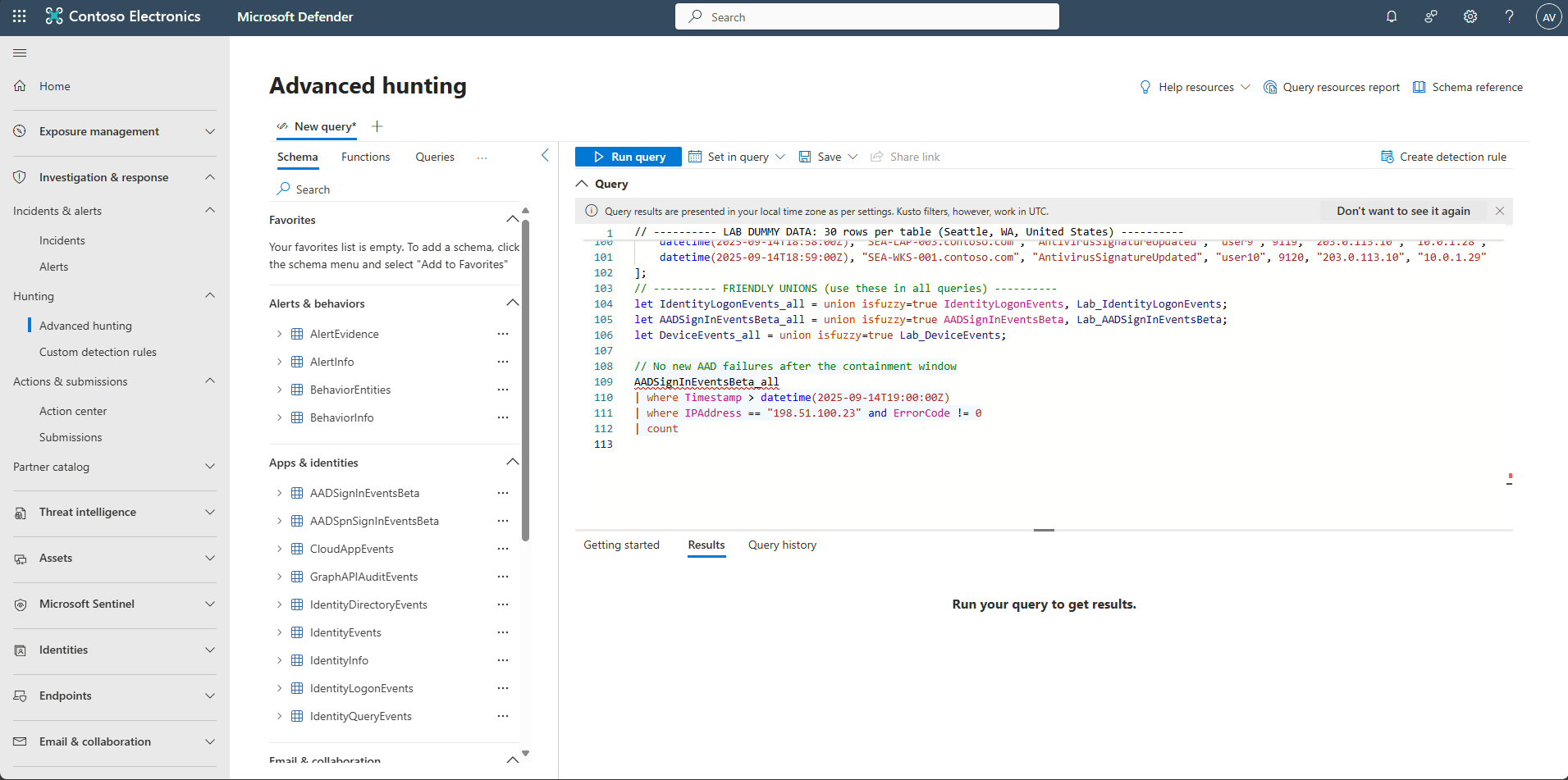

In the leftmost pane, select Investigation & response > Hunting > Advanced hunting.

Copy the following KQL into the query window, select the entire query, then select Run query.

Expand here to copy the KQLQuery-8

[!alert] KSQL errored

Selecting the Copy option in the upper-right corner of the code block and pasting with Ctrl+V will be significantly faster than selecting Type!

 // ---------- DYNAMIC TIME WINDOW ----------
 let Window = 30m;                 // length of the "containment window"
 let Start  = now(-1h);            // starts 60 minutes ago
 let End    = Start + Window;      // ends 30 minutes ago

 // ---------- LAB DUMMY DATA: 30 rows per table (Seattle, WA, US) ----------

 // Identity logons: 20 failures from 198.51.100.23 (inside window) + 10 successes from 203.0.113.10 (still inside window)
 let Lab_IdentityLogonEvents =
 range i from 0 to 29 step 1
 | extend Timestamp = Start + i*1m
 , AccountUpn = tostring(dynamic([
     "AlexW@LODSM200522.OnMicrosoft.com","bailey.smith@contoso.com","chris.lee@contoso.com",
     "dana.kim@contoso.com","elena.garcia@contoso.com","frank.wong@contoso.com",
     "gina.martin@contoso.com","hank.wilson@contoso.com","irene.patel@contoso.com","jason.ng@contoso.com"
 ])[i % 10])
 | extend AccountObjectId = strcat("id-", tostring(split(AccountUpn, "@")[0]))
 , ActionType    = iff(i < 20, "LogonFailed", "LogonSuccess")
 , FailureReason = iff(i < 20, "Wrong password", "")
 , LogonType     = "Interactive Logon"
 , Protocol      = "Kerberos"
 , Application   = iff(i < 20, "Microsoft Teams", "SharePoint Online")
 , DeviceName    = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , IPAddress     = iff(i < 20, "198.51.100.23", "203.0.113.10")
 , Location      = "Seattle, US"
 , ReportId      = tostring(9001 + i)
 | project Timestamp, AccountUpn, AccountObjectId, ActionType, FailureReason, LogonType, Protocol, Application, DeviceName, IPAddress, Location, ReportId;

 // AAD sign-ins: 20 failures from 198.51.100.23 occur BEFORE End; 10 successes from 203.0.113.10 occur AFTER End
 let Lab_AADSignInEventsBeta =
 range i from 0 to 29 step 1
 | extend Timestamp = iff(i < 20, Start + i*1m, End + (i-19)*1m)  // failures before End, successes after End
 , Application         = iff(i < 20, "Office 365 Exchange Online", "Microsoft Teams")
 , ApplicationId       = iff(i < 20, "00000002-0000-0ff1-ce00-000000000000", "1fec8e78-bce4-4aaf-ab1b-5451cc387264")
 , LogonType           = "interactive"
 , ErrorCode           = iff(i < 20, 50126, 0)
 , AccountUpn          = tostring(dynamic([
     "AlexW@LODSM200522.OnMicrosoft.com","bailey.smith@contoso.com","chris.lee@contoso.com","dana.kim@contoso.com",
     "elena.garcia@contoso.com","frank.wong@contoso.com","gina.martin@contoso.com","hank.wilson@contoso.com",
     "irene.patel@contoso.com","jason.ng@contoso.com","user1@contoso.com","user2@contoso.com","user3@contoso.com",
     "user4@contoso.com","user5@contoso.com","user6@contoso.com","user7@contoso.com","user8@contoso.com",
     "user9@contoso.com","user10@contoso.com"
 ])[i % 20])
 | extend AccountObjectId    = strcat("id-", tostring(split(AccountUpn, "@")[0]))
 , DeviceName                = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , OSPlatform                = "Windows 11"
 , AuthenticationRequirement = iff(i < 20, "singleFactorAuthentication", "multiFactorAuthentication")
 , RiskLevelAggregated       = iff(i < 20, 50, 1)
 , UserAgent                 = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0"
 , ClientAppUsed             = "Browser"
 , Browser                   = "Edge"
 , IPAddress                 = iff(i < 20, "198.51.100.23", "203.0.113.10")
 , Country                   = "US"
 , State                     = "WA"
 , City                      = "Seattle"
 , ReportId                  = tostring(9101 + i)
 | project Timestamp, Application, ApplicationId, LogonType, ErrorCode, AccountUpn, AccountObjectId, DeviceName, OSPlatform, AuthenticationRequirement, RiskLevelAggregated, UserAgent, ClientAppUsed, Browser, IPAddress, Country, State, City, ReportId;

 // Device events: 10 detections tied to 198.51.100.23 inside window, 20 benign updates after End
 let Lab_DeviceEvents =
 range i from 0 to 29 step 1
 | extend Timestamp   = iff(i < 10, Start + (5 + i)*1m, End + (10 + (i-10))*1m)
 , DeviceName         = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , ActionType         = iff(i < 10, "AntivirusDetection", "AntivirusSignatureUpdated")
 , AccountName        = tostring(dynamic([
     "alex.johnson","bailey.smith","chris.lee","dana.kim","elena.garcia","frank.wong","gina.martin","hank.wilson","irene.patel","jason.ng",
     "user1","user2","user3","user4","user5","user6","user7","user8","user9","user10"
 ])[i % 20])
 , ReportId           = tolong(9001 + i)
 , RemoteIP           = iff(i < 10, "198.51.100.23", "203.0.113.10")
 | extend Subnet = 1 + toint(i/10)
 | extend LocalIP = strcat("10.0.", tostring(Subnet), ".", tostring(10 + (i % 10)))
 | project Timestamp, DeviceName, ActionType, AccountName, ReportId, RemoteIP, LocalIP;

 // ---------- FRIENDLY UNIONS (lab-only here; swap to real tables if you have them) ----------
 let IdentityLogonEvents_all = Lab_IdentityLogonEvents;
 let AADSignInEventsBeta_all = Lab_AADSignInEventsBeta;
 let DeviceEvents_all        = Lab_DeviceEvents;

 // ---------- CHECK: No new AAD failures from the bad IP after the containment window ----------
 AADSignInEventsBeta_all
 | where Timestamp > End
 | where IPAddress == "198.51.100.23" and ErrorCode != 0
 | count

The KQL uses demo Lab_tables to simulate telemetry, not your production logs. We populate the Lab_IdentityLogonEvents, Lab_AADSignInEventsBeta, and Lab_DeviceEvents with realistic fields and timestamps generated relative to now() so the scenarios always produce results. To run against real data, replace the Lab_* references (currently pointing at the lab tables) with your actual tables.

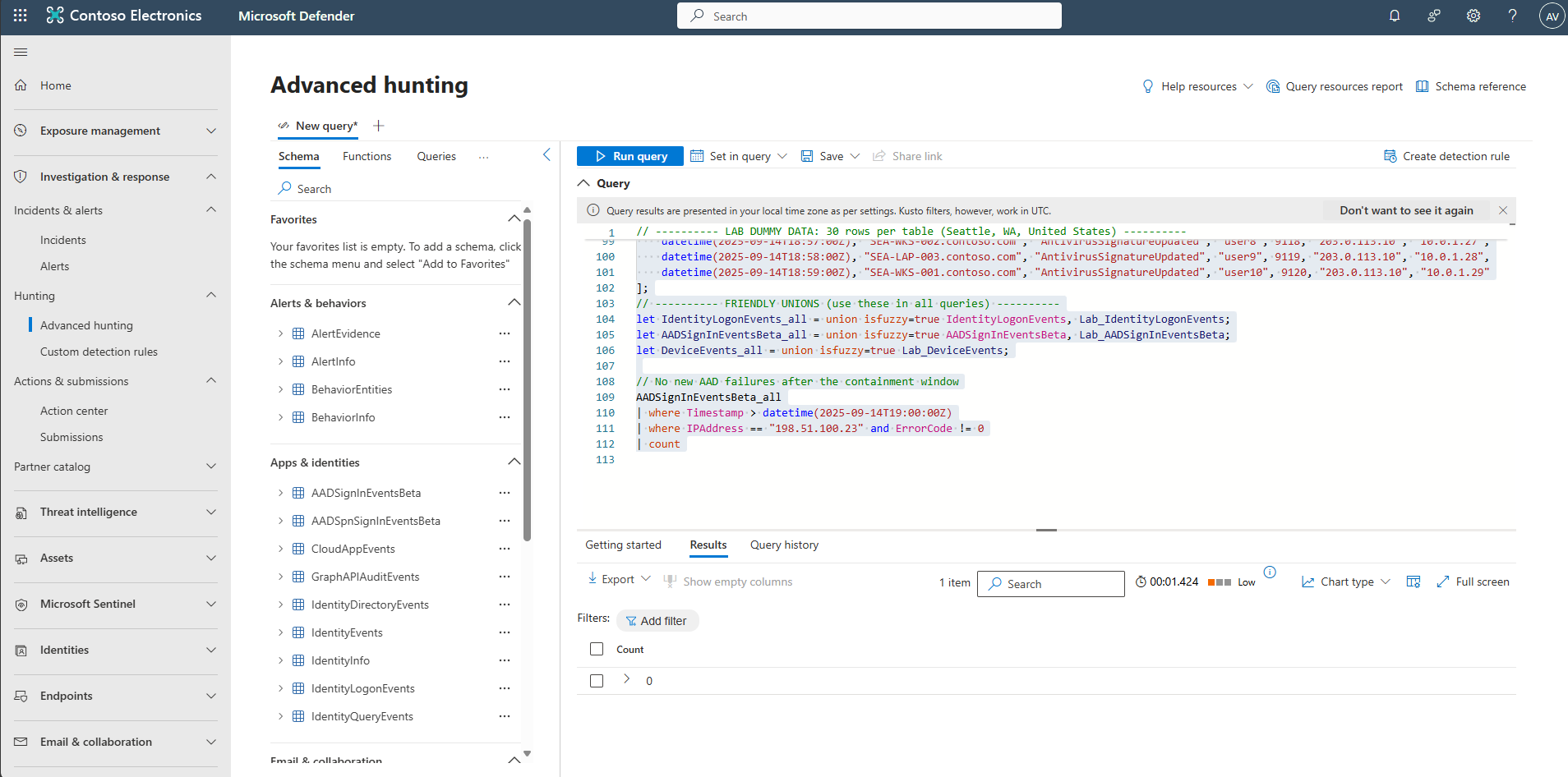

Result will show 0 indicating no new AAD failures after the containment window.

To confirm no new Identity logon failures, copy the following KQL into the query window, select the entire query, then select Run query.

Expand here to copy the KQLQuery-9

Selecting the Copy option in the upper-right corner of the code block and pasting with Ctrl+V will be significantly faster than selecting Type!

 // ---------- DYNAMIC TIME WINDOW ----------
 let Window = 30m;                 // length of the "containment window"
 let Start  = now(-1h);            // starts 60 minutes ago
 let End    = Start + Window;      // ends 30 minutes ago

 // ---------- LAB DUMMY DATA: 30 rows per table (Seattle, WA, US) ----------

 // Identity logons: 20 failures from 198.51.100.23 (inside window) + 10 successes from 203.0.113.10 (still inside window)
 let Lab_IdentityLogonEvents =
 range i from 0 to 29 step 1
 | extend Timestamp = Start + i*1m
 , AccountUpn = tostring(dynamic([
     "AlexW@LODSM200522.OnMicrosoft.com","bailey.smith@contoso.com","chris.lee@contoso.com",
     "dana.kim@contoso.com","elena.garcia@contoso.com","frank.wong@contoso.com",
     "gina.martin@contoso.com","hank.wilson@contoso.com","irene.patel@contoso.com","jason.ng@contoso.com"
 ])[i % 10])
 | extend AccountObjectId = strcat("id-", tostring(split(AccountUpn, "@")[0]))
 , ActionType    = iff(i < 20, "LogonFailed", "LogonSuccess")
 , FailureReason = iff(i < 20, "Wrong password", "")
 , LogonType     = "Interactive Logon"
 , Protocol      = "Kerberos"
 , Application   = iff(i < 20, "Microsoft Teams", "SharePoint Online")
 , DeviceName    = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , IPAddress     = iff(i < 20, "198.51.100.23", "203.0.113.10")
 , Location      = "Seattle, US"
 , ReportId      = tostring(9001 + i)
 | project Timestamp, AccountUpn, AccountObjectId, ActionType, FailureReason, LogonType, Protocol, Application, DeviceName, IPAddress, Location, ReportId;

 // AAD sign-ins: 20 failures from 198.51.100.23 occur BEFORE End; 10 successes from 203.0.113.10 occur AFTER End
 let Lab_AADSignInEventsBeta =
 range i from 0 to 29 step 1
 | extend Timestamp = iff(i < 20, Start + i*1m, End + (i-19)*1m)  // failures before End, successes after End
 , Application         = iff(i < 20, "Office 365 Exchange Online", "Microsoft Teams")
 , ApplicationId       = iff(i < 20, "00000002-0000-0ff1-ce00-000000000000", "1fec8e78-bce4-4aaf-ab1b-5451cc387264")
 , LogonType           = "interactive"
 , ErrorCode           = iff(i < 20, 50126, 0)
 , AccountUpn          = tostring(dynamic([
     "AlexW@LODSM200522.OnMicrosoft.com","bailey.smith@contoso.com","chris.lee@contoso.com","dana.kim@contoso.com",
     "elena.garcia@contoso.com","frank.wong@contoso.com","gina.martin@contoso.com","hank.wilson@contoso.com",
     "irene.patel@contoso.com","jason.ng@contoso.com","user1@contoso.com","user2@contoso.com","user3@contoso.com",
     "user4@contoso.com","user5@contoso.com","user6@contoso.com","user7@contoso.com","user8@contoso.com",
     "user9@contoso.com","user10@contoso.com"
 ])[i % 20])
 | extend AccountObjectId    = strcat("id-", tostring(split(AccountUpn, "@")[0]))
 , DeviceName                = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , OSPlatform                = "Windows 11"
 , AuthenticationRequirement = iff(i < 20, "singleFactorAuthentication", "multiFactorAuthentication")
 , RiskLevelAggregated       = iff(i < 20, 50, 1)
 , UserAgent                 = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0"
 , ClientAppUsed             = "Browser"
 , Browser                   = "Edge"
 , IPAddress                 = iff(i < 20, "198.51.100.23", "203.0.113.10")
 , Country                   = "US"
 , State                     = "WA"
 , City                      = "Seattle"
 , ReportId                  = tostring(9101 + i)
 | project Timestamp, Application, ApplicationId, LogonType, ErrorCode, AccountUpn, AccountObjectId, DeviceName, OSPlatform, AuthenticationRequirement, RiskLevelAggregated, UserAgent, ClientAppUsed, Browser, IPAddress, Country, State, City, ReportId;

 // Device events: 10 detections tied to 198.51.100.23 inside window, 20 benign updates after End
 let Lab_DeviceEvents =
 range i from 0 to 29 step 1
 | extend Timestamp   = iff(i < 10, Start + (5 + i)*1m, End + (10 + (i-10))*1m)
 , DeviceName         = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , ActionType         = iff(i < 10, "AntivirusDetection", "AntivirusSignatureUpdated")
 , AccountName        = tostring(dynamic([
     "alex.johnson","bailey.smith","chris.lee","dana.kim","elena.garcia","frank.wong","gina.martin","hank.wilson","irene.patel","jason.ng",
     "user1","user2","user3","user4","user5","user6","user7","user8","user9","user10"
 ])[i % 20])
 , ReportId           = tolong(9001 + i)
 , RemoteIP           = iff(i < 10, "198.51.100.23", "203.0.113.10")
 | extend Subnet = 1 + toint(i/10)
 | extend LocalIP = strcat("10.0.", tostring(Subnet), ".", tostring(10 + (i % 10)))
 | project Timestamp, DeviceName, ActionType, AccountName, ReportId, RemoteIP, LocalIP;

 // ---------- FRIENDLY UNIONS (lab-only here; swap to real tables if you have them) ----------
 let IdentityLogonEvents_all = Lab_IdentityLogonEvents;
 let AADSignInEventsBeta_all = Lab_AADSignInEventsBeta;
 let DeviceEvents_all        = Lab_DeviceEvents;

 // No new Identity logon failures after the containment window
 IdentityLogonEvents_all
 | where Timestamp > datetime(2025-09-14T19:00:00Z)
 | where IPAddress == "198.51.100.23"
 | where ActionType =~ "LogonFailed" or isempty(FailureReason) == false
 | count

The KQL uses demo Lab_tables to simulate telemetry, not your production logs. We populate the Lab_IdentityLogonEvents, Lab_AADSignInEventsBeta, and Lab_DeviceEvents with realistic fields and timestamps generated relative to now() so the scenarios always produce results. To run against real data, replace the Lab_* references (currently pointing at the lab tables) with your actual tables.

Result will show 20, indicating 20 failures from that IP address.
