06: Validate spray patterns with Advanced Hunting

Task 06: Validate spray patterns with Advanced Hunting

In the leftmost pane, select Investigation & response > Hunting > Advanced hunting.

Copy the following KQL into the query window, select the entire query, then select Run query.

Expand here to copy the KQLQuery-5

Selecting the Copy option in the upper-right corner of the code block and pasting with Ctrl+V will be significantly faster than selecting Type!

 // ---------- LAB CLOCK: dynamic window ----------
 let T0      = now(-45m);   // window start (adjust as you like)
 let Window  = 60m;         // window length
 let Start   = T0;
 let End     = T0 + Window;

 // ---------- LAB DUMMY DATA: 30 rows per table (timestamps are placeholders & will be re-timed) ----------
 let Lab_IdentityLogonEvents = datatable (Timestamp: datetime, AccountUpn: string, AccountObjectId: string, ActionType: string, FailureReason: string, LogonType: string, Protocol: string, Application: string, DeviceName: string, IPAddress: string, Location:    string, ReportId: string)
 [
     datetime(2000-01-01), "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9001",
     datetime(2000-01-01), "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9002",
     datetime(2000-01-01), "bailey.smith@contoso.com", "id-bailey.smith", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9003",
     datetime(2000-01-01), "bailey.smith@contoso.com", "id-bailey.smith", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9004",
     datetime(2000-01-01), "chris.lee@contoso.com", "id-chris.lee", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9005",
     datetime(2000-01-01), "chris.lee@contoso.com", "id-chris.lee", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9006",
     datetime(2000-01-01), "dana.kim@contoso.com", "id-dana.kim", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9007",
     datetime(2000-01-01), "dana.kim@contoso.com", "id-dana.kim", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9008",
     datetime(2000-01-01), "elena.garcia@contoso.com", "id-elena.garcia", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9009",
     datetime(2000-01-01), "elena.garcia@contoso.com", "id-elena.garcia", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9010",
     datetime(2000-01-01), "frank.wong@contoso.com", "id-frank.wong", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9011",
     datetime(2000-01-01), "frank.wong@contoso.com", "id-frank.wong", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9012",
     datetime(2000-01-01), "gina.martin@contoso.com", "id-gina.martin", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9013",
     datetime(2000-01-01), "gina.martin@contoso.com", "id-gina.martin", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9014",
     datetime(2000-01-01), "hank.wilson@contoso.com", "id-hank.wilson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9015",
     datetime(2000-01-01), "hank.wilson@contoso.com", "id-hank.wilson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9016",
     datetime(2000-01-01), "irene.patel@contoso.com", "id-irene.patel", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9017",
     datetime(2000-01-01), "irene.patel@contoso.com", "id-irene.patel", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9018",
     datetime(2000-01-01), "jason.ng@contoso.com", "id-jason.ng", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9019",
     datetime(2000-01-01), "jason.ng@contoso.com", "id-jason.ng", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9020",
     datetime(2000-01-01), "user1@contoso.com", "id-user1", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com", "203.0.113.10", "Seattle, United States", "9021",
     datetime(2000-01-01), "user2@contoso.com", "id-user2", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com", "203.0.113.10", "Seattle, United States", "9022",
     datetime(2000-01-01), "user3@contoso.com", "id-user3", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com", "203.0.113.10", "Seattle, United States", "9023",
     datetime(2000-01-01), "user4@contoso.com", "id-user4", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com", "203.0.113.10", "Seattle, United States", "9024",
     datetime(2000-01-01), "user5@contoso.com", "id-user5", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com", "203.0.113.10", "Seattle, United States", "9025",
     datetime(2000-01-01), "user6@contoso.com", "id-user6", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com", "203.0.113.10", "Seattle, United States", "9026",
     datetime(2000-01-01), "user7@contoso.com", "id-user7", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com", "203.0.113.10", "Seattle, United States", "9027",
     datetime(2000-01-01), "user8@contoso.com", "id-user8", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com", "203.0.113.10", "Seattle, United States", "9028",
     datetime(2000-01-01), "user9@contoso.com", "id-user9", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com", "203.0.113.10", "Seattle, United States", "9029",
     datetime(2000-01-01), "user10@contoso.com", "id-user10", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com", "203.0.113.10", "Seattle, United States", "9030"
 ];

 let Lab_AADSignInEventsBeta = datatable (Timestamp: datetime, Application: string, ApplicationId: string, LogonType: string, ErrorCode: int, AccountUpn: string, AccountObjectId: string, DeviceName: string, OSPlatform: string, AuthenticationRequirement: string,    RiskLevelAggregated: int, UserAgent: string, ClientAppUsed: string, Browser: string, IPAddress: string, Country: string, State: string, City: string, ReportId: string)
 [
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50,    "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9101",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50,    "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9102",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "bailey.smith@contoso.com", "id-bailey.smith", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0    (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9103",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "bailey.smith@contoso.com", "id-bailey.smith", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0    (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9104",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "chris.lee@contoso.com", "id-chris.lee", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT  10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9105",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "chris.lee@contoso.com", "id-chris.lee", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT  10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9106",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "dana.kim@contoso.com", "id-dana.kim", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9107",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "dana.kim@contoso.com", "id-dana.kim", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9108",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "elena.garcia@contoso.com", "id-elena.garcia", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0    (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9109",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "elena.garcia@contoso.com", "id-elena.garcia", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0    (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9110",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "frank.wong@contoso.com", "id-frank.wong", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9111",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "frank.wong@contoso.com", "id-frank.wong", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9112",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "gina.martin@contoso.com", "id-gina.martin", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9113",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "gina.martin@contoso.com", "id-gina.martin", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9114",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "hank.wilson@contoso.com", "id-hank.wilson", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9115",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "hank.wilson@contoso.com", "id-hank.wilson", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9116",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "irene.patel@contoso.com", "id-irene.patel", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9117",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "irene.patel@contoso.com", "id-irene.patel", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9118",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "jason.ng@contoso.com", "id-jason.ng", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9119",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "jason.ng@contoso.com", "id-jason.ng", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9120",
     // benign successes
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user1@contoso.com", "id-user1", "SEA-WKS-001.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9121",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user2@contoso.com", "id-user2", "SEA-WKS-002.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9122",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user3@contoso.com", "id-user3", "SEA-LAP-003.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9123",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user4@contoso.com", "id-user4", "SEA-WKS-001.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9124",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user5@contoso.com", "id-user5", "SEA-WKS-002.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9125",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user6@contoso.com", "id-user6", "SEA-LAP-003.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9126",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user7@contoso.com", "id-user7", "SEA-WKS-001.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9127",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user8@contoso.com", "id-user8", "SEA-WKS-002.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9128",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user9@contoso.com", "id-user9", "SEA-LAP-003.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9129",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user10@contoso.com", "id-user10", "SEA-WKS-001.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)   AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9130"
 ];

 let Lab_DeviceEvents = datatable (Timestamp: datetime, DeviceName: string, ActionType: string, AccountName: string, ReportId: long, RemoteIP: string, LocalIP: string)
 [
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "alex.johnson", 9001, "198.51.100.23", "10.0.0.10",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "bailey.smith", 9002, "198.51.100.23", "10.0.0.11",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "chris.lee", 9003, "198.51.100.23", "10.0.0.12",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "dana.kim", 9004, "198.51.100.23", "10.0.0.13",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "elena.garcia", 9005, "198.51.100.23", "10.0.0.14",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "frank.wong", 9006, "198.51.100.23", "10.0.0.15",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "gina.martin", 9007, "198.51.100.23", "10.0.0.16",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "hank.wilson", 9008, "198.51.100.23", "10.0.0.17",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "irene.patel", 9009, "198.51.100.23", "10.0.0.18",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "jason.ng", 9010, "198.51.100.23", "10.0.0.19",
     // benign device events
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user1", 9101, "203.0.113.10", "10.0.1.10",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusSignatureUpdated", "user2", 9102, "203.0.113.10", "10.0.1.11",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusSignatureUpdated", "user3", 9103, "203.0.113.10", "10.0.1.12",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user4", 9104, "203.0.113.10", "10.0.1.13",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusSignatureUpdated", "user5", 9105, "203.0.113.10", "10.0.1.14",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusSignatureUpdated", "user6", 9106, "203.0.113.10", "10.0.1.15",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user7", 9107, "203.0.113.10", "10.0.1.16",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusSignatureUpdated", "user8", 9108, "203.0.113.10", "10.0.1.17",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusSignatureUpdated", "user9", 9109, "203.0.113.10", "10.0.1.18",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user10", 9120, "203.0.113.10", "10.0.1.29"
 ];

 // ---------- MAKE LAB DATES DYNAMIC (shift into [Start..End]) ----------
 let Lab_IdentityLogonEvents_dyn =
     Lab_IdentityLogonEvents
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 let Lab_AADSignInEventsBeta_dyn =
     Lab_AADSignInEventsBeta
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 let Lab_DeviceEvents_dyn =
     Lab_DeviceEvents
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 // ---------- FRIENDLY UNIONS (use these in all queries) ----------
 let IdentityLogonEvents_all = union isfuzzy=true IdentityLogonEvents, Lab_IdentityLogonEvents_dyn;
 let AADSignInEventsBeta_all = union isfuzzy=true AADSignInEventsBeta, Lab_AADSignInEventsBeta_dyn;
 let DeviceEvents_all        = union isfuzzy=true DeviceEvents, Lab_DeviceEvents_dyn;

 // ---------- SPRAY FINDER (normalize to US) ----------
 let FailAad =
     AADSignInEventsBeta_all
     | where Timestamp between (Start .. End)
     | where ErrorCode != 0
     | where isnotempty(IPAddress)
     | extend Country = iff(Country =~ "United States", "US", Country)
     | project Timestamp, IPAddress, AccountUpn, App=Application, City, State, Country;

 let FailId =
     IdentityLogonEvents_all
     | where Timestamp between (Start .. End)
     | where ActionType =~ "LogonFailed" or isnotempty(FailureReason)
     | where isnotempty(IPAddress)
     | extend City = trim(' ', tostring(split(Location, ",")[0]))
     | extend State = "WA", Country = "US"
     | project Timestamp, IPAddress, AccountUpn, App=Application, City, State, Country;

 union isfuzzy=true FailAad, FailId
 | summarize Attempts=count(), DistinctAccounts=dcount(AccountUpn), FirstSeen=min(Timestamp), LastSeen=max(Timestamp)
           by IPAddress, Country, State
 | where DistinctAccounts >= 5 and Attempts >= 10
 | order by Attempts desc, LastSeen desc

Update the first 2 KQL entries email address domain to match your domain. e.g. AlexW@LODSM200522.OnMicrosoft.com to AlexW@ <the domain name associated with your Admin account email address gt; for KQLQuery-5 and KQLQuery-6 before executing the query.

The KQL uses demo tables_all to simulate telemetry, not your production logs. We populate the IdentityLogonEvents_all, AADSignInEventsBeta_all, and DeviceEvents_all with realistic fields and timestamps generated relative to now() so the scenarios always produce results. To run against real data, replace the *_all references (currently pointing at the lab tables) with your actual tables.

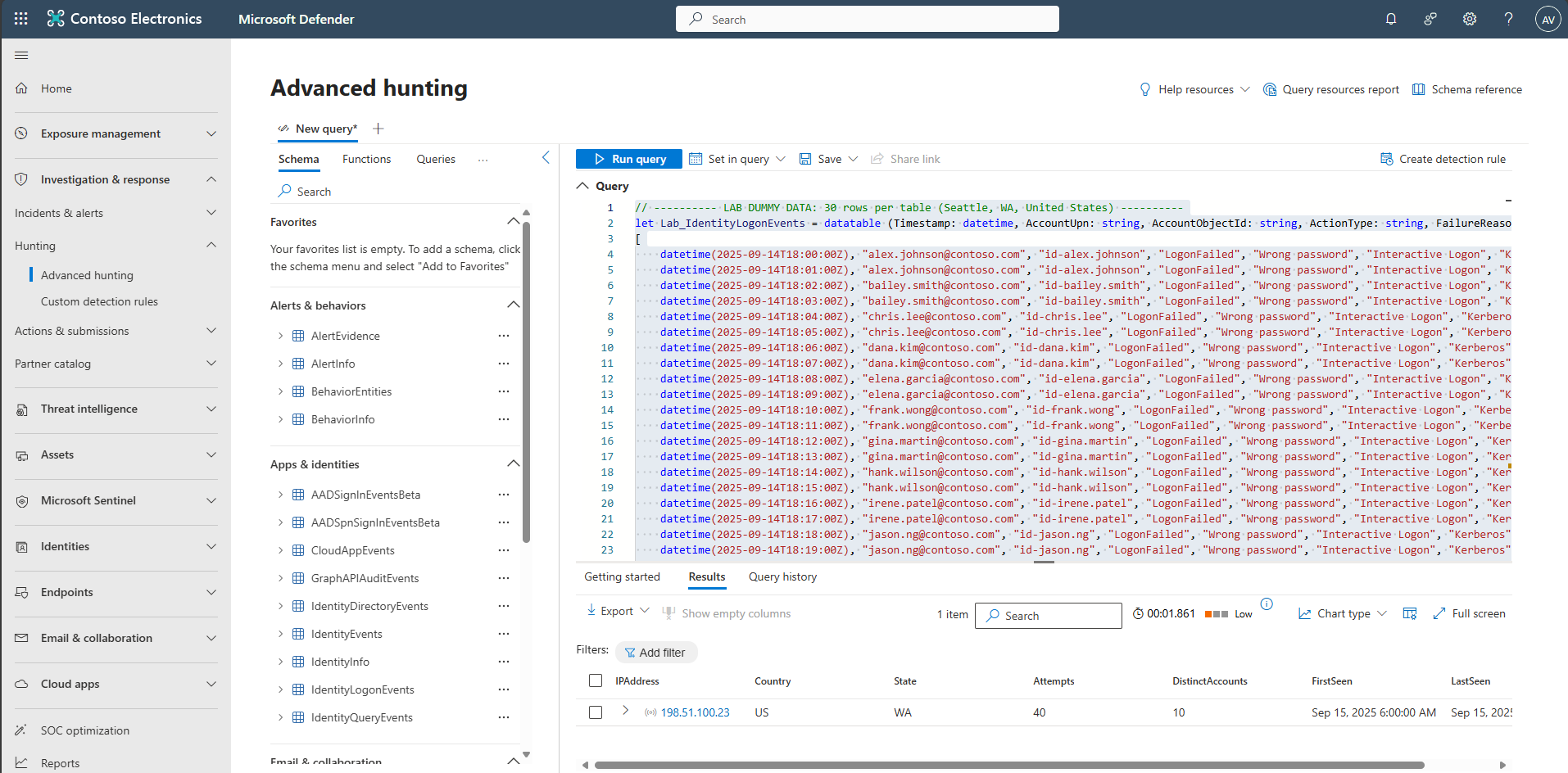

Results will show 198.51.100.23 (US-WA) with ≥10 attempts across ≥5 accounts.

Copy the following KQL into the query window, select the entire query, then select Run query.

Expand here to copy the KQLQuery-6

Selecting the Copy option in the upper-right corner of the code block and pasting with Ctrl+V will be significantly faster than selecting Type!

 // ---------- LAB CLOCK: dynamic window ----------
 let T0      = now(-45m);     // window start (adjust as needed)
 let Window  = 60m;           // window length
 let Start   = T0;
 let End     = T0 + Window;

 // ---------- LAB DUMMY DATA: 30 rows per table (timestamps are placeholders) ----------
 let Lab_IdentityLogonEvents = datatable (Timestamp: datetime, AccountUpn: string, AccountObjectId: string, ActionType: string, FailureReason: string, LogonType: string, Protocol: string, Application: string, DeviceName: string, IPAddress: string, Location:    string, ReportId: string)
 [
     datetime(2000-01-01), "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9001",
     datetime(2000-01-01), "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9002",
     datetime(2000-01-01), "bailey.smith@contoso.com", "id-bailey.smith", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9003",
     datetime(2000-01-01), "bailey.smith@contoso.com", "id-bailey.smith", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9004",
     datetime(2000-01-01), "chris.lee@contoso.com", "id-chris.lee", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9005",
     datetime(2000-01-01), "chris.lee@contoso.com", "id-chris.lee", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9006",
     datetime(2000-01-01), "dana.kim@contoso.com", "id-dana.kim", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9007",
     datetime(2000-01-01), "dana.kim@contoso.com", "id-dana.kim", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9008",
     datetime(2000-01-01), "elena.garcia@contoso.com", "id-elena.garcia", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9009",
     datetime(2000-01-01), "elena.garcia@contoso.com", "id-elena.garcia", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9010",
     datetime(2000-01-01), "frank.wong@contoso.com", "id-frank.wong", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9011",
     datetime(2000-01-01), "frank.wong@contoso.com", "id-frank.wong", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9012",
     datetime(2000-01-01), "gina.martin@contoso.com", "id-gina.martin", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9013",
     datetime(2000-01-01), "gina.martin@contoso.com", "id-gina.martin", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9014",
     datetime(2000-01-01), "hank.wilson@contoso.com", "id-hank.wilson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9015",
     datetime(2000-01-01), "hank.wilson@contoso.com", "id-hank.wilson", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-002.contoso.com", "198.51.100.23", "Seattle, United States", "9016",
     datetime(2000-01-01), "irene.patel@contoso.com", "id-irene.patel", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9017",
     datetime(2000-01-01), "irene.patel@contoso.com", "id-irene.patel", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-LAP-003.contoso.com", "198.51.100.23", "Seattle, United States", "9018",
     datetime(2000-01-01), "jason.ng@contoso.com", "id-jason.ng", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9019",
     datetime(2000-01-01), "jason.ng@contoso.com", "id-jason.ng", "LogonFailed", "Wrong password", "Interactive Logon", "Kerberos", "Microsoft Teams", "SEA-WKS-001.contoso.com", "198.51.100.23", "Seattle, United States", "9020",
     datetime(2000-01-01), "user1@contoso.com", "id-user1", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com", "203.0.113.10", "Seattle, United States", "9021",
     datetime(2000-01-01), "user2@contoso.com", "id-user2", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com", "203.0.113.10", "Seattle, United States", "9022",
     datetime(2000-01-01), "user3@contoso.com", "id-user3", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com", "203.0.113.10", "Seattle, United States", "9023",
     datetime(2000-01-01), "user4@contoso.com", "id-user4", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com", "203.0.113.10", "Seattle, United States", "9024",
     datetime(2000-01-01), "user5@contoso.com", "id-user5", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com", "203.0.113.10", "Seattle, United States", "9025",
     datetime(2000-01-01), "user6@contoso.com", "id-user6", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com", "203.0.113.10", "Seattle, United States", "9026",
     datetime(2000-01-01), "user7@contoso.com", "id-user7", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com", "203.0.113.10", "Seattle, United States", "9027",
     datetime(2000-01-01), "user8@contoso.com", "id-user8", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-002.contoso.com", "203.0.113.10", "Seattle, United States", "9028",
     datetime(2000-01-01), "user9@contoso.com", "id-user9", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-LAP-003.contoso.com", "203.0.113.10", "Seattle, United States", "9029",
     datetime(2000-01-01), "user10@contoso.com", "id-user10", "LogonSuccess", "", "Interactive Logon", "Kerberos", "SharePoint Online", "SEA-WKS-001.contoso.com", "203.0.113.10", "Seattle, United States", "9030"
 ];

 let Lab_AADSignInEventsBeta = datatable (Timestamp: datetime, Application: string, ApplicationId: string, LogonType: string, ErrorCode: int, AccountUpn: string, AccountObjectId: string, DeviceName: string, OSPlatform: string, AuthenticationRequirement: string,    RiskLevelAggregated: int, UserAgent: string, ClientAppUsed: string, Browser: string, IPAddress: string, Country: string, State: string, City: string, ReportId: string)
 [
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50,    "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9101",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "AlexW@LODSM200522.OnMicrosoft.com", "id-alex.johnson", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50,    "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9102",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "bailey.smith@contoso.com", "id-bailey.smith", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0    (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9103",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "bailey.smith@contoso.com", "id-bailey.smith", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0    (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9104",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "chris.lee@contoso.com", "id-chris.lee", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT  10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9105",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "chris.lee@contoso.com", "id-chris.lee", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT  10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9106",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "dana.kim@contoso.com", "id-dana.kim", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9107",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "dana.kim@contoso.com", "id-dana.kim", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9108",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "elena.garcia@contoso.com", "id-elena.garcia", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0    (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9109",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "elena.garcia@contoso.com", "id-elena.garcia", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0    (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9110",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "frank.wong@contoso.com", "id-frank.wong", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9111",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "frank.wong@contoso.com", "id-frank.wong", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9112",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "gina.martin@contoso.com", "id-gina.martin", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9113",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "gina.martin@contoso.com", "id-gina.martin", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9114",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "hank.wilson@contoso.com", "id-hank.wilson", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9115",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "hank.wilson@contoso.com", "id-hank.wilson", "SEA-WKS-002.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9116",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "irene.patel@contoso.com", "id-irene.patel", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9117",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "irene.patel@contoso.com", "id-irene.patel", "SEA-LAP-003.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows     NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9118",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "jason.ng@contoso.com", "id-jason.ng", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9119",
     datetime(2000-01-01), "Office 365 Exchange Online", "00000002-0000-0ff1-ce00-000000000000", "interactive", 50126, "jason.ng@contoso.com", "id-jason.ng", "SEA-WKS-001.contoso.com", "Windows 11", "singleFactorAuthentication", 50, "Mozilla/5.0 (Windows NT    10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "198.51.100.23", "US", "WA", "Seattle", "9120",
     // benign successes
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user1@contoso.com", "id-user1", "SEA-WKS-001.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9121",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user2@contoso.com", "id-user2", "SEA-WKS-002.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9122",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user3@contoso.com", "id-user3", "SEA-LAP-003.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9123",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user4@contoso.com", "id-user4", "SEA-WKS-001.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9124",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user5@contoso.com", "id-user5", "SEA-WKS-002.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9125",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user6@contoso.com", "id-user6", "SEA-LAP-003.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9126",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user7@contoso.com", "id-user7", "SEA-WKS-001.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9127",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user8@contoso.com", "id-user8", "SEA-WKS-002.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9128",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user9@contoso.com", "id-user9", "SEA-LAP-003.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)     AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9129",
     datetime(2000-01-01), "Microsoft Teams", "1fec8e78-bce4-4aaf-ab1b-5451cc387264", "interactive", 0, "user10@contoso.com", "id-user10", "SEA-WKS-001.contoso.com", "Windows 11", "multiFactorAuthentication", 1, "Mozilla/5.0 (Windows NT 10.0; Win64; x64)   AppleWebKit/537.36 Edge/120.0", "Browser", "Edge", "203.0.113.10", "US", "WA", "Seattle", "9130"
 ];

 let Lab_DeviceEvents = datatable (Timestamp: datetime, DeviceName: string, ActionType: string, AccountName: string, ReportId: long, RemoteIP: string, LocalIP: string)
 [
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "alex.johnson", 9001, "198.51.100.23", "10.0.0.10",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "bailey.smith", 9002, "198.51.100.23", "10.0.0.11",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "chris.lee", 9003, "198.51.100.23", "10.0.0.12",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "dana.kim", 9004, "198.51.100.23", "10.0.0.13",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "elena.garcia", 9005, "198.51.100.23", "10.0.0.14",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "frank.wong", 9006, "198.51.100.23", "10.0.0.15",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "gina.martin", 9007, "198.51.100.23", "10.0.0.16",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusDetection", "hank.wilson", 9008, "198.51.100.23", "10.0.0.17",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusDetection", "irene.patel", 9009, "198.51.100.23", "10.0.0.18",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusDetection", "jason.ng", 9010, "198.51.100.23", "10.0.0.19",
     // benign device events (shortened)
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user1", 9101, "203.0.113.10", "10.0.1.10",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusSignatureUpdated", "user2", 9102, "203.0.113.10", "10.0.1.11",
     datetime(2000-01-01), "SEA-LAP-003.contoso.com", "AntivirusSignatureUpdated", "user3", 9103, "203.0.113.10", "10.0.1.12",
     datetime(2000-01-01), "SEA-WKS-001.contoso.com", "AntivirusSignatureUpdated", "user4", 9104, "203.0.113.10", "10.0.1.13",
     datetime(2000-01-01), "SEA-WKS-002.contoso.com", "AntivirusSignatureUpdated", "user5", 9105, "203.0.113.10", "10.0.1.14"
 ];

 // ---------- MAKE LAB DATES DYNAMIC (shift into [Start..End]) ----------
 let Lab_IdentityLogonEvents_dyn =
     Lab_IdentityLogonEvents
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 let Lab_AADSignInEventsBeta_dyn =
     Lab_AADSignInEventsBeta
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 let Lab_DeviceEvents_dyn =
     Lab_DeviceEvents
     | order by Timestamp asc
     | serialize idx = row_number() - 1
     | extend Timestamp = Start + idx*1m;

 // ---------- FRIENDLY UNIONS (use these in all queries) ----------
 let IdentityLogonEvents_all = union isfuzzy=true IdentityLogonEvents, Lab_IdentityLogonEvents_dyn;
 let AADSignInEventsBeta_all = union isfuzzy=true AADSignInEventsBeta, Lab_AADSignInEventsBeta_dyn;
 let DeviceEvents_all        = union isfuzzy=true DeviceEvents, Lab_DeviceEvents_dyn;

 // ---------- SPRAY IP CANDIDATES ----------
 let SprayIPs =
     union isfuzzy=true
         (AADSignInEventsBeta_all
             | where Timestamp between (Start .. End)
             | where ErrorCode != 0
             | project IPAddress),
         (IdentityLogonEvents_all
             | where Timestamp between (Start .. End)
             | where ActionType =~ "LogonFailed" or isnotempty(FailureReason)
             | project IPAddress)
     | where isnotempty(IPAddress)
     | summarize by IPAddress;

 // ---------- RESULTS (normalize "United States" -> "US" when shown) ----------
 union
 (
     AADSignInEventsBeta_all
     | where Timestamp between (Start .. End)
     | where ErrorCode != 0
     | where IPAddress in (SprayIPs | project IPAddress)
     | project Timestamp, AccountUpn, IPAddress, Application, AuthenticationRequirement, RiskLevelAggregated
 ),
 (
     IdentityLogonEvents_all
     | where Timestamp between (Start .. End)
     | where ActionType =~ "LogonFailed" or isnotempty(FailureReason)
     | where IPAddress in (SprayIPs | project IPAddress)
     | extend Location = replace_string(Location, "United States", "US")
     | project Timestamp, AccountUpn, IPAddress, Application, LogonType, FailureReason
 )
 | summarize LastFailed=max(Timestamp), Attempts=count() by AccountUpn, IPAddress
 | order by Attempts desc, AccountUpn asc

Update the first 2 KQL entries email address domain to match your domain. e.g. AlexW@LODSM200522.OnMicrosoft.com to AlexW@ <the domain name associated with your Admin account email address gt; for KQLQuery-5 and KQLQuery-6 before executing the query.

The KQL uses demo tables_all to simulate telemetry, not your production logs. We populate the IdentityLogonEvents_all, AADSignInEventsBeta_all, and DeviceEvents_all with realistic fields and timestamps generated relative to now() so the scenarios always produce results. To run against real data, replace the *_all references (currently pointing at the lab tables) with your actual tables.

Results will show impacted accounts and last failed datetime.

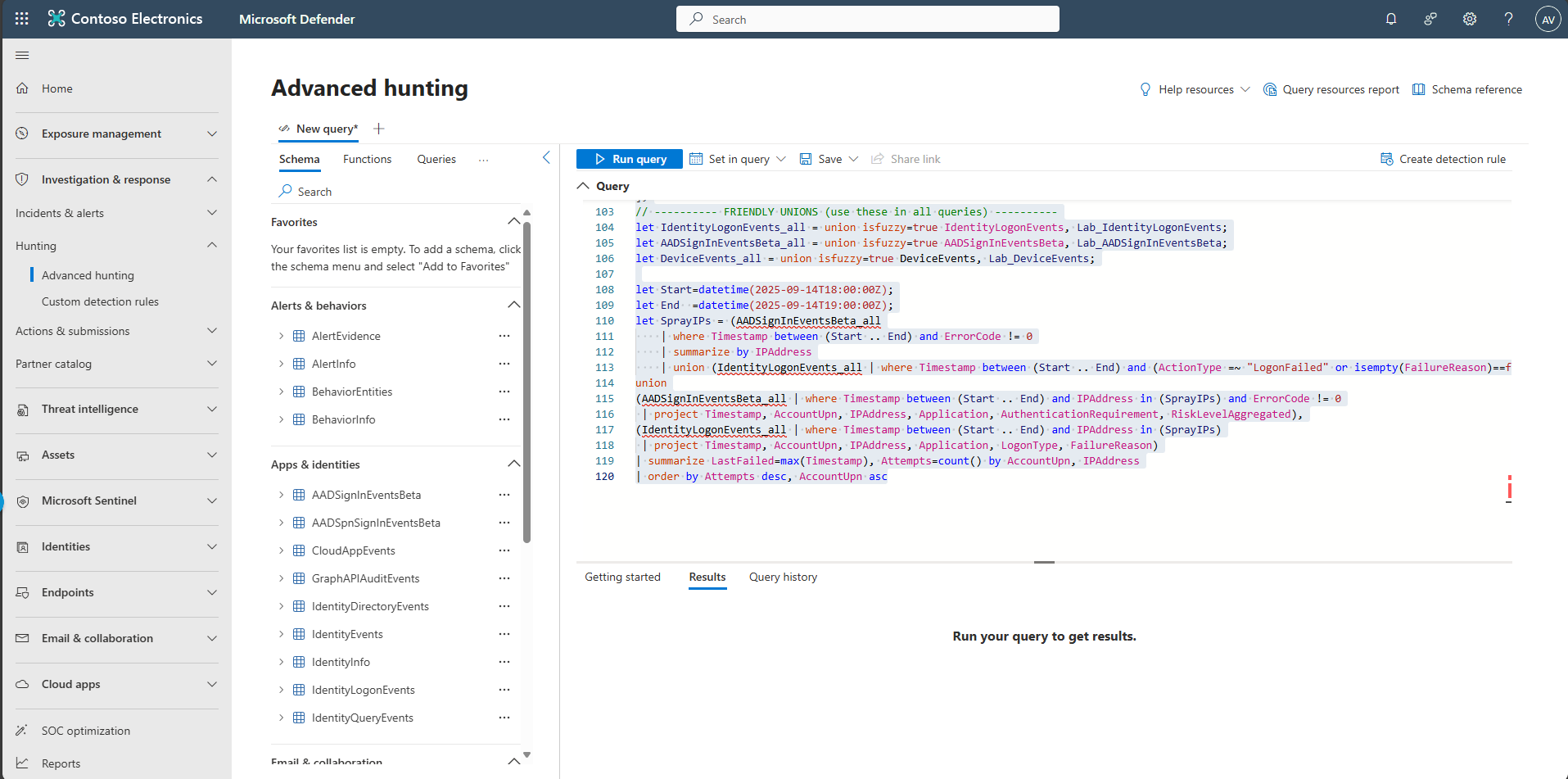

Copy the following KQL into the query window, select the entire query, then select Run query.

Expand here to copy the KQLQuery-7

Selecting the Copy option in the upper-right corner of the code block and pasting with Ctrl+V will be significantly faster than selecting Type!

 // ---------- LAB CLOCK (dynamic) ----------
 let T0     = now(-45m);   // window start
 let Window = 60m;         // window size
 let Start  = T0;
 let End    = T0 + Window;

 // ---------- LAB DUMMY DATA: 30 rows per table (generated, no hard-coded dates) ----------

 // Identity logons: first 20 = failures from 198.51.100.23, last 10 = successes from 203.0.113.10
 let Lab_IdentityLogonEvents =
 range i from 0 to 29 step 1
 | extend Timestamp = Start + i*1m
 , AccountUpn = tostring(dynamic([
     "AlexW@LODSM200522.OnMicrosoft.com","bailey.smith@contoso.com","chris.lee@contoso.com",
     "dana.kim@contoso.com","elena.garcia@contoso.com","frank.wong@contoso.com",
     "gina.martin@contoso.com","hank.wilson@contoso.com","irene.patel@contoso.com","jason.ng@contoso.com"
 ])[i % 10])
 | extend AccountObjectId = strcat("id-", tostring(split(AccountUpn, "@")[0]))
 | extend ActionType    = iff(i < 20, "LogonFailed", "LogonSuccess")
 , FailureReason        = iff(i < 20, "Wrong password", "")
 , LogonType            = "Interactive Logon"
 , Protocol             = "Kerberos"
 , Application          = iff(i < 20, "Microsoft Teams", "SharePoint Online")
 , DeviceName           = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , IPAddress            = iff(i < 20, "198.51.100.23", "203.0.113.10")
 , Location             = "Seattle, US"
 , ReportId             = tostring(9001 + i)
 | project Timestamp, AccountUpn, AccountObjectId, ActionType, FailureReason, LogonType, Protocol, Application, DeviceName, IPAddress, Location, ReportId;

 // AAD sign-ins: first 20 = failures (ErrorCode 50126) from 198.51.100.23, last 10 = benign successes from 203.0.113.10
 let Lab_AADSignInEventsBeta =
 range i from 0 to 29 step 1
 | extend Timestamp    = Start + (i+1)*1m
 , Application         = iff(i < 20, "Office 365 Exchange Online", "Microsoft Teams")
 , ApplicationId       = iff(i < 20, "00000002-0000-0ff1-ce00-000000000000", "1fec8e78-bce4-4aaf-ab1b-5451cc387264")
 , LogonType           = "interactive"
 , ErrorCode           = iff(i < 20, 50126, 0)
 , AccountUpn          = tostring(dynamic([
     "AlexW@LODSM200522.OnMicrosoft.com","bailey.smith@contoso.com","chris.lee@contoso.com","dana.kim@contoso.com",
     "elena.garcia@contoso.com","frank.wong@contoso.com","gina.martin@contoso.com","hank.wilson@contoso.com",
     "irene.patel@contoso.com","jason.ng@contoso.com","user1@contoso.com","user2@contoso.com","user3@contoso.com",
     "user4@contoso.com","user5@contoso.com","user6@contoso.com","user7@contoso.com","user8@contoso.com",
     "user9@contoso.com","user10@contoso.com"
 ])[i % 20])
 | extend AccountObjectId           = strcat("id-", tostring(split(AccountUpn, "@")[0]))
 , DeviceName                       = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , OSPlatform                       = "Windows 11"
 , AuthenticationRequirement        = iff(i < 20, "singleFactorAuthentication", "multiFactorAuthentication")
 , RiskLevelAggregated              = iff(i < 20, 50, 1)
 , UserAgent                        = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Edge/120.0"
 , ClientAppUsed                    = "Browser"
 , Browser                          = "Edge"
 , IPAddress                        = iff(i < 20, "198.51.100.23", "203.0.113.10")
 , Country                          = "US"
 , State                            = "WA"
 , City                             = "Seattle"
 , ReportId                         = tostring(9101 + i)
 | project Timestamp, Application, ApplicationId, LogonType, ErrorCode, AccountUpn, AccountObjectId, DeviceName, OSPlatform, AuthenticationRequirement, RiskLevelAggregated, UserAgent, ClientAppUsed, Browser, IPAddress, Country, State, City, ReportId;

 // Device events: 10 detections (map to 198.51.100.23) + 20 benign signature updates (203.0.113.10)
 let Lab_DeviceEvents =
 range i from 0 to 29 step 1
 | extend Timestamp   = Start + (i+5)*1m
 , DeviceName         = tostring(dynamic(["SEA-WKS-001.contoso.com","SEA-WKS-002.contoso.com","SEA-LAP-003.contoso.com"])[i % 3])
 , ActionType         = iff(i < 10, "AntivirusDetection", "AntivirusSignatureUpdated")
 , AccountName        = tostring(dynamic([
     "alex.johnson","bailey.smith","chris.lee","dana.kim","elena.garcia","frank.wong","gina.martin","hank.wilson","irene.patel","jason.ng",
     "user1","user2","user3","user4","user5","user6","user7","user8","user9","user10"
 ])[i % 20])
 , ReportId           = tolong(9001 + i)
 , RemoteIP           = iff(i < 10, "198.51.100.23", "203.0.113.10")
 | extend Subnet = 1 + toint(i/10)              // define in its own extend
 | extend LocalIP = strcat("10.0.", tostring(Subnet), ".", tostring(10 + (i % 10)))  // use Subnet after it exists
 | project Timestamp, DeviceName, ActionType, AccountName, ReportId, RemoteIP, LocalIP;

 // ---------- FRIENDLY UNIONS (lab-only) ----------
 let IdentityLogonEvents_all = Lab_IdentityLogonEvents;
 let AADSignInEventsBeta_all = Lab_AADSignInEventsBeta;
 let DeviceEvents_all        = Lab_DeviceEvents;

 // ---------- SPRAY SOURCE IPs (failures across AAD + Identity) ----------
 let SprayIPs =
     (AADSignInEventsBeta_all
      | where Timestamp between (Start .. End) and ErrorCode != 0
      | summarize by IPAddress)
     | union
     (IdentityLogonEvents_all
      | where Timestamp between (Start .. End)
      | where ActionType =~ "LogonFailed" or isnotempty(FailureReason)
      | summarize by IPAddress)
     | distinct IPAddress;

 // ---------- CORRELATE TO DEVICE DETECTIONS FROM THOSE IPs ----------

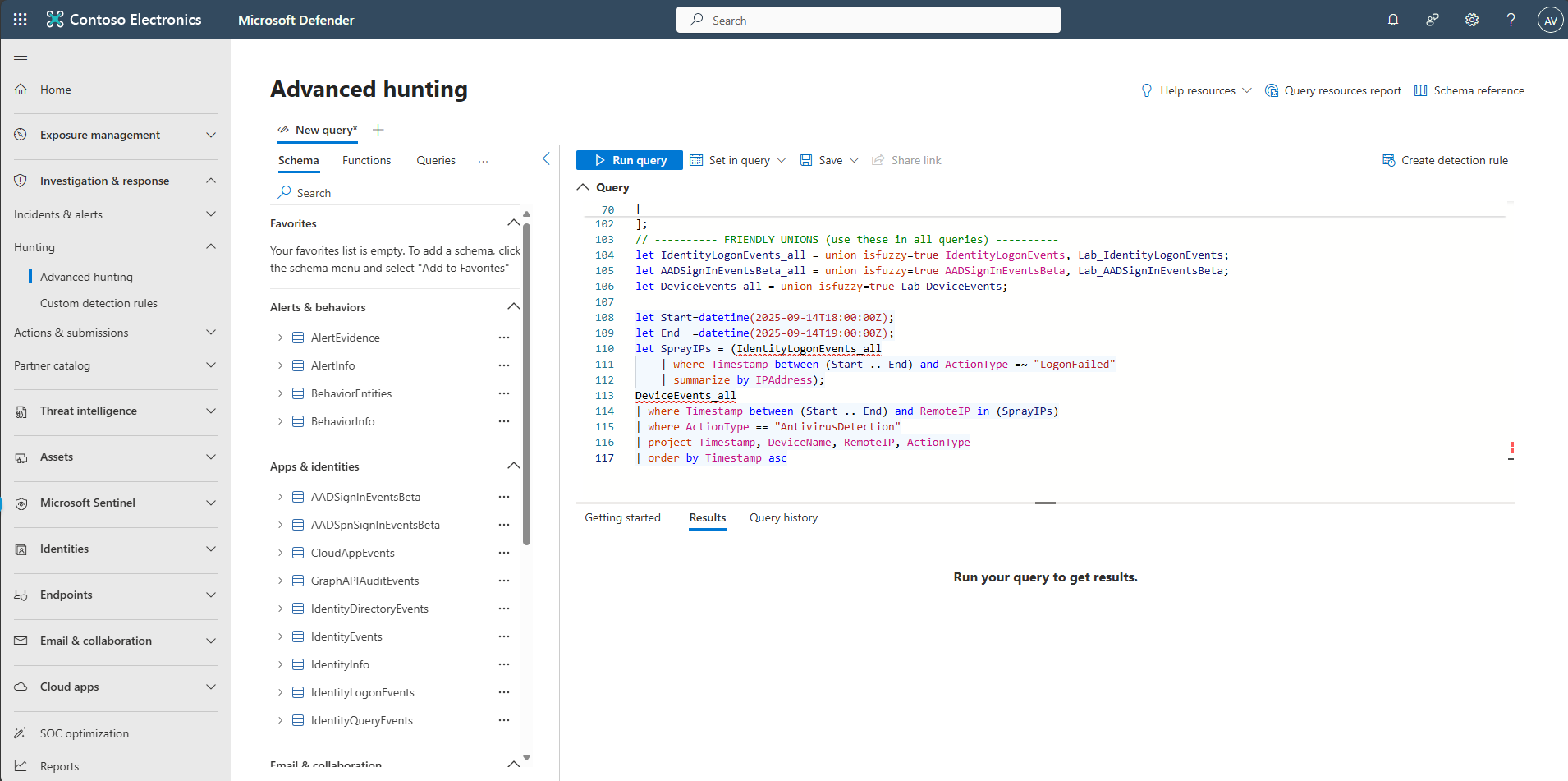

 DeviceEvents_all
 | where Timestamp between (Start .. End)
 | where ActionType == "AntivirusDetection"
 | where RemoteIP in (SprayIPs | project IPAddress)
 | project Timestamp, DeviceName, RemoteIP, ActionType
 | order by Timestamp asc

For KQLQuery-7, KQLQuery-8, KQLQuery-9 update AlexW@LODSM200522.OnMicrosoft.com to AlexW@ <the domain name associated with your Admin account email address> before executing the query.

The KQL uses demo tables_all to simulate telemetry, not your production logs. We populate the IdentityLogonEvents_all, AADSignInEventsBeta_all, and DeviceEvents_all with realistic fields and timestamps generated relative to now() so the scenarios always produce results. To run against real data, replace the *_all references (currently pointing at the lab tables) with your actual tables.

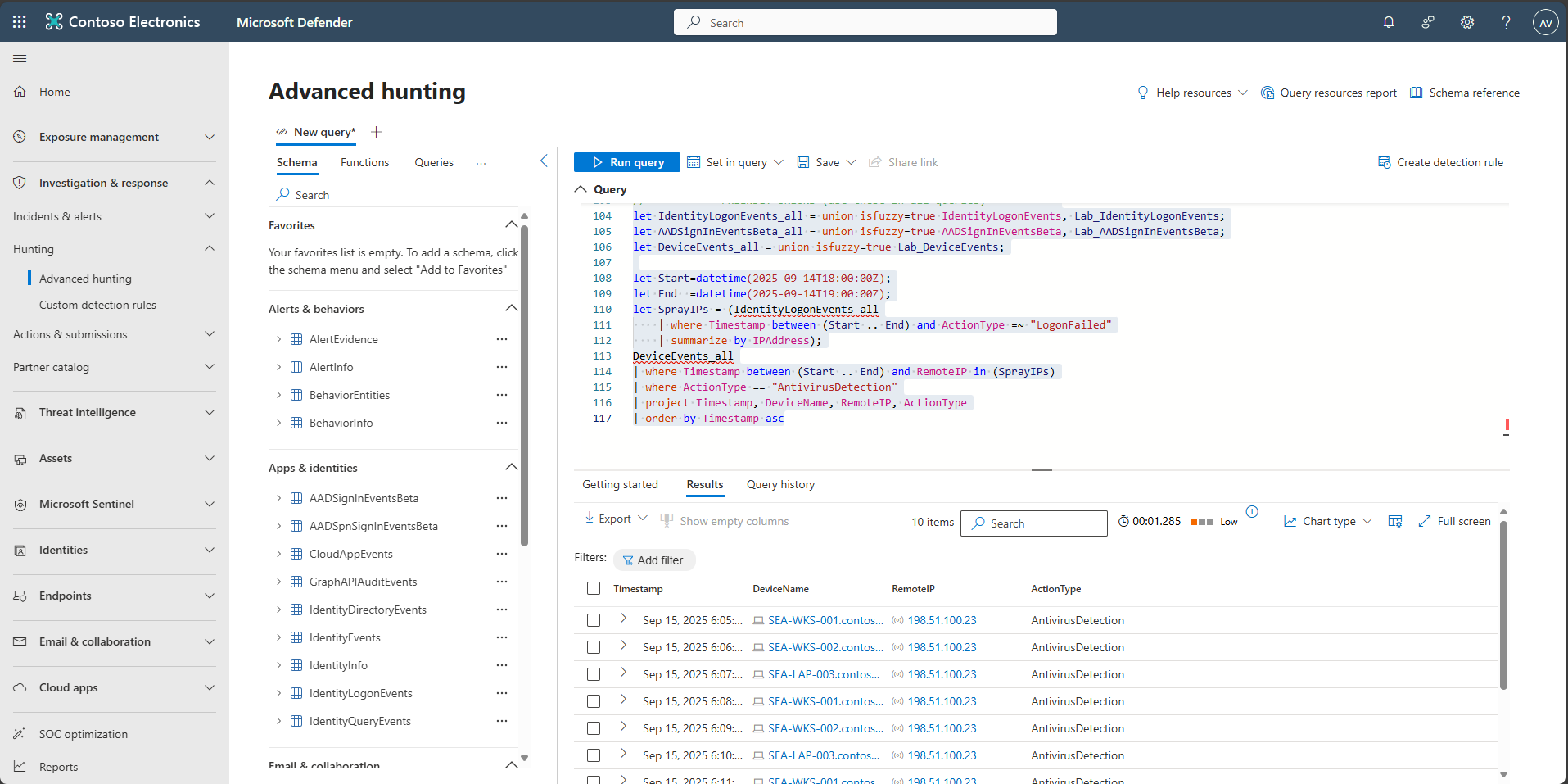

Results will show impacted devices.
